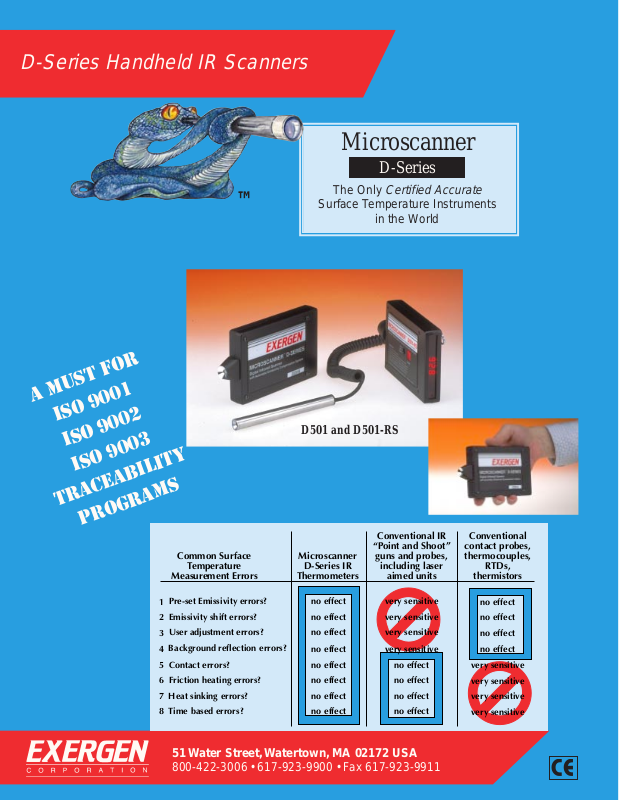

Exergen D-Series User Manual

D-Series Handheld IR Scanners
Microscanner
D-Series
A MUST FOR
ISO 9001
ISO 9002
ISO 9003
The Only
Certified Accurate
Surface Temperature Instruments
in the World
D501 and D501-RS
TRACEABILITY
PROGRAMS
Common Surface
Measurement Errors
Pre-set Emissivity errors? very sensitive
1
Emissivity shift errors? very sensitive
2
User adjustment errors? very sensitive
3
Background reflection errors?
4
Contact errors? no effect
5
Friction heating errors? no effect
6
Heat sinking errors? no effect
7
Time based errors? no effect
8
51 Water Street, Watertown, MA 02172 USA
800-422-3006 • 617-923-9900 • F ax 617-923-9911
Temperature
Conventional IR
“Point and Shoot”
Microscanner
D-Series IR
Thermometers
no effect
no effect
no effect
no effect no effect
no effect
no effect
no effect
no effect
guns and probes,
including laser
aimed units
very sensitive
51 Water Street, Watertown, MA 02172 USA
800-422-3006 • 617-923-9900 • Fax 617-923-9911
Conventional contact probes, thermocouples,
thermistors
very sensitive
very sensitive
very sensitive
very sensitive
RTDs,
no effect
no effect
no effect
D-Series Handheld IR Scanners
The D-Series is an entirely different type of instrument than conventional temper ature measuring devices. Designed specifically for the highest possible accuracy, it is the only infrared instrument which can be certified as to NIST-tracable accuracy on real surfaces of unknown emissivity, while completely free of contact errors and heat sinking errors of contact devices.
Actual measurement area is in the center, well away from the area contacted by the edge of the cone.
Recessed cone traps all emitted surface radiation, and blocks out any radiation from environment.
Only a thin lip of material actually contacts the target, thus minimizing heat transfer.
Figure 1. Unique Automatic Emissivity Compensation System (AECS) produces accurate temperatures everywhere the infrared probe is placed, by creating its own blackbody.
Reflective cone automatically corrects for emissivity variations by creating an actual blackbody at the precise location of measurement.
Effect of Emissivity on Temperature Reading for a
500°F (260°C) Target in 70°F (21°C) ambient
deg F
550 500 450 400 350 300
Non-metals and Oxides
1. Emissivity errors The true emissivity of a surface is known only
approximately. Conventional IR de vices without Exergen’ s A utomatic Emissivity Compensation System can only display an approximate temperature ov er their entire temperature range.
The “accuracy” specifications giv en by most manufacturers are only f or a “b lack body” calibration and do not hold outside laboratory conditions. Blac k body calibr ations do not include emissivity shifts, ambient change effects on the target, and other phenomena that
Figure 2. D-Series is accurate over a wide emissivity range, sufficient to include all non-metals. If a marker (or any other non-metal coating) is used, the D-series is accurate on clean metals as well. Conventional IR devices have considerable inaccuracy.
introduce significant errors.
2. Emissivity shift errors Even if an IR “gun” is set to the correct emissivity to read a surf ace
accurately at a particular temperature, it does not mean that the IR “gun” will read the same target correctly at other temperatures. Emissivity of virtually all surfaces changes with temperature. A common assumption for conv entional IR thermometry is that emissivity is constant with changes in target surface temperature. Real materials do not have this characteristic.
D-Series using marker
D-Series w/o marker
Conventional Infrared
Emissivity
ε
Conventional IR assumption
290
deg C 200
150
00.20.40.60.81
Clean Metals
Actual emissivity
51 Water Street, Watertown, MA 02172 USA
800-422-3006 • 617-923-9900 • Fax 617-923-9911
Temperature
C
D-Series Handheld IR Scanners
3. User adjustment errors A setting of emissivity = 0.9 on an IR “gun” from one
manufacturer will not necessarily match that of another IR “gun” from another manuf acturer. There are no standards set in the industry on the precise measurement and meaning of “emissivity”.
Also, Quality Assurance progr ams should not rely upon any instrument that allows users to alter the instrument settings and to let it display whatev er the user wishes.
4. Bac kg round reflection errors Even if emissivity is constant (see #2), there are still errors
induced by changing ambient temperatures. For e xample, with emissivity = 0.9, ambient reflections account for 10% of the signal that the IR “gun” will see. If ambient changes, the IR “gun” will display a diff erent target temperature ,
even if
the target remains at the same temperature.
5. Contact errors Thermocouples, RTDs, thermistors and other contact
devices
only measure their own temperature. The y do not measure surface temperature. Published “Accuracy” specifications are for the probes only, not the surfaces they must measure. Users must guarantee that the probes are brought to the same temperature as the surface. Can you guarantee that your probes are brought to the same temperature as the targets to be measured?
6. Friction heating errors For moving surf aces, a contact probe is prone to frictional
heating. The size of the error is dependent on the rough­ness of the surface, the speed, the coating on the probe, and so on. It is impossib le to control all the v ariables.
7. Heat sinking errors
Effect of Ambient Temperature on Target Reading
Target T (F)
110 106 102
500 400 300
deg F
200 100
for 100°F (38°C) Target with .8 Emissivity
4 162738
Conventional Infrared
D-Series
98 94 90
0 20406080100120
Ambient T (F)
Figure 3. D-Series remains accurate even if the ambient temperature varies, while conventional IR devices have considerable inaccuracies.
Time Comparison Between D-Series and Contact
Thermocouple for Measuring a 500 °F (260°C) Surface
Contact Error
D-Series
Contact Probes
0
0.001 0.01 0.1 1 10 100 1000 Time from start of Measurement (sec)
Figure 4. D-Series measures surface temperature in a fraction of a second, while contact probes (thermocouples, RTD’s, thermistors, etc.) require many minutes to acheive equilibrium. Contact probes always have a residual error due to imperfect heat transfer from the surface to probe.
(C)
43
38
32
260 200
150
90
deg
For most non-metals, heat sinking errors can be quite large. The heat transf er rate of the metal leads required on “contact probes” conducts heat faster than the target material can replace , resulting in unknown and f airly large errors. In general, the less dense the target material, the larger the heat sinking error with a contact probe.
8. Time based errors Contact temperature probes are slow . The temper ature of a target can change more quic kly than most probes,
resulting in errors in real time measurement.
51 Water Street, Watertown, MA 02172 USA
800-422-3006 • 617-923-9900 • Fax 617-923-9911
D-Series Handheld IR Scanners
Infrared
Psychrometry
with the
Psychrometrics, the science of measurement and control of moisture in air, is based entirely on thermodynamics of air and water: the properties and
temperature
common parameters used to describe the psychro­metric state of air in an environment, in an oven, or any area where moisture content can influence product quality or personnel comfort.
The accurate and reliable measurement of RH is one of the most challenging tasks in industry, and has included devices such as chilled mirrors, lithium chloride cells, aluminum oxide sensors, capacitance polymer sensors, hair hygrometers , carbon hygristors, and a wide variety of technologies to meet the requirements. Calibration and certification has been even more difficult, due to the f act that most humidity measuring devices employ methods and therefore hav e limited traceability.
. Relativ e humidity (RH) is one of the
indirect
Microscanner
D-Series:
Measure
Relative Humidity
to
Certified Accuracy
±
0.5% RH
Air Flow
Thin layer of evaporating water
at thermodynamic equilibrium:
wet-bulb temperature
A MUST FOR
ISO 9001
ISO 9002
ISO 9003
TRACEABILITY
PROGRAMS
Wet Porous Material
The Infrared Psychrometry method with the D­Series is a direct application of the thermodynamics and mathematics that defines humidity: the D-Series is capable of measuring the true wet-bulb tempera­ture accurately , and with the dry-bulb temperature , the RH can be computed to a very high accuracy via standard psychrometric equations. The process is as follows:
A porous material (filter paper is suitable) is wetted with water (purity is not important), and air from the environment flows across the surface to bring the surface to thermodynamic equilibrium with the air, i.e. to the lowest possib le temperature produced b y the evaporating w ater , which is the wet-bulb tem­perature.
51 Water Street, Watertown, MA 02172 USA
800-422-3006 • 617-923-9900 • Fax 617-923-9911
D-Series Handheld IR Scanners
The porous material, cooled on both sides by evaporating w ater , reaches wet-b ulb tempera­ture throughout the material, thus maintaining wet-bulb temperature at the surface f or several seconds after the air flo w stops. Since the water is opaque to infrared w av elengths, in as thin a layer as .002 in. (.05 mm), and the D-Series is able to measure the temperature with a time constant of 0.1 seconds, an accurate measurement of the wet-bulb temper ature is obtained. The same procedure is employ ed on a non-porous material to obtain an accu­rate dry-bulb temperature.
With the appropriate psychrometric equations, the RH is immediately calculated. Each D-Series is equipped with, as a standard accessory, an RH Kit, which includes a con venient card with the wet and dry materials, simple RH and Dewpoint calculator, and handy tube of water.
Maximum accuracy for RH measurement is obtained with the D-Series models measuring
0.1° resolution. Though the absolute accuracy of the D-Series is not 0.1°, the RH is most sensitive to wet-bulb depression, i.e. the difference between dry-bulb and wet-bulb tempera­ture. In its differential mode , the D-Series is accurate to 0.1°, which translates to an RH accuracy of approximately 0.5% f or the normal range of RH.
Also Manufactured by Exer gen Industrial Division
IR detector
D-Series nosepiece
surface at wet-bulb temperature
in the field-of-view of detector
IRt/c Infrared Thermocouples
Low-cost, high-quality sensors for non-contact temperature measurement and control. IRt/c sensors are used by more customers worldwide for process control, factory automation and OEM applications than any other IR de vice in the world. The small, easy to use IRt/c sensors require no power and connect directly to standard thermocouple devices av ailable worldwide . Ov er 300 models offered, covering temperature r anges from -50 to 5000F (-45 to 2760C) with up to 0.01C precision.
For more information and pricing, please request a free copy of
The IRt/c Book
catalog from your local distributor , or Exergen.
Microscanner E-Series
Distributed by:
Microscanner E-Series and IR.1Probe for Electrical Inspection
These unique handheld instruments are used by professionals for fast, accurate scanning of electrical equipment. The Microscanner Super E with a 200:1 lens, color-coded display and optional pointing laser is the fastest and most powerful poc ket-siz ed electrical IR scanner in the world. The IR.1Probe is a lo w cost electrical IR scanner for use with standard digital multimeters. Contact Exergen or your local distributor f or more inf ormation.
PN818103 REV.3
51 Water Street, Watertown, MA 02172 USA
800-422-3006 • 617-923-9900 • Fax 617-923-9911

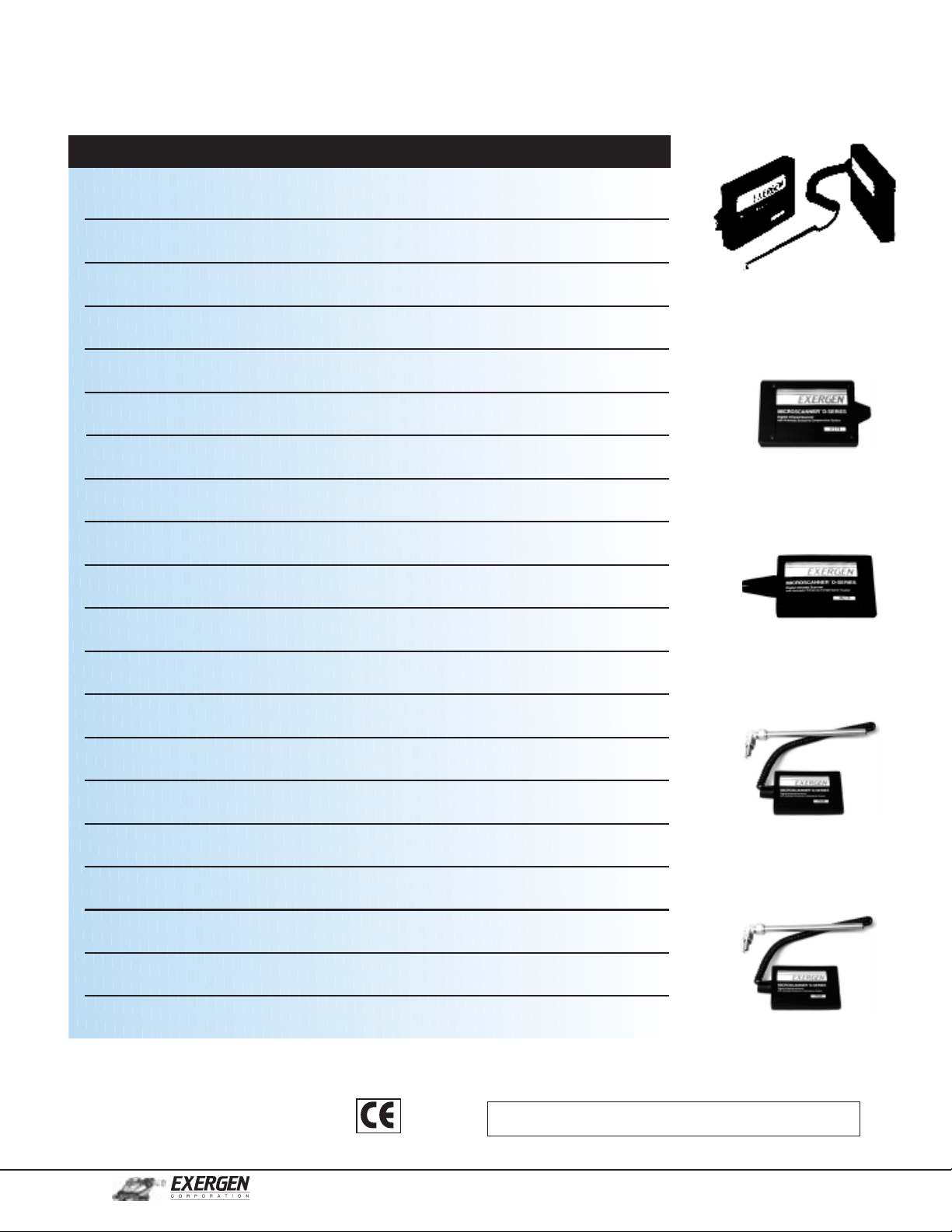

Model D501 D1201 D1601D1001
D-Series Handheld IR Scanners Specifications
Temperature Range
Relative Humidity Measurement
Emissivity Adjustment
Calibration Requirement
Linearity Error
Emissivity Error
Repeatability
Resolution
Display / Update
Response Time
Field of View
Minimum Spot Size
-50 to 550F 0 - 1000F 186 - 1207F 186 - 1600F & -45 to 287C & -18 to 540C & 86 to 653C & 86 to 871C
Kit Included Kit Included No No
Automatic Emissivity Compensation System
None
+/-1% of Reading - maximum +/-3% maximum
+/-1% maximum of Difference between target temperature and instrument temperature when touching, for emissivity of 0.8 to 1.0
o
+/-0.1 F & +/-0.1
o
C
0.1oF & 0.1oC
Bright LEDs at 10 times per second
80 msec approximately
o
1:1 (53
approximately)
1/4 inch (6.4 mm) approximately
Microscanner D501&
D501RS
D501
D1001
Spectral
2 to 20 microns
Sensitivity
Analog Output*
oo
F/ C Conversion
Remote Sensor**
Instrument Operating
Yes Yes Yes Yes
Available on all models; standard on D1201 and 1601
32 to 122oF (0 to 50oC)
1 Mv / OF (1mV/
Temperature
Battery Life
Dimensions
Weight
(Remote Sensor
Version)
*Optional Analog Output - Specify “AO” example: Microscanner D501-AO **Remote Sensor - Specify Model “RS” example: Microscanner D501-RS
Approximately 5000 Readings from on 9V Alkaline Battery
Main Case: 3 3/8 X 5 X 3/4” (8.5 X 12.5 X 2cm)
7 oz (.2 kg) approx. 9 oz (.25 kg) approx.
o
C)
Optional
D1201
D1601
Consult factory or distributor for special duty models with special accuracies and temperature ranges for OEM and volume applications.
