Model No. RD54
User’s Guide for
3-in-1 Classic Radio
C
ongratulations on your purchase of the 3-in-1
Classic Radio from Excalibur Electronics, Inc.
This nostalgic radio in its wooden cabinet will
have you grooving to the good old days in no time.
Your 3-in-1 Classic Radio is easy
to use, but be sure to use it
safely. Before starting, please
read this manual thoroughly,
especially noting safety and
care. Keep this users guide
for reference.
This package includes one
3-in-1 Classic Radio and its
user’s guide.
Safety Instructions ……………………………………… page 4
Layout of the 3-in-1 Classic Radio………………………page 6
Functions of Buttons …………………………………… page 7
Using Your 3-in-1 Classic Radio ……………………… page 8
Record Player ………………………………… page 8
Radio ……………………………………………page 8
CD Player ………………………………………page 9
Specifications ……………………………………………page 13
Troubleshooting …………………………………………page 14
Important Safety Instructions ……………………………page 15
Special Care and Handling ………………………………page 18
Caution ………………………………………………… page 18
Limited 90-day Warranty ……………………………… page 19
The legendary King Arthur
brandished a magic sword,
Excalibur, from which we take
our company name. With this
unique weapon in his hands,
he could not be vanquished.
Although Excalibur Electronics
can’t claim the magical secrets
of Merlin, King Arthur’s court
wizard, sometimes our patented
technology may make it seem
as if we could.
We make you think.
Table of Contents
2 3
Available for the
3-in-1 Classic Radio –
RD56 Radio Stand.
Order by visiting
www.excaliburelectronics.com
Read these instructions
prior to using your
3-in-1 Classic Radio.
n Choose your 3-in-1 Classic
Radio’s location carefully. Avoid
placing it in direct sunlight or close
to a source of heat. Please keep in
mind to avoid locations subject to
excessive dust, cold, moisture or
vibrations (humming–such as
motors or transformers),
n Do not open the cabinet as
this might result in damage to the
circuitry or electrical shock.
n Do not insert any foreign
objects into your 3-in-1 Classic
Radio.. If this occurs, immediately,
contact your dealer.
n When using the CD Player
option, be sure not to handle CDs
with dirty or oily fingers. Never
insert a disc that has a crack on the
surface.
n Never remove the power cord
from an outlet by pulling on the
actual cord. Instead, pull directly on
the plug to remove it from the wall
outlet.
n It is important with the CD
Player to keep the laser pickup
clean, do not touch it. Do not forget
to close the disc tray.
n Do not attempt to clean the
unit with chemical solvents. Use a
clean, soft dry cloth.
n In order to shut off the power
to this product completely, unplug
the power cord from the wall outlet.
Be sure to unplug the 3-in-1 Classic
Radio if you do not intend to use it
for an extended period of time, such
as a vacation.
Beware of Condensation
When the player (or a CD) is
moved from a cold to a warm place
or is used after a sudden temperature change, there is a danger of
condensation. Water vapor in the air
could condense on the mechanism
or the laser pickup. If droplets of
water form on these parts, correct
playback will be impossible
because the laser cannot read the
information from the disc correctly.
To prevent this, if you are going to
use the player in a condition where
condensation could occur, you
should leave the player for 1 or 2
hours after plugging it into an AC
outlet depending on the amount of
condensation. If this is done, the
player will stabilize at the temperature of its surroundings.
45
CAUTION
RISK OF ELECTRIC SHOCK- DO NOT OPEN
ANY PART OF THIS UNIT!
T
O REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER OR BACK
. THERE ARE NO USER
SERVICEABLE PARTS LOCATED INSIDE OF THE UNIT
.
R
EFER ALL SERVICING TO QUALIFIED
SERVICE PERSONNEL
.
The light flash with arrowhead symbol, within an equilateral triangle,
is intended to alert user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
CAUTION:
FOR COMPACT DISC UNITS ONLY: INVISIBLE LASER
RADIATION WHEN OPEN AND INTERLOCK FAILED OR
DEFEATED. AVOID DIRECT EXPOSURE TO LASER BEAM.
(See markings on the back of the unit)
Layout of the 3-in-1 Classic Radio
vOLUME/ON/OFF: Use the VOL-
UME cONTROL KNOB to increase
or decrease the volume. Also,
use this knob to switch the unit
ON or OFF.
RADIO/PHONO/CD: Change the
MODE switch– RADIO/PHONO/CD
to designate if you would like to
listen to the radio, play a vinyl
record or listen to a cd.
oPEN/CLOSE: This button
OPENS and CLOSES the CD door
INDICATOR LIGHTS: These
lights indicate when the mode
you have chosen is working.
Lights are for RADIO AM/FM/; CD;
FM STEREO (FM ST.) PHONO
(RECORD PLAYER).
FM STEREO: built-in mode for
stereo speakers.
AM/FM: Choose which radio
frequency you would like to listen to.
PLAY/PAUSE: You can change
between PLAY mode and PAUSE
mode to play or pause your
selection of music.
STOP: To STOP any modes of
play.
UP: Use UP to FF (fast for-
ward) or skip tracks on your current CD playing.
DOWN: Use DOWN to FW
(rewind) or skip tracks on your
current CD playing.
TUNING: Use the TUNING knob
to locate AM/FM radio stations.
LCD SCREEN: This digital dis-
play shows the cd track playing
or mode.
CD DOOR: CD door opens so a
CD can be inserted. To open the
CD drawer press OPEN/CLOSE.
FM ANTENNA: FM antenna is
available for better reception.
The antenna is located in the
rear of the unit.
TURNTABLE: Lift the lid of
your 3-in-1 Classic Radio and
access the TURNTABLE to play
your classic vinyl record collection.
RECORD PLAYER-ARM: Use the
record player’s
RECORD PLAYER-
ARM
to produce quality sound
from your vinyl records.
PHONO
(RECORD
PLAYER
)
CD
LID
TURNTABLE
Functions of Buttons
67
RADIO
EARPHONE
JACK
LCD
SCREEN
CD
COMPARTMENT
DOOR
TUNING
KNOB
VOLUME/
ON/OFF
TONE
-ARM
AM/
FM
STOP
PLAY/
PAUSE
UP
DOWN
OPEN
/CLOSE
Using Your
3-in-1 Classic Radio
Your 3-in-1 Classic Radio can
tune into AM/FM radio stations,
play CDs, and it also lights up.
First, unpack all parts and
remove protective packing
around unit. Then plug the cord
into an electrical three prong
outlet.
To listen to the
record player:
Follow these steps carefully:

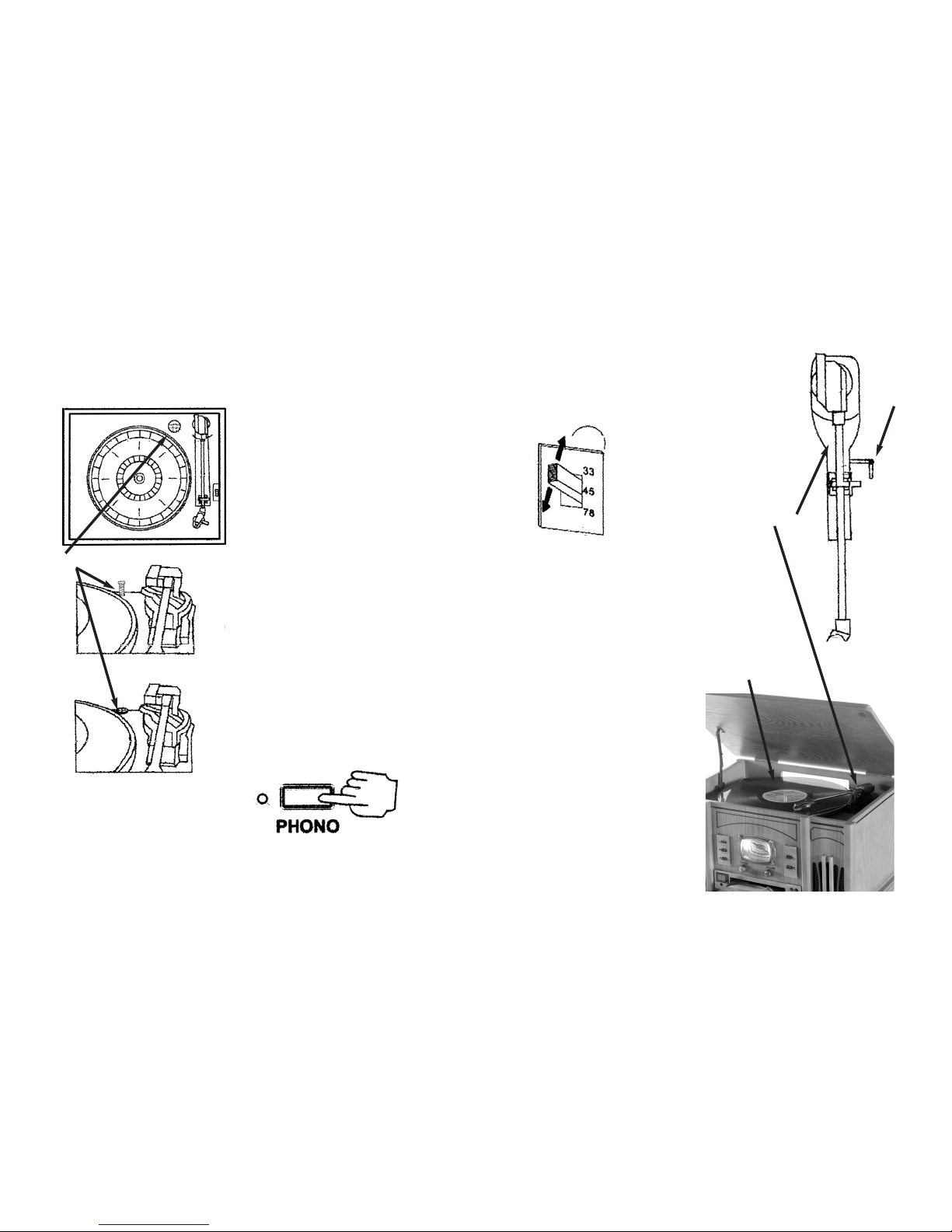

1. There is a screw protecting
the record players TURNTABLE.
Remove screw as shown in
Figure 1. If this is not removed,
you will not be able to play any
records.
2. Turn the power on.
3. Slide the MODE switch
(RADIO/PHONO/CD) to PHONO, as
shown in Figure 2.
4. Select record speed-
33/45/78. See Figure 3.
5. Place
a record onto
the turntable
(use the
45 RPM
adapter
provided,
when playing
a single.)
6. Lift the
RECORD
PLAYER
-ARM from the arm-rest
holder. See Figure 6.
7. Lift the QUE-LEVER and
move the RECORD PLAYER-ARM
gently to the desired position
over the record.
8. Lower the QUE-LEVER
slowly to meet the record’s surface.
9. Turn the
VOLUME control
knob clockwise to turn unit on.
Adjust the volume by turning
the VOLUME knob.
10. To stop the record, lift the
RECORD PLAYER-ARM away
from the surface of the record
and return it to its resting place.
FIGURE 1: There is a
screw protecting the record players
cabinet. Remove
screw as shown above.
If this is not removed, you
will not be able to play
any records.
REMOVE SCREW
FIGURE 2: Slide the
MODE
switch
(RADIO/PHONO/CD) to PHONO.
8
FIGURE 3: Select
record speed-
33/45/78.
RECORD PLAYER-ARM
QUE-LEVER
FIGURE 4:
Lift the tone
arm from the
arm-rest holder.
Lift the QUE-LEVER
and move
the
RECORD PLAYER-
ARM gently to the
desired position
over the record.
9
TURNTABLE
To listen to the radio:
1. Turn the Power ON.
2. Slide the MODE switch
(RADIO/PHONO/CD) to RADIO.
Select AM or FM. See Figure 5
above.
3. Turn the TUNING knob until
you find your desired radio station.
4. Turn the VOLUME control
knob clockwise to turn unit on.
Adjust the volume by turning
the
VOLUME knob.
5. For optimal reception, stretch the builtin FM antenna out to is
fullest extension
(See
Figure 6). You will
find the antenna at the
lower back portion of
your 3-in-1 Classic
Radio.
Rotate and move the antenna
until you receive clear radio
reception.
To turn off the radio:
Turn the VOLUME control knob
counter-clockwise to turn unit
off.
To play a CD:
Follow these steps carefully:
Loading the disc
1. Turn the Power ON.
2. Slide the MODE switch
(RADIO/PHONO/CD) to CD. See
Figure 7 above.
4. Press the OPEN/CLOSE but-
ton to close the CD door. After a
while, the display shows the CD
total number of tracks and total
and playing time. First turn the
VOLUME control knob clockwise
to turn the unit on.
Slide the MODE switch
to CD.
Press the OPEN/CLOSE button
to open the CD compartment.
Insert a CD into the disc tray.
Make sure the CD is put into tray
with printed side up. Close the
CD door. See Figure 8.
5. Press the PLAY/PAUSE but-
ton to begin playing your
CD.
Press the STOP button to stop
playing your CD. Press the
PLAY/PAUSE button to pause
your CD.
ANTENNA
FIGURE 6: For optimal reception,
stretch the built-in FM antenna out
to is fullest extension.
AM/FM
SWITCH
FIGURE 5: Select AM or
FM in the Radio mode.
FIGURE 7: Slide the M
ODE
switch
(RADIO/PHONO/CD) to CD.
FIGURE 8: Press the
OPEN/CLOSE button to open
or close the CD door. Insert
a CD in to the disc tray.
1110
FIGURE 9: Pressing PAUSE/PLAY but-
ton will have the CD’s track number
and indicator lights blink. Once play is
resume the flashing will stop.
Specifications
AMPLIFIER section
Output Power: 2.0 W + 2.0 W
Frequency Response: 60 TO 20, 000 Hz
TUNER section
FM Section Frequency Range:
88 to 108 MHz
AM Section Frequency Range
530 to 1710 KHz
CD PLAYER section
Frequency Response
60 to 20, 000 Hz +/-4 Db
Signal-to-Noise Ratio 55 dB (IEC-A)
RECORD PLAYER section
Motor DC servo motor
Drive System Belt Drive
Speeds 33-1/3 rpm, 45 rpm and 78 rpm
Flutter Less than 0.25% (WTD)
S/N Ratio More than 50 dB
Cartridge Type Ceramic Stereo
Cartridge Stylus 402-M208-165
Output Level 160-380 mV
(5 cm/sec at 1 KHz)
SPEAKER SYSTEM section
Type 1-way
Impedance 8 ohms Input
Power Max. 5
GENERAL
Power Requirements AC 120 V~ 60 Hz
Power Consumption 19 W
Dimensions 18'' x 13.2''x 9.6'' (approx.)
Weight 18 Ibs. (approx.)
Users Guide
45 RPM Adapter
12 13
6. Press the FF (UP) button to
skip ahead to the next track or to
scroll quickly through the current track.
NOTE: Do not push both FF
(UP) and FW (DOWN) buttons
together as this may damage the
unit.
When using FF (UP) and FW
(DOWN) buttons forward or
reverse you will hear your selection playing at a distorted
speed. See Figure 10. Simply
release the FF (UP) or FW
(DOWN) buttons to continue
playing at normal speed at the
desired position of the CD.
7. Press the FW (DOWN ) button to go back to the previous
track or to scroll quickly back-
wards through the current track.
8. To replace or remove a CD,
press down on the center of the
CD lid and carefully lift the CD
out. Carefully hold the CD by the
edge to avoid fingerprints.
Precautions:
If the CD is scratched, dirty,
or in-correctly placed on the
disc tray, it may not play properly.
Bear in mind the following
points since any dirt; scratches
or warping
of the disc
can cause
broken or
intermittent
sound and
noise.
When holding the discs, take
care not to touch the playing
surface.
Do NOT
place discs in
the following
locations:
• Near a heating device or
place where the temperature is
high;
• In damp or dusty areas.
Wipe away any fingerprints
or dust on the playing surface
of the disc using a soft cloth.
Always wipe from the inside
toward the outside of the disc.
Return your CD to its case
after use to avoid serious scratches that could cause the laser pick
up to skip.
Do NOT expose any CDs to
direct sunlight or high humidity
and temperature for any extended
periods.
Do NOT stick paper or write
anything with a ballpoint pen on
the surface of the label side.
Do NOT use irregular shaped
CD’s (octagonal, heart-shape,
etc.), all of which can damage the
unit.
Do NOT switch the unit off
while playing a CD – this will
damage the unit.
FIGURE 10: When using FF (UP) and
FW (DOWN) buttons forward or reverse
you will hear your selection playing at
a distorted speed.
FF (FA
ST
FORWARD)
FW
(R
EWIND)
IMPORTANT SAFETY
INSTRUCTIONS READ CAREFULLY!
n
n
When using electrical products follow these basic precautions:
n
n
Read instructions: It is extremely important to read and understand all
safety and operating instructions before the your 3-in-1 Classic Radio is
turned on.
n
n
Retain instructions: The safety and operating instructions
should be retained for future reference.
n
n
Adhere and follow ALLinstructions: All warnings on the product and
in the operating instructions should be followed and adhered.
n
n
Attachments: Do NOT use any attachments not recommended
by the product manufacturer. Any non-recommended attachments
may cause electrical and fire hazards.
n
n
Cleaning: Unplug this product from the electrical wall outlet prior to
cleaning. Do NOT use liquid cleaners or aerosol cleaners.
Use a soft, damp cloth for cleaning.
n
n
Heat: The 3-in-1 Classic Radio should not be located anywhere near
heat sources such as radiators, heat registers, stoves, etc.
n
n
IMMEDIATE! Damage service: Unplug the 3-in-1 Classic Radio
from the electrical wall outlet and refer servicing to qualified
service personnel for the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Any other adjustments or work should be
done by a qualified technician to restore the product to its
normal operation.
e. If the product has been dropped or damaged in any way.
f. if the product exhibits a distinct change in performance.
n
n
Lightning: For additional protection for this product and your home,
please unplug it from the electrical wall outlet. This will prevent damage
due to lightning or power-line surges.
n
n
Location and accessories: Do NOT place this product on an unstable
surface. The 3-in-1 Classic Radio may tip and fall, causing serious
14 15
Power does not come Unit is unplugged. Properly plug into a
on when the POWER functioning electrical
switch is pressed. outlet.
No sound comes out The volume is turned
of the speakers down (to MIN). Adjust the volume.
The input selector does Re-select the
not match the playback desired input source.
source.
The sound is noisy. The unit is too close to a Turn off the TV or
TV set or another similar other appliance, and
appliance. relocate the unit.
Cannot listen to any The station is not Properly tune-in
station, or signal tuned-in properly. the desired station.
appears weak A TV set is being used
or distorted. nearby and is interfering Turn-off the interfering
with the radio reception. TV set
The sound is distorted. The antenna is not Re-orient the antenna
oriented properly. until reception
improves.
CD stops immediately The CD is inserted The CD is dusty or
after starting, or unit upside down. dirty or there is
pauses or stops condensation on
during play. the CD.
Troubleshooting
PROBLEM CAUSE SOLUTION
YOUR 3-IN-1 CLASSIC RADIO UNIT
RADIO
CD PLAYER
it from overheating. ANY ventilation openings MUST NOT be blocked
or covered in any way, this includes placing the product on a bed, sofa,
rug, or similar surface. Also the 3-in-1 Classic Radio should not be
placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided.
n
n
Wall or ceiling mounting: The product should be mounted to a
wall or ceiling only as recommended by the manufacturer.
n
n
Water and moisture: Do NOT use this product near water or any kind
of moisture, this includes–bath tubs, wash bowls, kitchen sinks, or
laundry washers, wet basements, swimming pools, etc.
16 17
physical injury and serious damage to the product. Use only
with the recommended stand, bracket, or table from the
manufacturer. Any mounting of the product should follow
the manufacturer’s instructions, Use only the recommended
mounting accessories from the manufacturer.
n
n
Object and liquid entry: Never push objects of any kind into
this product through openings.Those objects may touch dangerous
voltage parts that could result in a fire or electric shock.
NEVER spill liquid of any kind on the product.
n
n
Overloading electrical circuits: Do NOT overload wall outlets,
extension cords, or any other integral convenience electrical receptacles.
This can result in a risk of fire or electric shock.
n
n
Power-cord protection: All Power-supply cords should be placed and
routed, so that they are not likely to be trapped in any way.
n
n
Power lines: An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or power circuits,
or where it can fall into such power lines or circuits. If you are installing
an outside antenna system, use extreme care to keep from touching such
power lines or circuits as contact with them might be fatal.
n
n
Power sources: This product should be operated only from the type of
power source
(indicated in the Specifications Section of this users guide,
see page 12.)
If you are not sure of the type of power supply to your
home, consult your product dealer or a local power company.
n
n
Replacement parts: When replacement parts are required, be sure that
the service technician has used replacement parts specified by the
manufacturer. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
n
n
Safety check: Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper, operating condition.
n
n
Servicing: Do NOT attempt to service this product yourself, it may
expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
n
n
Transporting/moving unit: This product should be moved with care to
avoid damage or injury.
n
n
Ventilation: Slots and openings in the cabinet are provided for
ventilation, to ensure reliable operation of the product and to protect
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable l
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
18 19
EXCALIBUR ELECTRONICS,
INC., warrants to the original consumer that its products are free from
any electrical or mechanical defects
for a period of 90 DAYS from the
date of purchase. If any such defect is
discovered within the warranty period, EXCALIBUR ELECTRONICS,
INC., will repair or replace the unit
free of charge upon receipt of the unit,
shipped postage prepaid and insured
to the factory address shown at right.
The warranty covers normal consumer use and does not cover damage
that occurs in shipment or failure that
results from alterations, accident,
misuse, abuse, neglect, wear and tear,
inadequate maintenance, commercial
use, or unreasonable use of the unit.
Removal of the top panel voids all
warranties. This warranty does not
cover cost of repairs made or attempted outside of the factory.
Any applicable implied warranties,
including warranties of merchantability and fitness, are hereby limited to
90 DAYS from the date of purchase.
Consequential or incidental damages
resulting from a breach of any applicable express or implied warranties
are hereby excluded. Some states do
not allow limitations on the duration
of implied warranties and do not
allow exclusion of incidental or consequential damages, so the above limitations and exclusions in these
instances may not apply. The only
authorized service center in the
United States is:
Excalibur Electronics, Inc.
13755 SW 119th Ave
Miami, Florida 33186 U.S.A.
Phone: 305.477.8080
Fax: 305.477.9516
www.ExcaliburElectronics.com
Ship the unit carefully packed, preferably in the original carton, and send it
prepaid, and adequately insured.
Include a letter, detailing the complaint and including your daytime
telephone number, inside the shipping
carton. If your warranty has expired
and you want an estimated fee for
service, write to the above address,
specifying the model and the problem.
PLEASE DO NOT SEND YOUR
UNIT WITHOUT RECEIVING AN
ESTIMATE
FOR SERVICING. WE CANNOT
STORE YOUR UNIT!
LIMITED 90-DAY WARRANTY
Excalibur Electronics reserves the right to make technical changes
without notice in the interest of progress.
• Avoid rough handling such as bumping or dropping.
• Avoid moisture and extreme temperatures. For best results, use
between the temperatures of 39˚ F and 100˚ F (4˚ C and 38˚ C).
• Unplug the electrical cord prior to cleaning. Clean using only a
slightly damp cloth. Do not use cleaners with chemical agents.
Caution
• If you do not intend to use the 3-in-1 Classic Radio for any
extended length of time. Unplug from all power sources to
protect from power surges that may occur.
• Under no circumstance should you remove the protective
covering to the 3-in-1 Classic Radio. This should be done
by qualified personnel only.
• Use of this unit and its controls (other than what is specified in
this users guide) is prohibited. It may result in hazardous,
radiation exposure and injury.
• Any problems with this unit, please contact an authorized and
qualified service center or technician. Do NOT use the 3-in-1
Classic Radio, if it is defective in any way
• Do NOT expose this unit to rain or moisture.
• To prevent severe electric shock, make sure the prongs on the
plug match the electrical wall outlet you are plugging your
power source into.
Special Care & Handling
EXCALIBUR ELECTRONICS, INC.
13755 SW 119
TH AVENUE
MIAMI, FL 33186 U.S.A.
P
HONE: 305-477-8080
F
AX: 305-477-9516
Play games live at:
www.ExcaliburElectronics.com
RD54 (MA) 3in1 ClassicRadio 080206 V3
Loading...
