EPXA1 Development Board
1
Specifications
Features
Functional Overview
■ Powerful development board for embedded processor FPGA designs
– Features an EPXA1F484 device
– Supports intellectual property-based (IP-based) designs using a
microprocessor
■ Industry-standard interconnections
– 10/100 megabits per second (Mbps) Ethernet
– Two RS-232 ports
■ Memory subsystem
– 8 Mbytes of flash memory
– 32 Mbytes of single data rate (SDR) SDRAM
■ Multiple clocks for communications system design
■ Multiple ports for configuration and debugging
– IEEE Std. 1149.1 Joint Test Action Group (JTAG)
– Support for configuring the EPXA1 device using flash memory,
with a MasterBlaster
– Multi-ICE header for debugging
■ Expansion headers for greater flexibility and capacity
– 5-V standard expansion header
– 5-V long expansion card header
■ Additional user-interface features
– One user-definable 8-bit dual in-line package (DIP) switch block
– Four user-definable push-button switches, plus reset switch
– Ten user-definable LEDs, plus function-specific LEDs
■ Test points provided to facilitate system development
The EPXA1 development board is a powerful, low-cost, product which
you can use as a desktop hardware platform to start developing
embedded systems immediately. In addition, the board can be used for
system prototyping, emulation, hardware and software development or
other special requirements. The development board provides a flexible,
powerful debug and development environment to support the
development of systems using Excalibur
™
or ByteBlasterMV™ cable
™
devices.
Altera Corporation 9
Page 10
EPXA1 Development Board Hardware Reference Manual
EPXA1 Development Board Components
This section describes the components on the EPXA1 development board,
which is shown in Figure 1.

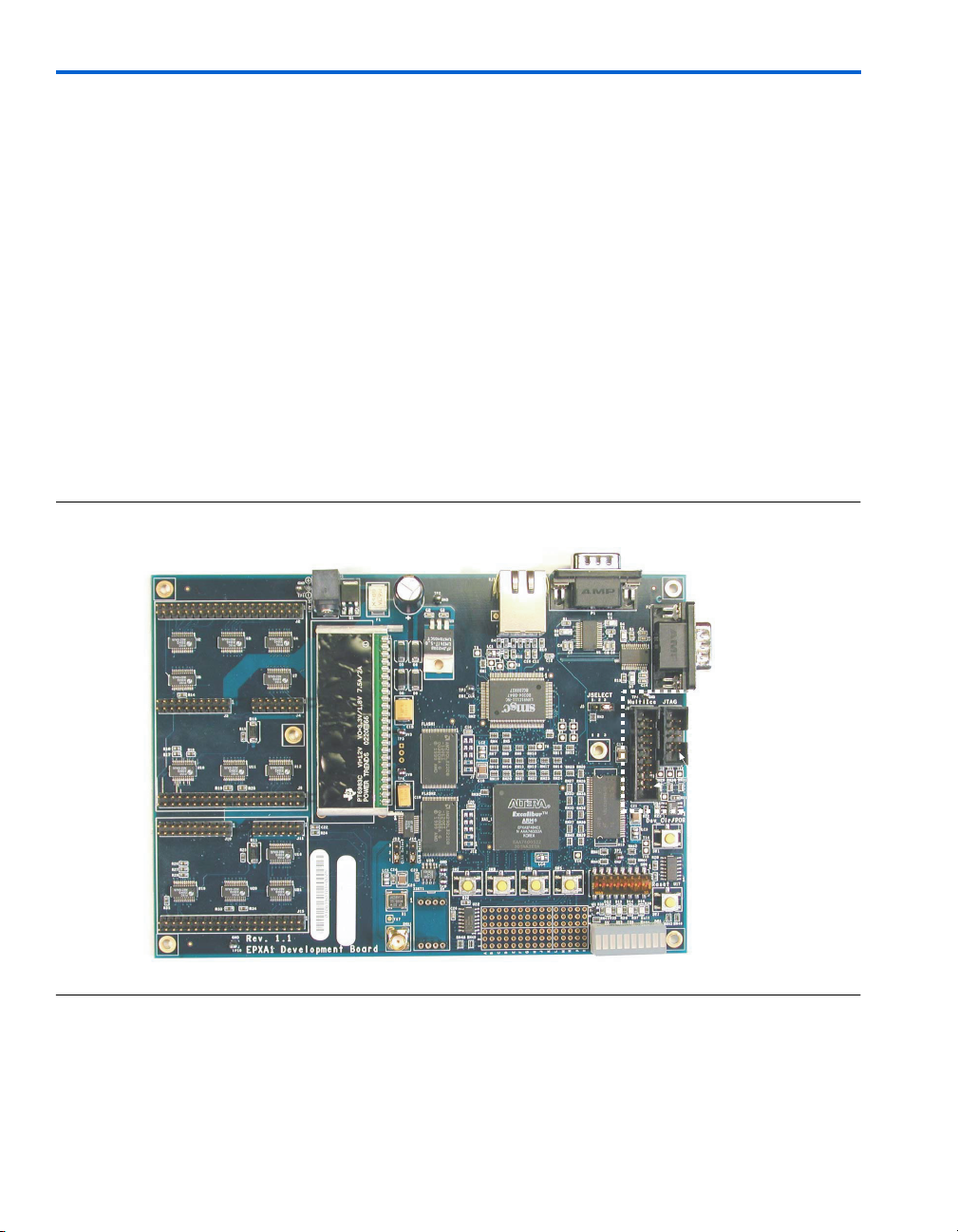

Figure 1. EPXA1 Development Board Layout
EPXA1 Device
The EPXA1 development board features the lowest-cost member of the
Excalibur family, the EPXA1. The EPXA1 device contains an ARM922T
32-bit RISC microprocessor combined with an APEX
484-pin FineLine BGA
Table 1 on page 10 lists the main features of the device.
Table 1. EPXA1 Device Features
Feature Capacity
Maximum system gates 263,000
Typical gates 100,000
LEs 4,160
ESBs 26
Maximum RAM bits 53,248
Maximum macrocells 416
Maximum user I/O pins 186
10 Altera Corporation
™
package.
™
20KE FPGA in a
™
Page 11
EPXA1 Development Board Hardware Reference Manual
In addition, the EPXA1 device provides a variety of peripherals, as listed
in Table 2.
Table 2. EPXA1 Device Peripherals
Peripheral Description
ARM922T 32-bit RISC processor For speed grade –1: up to 200 MHz
For speed grade –2: up to 166 MHz
Interrupt controller Used for the interrupt system
Internal single-port SRAM 32 Kbytes
Internal dual-port SRAM 16 Kbytes
SDRAM controller Interfaces between the internal system bus and SDRAM
External SDRAM Refer to the Excalibur Devices Hardware Reference Manual for details of
supported sizes
Expansion bus interface (EBI) Interfaces to the flash memory and the Ethernet
External flash memory Refer to the Excalibur Devices Hardware Reference Manual for details of
supported sizes
Watchdog timer Protects the system against software failure
UART Facilitates serial communication
Reset controller Resets the device
Refer to the Excalibur Devices Hardware Reference Manual for details about
EPXA1 devices.
Prototyping Area
This area can be used to develop and test custom circuitry, such as I/O
interfaces, using the EPXA1 development board. The prototyping area has
both 3.3-V and 5-V supply, plus ground connections, 32 I/O pins that
facilitate connection to the Excalibur device, and a reset pin in a 6 × 15
matrix. Figure 2 shows the prototyping area on the development board.
Altera Corporation 11
Page 12
EPXA1 Development Board Hardware Reference Manual
Figure 2. Prototyping Area on the EPXA1 Development Board
A1
Figure 3 on page 13 shows how the pins are located in the prototyping
area.
12 Altera Corporation
Page 13
EPXA1 Development Board Hardware Reference Manual
Figure 3. Pin Layout in the Prototyping Area
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
1 2 3 4 5 6
RESET_n
PROTOIO_n
5V
NC
3.3 V
GND
See Table 37 on page 46 for details of the prototyping area pin-outs.
Interfaces
Table 3 lists the interfaces supported by the EPXA1 development board.
Table 3. Development Board Interfaces
Interface Description
10/100 Ethernet with full- and halfduplexing
Expansion headers These headers are used to connect Altera daughter cards or customer-
IEEE Std. 488 RS-232 serial interfaces This is a 250-kbps true RS-232 data terminal equipment (DTE) interface
Debugging/programming ports The board supports in-circuit debugging by means of the MasterBlaster,
Altera Corporation 13
This interface consists of an RJ45 connector and transformer
connected to the EPXA1 using an external MAC/PHY device connected
to the EBI
designed daughter cards to develop and test custom circuitry
ByteBlasterMV, or Multi-ICE cables
Page 14
EPXA1 Development Board Hardware Reference Manual
Serial I/O Interfaces
There can be two UARTs in the EPXA1 device. A dedicated UART is
located in the embedded stripe; optionally, an additional IP UART can be
implemented in the FPGA. If the IP UART is used, it is connected to 3.3-V
standard EPXA1 I/O pins. Each UART is connected to a transceiver (U6
for the embedded stripe UART and U1 for the IP UART) to translate
LVTTL voltage for RS-232 compatibility at up to 250 Kbps. Each UART
also has its own DB9 male RS-232 connector wired as a DTE.
The transceiver uses a 3.3-V power supply. If the RS-232 input
pins are used as outputs, contention occurs because the bus
transceiver is always active. If these pins are not used as part of
a design, ensure that they remain in the high-impedance state.
All unused I/O pins can be set to tri-state mode in the Quartus II
software (see “Unused I/O Pins” on page 50).
See Table 23 on page 33 for information on the RS-232 signals.
Table 4 shows the UART interface characteristics.
Table 4. UART Interface Characteristics
Features I/O Pins Voltage (V)
UART 1 TX, RX & Control 8 3.3
UART 2 TX, RX & Control 8 3.3
Table 5 lists the UART LEDs on the EPXA1 development board.
Table 5. UART LEDs
Board
Signal Description
Reference
D2 TXD This LED indicates activity on the line
D3 RXD This LED indicates activity on the line
D4 XA-TXD This LED indicates activity on the line
D7 XA-RXD This LED indicates activity on the line
14 Altera Corporation
Page 15
EPXA1 Development Board Hardware Reference Manual
10/100 Ethernet Parallel Interface
On the EPXA1 development board, the Ethernet interface consists of an
integrated MAC/PHY device and an RJ45 connector which includes the
transformer and LEDs.
Table 6 lists the LEDs built into the RJ45 connector.
Table 6. Ethernet LEDs
Board Reference Signal Description
RJ1 LEDA LEDA Green LED. This defaults to being set on when the
RJ1 LEDB LEDB Unused (1)
Note:
(1) Although the default setting for LEDA ‘10/100 link detected’, the user can program
the LEDA and LEDB select signals by writing to the LED select signal registers.
The Ethernet and flash memory device share addresses and data on the
EBI.
10/100 link is detected (1)
Memory Interfaces
The EPXA1 development board supports the following types and
capacities of on-board memory, as listed in Table 7.
Table 7. Development Board Memory Characteristics
Type Address Lines Data Lines Control Lines Memory Organization Size
SDR SDRAM 13 16 10 4 M × 16 × 4 banks 32 Mbytes; 16-bit
Flash 22 16 5 2 × 4 Mbytes 8 Mbytes
Figure 4 on page 16 shows the location of the on-board memory.
Altera Corporation 15
Page 16
EPXA1 Development Board Hardware Reference Manual
Figure 4. EPXA1 Development Board On-Board Memory
SDRAM (pin 1 indicated)Flash memory (pin 1s indicated)
Two flash memory chips, FLASH1 and FLASH2, are connected to the EBI
of the EPXA1 development board (see Figure 5).
Figure 5. Flash Memory Interface
Flash Memory (2 x 4 Mbyte)
EPXA1
EBI
A1-A22
D0-D15
OE, WE, CE
EBI_CS0 EBI_CS1
A0-A21
FLASH1 FLASH2
PHY/MAC
16 Altera Corporation
Page 17
EPXA1 Development Board Hardware Reference Manual
LED & Switch Interfaces
The EPXA1 development board provides a variety of LED and switch
interfaces. Some are user-definable and some are function-specific.
Figure 6 shows the location of LEDs and switches on the development
board.
Figure 6. Switches & LEDs on the EPXA1 Development Board
Ethernet
TX/RX LEDs
UART LEDs
NPOR
SOFT_RESET_N
SW6 (pin 1 indicated)
Push-button switches
SW2, SW3, SW4, SW5
Voltage LEDs
User LEDs (LED 0 indicated)
User-Defined LEDs
On the EPXA1 development board, there are ten user-definable LEDs in a
graph-type LED package, DG1. They connect directly to the EPXA1 device
I/O pins and can be used for any kind of application.
Table 8 on page 18 lists the user LEDs on the development board.
Altera Corporation 17
Page 18
EPXA1 Development Board Hardware Reference Manual
Table 8. DG1 LED Interface Characteristics
LED Reference EPXA1 I/O Pin Signal Voltage (V)
DG1_J W17 USER_LED9 3.3
DG1_I W18 USER_LED8 3.3
DG1_H W20 USER_LED7 3.3
DG1_G W21 USER_LED6 3.3
DG1_F W22 USER_LED5 3.3
DG1_E Y17 USER_LED4 3.3
DG1_D Y18 USER_LED3 3.3
DG1_C Y19 USER_LED2 3.3
DG1_B Y20 USER_LED1 3.3
DG1_A Y21 USER_LED0 3.3
Function-Specific LEDs
LEDs are also used for specific application functions, such as the
configuration, RS-232 and Ethernet interfaces. Table 9 lists the functionspecific LEDs, their power supply status, their connection details, and
their functions.
Table 9. Function-Specific LED Usage
Signal Board Reference EPXA1 I/O Pin
Description Voltage (V)
(or Board
Connector)
INIT_DONE D15 K7 Used by FPGA initialization; signifies
that initialization is complete
VCC_5V D12 5-V power indicator 5
VCC_3V3 D13 3.3-V power indicator 3.3
VCC_1V8 D14 1.8-V power indicator 1.8
TXD D2 FPGA UART signal
RXD D3 FPGA UART signal
XA-TXD D4 Embedded stripe UART signal indicator 3.3
XA-RXD D7 Embedded stripe UART signal indicator 3.3
TX RJ1 Ethernet signal indicator 3.3
RX RJ1 Ethernet signal indicator 3.3
18 Altera Corporation
indicator 3.3
indicator 3.3
3.3
Page 19
EPXA1 Development Board Hardware Reference Manual
Switch Interfaces
The EPXA1 development board provides eight user-definable, active-low
switches in a dip-switch block, four debounced push-button switches, and
two dedicated reset switches. Table 10 documents the interface
characteristics of the dip-switch block, SW6.
Table 10. SW6 Dip Switch Connections (Active-Low)
Switch Name EPXA1 I/O Pin Signal Voltage (V)
SW6_1 V20 USER_SW7 3.3
SW6_2 V19 USER_SW6 3.3
SW6_3 V18 USER_SW5 3.3
SW6_4 V17 USER_SW4 3.3
SW6_5 V16 USER_SW3 3.3
SW6_6 U21 USER_SW2 3.3
SW6_7 U20 USER_SW1 3.3
SW6_8 U19 USER_SW0 3.3
Tables 11 and 12 detail the push-button switches on the development
board.
Table 11. Push-Button Switches
Push Button EPXA1 I/O
Pin
SW1 H1 NPOR Active-low switch that generates a full power-on reset
SW7 R4 N_CONFIG Active-low switch that generates a warm reset 3.3
Signal Use Voltage
(V)
3.3
when pressed for more than two seconds
Table 12. User-Definable Push-Button Switches
Push Button EPXA1 I/O Pin Signal Voltage (V)
SW2 U18 USER_PB0 3.3
SW3 U17 USER_PB1 3.3
SW4 U16 USER_PB2 3.3
SW5 T18 USER_PB3 3.3
Altera Corporation 19
Page 20
EPXA1 Development Board Hardware Reference Manual
Development Board Expansion
The EPXA1 development board hosts the EPXA1 device and two 5-V
expansion headers, which are implemented on the board for use with
expansion cards. There are two types of expansion header on the EPXA1
development board:
■ Standard expansion header—a set of three 0.1-inch, two-row header
pins (7 × 2, 10 × 2, 20 × 2)
■ Long expansion header—the same set of three 0.1-inch, two-row
header pins (7 × 2, 10 × 2, 20 × 2) plus an extra 20 × 2 header pins
Figure 7 on page 20 shows the location of the expansion headers on the
EPXA1 development board.
Figure 7. EPXA1 Development Board Expansion Header Connectors
Pin 1
Pin 1
The expansion header interfaces can be used to interface to specialfunction daughter cards; contact your Altera representative for details of
the daughter cards available for use with the expansion header interfaces.
By using the EPXA1 I/O pins and the power-supply pins on the
expansion headers, you can design expansion cards to your specific
requirements using the I/O pins on the EPXA1 device and power supplies
from the EPXA1 development board.
20 Altera Corporation
Page 21
EPXA1 Development Board Hardware Reference Manual
The expansion headers are on a common 0.1-inch pitch/spacing
to make it easier to use both headers together if desired.
Standard Expansion Header
The standard expansion header interface includes the following features:
■ 40 APEX
■ A buffered, zero-skew copy of the on-board OSC output
■ A buffered, zero-skew copy of the EPXA1’s PLL-output
■ An APEX device clock-input (for daughter cards that drive a clock to
®
device general-purpose I/O signals
the FPGA
■ An active-low power-on-reset signal
■ Three regulated 3.3-V power-supply pins
■ One regulated 5-V power-supply pin
■ Unregulated power-supply pin (connects directly to J1 power-input
plug)
■ Numerous ground connections
■ Card-select I/O
■ RC-filtered I/O
Long Expansion Header
The long expansion header interface shares the same characteristics as the
standard interface, and has the following additional pins in use:
■ Two regulated 3.3-V power-supply pins
■ Sixteen address pins
■ Sixteen data pins
Expansion Header Pin Details
In addition, the following points apply to either standard or long
expansion headers:
■ J9.38 and J15.38 can be used as a global card-enable signal
■ A low-current, 5-V power supply is presented on J4.2 and J11.2
■ The V
voltage for the analog switches is presented on J10.3 and
REF
J3.3.
■ The maximum current load on each header is 500 mA at 3.3 V, 50 mA
at 5 V and 100 mA at 12 V
■ The remaining pins on the expansion headers connect to user I/O
pins on the EPXA1 device. Table 24 on page 34 lists the expansion
header signal pin assignments
Altera Corporation 21
Page 22
EPXA1 Development Board Hardware Reference Manual
Difference Between Standard and Long Expansion Headers
On the standard expansion header, there is an RC-filtered connection to
EPXA1 device I/O pin AB5 from header pin J11.3. This circuit is suitable
for producing a high-impedance, low-precision analog output if the
appropriate pin is driven with a duty-cycle-modulated waveform by user
logic. However, there is no RC-filtered connection to an EPXA1 device
I/O pin from the long expansion header. Instead, header pin J4.3 supports
an additional user I/O.
EPXA1 Device Signal Definitions for the Expansion Headers
Table 13 on page 22 shows the definitions for the EPXA1 device signals
available to the standard expansion header interface. The definitions are
used with Altera daughter cards. The general purpose I/O signals can be
used as required.
Table 13. Standard Expansion Header Signal Definitions
Function Signals Number
General purpose I/O H5V_IO[40..0] 41
Clock H5V_OSC
H5V_CLK
H5V_CLKOUT
Bias voltage input H5V_VEE 1
Reset H5V_RST_N 1
Supply voltage VCC_5V
VCC_A
VCC_3V3
3
1
1
3
See Table 24 on page 34 for standard expansion header pin-out details.
The long expansion header includes the signals in Table 13, plus the
additional signals in Figure 14.
Table 14. Additional Signal Definitions for the Long Expansion Header
Function Signals Number
Address eup_A[15..0] 16
Data eup_D[15..0] 16
Supply voltage VCC_5V
VCC_A2
VCC_3V3
22 Altera Corporation
1
1
2
Page 23
EPXA1 Development Board Hardware Reference Manual
See Table 25 on page 35 for long expansion header pin-out details.
f
Jumper Configuration
Refer to the Nios Embedded Processor Development Board data sheet for
further details about the expansion header interface.
The jumpers on the EPXA1 development board serve several functions:
■ Clock distribution
■ Enabling clocks
■ JTAG configuration
Figure 8 on page 23 shows the location of jumpers on the development
board.
Figure 8. Jumper Locations on the EPXA1 Development Board
JSELECT
(J5)
CLKA Select
(J13)
CLKB Select
(J14)
Table 15 on page 24 lists the jumper settings and their uses.
Altera Corporation 23
Page 24
EPXA1 Development Board Hardware Reference Manual
Table 15. Jumpers on the EPXA1 Development Board
Jumper Function Pins 1-2 Connected Pins 2-3 Connected
JSELECT
(J5) (1)
CLKA Select
(J13)
CLKB Select
(J14)
Note:
(1) Determines whether the JTAG chains operate in serial or parallel mode.
JTAG connector selection ARM922 TAP available on Multi-
ICE connector
Clock A input selection 25 MHz on-board oscillator
selected
Clock B input selection 25 MHz on-board oscillator
selected
ARM922 TAP available on JTAG
connector
Alternative 5-V DIL14 oscillator or
SMA connector selected
Alternative 5-V DIL14 oscillator or
SMA connector selected
Clocks
There are three potential clock sources on the EPXA1 development board,
which can be enabled and disabled according to your design
requirements:
■ Dedicated on-board, 25-MHz crystal oscillator, X1 (default clock for
all devices)
■ Socket for alternative 5-V DIL14 crystal oscillator, XSKT1
■ Generator clock input via SMA connector, SMA1
The location of the clocks on the development board is shown in Figure 9.
Figure 9. Clocks on the EPXA1 Development Board
24 Altera Corporation
Page 25
EPXA1 Development Board Hardware Reference Manual
The only device for which you cannot change the clock input is
the Ethernet. The Ethernet clock input is the 25-MHz oscillator,
X1.
Apart from selecting the clock inputs, you can also select the target
devices for each clock input.
If you plug in an alternative crystal oscillator, it drives the same
clock line as the SMA connector. To drive a clock through the
SMA connector, you must remove the alternative crystal
oscillator.
Table 16 on page 25 lists all the clock signals on the development board.
Table 16. EPXA1 Development Board Clocks (Part 1 of 2)
Clock Source EPXA1 Pin
(or Board
Signal Name Description Target
Device
Connection)
CLK_REF (1) H7 CLK_REF Main clock used to drive the embedded stripe of
the EPXA1. Dedicated input selected from
either the SMA connector or the 25 MHz crystal
oscillator using jumper CLKA Select (J13)
CLKA_1 U1 CLK1p Dedicated pin that drives PLL1 EPXA1
CLKA_2 R21 CLK2p Dedicated pin that drives PLL2 EPXA1
CLKA_3
(OSC_BUFF1)
CLKA_4
(OSC_BUFF2)
CLKB_0 V1 CLK3p Dedicated pin that drives PLL3 EPXA1
CLKB_1 P21 CLK4p Dedicated pin that drives PLL4 EPXA1
OSC_25MHZ (U9:1) XTAL1 Clock to Ethernet; optionally used for other
CLKLK_ENA R6 CLKLK_ENA Clock-enable for PLL circuitry; permanently on EPXA1
CLKLK_OUT2p U22 CLKLK_OUT2p Dedicated pin allowing PLL2 output to be driven
(J3.9) H5V_OSC Clock to long expansion header Long
(J11.9) H5V_OSC Clock to standard expansion header Standard
development board modules
off-chip, providing the PLL clock to the
expansion headers as H5V_CLK
EPXA1
expansion
header
expansion
header
Ethernet
Standard
expansion
header,
Long
expansion
header
Altera Corporation 25
Page 26
EPXA1 Development Board Hardware Reference Manual
Table 16. EPXA1 Development Board Clocks (Part 2 of 2)
Clock Source EPXA1 Pin
(or Board
Signal Name Description Target
Device
Connection)
CLKLK_FB2p N21 CLKLK_FB2p Dedicated pin that allows external feedback to
PLL2. Available on test pad T14 (see Table 36
on page 45)
Note:
(1) See “Jumper Configuration for the Clock Inputs” for details of selecting a source for the stripe CLK_REF pin.
EPXA1
Up to two sources can be selected to clock the devices on the development
board at any given time. Of the three sources available, the dedicated
25-MHz on-board oscillator cannot be varied in frequency.
As detailed in Table 16, four of the clock buffer outputs drive dedicated
inputs on the EPXA1 device.
One is the dedicated input providing the embedded stripe reference clock
™
CLK_REF. The four FPGA clocks service the ClockLock
and ClockBoost™
circuitry on the Excalibur device. The clocks on the development board
can be configured as required, depending on which devices are used.
Two clocks drive each expansion header: two from the main clock buffer
and two from buffered copies of the EPXA1 PLL2 outputs.
Jumper Configuration for the Clock Inputs
Jumpers CLKA Select (J13) and CLKB Select (J14) are used to select
different clock inputs. CLKA Select is used to determine the clock supply
to the EPXA1 device clock reference, two of the four PLLs in the FPGA,
and the two expansion headers. CLKB Select can be used to route an
additional, alternative clock input to the EPXA1 device.
During development, if you need to run the clock at a rate other than
25 MHz, you can do so using the SMA connector or an alternative 5-V
DIL14 oscillator.
26 Altera Corporation
Page 27
EPXA1 Development Board Hardware Reference Manual
By selecting the position of jumpers CLKA Select and CLKB Select, as
shown in Table 17, either the SMA connector or an alternative 5-V DIL14
oscillator can be used instead of the 25-MHz on-board oscillator. To use
the SMA connector to drive a clock onto the board from an external
source, the alternative 5-V DIL14 oscillator socket must not contain an
oscillator. To use an alternative 5-V DIL14 oscillator, ensure that no clock
is attached to the SMA connector .
Table 17. CLKA Select & CLKB Select Jumper Settings
Pin 1-2 Connected Pin 2-3 Connected
CLKA
Select
CLKB
Select
25-MHz on-board oscillator provides a clock to
CLK_REF, EPXA1 dedicated inputs CLK1 and
CLK2, and both expansion headers
25-MHz on-board oscillator provides the clock to
EPXA1 dedicated inputs CLK3 and CLK4
Sources for the Stripe Clock Reference
There are three options for providing a source for the EPXA1 embedded
stripe clock reference, CLK_REF:
Alternative 5-V DIL14 oscillator or SMA connector
selected provides CLK_REF, EPXA1 dedicated
inputs CLK1 and CLK2, and both expansion
headers
Alternative 5-V DIL14 oscillator or SMA connector
provides the clock to EPXA1 dedicated inputs
CLK3 and CLK4
■ 25-MHz on-board oscillator
■ SMA connector
■ Alternative 5-V DIL14 oscillator
Using the 25-MHz On-board Oscillator
To use the 25-MHz on-board oscillator, set CLKA Select to position 1-2 to
select it.
Using the SMA Connector
To select the SMA connector, follow the steps below:
1. Remove any alternative 5-V DIL14 oscillator from the socket, XSKT1.
2. Apply an external clock source to the SMA connector.
The clock signal should be a maximum 5 V
3. Set CLKA Select to position 2-3.
Altera Corporation 27
PP
.
Page 28
EPXA1 Development Board Hardware Reference Manual
Using the Alternative 5-V DIL14 Oscillator
To use the alternative oscillator as the stripe clock reference, follow the
steps below:
1. Remove any external clock input from the SMA connector.
2. Plug the DIL14 crystal oscillator package into XSKT1.
3. Set CLKA Select to position 2-3.
The clock buffer converts the 5-V input from the alternative 5-V
DIL14 oscillator to the 3.3 V required for the stripe.
Sources for CLK3 & CLK4
Clock sources for CLK3 and CLK4 can be selected in the same way as for
the embedded stripe clock sources. Follow the instructions given in
“Sources for the Stripe Clock Reference” on page 27, but use jumper
CLKB Select to select the clock source, instead of CLKA Select.
Device Configuration
There are two methods of programming and configuring the EPXA1
device:
■ Booting from flash memory
■ Using the Quartus
See “JTAG Interfaces” on page 29 for more details about using the JTAG
interface.
On the EPXA1 device, the settings of BOOT_FLASH, MSEL0, and
MSEL1 determine the configuration mode and method. On the
EPXA1 development board, BOOT_FLASH, MSEL0 and MSEL1
are tied to a setting that forces the device to boot from 16-bit flash
memory.
®
II software to configure the device via JTAG
Booting from Flash Memory
The Altera flash memory programmer (exc_flash_programmer.exe) is a
utility that allows you to program flash memory on the EBI using the
JTAG interface and the ByteBlasterMV or MasterBlaster download cable,
so that you can boot from it.
After reset, the processor boots up and executes the bootloader from flash
memory. The bootloader configures the stripe, loads the user software
into memory, configures the FPGA side of the EPXA1, and then begins to
execute the user code.
28 Altera Corporation
Page 29
EPXA1 Development Board Hardware Reference Manual
f
For further details about booting the device from flash memory, refer to
the Excalibur Devices Hardware Reference Manual.
Using the Quartus II Software
The Quartus II software can generate an SRAM object file (.sof) containing
both hardware and software.
The Quartus II programmer uses the .sof file to configure the EPXA1
device via JTAG, using either the MasterBlaster or ByteBlasterMV
download cables.
f
JTAG Interfaces
Figure 10. JTAG Interfaces on the EPXA1 Development Board
For further details of how to create a .sof file and configure the EPXA1
device via JTAG, consult the Quartus II Help.
There are two JTAG connectors on the EPXA1 development board, as
shown in Figure 10
JTAG
connectors
(pin 1s
indicated)
The JTAG connector, J6, is used to connect an Altera ByteBlaster or
MasterBlaster download cable. The Multi-ICE connector, J8, is used to
connect a Multi-ICE cable or any other compatible cable.
Altera Corporation 29
Page 30
EPXA1 Development Board Hardware Reference Manual
The JTAG connector can be used with both the flash programmer and the
Quartus programmer. In addition, the MasterBlaster and ByteBlasterMV
cables support in-circuit debugging on the JTAG connector, using the
SignalTap
this.
The JSELECT jumper, J5, determines whether a JTAG debugger can be
connected to the JTAG connector or to the Multi-ICE connector. When
using Altera-RDI via a ByteBlasterMV or MasterBlaster cable, the
JSELECT jumper must be set to 2-3; when using Multi-ICE or a compatible
device on the Multi-ICE connector, JSELECT must be set to 1-2.
®
embedded logic analyzer. The JSELECT setting does not affect
f
Power Supply
Figure 11. Power Supply Inputs on the EPXA1 Development Board
For further details about jumper settings, refer to Table 15 on page 24.
Tables 26 and 27 starting on page 37 list the pin-outs of the JTAG and
Multi-ICE connectors.
A 12-V, 20-W supply unit powers the EPXA1 development board. The
board has reverse-polarity protection and a 2-A fuse to provide overcurrent protection.
Figure 11 on page 30 shows the location of the power supply inputs for
the EPXA1 development board.
30 Altera Corporation
Page 31
EPXA1 Development Board Hardware Reference Manual
A voltage regulator regulates the main supplies for the board. The input
supply is unregulated 12 V (±5%), which is reduced to 3.3 V for the I/O
pins and to 1.8 V for the processor core. Voltage regulator U5 reduces the
input to 5 V and distributes it to a pin on the expansion headers. The
unregulated input is also routed to a pin on the expansion headers.
The maximum current permitted on the expansion headers depends on
the input voltage: for 3.3 V, it is 500 mA, and for 5 V, it is 50 mA. If the
input supply is 12 V, the maximum current per header depends on how
much power is consumed by the rest of the board, but should not exceed
100 mA.
Three function-specific status LEDs indicate the presence of 1.8 V, 3.3 V,
and 5 V to the board, as listed in Table 18 on page 31.
Table 18. Power Supply LEDs
Board Reference Signal Description
D14 VCC_1V8 Indicates the presence of 1.8 V
D13 VCC_3V3 Indicates the presence of 3.3 V
D12 VCC_5V Indicates the presence of 5 V
Tables 19 through 22 list the estimated maximum power-supply
requirements for the development board modules.
The typical power-supply requirement for the development
board is 250 mA/500 mA.
Table 19. 12-V Supply Requirements
Module Max mA
Expansion headers 100 per header
Table 20. 5-V Supply Requirements
Module Max mA
CLK_REF Alternative crystal oscillator—75
Expansion headers
50 per header
Altera Corporation 31
Page 32
EPXA1 Development Board Hardware Reference Manual
Table 21. 3.3-V Supply Requirements
Module Max mA
EPXA1 I/O 500 (sum over all I/O pins)
SDRAM 285
Flash memory 45 × 2 = 90
UARTs 20
Ethernet 140
LEDs 15 × 18 = 270
+ (5 × 2) = 10
=280
Crystal oscillator 10
Clock buffers 37 + 22 = 59
Expansion headers 500 per header
Table 22. 1.8-V Supply Requirements
Module mA
EPXA1 device core Depends on application (1.1 A maximum)
Test Points & Test Pads
Test points on the EPXA1 development board, annotated as TPx, are
provided for voltages and ground connections; see Table 35 on page 45.
For selected signals, test pads are provided on the board, annotated as Tx;
they are listed in Table 36 on page 45.
32 Altera Corporation
Page 33
EPXA1 Development Board Hardware Reference Manual
Signals
Tables 23 through 27 document the device signals for the following
peripherals:
■ UART
■ Expansion headers
■ Configuration/debugging interfaces
UART
Figure 12 shows the DB9 male connector used on the development board.
Figure 12. UART DB9 Male Connector
1
6
Table 23 lists the UART DB9 signals.
Table 23. DTE UART DB9 Male Connector Signals (1)
23
7
4
5
9
8
Pin Signal Description
1 DCD Data carrier detect
2 RXD Receive data
3 TXD Transmit data
4 DTR Data terminal ready
5 GND Signal ground
6 DSR Data set ready
7 RTS Request to send
8 CTS Clear to send
9 RI Ring indicator
Note:
(1) The EPXA1 development board has two DB9 male connectors.
Table 33 on page 44 lists pin-out information for the UARTs on the
development board.
Altera Corporation 33
Page 34
Expansion Headers
On the development board, there is a standard expansion header and a
wide expansion header. Table 24 lists the signals on the standard
expansion header.
Table 24. Standard Expansion Header Signals
Pin Signal Pin Signal Pin Signal
7 × 2 Header, J11
10 × 2 Header, J10
20 × 2 Header, J15
1 GND 6 B_H5V_IO31 11 B_H5V_IO36
2 VCC_5V 7 B_H5V_IO32 12 B_H5V_IO37
3 H5V_VEE 8 B_H5V_IO33 13 B_H5V_IO38
4 B_H5V_IO29 9 B_H5V_IO34 14 B_H5V_IO39
5 B_H5V_IO30 10 B_H5V_IO35
1 Vcc_UNREG 8 GND 15 VCC_3V3
2 GND 9 H5V_OSC 16 GND
3 VCC_A2 10 GND 17 NC
4 GND 11 H5V_CLK 18 GND
5 VCC_3V3 12 GND 19 NC
6 GND 13 H5V_CLKOUT 20 GND
7 VCC_3V3 14 GND
1 H5_RST_N 15 B_H5V_IO12 29 B_H5V_IO21
2 GND 16 B_H5V_IO13 30 GND
3 B_H5V_IO0 17 B_H5V_IO14 31 B_H5V_IO22
4 B_H5V_IO1 18 B_H5V_IO15 32 B_H5V_IO23
5 B_H5V_IO2 19 GND 33 B_H5V_IO24
6 B_H5V_IO3 20 Removed 34 NC
7 B_H5V_IO4 21 B_H5V_IO16 35 B_H5V_IO25
8 B_H5V_IO5 22 GND 36 B_H5V_IO26
9 B_H5V_IO6 23 B_H5V_IO17 37 B_H5V_IO27
10 B_H5V_IO7 24 GND 38 H5_CS_N
11 B_H5V_IO8 25 B_H5V_IO18 39 B_H5V_IO28
12 B_H5V_IO9 26 GND 40 GND
13 B_H5V_IO10 27 B_H5V_IO19
14 B_H5V_IO11 28 B_H5V_IO20
EPXA1 Development Board Hardware Reference Manual
Table 39 on page 48 lists pin-out information for the standard expansion
header on development board.
34 Altera Corporation
Page 35
EPXA1 Development Board Hardware Reference Manual
Table 25 lists the signals on the long expansion header.
Table 25. Long Expansion Header Signals (Part 1 of 2)
Pin Signal Pin Signal Pin Signal
7 × 2 Header, J4
10 × 2 Header, J3
20 × 2 Header, J9
1 GND 6 B_H5V_IO31 11 B_H5V_IO36
2 VCC_5V 7 B_H5V_IO32 12 B_H5V_IO37
3 B_H5V_IO40 8 B_H5V_IO33 13 B_H5V_IO38
4 B_H5V_IO29 9 B_H5V_IO34 14 B_H5V_IO39
5 B_H5V_IO30 10 B_H5V_IO35
1 Vcc_UNREG 8 GND 15 VCC_3V3
2 GND 9 H5V_OSC 16 GND
3 VCC_A 10 GND 17 NC
4 GND 11 H5V_CLK 18 GND
5 VCC_3V3 12 GND 19 NC
6 GND 13 H5V_CLKOUT 20 GND
7 VCC_3V3 14 GND
1 H5_RST_N 15 B_H5V_IO12 29 B_H5V_IO21
2 GND 16 B_H5V_IO13 30 GND
3 B_H5V_IO0 17 B_H5V_IO14 31 B_H5V_IO22
4 B_H5V_IO1 18 B_H5V_IO15 32 B_H5V_IO23
5 B_H5V_IO2 19 GND 33 B_H5V_IO24
6 B_H5V_IO3 20 Removed 34 NC
7 B_H5V_IO4 21 B_H5V_IO16 35 B_H5V_IO25
8 B_H5V_IO5 22 GND 36 B_H5V_IO26
9 B_H5V_IO6 23 B_H5V_IO17 37 B_H5V_IO27
10 B_H5V_IO7 24 GND 38 H5_CS_N
11 B_H5V_IO8 25 B_H5V_IO18 39 B_H5V_IO28
12 B_H5V_IO9 26 GND 40 GND
13 B_H5V_IO10 27 B_H5V_IO19
14 B_H5V_IO11 28 B_H5V_IO20
Altera Corporation 35
Page 36
EPXA1 Development Board Hardware Reference Manual
Table 25. Long Expansion Header Signals (Part 2 of 2)
Pin Signal Pin Signal Pin Signal
20 × 2 Header, J2
1 GND 15 B_eup_A5 29 B_eup_A11
2 GND 16 B_eup_D5 30 B_eup_D11
3 B_eup_A0 17 B_eup_A6 31 B_eup_A12
4 B_eup_D0 18 B_eup_D6 32 B_eup_D12
5 B_eup_A1 19 B_eup_A7 33 B_eup_A13
6 B_eup_D1 20 B_eup_D7 34 B_eup_D13
7 B_eup_A2 21 B_eup_A8 35 B_eup_A14
8 B_eup_D2 22 B_eup_D8 36 B_eup_D14
9 B_eup_A3 23 B_eup_A9 37 B_eup_A15
10 B_eup_D3 24 B_eup_D9 38 B_eup_D15
11 B_eup_A4 25 B_eup_A10 39 GND
12 B_eup_D4 26 B_eup_D10 40 GND
13 GND 27 GND
14 GND 28 GND
Table 38 on page 47 lists pin-out information for the long expansion
header on the development board.
36 Altera Corporation
Page 37
EPXA1 Development Board Hardware Reference Manual
Configuration/Debugging Interfaces
On the development board, there are interfaces for a MasterBlaster or
ByteBlasterMV cable, and a Multi-ICE connector. Table 26 lists the signals
on the MasterBlaster/ByteBlasterMV connector. Table 27 lists the signals
on the Multi-ICE connector. Table 28 on page 39 lists pin-out information
for the development board configuration and debugging interfaces.
Table 26. MasterBlaster/ByteBlasterMV Female Connector Signals
Pin JTAG Mode
Signal Description
1 TCK Clock signal
2 GND Signal ground
3 TDO Data from device
4 V
5 TMS JTAG state machine control
6 V
7 NC No connect
8 - No connection
9 TDI Data to device
10 GND Signal ground
Power supply
CC
Reference voltage for MasterBlaster output driver
IO
Table 27. Multi-ICE Connector Signals (Part 1 of 2)
Pin Signal Description Direction
1 VCC Power supply N/A
2 VCC Power supply N/A
3 PROC_NTRTST Processor reset Output
4 GND Ground N/A
5 PROC_TDI Processor test data input Input
6 GND Ground N/A
7 PROC_TMS Processor test mode select Input
8 GND Ground N/A
9 PROC_TCK Processor test clock input Input
10 GND Ground N/A
11 GND Ground N/A
12 GND Ground N/A
13 PROC_TDO Processor test data output O
14 GND Ground N/A
Altera Corporation 37
Page 38
EPXA1 Development Board Hardware Reference Manual
Table 27. Multi-ICE Connector Signals (Part 2 of 2)
Pin Signal Description Direction
15 NSRST Warm reset I/O
16 GND Ground N/A
17 NC No connection N/A
18 GND Ground N/A
19 NC No connection N/A
20 GND Ground N/A
Development Board Pin-Outs
The main component of the EPXA1 development board is the EPXA1F484
device. The pins on the EPXA1 device are assigned to functions on the
board. When generating IP cores for the EPXA1 device, the pins must be
used as defined to avoid damaging the device and any unused pins
should be tri-stated using the Quartus II software. The following sections
list the interfaces and dedicated pins on the board. Any pins not used for
a design should be left in a high-impedance state to avoid contention.
This section details the pins on the EPXA1 device which are assigned to
the following purposes:
■ Configuration
■ SDR SDRAM
■ EBI—for the Ethernet and flash memory devices
■ UARTs 1 and 2
■ Fast I/O pins
■ Expansion headers
■ Prototyping area
■ Test pads
Pin assignments are grouped into tables for control pins, address pins,
and data bus pins where appropriate. The tables also detail signals
passing across a connection. The remaining I/O pins on the EPXA1 device
are listed at the end of this section.
38 Altera Corporation
Page 39
EPXA1 Development Board Hardware Reference Manual
Configuration
The EPXA1 device pins listed in Table 28 on page 39 are used exclusively
for configuring the device. Refer to “Device Configuration” on pag e 28 for
more information about EPXA1 configuration.
Table 28. EPXA1 Device Configuration Pins (Part 1 of 2)
Signal Name EPXA1 Device
Pin
MSEL0 R5 Configuration mode select (tied to GND)
MSEL1 T3 Configuration mode select (tied to GND)
BOOT_FLASH J5 Tied high (mandatory boot from flash)
NSTATUS AB12 Pulled high
NCONFIG R4 Connected to SOFT_RESET line
DCLK R16 Pulled high
CONF_DONE V12 Pulled high
INIT_DONE K7 Initialization complete LED
nCE P19 Pulled low
nCEO H3 Not connected
DATA0 P18 Pulled low
DATA1 K3 Unused. Used as general-purpose I/O
DATA2 J1
DATA3 L5
DATA4 L4
DATA5 L6
DATA6 L22
DATA7 M18
TDI T20 J6.9 JTAG data input
TDO J4 J6.3 JTAG data output (to next device in the chain
TCK Y11 J6.1 JTAG clock
TMS U11 J6.5 JTAG mode select
TRST J6 JTAG reset (pulled high)
PROC_TDI G7 J8.5 JTAG data input
PROC_TDO G2 J8.13 JTAG data output (to next device in the chain)
PROC_TCK G3 J8.9 JTAG clock
PROC_TMS H6 J8.7 JTAG mode select
PROC_TRST G6 J8.3 JTAG reset (pulled high)
DEV_CLR_n R20 T15, T14 FPGA clear signal taken to test pad T15, placed next to
Board
Reference
Description
grounded test pad T14 near SW1; allows use of this signal, if
required
Altera Corporation 39
Page 40
EPXA1 Development Board Hardware Reference Manual
Table 28. EPXA1 Device Configuration Pins (Part 2 of 2)
Signal Name EPXA1 Device
Pin
DEV_OE U16 Device output enable. GPIO
nWS M21 Write strobe. GPIO
nRS P16 Read strobe. GPIO
nCS N20 Signal providing handshaking between devices. GPIO
CS P17 Chip select. GPIO
RDYnBSY K4 Ready/busy. GPIO
CLKUSR L7 Clock signal. GPIO
Board
Reference
Description
SDR SDRAM Interface
The EPXA1 development board contains one 16-bit SDR SDRAM device
connected to the EPXA1 SDRAM controller.
f
For further details about the SDRAM controller, refer to the Excalibur
Devices Hardware Reference Manual.
The SDRAM_DQM[1:0] lines are used as byte enables for both reading
from and writing to the SDRAM.
Table 29 shows the pin-outs for the SDR SDRAM control signals.
Table 29. SDR SDRAM Control Signal Pin-Outs
Signal Name EPXA1 Device Pin Board Reference Description
SD_RAS_N C14 U13.18 Row address strobe
SD_CAS_N A17 U13.17 Column address strobe
SD_WE_N F14 U13.16 Write enable
SD_CS0_N G15 U13.19 Chip select
SD_CLKE E15 U13.37 Clock enable
SD_CLK C15 U13.38 SDRAM clock
SD_CLK_N(1) J16 Read data strobe output in SDR mode
SD_DQM[0] E21 U13.15 Data byte mask
SD_DQM[1] J20 U13.39 Data byte mask
SD_DQS[0](1) D22 Read data strobe input in SDR mode
SD_DQM_ECC B13 Not used
Note:
(1) These pins are tied together to provide a data-read strobe. See the Excalibur Devices Hardware Reference Manual.
40 Altera Corporation
Page 41
EPXA1 Development Board Hardware Reference Manual
Table 30 lists the SDRAM data and address bus pin-outs.
Table 30. SDR SDRAM Data Bank & Address Bus Pin-Outs
Signal Name EPXA1 Device
Pin
SD_DQ0 B20 U13.2 SD_DQ1 C20 U13.4
SD_DQ2 F18 U13.5 SD_DQ3 C21 U13.7
SD_DQ4 E20 U13.8 SD_DQ5 F19 U13.10
SD_DQ6 F20 U13.11 SD_DQ7 G18 U13.13
SD_DQ8 H19 U13.42 SD_DQ9 G20 U13.44
SD_DQ10 E22 U13.45 SD_DQ11 H18 U13.47
SD_DQ12 G21 U13.48 SD_DQ13 H20 U13.50
SD_DQ14 H17 U13.51 SD_DQ15 H22 U13.53
SD_A0 B17 U13.23 SD_A1 G16 U13.24
SD_A2 D16 U13.25 SD_A3 F16 U13.26
SD_A4 A19 U13.29 SD_A5 E16 U13.30
SD_A6 B18 U13.31 SD_A7 F17 U13.32
SD_A8 C17 U13.33 SD_A9 D17 U13.34
SD_A10 B19 U13.22 SD_A11 D18 U13.35
SD_A12 D19 U13.36 SD_A13 C19 U13.20
SD_A14 E18 U13.21
Board
Reference
Signal Name EPXA1 Device
Pin
Board
Reference
Altera Corporation 41
Page 42
EBI
The EBI shares addresses and data with the flash and Ethernet MAC/PHY
devices. Each device has separate chip-select lines.
Table 31 shows the EPXA1 pin-outs for the EBI control signals and the
board references for the flash memory and Ethernet.
Table 31. EBI Control Signal Pin-Outs
EPXA1 Development Board Hardware Reference Manual
Signal Name EPXA1
Device Pin
EBI_BE0 D1 U9.96 Byte enable
EBI_BE1 H9 U9.97 Byte enable
EBI_OE_N D2 U9.33 Output enable
EBI_WE_N G8 U9.34 FLASH1.11,
EBI_CS0 C2 FLASH1.26 Chip select (flash memory 1)
EBI_CS1 B3 FLASH2.26 Chip select (flash memory 2)
EBI_CS2 D3 Chip select (not used)
EBI_CS3 C4 U9.43 Chip select (ethernet)
EBI_CLK C3 U9.44 EBI clock
EBI_ACK B4 EBI acknowledge (not used)
Ethernet Board
Reference
Flash Memory
Board Reference
FLASH2.11
Description
Write enable
Table 32 shows the EPXA1 pin-outs for the EBI data bank and address bus
and the board references for the flash memory and Ethernet.
Table 32. EBI Data Bank and Address Bus Pin-Outs (Part 1 of 2)
Signal Name EPXA1 Device Pin Ethernet Board
Reference
EBI_DQ0 D10 U9.109 FLASH1.29 FLASH2.29
EBI_DQ1 F10 U9.108 FLASH1.31 FLASH2.31
EBI_DQ2 C10 U9.107 FLASH1.33 FLASH2.33
EBI_DQ3 E10 U9.106 FLASH1.35 FLASH2.35
EBI_DQ4 A10 U9.104 FLASH1.38 FLASH2.38
EBI_DQ5 G11 U9.103 FLASH1.40 FLASH2.40
EBI_DQ6 B10 U9.102 FLASH1.42 FLASH2.42
EBI_DQ7 F11 U9.101 FLASH1.44 FLASH2.44
EBI_DQ8 D11 U9.78 FLASH1.30 FLASH2.30
EBI_DQ9 E11 U9.77 FLASH1.32 FLASH2.32
Flash Memory 1
Board Reference
Flash Memory 2
Board Reference
42 Altera Corporation
Page 43
EPXA1 Development Board Hardware Reference Manual
Table 32. EBI Data Bank and Address Bus Pin-Outs (Part 2 of 2)
Signal Name EPXA1 Device Pin Ethernet Board
Reference
EBI_DQ10 C11 U9.76 FLASH1.34 FLASH2.34
EBI_DQ11 B11 U9.75 FLASH1.36 FLASH2.36
EBI_DQ12 F12 U9.73 FLASH1.39 FLASH2.39
EBI_DQ13 A12 U9.72 FLASH1.41 FLASH2.41
EBI_DQ14 E12 U9.71 FLASH1.43 FLASH2.43
EBI_DQ15 B12 U9.70 FLASH1.45 FLASH2.45
EBI_A0 C5 (not used)
EBI_A1 A4 U9.80 FLASH1.25 FLASH2.25
EBI_A2 D7 U9.81 FLASH1.24 FLASH2.24
EBI_A3 A5 U9.82 FLASH1.23 FLASH2.23
EBI_A4 E7 U9.83 FLASH1.22 FLASH2.22
EBI_A5 B6 U9.84 FLASH1.21 FLASH2.21
EBI_A6 C7 U9.85 FLASH1.20 FLASH2.20
EBI_A7 A6 U9.86 FLASH1.19 FLASH2.19
EBI_A8 F8 U9.87 FLASH1.18 FLASH2.18
EBI_A9 B7 U9.88 FLASH1.8 FLASH2.8
EBI_A10 D8 U9.89 FLASH1.7 FLASH2.7
EBI_A11 C8 U9.90 FLASH1.6 FLASH2.6
EBI_A12 E8 U9.91 FLASH1.5 FLASH2.5
EBI_A13 A7 U9.92 FLASH1.4 FLASH2.4
EBI_A14 G9 U9.93 FLASH1.3 FLASH2.3
EBI_A15 B8 U9.94 FLASH1.2 FLASH2.2
EBI_A16 F9 FLASH1.1 FLASH2.1
EBI_A17 A8 FLASH1.48 FLASH2.48
EBI_A18 E9 FLASH1.17 FLASH2.17
EBI_A19 C9 FLASH1.16 FLASH2.16
EBI_A20 D9 FLASH1.15 FLASH2.15
EBI_A21 B9 FLASH1.10 FLASH2.10
EBI_A22 H10 FLASH1.9 FLASH2.9
EBI_A23 A9 (not used)
EBI_A24 G10 (not used)
Flash Memory 1
Board Reference
Flash Memory 2
Board Reference
Altera Corporation 43
Page 44
EPXA1 Development Board Hardware Reference Manual
UART1 & UART2
Table 33 details the pins used for UARTs 1 and 2.
Table 33. UARTs 1 & 2 I/O Pin-Outs
FPGA UART Embedded Stripe UART
EPXA1 I/O
Pin
K4 P1.4 DTR E6 P2.4 XA_DTR
J1 P1.3 TXD G5 P2.3 XA_TXD
K5 P1.2 RXD F2 P2.2 XA_RXD
L5 P1.6 DSR G4 P2.6 XA_DSR
K3 P1.7 RTS E2 P2.7 XA_RTS
L7 P1.9 RI F3 P2.9 XA_RI
L6 P1.1 DCD F6 P2.1 XA_DCD
L4 P1.8 CTS F1 P2.8 XA_CTS
Connector
Pin
P1.5 GND P2.5 GND
Device
Signal
EPXA1
Device Pin
Connector
Pin
Device
Signal
Fast I/O Pins
Table 34 details the EPXA1 fast I/O pins, which are used as expansion
header clock inputs.
Table 34. EPXA1 Fast I/O Pins
EPXA1 Pin Name Board Signal Description EPXA1 Pin Expansion Header Card
Connector
FAST1 H5V_CLKOUT Dedicated fast I/O pin J2 J3.13
FAST4 H5V_CLKOUT Dedicated fast I/O pin W12 J10.13
44 Altera Corporation
Page 45
EPXA1 Development Board Hardware Reference Manual
Test Points
Table 35 on page 45 lists the test points on the EPXA1 development board.
Table 35. EPXA1 Development Board Test Points
Test Point Connected To Test Point Connected To
TP1 GND TP6 1V8
TP2 GND TP7 GND
TP3 EBI_CLK TP8 GND
TP4 GND TP9 5V
TP5 3V3 TP10 GND
Test Pads
Table 36 lists the test pads on the EPXA1 development board.
Table 36. EPXA1 Development Board Test Pads
Test Pad Connected To Test Pad Connected To
T1 EBI chip-select 3 T9 EBI byte enable 1
T2 EBI write enable T10 JTAG clock
T3 Ethernet loopback active output T11 JTAG data output
T4 EBI output enable T12 JTAG mode select
T5 EBI chip-select 0 T13 JTAG data input
T6 EBI chip-select 2 T14 Feedback clock to PLL2
T7 EBI byte enable 0 T15 25-MHz clock
T8 EBI chip-select 1
Altera Corporation 45
Page 46
EPXA1 Development Board Hardware Reference Manual
Prototyping Area
Table 36 lists the pin assignments for the prototyping area on the EPXA1
development board.
Table 37. EPXA1 Development Board Prototyping Area Pin-Outs
Board Reference
(EPXA1 Device Pin)
Row/Column 1 2 3 4 5 6
A VCC_5V GND VCC_3V3 protoIO_29 (K15) protoIO_19 (L19) protoIO_9 (M22)
B VCC_5V GND VCC_3V3 protoIO_28 (K17) protoIO_18 (L20) protoIO_8 (N16)
C VCC_5V GND VCC_3V3 protoIO_27 (K18) protoIO_17 (L21) protoIO_7 (N20)
D VCC_5V GND VCC_3V3 protoIO_26 (K19) protoIO_16 (L22) protoIO_6 (N22)
E VCC_5V GND VCC_3V3 protoIO_25 (K20) protoIO_15 (M16) protoIO_5 (P16)
F VCC_5V GND VCC_3V3 protoIO_24 (K21) protoIO_14 (M17) protoIO_4 (P17)
G VCC_5V GND VCC_3V3 protoIO_23 (L15) protoIO_13 (M18) protoIO_3 (P20)
H VCC_5V GND VCC_3V3 protoIO_22 (L16) protoIO_12 (M19) protoIO_2 (P22)
J VCC_5V GND VCC_3V3 protoIO_21 (L17) protoIO_11 (M20) protoIO_1 (R22)
K VCC_5V GND VCC_3V3 protoIO_20 (L18) protoIO_10 (M21) NC
L VCC_5V GND VCC_3V3 NC NC NC
M VCC_5V GND VCC_3V3 NC NC protoIO_32 (AA19)
N VCC_5V GND VCC_3V3 NC NC protoIO_31 (AA20)
P VCC_5V GND VCC_3V3 NC NC protoIO_30 (AB19)
R VCC_5V GND VCC_3V3 NC NC RESET_n (H4)
46 Altera Corporation
Page 47
EPXA1 Development Board Hardware Reference Manual
Expansion Header I/O Pins
Tables 39 and 38 list the remaining I/O pins on the standard expansion
header and long expansion header, respectively, and their connections on
the EPXA1 device.
Table 38. Development Board Long Expansion Header (Header 1) I/O Pin-Outs
Board Connector EPXA1 Device Board Connector EPXA1 Device Board Connector EPXA1 Device
J2.3 W3 J2.32 N3 J9.9 Y4
J2.4 R1 J2.33 R7 J9.10 Y3
J2.5 W2 J2.34 N2 J9.11 Y2
J2.6 P7 J2.35 R3 J9.12 W11
J2.7 W1 J2.36 N1 J9.13 W10
J2.8 P6 J2.37 R2 J9.14 W9
J2.9 V3 J2.38 M7 J9.15 W8
J2.10 P5 J4.3 AB9 J9.16 W7
J2.11 V2 J4.4 T10 J9.17 W5
J2.12 P4 J4.5 T9 J9.18 V11
J2.15 U4 J4.6 R10 J9.21 V10
J2.16 P3 J4.7 AB10 J9.23 V9
J2.17 U3 J4.8 M6 J9.25 V8
J2.18 P2 J4.9 M5 J9.27 V7
J2.19 U2 J4.10 M4 J9.28 V6
J2.20 P1 J4.11 M3 J9.29 V5
J2.21 T8 J4.12 L3 J9.31 V4
J2.22 N7 J4.13 L2 J9.32 U10
J2.23 T7 J4.14 L1 J9.33 U9
J2.24 N6 J9.3 Y10 J9.35 U8
J2.25 T6 J9.4 Y9 J9.36 U7
J2.26 N5 J9.5 Y8 J9.37 U6
J2.29 T5 J9.6 Y7 J9.39 T11
J2.30 N4 J9.7 Y6 H5_CS_N
J2.31 T4 J9.8 Y5
(J15.38)
AB8
Altera Corporation 47
Page 48
EPXA1 Development Board Hardware Reference Manual
Table 39. Development Board Standard Expansion Header (Header 2) I/O Pin-Outs
Board Connector EPXA1 Device Board Connector EPXA1 Device Board Connector EPXA1 Device
J11.4 AA14 J15.6 Y14 J15.23 T15
J11.5 AA12 J15.7 Y13 J15.25 T14
J11.6 AB4 J15.8 Y12 J15.27 T13
J11.7 AA10 J15.9 W16 J15.28 T12
J11.8 AA9 J15.10 W15 J15.29 R13
J11.9 AA8 J15.11 W14 J15.31 AB17
J11.10 AA7 J15.12 W13 J15.32 AB16
J11.11 AA6 J15.13 V15 J15.33 AB15
J11.12 AA5 J15.14 V14 J15.35 AB14
J11.13 AA4 J15.15 V13 J15.36 AA17
J11.14 AA3 J15.16 U15 J15.37 AA16
J15.3 Y22 J15.17 U14 J15.39 AA15
J15.4 Y16 J15.18 U13 H5_CS_N
J15.5 Y15 J15.21 U12
(J9.38)
AB6
General Usage Guidelines
To use the development board properly, and to avoid damage to it, follow
the guidelines in this section.
Anti-Static Handling
Before handling the development board, you should take proper antistatic precautions, otherwise it can be damaged.
Power Consumption
The level of power consumption in the EPXA1 development board
depends on what peripherals are implemented in the FPGA, typically in
relation to the following variables:
■ Number of interfaces used
■ Density and speed of the device
■ Population of the interfaces
The board’s typical operating current while running diagnostics is
approximately 250 mA.
A 20-W power supply is supplied as part of the EPXA1 development kit.
It is capable of meeting the maximum power requirement imposed by the
board if all interfaces are used within specification.
48 Altera Corporation
Page 49
EPXA1 Development Board Hardware Reference Manual
Test Core Functionality
The EPXA1 board is supplied with a diagnostic software image directly
programmed into flash memory. When the embedded processor boots, it
configures the FPGA and runs the software using the test FPGA image.
The software is controlled using a serial terminal connected to the board
connector, P2, and the following PC communications port settings: baud
rate 38400, 8 data bits, no parity, one stop bit and no flow control.
Ensure that the serial terminal program is configured to output
carriage return and line feeds—not all terminals default to these
settings.
The options on the software menu are as follows:
e—Run Ethernet internal loopback test
E—Run Ethernet external loopback test (requires loopback
connector)
h—Show this screen
i—Show interrupt usage
m—Run memory test
t—Toggle terminal output between UARTS
■ The Ethernet internal loopback test checks that the Ethernet chip is
working properly—the external loopback test is for manufacturing
test only
■ The toggle between the UARTS switches the output of the program
between P1 and P2. P2 is connected to the UART in the EPXA1
embedded stripe; P1 is connected to a UART which has been
programmed into the FPGA. After switching the port using the t
command, you can connect the serial terminal to the currentlyunused serial connector (i.e., if you were using P2, you will now use
P1), and type h↵ to invoke the help menu.
■ The memory test tests the integrity of the SDRAM on the board.
In addition, the LEDS and switches can be tested as follows:
■ Each of the eight switches on the switch block can turn the
corresponding LED on or off; for example, SW6_1 turns on the first
LED
■ When held down, SW5 toggles the 9th LED
■ When held down, SW4 toggles the 10th LED
■ When held down, SW3 inverts the current setting of all the LEDS
■ SW2 shifts all the LEDS right (as viewed) by one place
Altera Corporation 49
Page 50
EPXA1 Development Board Hardware Reference Manual
Unused I/O Pins
Damage could result to the EPXA1 device, if all unused I/O pins are not
set to tri-state mode in the Quartus II software.
To set the unused I/O pins to tri-state mode, run the Quartus II software,
open the appropriate project, and follow the steps below:
1. Choose Compile Mode (Processing menu).
2. Choose Compiler Settings (Processing menu).
3. Click the Chips & Devices tab.
4. Click Device & Pin Options.
5. Click the Unused Pins tab.
6. Select As inputs, tri-stated.
7. Click Apply.
50 Altera Corporation
Loading...
