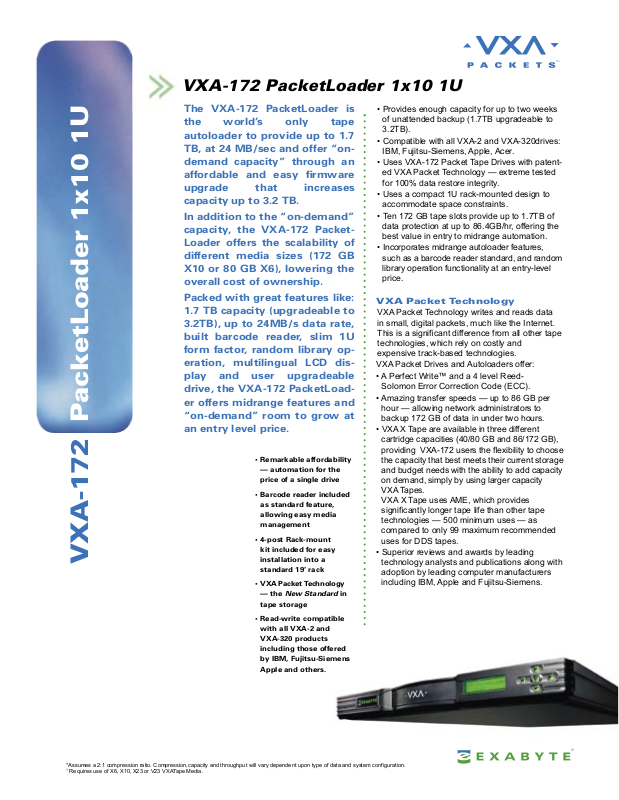

VXA-172 PacketLoader 1x10 1U

VXA-172 PacketLoader 1x10 1U

The VXA-172 PacketLoader is
the world’s only tape
autoloader to provide up to 1.7
TB, at 24 MB/sec and offer “on­demand capacity” through an
affordable and easy rmware
upgrade that increases
capacity up to 3.2 TB.

In addition to the “on-demand”
capacity, the VXA-172 Packet­Loader offers the scalability of
different media sizes (172 GB
X10 or 80 GB X6), lowering the
overall cost of ownership.

Packed with great features like:

1.7 TB capacity (upgradeable to

3.2TB), up to 24MB/s data rate,
built barcode reader, slim 1U
form factor, random library op­eration, multilingual LCD dis­play and user upgradeable
drive, the VXA-172 PacketLoad­er offers midrange features and
“on-demand” room to grow at
an entry level price.

• Remarkable affordability
— automation for the
price of a single drive

• Barcode reader included
as standard feature,
allowing easy media
management

• 4-post Rack-mount
kit included for easy
installation into a
standard 19’ rack

• VXA Packet Technology
— the New Standard in
tape storage

• Read-write compatible
with all VXA-2 and
VXA-320 products
including those offered
by IBM, Fujitsu-Siemens
Apple and others.

• Provides enough capacity for up to two weeks
of unattended backup (1.7TB upgradeable to

3.2TB).

• Compatible with all VXA-2 and VXA-320drives:
IBM, Fujitsu-Siemens, Apple, Acer.

• Uses VXA-172 Packet Tape Drives with patent­ed VXA Packet Technology — extreme tested
for 100% data restore integrity.

• Uses a compact 1U rack-mounted design to
accommodate space constraints.

• Ten 172 GB tape slots provide up to 1.7TB of
data protection at up to 86.4GB/hr, offering the
best value in entry to midrange automation.

• Incorporates midrange autoloader features,
such as a barcode reader standard, and random
library operation functionality at an entry-level
price.

VXA Packet Technology

VXA Packet Technology writes and reads data
in small, digital packets, much like the Internet.
This is a signicant difference from all other tape
technologies, which rely on costly and
expensive track-based technologies.

VXA Packet Drives and Autoloaders offer:

• A Perfect Write™ and a 4 level Reed­Solomon Error Correction Code (ECC).

• Amazing transfer speeds — up to 86 GB per
hour — allowing network administrators to
backup 172 GB of data in under two hours.

• VXA X Tape are available in three different
cartridge capacities (40/80 GB and 86/172 GB),
providing VXA-172 users the exibility to choose
the capacity that best meets their current storage
and budget needs with the ability to add capacity
on demand, simply by using larger capacity
VXA Tapes.
VXA X Tape uses AME, which provides
signicantly longer tape life than other tape
technologies — 500 minimum uses — as
compared to only 99 maximum recommended
uses for DDS tapes.

• Superior reviews and awards by leading
technology analysts and publications along with
adoption by leading computer manufacturers
including IBM, Apple and Fujitsu-Siemens.

*Assumes a 2:1 compression ratio. Compression,capacity and throughput will vary dependent upon type of data and system configuration.

1

Requires use of X6, X10, X23 or V23 VXATape Media.

VXA-172 PacketLoader 1x10 1U

To get your

protection up

and working

fast, each

VXA-172 Packet-

Loader 1x10 1U

is packaged with

all necessary

components.

For optimal performance
and reliability, Exabyte
provides VXA Packet
media and cleaning
cartridges specically
designed for use with VXA
Packet Tape Drives and
VXA PacketLoaders.

Each V XA -172 Packet­Loader comes eq uipped
with :

• A bar code rea der and
bar code labels

• A 4-post rack-mount kit

• One VXA cleaning
cartridge

• US and international
power c ords

• A printed Quic k Start
Guide

• One 68- pin HD to HD
LVD SCSI Cable

• One 68- pin HD LVD
SCSI Terminator

The VXA -172 Packet­Loader 1x10 1U is part
of an entire family of
autom at io n p ro du cts
featuring VXA Packet
Technology. Visit
www.exabyte.com.

VXA-172 PacketLoader 1x10 1U Configurations Exabyte Part #

VXA-172 PacketLoader 1x10 1U LVD 119.00700

Warranty Uplifts Exabyte Part #

3-year (total) 5x9 Next Business Day On-Site Service (OSS)

VXA Packet Tapes

Exabyte offers a

full line of Certied

media to optimize

VXA Packet Tape

Drive performance

and ensure data

integrity.

Product

X23 (230m) Data Cartridge 111.00221 80GB/160GB* 160/320GB* —

X10 (124m) Data Cartridge** 111.00206 40GB/80GB* 86/172GB* 86/172GB*

X6 (62m) Data Cartridge** 111.00200 20GB/40GB* 40GB/80GB* 40GB/80GB*

Cleaner 111.00209

*Native/compressed, assumes 2:1 compression. **Requires rmware level 2105 or higher.

† 1012313-000

Part No.

VXA-2 VXA-3 VXA-172

✔ ✔ ✔

VXA-172 (VXA-3) PacketLoader 1x10 1U

Tec hn i ca l Sp eci f ic a ti o ns

Capacity

860 GB native, 1.7 TB Compressed
(Upgradeable to 1.6TB Native,

3.2TB Compressed)

Data Transfer Rate, Aggregate

43.2 GB/hr native,

86.4 GB/hr compressed

Cartridge Access Time

< 10 seconds

Interface

SCSI-3 Ultra 160

Reliability

Robotics: >250,000 mean cycles
between failures (MCBF)

Recording Method

Packetized data, 128 bytes per packet,
helical scan

Read and Write Formats

Read: VXA-2, VXA-3
Write: VXA-2, VXA-3

Environment

Operating temperature:
5° C to 40° C (41° F to 104° F)

Nonoperating temperature:

-40° C to 60° C (14° F to 140°F)

Relative humidity, noncondensing,
operating: 20% to 80%

Power

100 to 240 VAC, 50 to 60 Hz

Auto-switching power supply

Power Consumption:
35W

Dimensions (HxWxD)

1.72 x 17.6 x 27.0 inches

4.36 x 44.8 x 68.6 cm

1U rack height

Weight

23 lbs.

10.4 kgs

Shipping weight:

33.5 lbs.

15.2 kgs

Agency Certications

UL, CSA, FCC, CISPR

Warranty

Three-Year Advance Exchange

Software Compatibility

Compatible with all major backup applica­tions and operating systems. For up to
date compatibility information please visit
our website at www.exabyte.com

Contac t an E xabyte sales representative
at 1- 80 0-E XA BYTE for availabilit y of
products using VX A Packet Tape
Technology.
