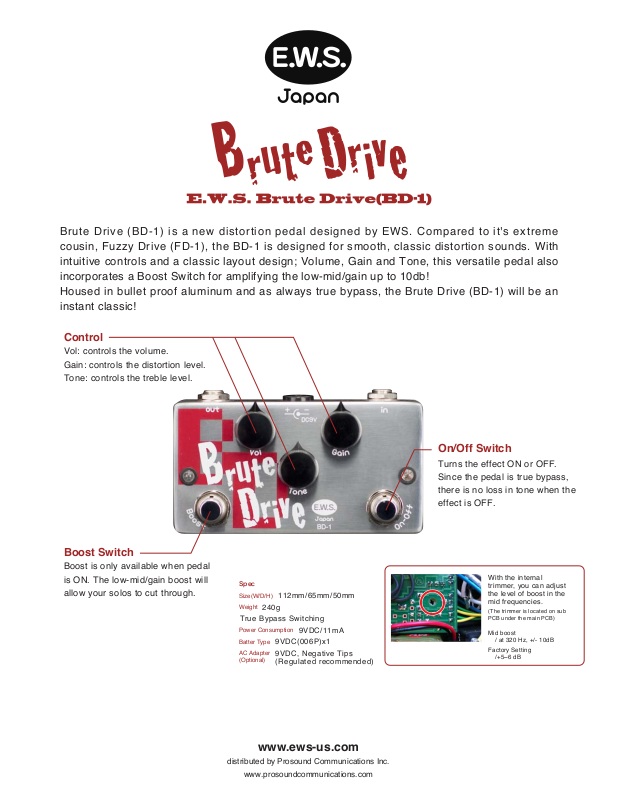

EWS Brute Drive Data Sheet

Brute Drive (BD-1) is a new distortion pedal designed by EWS. Compared to it's extreme
cousin, Fuzzy Drive (FD-1), the BD-1 is designed for smooth, classic distortion sounds. With
intuitive controls and a classic layout design; Volume, Gain and Tone, this versatile pedal also
incorporates a Boost Switch for amplifying the low-mid/gain up to 10db!
Housed in bullet proof aluminum and as always true bypass, the Brute Drive (BD-1) will be an
instant classic!

Control

Vol: controls the volume.
Gain: controls the distortion level.
Tone: controls the treble level.

On/Off Switch

Turns the effect ON or OFF.
Since the pedal is true bypass,
there is no loss in tone when the
effect is OFF.

Boost Switch

Boost is only available when pedal
is ON. The low-mid/gain boost will
allow your solos to cut through.

Spec

Size(W/D/H)

Weight

True Bypass Switching

Power Consumption

Batter Type

AC Adapter
(Optional)

112mm/65mm/50mm

240g

9VDC/11mA

9VDC(006P)x1

9VDC, Negative Tips
(Regulated recommended)

www.ews-us.com

distributed by Prosound Communications Inc.

www.prosoundcommunications.com

With the internal
trimmer, you can adjust
the level of boost in the
mid frequencies.

(The trimme r is locat ed on sub
PCB u nder t he ma in PC B)

Mid b oost

/ at 320 H z, +/ - 10d B

Facto ry Se tting

/+5~6 dB
