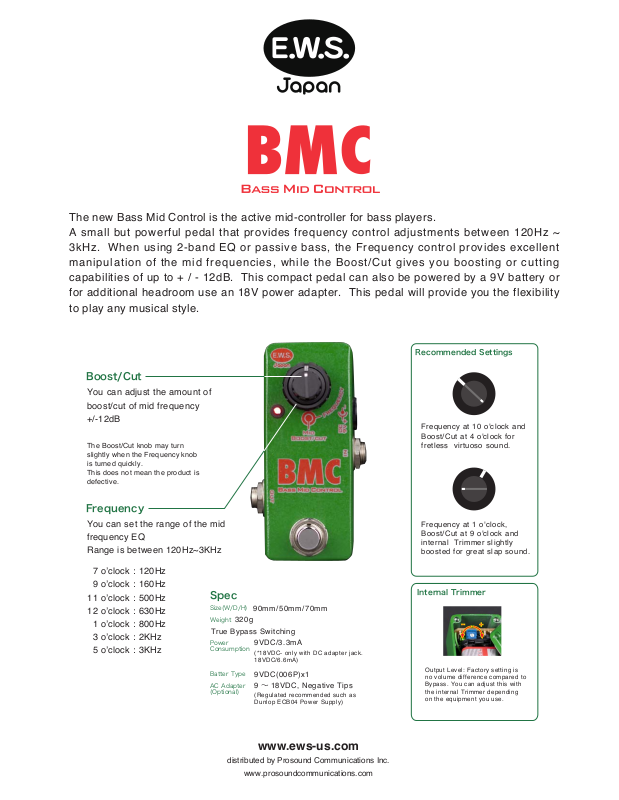

EWS BMC (Bass Mid Control) Data Sheet

The new Bass Mid Control is the active mid-controller for bass players.
A small but powerful pedal that provides frequency control adjustments between 120Hz ~
3kHz. When using 2-band EQ or passive bass, the Frequency control provides excellent
manipulatio n of the mid f r e q uencies, wh i l e the Boost / C u t gives you b oosting or c u tting
capabilities of up to + / - 12dB. This compact pedal can also be powered by a 9V battery or
for additional headroom use an 18V power adapter. This pedal will provide you the flexibility
to play any musical style.

RecommendedSettings

Boost/Cut

You can adjust the amount of
boost/cut of mid frequency
+/-12dB

The Boost/Cut knob may turn
slightly when the Frequency knob
is turned quickly.
This does not mean the product is
defective.

Frequency

You can set the range of the mid
frequency EQ
Range is between 120Hz~3KHz

Frequency at 10 o'clock and
Boost/Cut at 4 o'clock for
fretless virtuoso sound.

Frequency at 1 o'clock,
Boost/Cut at 9 o'clock and
internal Trimmer slightly
boosted for great slap sound.

7 o’clock :

9 o’clock :
11 o’clock :
12 o’clock :

1 o’clock :

3 o’clock :

5 o’clock :

120Hz
160Hz
500Hz
630Hz
800Hz
2KHz
3KHz

Spec

Size(W/D/H)

Weight

True Bypass Switching

Power
Consumption

BatterType

ACAdapter
(Optional)

90mm / 5 0m m / 70mm

320g

9VDC/3.3mA

(*1 8V DC- o nly w ith D C a da pte r jac k.
18V DC /6. 6m A)

9VDC(006P)x1

9〜18VDC, Negative Tips

(Re gu lat ed re co mme nd ed su ch as
Dun lo p E CB 04 Po wer S upp ly )

www.ews-us.com

distributed by Prosound Communications Inc.

www.prosoundcommunications.com

InternalTrimmer

+

-

Out pu t L ev el: F act or y s et tin g is
no vo lum e dif fe ren ce co mp are d to
Byp as s. Yo u c an ad ju st th is wi th
the i nte rn al Tr imm er de pe ndi ng
on th e e qu ipm en t y ou us e.
