Evolution Rage-B Stealth 185 Original Instructions Manual
Original Instructions
Instrucciones Originales
Instructions Originales
STEALTH
185
EN
ES
FR
Original written in UK English Date Published: 31 / 06 / 2015
2
www.evolutionpowertools.com
TABLE OF CONTENTS
INTRODUCTION
Guarantee Page 5
Machine Specification Page 6
Labels and Symbols Page 7
Vibration Page 7
Intended use of this Power Tool Page 8
Prohibited use of this Power Tool Page 8
SAFETY PRECAUTIONS
Electrical Safety Page 9
Outdoor Use Page 9
General Power Tool Safety Instructions Page 9
Additional Safety Instructions Page 11
GETTING STARTED
Unpacking Page 13
Machine Overview Page 14
Assembly and Preparation Page 15
Operating Instructions Page 15
MAINTENANCE
Environmental Protection Page 19

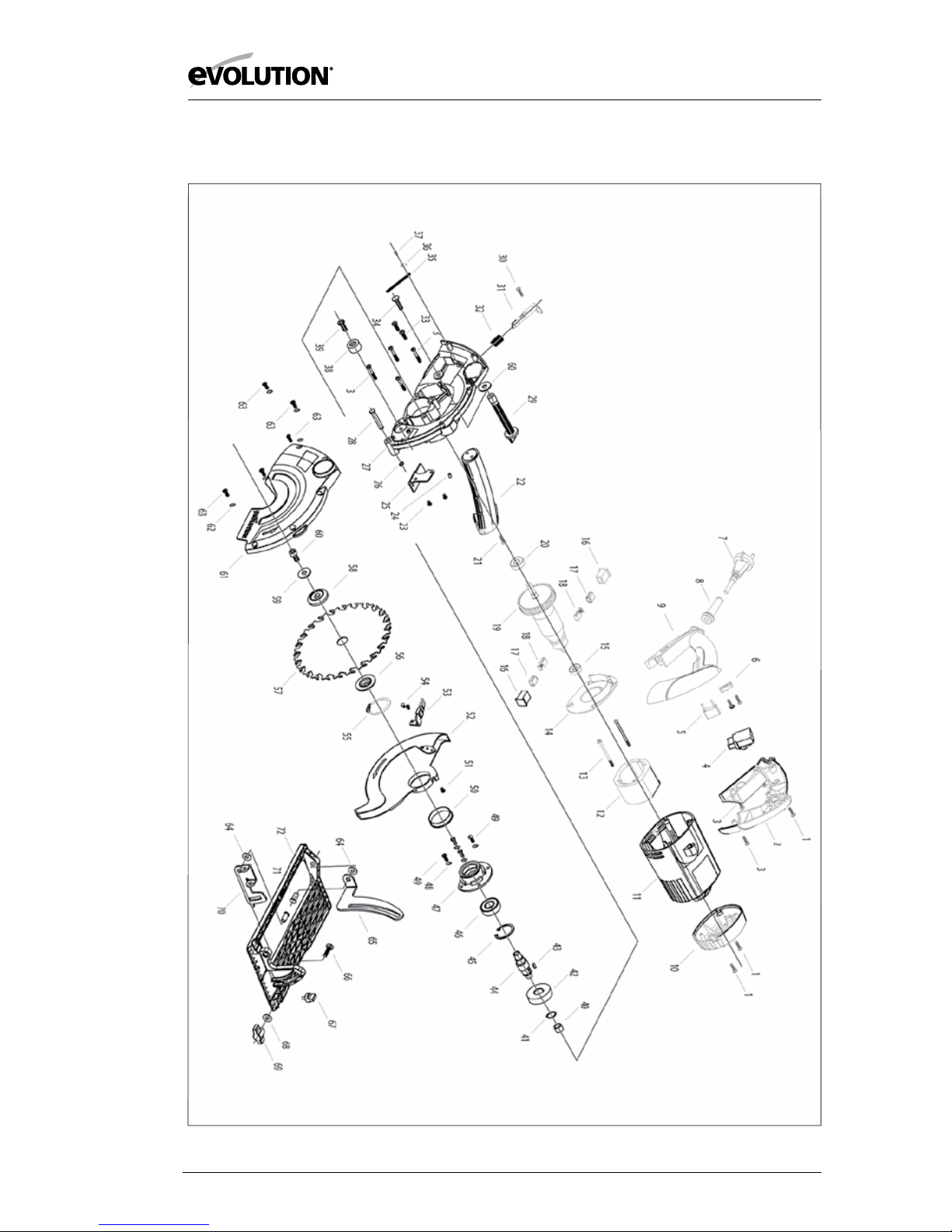

Service Parts Diagram Page 20
DECLARATION OF CONFORMITY Page 21
English Page 2
Español Página 22
Français Page 44
3
www.evolutionpowertools.com
EN
ES
FR
1.2 THIS INSTRUCTION MANUAL
WAS ORIGINALLY WRITTEN IN ENGLISH
(1.3)
IMPORTANT
Please read these operating and safety
instructions carefully and completely.
For your own safety, if you are uncertain
about any aspect of using this equipment
please access the relevant Technical Helpline,
the number of which can be found on the
Evolution Power Tools website. We operate
several Helplines throughout our worldwide
organization, but Technical help is also
available from your supplier.
WEB
www.evolutionpowertools.com
(1.4) Congratulations on your purchase of
an Evolution Power Tools Machine. Please
complete your product registration ‘online’
as explained in the A4 online guarantee
registration leaflet included with this machine.
You can also scan the QR code found on the
A4 leaflet with a Smart Phone. This will enable
you to validate your machine’s guarantee
period via Evolutions website by entering your
details and thus ensure prompt service if ever
needed. We sincerely thank you for selecting
a product from Evolution Power Tools.
EVOLUTION LIMITED GUARANTEE
Evolution Power Tools reserves the right
to make improvements and modifications
to the product design without prior notice.
Please refer to the guarantee registration
leaflet and/or the packaging for details of
the terms and conditions of the guarantee.
(1.5) Evolution Power Tools will, within
the guarantee period, and from the original
date of purchase, repair or replace any
goods found to be defective in materials or
workmanship. This guarantee is void if the
tool being returned has been used beyond the
recommendations in the Instruction Manual or
if the machine has been damaged by accident,
neglect, or improper service.
This guarantee does not apply to machines
and / or components which have been altered,
changed, or modified in any way, or subjected
to use beyond recommended capacities
and specifications. Electrical components
are subject to respective manufacturers’
warranties. All goods returned defective shall
be returned prepaid freight to Evolution Power
Tools. Evolution Power Tools reserves the right
to optionally repair or replace it with the same
or equivalent item.
There is no warranty – written or verbal –
for consumable accessories such as (following
list not exhaustive) blades, cutters, drills,
chisels or paddles etc. In no event shall
Evolution Power Tools be liable for loss or
damage resulting directly or indirectly from
the use of our merchandise or from any other
cause. Evolution Power Tools is not liable
for any costs incurred on such goods
or consequential damages.
No officer, employee or agent of Evolution
Power Tools is authorized to make oral
representations of fitness or to waive any
of the foregoing terms of sale and none
shall be binding on Evolution Power Tools.
Questions relating to this limited
guarantee should be directed to the
company’s head office, or call the
appropriate Helpline number.
4
www.evolutionpowertools.com
RAGE SPECIFICATIONS
MACHINE SPECIFICATIONS METRIC IMPERIAL
Motor EU (230-240V ~ 50/60 Hz) 1200W 5A
Motor UK (110V ~ 50/60 Hz) 1050W 10A
Motor USA (120V ~ 60Hz) 1200W 10.5A
No Load Speed 3700min
-1
(UK & EU) 3900rpm (USA)
Weight 5.4kg 12lbs
CUTTING CAPACITIES METRIC IMPERIAL
Mild Steel Plate (Max Thickness) 6mm 1/4”
Mild Steel Box Section (Max Wall Thickness) 6mm 1/4”
Max Cutting Thickness (Wood 90
0
) 60mm 2-3/8”
Max Cutting Thickness (Wood 45
0
) 40mm 1-1/2”
BLADE SPECIFICATIONS METRIC IMPERIAL
Diameter 185mm 7-1/4”
Bore Diameter 20mm 3/4”
Max Blade Speed 3900min
-1
3900rpm
Thickness 1.7mm .067”
NOISE & VIBRATION DATA
Sound Pressure L
PA
(Under Load) 96.8dB(A) K=3dB(A)
Sound Power Level L
WA
(Under Load) 107.8dB(A) K=3dB(A)
Vibration Level (Under Load) 2.048m/s
2
K=1.5m/s
2
5
www.evolutionpowertools.com
EN
ES
FR
(1.6) Note: The vibration measurement
was made under standard conditions in
accordance with: BS EN 61029-1:2009.
The declared vibration total value has been
measured in accordance with a standard test
method and may be used for comparing one
tool with another.
The declared vibration total value may also be
used in a preliminary assessment of exposure.
(1.7)
VIBRATION
WARNING: When using this machine the
operator can be exposed to high levels of
vibration transmitted to the hand and arm.
It is possible that the operator could develop
“Vibration white finger disease” (Raynaud
syndrome). This condition can reduce the
sensitivity of the hand to temperature as
well as producing general numbness.
Prolonged or regular users of this machine
should monitor the condition of their hands
and fingers closely. If any of the symptoms
become evident, seek immediate
medical advice.
• The measurement and assessment of
human exposure to hand-transmitted
vibration in the workplace is given in:
BS EN ISO 5349-1:2001 and
BS EN ISO 5349-2:2002.
• Many factors can influence the actual
vibration level during operation e.g. the
work surfaces condition and orientation
and the type and condition of the machine
being used. Before each use, such factors
should be assessed, and where possible
appropriate working practices adopted.
Managing these factors can help reduce the
effects of vibration:
Handling
• Handle the machine with care,
allowing the machine to do the work.
• Avoid using excessive physical effort on
any of the machines controls.
• Consider your security and stability,
and the orientation of the machine
during use.
Work Surface
• Consider the work surface material;
its condition, density, strength,
rigidity and orientation.
WARNING: The vibration emission during
actual use of the power tool can differ from
the declared total value depending on the
ways in which the tool is used.
The need to identify safety measures
and to protect the operator are based on
an estimation of exposure in the actual
conditions of use (taking account of all parts
of the operating cycle, such as the times the
tool is switched off, when it is running idle,
in addition to trigger time).
(1.8)
LABELS & SYMBOLS
WARNING: Do not operate this machine
if warning and/or instruction labels are
missing or damaged. Contact Evolution
Power Tools for replacement labels.
Note: All or some of the following symbols
may appear in the manual or on the product.
6
www.evolutionpowertools.com
(1.9)
Symbol Description
V
Volts
A
Amperes
Hz
Hertz
Min
-1
Speed
~
Alternating Current
n
o
No Load Speed
Wear Safety Goggles
Wear Ear Protection
Wear Dust Protection
Read Instructions
CE Certification
CSA Certification
Waste Electrical &
Electronic Equipment
Triman - Waste Collection
& Recycling
Warning
(1.10)
INTENDED USE
OF THIS POWER TOOL
WARNING: This product is a Hand Operated
Circular Saw and has been designed to be
used with special Evolution blades. Only use
accessories designed for use in this machine
and/or those recommended specifically
by Evolution Power Tools Ltd.
When fitted with an appropriate blade
this machine can be used to cut:
Mild Steel
Aluminium
Wood
(1.11)
PROHIBITED USE
OF THIS POWER TOOL
WARNING: This product is a Hand Operated
Circular Saw and must only be used as such.
It must not be modified in any way, or used to
power any other equipment or drive any other
accessories other than those mentioned in this
Instruction Manual.
(1.13) WARNING: This machine is not
intended for use by persons (including
children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning the safe
use of the machine by a person responsible
for their safety and who is competent
in its safe use.
Children should be supervised to ensure
that they do not have access to, and are
not allowed to play with, this machine.
