Evolution Rage 7 Original Instructions Manual

Multipurpose 18V Lithium-Ion Jigsaw
Supplied With Battery & Charger
Original Instructions
Read instructions before operating this tool.
www.evolutionbuild.com
2
www.evolutionbuild.com
TABLE OF CONTENTS
EC - Declaration of Conformity 2
Figures 3
Important Information 4
12 Month Limited Warranty 4
General Safety Rules 5
Additional Specific Safety Rules 6
Safety Rules For Charger 7
Battery Pack Care 8
Battery Pack Power Indicator 8
Labels and Symbols 8

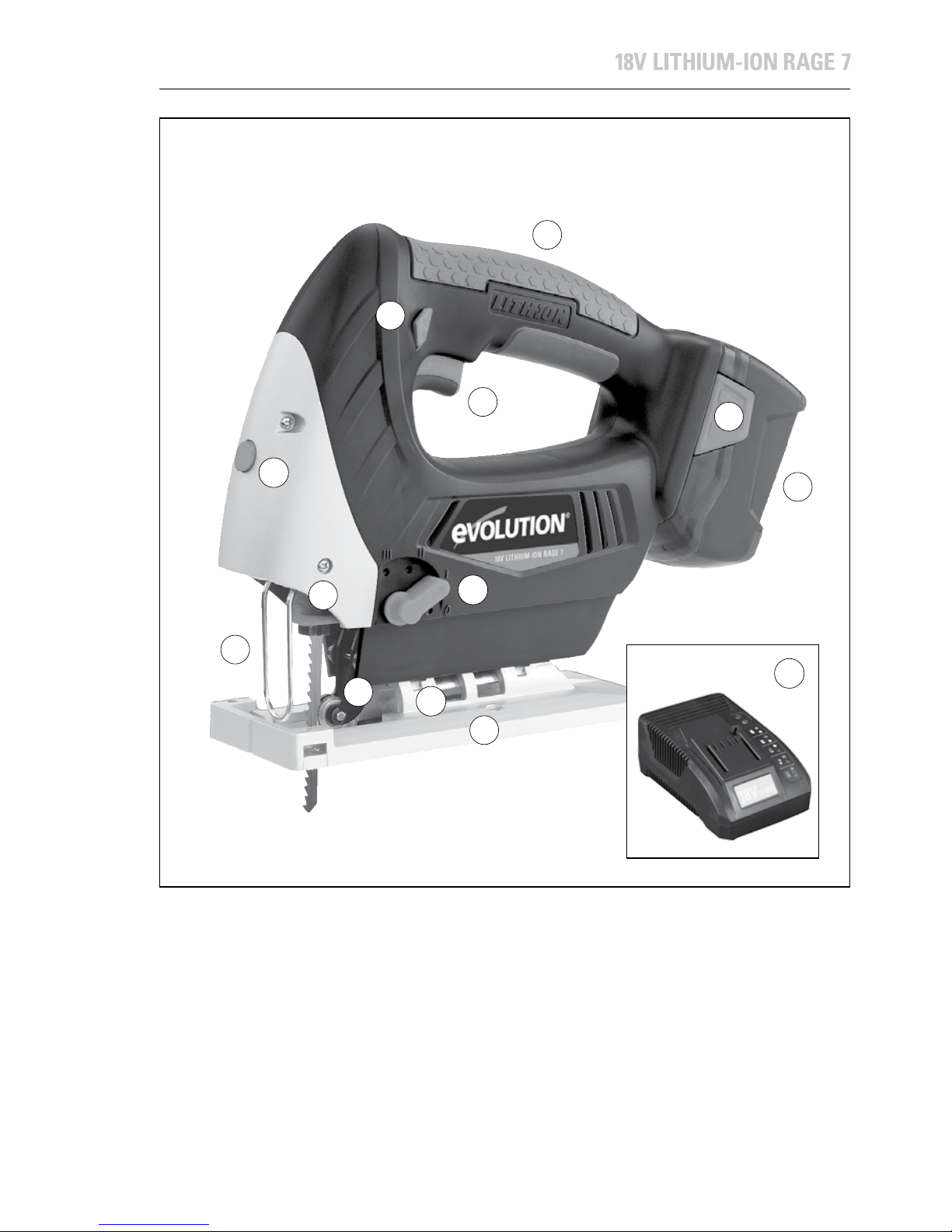

Jigsaw Overview 9
Specification 10
Functional Description 10
Operation 13
Maintenance 14
Environmental Protection 14

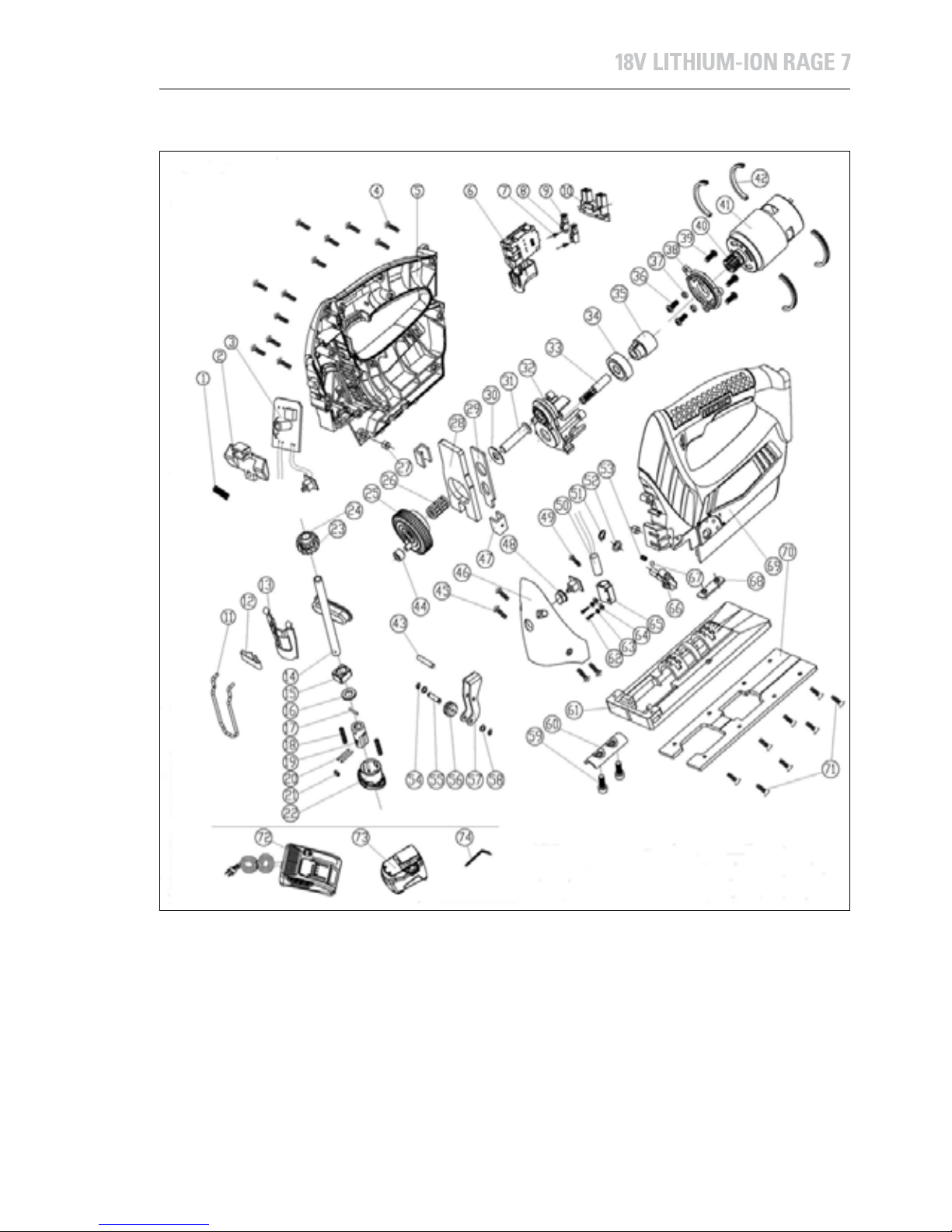

Service Parts Lists 15
EC - DECLARATION OF CONFORMITY
We, the importer
Evolution Power Tools Ltd. Venture One Sheffield S20 3FR
Declare that the product
Part numbers: EVO18VJIGSAW2 Evolution: Evolution 18v Li-ion Battery Jigsaw
Complies with the essential requirements of the following European Directives:
2006/42/EC – Machine Directive 2006/95/EC – Low Voltage Directive 2004/108/EC – EMC Directive 2002/95/EC – Restriction of the use of Certain Hazardous Substances in Electrical and Electric equipment.
Standards and Technical specifications referred to:
EN 61000-6-3:2007 EN 55014-1:2006 EN 55014-2+A2:2008 EN 60745-1:2009 EN 60745-2-11+A12:2009
All documentation is held on file at the above address and is available, on request for review.
Authorized Signatory Date: 29/8/2010
Name: Mr Matthew J Gavins Position: Managing Director Year of Manufacture: 2010
®
3
www.evolutionbuild.com
FIGURES
FIGURE 1 FIGURE 2
FIGURE 3 FIGURE 4 FIGURE 5
FIGURE 6 FIGURE 7 FIGURE 8
4
www.evolutionbuild.com
®
IMPORTANT
Please read these operating and safety instructions carefully and completely. For your own safety, before using this equipment check that the voltage is correct and that all handles and parts are firmly secured. If you are uncertain about any aspect of using this equipment, please contact our Technical Helpline.
Technical Helpline UK 0870 609 2297 Technical Helpline USA 1-866-EVO-TOOL
EVOLUTION 18V LI-ION BATTERY JIGSAW
Congratulations on your purchase of an Evolution Power Tools 18V Battery Jigsaw. Please complete your product registration on line to validate your machine’s warranty period and ensure prompt service if needed. We sincerely thank you for selecting a product from Evolution Power Tools.
12 MONTH LIMITED WARRANTY. Evolution power tools reserves the right to make improvements and modifications to design without prior notice.
Evolution Power Tools will, within twelve (12) months from the original date of purchase, repair or replace any goods found to be defective in materials or workmanship. This warranty is void if the tool being returned has been used beyond the recommendations in the Instruction Manual or if the machine has been damaged by accident, neglect, or improper service. This warranty does not apply to machines and / or components which have been altered, changed, or modified in any way, or subjected to use beyond recommended capacities and specifications. Electrical components are subject to respective manufacturers’ warranties. All goods returned defective shall be returned prepaid freight to Evolution Power Tools. Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
There is no warranty – written or verbal – for jigsaw blades. In no event shall Evolution Power Tools be liable for loss or damage resulting directly or indirectly from the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any costs incurred on such goods or consequential damages. No officer, employee or agent of Evolution Power Tools is authorized to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the company’s head office, or call the appropriate Helpline number.
5
www.evolutionbuild.com
GENERAL SAFETY RULES
WARNING
When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury.
Please read all of these instructions before attempting to operate this machine. Save this manual for future reference.
1. Keep work area clear. Cluttered work
areas invite accidents.
2. Consider work area environment. Do not expose tools to rain. Do not use tools in damp or wet locations. Keep work area well lit. Never use tools near flammable liquids or gases.
3. Protect yourself against electric shock. Avoid body contact with earthed or grounded surfaces.
4. Keep other people away. Do not let others, especially children, come close to the work, and touch the tool or the extension lead. Keep them away from the work area.
5. Store idle tools. When not in use, tools should be stored in a dry locked-up place, out of children’s reach.
6. Never force the tools. Your tools will be more efficient and safer when used at the rate for which they were intended.
7. Use the right tool. Do not force small tools to do the job of a heavy duty tool. Do not use tools for purposes not intended; for example do not use circular saws to cut tree limbs or logs.
8. Dress properly. Do not wear loose clothing or jewellery which may get caught in moving parts. Non-skid footwear is recommended when working outdoors. If you have long hair, tie it back and wear protective hair covering.
9. Use protective equipment. Use safety glasses. Use face or dust mask if cutting operations create dust.
10. Connect dust extraction equipment.
If the machines have a connection for dust extraction equipment, ensure these are connected and properly used.
11. Do not damage the cable. Never pull the power cable to disconnect the machine. Keep the cable away from heat, oil and sharp edges.
12. Secure workpiece. Where possible, use clamps or a vice to hold the workpiece. It’s much safer than using your hands.
13. Don’t over reach. Keep proper footing and balance at all times.
14. Maintain tools in good working condition. Keep cutting tools sharp and
clean for better performance and optimum safety. Follow instructions for lubricating and changing accessories. Inspect power cables regularly and, if damaged, have them replaced by an authorised service centre. Inspect extension cables regularly and replace immediately if damaged. Keep handles dry, clean and free from oil and grease at all times.
15. Disconnect tools. Disconnect tools from the power supply when not in use, before any maintenance operation and when changing accessories such as blades, bits, cutters, etc.
16. Remove adjusting keys and spanners.
Get into the habit of checking that adjusting keys and spanners have been removed from the machine before turning it on.
17. Avoid unintentional starting. Ensure switch is in “off” position before plugging in the machine.
18. Use proper extension leads. When the tool is used outdoors, use only extension leads intended for outdoor use and labelled as such.
19. Stay alert. Concentrate on what you are doing, use common sense and do not operate the tool when you are tired.
20. Check that no part is damaged. Before using a tool, make sure that it is in good working order. Check the alignment and condition of moving parts, mounting and any other aspect that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorised service centre unless otherwise indicated in this instruction manual. Do not use the tool if the switch does not turn on and off.
21. Warning. The use of any accessory or attachment other than one recommended in this instruction manual may present a risk of personal injury.
