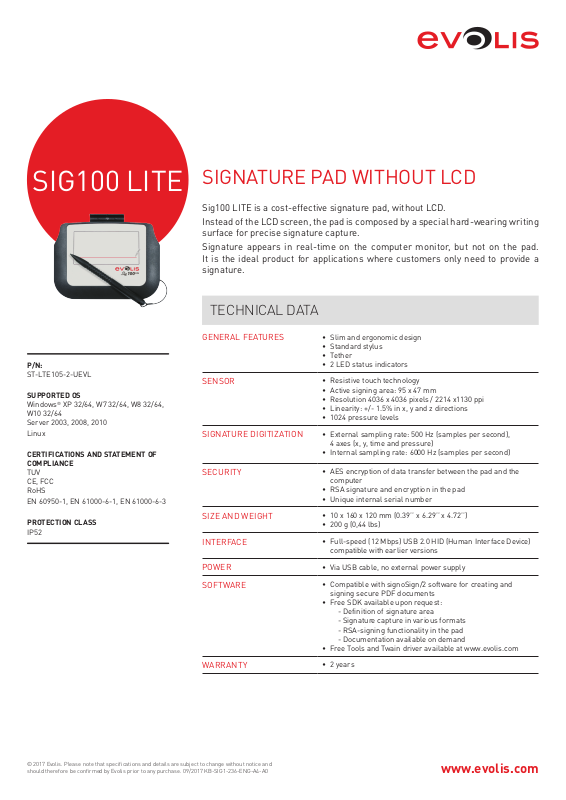

SIG100 LITE
SIGNATURE PAD WITHOUT LCD
Sig100 LITE is a cost-effective signature pad, without LCD.
Instead of the LCD screen, the pad is composed by a special hard-wearing writing
surface for precise signature capture.
Signature appears in real-time on the computer monitor, but not on the pad.
It is the ideal product for applications where customers only need to provide a
signature.
TECHNICAL DATA
P/N:
ST-LTE105-2-UEVL
SUPPORTED OS
Windows® XP 32/64, W7 32/64, W8 32/64,
W10 32/64
Server 2003, 2008, 2010
Linux
CERTIFICATIONS AND STATEMENT OF
COMPLIANCE
TUV
CE, FCC
RoHS
EN 60950-1, EN 61000-6-1, EN 61000-6-3
PROTECTION CLASS
IP52
GENERAL FEATURES
SENSOR
SIGNATURE DIGITIZATION
SECURITY
SIZE AND WEIGHT
INTERFACE
POWER
SOFTWARE
• Slim and ergonomic design
• Standard stylus
• Tether
• 2 LED status indicators
• Resistive touch technology
• Active signing area: 95 x 47 mm
• Resolution 4036 x 4036 pixels / 2214 x1130 ppi
• Linearity: +/- 1.5% in x, y and z directions
• 1024 pressure levels
• External sampling rate: 500 Hz (samples per second),
4 axes (x, y, time and pressure)
• Internal sampling rate: 6000 Hz (samples per second)
• AES encryption of data transfer between the pad and the
computer
• RSA signature and encryption in the pad
• Unique internal serial number
• 10 x 160 x 120 mm (0.39’’ x 6.29’’ x 4.72’’)
• 200 g (0,44 lbs)
• Full-speed (12 Mbps) USB 2.0 HID (Human Interface Device)
compatible with earlier versions
• Via USB cable, no external power supply
• Compatible with signoSign/2 software for creating and
signing secure PDF documents
• Free SDK available upon request:
- Definition of signature area
- Signature capture in various formats
- RSA-signing functionality in the pad
- Documentation available on demand
• Free Tools and Twain driver available at www.evolis.com
WARRANTY
© 2017 Evolis. Please note that specifications and details are subject to change without notice and
should therefore be confirmed by Evolis prior to any purchase. 09/2017 KB-SIG1-236-ENG-A4-A0 www.evolis.com
• 2 years
