USER GUIDE
Evolis Card Printer© 2017. All rights reserved. July 2017.
Ref. KU-AVA1-041-ENG Rev. A0
Copyright
Evolis Card Printer© July 2017. All rights reserved.
Copyright notice
Users must observe the copyright regulations applicable in their country. This manual must not be photocopied, translated, reproduced
or transmitted, in whole or in part, for any reason and by any electronic or mechanical means whatsoever without the express written
consent of the Evolis Card Printer company.
All the information contained in this document is subject to change without prior notice.
Evolis Card Printer cannot be held liable for any errors that may be found in this manual, or for any loss or damage arising accidentally or
as a result of dissemination or use of this manual.
Warranty
Refer to the warranty notice supplied with your printer for warranty terms and conditions and limitations.
Environmental information – recycling of end-of-life products
The manufacture of the equipment that you have purchased required the extraction and use of natural resources. It may contain
materials that are hazardous to health and the environment.
To prevent the dispersal of such materials into our environment and reduce the pressure on our natural resources, we recommend that
you use existing collection systems. These systems will appropriately re-use or recycle most of the materials in your end-of-life equipment.
If you need further information on collection, re-use and recycling systems, contact your local or regional waste management body.
Do not hesitate to contact us to find out more by visiting our website at www.evolis.com or by emailing the following address:
info@evolis.com.
2
About your new printer
Thank you for choosing an Evolis printer.
Using your new printer, you will be able to create a wide variety of high-quality cards and badges which can be printed in various colours
and styles. This printer uses consumables and accessories available from Evolis. For further details, visit our website at www.evolis.com.
Warranty registration
Please register on line at www.evolis.com to receive our special offers and general information.
Once on the website, click on Drivers and Support and fill in all the fields, giving in particular the model and serial number found on your
printer.
Getting started
The purpose of this user guide is to guide you, step by step, through your printer and how it works. Take some time to read it in order to
better understand your printer and its features, and to save time during installation and use.
As with all Evolis products, a great deal of care has been taken over this manual. Should you find an error, however, please let us know by
emailing us at info@evolis.com.
Contents
The bookmarks found top left of your screen can be used to navigate between the various sections in this user guide.
Icons
The following icons are used in this manual to highlight important information:
Information providing further details or depth about certain points in the main text.
Indicates that failing to take the recommended action is liable to damage your printer.
This symbol indicates that a video showing the procedure is available on the www.evolis.com website.
3
1
Getting started
1-1 Unpacking
Your printer is supplied with several accessories that we ask you to look at closely.
This list may vary depending on your location.
The printer is shipped in special packaging designed to prevent any damage in transit. If you notice any visible damage, do not hesitate
to contact the shipper and immediately inform your Evolis reseller, who will tell you the procedure to follow.
Evolis takes great care over the quality of its packaging and we ask that you keep this packaging somewhere clean and dry.
You will be asked for the full original packaging (outer box, inner wedges and protective bags) in the event that
the printer is returned. If the printer is returned without its original packaging and components are damaged in
transit, these components will no longer be covered by the warranty. You will be charged for new packaging
for shipping the printer back to you.
Accessories supplied with your printer:
Mains power cable.
Power supply and cable for embedded board
Installation and documentation
Starter cleaning kit.

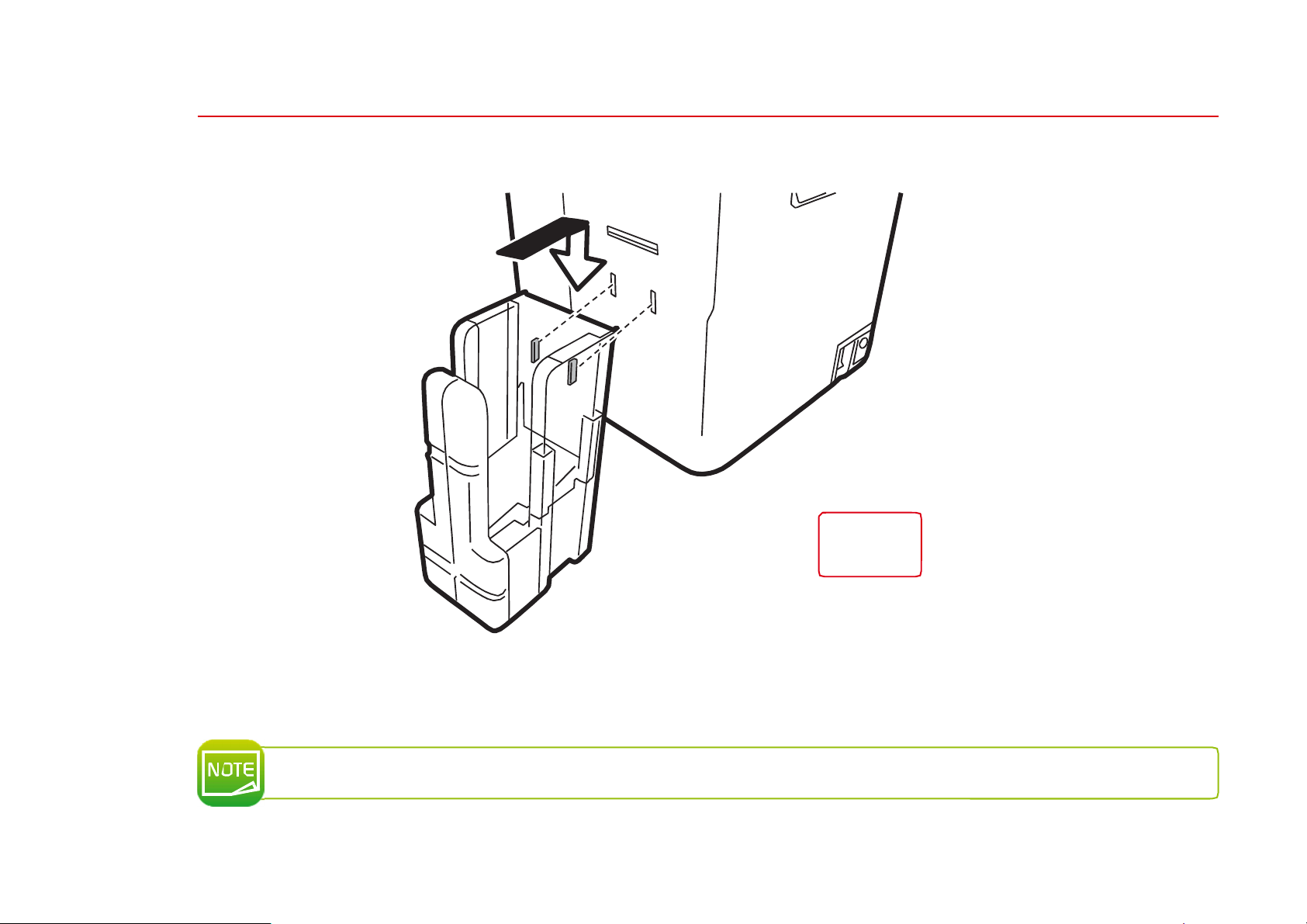

Card output hopper.
If any of these components is missing, please contact your Evolis reseller.
4
1
1-2 Operating the printer safely
The following precautions must be observed to assure safe operation of the printer. Also, do not do anything that is not described in this
manual. Doing so may cause an unexpected accident.
Installing location
Do not install the printer:
in a damp or dusty location
on an unstable table, on a slant, or any place where there is excessive vibration.
in a location susceptible to rapid fluctuations in temperature.
in a location exposed to direct sunlight.
Near flammable or explosive materials or heater, stove or other device that produces heat.
Place the printer away from walls to maintain air flow. Also, maintain at least 30cm (12") of open space above the printer and at least
15cm (6") on each side on the printer.
Blocking the vents may cause the printer to overheat and catch fire.
Power supply
Use a dedicated power cable and do not use an extension cord with multiple outlets.
Be sure to remove any dust from the plug and outlet. Humidity produces a micro-current on the surface causing overheating or fire.
Do not damage or modify the Power Cable. Also, do not place heavy objects, pull, or bend excessively.
Do not plug in or unplug the Power Cable if your hands are wet.
Ensure a ground wire is connected. When connecting the ground wire, note the following cautions:
•
Recommended connections for ground wires.
- Outlet ground terminal
- Ground terminals installed as type A, B, or C
- A copper rod 65cm (26") or longer buried in the ground.
•
Not permitted for ground wires
- Gas piping (risk of fire or explosion.)
- Water pipes or taps (water pipes that include plastic piping cannot act as a ground. However, if a water pipe is
configured to act as a ground, then connection of a ground wire is permitted.)
- Telephone line ground wires or lightning conductors (danger of high current flow in the event of a lightening
strike.)
Be sure to turn off the power and unplugs the plug from the outlets before moving the printer.
Pull on the plugs, not the cables, when unplugging it from an outlet.
Do not use an under-rated extension cord.
5
1
Handling
Do not use flammable sprays near the printer.
Do not touch anything inside the printer unless specified in this manual.
Do not place heavy items on the printer and do not lean on the printer.
While the printer is operating do not turn off the printer, unplug the power cable, or look inside the printer.
The cooling fan is always running for cooling the inside of the printer. This is not a malfunction.
The printer may cause static, flickering or interrupt reception or televisions or radios if they are too close to the
printer.
The lower part of the Top Cover, the printer internal heat roller section, and the thermal head section get very
hot. Ensure you do not touch these three locations.
6
1
1-3 Description of the printer and its functions
1-3a FRONT SIDE OF THE PRINTER
1
1
8
2
7
3
- Top cover
2 - Control Panel
3 - Front cover
4
- Front cover button
5 - On-off switch
6
- Card output hopper
7 - Card ejection slot
8 – Mechanical locking system
6
7
5 4
1-3 b INSIDE OF THE TOP COVER
1
4
1 - Card input feeder
2 - Feeding roller
3 - Trapdoor cover
4 - Card case lock
2
3
