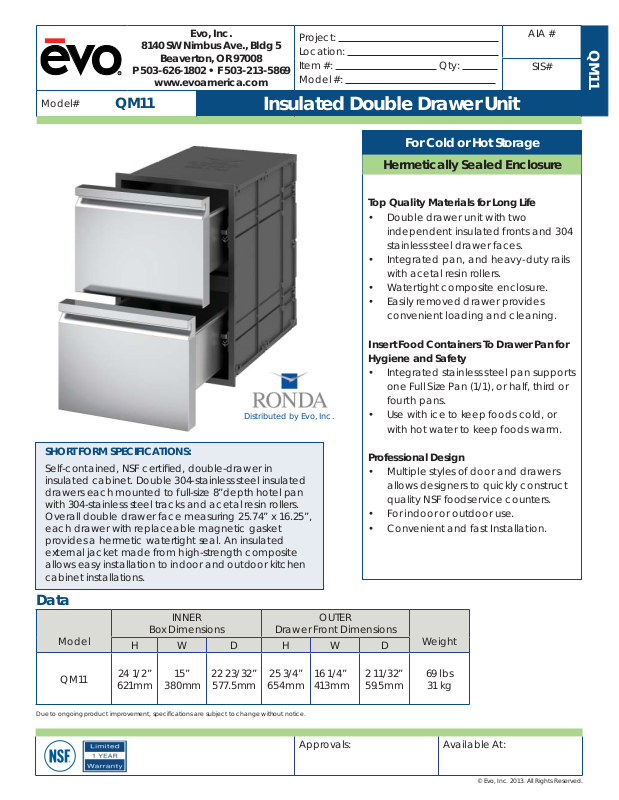

EVO QM11 User Manual
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97008
P 503-626-1802 • F 503-21 3-5869
R
www.evoamerica.com
Project:
Location:
Item #: Qty:
Model #:
AIA #
QM11
SIS#
Model#
QM11
Insulate d Do uble Dra w er Unit
For Cold or Hot Storage
Hermetically S ealed Enclo sur e
Top Quality Materials for Long Life
• Double drawer unit with two
independent insulated fronts and 304
stainless steel drawer faces.
• Integrated pan, and heavy-duty rails
with acetal resin rollers.
• Watertight composite enclosure.
• Easily removed drawer provides
convenient loading and cleaning.
Insert Food Containers To Drawer Pan for
Hygiene and Safety
• Integrated stainless steel pan supports
one Full Size Pan (1/1), or half, third or
fourth pans.
Distribute d b y E v o, Inc .
• Use with ice to keep foods cold, or
with hot water to keep foods warm.
SHORT FORM SPECIFICATIONS:
Self-contained, NSF certifi ed, double-drawer in
insulated cabinet. Double 304-stainless steel insulated
drawers each mounted to full-size 8”depth hotel pan
with 304-stainless steel tracks and acetal resin rollers.
Overall double drawer face measuring 25.74” x 16.25”,
each drawer with replaceable magnetic gasket
provides a hermetic watertight seal. An insulated
external jacket made from high-strength composite
allows easy installation to indoor and outdoor kitchen
cabinet installations.
Data
INNER
Box Dimensions
Model
QM11
Due to ongoing product improvement, specifi cations are subject to change without notice.
HW D HW D
24 1 /2”
621 mm
15”
380mm
22 23/3 2”
577.5mm
Drawer Fron t Dimensions
25 3/4”
654mm
OUTER
16 1/4”
413mm
Professional Design
• Multiple styles of door and drawers
allows designers to quickly construct
quality NSF foodservice counters.
• For indoor or outdoor use.
• Convenient and fast Installation.
Weight
2 11/32”
59.5mm
69 lbs
31 kg
Approvals: Available At:
© Evo, Inc. 2013. All Rights Reserved.
R
621380
577.5
59.5
52
6.3
324
6
324
6.3
641.4
259.7 254.7
199199
19.5
106
79
10679
SEZIONE
C-C
C
C
Sm.=
Tratt.
TITOLO
Lav. gen.
Smussi non quotati
QUOTE SENZA TOLLERANZA UNI EN 22768
Via Vegri, 83
Materiale
oltre
2000
no a
4000
oltre
1000
no a
2000
Scostamenti limite ammessi
oltre
400
no a
1000
oltre
120
no a
400
oltre
30
no a
120
oltre
6
no a
30
oltre
3
no a
6
da
0,5
no a
3
Classe di
tolleranza
m media
m media
m media
Dimensioni lineari
Dimensioni angolari
Dimensioni lineari
di smussi e raccordi
`
0,1`0,1`0,2`0,3`0,5`0,8`1,2
`
2
`
0,2`0,5`1
-
-
-
-
-
<= 10
>10 <=50
>50 <=120
>120<=400
>400
`1~
`
0~30'
`0~
20'
`0~
10'
`0~
5'
**
Assieme cassettiera doppia
621380
577.5 59.5
52
6.3
324
6
324
6.3
413
6.36.3
400.4 641.4
19.5
106 79 10679
10
5
SEZIONE
C-C
C
C
259.7
254.7
199
199
Model#
Side
QM11 Insulate d Do uble Dra w er Unit
641.4
577.5
19.5
59.5
52
6.3
106
79
6.3
Top
Front
400.4
254.7
199
259.7
199
Evo, Inc. is the North and South America Distributor for Ronda Drawers and Doors
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • sales@evoamerica.com
Evo® is a registered trademark of Evo, Inc. Ronda® is a registered trademark of Ronda S. p.A.
