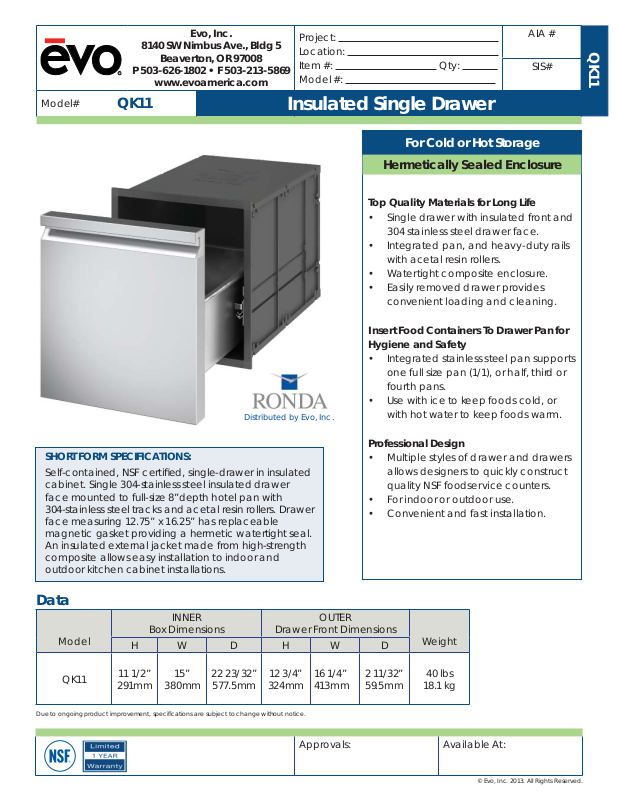

Page 1
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97008
P 503-626-1802 • F 503-21 3-5869
R
www.evoamerica.com
Project:
Location:
Item #: Qty:
Model #:
AIA #
QK11
SIS#
Model#
QK11
Insulate d Single Draw er
Distribute d b y E v o, Inc .
For Cold or Hot Storage
Hermetically S ealed Enclo sur e
Top Quality Materials for Long Life
• Single drawer with insulated front and
304 stainless steel drawer face.
• Integrated pan, and heavy-duty rails
with acetal resin rollers.
• Watertight composite enclosure.
• Easily removed drawer provides
convenient loading and cleaning.
Insert Food Containers To Drawer Pan for
Hygiene and Safety
• Integrated stainless steel pan supports
one full size pan (1/1), or half, third or
fourth pans.
• Use with ice to keep foods cold, or
with hot water to keep foods warm.
SHORT FORM SPECIFICATIONS:
Self-contained, NSF certifi ed, single-drawer in insulated
cabinet. Single 304-stainless steel insulated drawer
face mounted to full-size 8”depth hotel pan with
304-stainless steel tracks and acetal resin rollers. Drawer
face measuring 12.75” x 16.25” has replaceable
magnetic gasket providing a hermetic watertight seal.
An insulated external jacket made from high-strength
composite allows easy installation to indoor and
outdoor kitchen cabinet installations.
Data
INNER
Box Dimensions
Model
QK11
Due to ongoing product improvement, specifi cations are subject to change without notice.
HW D HW D
11 1/2”
291mm
15”
380mm
22 23/3 2”
577.5mm
Drawer Fron t Dimensions
12 3/4”
324mm
OUTER
16 1/4”
413mm
Professional Design
• Multiple styles of drawer and drawers
allows designers to quickly construct
quality NSF foodservice counters.
• For indoor or outdoor use.
• Convenient and fast installation.
Weight
2 11/32”
59.5mm
40 lb s
18.1 kg
Approvals: Available At:
© Evo, Inc. 2013. All Rights Reserved.
Page 2
R
324
6.3
16.5
291
275
6.3
16.5
52
59.5
577.5
79
19.5
106 106
SEZIONE
B-B
B
B
Sm.=
Tratt.
TITOLO
Lav. gen.
Smussi non quotati
QUOTE SENZA TOLLERANZA UNI EN 22768
Via Vegri, 83
Materiale
oltre
2000
no a
4000
oltre
1000
no a
2000
Scostamenti limite ammessi
oltre
400
no a
1000
oltre
120
no a
400
oltre
30
no a
120
oltre
6
no a
30
oltre
3
no a
6
da
0,5
no a
3
Classe di
tolleranza
m media
m media
m media
Dimensioni lineari
Dimensioni angolari
Dimensioni lineari
di smussi e raccordi
`
0,1`0,1`0,2`0,3`0,5`0,8`1,2
`
2
`
0,2`0,5`1
-
-
-
-
-
<= 10
>10 <=50
>50 <=120
>120<=400
>400
`1~
`
0~30'
`0~
20'
`0~
10'
`0~
5'
**
Cassetto singolo
380
400.4
413
6.3
6.3
16.5
16.5
324
6.3
16.5
291
275
6.3
16.5
52
59.5577.5
79
19.5
106 106
5
10
SEZIONE
B-B
B
B
Altezza
interna
cassa 199
Passaggio utile
254.7
Model#
Side
QK11 Insulated Single Dra w er
59.5
19.5
291
275
577.5
16.5
16.5
324
106
Top
Front
6.3
254.7
interna
Altezza
cassa 199
Passaggio utile
Evo, Inc. is the North and South America Distributor for Ronda Drawers and Doors
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • [email protected]
Evo® is a registered trademark of Evo, Inc. Ronda® is a registered trademark of Ronda S. p.A.
