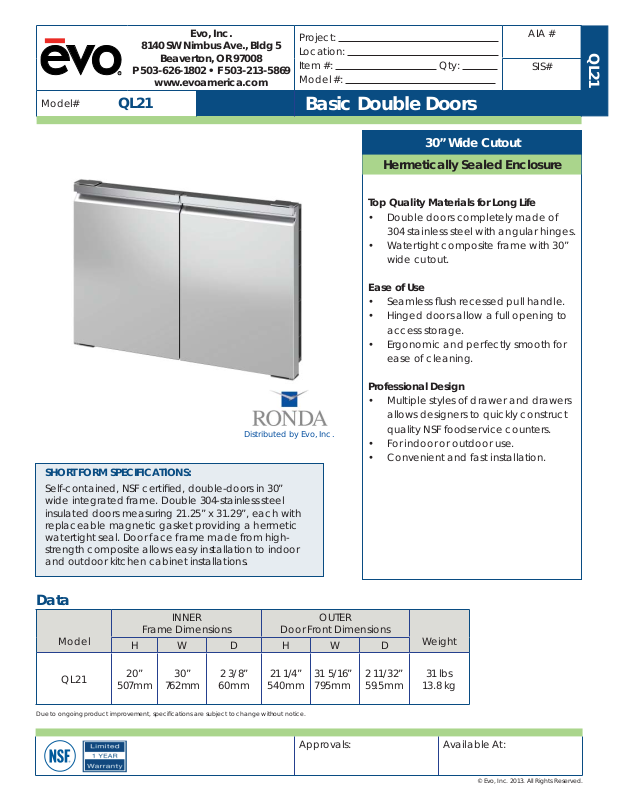

EVO QL21 User Manual
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97008
P 503-626-1802 • F 503-21 3-5869
R
www.evoamerica.com
Project:
Location:
Item #: Qty:
Model #:
AIA #
QL21
SIS#
Model#
SHORT FORM SPECIFICATIONS:
Self-contained, NSF certifi ed, double-doors in 30”
wide integrated frame. Double 304-stainless steel
insulated doors measuring 21.25” x 31.29”, each with
replaceable magnetic gasket providing a hermetic
watertight seal. Door face frame made from highstrength composite allows easy installation to indoor
and outdoor kitchen cabinet installations.
QL21
Distribute d b y E v o, Inc.
Basic Double Doors
30” W id e Cutout
Hermetically S ealed Enclo sur e
Top Quality Materials for Long Life
• Double doors completely made of
304 stainless steel with angular hinges.
• Watertight composite frame with 30”
wide cutout.
Ease of Use
• Seamless fl ush recessed pull handle.
• Hinged doors allow a full opening to
access storage.
• Ergonomic and perfectly smooth for
ease of cleaning.
Professional Design
• Multiple styles of drawer and drawers
allows designers to quickly construct
quality NSF foodservice counters.
• For indoor or outdoor use.
• Convenient and fast installation.
Data
INNER
Frame Dimensions
Model
QL21
Due to ongoing product improvement, specifi cations are subject to change without notice.
HW D HW D
20”
507mm
30”
762mm
2 3/8”
60mm
Door Front Dimensions
21 1/4”
540mm
OUTER
Weight
31 5/16”
795mm
Approvals: Available At:
2 11/32”
59.5mm
31 lbs
13.8 kg
© Evo, Inc. 2013. All Rights Reserved.
R
b=507
7.5
60 s=60
16.516.5
795
540
30
82.5 114 114 114 82.5
a=762
b=507
7.5
60 s=60
16.516.5
16.516.5
795
540
30
82.5 114 114 114 82.5
259
202
150.5150.5
30
23
303023
10
30
m 04.06.2010 Aggiunto etichetta NSF.
Etichetta NSF
b=507
7.5
s=60
16.5
16.5
30
82.5
114 114
114
82.5
Model#
QL21 Basic Double Doors | 30” Wide Cutout
Front
540
Side
6060s=60
16.5
82.5
114
b=507
114
259
a=762
Top
795
202
Etichetta NSF
150.5
30
16.5
16.5
30
Evo, Inc. is the North and South America Distributor for Ronda Drawers and Doors
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • sales@evoamerica.com
Evo® is a registered trademark of Evo, Inc. Ronda® is a registered trademark of Ronda S. p.A.
