Evo 3i User Manual

USER’S MANUAL

EVO 3i MOTORIZED TREADMILL

MODEL NUMBER: EVO 3i

TOLL FREE CUSTOMER SERVICE NUMBER: 1.888.800.1167

USER WEIGHT LIMITATION: 400lbs.

SERIAL NUMBER (found on frame):

2

EVO 3i MOTORIZED TREADMILL

PRECAUTIONS

For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your Smooth

Fitness treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________

Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and

information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are
adequately informed of all warnings and precautions.

?? Use the treadmill only as described in this manual.
?? Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that

blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

?? When choosing a location for the treadmill make sure that the location and position permit access to a plug.
?? Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or

near water.

?? Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
?? Keep children under the age of 12 and pets away from the treadmill at all times.
?? The treadmill should not be used by persons weighing more than 400lbs.
?? Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the

treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

?? When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the

same circuit.

?? Always straddle the belt and allow it to start moving before stepping onto the belt.
?? Always examine your treadmill before using to ensure all parts are in working order.
?? Allow the belt to fully stop before dismounting.
?? Never insert any object or body parts into any opening.
?? Follow the safety information in regards to plugging in your treadmill.
?? Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not

operate the treadmill with a damaged or frayed power cord.

?? Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by

an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow
these instructions will void the treadmill warranty.

?? Never leave the treadmill unattended while it is running.

Visit us at: www.evofitness.com

3

EVO 3i MOTORIZED TREADMILL

POWER REQUIREMENTS

Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN

ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO
WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE
PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.

This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of treadmill damage, always use a surge protector (not included) with your treadmill.

Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector
with a UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less
and an electrical rating 120VAC, 15 amps.

This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for
electric current, should the treadmill malfunction. This treadmill comes with an electrical cord having an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

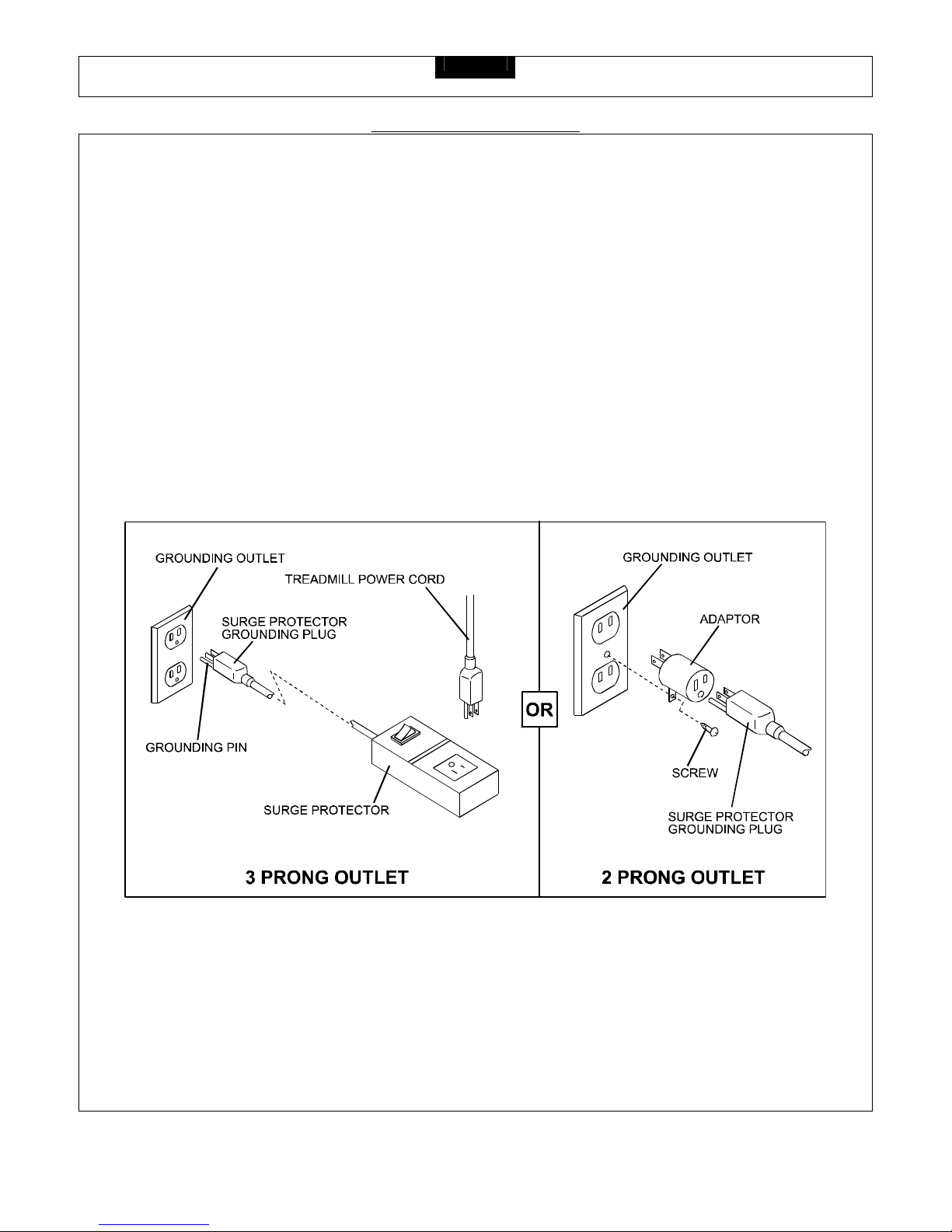

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in the
drawing below.

Visit us at: www.evofitness.com

4

EVO 3i MOTORIZED TREADMILL

PREASSEMBLY

Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the

boxes. Check the Hardware Comparison Chart for a full count of the number of parts included for this product to be
assembled properly. If you are missing any parts or have any assembly questions call your local Smooth Retailer.

Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to

assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.

Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free

from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.

Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person

when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 400lbs. it is not recommended that

you use this product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not
intended to support users whose weight exceeds this limit.

Visit us at: www.evofitness.com

5

EVO 3i MOTORIZED TREADMILL

HARDWARE COMPARISON CHART

Hardware chart:

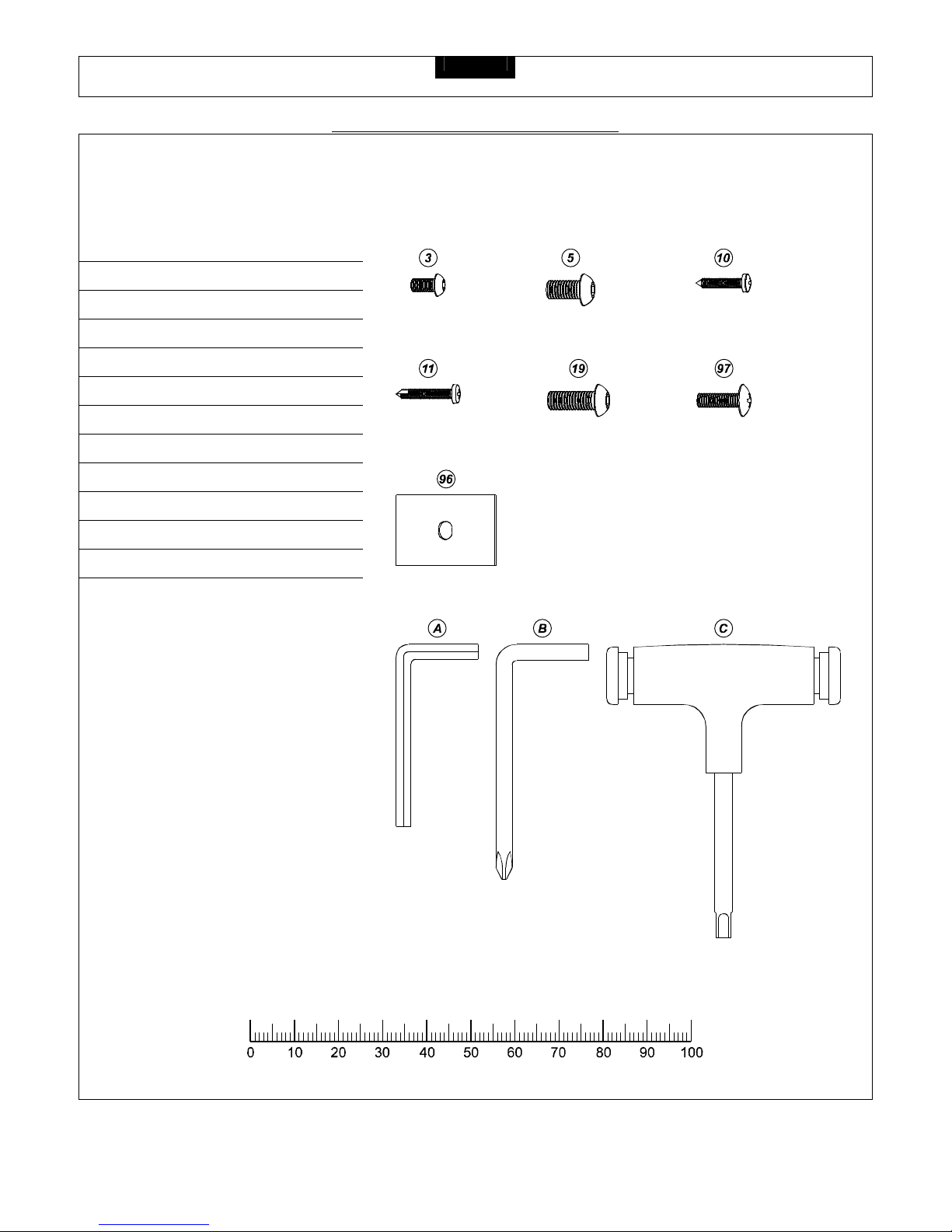

For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help

you identify those items that may be unfamiliar to you.

NO. DESCRIPTION QTY.

3 M6 x 10mm Screw 4
5 M8 x 10mm Bolt 4
10 #8 x 19mm Screw 14
11 #8 x 25mm Screw 12
19 M8 x 25mm Bolt 4
96 Plastic Bracket 2
97 M6 x 20mm Screw 2
A 5mm Wrench 1
B Wrench 1
C 5/6mm Allen Wrench 1

MILLIMETERS

Visit us at: www.evofitness.com

6

EVO 3i MOTORIZED TREADMILL

PARTS LIST

No. Description Qty. Order No. No. Description Qty. Order No.
1 Computer 1 EVO3i-01 30 Transport Wheel Base 2 EVO3i-30
2 Safety Key 1 EVO3i-02 31 M10 x 60mm Bolt 2 EVO3i-31
3 M6 x 10mm Screw 4 EVO3i-03 32 Bushing 4 EVO3i-32
4 Console Support Tube 1 EVO3i-04 33
5 M8 x 10mm Bolt 4 EVO3i-05 34

Handlebar Rear End Cap –

6

1 EVO3i-06 35 Transport Wheel 2 EVO3i-35

Handlebar Rear End Cap –

7

1 EVO3i-07 36

Handlebar Rear End Cap –

8

1 EVO3i-08 37

Handlebar Rear End Cap –

9

1 EVO3i-09 38
10 #8 x 19mm Screw 14 EVO3i-10 39
11 #8 x 25mm Screw 16 EVO3i-11 40 Side Cover - Left 1 EVO3i-40

Transport Wheel Bracket -

1 EVO3i-33

Transport Wheel Bracket -

1 EVO3i-34

Upright Plastic Shroud - Left

1 EVO3i-36

Upright Plastic Shroud - Left

1 EVO3i-37

Upright Plastic Shroud -

1 EVO3i-38

Upright Plastic Shroud -

1 EVO3i-39

12 Handlebar - Left 1 EVO3i-12 41 Side Cover - Right 1 EVO3i-41
13 Handlebar - Right 1 EVO3i-13 42 Cushion 2 EVO3i-42
14 Hand Pulse Sensor 2 EVO3i-14 43 M6 x 55mm Bolt 2 EVO3i-43
15 Handlebar Front End Cap 2 EVO3i-15 44 Cushion 1 EVO3i-44
16 M8 x 15mm Screw 2 EVO3i-16 45 Motor Hood 1 EVO3i-45
17 Left Upright 1 EVO3i-17 46 #8 x 50mm Screw 2 EVO3i-46
18 Right Upright 1 EVO3i-18 47 Side Rail - Left 1 EVO3i-47
19 M8 x 25mm Bolt 4 EVO3i-19 48 Deck End Cap - Left 1 EVO3i-48
20 M14 x 113 Bolt 2 EVO3i-20 49 Side Rail - Right 1 EVO3i-49
21 Bushing 4 EVO3i-21 50 Deck End Cap - Right 1 EVO3i-50
22 Power Switch Set 1 EVO3i-22 51 Rail Guide 8 EVO3i-51
23 M5 x 10mm Screw 2 EVO3i-23 52 M8 x 25mm Screw 10 EVO3i-52
24 Base Frame 1 EVO3i-24 53 Running Deck 1 EVO3i-53

Running Deck Fixed Tube

25

2 EVO3i-25 54 Deck Cushion 10 EVO3i-54
26 Level Adjuster 4 EVO3i-26 55 M10 x 35mm Bolt 9 EVO3i-55
27 Cushion 2 EVO3i-27 56 M5 x 12mm Screw 2 EVO3i-56
28 6 x 13mm Washer 11 EVO3i-28 57 Clip 2 EVO3i-57
29 # 8 x 15mm Screw 28 EVO3i-29 58 Elevation Motor 1 EVO3i-58

Visit us at: www.evofitness.com

7

EVO 3i MOTORIZED TREADMILL

PARTS LIST

No. Description Qty. Order No. No. Description Qty. Order No.
59 M10 x 63mm Hex Head Bolt 1 EVO3i-59 89
60 M10 Nylon Nut 5 EVO3i-60 90

Elevation Support Tube

1 EVO3i-89

Elevation Support Tube

1 EVO3i-90

61 Washer 2 EVO3i-61 91 Elevation Support 1

EVO3i-91

62 Rubber Cushion 1 EVO3i-62 92 Motor Belly Pan 1 EVO3i-92
63 M8 x 135mm Bolt 1 EVO3i-63 93 # 8 x 35mm Screw 4 EVO3i-93
64 M8 x 15 Screw 2 EVO3i-64 94 M8 Nut 10 EVO3i-94
65 8x15XT2.0 Spring Washer 12 EVO3i-65 95 Running Belt 1 EVO3i-95
66 8 x 16mm Washer 2 EVO3i-66 96 Plastic Bracket 2 EVO3i-96
67 M10 x 136mm Hex Head Bolt 1 EVO3i-67 97

M6 x 20mm Screw

2 EVO3i-97
68 Motor Bracket 1 EVO3i-68
69 Driving Motor 1 EVO3i-69
70 Motor Drive Belt 1 EVO3i-70
71 Front Roller with Fly Wheel 1 EVO3i-71
72 Front Roller Shaft 1 EVO3i-72
73 Micro Switch 1 EVO3i-73
74 M6 x 70mm Bolt 3 EVO3i-74
75 Deck Frame 1 EVO3i-75
76 Motor Hood Side Cover - Right 1 EVO3i-76
77 Motor Hood Side Cover - Left 1 EVO3i-77
78 Frame Side Cover - Right 1 EVO3i-78
79 Frame Side Cover - Left 1 EVO3i-79
80 Plastic Clamp - Top 2 EVO3i-80
81 Plastic Clamp - Bottom 2 EVO3i-81
82 Bracket 2 EVO3i-82
83 M8 x 19mm Allen Head Bolt 4 EVO3i-83
84 Rear Roller 1 EVO3i-84
85 Rear Roller Shaft 1 EVO3i-85
86 M8 x 43mm Bolt 2 EVO3i-86
87 Deck Wheel 2 EVO3i-87
88 Running Deck Fixed Tube 1 EVO3i-88

Visit us at: www.evofitness.com

8

EVO 3i MOTORIZED TREADMILL

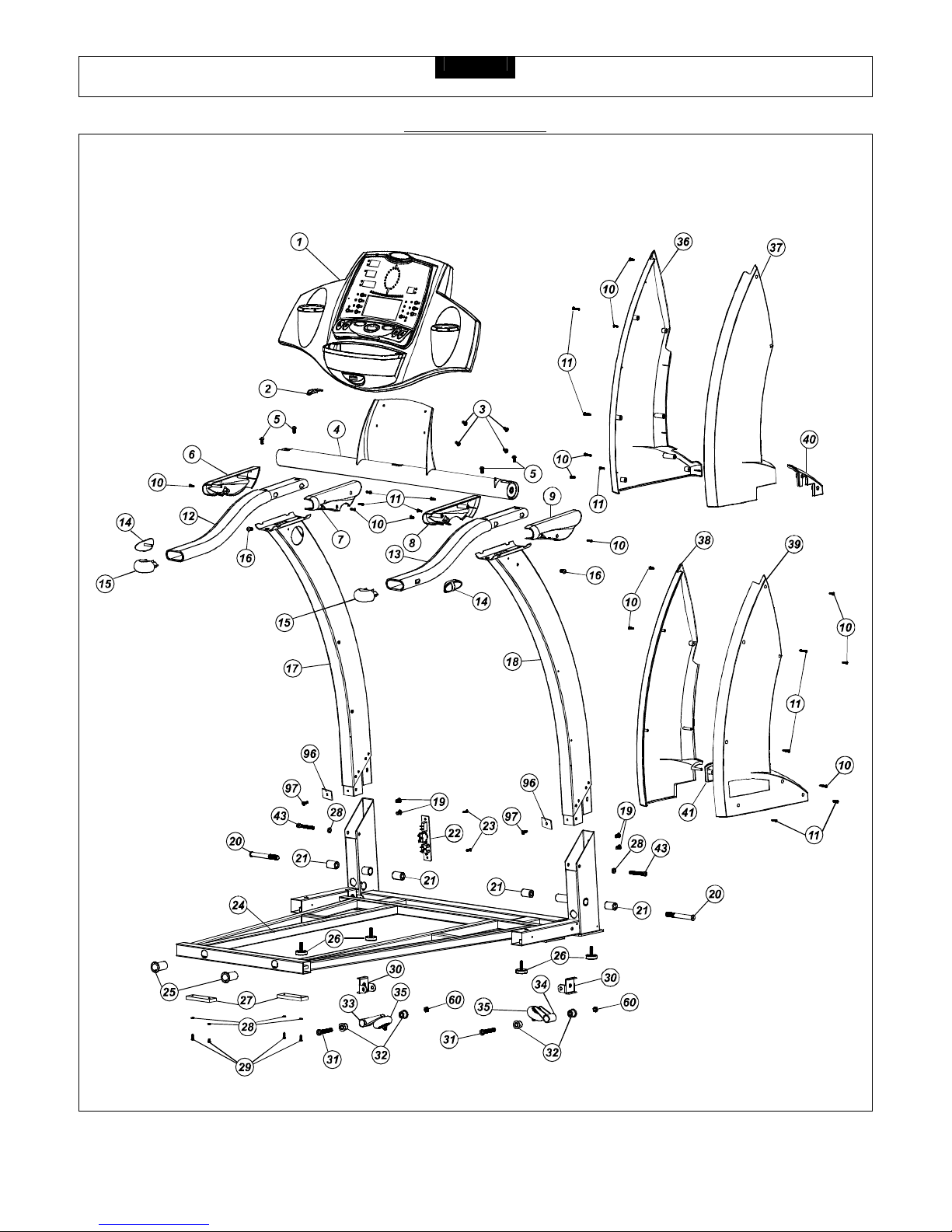

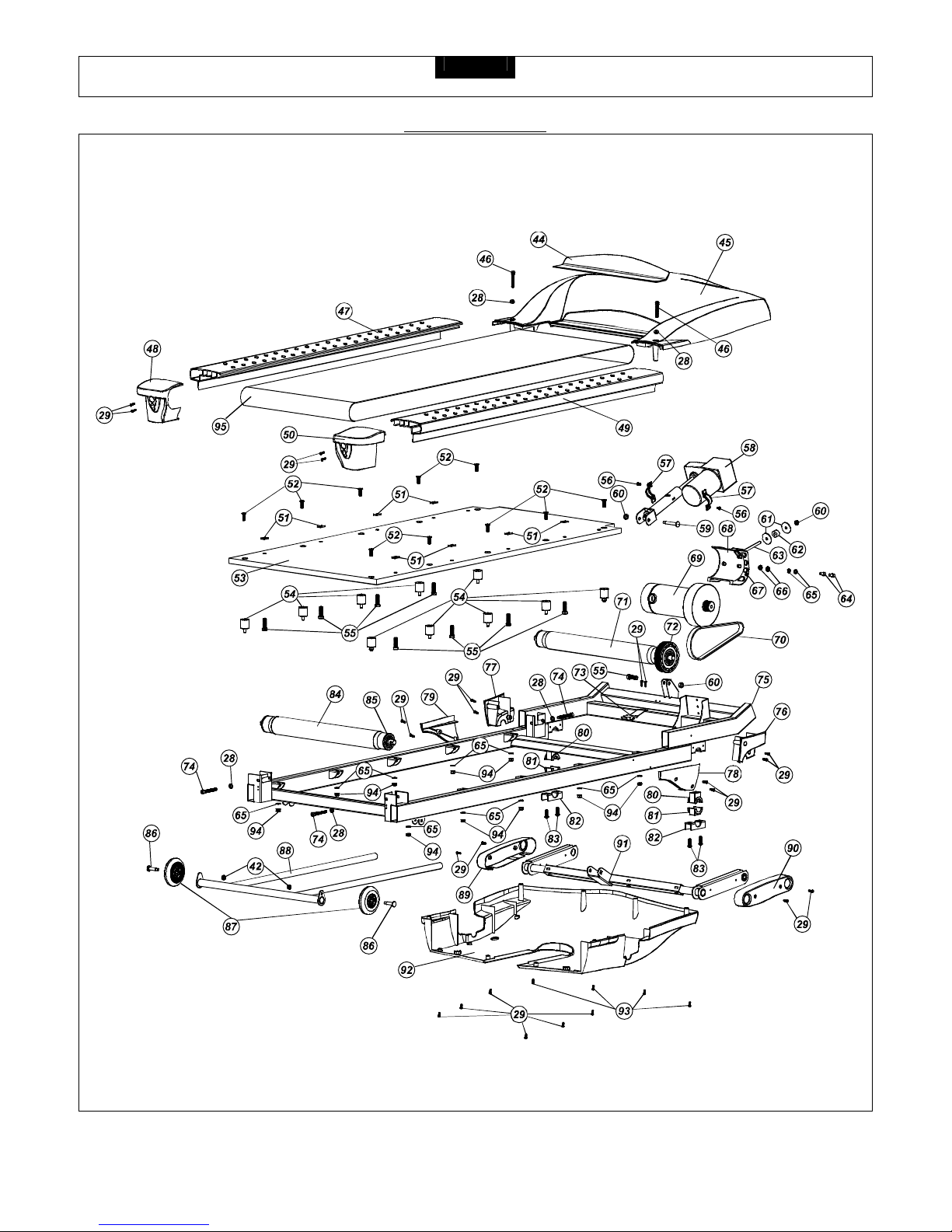

PARTS DIAGRAM

A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

Visit us at: www.evofitness.com

9

EVO 3i MOTORIZED TREADMILL

PARTS DIAGRAM

A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.

Visit us at: www.evofitness.com

10

EVO 3i MOTORIZED TREADMILL

ASSEMBLY

STEP 1:

Remove your treadmill from the carton and place it on the floor in an open area as shown in FIG-1.

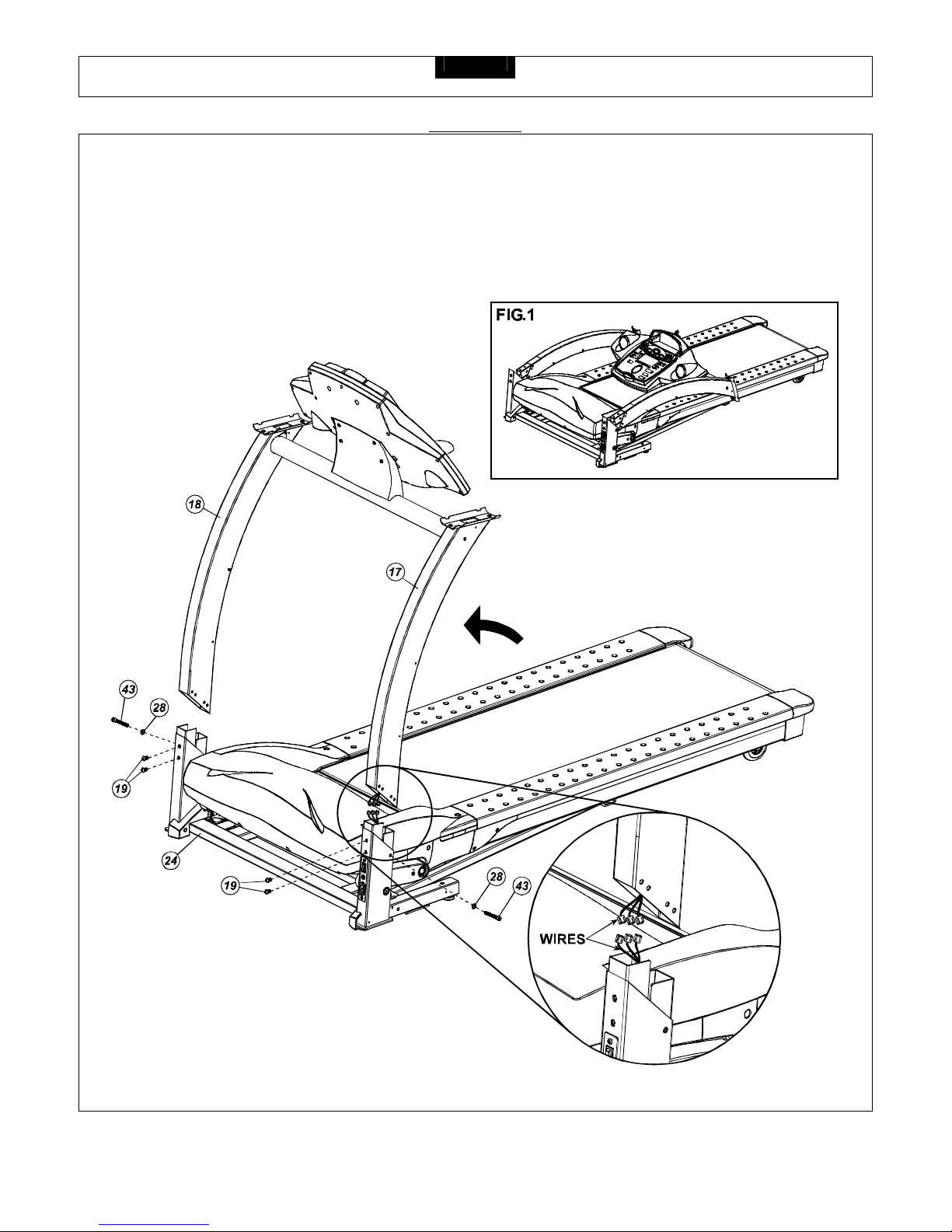

Attach the Left Upright (17) and Right Upright (18) to the Base Frame (24) as shown and secure in place using two M6 x

55mm Bolts (43), two 6 x 13mm Washers (28) and four M8 x 25mm Allen Bolt (19).

Visit us at: www.evofitness.com

11

EVO 3i MOTORIZED TREADMILL

ASSEMBLY

STEP 2:

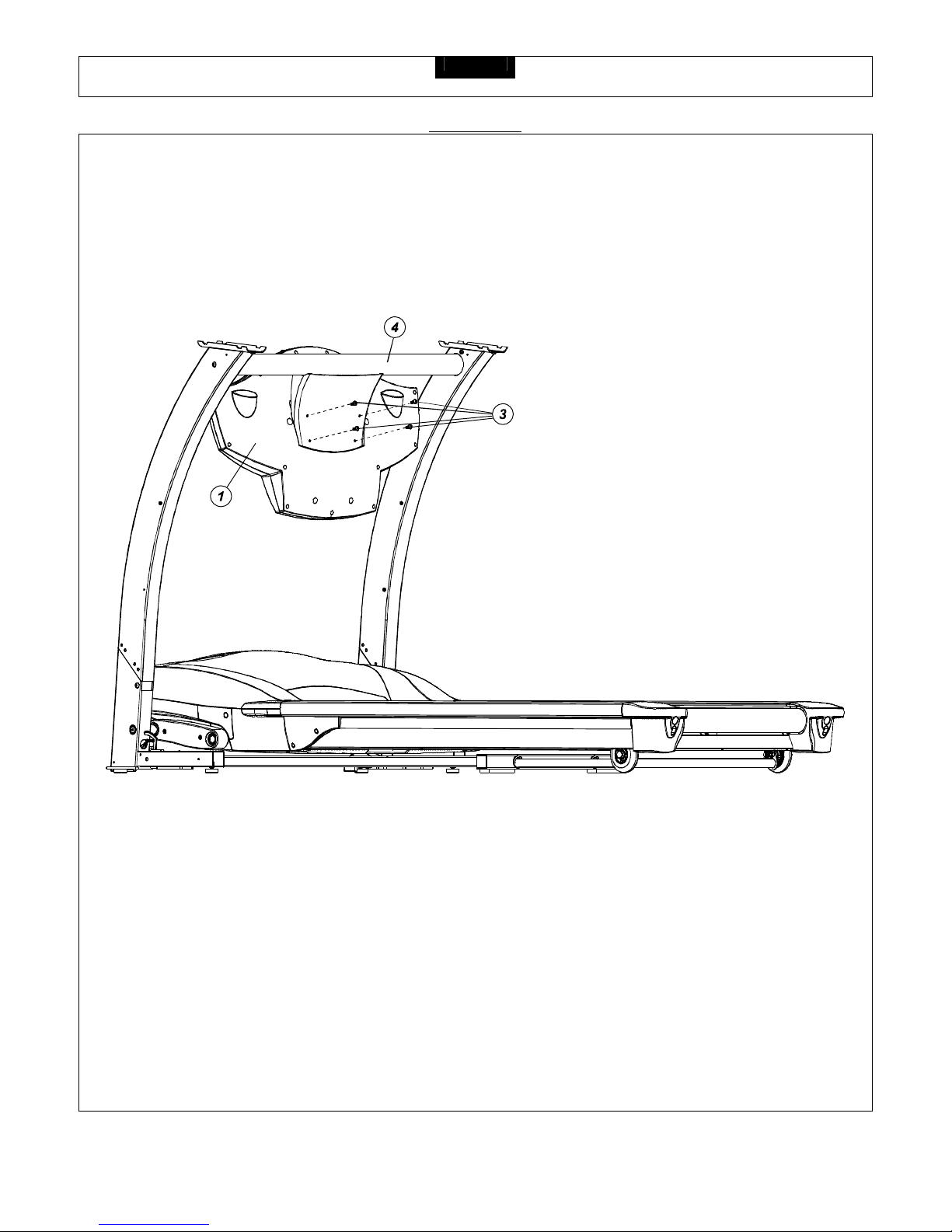

Attach the Computer (1) to the Console Support Tube (4) using four M6 x 20mm Allen Head Bolts (3).

Visit us at: www.evofitness.com

12

EVO 3i MOTORIZED TREADMILL

ASSEMBLY

STEP 3:

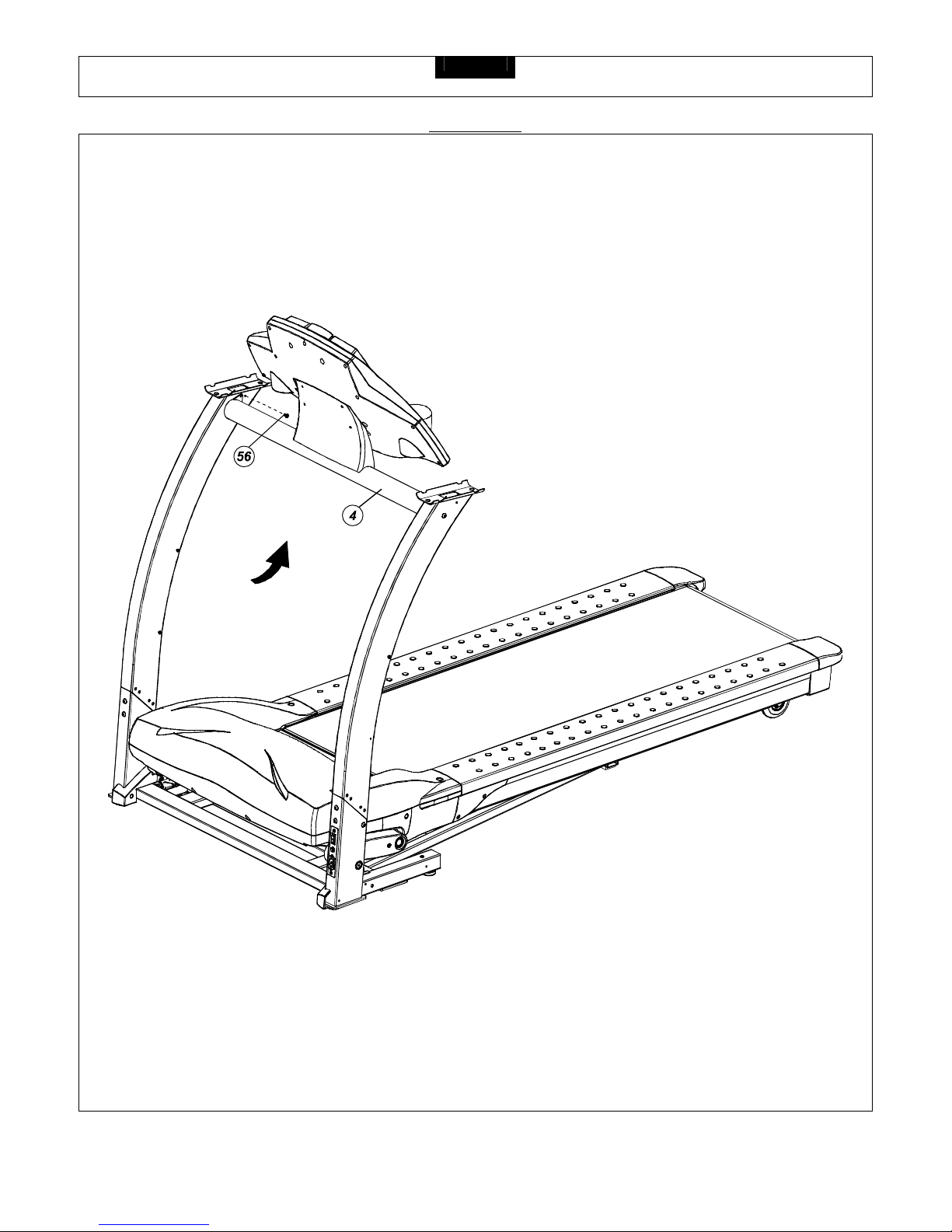

Rotate the Console Support Tube (4) to the correct position and secure with M5 x 12mm Screw (56).

Visit us at: www.evofitness.com

13

EVO 3i MOTORIZED TREADMILL

ASSEMBLY

STEP 4:

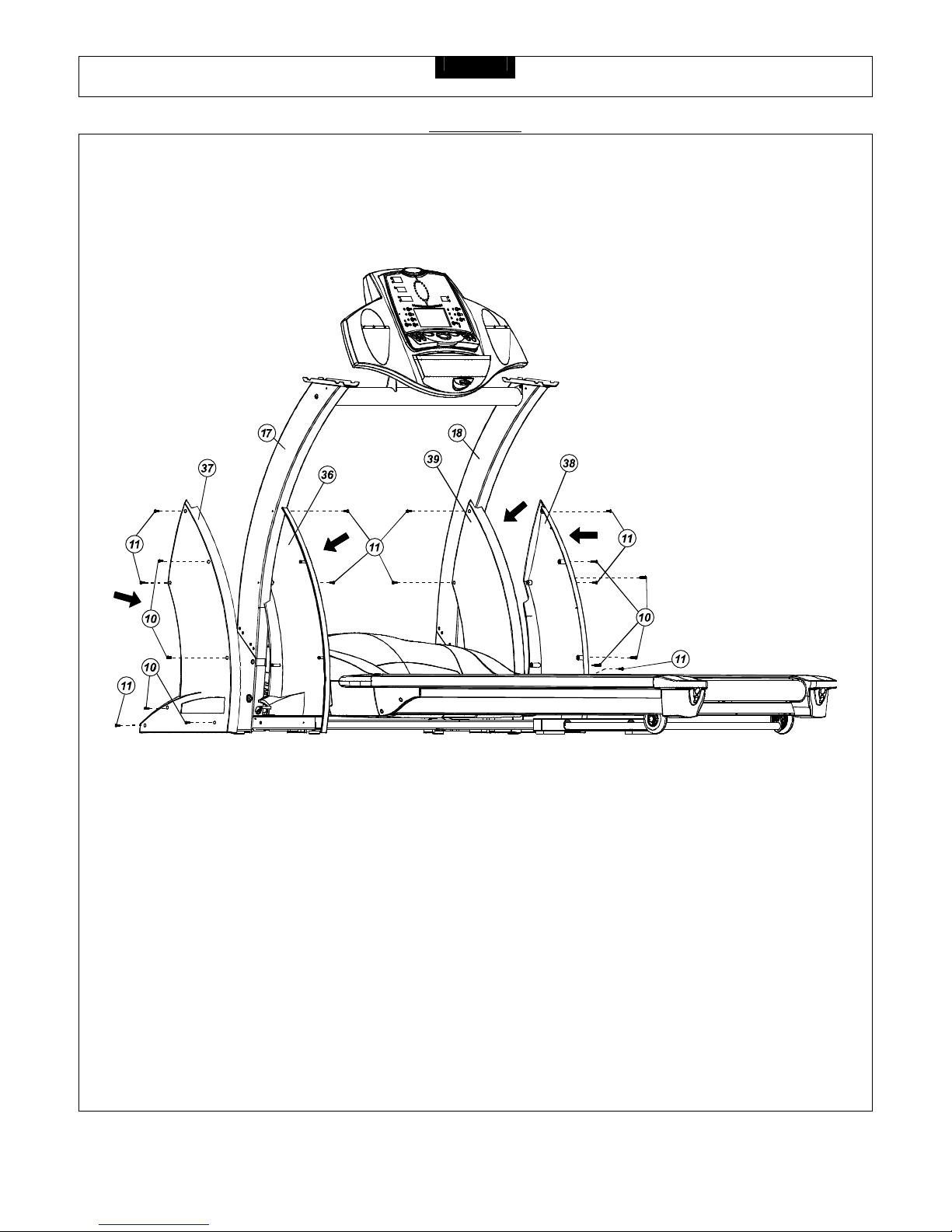

Attach the Upright Plastic Shroud – Left #1 (36) and Upright Plastic Shroud – Left #2 (37) to the Left Upright (17) and secure
with five #8 x 25mm Screws (11) and four #8 x 19mm Screws (10). Repeat this procedure on Right Upright (18) with Upright
Plastic Shroud – Right #2 (38) and Upright Plastic Shroud – Right #1 (39).

Visit us at: www.evofitness.com

14

EVO 3i MOTORIZED TREADMILL

ASSEMBLY

STEP 5:

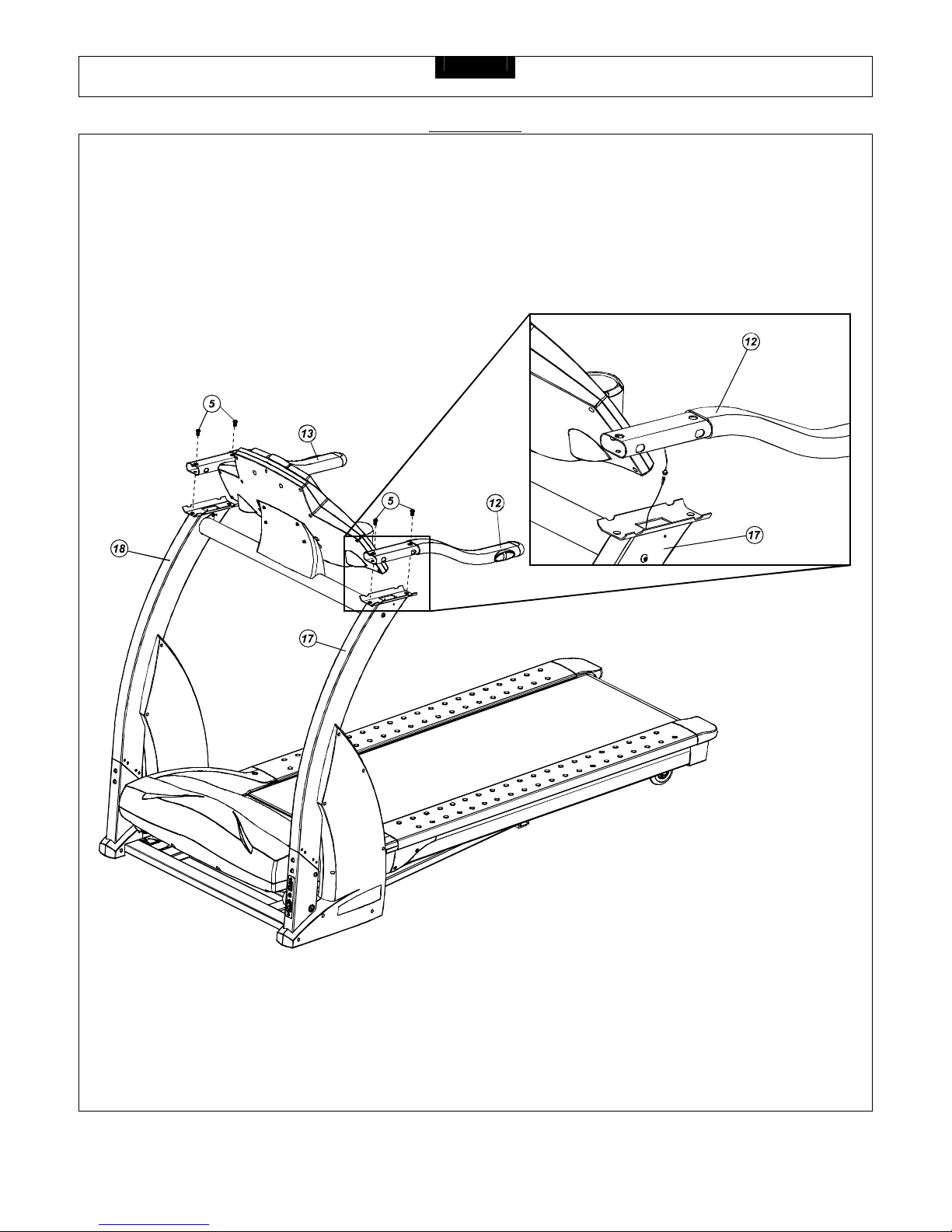

First connect the wires between the Left Handlebar (12) and Left Upright (17) as shown, then attach the Left Handlebar (12)
to the Left Upright (17) using two M8 x 10mm Bolts (5). Repeat this procedure for the Right Handlebar (13) and Right Upright
(18).

Visit us at: www.evofitness.com

15

EVO 3i MOTORIZED TREADMILL

ASSEMBLY

STEP 6:

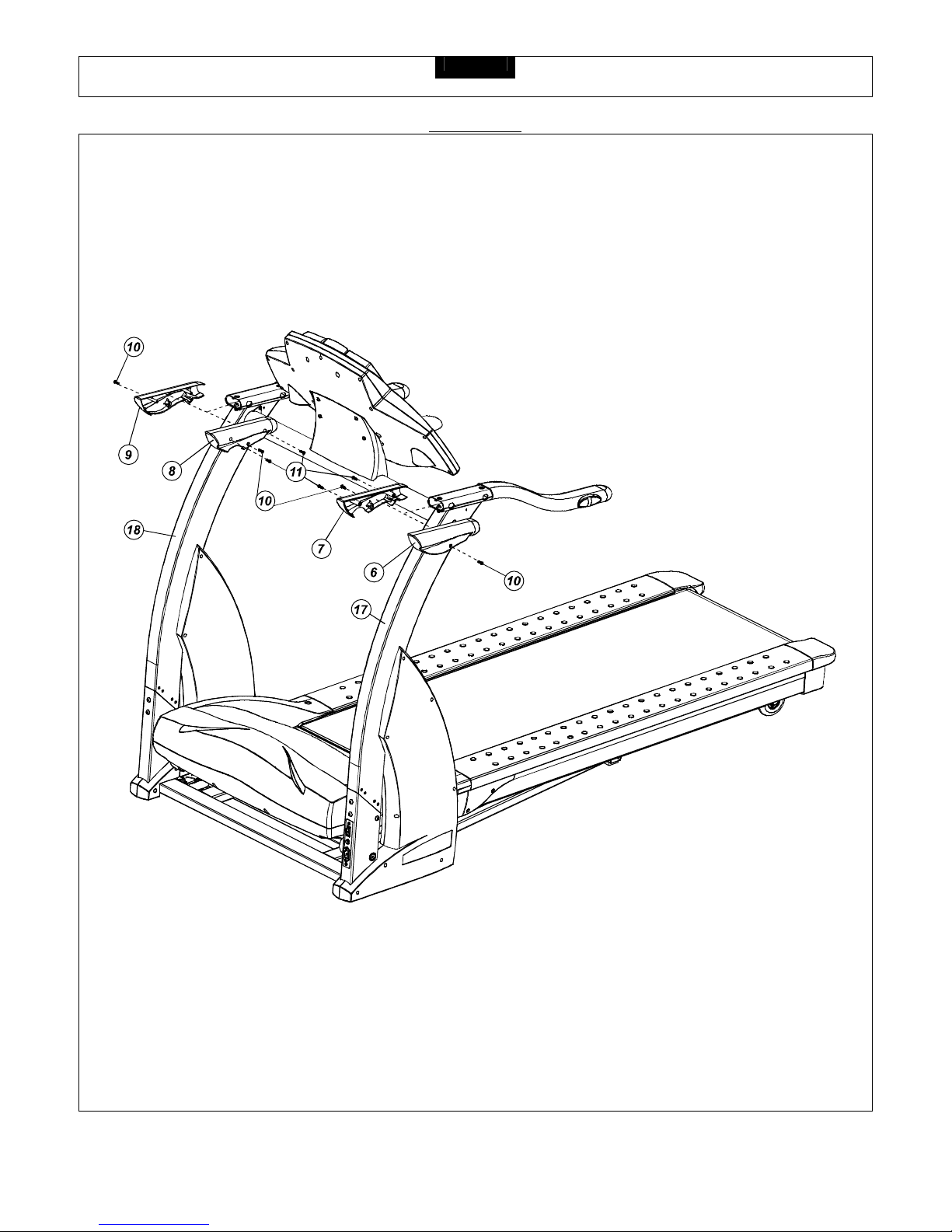

Attach the Handlebar Rear End Cap – Left #1 (6) to the Handlebar Rear End Cap – Left #2 (7) over the Left Upright (17) and
secure in place using two #8 x 19mm Screws (10) and two #8 x 25mm Screws (11). Attach the Handlebar Rear End Cap –
Right #2 (9) to the Handlebar Rear End Cap – Right #1 (8) over the Right Upright (18) and secure in place using two #8 x
19mm Screws (10) and two #8 x 25mm Screws (11).

Visit us at: www.evofitness.com

16

How to transport the treadmill

EVO 3i MOTORIZED TREADMILL

TRANSPORT INSTRUCTIONS

:

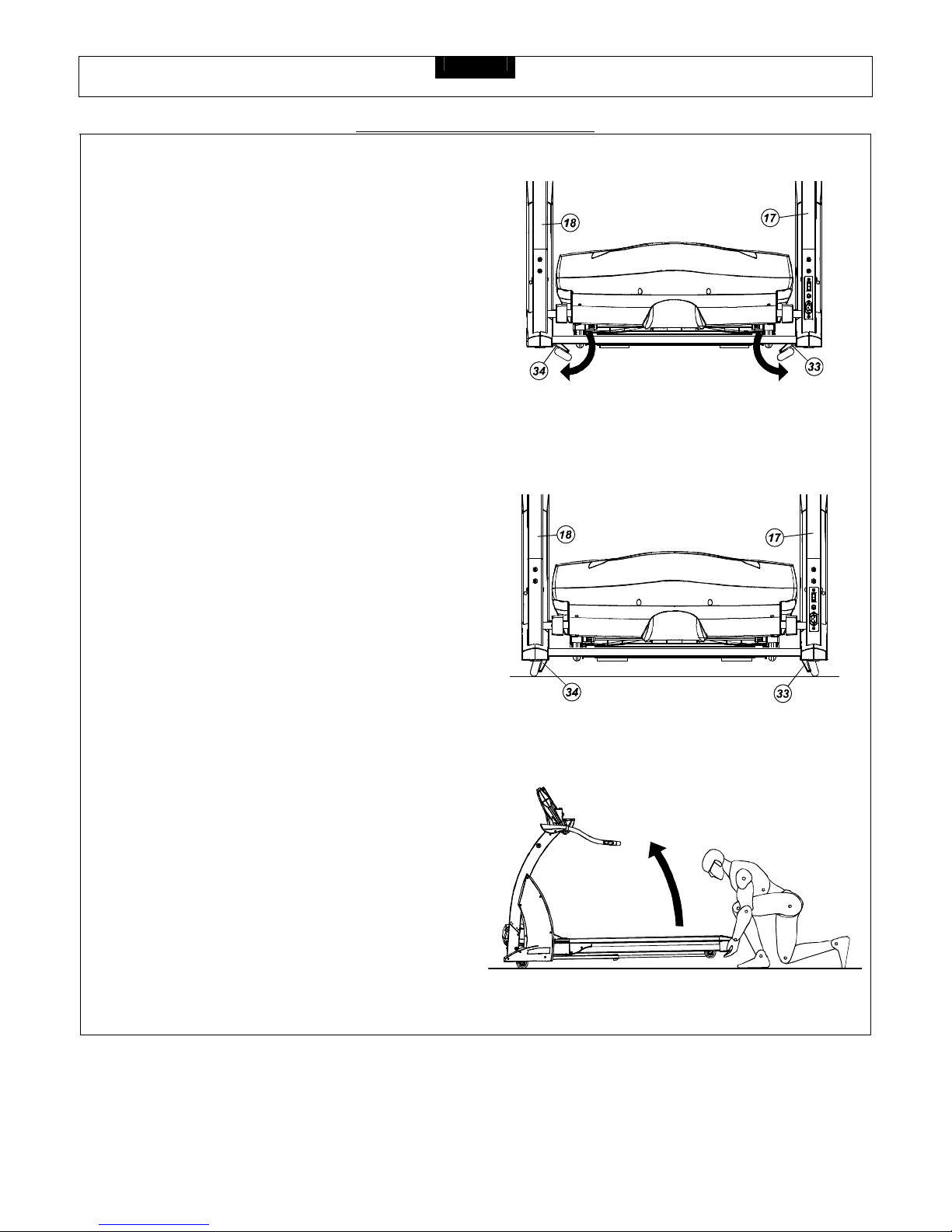

1. To move the treadmill you will need to first flip
out the Right and Left Transport Wheel Brackets
(34 and 33) located on the underside of the Left
and Right Uprights (17 and 18). You may need
to tilt the treadmill to one side in order to access
the wheels. Be careful when tilting the treadmill
because it is heavy. You may need the
assistance of another person to do this.

2. Be sure both Transport Wheel Brackets (34 and

33) are flipped down and resting firmly on the
floor as shown in drawing 2.

3. Carefully lift the treadmill up slightly from the rear
and roll it to a desired position. Flip the
Transport Wheel Brackets (34 and 33) back up
into their stored position. Follow the instructions
on the STABILIZER ADJUSTMENT page in this
manual to level the frame to the floor.

Visit us at: www.evofitness.com

17

EVO 3i MOTORIZED TREADMILL

LEVEL ADJUSTMENT

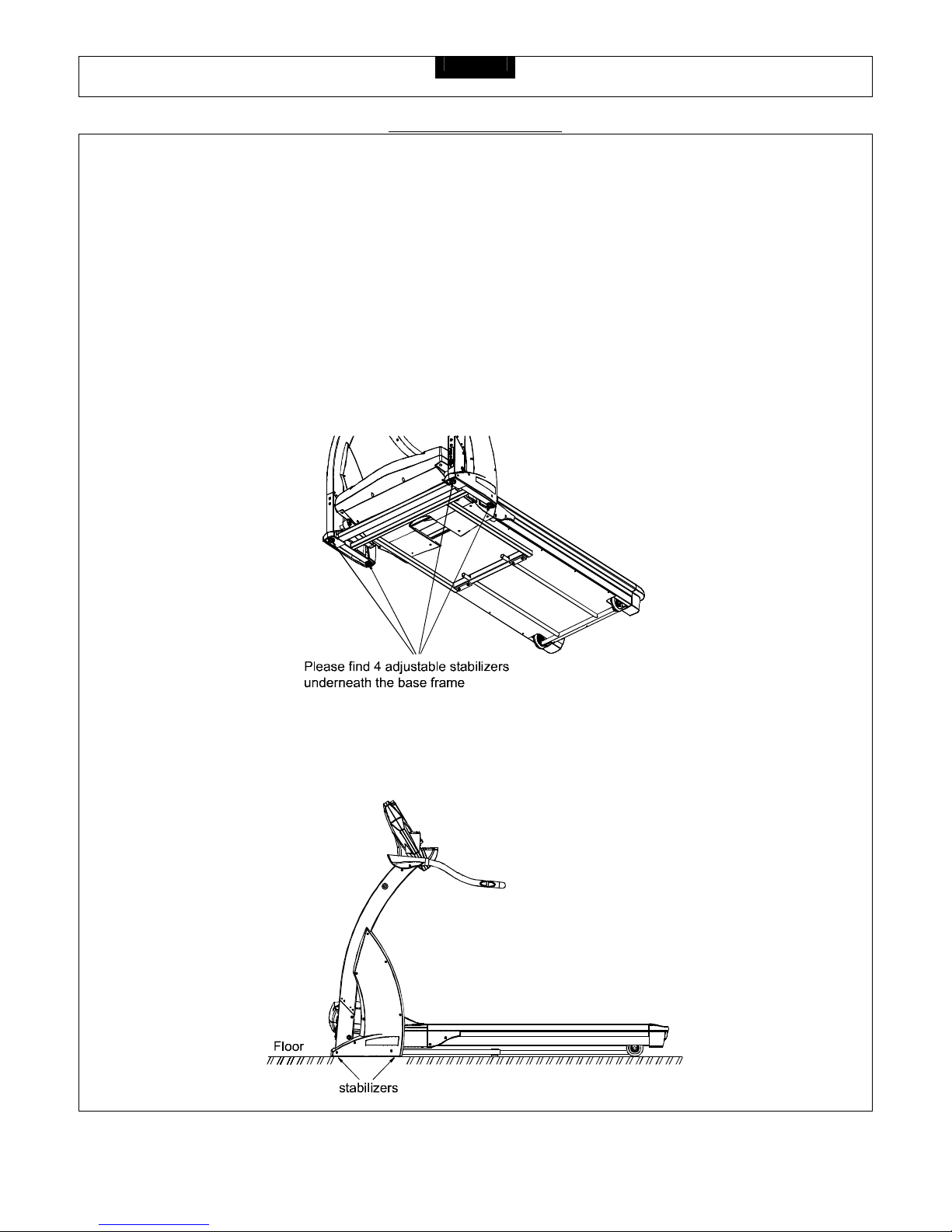

LEVEL ADJUSTMENT:

Uneven flooring could cause the SPRING KNOBS not to engage and thus prevent the EVO3i from inclining.
To adjust the levelers follow these instructions:
You will need someone to help you with this procedure, as you will need to tip the treadmill on its side.

Tip the treadmill to the left/right. You will then see the LEVEL ADJUSTERS. These wi ll need to be screwed either in or out
to level the treadmill. Repeat for the other side. It may help to use a spirit level when adjusting the level on your treadmill.

Visit us at: www.evofitness.com

18

EVO 3i MOTORIZED TREADMILL

MAINTENANCE

HOW TO MAINTAIN THE EVO 3i TREADMILL:
Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper maintenance

could cause damage or shorten the life of your treadmill and exceed the LIMITED WARRANTY coverage.

?? Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids

away and keep it out of direct sunlight.

?? Inspect and tighten all parts of the treadmill regularly. Replace any worn parts immediately.
BELT ADJUSTMENT:
Belt adjustment and tension performs two functions: adjustment for tension and centering. The running belt has been

adjusted properly at the factory. However transportation, uneven flooring or other unpredicted reasons could cause the belt to
shift off center resulting in the belt rubbing with the plastic side rail or end caps and possibly causing damage. To adjust the
belt back to it’s proper position please follow the directions below:

?? Walking belt has shifted to the left: First unplug the power cord from the surge protector. Using the hex key

provided, turn the left rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.

?? Walking belt has shifted to the right: First unplug the power cord from the surge protector. Using the hex key

provided, turn the right rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into
the surge protector and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set
walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer
below to the "Walking belt slipping" instructions.

?? Walking belt is slipping: First unplug the power cord from the surge protector. Using the hex key provided, turn

both the left and right rear roller adjustment bolts the same distance, usually a 1/4 turn in the clockwise direction.
Plug the power cord back into the surge protector and run the treadmill at 2.5 mph. You should now walk on the belt
to determine if the belt is still slipping. Repeat the above procedure until the walking belt is not slipping. The tension
should be just tight enough not to slip.

WARNING! Do not over tighten rollers! This will cause premature roller bearing failure!

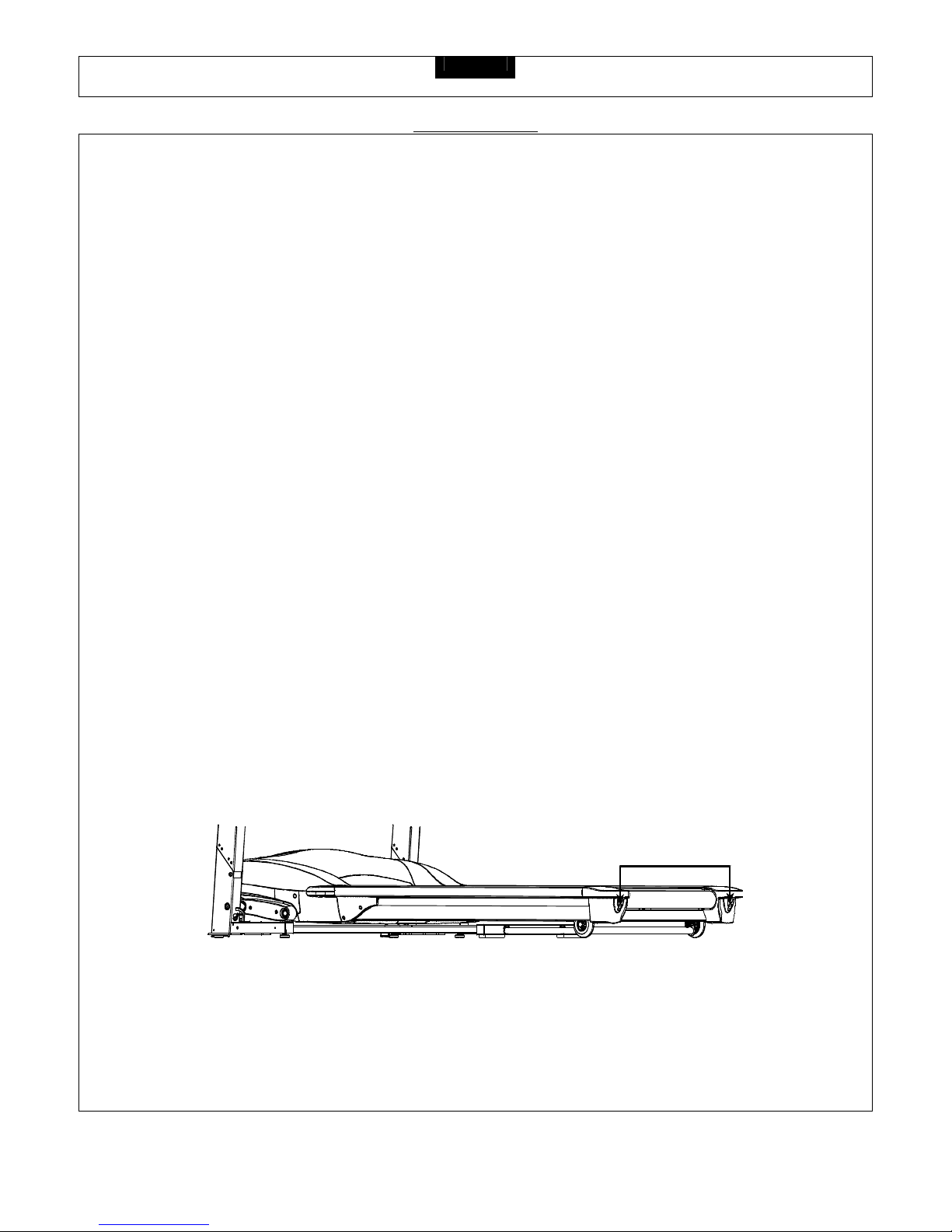

Right and left tension bolts are located at the rear of the treadmill.

Visit us at: www.evofitness.com

19

EVO 3i MOTORIZED TREADMILL

MAINTENANCE

CLEANING:
Routine cleaning of your treadmill will extend the product's life.

?? Warning: To prevent electrical shock, be sure the power to the treadmill is OFF and the power cord is unplugged

from the wall electrical outlet before attempting any cleaning or maintenance.

?? Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep

liquids away and keep it out of direct sunlight.

?? After each workout: Wipe off the console and other treadmill surfaces with a clean, water dampened soft cloth to

remove excess perspiration.

?? Weekly: Use of a treadmill mat is recommended for ease of cleaning. Dirt from your shoes contacts the belt and

eventually makes it to underneath the treadmill. Vacuum underneath treadmill once a week.
DECK LUBRICATION:
The walking belt has been pre-lubricated at the factory. However, it is recommended that the walking board be checked

periodically for lubrication to ensure optimal treadmill performance. Your treadmill should not have to be lubricated usually
within the first year or 500 hours of use. For service call your local EVO dealer or contact us directly at 888-800-1167.

Every 3 months of operation lift the sides of the walking belt and feel the top surface of the walking board as far as you can
reach. If you feel signs of silicone, no further lubrication is required. If it feels dry to the touch, follow the instructions below.

Please use Lube 'N Walk (can be purchased from your dealer or call the number on the front of the manual), or a non­petroleum based silicone such as "Napa 8300" (available at most stores).

To apply lubricant to the walking belt:

1. Position the walking belt so that the seam is located on top and in center of the walking board.

2. Insert the spray nozzle into the spray head of the lubricant can.

3. While lifting the side of the walking belt, position the spray nozzle between the walking belt and the board
approximately 6" from the front of the treadmill. Apply the silicone spray to the walking board, moving from the front
of the treadmill to the rear. Repeat this on the other side of the belt. Spray approximately 4 seconds on each side.

4. Allow the silicone to "set" for 1 minute before using the treadmill.

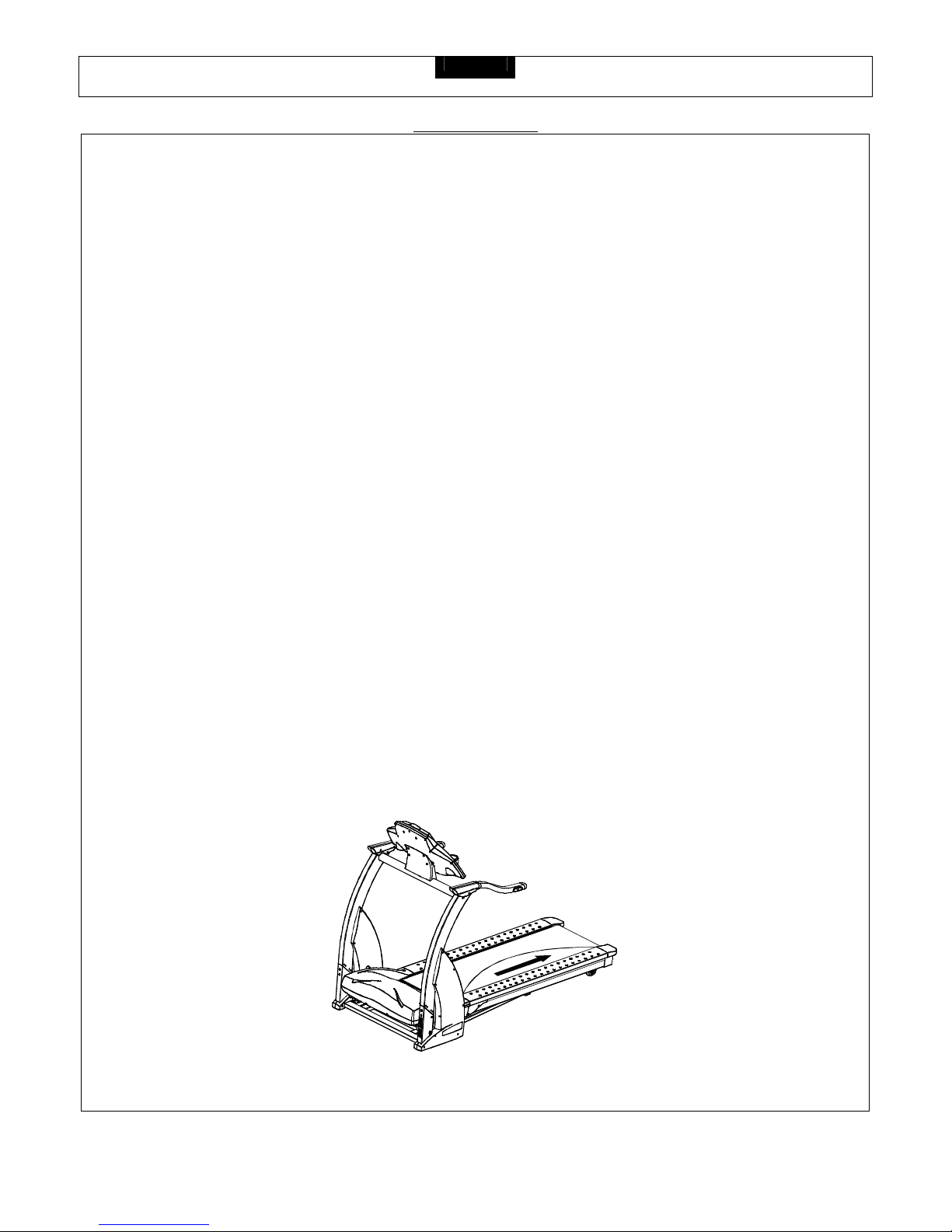

Spray lubricant from front to back.

Visit us at: www.evofitness.com

20

EVO 3i MOTORIZED TREADMILL

WARRANTY

This warranty covers all parts including frame, electronics and wear parts for a lifetime. Labor costs under this warranty are
covered for a period of one year from the date of purchase. If used in a commercial setting the warranty will change to cover
three (3) years on all parts and one (1) year on labor. Labor will be provided by an approved Smooth Fitness reseller, or at
the discretion of Smooth fitness, through an approved independent service agent.

Conditions Of Warranty

This warranty is valid only for the original purchaser and is not transferable. A copy of the original purchase receipt will be
required to obtain warranty parts and/or service. As a condition of this warranty, Smooth Fitness requires that the EVO
treadmills be lubricated on the belt and deck in accordance with the manufacturer's maintenance requirements, and using
lubrication in conformity with the specifications provided by the manufacturer. Customer is required to maintain records to
establish compliance with maintenance requirements. Smooth Fitness will not be responsible for repair or replacement of any
part damaged or destroyed due to misuse, failure to properly maintain, and/or abuse.

Remedies for Parts and Service:

Smooth Fitness may at its discretion, choose to provide any of the following parts or repair options. In the event that a part is
determined in need of replacement, upon receipt of the part by Smooth Fitness, Smooth Fitness may send out the part by
UPS ground or another such carrier directly to the customer's home. The customer is responsible for the cost of sending the
part to Smooth Fitness. For one year from the date of purchase, labor will be provided by a Smooth Fitness dealer or service
agent free of charge. After that time, the customer may either replace the component, or hire the dealer/service agent to
provide the labor at an additional cost. If Smooth Fitness in its sole discretion determines that the treadmill cannot or should
not be repaired, it may decide to purchase the unit for the residual value in accordance with the following: 25% of retail
purchase price after 5 years, 15% after 10 years, 5% after 15 years.

Unit has a labor warranty of 1 year from date of installation.

Visit us at: www.evofitness.com

21

EVO 3i MOTORIZED TREADMILL

IMPORTANT STEPS

Warning:
Before using this product, please consult your personal physician for a complete physical examination. Frequent and

strenuous exercise should be approved by your doctor first. If any discomfort should result from your use of this product, stop
exercising and consult your doctor. Proper usage of this product is essential. Please read your manual carefully before
exercising.

Please keep all children away from the equipment during use and when equipment is unattended.
Always wear appropriate clothing, including athletic shoes, when exercising. Do not wear loose clothing that could become

caught during exercising.
Make sure that all bolts and nuts are tightened when equipment is in use. Periodic maintenance is required on all exercise

equipment to keep it in good condition.
Before beginning:
How you begin your exercise program depends on your physical condition. If you have been inactive for several years, or

are severely overweight, you must start slowly and increase your time gradually, a few minutes per week.
Initially you may be able to exercise only for a few minutes in your target zone. However, your aerobic fitness will improve

over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at your own pace. Ultimately,
you’ll be able to exercise continuously for 30 minutes. And the better your aerobic fitness, the harder you will have to work to
stay in your target zone. But remember these essentials:

?? Contact your physician before starting a workout or training program. Have your doctor review your training and diet

programs to advise you of a workout routine you should adopt.

?? Begin your training program slowly with realistic goals that have been set by you and your doctor.
?? Supplement your program with some type of aerobic exercise such as walking, jogging, swimming, dancing and/or

bicycling. Monitor your pulse frequently. If you do not have an electronic heart rate monitor, have your physician
show you the proper way to manually check your pulse by using your wrist or neck. Establish your target heart rate
based on your age and condition.

?? Drink plenty of fluids during the course of your routine. You must replace the water content lost from excessive

exercising to avoid dehydration. Avoid drinking large amounts of cold liquids. Fluids should be at room temperature
when consumed.

Visit us at: www.evofitness.com

22

EVO 3i MOTORIZED TREADMILL

TARGET HEART RATE

Finding your pulse:
To make sure your heart is beating in its target zone, you’ll need to know how to monitor your heart rate. The easiest way is

to feel the pulse in the carotid artery on either side of your neck, between the windpipe and the large neck muscles. Count
the number of beats in ten seconds, and then multiply that number by six. This gives you the number of beats per minute.

How fast should your heart beat during aerobic exercise? Fast enough to reach and stay in its “target zone,” a range of beats
per minute that is largely determined by your age and physical condition. To determine your target zone, consult the chart
we have provided.

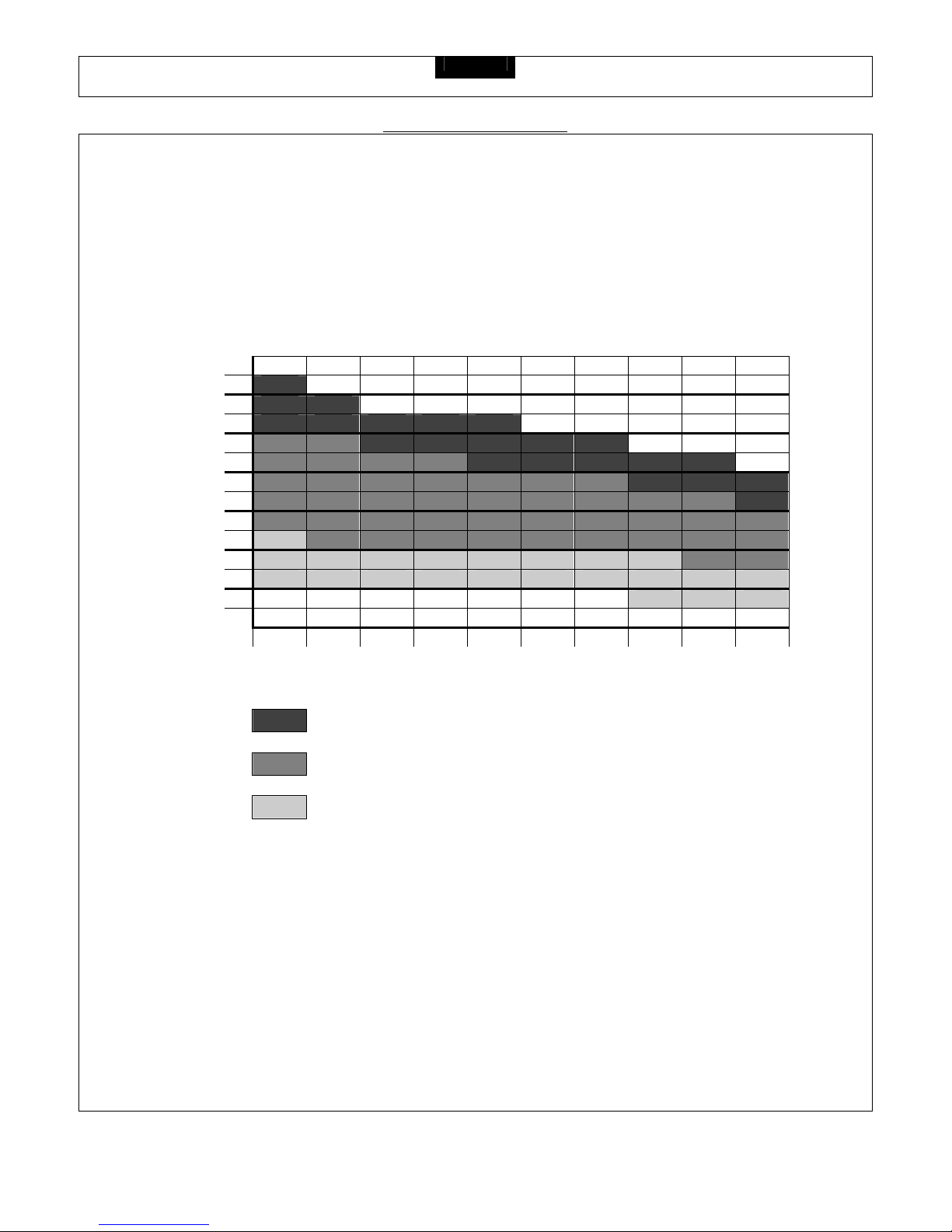

FIND YOUR TARGET HEART RATE

200

180

160

140

120

100

HEART RATE in beats per minute

20 25 30 35 40 45 50 55 60 65 70

80

ADVANCED: Sports, athletic conditioning or interval training

AGE IN YEARS

FITNESS: Optimal training, aerobic or cardiovascular

Aerobic exercise:

Is any sustained activity that sends oxygen to your muscles via your heart and lungs. It will improve the fitness of your lungs
and heart: your body’s most important muscle. Aerobic fitness is promoted by any activity that uses your large muscle
groups - arms, legs or buttocks, for example. Your heart beats quickly and you breathe deeply. An aerobic exercise should
be part of your entire exercise routine.

HEALTH: Beginner, low intensity with long duration produces fat burning

Visit us at: www.evofitness.com

23

A

EVO 3i MOTORIZED TREADMILL

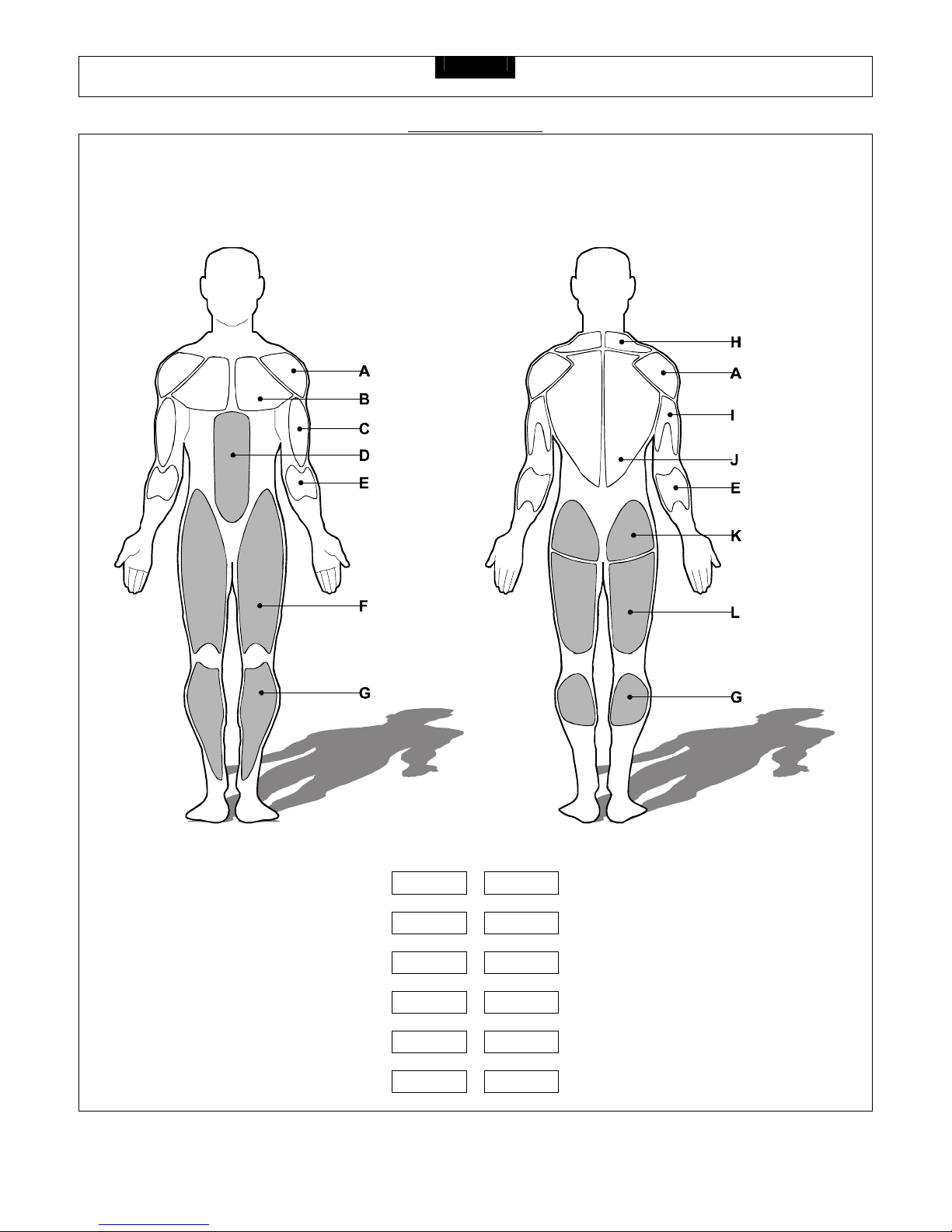

MUSCLE CHART

Targeted muscle groups:
The exercise routine that is performed on this product will develop primarily lower body muscle groups. These muscle groups

are shown in gray color on the chart below.

Shoulder muscles

Bicep muscle C

Forearm muscles E

Calf muscles G

Tricep muscles I

Gluteal muscles K

B Pectoral muscles

D Abdominal muscles

F Quadricep muscles

H Trapezius muscles

J Back muscles

L Hamstring muscles

Visit us at: www.evofitness.com

24

EVO 3i MOTORIZED TREADMILL

STRETCHING ROUTINE

Warm up and cool down:
A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two

and preferably three times a week, resting for a day between workouts. After several months, you can increase your
workouts to four or five times per week.

Warming up is an important part of your workout, and should begin every session. It prepares your body for more strenuous
exercise by heating up and stretching out your muscles, increasing your circulation and pulse rate, and delivering more
oxygen to your muscles. At the end of your workout, repeat these exercises to reduce sore muscle problems. We suggest
the warm-up and cool-down exercises on the following pages:

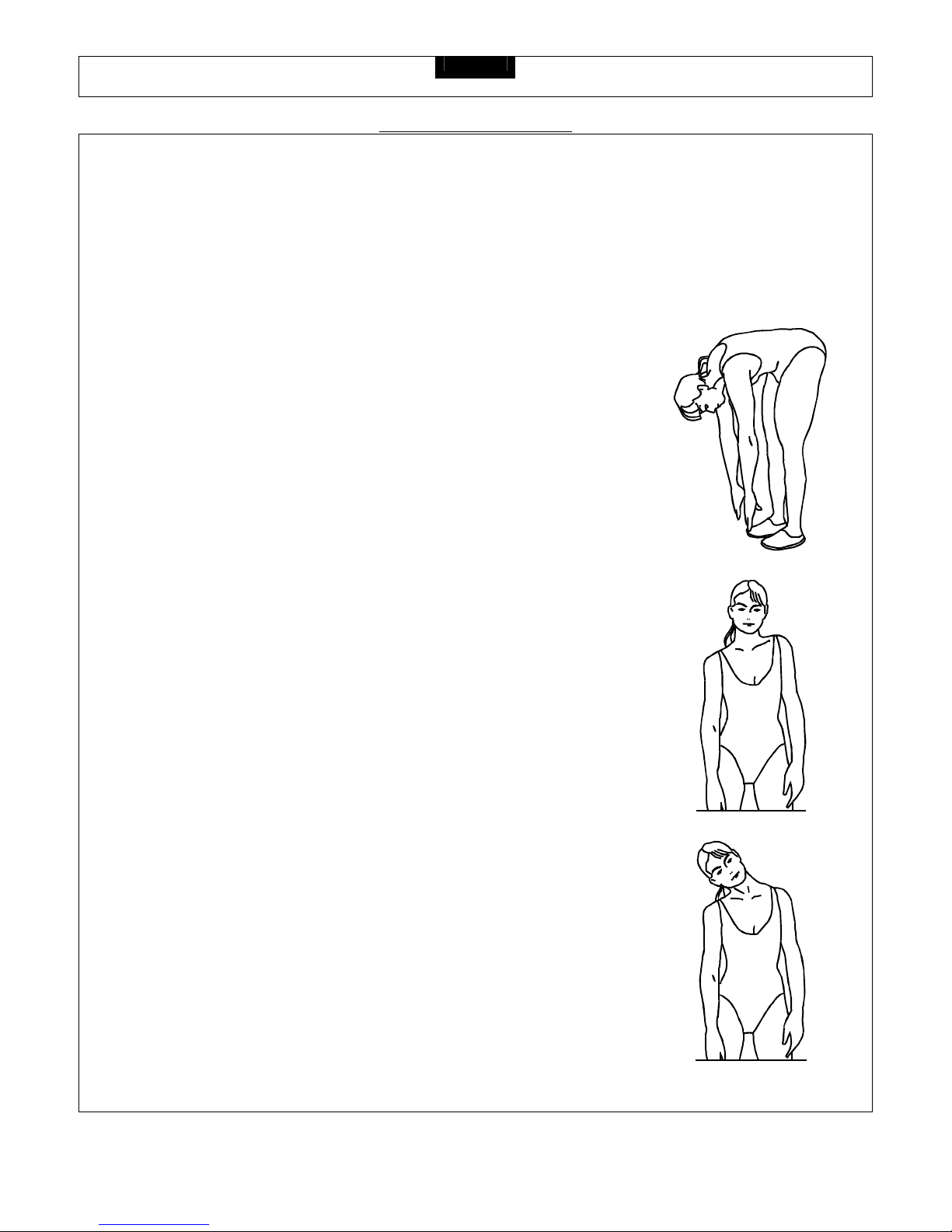

Toe Touch:
Slowly bend forward from your waist, letting your back and shoulders relax as you

stretch toward your toes. Reach down as far as you can and hold for 15 counts.

Shoulder Lift:
Lift your right shoulder up toward your ear for one count. Then lift your left

shoulder up for one count as you lower your right shoulder.

Head Roll:
Rotate your head to the right for one count, feeling the stretch up the left side of

your neck. Next, rotate your head back for one count, stretching your chin to the
ceiling and letting your mouth open. Rotate your head to the left for one count,
and finally, drop your head to your chest for one count.

Visit us at: www.evofitness.com

25

EVO 3i MOTORIZED TREADMILL

STRETCHING ROUTINE

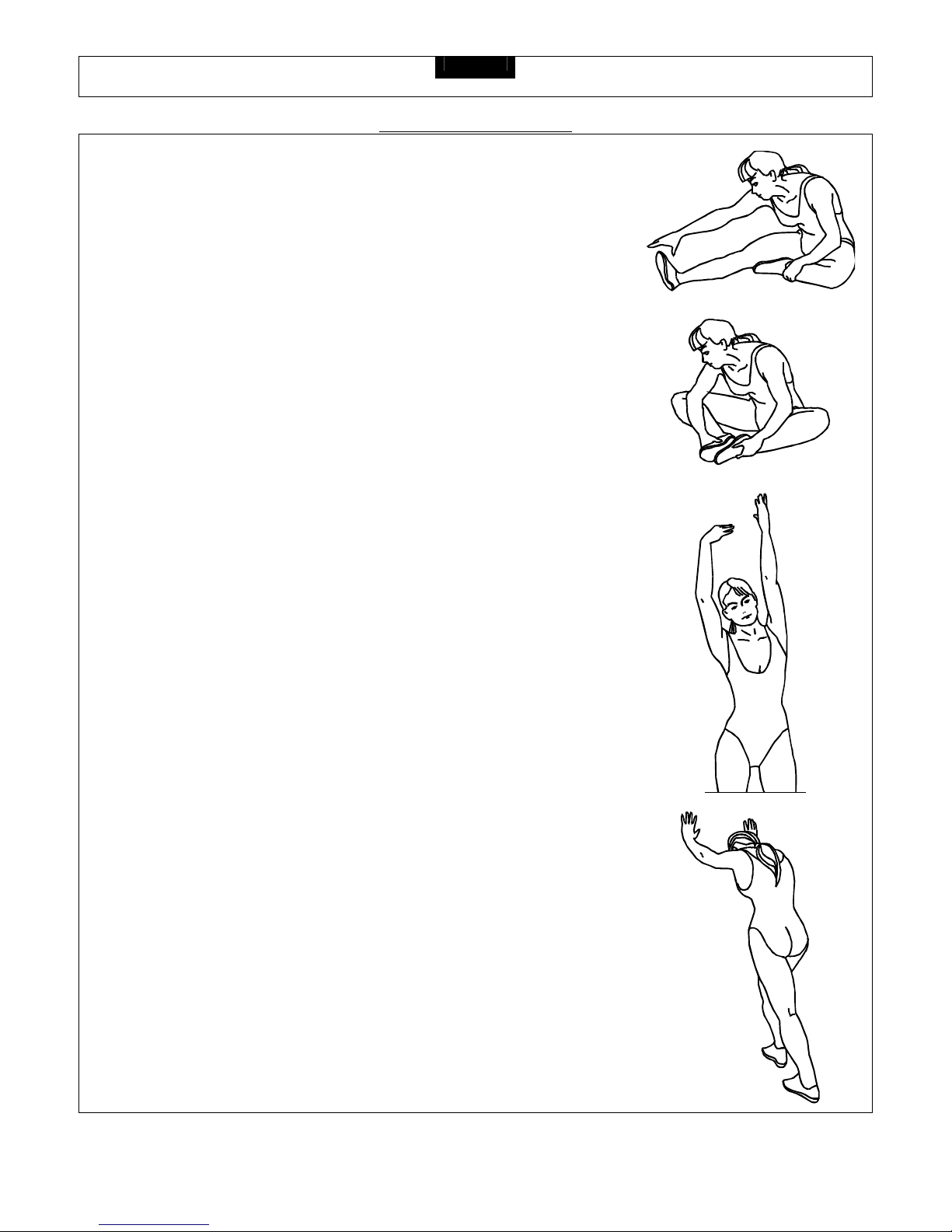

Hamstring Stretch:

Sit with your right leg extended. Rest the sole of your left foot against your right
inner thigh. Stretch toward your toe as far as possible. Hold for 15 counts. Relax
and then repeat with left leg extended.

Inner Thigh Stretch:
Sit with the soles of your feet together with your knees pointing outward. Pull your

feet as close into your groin as possible. Gently push your knees towards the
floor. Hold for 15 counts.

Side Stretch:
Open your arms to the side and continue lifting them until they are over your head.

Reach your right arm as far upward toward the ceiling as you can for one count.
Feel the stretch up your right side. Repeat this action with your left arm.

Calf-Achilles Stretch:
Lean against a wall with your left leg in front of the right and your arms forward.

Keep your right leg straight and the left foot on the floor; then bend the left leg and
lean forward by moving your hips toward the wall. Hold, and then repeat on the
other side for 15 counts.

Visit us at: www.evofitness.com

26

EVO 3i MOTORIZED TREADMILL

TROUBLESHOOTING

Troubleshooting
NOTE: Do not touch any internal electric wires without consulting the manufacturer.
Treadmill will not start:

1. Make sure the power cord is plugged into a surge protector, the surge protector is plugged into a properly grounded outlet
and the surge protector is turned on (refer to the Power Requirements section in this manual).

2. Check the circuit breaker reset switch located on the front of the treadmill. Turn the power off, wait 5 minutes then press
the rest switch.

3. Check the house electrical breaker box and the circuit breaker for the room the treadmill is located in. If it has tripped,
reset or have an electrician replace the breaker in home.

4. Have an electrician check for inadequate voltage at the outlet.
Treadmill looses power during use:

1. Check the circuit breaker reset switch located on the front of the treadmill. Turn the power off, wait 5 minutes then press
the rest switch.
If the treadmill still will not operate, please call your local EVO dealer or contact us directly at 888-800-1167.

2. Check the house electrical breaker box and the circuit breaker for the room the treadmill is located in. If it has tripped,
reset or have an electrician replace the breaker in home.

Treadmill walking belt slows during use:

1. Check to make sure the treadmill is securely plugged into an UL-listed surge protector, rated at 15 amps, with a 14-guage
cord of five feet or less and the surge protector is securely plugged into the outlet. If the treadmill still will not operate, please
call your local EVO dealer or contact us directly at 888-800-1167.

Treadmill walking belt slips or is not centered on rear roller:
Refer to the Belt Adjustment section of this manual. If you require additional assistance please call your local EVO dealer or

contact us directly at 888-800-1167.

Visit us at: www.evofitness.com

Smooth Fitness

112 Gaither Drive

Mt. Laurel, NJ 08054

Toll Free Customer Service:

1.888.800.1167

Website:

www.evofitness.com

Copyright © 2003
