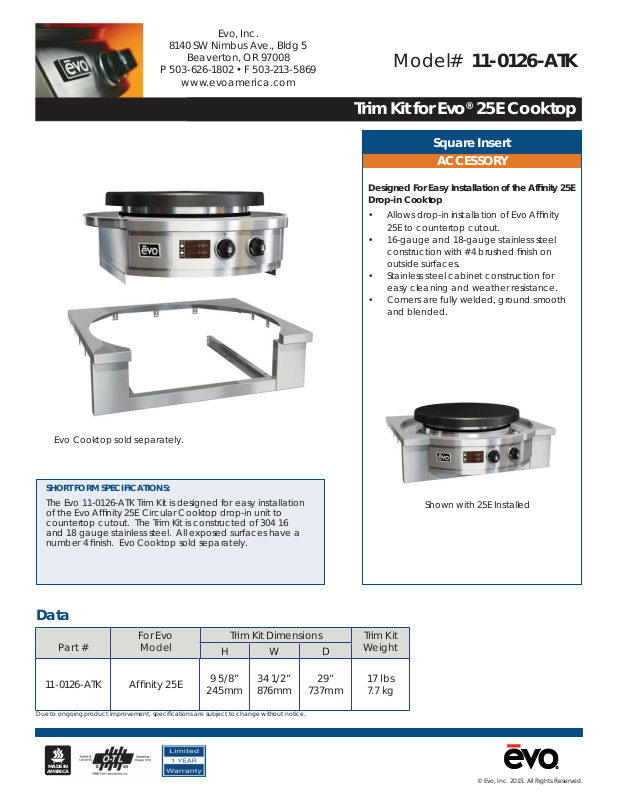

Page 1
Evo, Inc.
8140 SW Nimbus Ave., Bldg 5
Beaverton, OR 97 008
P 503-626-1 802 • F 503-213-5869
www.evoamerica.com
Model#R11-0126-ATK
Trim Kit for Evo® 25E Cooktop
Square Insert
ACCESSORY
Designed For Easy Installation of the Affi nity 25E
Drop-in Cooktop
• Allows drop-in installation of Evo Affi nity
25E to countertop cutout.
• 16-gauge and 18-gauge stainless steel
construction with #4 brushed fi nish on
outside surfaces.
• Stainless steel cabinet construction for
easy cleaning and weather resistance.
• Corners are fully welded, ground smooth
and blended.
Evo Cooktop sold separately.
SHORT FORM SPECIFICATIONS:
The Evo 11-0126-ATK Trim Kit is designed for easy installation
of the Evo Affi nity 25E Circular Cooktop drop-in unit to
countertop cutout. The Trim Kit is constructed of 304 16
and 18 gauge stainless steel. All exposed surfaces have a
number 4 fi nish. Evo Cooktop sold separately.
Data
For Evo
Part #
Model
11-0126-ATK Affi nity 25E
Due to ongoing product improvement, specifi cations are subject to change without notice.
Trim Kit Dimensions Trim Kit
HWD
9 5/8”
245mm
34 1/2 ”
876mm
29”
737mm
Shown with 25E Installed
Weight
17 lbs
7.7 kg
MADE IN
AMERICA
© Evo, Inc. 2015. All Rights Reserved.

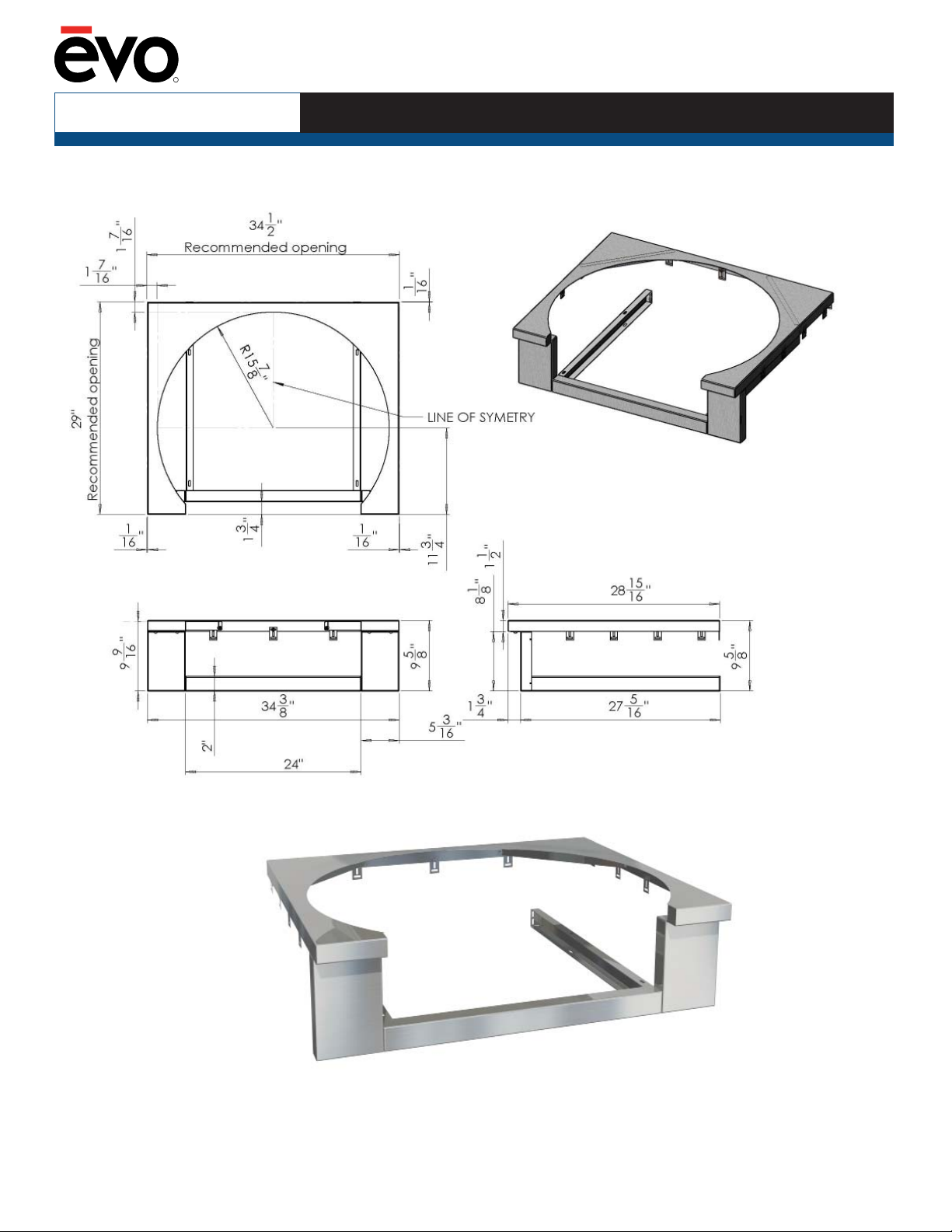

Page 2
R
Model#
11-0126-ATK Trim Kit for Evo® 25E Cooktop
Evo Cooktop sold separately.
Ph 503-626-1802 • Fax 503-213-5869 • www.evoamerica.com • [email protected]
Evo
Evo, Inc. 8140 SW Nimbus Ave., Bldg. 5, Beaverton Oregon 97008
®
is protected under U.S. Patents 6,189,530 and 6,488,022, and U.S. Patents Pending
