5601MSC
Rev. 14-1

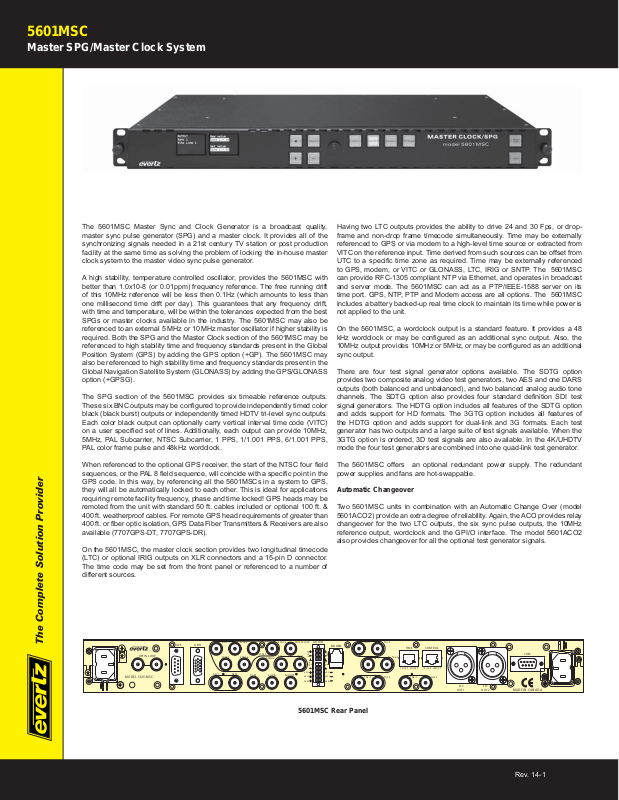

Master SPG/Master Clock System
The 5601MSC Master Sync and Clock Generator is a broadcast quality,
master sync pulse generator (SPG) and a master clock. It provides all of the
synchronizing signals needed in a 21st century TV station or post production
facility at the same time as solving the problem of locking the in-house master
clock system to the master video sync pulse generator.
A high stability, temperature controlled oscillator, provides the 5601MSC with
better than 1.0x10-8 (or 0.01ppm) frequency reference. The free running drift
of this 10MHz reference will be less then 0.1Hz (which amounts to less than
one millisecond time drift per day). This guarantees that any frequency drift,
with time and temperature, will be within the tolerances expected from the best
SPGs or master clocks available in the industry. The 5601MSC may also be
referenced to an external 5 MHz or 10 MHz master oscillator if higher stability is
required. Both the SPG and the Master Clock section of the 5601MSC may be
referenced to high stability time and frequency standards present in the Global
Position System (GPS) by adding the GPS option (+GP). The 5601MSC may
also be referenced to high stability time and frequency standards present in the
Global Navigation Satellite System (GLONASS) by adding the GPS/GLONASS
option (+GPSG).
The SPG section of the 5601MSC provides six timeable reference outputs.
These six BNC outputs may be confi gured to provide independently timed color
black (black burst) outputs or independently timed HDTV tri-level sync outputs.
Each color black output can optionally carry vertical interval time code (VITC)
on a user specifi ed set of lines. Additionally, each output can provide 10MHz,
5MHz, PAL Subcarrier, NTSC Subcarrier, 1 PPS, 1/1.001 PPS, 6/1.001 PPS,
PAL color frame pulse and 48kHz wordclock.
When referenced to the optional GPS receiver, the start of the NTSC four fi eld
sequences, or the PAL 8 fi eld sequence, will coincide with a specifi c point in the
GPS code. In this way, by referencing all the 5601MSCs in a system to GPS,
they will all be automatically locked to each other. This is ideal for applications
requiring remote facility frequency, phase and time locked! GPS heads may be
remoted from the unit with standard 50 ft. cables included or optional 100 ft. &
400 ft. weatherproof cables. For remote GPS head requirements of greater than
400 ft. or fi ber optic isolation, GPS Data Fiber Transmitters & Receivers are also
available (7707GPS-DT, 7707GPS-DR).
On the 5601MSC, the master clock section provides two longitudinal timecode
(LTC) or optional IRIG outputs on XLR connectors and a 15-pin D connector.
The time code may be set from the front panel or referenced to a number of
different sources.
Having two LTC outputs provides the ability to drive 24 and 30 Fps, or dropframe and non-drop frame timecode simultaneously. Time may be externally
referenced to GPS or via modem to a high-level time source or extracted from
VITC on the reference input. Time derived from such sources can be offset from
UTC to a specifi c time zone as required. Time may be externally referenced
to GPS, modem, or VITC or GLONASS, LTC, IRIG or SNTP. The 5601MSC
can provide RFC-1305 compliant NTP via Ethernet, and operates in broadcast
and server mode. The 5601MSC can act as a PTP/IEEE-1588 server on its
time port. GPS, NTP, PTP and Modem access are all options. The 5601MSC
includes a battery backed-up real time clock to maintain its time while power is
not applied to the unit.
On the 5601MSC, a wordclock output is a standard feature. It provides a 48
kHz wordclock or may be confi gured as an additional sync output. Also, the
10MHz output provides 10MHz or 5MHz, or may be confi gured as an additional
sync output.
There are four test signal generator options available. The SDTG option
provides two composite analog video test generators, two AES and one DARS
outputs (both balanced and unbalanced), and two balanced analog audio tone
channels. The SDTG option also provides four standard defi nition SDI test
signal generators. The HDTG option includes all features of the SDTG option
and adds support for HD formats. The 3GTG option includes all features of
the HDTG option and adds support for dual-link and 3G formats. Each test
generator has two outputs and a large suite of test signals available. When the
3GTG option is ordered, 3D test signals are also available. In the 4K/UHDTV
mode the four test generators are combined into one quad-link test generator.
The 5601MSC offers an optional redundant power supply. The redundant
power supplies and fans are hot-swappable.
Automatic Changeover
Two 5601MSC units in combination with an Automatic Change Over (model
5601ACO2) provide an extra degree of reliability. Again, the ACO provides relay
changeover for the two LTC outputs, the six sync pulse outputs, the 10MHz
reference output, wordclock and the GPI/O interface. The model 5601ACO2
also provides changeover for all the optional test generator signals.
The Complete Solution Provider
REF IN LOOP
MODEL 5601MSC
WORDCLOCK
SYNC 3
10MHZ
DARS AUX IN
SYNC 4
ATG 1
AUX OUT
AUDIO
MODEM
ATG 2
LEFT
RIGHT
B
A
SNS
SNS
AES1
AES1
AES2
AES2
DARS
DARS
TG1-2TG1-1
TIME
LN ACT/10/100 10/100
CONTROL
LN ACT
/
TG4-2TG4-1
TC
LTC
L
OUT 2
OUT 1
TG2-2
TG2-1
TG3-2TG3-1
COM
MADE IN CANADA
GPIO
GPS
SYNC 2SYNC 1
SYNC 6SYNC 5
AES 1 AES 2
5601MSC Rear Panel
Page 2
Features & Benefi ts
GPS/GLONASS reference
5/10MHz
NTSC/PAL/Tri-Level
HD/Reference (with VITC)
Dial-up
LTC
SNTP
Rev. 14-1
• 6 independently timeable programmable reference outputs
• Bi-level or Tri-level outputs selectable
• 2 Independent LTC/IRIG-B Time Code outputs
• LTC/IRIG-D Input (optional IRIG-B)
• Reference loop input for video and 10MHz/5MHz references
• GPS option for frequency and time reference (GLONASS option)
• SNTP option for time reference
• 3.58/4.43/5 MHz frequency reference output
• 10MHz frequency reference output
• Wordclock output
• Output frequency stability guaranteed better then 1.0 x 10-8 (or 0.01ppm)
• Optional modem for time reference dial up
• 2 GPS based units will be in time and phase even when remotely separated
by miles
• Optional test generators available are (refer to ordering options):
• Composite Video
• AES/DARS
• Analog Audio Tones
• SD SDI
• HD SDI
• 3Gb/s
Summary
5601MSC
Master SPG/Master Clock System
• Optional Network Time Protocol (NTP) server support (NTP requires a time
reference shuch as GPS/GLONASS, modem, VITC, LTC or SNTP.
GPS/GLONASS is the recommended reference)
• Optional PTP/IEEE-1588 master support
• Dual 6 line x 16 character Alpha-numeric display, with 10 pushbuttons
• Rack mountable
• Optional redundant hot swappable power supply
• Automatic changeover units available for dual redundant systems applications
• Compatible with Dual GPS Data Fiber Receivers & Transmitters
• 2 factory presets and 3 user presets available
• VITC reader on reference input for time reference
• Ten Field Pulse is available on NTSC sync outputs
• VistaLINK
• All active components are front panel extractable & serviceable
• Fans are hot swappable
®
control for device confi guration and status monitoring
GPS/GLONASS reference
5/10MHz
Dial-up
NTSC/PAL/Tri-Level
HD/Reference (with VITC)
LTC
SNTP
5601MSC Signal Inputs / Outputs
6 Bi-level/Tri-level sync
LTC 1 & LTC 2
10MHz
HD-SDI Test Sets
SDI Test Sets
NTSC/PAL Test Sets
AES Test Sets
DARS
Analog Audio Tones
NTP Server
Word Clock
PTP Master
Page 3
5601MSC
Rev. 14-1
Master SPG/Master Clock System
5601MSC Specifi cations
Analog Sync Outputs:
Output Standards:
Black Burst: SMPTE ST 170 (NTSC-M),
ITU-R BT.1700-1 (PAL-B)
Bi-Level: Slo-Pal 625i/48, 625i/47.95,
480p/59.94
HD Tri-Level: SMPTE ST 274 (1080p/23.98,
1080p/24, 1080i/50, 1080i/59.94,
1080i/60, 1080p/23.98sF,
1080p/24sF, 1080p/25, 1080p/29.97,
1080p/30, 1080p/50, 1080p/59.94,
1080p/60)
SMPTE ST 296 (720p/59.94,
720p/60, 720p/50, 720p/30,
720p/24)
Pulse Signals: PAL color frame, 1Hz pulse,
IR1G DATUM 1/1.001Hz pulse,
6/1.001Hz pulse
CW Signals: 5MHz, 10MHz, NTSC-M Subcarrier,
PAL-B Subcarrier
Wordclock: 48kHz Wordclock
Connector: 6 BNC per IEC 61169-8 Annex A
Number of Outputs: 6
DC Offset: 0V ±0.05V
Return Loss: > 40dB up to 10MHz
SNR: > 75dB rms
10MHz Output:
Output Levels: 1.0V p-p, 2.0V p-p, in 75Ω
selectable
Connector: BNC per IEC 61169-8 Annex A
Output Type: 10MHz sine wave (default), all other
analog sync standards (see above)
selectable
SNR: >70dB rms
SFDR: >50 dBc
Wordclock Output:
Output Type: 48kHz Wordclock (default), all other
analog sync standards (see above)
selectable
Connector: BNC per IEC 61169-8 Annex A
Risetime: < 25ns
Levels: 5V CMOS (1kΩ) or ±1V (75Ω)
LTC Outputs:
Standard: SMPTE ST 12-1 or IRIG-B
Frame Rate: 24, 25, 30 and 29.97 (drop frame
and non-drop frame)
Number of outputs: 2 balanced
Connectors: 3-pin male XLR type, Female DB-15
Level:
Un-powered: Adjustable, 1.0V to 8.0V p-p,
balanced
Powered: 2V p-p with 11V DC offset to drive
downstream 1200 series slave
clocks on LTC1 only
Output Impedance: 44Ωbalanced (un-powered)
Rise Time: 40 ±10μs
Jitter: < 2μs
IRIG Input/Outputs (with +IRIG option installed):
Standard: IRIG 200-04 B122, B123, B126,
B127
Number of outputs: 2, shared with LTC, may be both
LTC, 1LTC-1IRIG, both IRIG
Connectors: 3 pin male XLR type, Female DB-15
Level: 1.0-8.0 p-p, balanced
Output Impedance: 44Ω balanced
LTC Input:
Standard: SMPTE ST12-1 or IRIG-B
Number of Inputs: 1 balanced
Connector: Female DB-15
The Complete Solution Provider
Input impedance: >30kΩ balanced
Sensitivity: 0.25V p-p min
Communications and Control:
Serial Port:
Connector: Female DB-9
Level: RS-232
Baud Rate: 115200 baud
Format: 8 data bits, no parity, 2 stop bits
GPS/GLONASS Receiver (with "+GP" or "+GPSG" option
installed)
Temperature: -40°C to +70°C
Humidity: 95% R.H. Condensing at 60°C
Dimensions: 3.74" D x 2.85" H (100mm x 72mm)
Modem (with "+M" option installed):
Connector: RJ-11 telephone jack
Baud Rate: 300/1200 baud Bell 103 compatible
Ethernet:
Network Type: Fast Ethernet 100 Base-TX IEEE
802.3u standard for 100Mb/s
baseband CSMA/CD local area
network Ethernet 10 Base-T
IEEE 802.3 standard for 10Mb/s
baseband CSMA/CD local area
network
Connector: RJ-45
Function: VistaLINK® control
NTP port with +T option installed
NTP Port (+T option installed):
Standard: NTP V4 compliant, broadcast and
server mode support
Time must be referenced to GPS,
LTC, VITC or have been
synchronized via modem within the
last 10 days (as per RFC1305)
SNTP Input: NTP V4 compliant
PTP/IEEE-1588 (+PTP option installed):
PTP version 2 support on Time
Ethernet port
DARS & AES Test Generator Outputs (with +SDTG,
HDTG or 3GTG installed):
Standard:
Unbalanced: SMPTE ST 276-1single ended AES
(24-bits) (1V p-p into 75Ω)
Balanced: AES3 (24-bits)
(4Vp-p 110Ω terminated)
Number of Outputs:
DARS: 1 unb alanced, 1 balanced
AES Test Gen: 2 unbalanced, 2 balanced
Connector:
Unbalanced: BNC per IEC 61169-8 Annex A
Balanced: Removable Terminal Strip
Sampling Rate: 48kHz
Impedance:
Unbalanced: 75Ω unbalanced
Balanced: 110Ω balanced
AES Tones: Menu selectable
Genlock Input (Video/10MHz selectable):
Type: Autodetects standard SMPTE ST
170 (NTSC-M), ITU-R BT.1700-1
(PAL-B), Color Black 1V p-p with
optional VITC and 10- fi eld pulse
HD Tri-level Sync (same HD
standards as sync outputs)
Number of Inputs: 2 Loop thru
High impedance, isolated,
differential external termination
required
Connector: BNC per IEC 61169-8 Annex A
Return Loss: >40dB to 10MHz (with external 75Ω
termination)
Input Level Range:
Video: -3.5dB (double-terminated) to +6dB
(un-terminated)
10MHz: 0.3V p-p to 4.0V
Frequency Lock Range:
Wide mode: ±15ppm min
Narrow mode: ±0.1ppm min
Analog Composite Video Test Signal Generator (with
+SDTG, HDTG or 3GTG installed):
Standard: SMPTE ST 170 (NTSC-M)
ITU-R BT.1700-1 (PAL-B)
Number of Outputs: 2
Connector: BNC per IEC 61169-8 Annex A
Signal Level: 1V p-p nominal
DC Offset: 0V ±0.05V
Output Impedance: 75Ω
Return Loss: >40dB to 6MHz
Frequency response: ± -0.1dB to 5.5MHz
SNR: > 75dB rms
Analog Audio Tone Generator (with +SDTG, HDTG or
3GTG installed):
Number of Outputs: 2
Type: Balanced analog audio
Connector: 6 pins on 16-pin removable terminal
strips
Output Impedance: 66Ω
Signal Level: -30 to +10dBu into 10kΩ load
DC Offset: < 10mV
Noise fl oor: < -90dBu, unweighted
THD+N: < -100dB with 1kHz @ +10dBu into
10kΩ load
SDI Test Generators:
Standards: With SDTG option,
SMPTE ST 259-C (270Mb/s), With
HDTG option, SMPTE ST 259-C
(270Mb/s), SMPTE ST 292-1 4:2:2
With 3GTG option,
SMPTE ST 259-C (270Mb/s),
SMPTE ST 292-1 4:2:2,
SMPTE ST 372 dual link, and
SMPTE ST 424
SMPTE ST 259-C (270Mb/s),
SMPTE ST 292-1 4:2:2,
SMPTE ST 372 dual link, and
SMPTE ST 424,
For SMPTE ST 2048-2 and SMPTE
ST 2036-1 2160 line formats
Quad link SMPTE ST 292-1 4:2:2
Quad link SMPTE ST 424 4:2:2
SMPTE ST 425-3 Dual link 3Gb/s
SMPTE ST 425-5 Quad link 3Gb/s
Number of Generators: 4 (2 outputs per)
Embedded Audio: Up to 4 audio groups as specifi ed in
SMPTE ST 299-1 or
SMPTE ST 272 Selectable tone
frequencies (from 20Hz to 12kHz)
and audio group
Connector: BNC per IEC 61169-8 Annex A
Signal Level: 800mV nominal drive
(1600mV drive for 5601AC02)
DC Offset: 0V ±0.5V
Rise and Fall Time: 100ps HD/3G, 600ps SD
Overshoot: < 10% of amplitude
Jitter: < 0.2 UI
Return Loss: > 15dB to 1.5GHz
> 10dB to 3GHz
General Purpose Inputs and Output:
Number of Inputs: 2
Number of Outputs: 2 (function menu selectable)
Output Type: Opto-isolated, active closure to
GND, 20kΩ pull-ups to +5V
Input Type: Opto-isolated, senses closure to
GND, pull-ups to +5V
Connector: 4 pins plus 2 ground pins on DB-15
female
Physical:
Dimensions: 19" W x 1.75" H x 11.5" D
(483mm W x 45mm H x 292mm D)
Weight: 8lbs (3.5kg)
Electrical:
Voltage: Auto ranging 100 to 240V AC,
50/60Hz
Confi guration: Optional redundant supply available
Power: 90W max (all options installed)
Safety: TüV Listed
Complies with EU safety directives
EMI/RFI: Complies with FCC Part 15 Class A
Complies with EU EMC Directive
Page 4
5601MSC Ordering Information
Rev. 14-1
5601MSC Master SPG/Master Clock System including: 6 bi-level/tri-level sync
outputs 5/10 MHz output, 48kHz word clock output, 2 LTC outputs
Loop thru genlock/5/10MHz input, LTC input, 1 power supply
5601ACO2 2RU Automatic Change Over System (see individual brochure)
Ordering Options
+2PS Redundant power supply
+M Modem Option
+GP GPS Option (includes GPS receiver and 50’ weatherproof cable)
+GPSG GLONASS/GPS option (includes GLONASS/GPS receiver and 50'
weatherproof cable)
+T Network Time Protocol Server, SNTP client
+SDTG 4 Dual output SD SDI Test generators
2 NTSC/PAL test signal generator outputs
1 Stereo Analog Audio tone generator
1 DARS generator (balanced & unbalanced)
2 AES generator (balanced & unbalanced)
+HDTG 4 Dual output confi gurable SD/HD SDI Test/Black generators
2 NTSC/PAL test signal generator outputs
1 Stereo Analog Audio tone generator
1 DARS generator (balanced & unbalanced)
2 AES generators (balanced & unbalanced)
+3GTG 4 Dual output confi gurable SD/HD/3G SDI Test generators
2 NTSC/PAL test signal generator outputs
1 Stereo Analog Audio tone generator
1 DARS generator (balanced & unbalanced)
2 AES generator (balanced & unbalanced)
Includes 3D test sets
+IRIG LTC inputs and outputs are IRIG compatible
+4K 1 UHDTG SDI Test Generator. When enabled, uses all 4 SDI test
generator outputs. When disabled, 4 dual output confi gurable
SD/HD/3G SDI test generators.
2 NTSC/PAL test signal generator outputs
1 Stereo analog tone generator
1 DARS generator (balanced & unbalanced)
2 AES generators (balanced & unbalanced)
Includes 3D test sets
+PTP PTP Master on Time Ethernet port
Master SPG/Master Clock System
Accessories
WA-T76 Optional 100' weatherproof cable for GPS receiver
WA-T11 Optional 400' weatherproof cable for GPS receiver
For other weatherproof cable lengths, contact factory
For remote GPS head requirements greater than 400’ cables or fi ber optic isolation order:
7707GPS-DT Dual GPS Data Fiber Transmitter
7707GPS-DR Dual GPS Data Fiber Receiver
WA-T77 Optional 100’ cable for 7707GPS-DR to 5601MSC
5601MSC
Loading...
