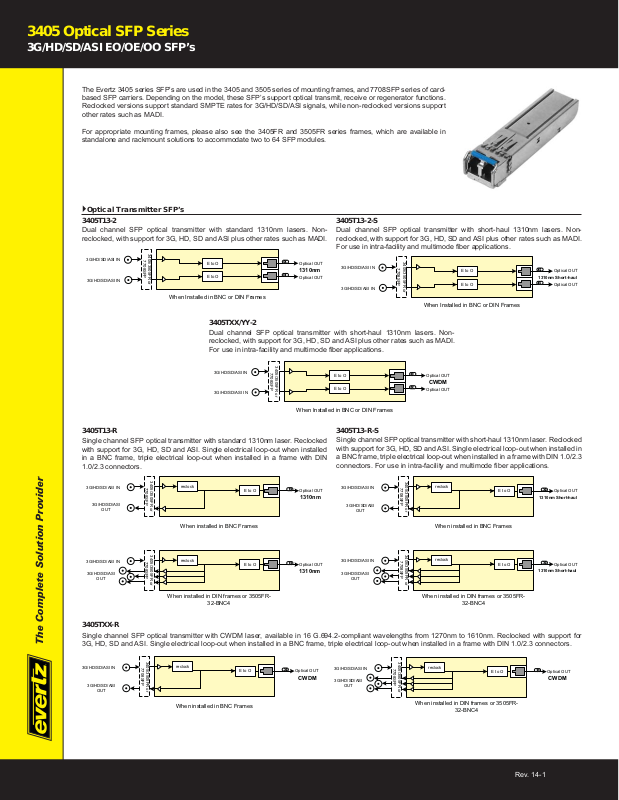

Evertz 3405R-2R, 3405T13-2 Specifications

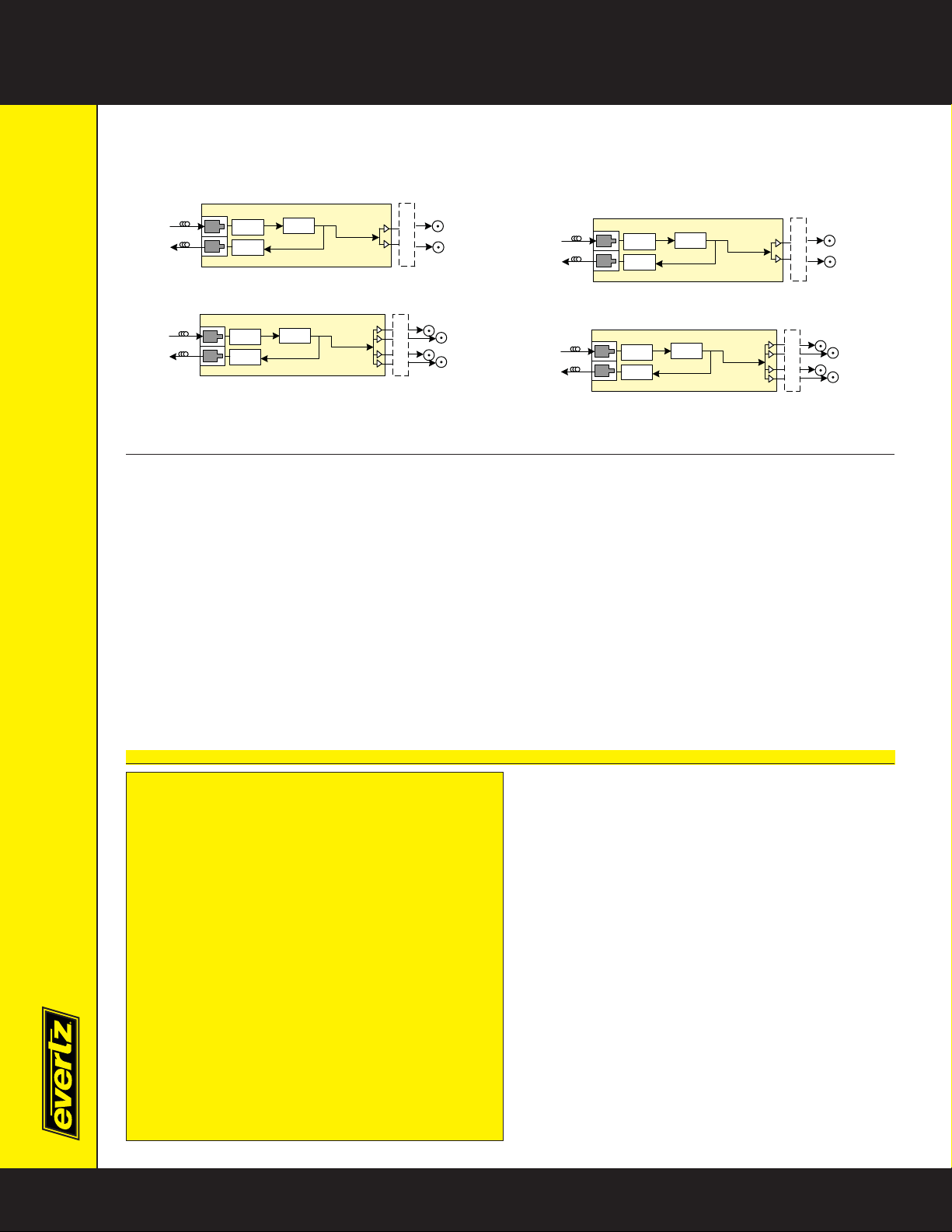

3405 Optical SFP Series

Rev. 14-1

3G/HD/SD/ASI EO/OE/OO SFP’s

The Evertz 3405 series SFP’s are used in the 3405 and 3505 series of mounting frames, and 7708SFP series of card­based SFP carriers. Depending on the model, these SFP’s support optical transmit, receive or regenerator functions.
Reclocked versions support standard SMPTE rates for 3G/HD/SD/ASI signals, while non-reclocked versions support
other rates such as MADI.

For appropriate mounting frames, please also see the 3405FR and 3505FR series frames, which are available in
standalone and rackmount solutions to accommodate two to 64 SFP modules.

Optical Transmitter SFP’s

3405T13-2 3405T13-2-S

Dual channel SFP optical transmitter with standard 1310nm lasers. Non­reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI.

3405/3505FR or

3G/HD/SD/ASI IN

3G/HD/SD/ASI IN

7708SFP

When Installed in BNC or DIN Frames

Dual channel SFP optical transmitter with short-haul 1310nm lasers. Non­reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI.
For use in intra-facility and multimode fi ber applications.

E to O

E to O

Optical OUT

1310nm

Optical OUT

3G/HD/SD/ASI IN

3G/HD/SD/ASI IN

3405/3505FR or

7708SFP

When Installed in BNC or DIN Frames

3405TXX/YY-2

Dual channel SFP optical transmitter with short-haul 1310nm lasers. Non­reclocked, with support for 3G, HD, SD and ASI plus other rates such as MADI.
For use in intra-facility and multimode fi ber applications.

3405/3505FR or

3G/HD/SD/ASI IN

3G/HD/SD/ASI IN

7708SFP

E to O

E to O

Optical OUT

CWDM

Optical OUT

E to O

E to O

Optical OUT

1310nm Short-haul

Optical OUT

The Complete Solution Provider

When Installed in BNC or DIN Frames

3405T13-R

Single channel SFP optical transmitter with standard 1310nm laser. Reclocked
with support for 3G, HD, SD and ASI. Single electrical loop-out when installed
in a BNC frame, triple electrical loop-out when installed in a frame with DIN

1.0/2.3 connectors.

3405/3505FR or

3G/HD/SD/ASI IN

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI IN

3G/HD/SD/ASI

OUT

7708SFP

7708SFP

reclock

When installed in BNC Frames

3405/3505FR or

reclock

When installed in DIN frames or 3505FR-

32-BNC4

E to O

E to O

Optical OUT

1310nm

Optical OUT

1310nm

3405T13-R-S

Single channel SFP optical transmitter with short-haul 1310nm laser. Reclocked
with support for 3G, HD, SD and ASI. Single electrical loop-out when installed in
a BNC frame, triple electrical loop-out when installed in a frame with DIN 1.0/2.3
connectors. For use in intra-facility and multimode fi ber applications.

3405/3505FR or

3G/HD/SD/ASI IN

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI IN

3G/HD/SD/ASI

OUT

7708SFP

7708SFP

reclock

When installed in BNC Frames

3405/3505FR or

reclock

When installed in DIN frames or 3505FR-

32-BNC4

E to O

E to O

Optical OUT

1310nm Short-haul

Optical OUT

1310nm Short-haul

3405TXX-R

Single channel SFP optical transmitter with CWDM laser, available in 16 G.694.2-compliant wavelengths from 1270nm to 1610nm. Reclocked with support for
3G, HD, SD and ASI. Single electrical loop-out when installed in a BNC frame, triple electrical loop-out when installed in a frame with DIN 1.0/2.3 connectors.

3G/HD/SD/ASI IN

3G/HD/SD/ASI

OUT

3405/3505FR or

7708SFP

reclock

E to O

When installed in BNC Frames

Optical OUT

CWDM

3G/HD/SD/ASI IN

3G/HD/SD/ASI

OUT

3405/3505FR or

7708SFP

reclock

When installed in DIN frames or 3505FR-

32-BNC4

E to O

Optical OUT

CWDM

3405 Optical SFP Series

Rev. 14-1

3G/HD/SD/ASI EO/OE/OO SFP’s

3405R-2R

Dual channel SFP optical receiver. Reclocked with support for 3G, HD, SD and
ASI. Single electrical output per optical input when installed in a BNC frame,
dual electrical output per optical input when installed in a frame with DIN 1.0/2.3
connectors.

7708SFP

3405/3505FR or

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

Std. Sensitivity

Optical IN

Optical IN

Std. Sensitivity

Optical IN

O to E

O to E

reclock

reclock

When installed in BNC frames

O to E

O to E

When installed in DIN frames or 3505FR-

reclock

reclock

32-BNC4

3405/3505FR or

3405R-DA4R

Single channel SFP optical receiver. Reclocked with support for 3G, HD, SD
and ASI. Dual electrical output when installed in a BNC frame, quad electrical
output when installed in a frame with DIN 1.0/2.3 connectors.

7708SFP

3405/3505FR or

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

Std. Sensitivity

O to E

reclock

When installed in BNC frames

3405R-2

Dual channel SFP optical receiver. Non-reclocked, with support for 3G, HD, SD
and ASI plus other rates such as MADI. Single electrical output per optical input
when installed in a BNC frame, dual electrical output per optical input when
installed in a frame with DIN 1.0/2.3 connectors.

7708SFP

3405/3505FR or

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

Std. Sensitivity

Optical IN

Optical IN

Std. Sensitivity

Optical IN

O to E

O to E

When installed in BNC frames

O to E

O to E

When installed in DIN frames or 3505FR-

32-BNC4

3405/3505FR or

3405R-DA4R-H

Single channel SFP optical high-sensitivity receiver. Reclocked with support
for 3G, HD, SD and ASI. Dual electrical output when installed in a BNC frame,
quad electrical output when installed in a frame with DIN 1.0/2.3 connectors.

7708SFP

3405/3505FR or

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

High Sensitivity

O to E

reclock

When installed in BNC frames

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

Std. Sensitivity

O to E

When installed in DIN frames or 3505FR-32-

reclock

BNC4

3405/3505FR or

Optical Regenerator/Wavelength Shifter SFP’ s

3405OO13-DA4

Single channel SFP optical regenerator with standard 1310nm laser. Reclocked
optical and electrical outputs with support for 3G, HD, SD and ASI. Dual
electrical output when installed in a BNC frame, quad electrical output when
installed in a frame with DIN 1.0/2.3 connectors.

7708SFP

3405/3505FR or

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

Std. Sensitivity

Optical OUT

1310nm

Optical IN

Std. Sensitivity

Optical OUT

1310nm

O to E

E to O

reclock

When installed in BNC frames

O to E

E to O

When installed in DIN frames or 3505FR-32-

reclock

BNC4

3405/3505FR or

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

High Sensitivity

O to E

When installed in DIN frames or 3505FR-32-

reclock

BNC4

3405/3505FR or

3405OO13-DA4-H

Single channel SFP optical regenerator with standard 1310nm laser and high
sensitivity receiver. Reclocked optical and electrical outputs with support for 3G,
HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad
electrical output when installed in a frame with DIN 1.0/2.3 connectors.

7708SFP

3405/3505FR or

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

High Sensitivity

Optical OUT

1310nm

Optical IN

High Sensitivity

Optical OUT

1310nm

O to E

E to O

reclock

When installed in BNC frames

O to E

E to O

When installed in DIN frames or 3505FR-32-

reclock

BNC4

3405/3505FR or

3405 Optical SFP Series

Rev. 14-1

3G/HD/SD/ASI EO/OE/OO SFP’s

3405OOXX-DA4 3405OOXX-DA4-H

Single channel SFP optical regenerator with standard 1310nm laser and high
sensitivity receiver. Reclocked optical and electrical outputs with support for 3G,
HD, SD and ASI. Dual electrical output when installed in a BNC frame, quad
electrical output when installed in a frame with DIN 1.0/2.3 connectors.

Optical IN

Std. Sensitivity

Optical OUT

CWDM

O to E

E to O

When installed in BNC frames

reclock

7708SFP

3405/3505FR or

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Single channel SFP optical regenerator with high sensitivity receiver and
CWDM laser, available in 16 G.694.2-compliant wavelengths from 1270nm to
1610nm. Reclocked optical and electrical outputs with support for 3G, HD, SD
and ASI. Dual electrical output when installed in a BNC frame, quad electrical
output when installed in a frame with DIN 1.0/2.3 connectors.

7708SFP

3405/3505FR or

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

High Sensitivity

Optical OUT

CWDM

O to E

E to O

reclock

When installed in BNC frames

The Complete Solution Provider

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

Std. Sensitivity

Optical OUT

CWDM

O to E

E to O

When installed in DIN frames or 3505FR-32-

reclock

BNC4

3405/3505FR or

Specifi cations

Optical Output:

Number of Outputs: Up to 2 per SFP
Connector: LC/UPC
Fiber: Compatible with Singlemode or

50/62.5um Multimode
Optical Power:
Standard 1310nm:

-2dBm +/-1dBm

-S (Short haul 1310nm):

-7dBm+/-1dBm
CWDM: +4dBm +/-1.5dBm
Wavelength:
Standard & -S: 1310nm
CWDM: 1270nm-1610nm, ITU-T G.694.2

compliant

Optical Input:

Number of Inputs: Up to 2 per SFP
Connector: LC/UPC
Fiber: Compatible with Singlemode or

50/62.5um Multimode
Operating Wavelength: 1270nm to 1610nm
Maximum Input Power:
Standard: -1dBm
High Sensitivity: -7dBm

Optical Sensitivity:
Standard: -21dBm at 2.97Gb/s pathological

Level A

-23dBm at 2.97Gb/s color bars
High Sensitivity: -28dBm at 2.97Gb/s pathological

Level A

-30dBm at 2.97Gb/s color bars

Electrical Inputs:

Reclocked Standards: SMPTE 424M (3 Gb/s), SMPTE

292M, (1.5Gb/s), SMPTE 259M
(270Mb/s), DVB-ASI

Connector: BNC or DIN 1.0/2.3, depending on

model of 3405/3505 frame

Impedance: 75Ω (nominal)
Equalization: Automatic to 80m @ 3 Gb/s,

[email protected]/s, 250m @ 270Mb/s
(with Belden1694A or equivalent
cable)

Return Loss: > 15dB up to 1.5GHz, > 10dB up to

3GHz

Ordering Information

*Note:

• Multimode applications require a 5dB optical attenuator at the output of all transmitting
ports, except when “-S” short haul version transmitter SFP’s are used.

• XX versions include the following: 27, 29, 31, 33, 35, 37, 43, 45, 47, 49, 51, 53, 55, 57,
59, 61, see CWDM wavelength ordering information

• XX/YY versions include the following: 27/29, 31/33, 35/37, 43/45, 47/49, 51/53, 55/57,
59/61, see CWDM wavelength ordering information

3405T13-2 Dual channel SFP optical transmitter with standard 1310nm lasers,

non-reclocked.

3405T13-2-S Dual channel SFP optical transmitter with short-haul 1310nm lasers,

non-reclocked.

3405TXX/YY-2 Dual channel SFP optical transmitter with CWDM lasers (1270nm to

1610nm), non-reclocked.

3405T13-R Single channel SFP optical transmitter with standard 1310nm laser,

reclocked.

3405T13-R-S Single channel SFP optical transmitter with short-haul 1310nm laser,

reclocked.

3405TXX-R Single channel SFP optical transmitter with CWDM laser (1270nm to

1610nm), reclocked.

3405R-2R Dual channel SFP optical receiver, reclocked.
3405R-2 Dual channel SFP optical receiver, non-reclocked .
3405R-DA4R Single channel SFP optical receiver, reclocked.
3405R-DA4R-H Single channel SFP optical high-sensitivity receiver, reclocked.
3405OO13-DA4 Single channel SFP optical regenerator with standard 1310nm laser,

reclocked.

3405OO13-DA4-H Single channel SFP optical regenerator with standard 1310nm laser

and high sensitivity receiver, reclocked.

3405OOXX-DA4 Single channel SFP optical regenerator with CWDM laser (1270nm

to 1610nm), reclocked.

3405OOXX-DA4-H Single channel SFP optical regenerator with high sensitivity receiver

and CWDM laser (1270nm to 1610nm), reclocked.

7708SFP

3G/HD/SD/ASI

OUT

3G/HD/SD/ASI

OUT

Optical IN

High Sensitivity

Optical OUT

CWDM

Enclosures

Please see the appropriate catalogue pages for details on the enclosure options listed.

3405FRM-BNC Miniature SFP frame, single SFP capacity, BNC connectors.
3405FRM-DIN Miniature SFP frame, single SFP capacity, DIN 1.0/2.3 connectors.
3405FRS-BNC Standalone SFP frame, with SNMP monitoring and control, quad

SFP capacity, BNC connectors.

3405FR-BNC 1RU SFP frame, optional SNMP monitoring and control, 16 SFP

capacity, BNC connectors.

3405FR-DIN 1RU SFP frame, optional SNMP monitoring and control, 16 SFP

capacity, DIN 1.0/2.3 connectors.

3405FR-XLINK 1RU SFP frame, optional SNMP monitoring and control, 16 SFP

capacity, XLINK connector.

3505FR-32-BNC4 2RU SFP frame, optional SNMP monitoring and control, 32 SFP

capacity, BNC connectors.

3505FR-64-BNC2 2RU SFP frame, optional SNMP monitoring and control, 64 SFP

capacity, BNC connectors.

3505FR-DIN 2RU SFP frame, optional SNMP monitoring and control, 64 SFP

capacity, DIN 1.0/2.3 connectors.

3505FR-XLINK 2RU SFP frame, optional SNMP monitoring and control, 64 SFP

capacity, XLINK connectors.

7708SFP Card based SFP carrier for 7700/7800FR series frames, one SFP

capacity, BNC connectors.

7708SFP-2 Card based SFP carrier for 7700/7800FR series frames, dual SFP

capacity, BNC connectors.

7708SFP-2-DIN Card based SFP carrier for 7700/7800FR series frames, dual SFP

capacity, DIN 1.0/2.3 connectors.

7708SFP-4-DIN-A Card based SFP carrier for 7700/7800FR series frames, quad SFP

capacity, DIN 1.0/2.3 connectors.

Accessories
J/LC/LC/ATTEN-50B 5dB optical attenuator, required for multimode applications when

standard 1310nm SFP's are used

O to E

E to O

When installed in DIN frames or 3505FR-32-

reclock

3405/3505FR or

BNC4

Electrical Outputs:

Connector: BNC or DIN 1.0/2.3, depending on

model of 3405/3505 frame

Impedance: 75Ω (nominal)
Signal Level: 800mV (nominal)
DC Offset: 0V +/-0.5V
Rise and Fall Time (Reclocked SFP’s only):
HD/3G: <135ps
SD: < 900ps
Overshoot (Reclocked SFP’s only):
< 10% of amplitude
Return Loss: >15dB to 1.5GHz, >10dB to 3GHz
Alignment Jitter (Reclocked SFP’s only):
< 0.2UI to 1.485Gb/s
< 0.3UI to 2.97Gb/s

Physical:

SFP Form-factor
