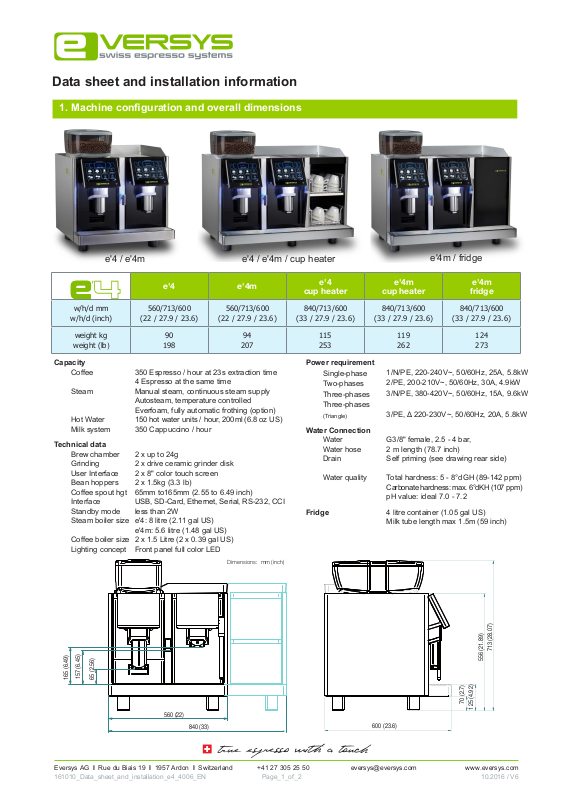

Data sheet and installation information

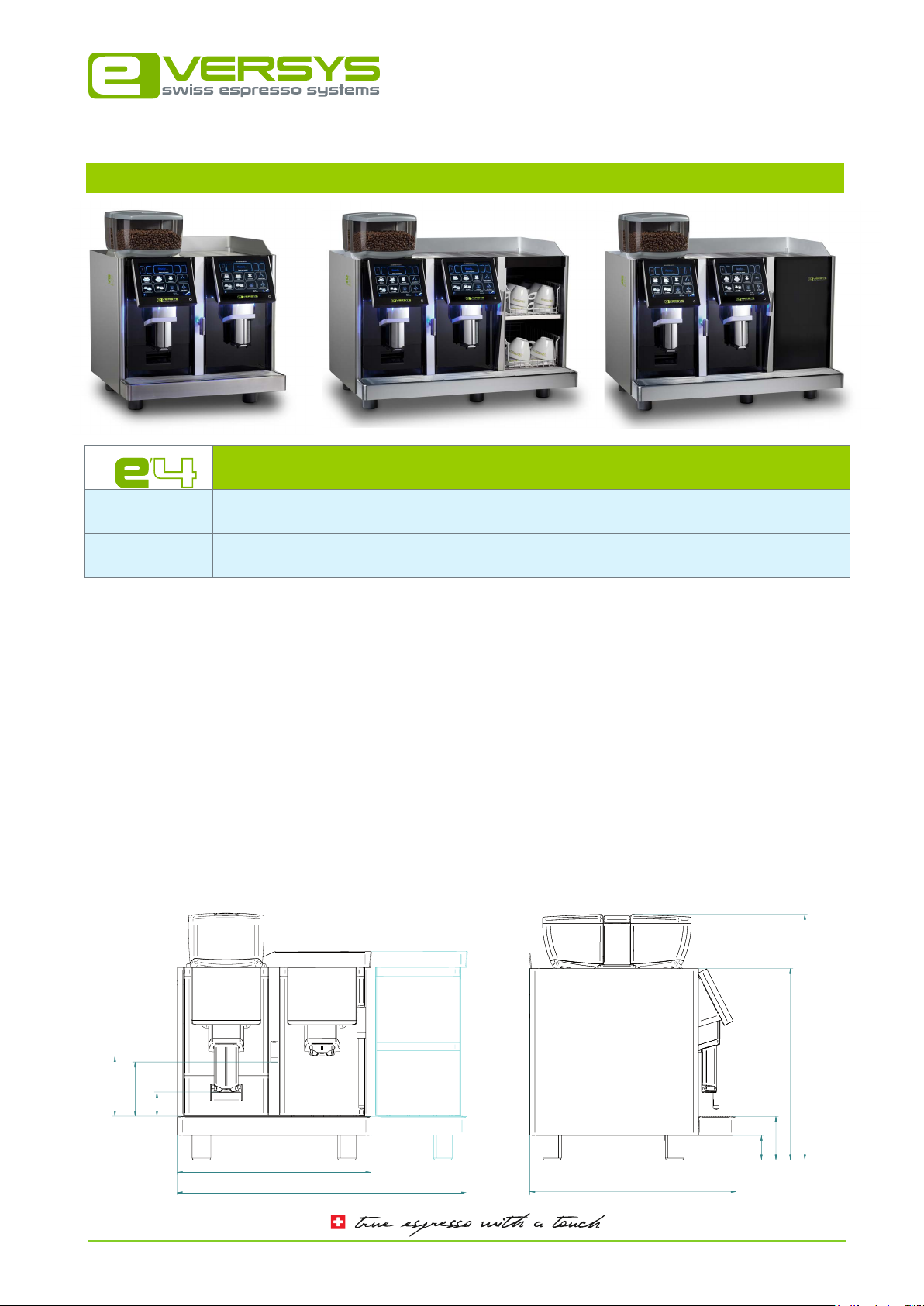

1. Machine conguration and overall dimensions
e'4 / e'4m
e'4 / e'4m / cup heater
e'4 e'4m
w/h/d mm
w/h/d (inch)
weight kg
weight (lb)
Capacity
Coffee 350 Espresso / hour at 23s extraction time
4 Espresso at the same time
Steam Manual steam, continuous steam supply
Autosteam, temperature controlled
Everfoam, fully automatic frothing (option)
Hot Water 150 hot water units / hour, 200ml (6.8 oz US)
Milk system 350 Cappuccino / hour
Technical data
Brew chamber 2 x up to 24g
Grinding 2 x drive ceramic grinder disk
User Interface 2 x 8" color touch screen
Bean hoppers 2 x 1.5kg (3.3 lb)
Coffee spout hgt 65mm to165mm (2.55 to 6.49 inch)
Interface USB, SD-Card, Ethernet, Serial, RS-232, CCI
Standby mode less than 2W
Steam boiler size e'4: 8 litre (2.11 gal US)
e'4m: 5.6 litre (1.48 gal US)
Coffee boiler size 2 x 1.5 Litre (2 x 0.39 gal US)
Lighting concept Front panel full color LED
560/713/600
(22 / 27.9 / 23.6)
90
198
560/713/600
(22 / 27.9 / 23.6)
94
207
Dimensions: mm (inch)
e'4m / fridge
e'4
cup heater
840/713/600
(33 / 27.9 / 23.6)
115
253
Power requirement
Single-phase
Two-phases
Three-phases
Three-phases
(Triangle)
Water Connection
Water G3/8" female, 2.5 - 4 bar,
Water hose 2 m length (78.7 inch)
Drain Self priming (see drawing rear side)
Water quality Total hardness: 5 - 8°dGH (89-142 ppm)
Carbonate hardness: max. 6°dKH (107 ppm)
pH value: ideal 7.0 - 7.2
Fridge 4 litre container (1.05 gal US)
Milk tube length max 1.5m (59 inch)
e'4m
cup heater
840/713/600
(33 / 27.9 / 23.6)
119
262
1/N/PE, 220-240V~, 50/60Hz, 25A, 5.8kW
2/PE, 200-210V~, 50/60Hz, 30A, 4.9kW
3/N/PE, 380-420V~, 50/60Hz, 15A, 9.6kW
3/PE, Δ 220-230V~, 50/60Hz, 20A, 5.8kW
e'4m
fridge
840/713/600
(33 / 27.9 / 23.6)
124
273
713 (28.07)
556 (21.89)
157 (6.45)
65 (2.56)
165 (6.49)
70 (2.7)
560 (22)
840 (33)
600 (23.6)
125 (4.92)
Eversys AG I Rue du Biais 19 I 1957 Ardon I Switzerland +41 27 305 25 50 [email protected] www.eversys.com
161010_Data_sheet_and_installation_e4_4006_EN Page_1_of_2 10.2016 / V6
Page 2
2. Prior to the installation, READ SAFETY INSTRUCTIONS
• Check water quality
• Define filter type and size and check space inside counter
• If no discaling cartridge is used, install carbon filter as minimum
• Check required desk for machine
• Check counter cut out
• Check water supply installation
• Check power supply installation
• Check all with customer on site
• Make sure original coffee is available
• Make sure cold milk is available
• Check drinks recipes and cup sizes
• Organize milk pitcher
3. After installation
• Instruct staff using Quick reference card • Fill in installation warranty sheet and send it back to Eversys

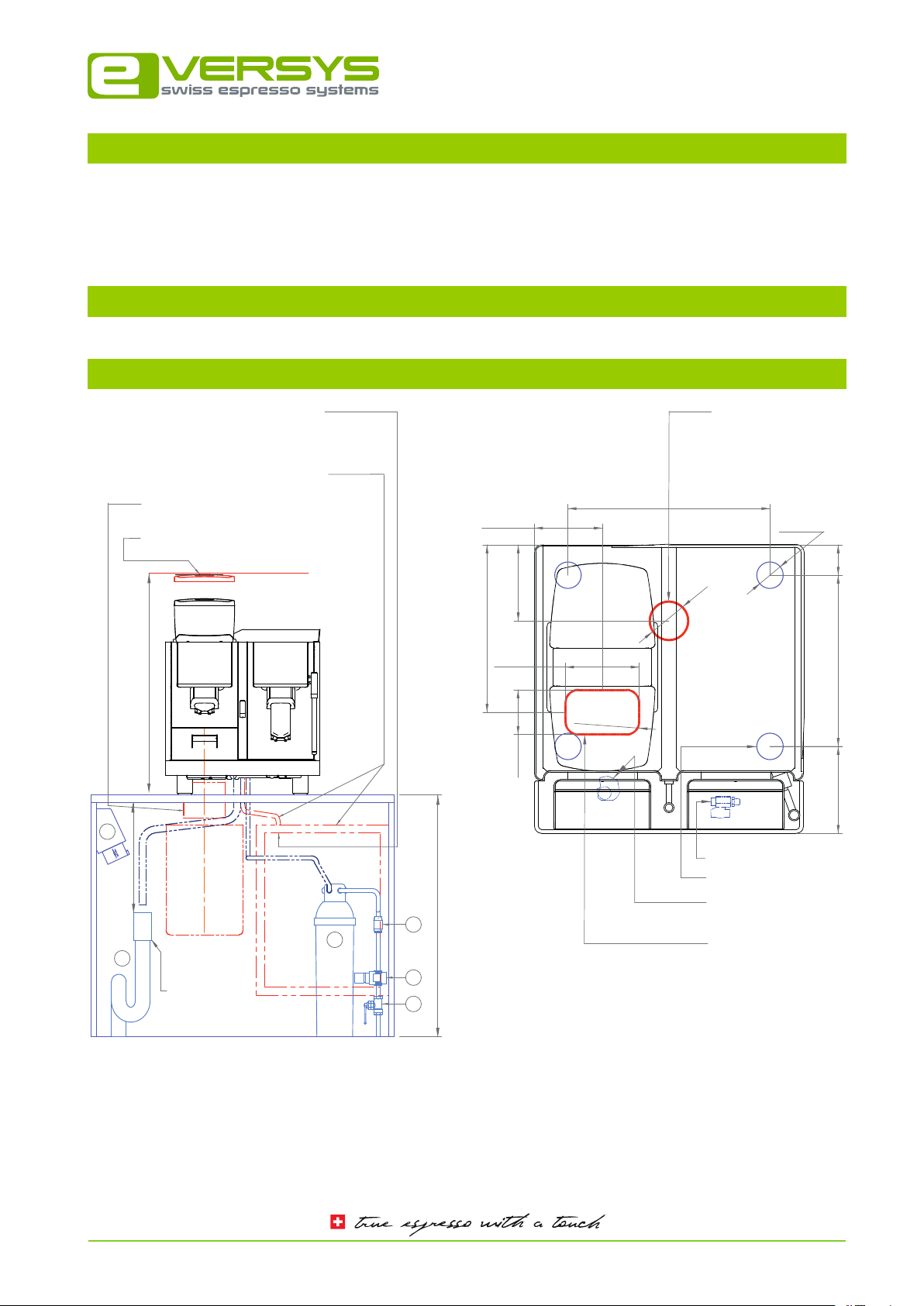

4. Desk preparation
Drill hole according to instruction
of refrigerator manufacturer
Place fridge as close as possible to machine
Cut milk tubes as short as possible
Grounds chute through the desk
Required space for bean hopper refilling
800
31,5
( )
Dimensions: mm
(inch)
141,2
(5,56)
158
(6,22)
(13,7)
153
(6,02)
348
R
(
26,5
1,04
420
(16,54)
)
Cut out on desk for:
- Power cord
- Water hose
- Serial port
- Ethernet
80
Ø
3,15
(
)
mm (inch)
54
Ø
2,13
(
)
63
356
(2,48)
(14,02)
5
800
31,5
400
6
15,75
( )
Grounds
container
Execution
according to
Fridge
example
4
( )
3
2
1
EN 61770
1. Main water inlet
2. Pressure reducer output 3 bar (43,5 psi)
3. Check valve
4. D e s c a l i n g c a r t r id g e o r ca r b o n l t e r as m i n i mu m
5. Electrical socket according to local standard
6. Drain with syphon, top end min. 56mm diameter (2.2 inch)
93
(3,66)
180,8
(7,12)
Water inlet 3/8"
Foot position
Drain hose 23 mm
(inner ø0.6 inch)
Cut out on desk for
Ground chute
(optional)
Eversys AG I Rue du Biais 19 I 1957 Ardon I Switzerland +41 27 305 25 50 [email protected] www.eversys.com
161010_Data_sheet_and_installation_e4_4006_EN Page_2_of_2 10.2016 / V6
