Everpure PBS400 User Manual

Thank you for purchasing an Everpure commercial-grade water ﬁltration system for your home. With your Everpure system, you get premium quality water direct from your tap that’s great-tasting and convenient for you and your family.

Product Speciﬁcations:

For Cold Water Use Only

• Temperature Range: 35-100°F (2-38°C)

• Min.-Max. Working Pressure: 10-125 psi (0.7-8.6 bar)

• Service Flow Rate: 2.2 gpm (8.3 Lpm)

• Capacity: 3,000 gallons (11,355 L)

•

Gracias por comprar un sistema de ﬁltración de agua Everpure de categoría comercial para su hogar. Con el sistema Everpure usted obtiene directamente de la llave un agua de primera calidad de buen sabor, saludable y en forma conveniente para usted y su familia.

Especiﬁcaciones Del Producto:

Para uso únicamente con agua fría

• Gama de temperatura: 2-38°C (35-100°F)

• Presión de servicio mín. - máx.: 0.7-8.6 bar (10-125 psi)

• Caudal de servicio: 8.3 Lpm (2.2 gpm)

• Capacidad: 11,355 L (3,000 gallons)

•

PBS-400 Water Filtration System

Sistema de ﬁltración de agua PBS-400

PBS-400 Système de ﬁltrage d’eau

SYSTEM EV9270-85

INSTALLATION INSTRUCTIONS ENGLISH

Product Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1

Tools Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 2–3

Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3

SISTEMA EV9270-85

INSTRUCCIONES DE INSTALACIÓN ESPAÑOL

Especiﬁcaciones Del Producto. . . . . . . . . . . . . . . . . . . . . . . . . . Página 1

Herramientas necesarias. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Página 4

Instalación. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Páginas 4–5

Notas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Página 5

Everpure vous remercie de votre achat d’un ﬁltre de qualité professionnelle pour votre logement. Avec votre système Everpure, votre famille et vous pourrez facilement tirer directement à votre robinet, de l’eau de qualité supérieure au goût excellent et bonne pour la santé.

Caractéristiques Techniques Du Produit:

Pour usage sur eau froide uniquement

• Gammes de températures : 2 à 38°C

• Pression utile mini. – maxi. : 0.7-8.6 bar

• Débit de service : 8.3 Lpm

• Capacité : 11,355 L

•

Everpure Technical Services (800) 942-1153 7:00 AM–6:00 PM CST (Monday–Friday)

Servicios Técnicos de Everpure (800) 942-1153 7:00 a 18:00 h, hora del centro de EE.UU. (Lunes a viernes)

SYSTÈME EV9270-85

INSTRUCTIONS D’INSTALLATION FRANÇAIS

Caractéristiques Techniques Du Produit . . . . . . . . . . . . . . . . . . . . Page 1

Outils nécessaires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 6–7

Remarques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7

Services Techniques Everpure (800) 942-1153 7h00 à 18h00 Heure Centrale des États-Unis (Lundi–Vendredi)

TOOLS REQUIRED FOR INSTALLATION:

WATE R FI LTER MON ITOR

www.eve rpure.co m

Phillips Screwdriver

• Adjustable Wrench

• Tape Measure

• Pencil

•

BASIC INSTALLATION INSTRUCTIONS

Open Carton & Inspect Parts

Installation Parts

ENGLISH

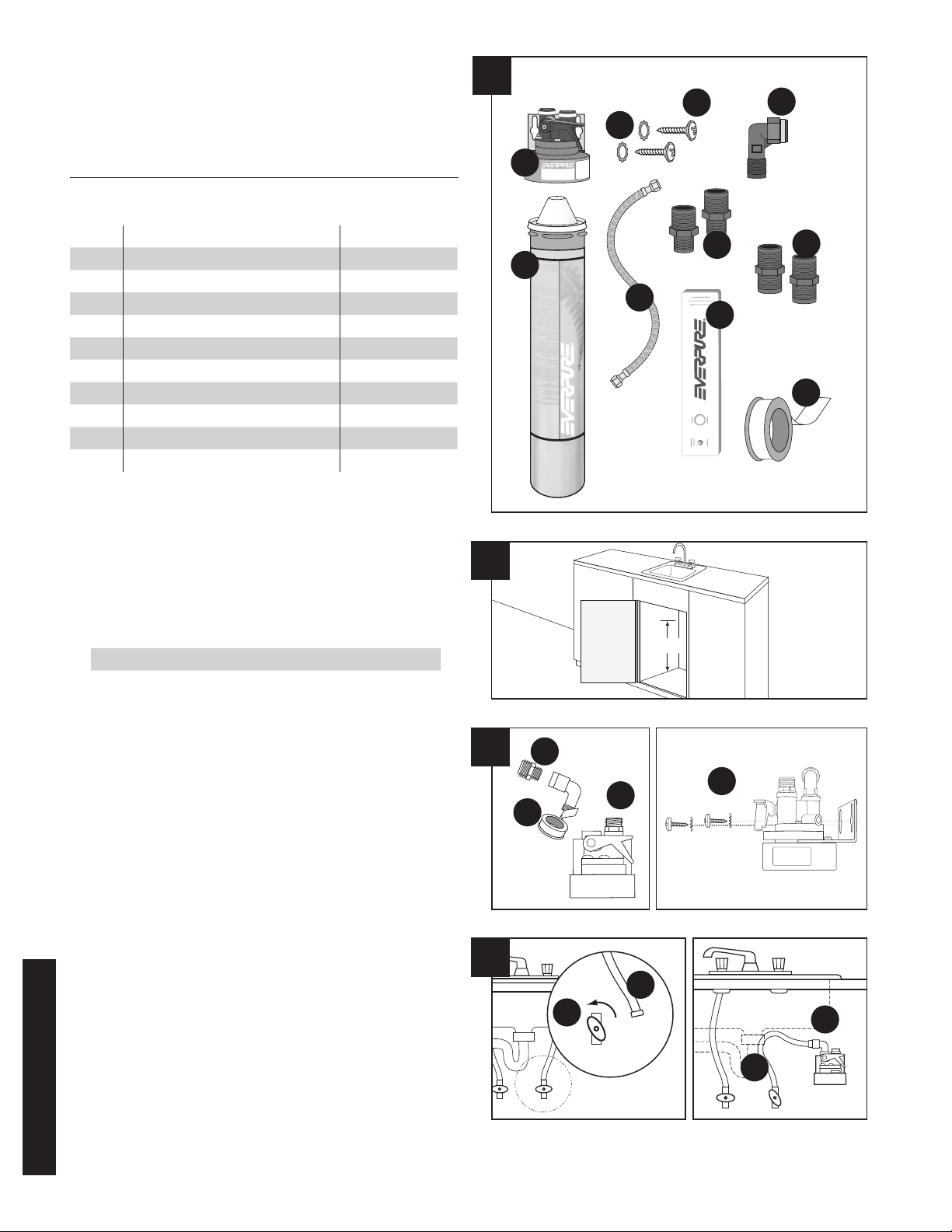

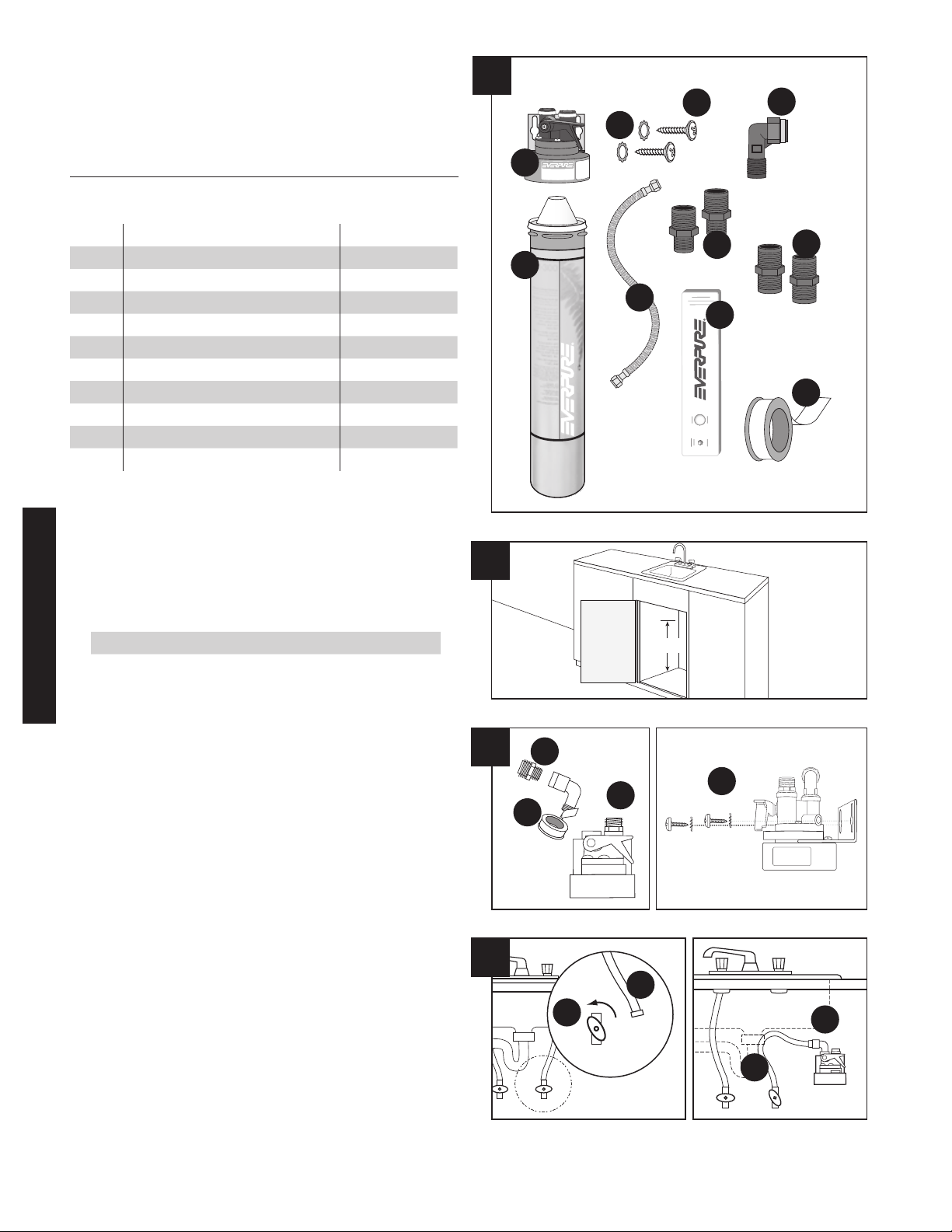

Key Description Part No.

1 QL3 Filter Head EV9270-82 2 PBS-400 Filter Cartridge EV9270-91 3 2 Locking Washers EV3062-04 4 2 Screws EV3061-96 5 3/8" MPT x 3/8" FTP Elbow EV3108-52 6 (2) 3/8" x 1/2" Unions EV3122-51 7 (2) 3/8" x 3/8" Unions EV3122-50 8 Tubing, 3/8" Braided EV3122-49 9 Teﬂon® Tape EV3121-19

10 Everpure Filter Timer EV9075-70

Verify Under-Sink Mounting Location

Measure 20” from the base of the cabinet, and mark the mounting location for the top of the ﬁlter head. Make sure there is adequate space above the head to open and close the built in shut-off valve and to avoid crimping the water line tubing. Also, make sure your chosen location offers easy access for future cartridge changes.

DIMENSION Width

PBS-400 5" 20" 5"

Mounting

Height

Depth

20"

NOTE: The head and cartridge must be mounted in the vertical position, with the cartridge hanging down.

Mount Filter Head Under Sink

NOTE: Two sets of unions are included to connect to the 3/8-inch head

connections. If your existing braided tubing has 1/2-inch connections, use the 1/2-inch x 3/8-inch unions instead of the 3/8-inch x 3/8-inch unions. You will have 2 extra ﬁttings with either installation. The following instructions are for a typical installation using 1/2-inch supply lines.

Apply Teﬂon Tape to the small threads of one Union Fitting and

screw into the open end of the Elbow. Wrap tape in direction of the threads to assure a tight ﬁt and avoid small leaks.

Apply Teﬂon Tape to the threads of the Elbow Fitting and screw

into the inlet (left) side of the Filter Head. Hand tighten only. Apply Teﬂon Tape to the small threads of the second Union Fitting,

and screw into the right side of the ﬁlter head in the same manner. Securely mount the ﬁlter head on the cabinet wall using the

enclosed mounting screws and washers.

Connect Inlet Water Supply

Locate and close the cold water shut-off valve under your sink.

Open cold water line of faucet to release water pressure. Unscrew and disconnect the braided tubing on top of cold water

shut-off valve. Attach one end of the new braided tubing to the top of the cold

water shut-off valve. Attach the other end of the new Braided Tubing to the inlet side of

the ﬁlter head (Union & Elbow Fittings).

• 2 •

BASIC INSTALLATION INSTRUCTIONS continued

Attach Filtered Water To Cold Line of Faucet

Attach open end of existing Braided Tubing to Union Fitting on

outlet side (right) of new Filter Head. Hand tighten to avoid damage to ﬁttings.

Install And Flush Filter Cartridge

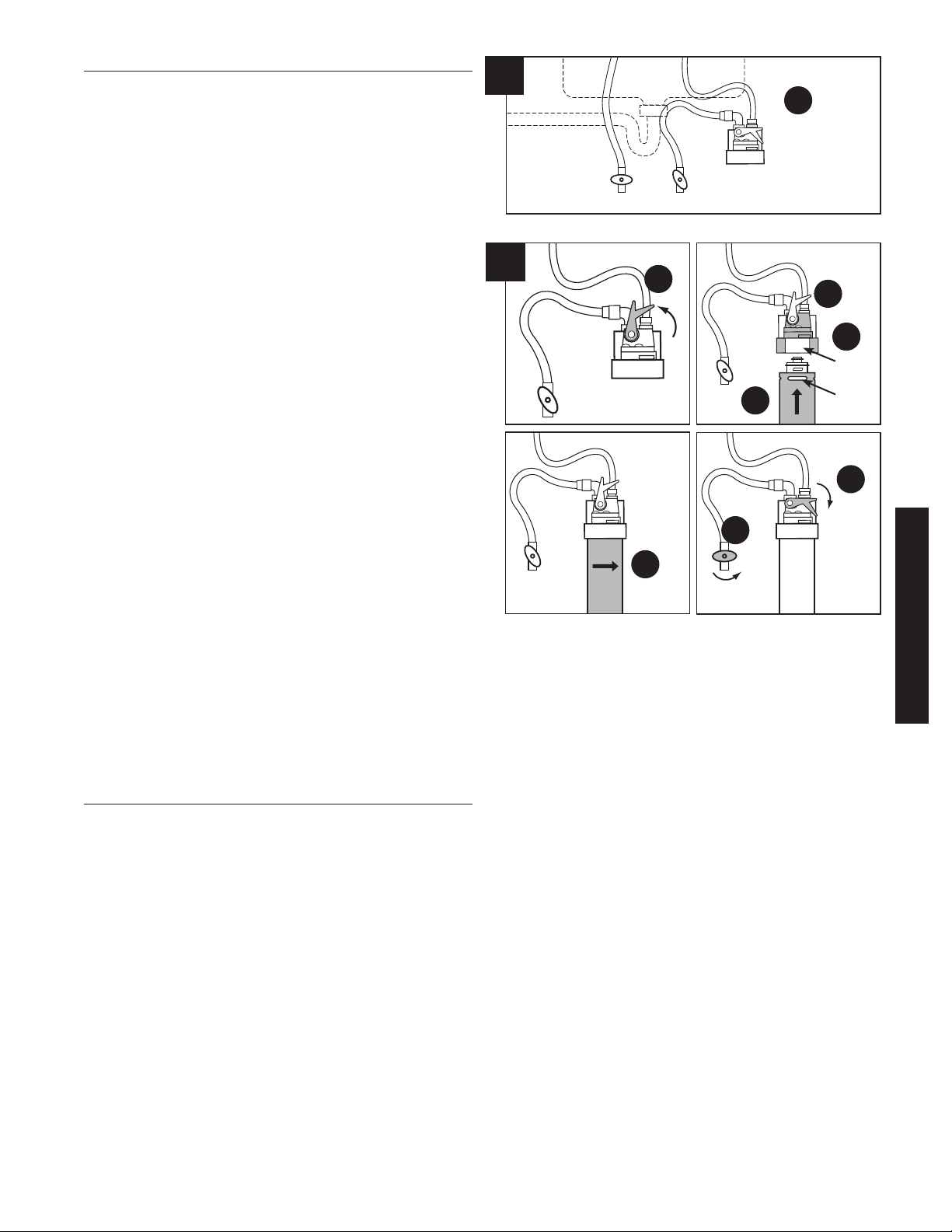

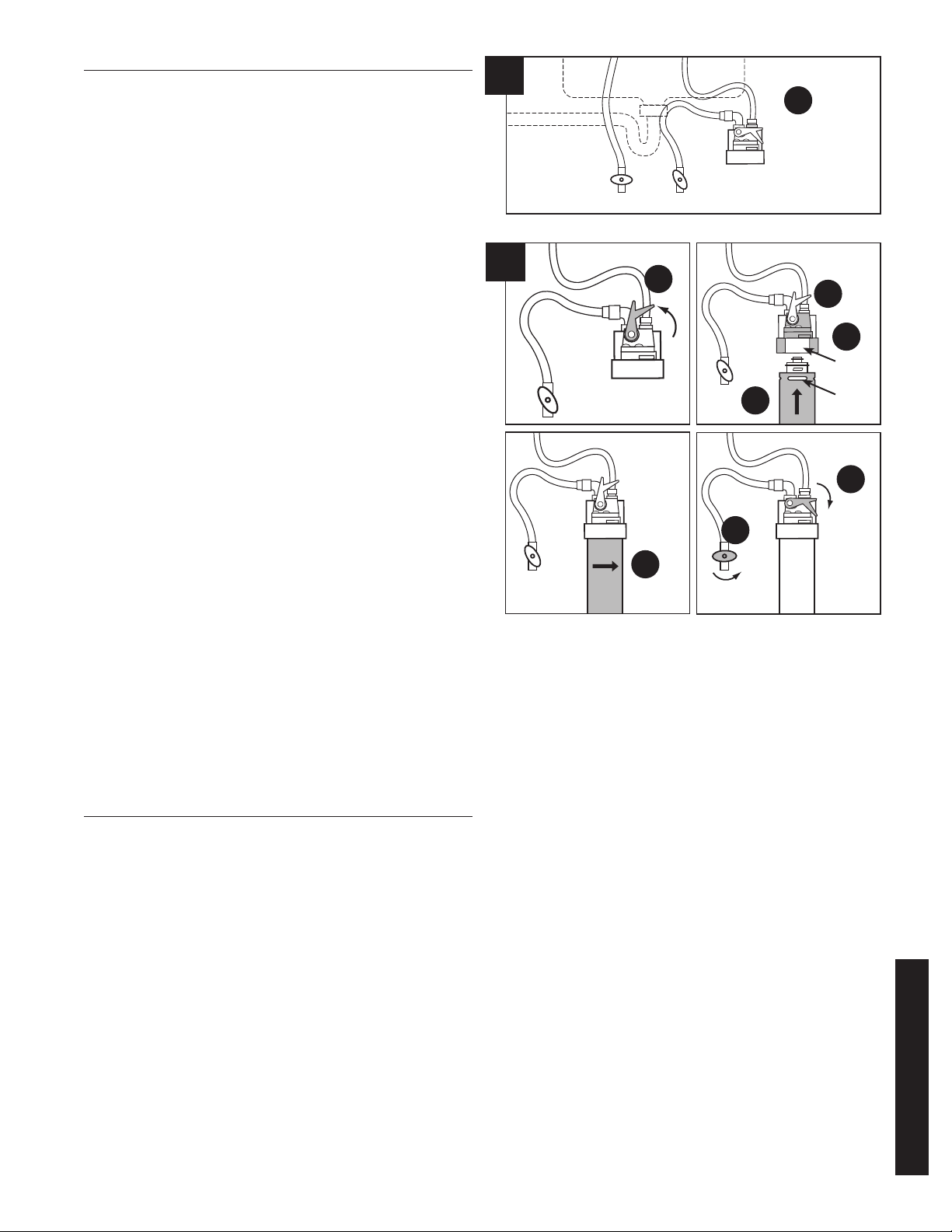

Lift handle of the build-in shut off (QC Valve) on the Head.

Hold Head ﬁrmly with one hand.

Align cartridge lug with label on ﬁlter Head.

Insert ﬁlter Cartridge—Push upwards.

Turn it to the right—About 1⁄4 turn—Until rotation stops.

Open cold water valve and check for leaks up to Inlet Elbow Fitting.

Open Water Faucet (not pictured).

Lower the QC Valve Handle to ﬂush water to the sink.

Q. NOTE: Flush new ﬁlter cartridges for at least 3 minutes to remove air

and any loose carbon. At ﬁrst the water may appear cloudy due to trapped air in the ﬁlter and tubing. If water continues to be cloudy for more that one week, please contact Everpure Technical Services for assistance: (800) 942-1153

Remove plastic wrapper and pull Tab from back of Everpure Filter

Timer. The LED and buzzer will cycle 3 times to conﬁrm the start. It is programmed to ﬂash and sound again in 11 months. Remove adhesive backing and mount Timer in a convenient location under the sink.

ENGLISH

Label

Lug

NOTES

Reduces limescale build-up in water-using appliances as tested by Everpure

This installation must comply with all applicable state and local regulations.

Do no use with water that is microbiologically unsafe or unknown quality without adequate disinfection before or after the system.

• 3 •
