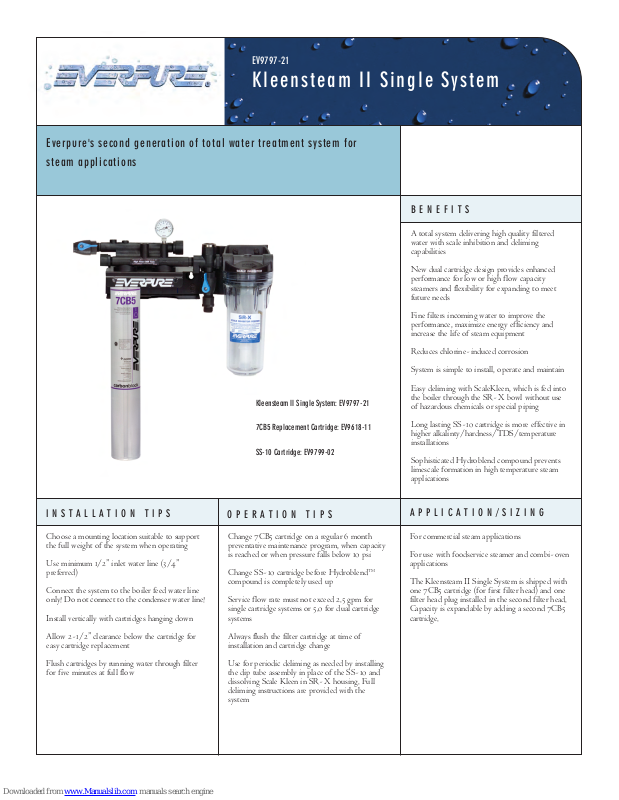

Everpure Kleensteam II Single System EV9797-21 Specification Sheet
BENEFITS
APPLICATION/SIZING
INSTALLATION TIPS
OPERATION TIPS
Kleensteam II Single System
Everpure's second generation of total water treatment system for
steam applications
Kleensteam II Single System: EV9797-21
7CB5 Replacement Cartridge: EV9618-11
SS-10 Cartridge: EV9799-02
Kleensteam II Single System: EV9797-21
7CB5 Replacement Cartridge: EV9618-11
SS-10 Cartridge: EV9799-02
A total system delivering high quality filtered
water with scale inhibition and deliming
capabilities
New dual cartridge design provides enhanced
performance for low or high flow capacity
steamers and flexibility for expanding to meet
future needs
Fine filters incoming water to improve the
performance, maximize energy efficiency and
increase the life of steam equipment
Reduces chlorine-induced corrosion
System is simple to install, operate and maintain
Easy deliming with ScaleKleen, which is fed into
the boiler through the SR-X bowl without use
of hazardous chemicals or special piping
Long lasting SS-10 cartridge is more effective in
higher alkalinty/hardness/TDS/temperature
installations
Sophisticated Hydroblend compound prevents
limescale formation in high temperature steam
applications
Choose a mounting location suitable to support
the full weight of the system when operating
Use minimum 1/2” inlet water line (3/4”
preferred)
Connect the system to the boiler feed water line
only! Do not connect to the condenser water line!
Install vertically with cartridges hanging down
Allow 2-1/2” clearance below the cartridge for
easy cartridge replacement
Flush cartridges by running water through filter
for five minutes at full flow
Change 7CB5 cartridge on a regular 6 month
preventative maintenance program, when capacity
is reached or when pressure falls below 10 psi
Change SS-10 cartridge before Hydroblend™
compound is completely used up
Service flow rate must not exceed 2.5 gpm for
single cartridge systems or 5.0 for dual cartridge
systems
Always flush the filter cartridge at time of
installation and cartridge change
Use for periodic deliming as needed by installing
the dip tube assembly in place of the SS-10 and
dissolving Scale Kleen in SR-X housing. Full
deliming instructions are provided with the
system
For commercial steam applications
For use with foodservice steamer and combi-oven
applications
The Kleensteam II Single System is shipped with
one 7CB5 cartridge (for first filter head) and one
filter head plug installed in the second filter head.
Capacity is expandable by adding a second 7CB5
cartridge.
EV9797-21
KleenSteam II - Single Cartridge
Kleensteam II Single System
Overall Dimensions:
25.5”H x 20.5”W x 7”D
Inlet connection: 3/4” FNPT
Outlet connection: 3/4” FNPT
Service Flow Rate:
Maximum 2.5 gpm (9.5 Lpm) - single
cartridge
Pressure Requirements:
10 - 125 psi (0.7 – 8.6 bar), non-shock
Maximum water temperature at inlet:
100°F (38°C)
Alkalinity range:
2 to 12 grains per gallon
No electrical connection required
Shipping Weight: 26 lbs.
Operating Weight: 32 lbs.
The contaminants or other substances
removed or reduced by this drinking water
system are not necessarily in your water. Do
not use with water that is microbiologically
unsafe or of unknown quality without
adequate disinfection before or after the
system. Systems certified for cyst reduction
may be used with disinfected water that may
contain filterable cysts.
ScaleStick is NSF Certified under NSF/ANSI
Standard 42 for materials
Everpure, LLC
1040 Muirfield Drive
Hanover Park, IL 60133
Ph: 630-307-3000 Fax: 630-307-3030
Everpure water treatment systems (excluding replaceable elements)
are covered by a limited warranty against defects in material and
workmanship for a period of five years after date of purchase.
Everpure replaceable elements (filter cartridges and water treatment
cartridges) are covered by a limited warranty against defects in
material and workmanship for a period of one year after date of
purchase. See printed warranty for details. Everpure will provide a
copy of the warranty upon request.
