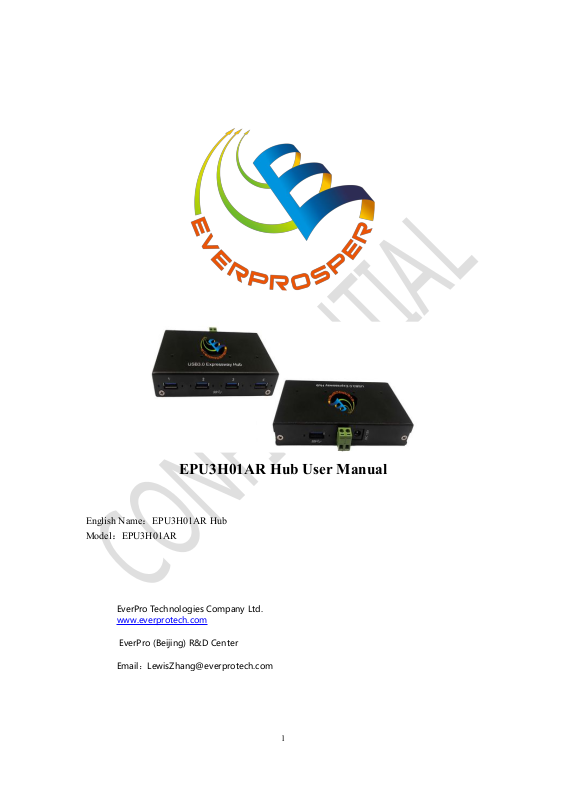

EPU3H01AR Hub User Manual
EverPro Technologies Company Ltd.
www.everprotech.com
EverPro (Beijing) R&D Center
Email：LewisZhang@everprotech.com
English Name：EPU3H01AR Hub
Model：EPU3H01AR
1
Important Safety Information
Please read the important safety information.
Avoid wetting the product. Please keep the product away from liquid to
Avoid damaging the cable. Excessive force on the cable may damage or
Avoid external damage to the product. Do not drop, bump, scratch, hit,
The information can help you safely use this product. Please read and understand
all of the information for this product firstly.
The end user’s security is very important. Our products are safe and effective.
However, the product is an electronic device with power cord and other parts that may
cause danger if not follow the user manual to use it, and lead to personal injury and
property loss. In order to reduce the risk, please follow the user manual to use the
product.
Please follow the information as below and it can help to reduce the risk of
personal injury and property loss.
avoid wetting the product and the danger of electric shock.
break it. Connect all cables appropriate to avoid being damaged and
hampering operation of the product.
strong vibration the product, and do not put heavy loads on the product.
2
Chapter 1: Hardware Description
Product Profile
Hardware Introduction
1. Product Profile
2. Hardware Introduction
2.1 Port Introduction
Work status
LED indicator status
Connect upstream port to USB3.0 host
Connect downstream port to USB3.0 device
LED is green
Connect upstream port to USB3.0 host
Connect downstream port to USB2.0 device
LED is red
Connect upstream port to USB2.0 host
LED is green
Main Content
EPU3H01AR is one new generation of USB 3.0 hub integrating the SuperTT
technology.
Compare with ordinary USB 3.0 hub, the product could convert the transmission
speed of USB2.0/1.1/1.0 device connecting to the downstream port to USB 3.0
SuperSpeed, and it could share the upstream bandwidth of SuperSpeed 5.0Gbps.
Based on the technology of SuperTT, EPU3H01AR could provide independent
480Mbps bandwidth for each downstream USB 2.0. If it is co-used with USB 3.0
AOC (Active Optical Cable), it could extend the transmission distance of USB
2.0/1.1/1.0 device to 100m.
：
USB3.0 downstream port
USB3.0 downstream port LED indicator
3
Fixed film（In the package, users can choose to use as needed

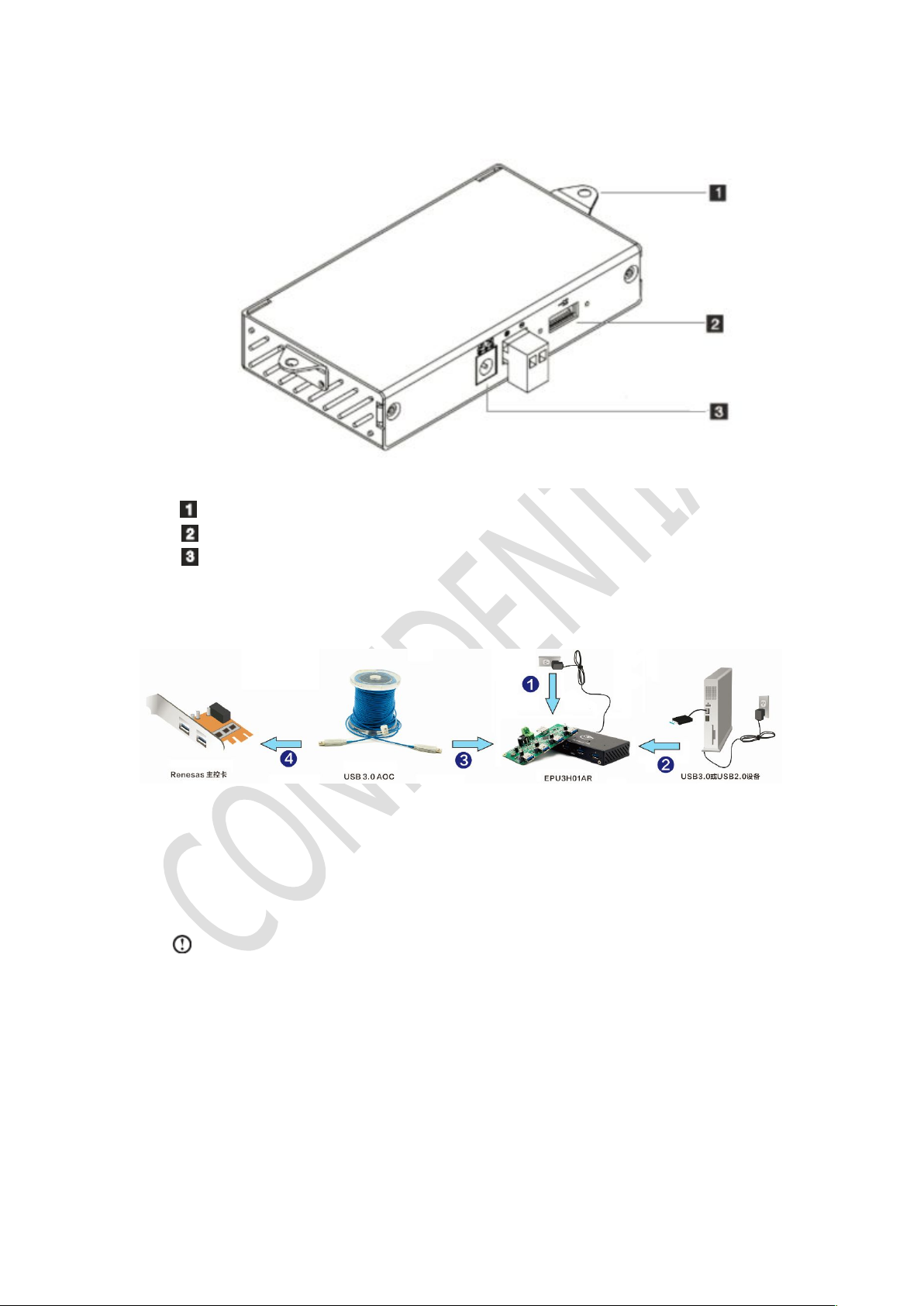

2.2 Hardware install
Notice: The product requires no software to drive it.
Troubleshooting and Problem Resolution
1. LED power light is not on
USB3.0 upstream port
DC 5V/12V power input（Users can choose the power input as needed
Step one: Connect the power adapter to EPU3H01AR.
Step two: Connect the USB3.0 or USB2.0 device to the EPU3H01AR downstream
port. Please connect the power adapter to the device if it is needed.
Step three: Connect USB3.0 AOC to the EPU3H01AR upstream port.
Step four: Connect USB3.0 AOC to the Renesas USB3.0 card on the Host.
）
）
Chapter 2：Troubleshooting and Confirming Setup
Main content
Please check if power adapter is working normal and the contact of the joint is
getting loose.
：
4
2. When one downstream port could not identify the connected device
Please check if USB joint is getting loose.
3. All the downstream ports could not identify the device,
(1) Please check if USB joint in the upstream port is getting loose.
(2) Check and ensure to connect to the USB 3.0 port of the Host.
(3) Check if the wire is copper wire connecting the Host, and ensure the copper
(4) Check if USB 3.0 Hub in device manager could normally enumerated.
Notice：Use USB 3.0 copper wire to replace USB 3.0 AOC is feasible from
wire is for USB 3.0.
the perspective of only realizing the function. However, USB 3.0 copper wire
could not enjoy the long distance transmission advantage embraced by USB 3.0
AOC.
5
