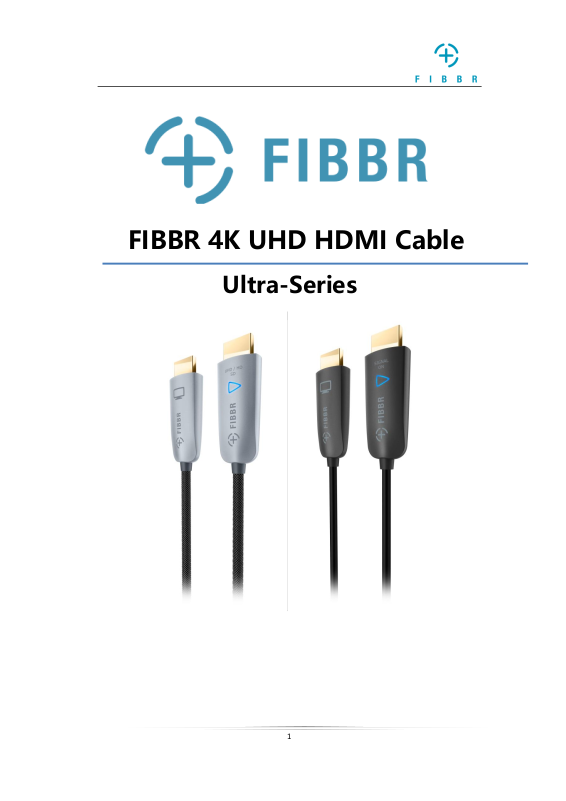

Page 1
FIBBR 4K UHD HDMI Cable
Ultra-Series
1
Page 2
目 录
1 DESCRIPTION .......................................................................................................................... 3
2 FEATURE .................................................................................................................................. 3
3 SPECIFICATION ........................................................................................................................ 4
4 APPLICATION ........................................................................................................................... 5
5 FIBER SPECIFICATION .............................................................................................................. 6
2
Page 3
1 Description
FIBBR Ultra series product is a HDMI active optical cable (AOC) with high
performance, low power consumption and low cost. Using optical fiber to
replace copper wire as the high-speed signal transmission medium, H2C can
perfectly transmit 4k UHD image up to more than 50 meters. Compared with
the traditional copper wire, H2C AOC is much longer, softer, more slim, with
better signal quality and perfect EMI/EMC feature. Compared with other
HDMI optical fiber transmission solution, H2C AOC is easy to use, has perfect
compatibility, and no external power supply needed.
2 Feature
1) Long distance transmission, over 50 meters
2) Support up to 4K UHD display
3) Plug and play without driver dependent
4) Thinner, lighter and softer than conventional copper cable
5) Highly resistant with EMI and RFI
6) No electromagnetic radiation
7) No external power needed
8) Smart connection indicator
“Source” side triangle indicator: When “Source” connector plug into player, the
green triangle blinks. When “Display” connector plug into display device, the
triangle indicator show resolution of display device. “Green” indicates “SD” display
and “Blue” indicate “FHD” or “UHD”. “Red” triangle blinking and lighting LED
flashing indicates wrong connection of “Source” and “Display”.
“Display” side lighting：When “Source” connection is ready and player is power on,
the “Display” side lighting LED is on. When “Display” connection is ready, the
lighting LED is automatically off.
3
Page 4
3 Specification
Cable Length
Up to 50m
Catalog
5m/10m/20m/30m/50m
Interface
HDMI type A pluggable - HDMI type A pluggable
Speed
Support 4k UHD display
Power
No external power needed
Power Consumption
250mW
Mechanical / Condition
Cable diameter
Ultra:4.6 mm
Ultra-pro:3.8mm
Bend Radius
20mm
Tensile Performance
100N
Crush
200N
Operating and Storage Temp
-40 - 70°C
4
Page 5
4 Application
1) Home Theater
2) High definition Video Meeting System
3) Medical Video System
4) High definition Video Surveillance System
5) Digital Signage and TV Wall
5
Page 6
5 Fiber Specification
No.
Item
Specification
Comment
1：Sub-cable
Fiber
Fiber Bandwidth≥
400MHz.km@850nm
Cladding Diameter: 124.8±0.7um
Cladding non-circularity: ≤0.8%
Core/Cladding concentricity: ≤1um
4 core fiber, blue/orange/green/brown
Coating
White PVC coating
Sub cable diameter: 0.95-1.0mm
2：Sub-Copper
wire
Twisted copper
Twisted structure
Coating
PVC coating
7 copper wires:
blue/orange/green/brown/grey/white/black
Diameter: 0.72-0.74mm
3
Kevlar 4*1610dtex
4
Out coating
Black POHF-0602 or Black KPW-5890
Out diameter: 3.75±0.1mm
Thickness: 0.55±0.05mm
Fiber attenuation
≤3.5dB/km@850nm
Fiber Coating Printing
EP HDMI V4 E235264 (UL) 80℃ VW-1 A1b POHF-cable No XXXXm
Braided Coating
PET, out diameter: 4.6±0.10mm

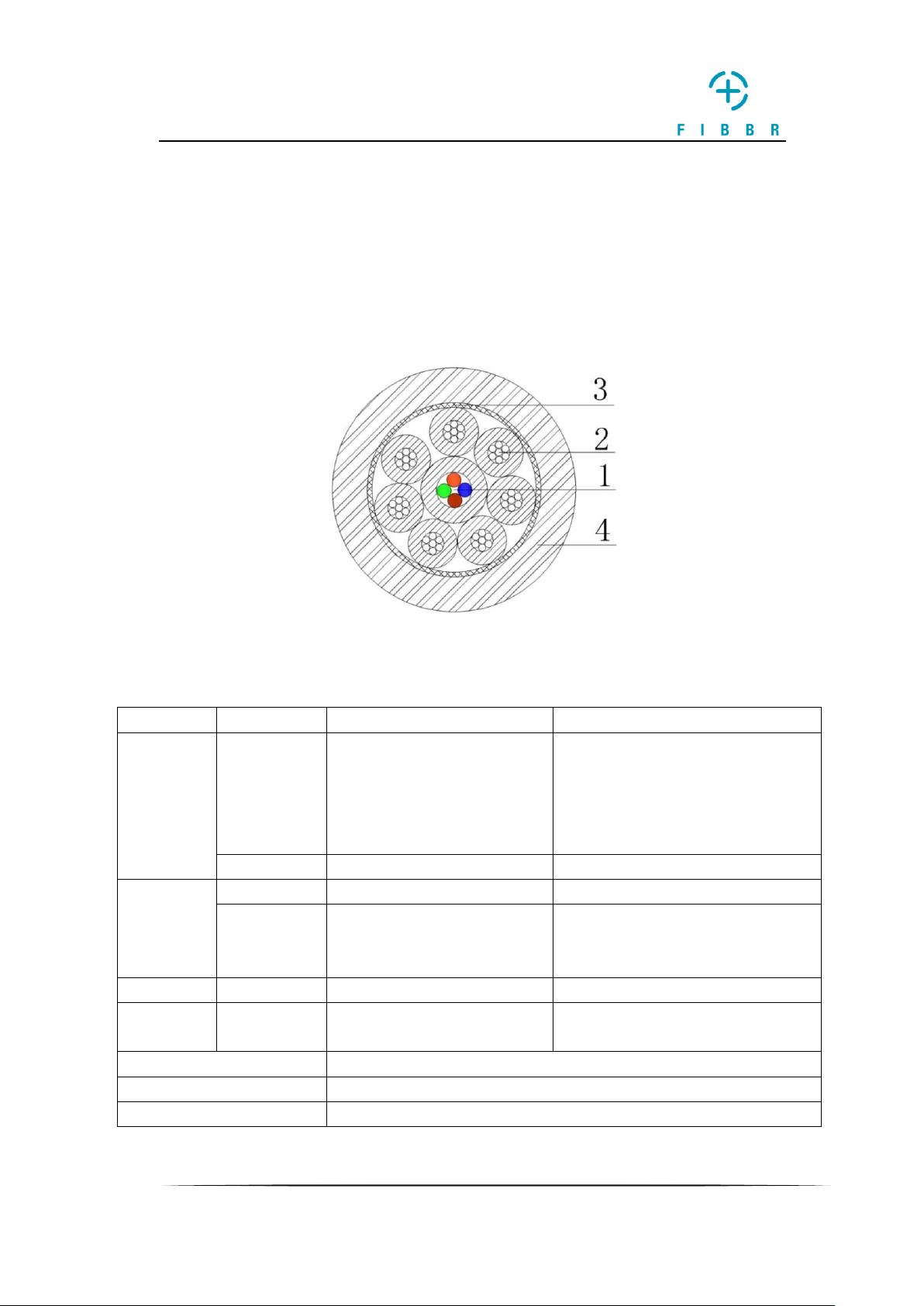

1) Fiber Structure
1、 子缆（4 芯） 2、绞合镀锡套塑铜线（总计 7 根） 3、芳纶 4、外护套
2) Parameter
6
Page 7
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
