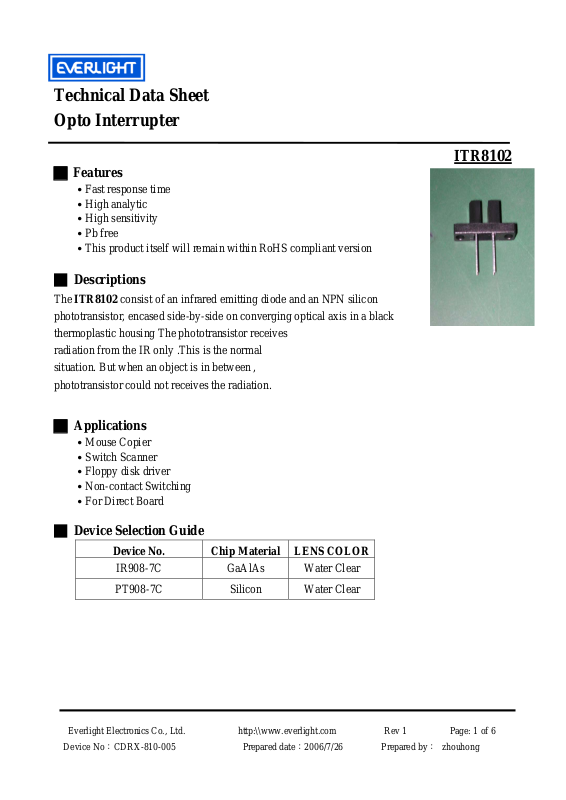

Page 1
Technical Data Sheet
Opto Interrupter
ITR8102
█ Features
․Fast response time
․High analytic
․High sensitivity
․Pb free
․This product itself will remain within RoHS compliant version
█ Descriptions
The ITR8102 consist of an infrared emitting diode and an NPN silicon
phototransistor, encased side-by-side on converging optical axis in a black
thermoplastic housing The phototransistor receives
radiation from the IR only .This is the normal
situation. But when an object is in between ,
phototransistor could not receives the radiation.
█ Applications
․Mouse Copier
․Switch Scanner
․Floppy disk driver
․Non-contact Switching
․For Direct Board
█ Device Selection Guide
Device No. Chip Material LENS COLOR
IR908-7C GaAlAs Water Clear
PT908-7C Silicon Water Clear
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Page: 1 of 6
Device No：CDRX-810-005 Prepared date：2006/7/26 Prepared by： zhouhong
Page 2

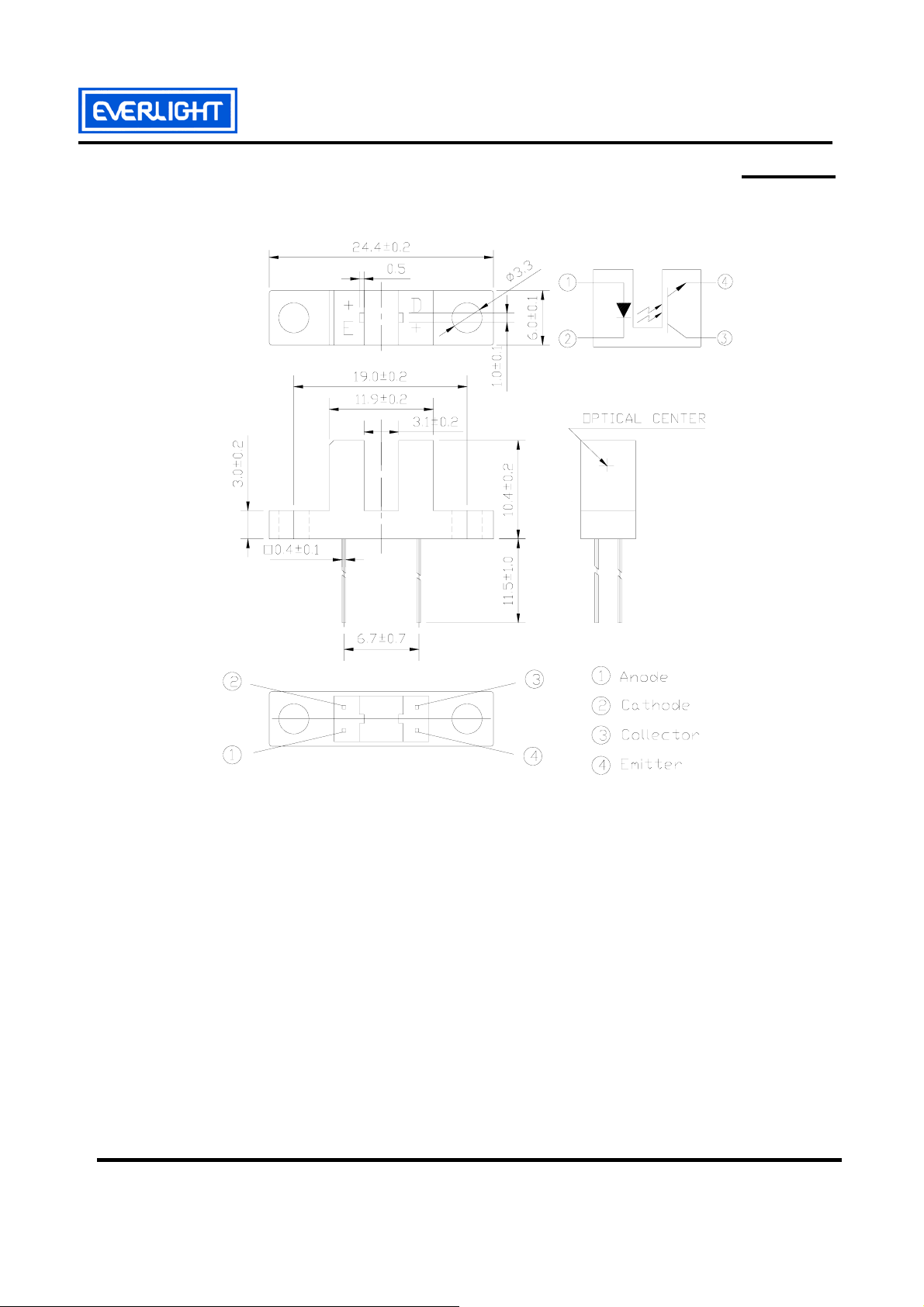

█ Package Dimensions
ITR8102
Notes:
1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.2mm
3.Lead spacing is measured where the lead emerge from the package
4.Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification
5.These specification sheets include materials protected under copyright of EVERLIGHT
corporation . Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent
6.When using this product , please observe the absolute maximum ratings and the
instructions for use outlined in these specification sheets. EVERIGHT assumes no
responsibility for any damage resulting from use of the product which does not comply
with the absolute maximum ratings and the instructions included in these specification
sheets.
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Page: 2 of 6
Device No：CDRX-810-005 Prepared date：2006/7/26 Prepared by： zhouhong
Page 3
█ Absolute Maximum Ratings (Ta=25℃)
Parameter Symbol Ratings Unit
Power Dissipation at(or below) 25℃ Free
Air Temperature
Reverse Voltage V
Input
Forward Current I
Peak Forward Current (*1)
Pulse width ≦100μs, Duty cycle=1%
Collector Power Dissipation PC 75 mW
Collector Current I
Output
Collector-Emitter Voltage B V
Emitter-Collector Voltage B V
Operating Temperature Topr -25~+85
Storage Temperature Tstg -40~+85
Lead Soldering Temperature (*2)
(1/16 inch form body for 5 seconds)
(＊1) tw=100 μsec. , T=10 msec. (＊2) t=5 Sec
Pd 75 mW
5 V
R
50 mA
F
I
1 A
FP
30 mA
C
30 V
CEO
5 V
ECO
Tsol 260
ITR8102
℃
℃
℃
█ Electro-Optical Characteristics (Ta=25℃)
Parameter Symbol Min.
Input
Output
Transfer
Characteristics
Forward Voltage VF --- 1.2 1.5 V IF=20mA
Reverse Current IR --- --- 10
λ
V
P
--- --- 100 nA VCE=20V,Ee=0mW/cm
CEO
(sat)
CE
Peak Wavelength
View Angle 2θ1/2 --- 60 --- Deg IF=20mA
Dark Current I
C-E Saturation
Voltage
Collect Current IC(ON) 0.9
Rise time tr --- 15 --Fall time tf --- 15 ---
Typ.
--- 940 --- nm
---
Max. Unit Conditions
μA
---
--- 15
0.4 V
Ee=1mW/cm2
mA VCE=5V IF=20mA
μsec
μsec
VR=5V
I
=20mA
F
IC=2mA
VCE=5V
IC=1mA
RL=1KΩ
2
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Page: 3 of 6
Device No：CDRX-810-005 Prepared date：2006/7/26 Prepared by： zhouhong
Page 4

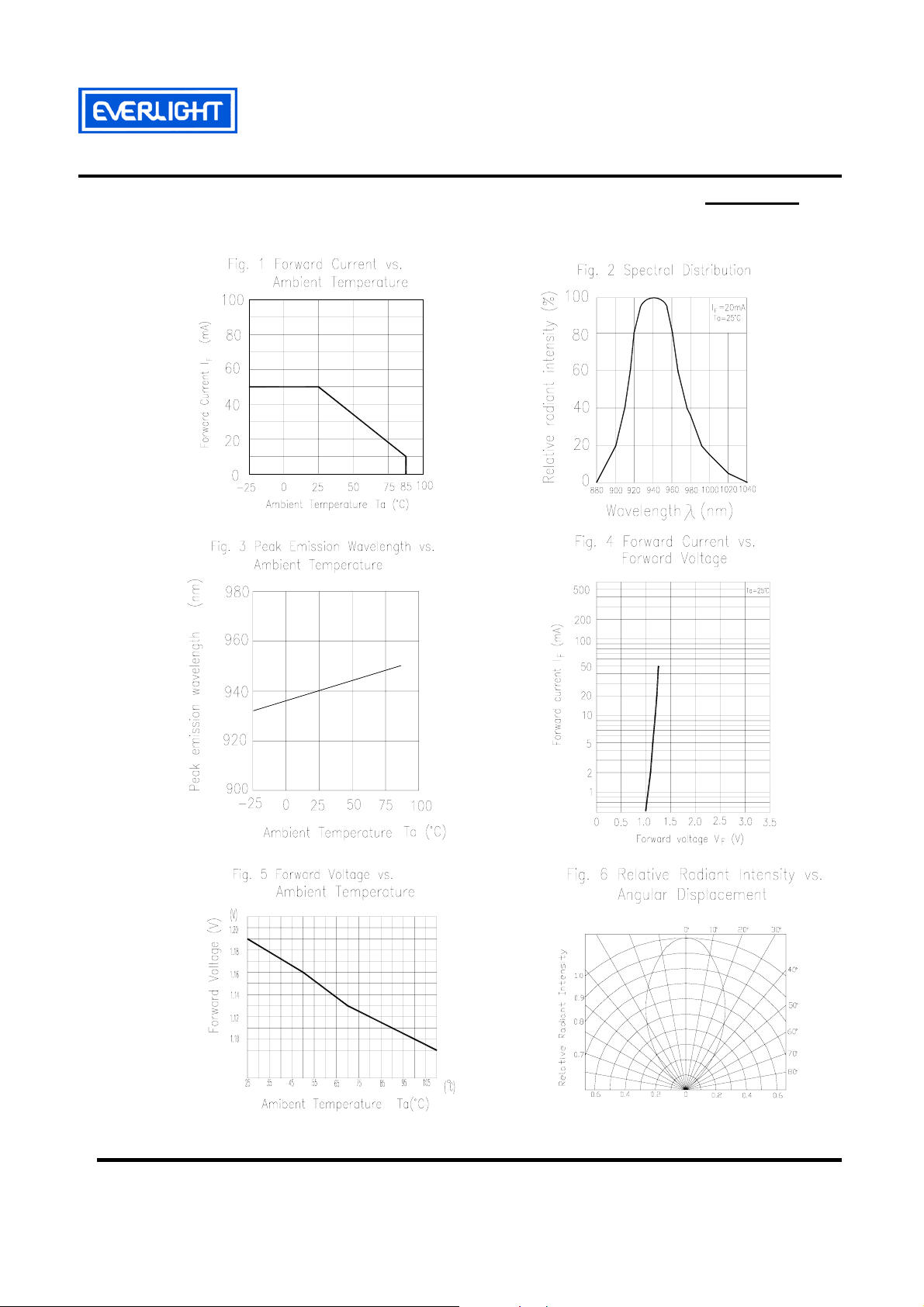

█ Typical Electrical/Optical/Characteristics Curves for IR
ITR8102
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Page: 4 of 6
Device No：CDRX-810-005 Prepared date：2006/7/26 Prepared by： zhouhong
Page 5

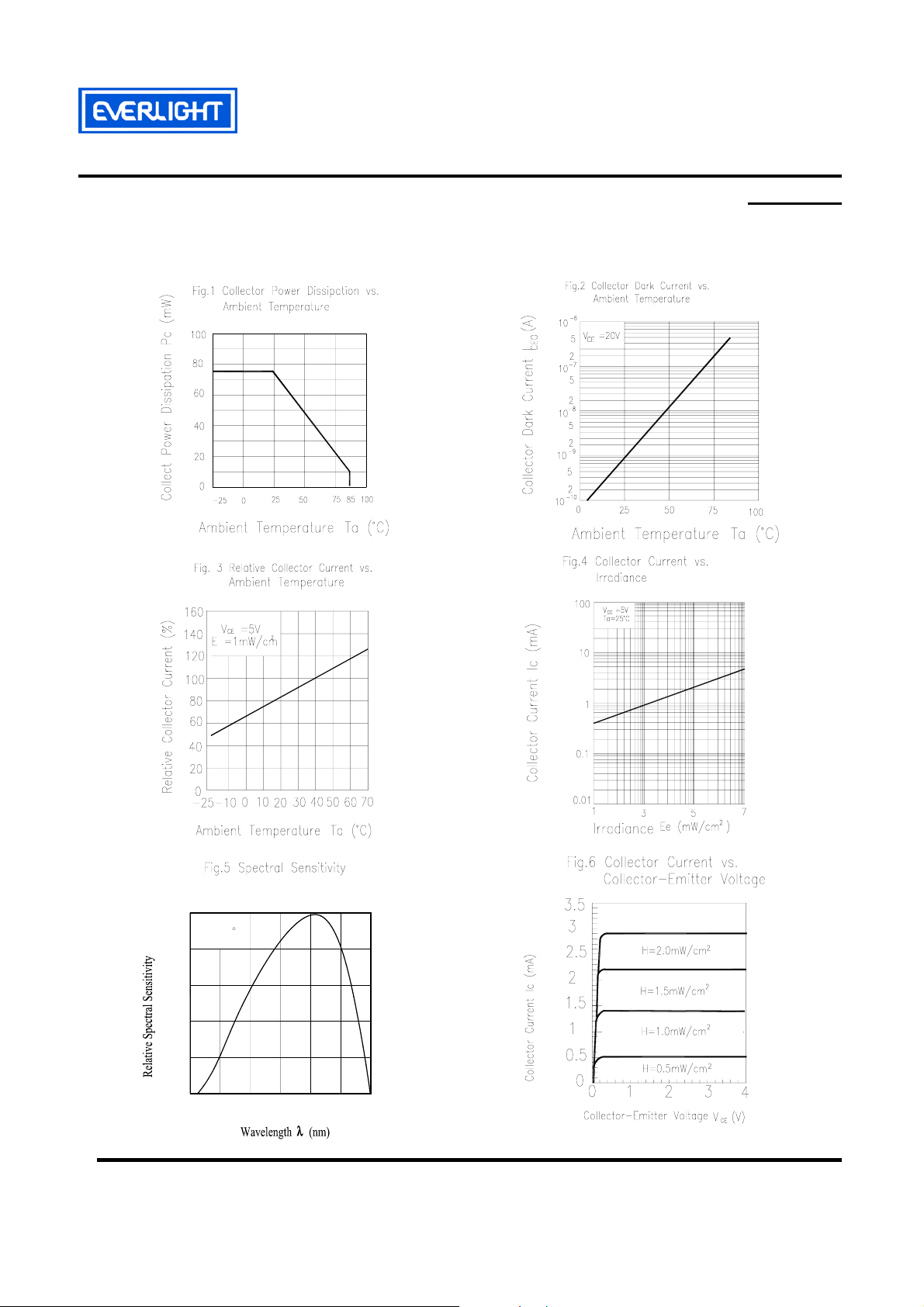

█ Typical Electrical/Optical/Characteristics Curves for PT
ITR8102
1.0
0.8
0.6
0.4
Ta=25
C
0.2
0
100
500300 700
1100900 1300
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Page: 5 of 6
Device No：CDRX-810-005 Prepared date：2006/7/26 Prepared by： zhouhong
Page 6
█ Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.
Confidence level：90%
LTPD：10%
Test
NO.
Item Test Condition
1 Solder Heat
2 Temperature Cycle
TEMP : 260℃ ± 5 ℃
H : +100℃ 15 mins
5 min
L : -40℃ 15 min
Hours/
Cycle
10sec 22 pcs 0/1
300
cycle
Sample
Size
22 pcs
ITR8102
Failure
Judgement
Criteria
IR≧U×2
Ee≦L×0.8
VF≧U×1.2
Ac/Re
0/1
3 Thermal Shock
H : +100℃ 5 min
10 sec
L : -10℃ 5 min
300
22 pcs
cycle
U :Upper
specification
limit
L :Lower
specification
limit
4 High Temperature
TEMP. : +100℃
1000 hrs 22 pcs 0/1
Storage
5 Low Temperature
TEMP. : -40℃
1000 hrs 22 pcs 0/1
Storage
6
DC Operating Life
7 High Temperature /
VCE=5V
1000 hrs 22 pcs 0/1
IF=20mA
85℃ / 85% R.H.
1000 hrs 22 pcs
High Humidity
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306
Tucheng, Taipei 236, Taiwan, R.O.C http:\\www.everlight.com
0/1
0/1
Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Page: 6 of 6
Device No：CDRX-810-005 Prepared date：2006/7/26 Prepared by： zhouhong
