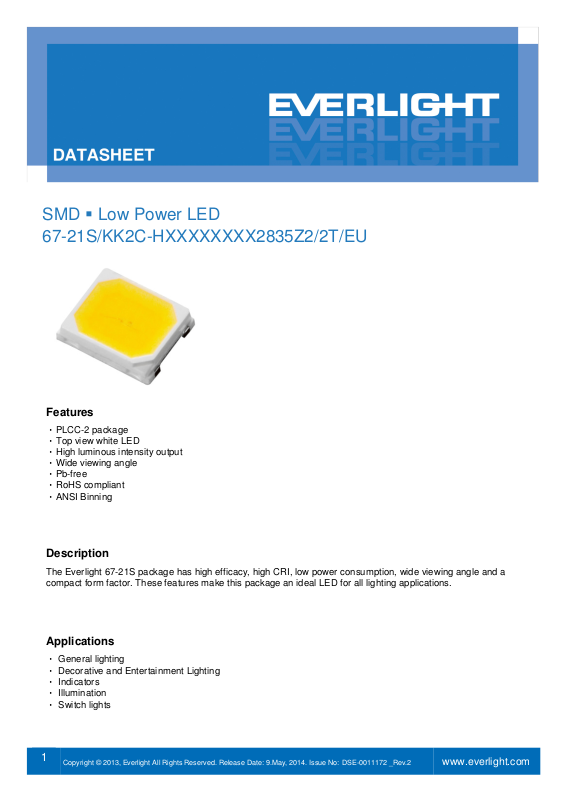

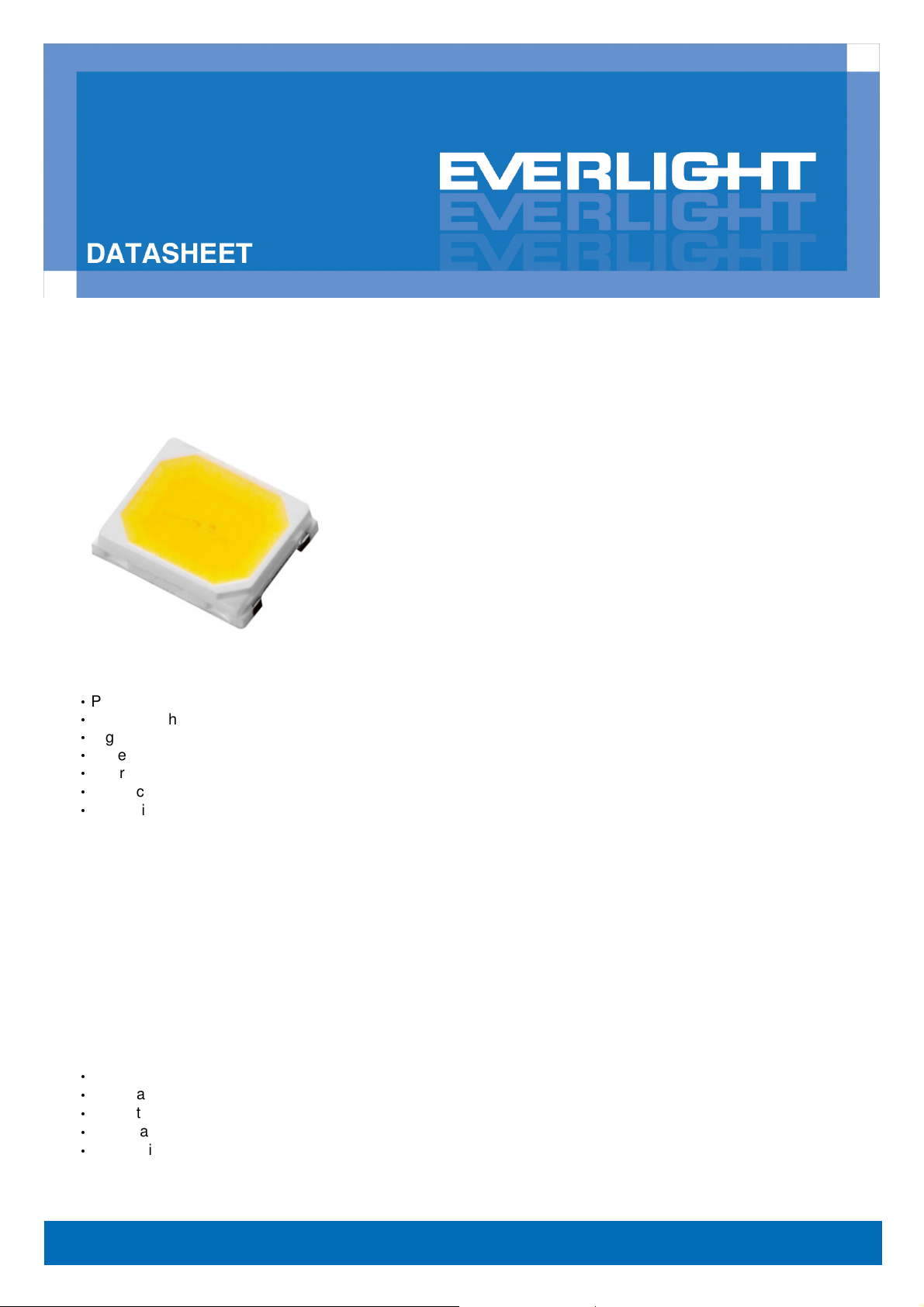

EVERLIGHT EVL 67-21S/KK21 Datasheet

SMD  Low Power LED 67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Features

‧

PLCC-2 package Top view ‧white LED

‧

High luminous intensity output

‧

Wide viewing angle

‧

Pb-free

‧

RoHS compliant

‧

ANSI Binning

Preliminary

Description

The Everlight 67-21S package has high efficacy, high CRI, low power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications.

Applications

General lighting‧ Decorative and Entertainment Lighting‧ Indicators‧ Illumination‧ Switch lights

‧

1

www.everlight.com

DATASHEET

Bin Group of

Forward Voltage

SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Product Number Explanation

67–21S/K K 2 C – H XX XX XX XX XX Z2/2T/EU

Table of Color Rendering Index

Symbol Description

M CRI(Min.) : 60

N CRI(Min.) : 65

L CRI(Min.) : 70

Q CRI(Min.) : 75

K CRI(Min.) : 80

P CRI(Min.) : 85

H CRI(Min.) : 90

Note: Tolerance of Color Rendering Index: ±2

Example:

67-21S/KK2C-H5757B4B92835Z2/2T/EU

CRI 80(Min.)

CCT 5700K

Flux 7~11 Lm

VF 2.8~3.5V

IF 20mA

Bin Group of Max. Luminous

Bin Group of Min. Luminous

Max. Color temperature

Min. Color temperature

Bin Code of Color Rendering Index

Flux

2

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Mass Production List

Product

67-21S/KK2C-H2727B1B62835Z2/2T/EU 80 2700K 5.5 8.5

67-21S/KK2C-H3030B2B72835Z2/2T/EU 80 3000K 6.0 9.0

67-21S/KK2C-H4040B3B82835Z2/2T/EU 80 4000K 6.5 9.5

67-21S/KK2C-H5050B4B92835Z2/2T/EU 80 5000K 7.0 10.0

67-21S/KK2C-H5757B4B92835Z2/2T/EU 80 5700K 7.0 10.0

67-21S/KK2C-H6565B4B92835Z2/2T/EU 80 6500K 7.0 10.0

Note:

1. Tolerance of Color Rendering Index: ±2

2. Tolerance of Luminous flux : ±11%.

CRI

Min.(1)

CCT(K)

Im(

ɸɸɸɸ

) Im(

Min. (2) Max. (2)

ɸɸɸɸ

)

3

www.everlight.com

DATASHEET

Absolute Maximum Ratings (T

Electro

)

SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Device Selection Guide

Chip Materials Emitted Color Resin Color

Cool White

InGaN

Neutral White

Water Clear

Warm White

Soldering

=25℃℃℃℃)

Parameter Symbol Rating Unit

Forward Current IF 30 mA Peak Forward Current (Duty 1/10 @10ms) IFP 60 mA Power Dissipation Pd 105 mW

Operating Temperature T

Storage Temperature T

Thermal Resistance (Junction / Soldering point) Rth

Junction Temperature

-40 ~ +85

opr

-40 ~ +100

stg

J-S

50

T j 125

℃

℃ ℃

℃

/W

Soldering Temperature

Note: The products are sensitive to static electricity and must be carefully taken when handling products

T

sol

Reflow Soldering : 260 ℃ for 10 sec.

Hand Soldering : 350 ℃ for 3 sec.

-Optical Characteristics (T

Soldering

=25℃℃℃℃)

Parameter Symbol Min. Typ. Max. Unit Condition

Luminous flux

Luminous Intensity

Forward Voltage

Color Rendering Index

Viewing Angle 2θ

(1)

Iv

(2)

VF

(3)

(4

Ø

Ra 80 ----- -----

1/2

Reverse Current IR

Notes:

1. Tolerance of Luminous flux : ±11%.

2. Tolerance of Luminous Intensity: ±11%.

3. Tolerance of Forward Voltage: ±0.1V.

4. Tolerance of Color Rendering Index: ±2

5.5 ----- 10.0

1800 ----- 3400

2.8 ----- 3.5

----- 120 -----

----- ----- 50

lm

mcd

V

deg

µΑ

IF=20mA

VR =5V

4

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Bin Range of Luminous flux

Bin Code Min. Max. Unit Condition

B1 5.5 6.0 B2 6.0 6.5 B3 6.5 7.0 B4 7.0 7.5 B5 7.5 8.0 B6 8.0 8.5 B7 8.5 9.0 B8 9.0 9.5 B9 9.5 10.0

Note: Tolerance of Luminous flux : ±11%.

lm IF=20mA

Bin Range of Luminous Intensity

Bin Code Min. Max. Unit Condition

AC 1800 2000 2C 2000 2200 4C 2200 2400 6C 2400 2600 8C 2600 2800 AD 2800 3000 A3 3000 3400

Note: Tolerance of Luminous Intensity : ±11%.

mcd IF=20mA

Bin Range of Forward Voltage

Group Bin Code Min. Max. Unit Condition

35 2.8 2.9 36 2.9 3.0 37 3.0 3.1

2835

Note: Tolerance of Forward Voltage: ±0.1V.

38 3.1 3.2 39 3.2 3.3 40 3.3 3.4 41 3.4 3.5

V IF=20mA

5

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

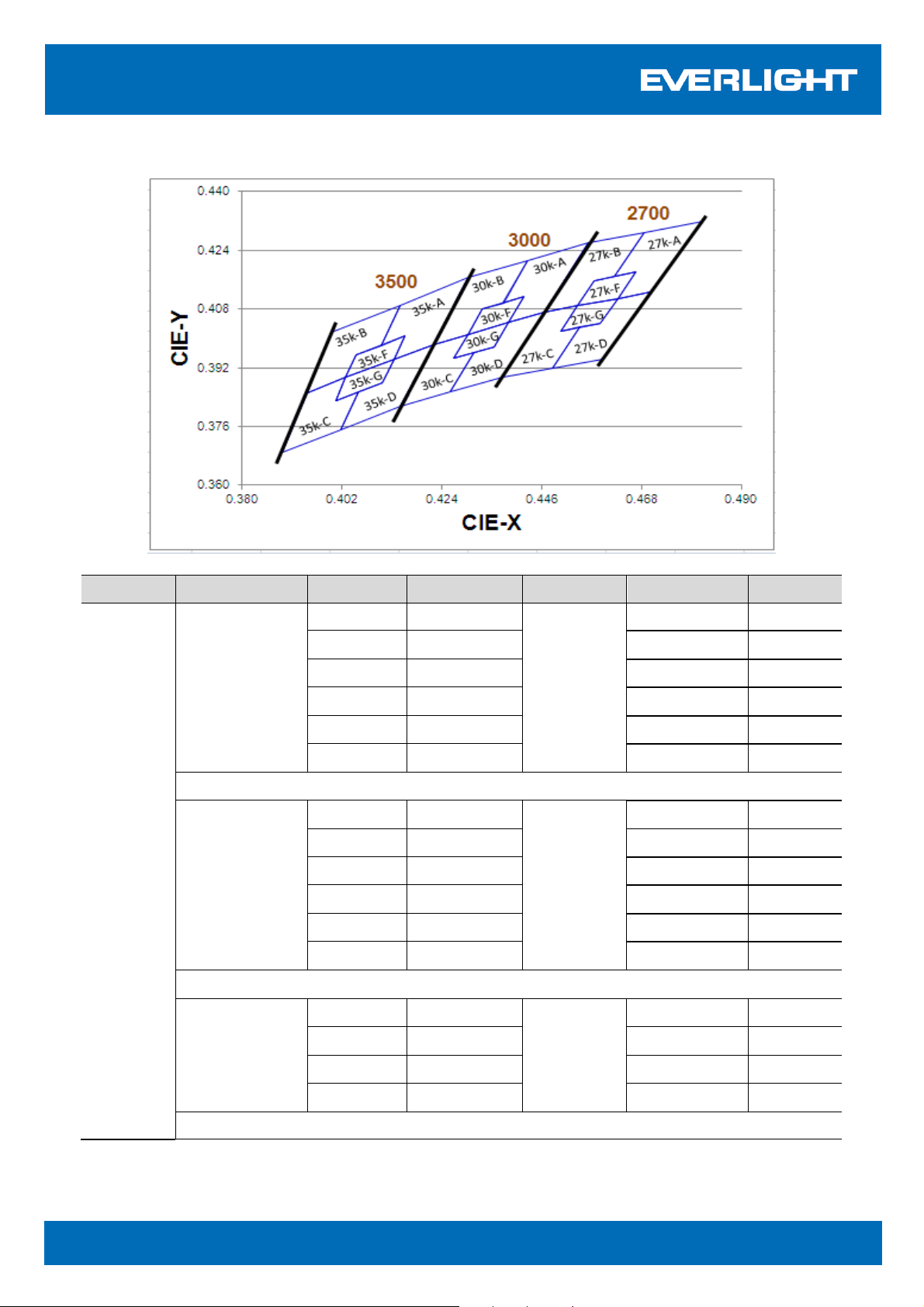

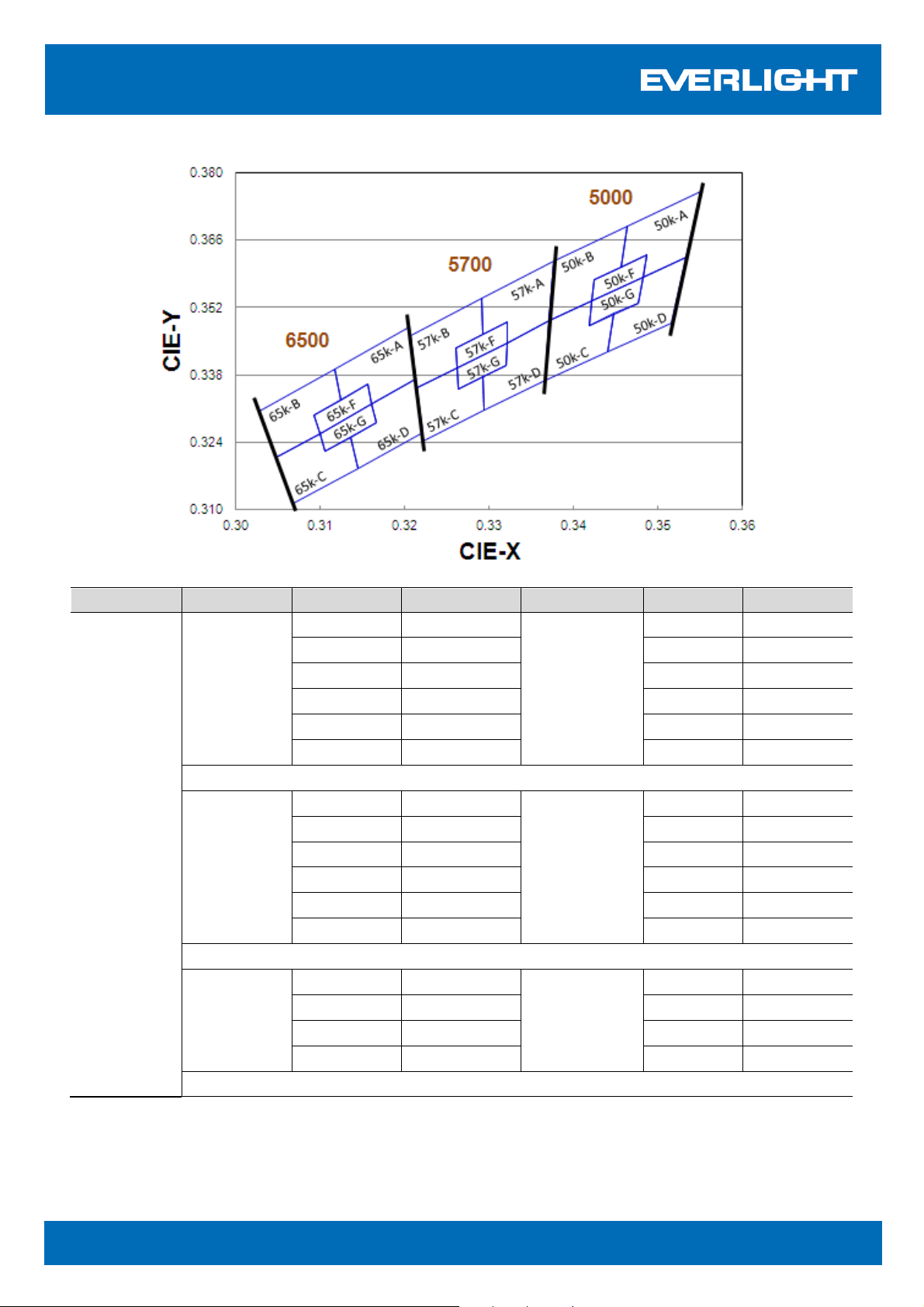

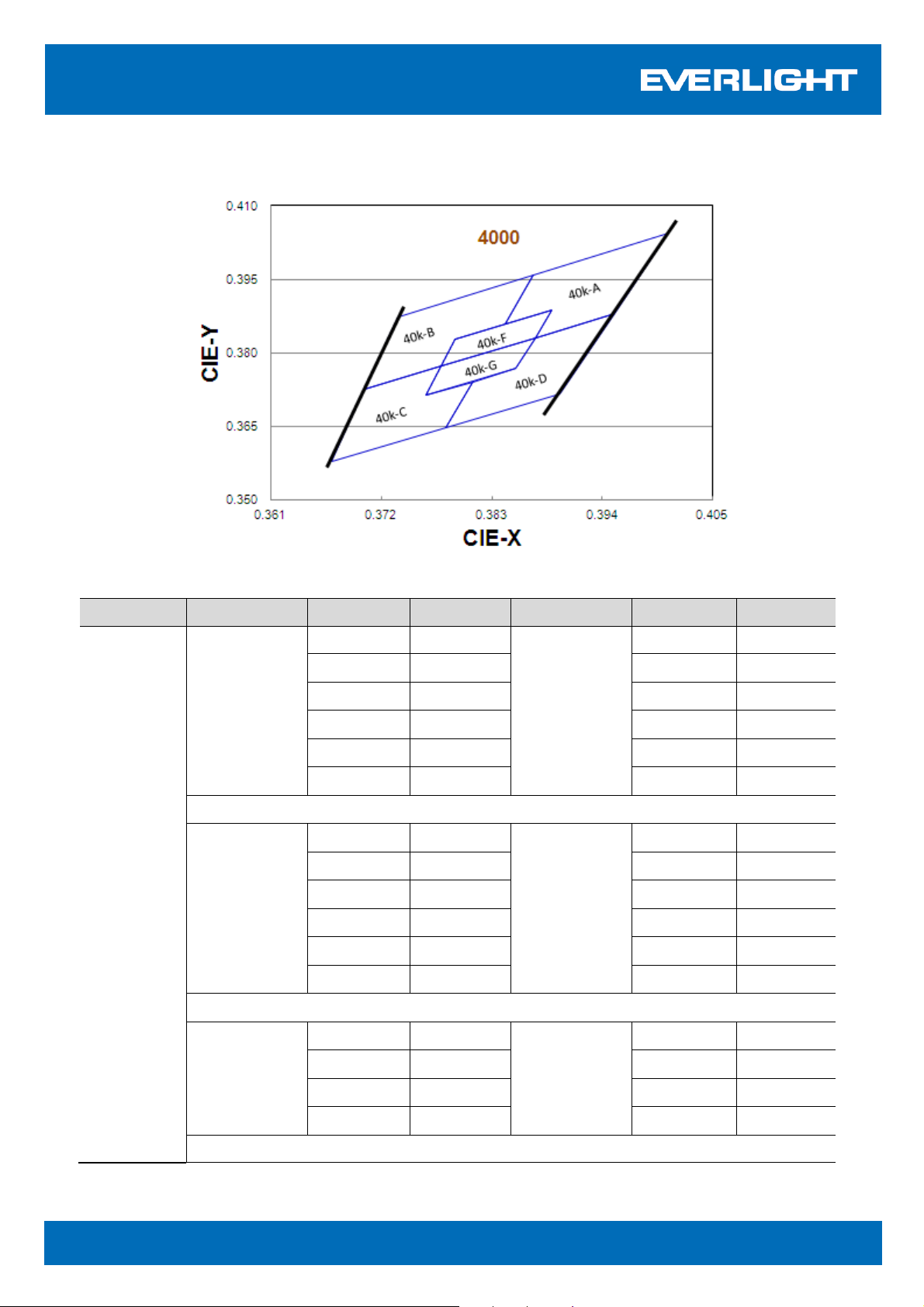

The C.I.E. 1931 Chromaticity Diagram

Bin Range of Chromaticity Coordinates

CCT Bin Code CIE_x CIE_y Bin Code CIE_x CIE_y

0.4813 0.4319

0.4687 0.4289 0.4627 0.4109

0.4621 0.4169 0.4588 0.4041

27K-A

0.4667 0.4180 0.4544 0.4030

0.4627 0.4109 0.4483 0.3919

0.4700 0.4126 0.4593 0.3944

0.4687 0.4289

0.4562 0.4260 0.4373 0.3893

2700K

0.4465 0.4071 0.4483 0.3919

27K-B

0.4539 0.4088 0.4544 0.4030

0.4576 0.4158 0.4502 0.4020

0.4621 0.4169 0.4539 0.4088

0.4700 0.4126

27K-D

Reference Range:2580K~2700K

0.4465 0.4071

27K-C

Reference Range:2700K~2870K

27K-F

0.4667 0.4180

0.4576 0.4158 0.4539 0.4088 27K-G

0.4539 0.4088 0.4502 0.4020

0.4627 0.4109 0.4588 0.4041

Reference Range: 2665K~2770K

0.4627 0.4109

6

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

CCT Bin Code CIE_x CIE_y Bin Code CIE_x CIE_y

3000K

30K-A

30K-B

30K-F

0.4562 0.4260

0.4430 0.4212 0.4388 0.4043

0.4375 0.4096 0.4355 0.3977 30K-D

0.4422 0.4113 0.4311 0.3962

0.4388 0.4043 0.4259 0.3853

0.4465 0.4071 0.4373 0.3893

Reference Range:2870K~3000K

0.4430 0.4212

0.4299 0.4165 0.4147 0.3814

0.4221 0.3984 0.4259 0.3853 30K-C

0.4297 0.4011 0.4311 0.3962

0.4328 0.4079 0.4267 0.3946

0.4375 0.4096 0.4297 0.4011

Reference Range:3000K~3220K

0.4422 0.4113

0.4328 0.4079 0.4297 0.4011 30K-G

0.4297 0.4011 0.4267 0.3946

0.4465 0.4071

0.4221 0.3984

0.4388 0.4043

0.4388 0.4043 0.4355 0.3977

Reference Range:2960K~3080K

7

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

The C.I.E. 1931 Chromaticity Diagram

Bin Range of Chromaticity Coordinates

CCT Bin Code CIE_x CIE_y Bin Code CIE_x CIE_y

0.4006 0.4044

0.3871 0.3959 0.3873 0.3831

0.3843 0.3858 0.3854 0.3768

40K-A

0.3890 0.3887 0.3810 0.3741

0.3873 0.3831 0.3784 0.3647

0.3952 0.3880 0.3898 0.3716

0.3871 0.3959

0.3736 0.3874 0.3670 0.3578

4000K

0.3703 0.3726 0.3784 0.3647

40K-B

0.3779 0.3773 0.3810 0.3741

0.3793 0.3828 0.3764 0.3713

0.3843 0.3858 0.3779 0.3773

0.3952 0.3880

40K-D

Reference Range:3700K~3970K

0.3703 0.3726

40K-C

Reference Range:3970K~4270K

40K-F

0.3890 0.3887

0.3793 0.3828 0.3779 0.3773 40K-G

0.3779 0.3773 0.3764 0.3713

0.3873 0.3831 0.3854 0.3768

Reference Range:3870K~4080K

0.3873 0.3831

8

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

The C.I.E. 1931 Chromaticity Diagram

Bin Range of Chromaticity Coordinates

CCT Bin Code CIE_x CIE_y Bin Code CIE_x CIE_y

0.3551 0.3760

0.3464 0.3688 0.3482 0.3583

0.3456 0.3604 0.3477 0.3530

50K-A

0.3487 0.3629 0.3448 0.3507

0.3482 0.3583 0.3441 0.3428

0.3533 0.3624 0.3515 0.3487

0.3464 0.3688

0.3376 0.3616 0.3366 0.3369

5000K

0.3371 0.3493 0.3441 0.3428

50K-B

0.3422 0.3533 0.3448 0.3507

0.3425 0.3579 0.3418 0.3483

0.3456 0.3604 0.3422 0.3533

0.3487 0.3629

0.3425 0.3579 0.3422 0.3533

50K-F

0.3422 0.3533 0.3418 0.3483

0.3482 0.3583 0.3477 0.3530

0.3533 0.3624

50K-D

Reference Range:4745K~5000K

0.3371 0.3493

50K-C

Reference Range:5000K~5310K

0.3482 0.3583

50K-G

Reference Range:4910K~5120K

9

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

CCT Bin Code CIE_x CIE_y Bin Code CIE_x CIE_y

5700K

57K-A

57K-B

57K-F

0.3376 0.3616

0.3292 0.3539 0.3321 0.3447

0.3292 0.3464 0.3320 0.3401

0.3321 0.3490 0.3293 0.3377

0.3321 0.3447 0.3294 0.3306

0.3371 0.3493 0.3366 0.3369 Reference Range:5310K~5700K

0.3292 0.3539

0.3207 0.3462 0.3222 0.3243

0.3215 0.3353 0.3294 0.3306

0.3262 0.3395 0.3293 0.3377

0.3261 0.3436 0.3263 0.335

0.3292 0.3464 0.3262 0.3395 Reference Range:5700K~6020K

0.3321 0.3490

0.3261 0.3436 0.3262 0.3395

0.3262 0.3395 0.3263 0.3350

0.3321 0.3447 0.3320 0.3401 Reference Range:5520K~5780K

57K-D

57K-C

57K-G

0.3371 0.3493

0.3215 0.3353

0.3321 0.3447

CCT Bin Code CIE_x CIE_y Bin Code CIE_x CIE_y

0.3205 0.3481

0.3117 0.3393 0.3161 0.3320

65K-A

6500K

Note:

1. The value is based on driving current by 20mA.

2. Tolerance of Chromaticity Coordinates: ±0.01.

65K-B

65K-F

0.3125 0.3328 0.3166 0.3281

0.3157 0.3360 0.3136 0.3251

0.3161 0.3320 0.3145 0.3187

0.3213 0.3371 0.3221 0.3261

0.3117 0.3393

0.3028 0.3304 0.3068 0.3113

0.3048 0.3209 0.3145 0.3187

0.3100 0.3259 0.3136 0.3251

0.3093 0.3297 0.3106 0.3222

0.3125 0.3328 0.31 0.3259

0.3157 0.3360

0.3093 0.3297 0.3100 0.3259

0.3100 0.3259 0.3106 0.3222

0.3161 0.3320 0.3166 0.3281

65K-D

Reference Range:6020K~6500K

65K-C

Reference Range:6500K~7050K

65K-G

Reference Range:6300K~6690K

0.3213 0.3371

0.3048 0.3209

0.3161 0.3320

10

www.everlight.com

DATASHEET

Fig.

1 – Forward Voltage Shift vs.

Fig.2

- Relative Luminous Intensity

SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

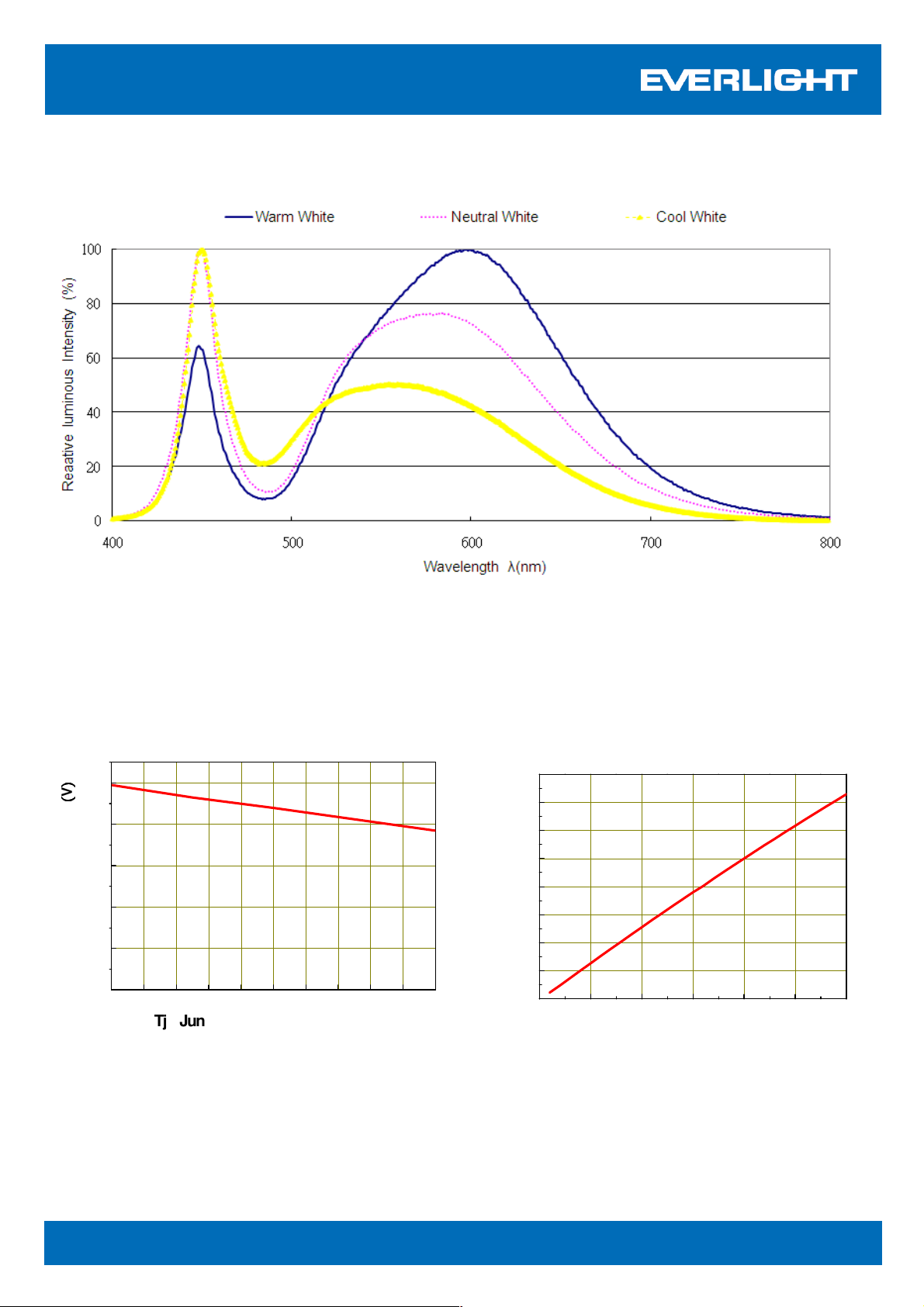

Spectrum Distribution

Typical Electro-Optical Characteristics Curves

Junction Temperature

0.0

))))

V

((((

-0.2

-0.4

-0.6

-0.8

Forward Voltage Shift

-1.0 25 35 45 55 65 75 85 95 105 115 125

Tj - Junction

Temperature

o

((((

C

))))

vs. Forward Current

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

Relative Luminous Intensity

0.0 0 5 10 15 20 25 30

Forward Current(mA)

11

www.everlight.com

DATASHEET

Fig.5

– Max. Driving Forward Current

vs.

Fig.3

- Relative Luminous Intensity

vs.

Fig.

4 - Forward Current vs.

Forward

Fig.5

– Max. Driving Forward Current

vs.

SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Typical Electro-Optical Characteristics Curves

Junction Temperature

Voltage

1.2

1.0

0.8

0.6

0.4

0.2

Relative Luminous Intensity

0.0 25 35 45 55 65 75 85 95 105 115 125

Tj - Junction

Temperature

((((

oC

30

25

20

15

10

5

IF-Forward Current(mA)

0

2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3

))))

VF- Forward Voltage

((((V))))

o

C

5

=

2

S

T

Soldering Temperature Soldering Temperature

Rth j-s=50

。。。。

C/W

Fig.6 – Radiation Diagram

40

30

1.0

20

0.9

10

Forward Current (mA)

0.8

0.7

0

0 20 40 60 80 100

Soldering Temperature (

12

o

(

C)

)

((

))

0.10.30.5 0.2 0.4

www.everlight.com

20°0° 10°

30°

40°

50°

60°

70°

80° 90°

0.6

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

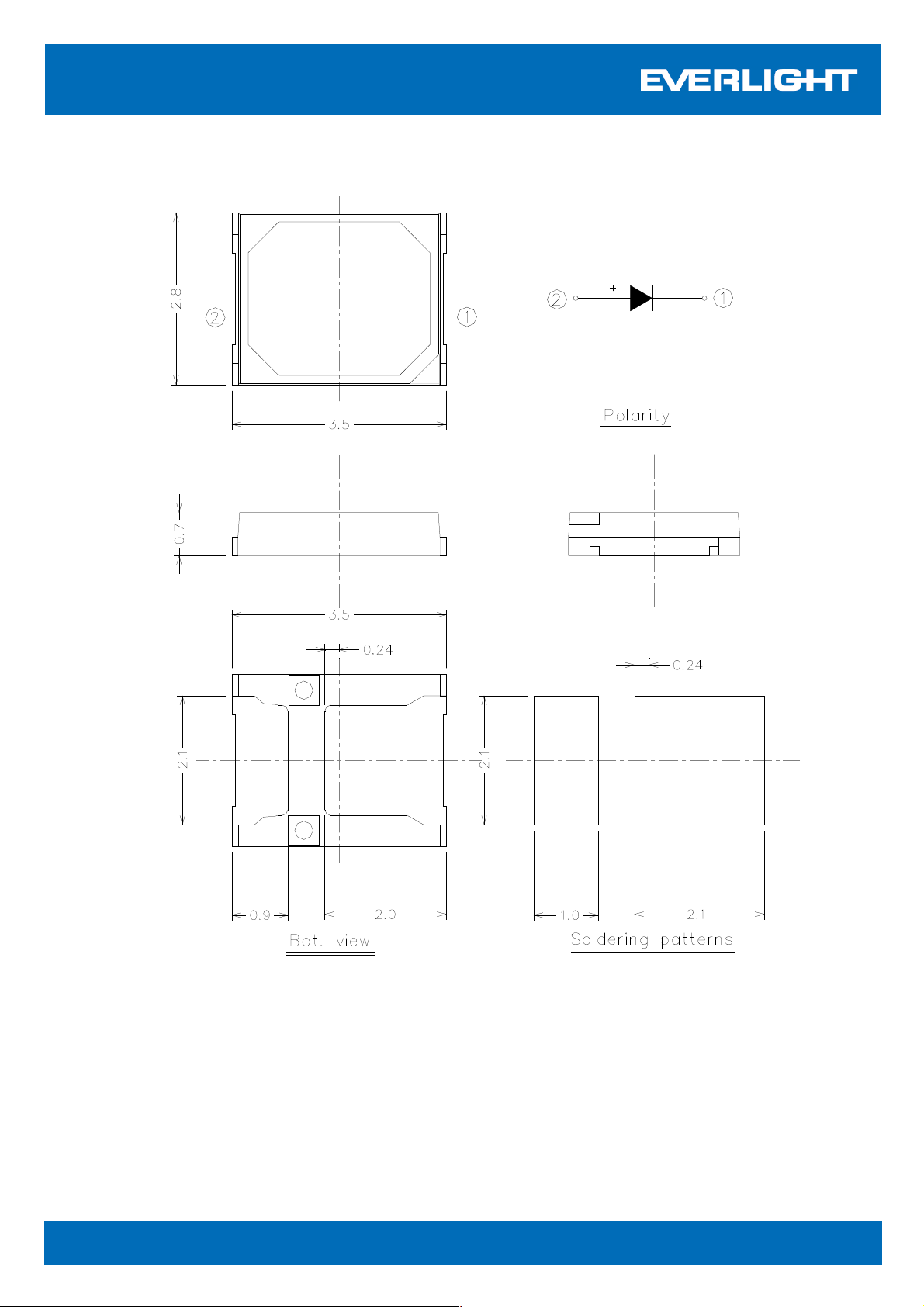

Package Dimension

Note: Tolerance unless mentioned is ±0.15 mm; Unit = mm

13

www.everlight.com

DATASHEET

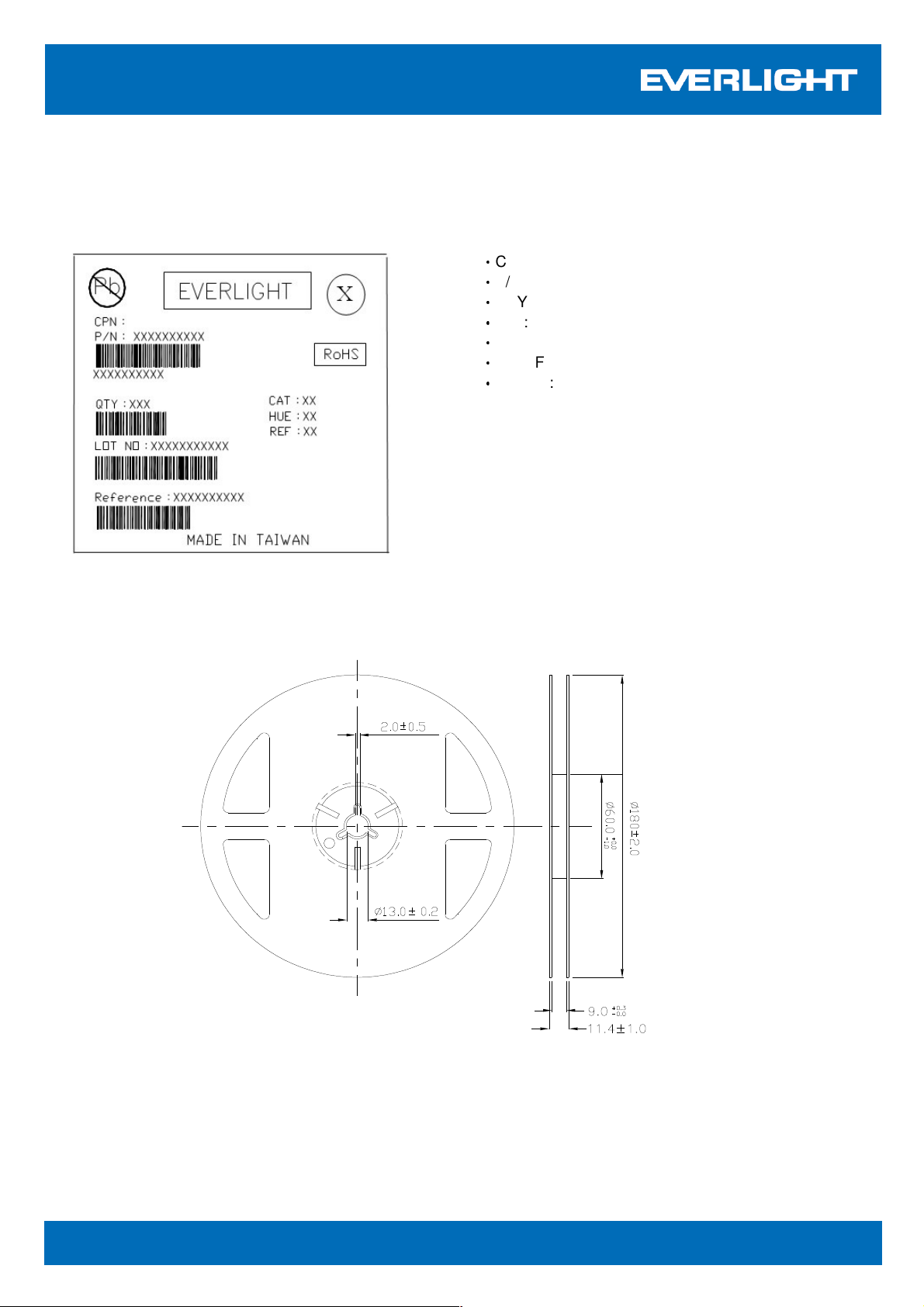

Moisture Resistant Packing Materials

Label Explanation

Reel Dimensions

SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

‧

CPN: Customer’s Product Number

‧

P/N: Product Number

‧

QTY: Packing Quantity

‧

CAT: Luminous Intensity Rank

‧

HUE: Dom. Wavelength Rank

‧

REF: Forward Voltage Rank

‧

LOT No: Lot Number

Note: Tolerances unless mentioned ±0.1mm. Unit = mm

14

www.everlight.com

DATASHEET

Moisture Resistant Packing Process

SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

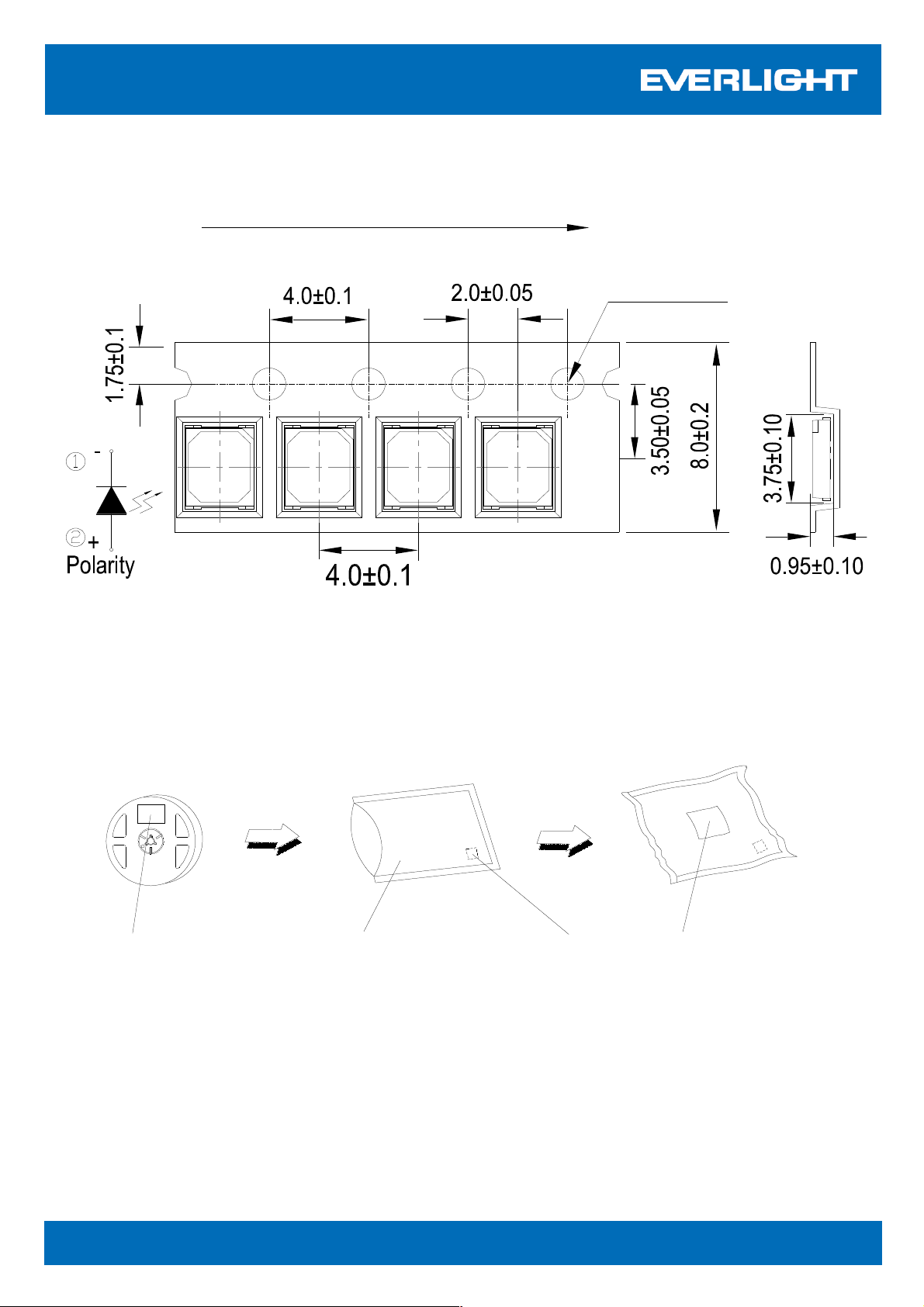

Carrier Tape Dimensions: Loaded Quantity 250/500/1000/2000 pcs Per Reel

Progressive direction

1.5+0.1

Note:

1.Tolerance unless mentioned is ±0.1mm; Unit = mm

Label

Aluminum moisture-proof bag

Desiccant Label

15

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Reliability Test Items and Conditions

The reliability of products shall be satisfied with items listed below. Confidence level：90%

LTPD：10%

No. Items Test Condition Test Hours/Cycles Sample Size Ac/Re

1 Reflow Soldering

2 Thermal Shock

3 Temperature Cycle

Temp. : 260℃/10sec.

H : +100℃ 20min

∫

10 sec

L : -10℃ 20min

H : +100℃ 30min

∫

5 min

L : -40℃ 30min

6 Min. 22 PCS. 0/1

200 Cycles

200 Cycles 22 PCS. 0/1

22 PCS. 0/1

4 High Temperature/Humidity

5 HTHH Operational Life

6 Low Temperature Storage

7 High Temperature Storage

8

9

10

11

Low Temperature

Operation Life

High Temperature

Operation/ Life#1

High Temperature

Operation/ Life#2

High Temperature

Operation/ Life#3

Ta=85℃,85%RH

Ta=85℃,85%RH,

IF = 15 mA

Ta=-40℃

Ta=85℃

Ta=-40℃,

IF = 30 mA

Ta=25℃,

IF = 30 mA

Ta=55℃,

IF =30 mA

Ta=85℃,

IF = 15 mA

1000 Hrs. 22 PCS. 0/1

16

www.everlight.com

DATASHEET SMD  Low Power LED

67-21S/KK2C-HXXXXXXXX2835Z2/2T/EU

Precautions for Use

1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 After opening the package: The LED's floor life is 168 Hrs under 30℃ or less and 60% RH or less. If unused

LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time,

baking treatment should be performed using the following conditions.

Baking treatment: 60±5℃ for 24 hours.

3. Soldering Condition

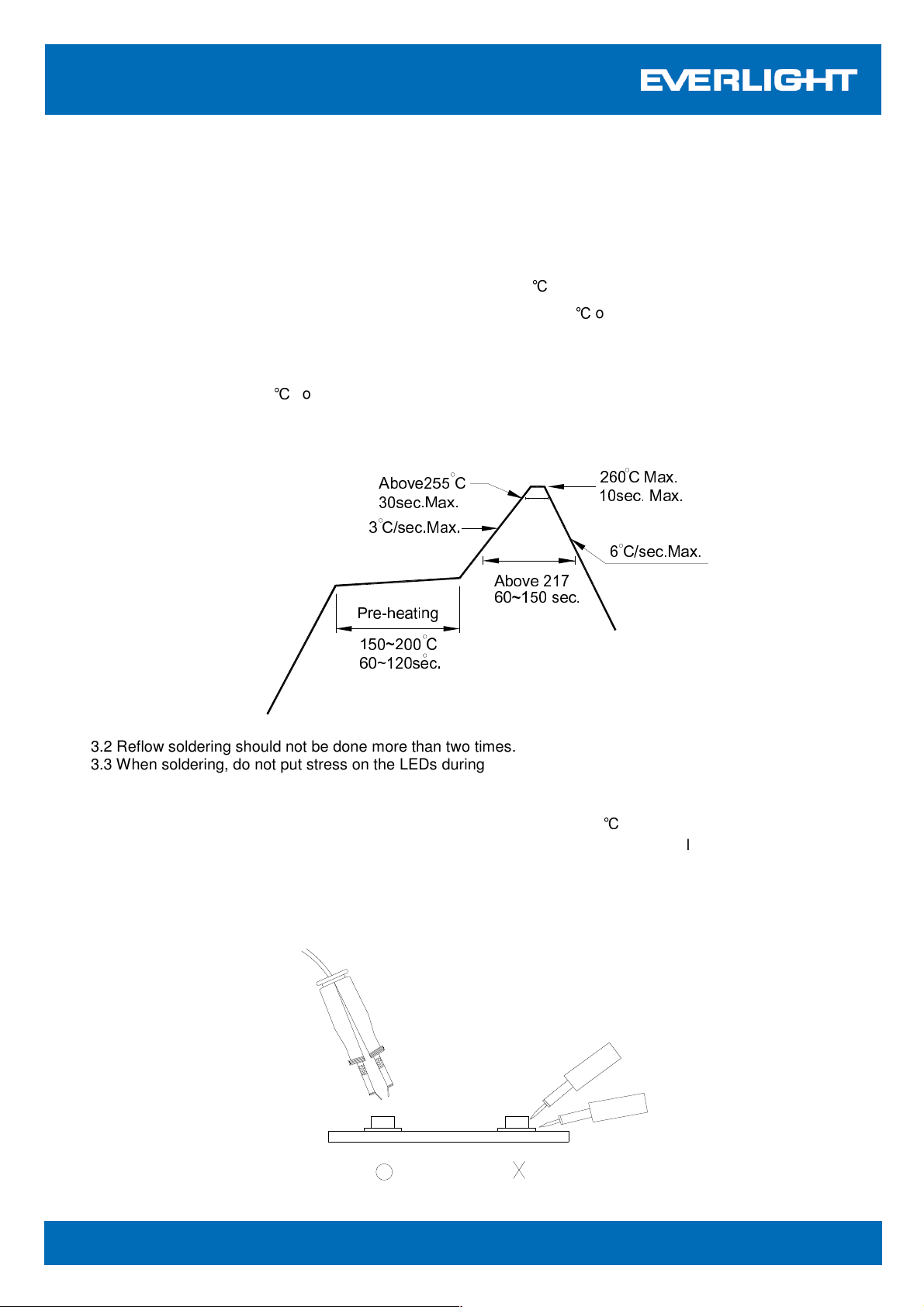

3.1 Pb-free solder temperature profile

Above255 C 30sec.Max.

3 C/sec.Max.

260 Max.

C

10sec. Max.

6 C/sec.Max.

Above 217 60~150 sec.

Pre-heating

150~200 C 60~120sec.

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

4. Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be

careful because the damage of the product is often started at the time of the hand solder.

5. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

17

www.everlight.com
