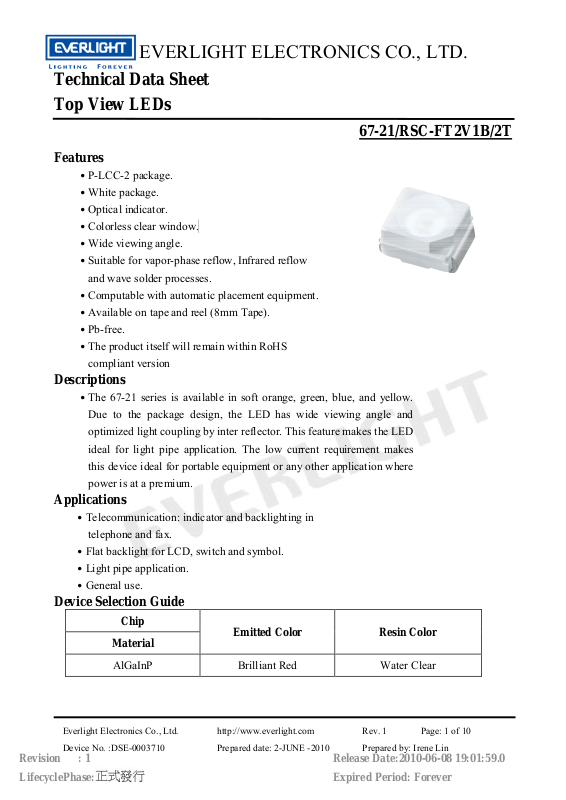

EVERLIGHT EVL 67-21/RSC-F Datasheet

Page 1
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs

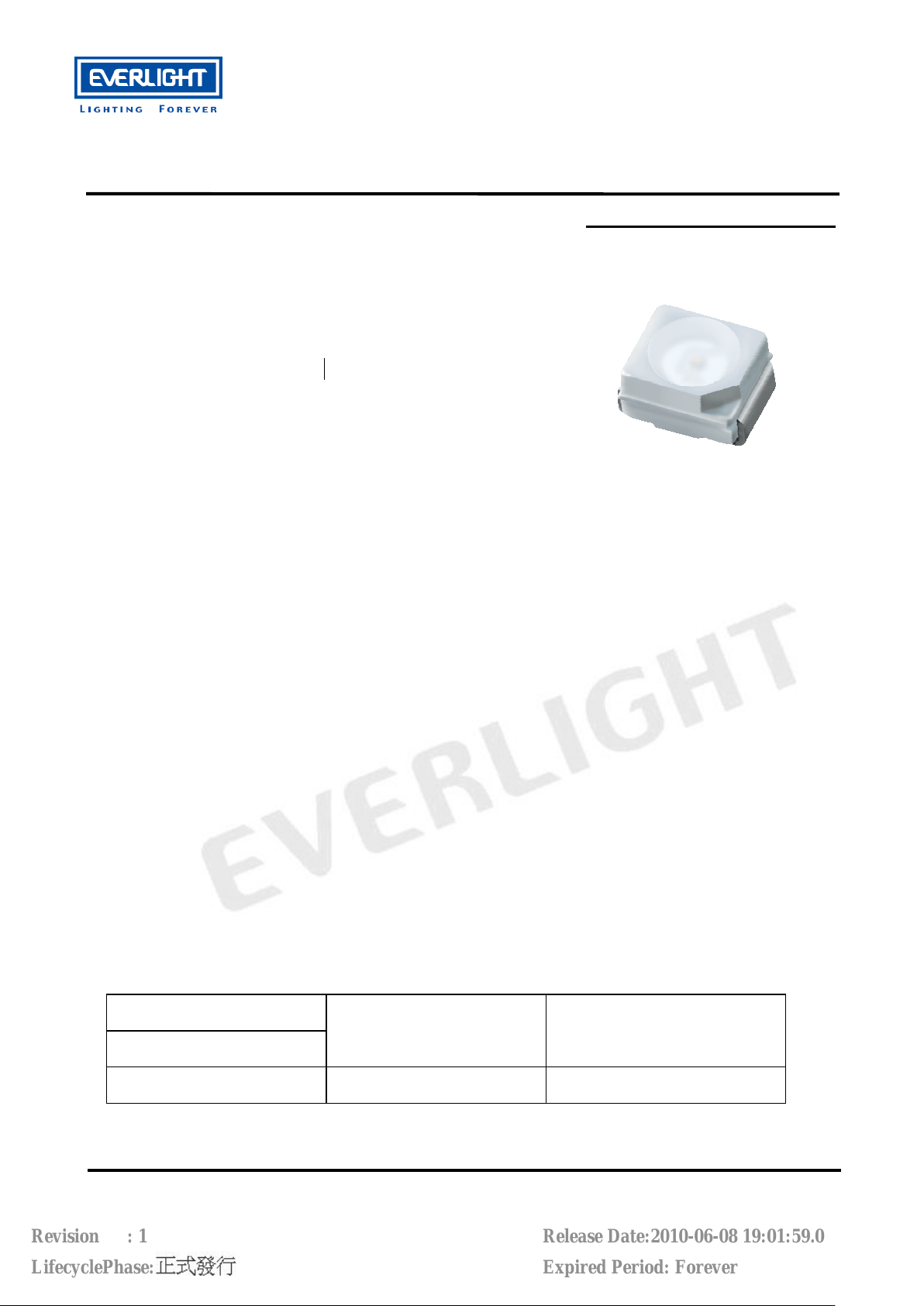

Features
․P-LCC-2 package.
․White package.
․Optical indicator.
․Colorless clear window.
․Wide viewing angle.
․Suitable for vapor-phase reflow, Infrared reflow
and wave solder processes.
․Computable with automatic placement equipment.
․Available on tape and reel (8mm Tape).
․Pb-free.
․The product itself will remain within RoHS
compliant version
Descriptions
․The 67-21 series is available in soft orange, green, blue, and yellow.
Due to the package design, the LED has wide viewing angle and
optimized light coupling by inter reflector. This feature makes the LED
ideal for light pipe application. The low current requirement makes
this device ideal for portable equipment or any other application where
power is at a premium.
Applications
․Telecommunication: indicator and backlighting in
telephone and fax.
․Flat backlight for LCD, switch and symbol.
․Light pipe application.
․General use.
Device Selection Guide
Chip
Emitted Color Resin Color
Material
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 1 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
AlGaInP Brilliant Red Water Clear
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 2
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs

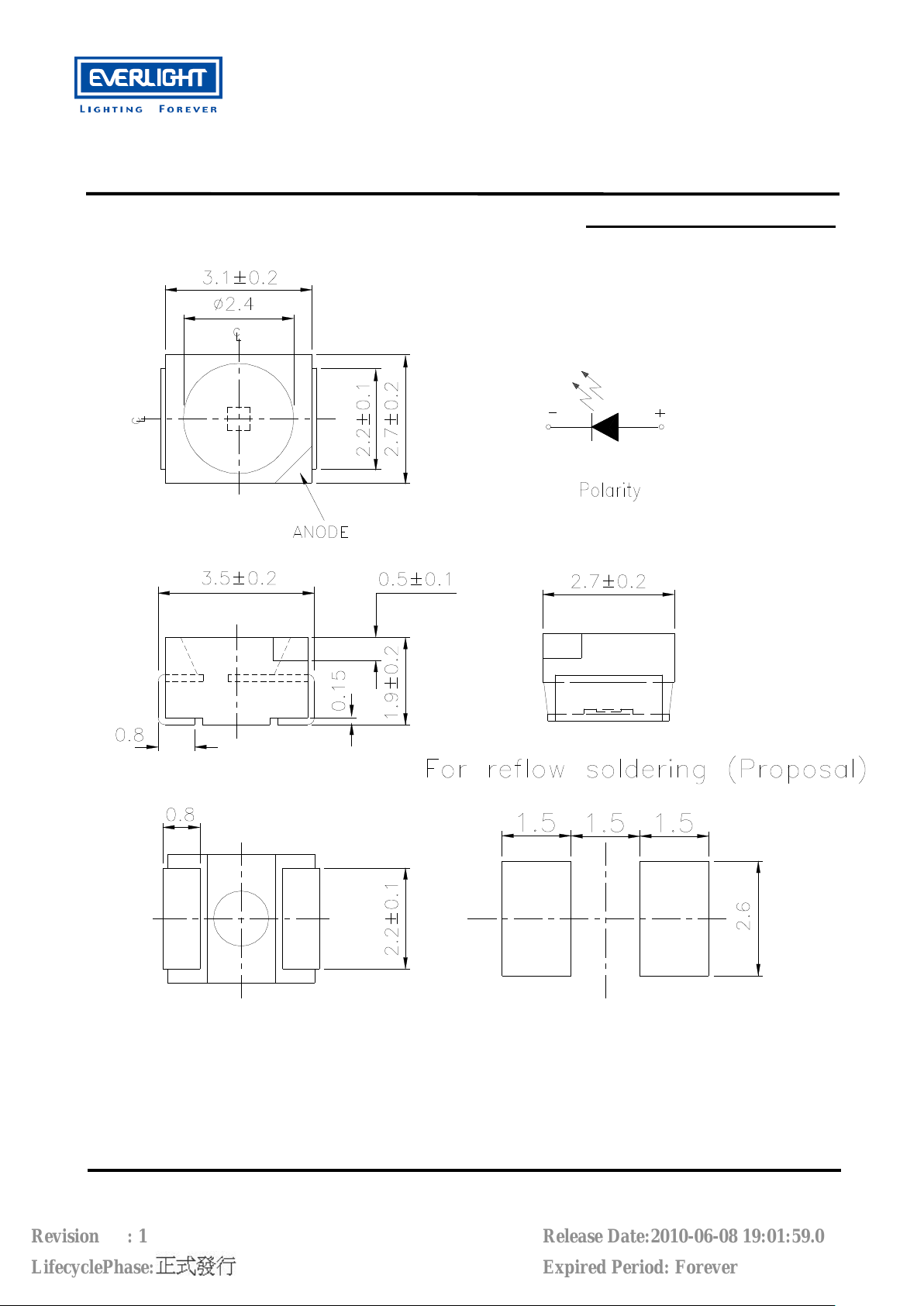

Package Dimensions
Note: Tolerance unless mentioned is ±0.1mm; Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 2 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 3
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs
Absolute Maximum Ratings (Ta=25 )℃
Parameter Symbol Rating Units
Reverse Voltage VR 5 V
Forward Current I
Peak Forward Current(Duty 1/10 @1KHz)
Power Dissipation Pd 120 mW
Electrostatic Discharge(HBM) ESD 2000 V
Operating Temperature Topr -40 ~ +85
Storage Temperature Tstg -40 ~ +90
Soldering Temperature Tsol
Electro-Optical Characteristics (Ta=25 )℃
Parameter Symbol Min. Typ. Max. Unit Condition
Luminous Intensity Iv 360 ----- 900 mcd IF=20mA
Viewing Angle 2θ
Peak Wavelength λp ----- 632 ----- nm IF=20mA
1/2
----- 120 ----- deg IF=20mA
IFP
F
Reflow Soldering : 260
Hand Soldering : 350 ℃ for 3 sec.
50 mA
100 mA
℃ ℃
℃ for 10 sec.
Dominant Wavelength λd 621 ----- 631 nm IF=20mA
Spectrum Radiation Bandwidth λ△ ----- 20 ----- nm I
Notes:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 3 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Forward Voltage V
Reverse Current I
=20mA
F
F
R
1.75 -- 2.35 V IF=20mA
----- ----- 10 μA VR=5V
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 4
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs
Bin Range of Luminous Intensity
Bin Code Min. Max. Unit Condition
T2 360 450
U1 450 565
mcd IF=20mA
U2 565 715
V1 715 900
Bin Range of Dominant Wavelength
Group Bin Code Min. Max. Unit Condition
FF1 621 626
F
FF2 626 631
nm IF=20mA
Bin Range of Forward Voltage
Group Bin Code Min. Max. Unit Condition
0 1.75 1.95
B
Notes:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
1 1.95 2.15
2 2.15 2.35
V IF=20mA
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 4 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 5
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs

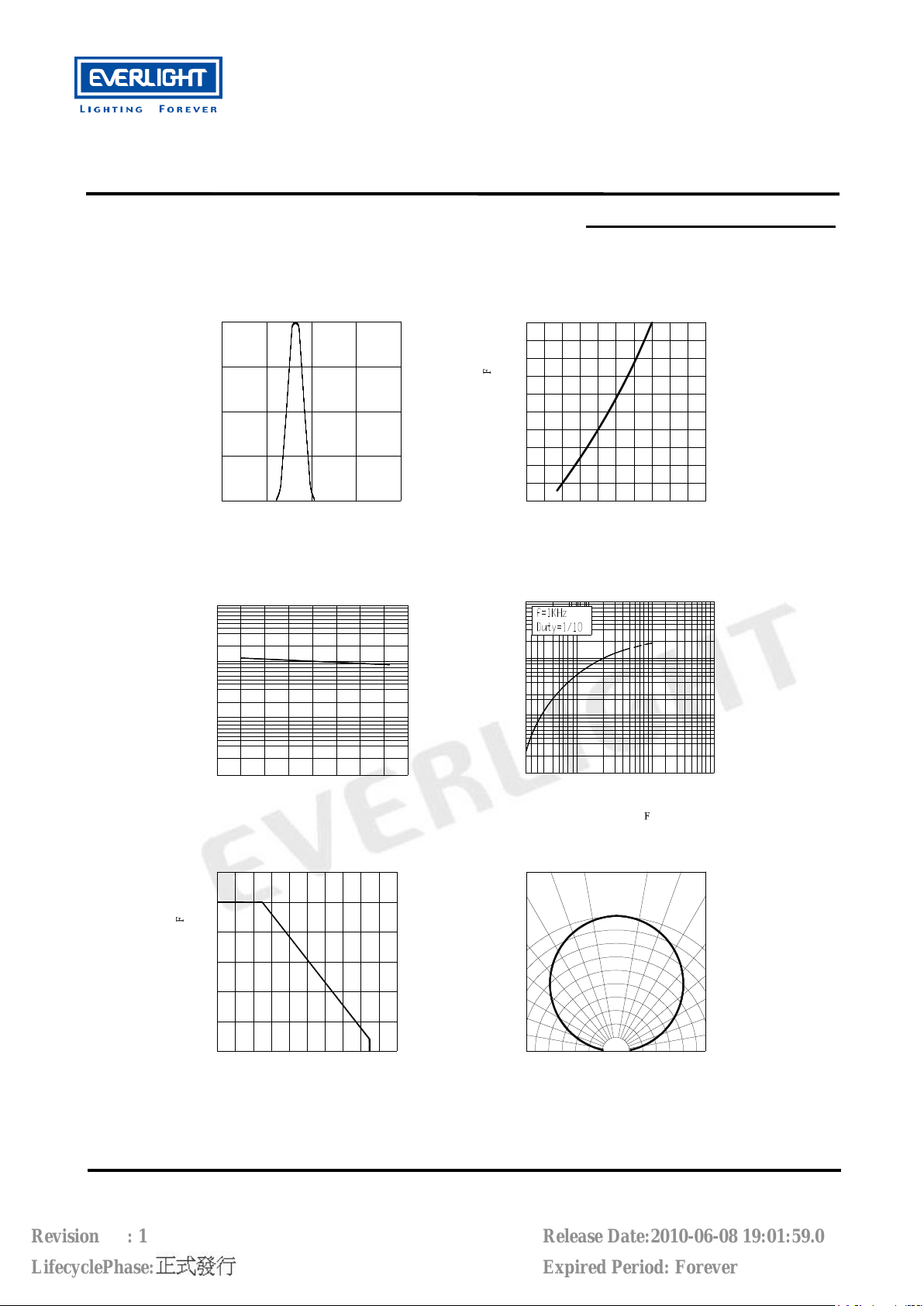

Typical Electro-Optical Characteristics Curves
Relative luminous intensity
)%
(
% ) (
100
75
50
25
1000
100
10
Spectrum Distribution
0
600 650
550
Wavelength λp(nm)
Luminous Intensity vs.
Ambient Temperature
Ta=25°C
700 750
I (mA)
Forward Current
)% (
Forward Current vs.
Forward Voltage
50
40
30
20
10
0
1.2
Forward Voltage V (V)
Luminous Intensity vs
Forward Current
1000
100
10
Ta=25°C
2.82.01.6 2.4 3.0
F
Ta=25°C
Relative luminous intensity
1
-60
60
50
I (mA)
40
30
20
10
Forward Current
0
-20-40 0 206040
Ambient Temperature T (°C
Forward Current Derating Curve
0
402060 10085
Ambient Temperature T (°C
10080
)
a
)
a
Relative luminous intensity
1
0
10
Forward Current
1.0
0.9
0.8
0.7
1
10
Radiation Diagram
10
I (mA)
0° 10° 20°
2
0.40.5 0.3 0.20.1 0.6
3
10
Ta=25°C
30°
40°
50°
60°
70° 80°
90°
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 5 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 6
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs
Label Explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

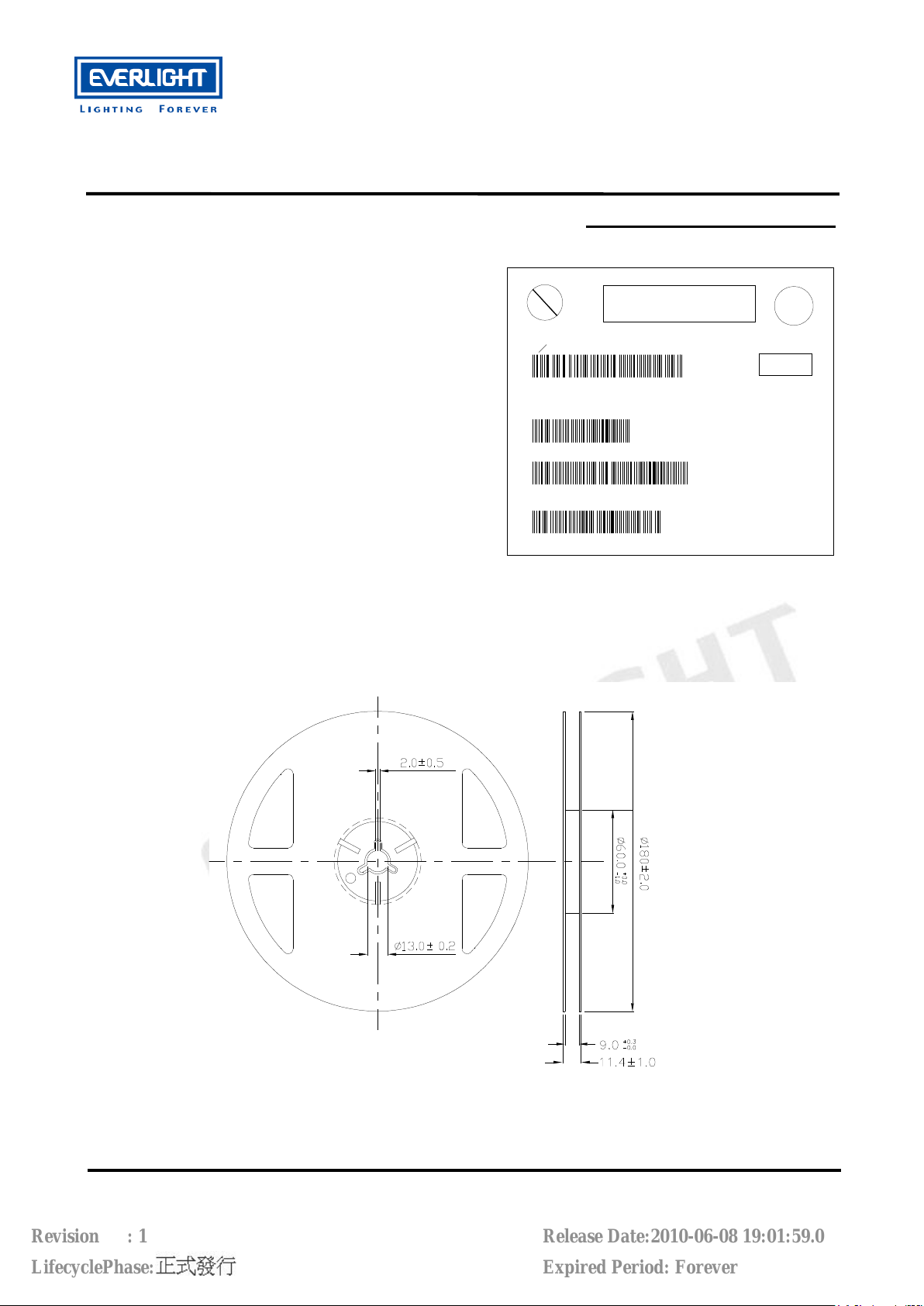

Reel Dimensions
Pb
CPN :
N : XXXXXXXXXXXXX
P
XXXXXXXXXXXXX
QTY : XXX
LOT NO : XXXXXXXXXX
Reference : XXXXXXXX
EVERLIGHT
MADE IN TAIWAN
RoHS
CAT : XXX HUE : XXX REF : XXX
Note: Tolerance unless mentioned is ±0.1mm; Unit = mm
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 6 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 7
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs

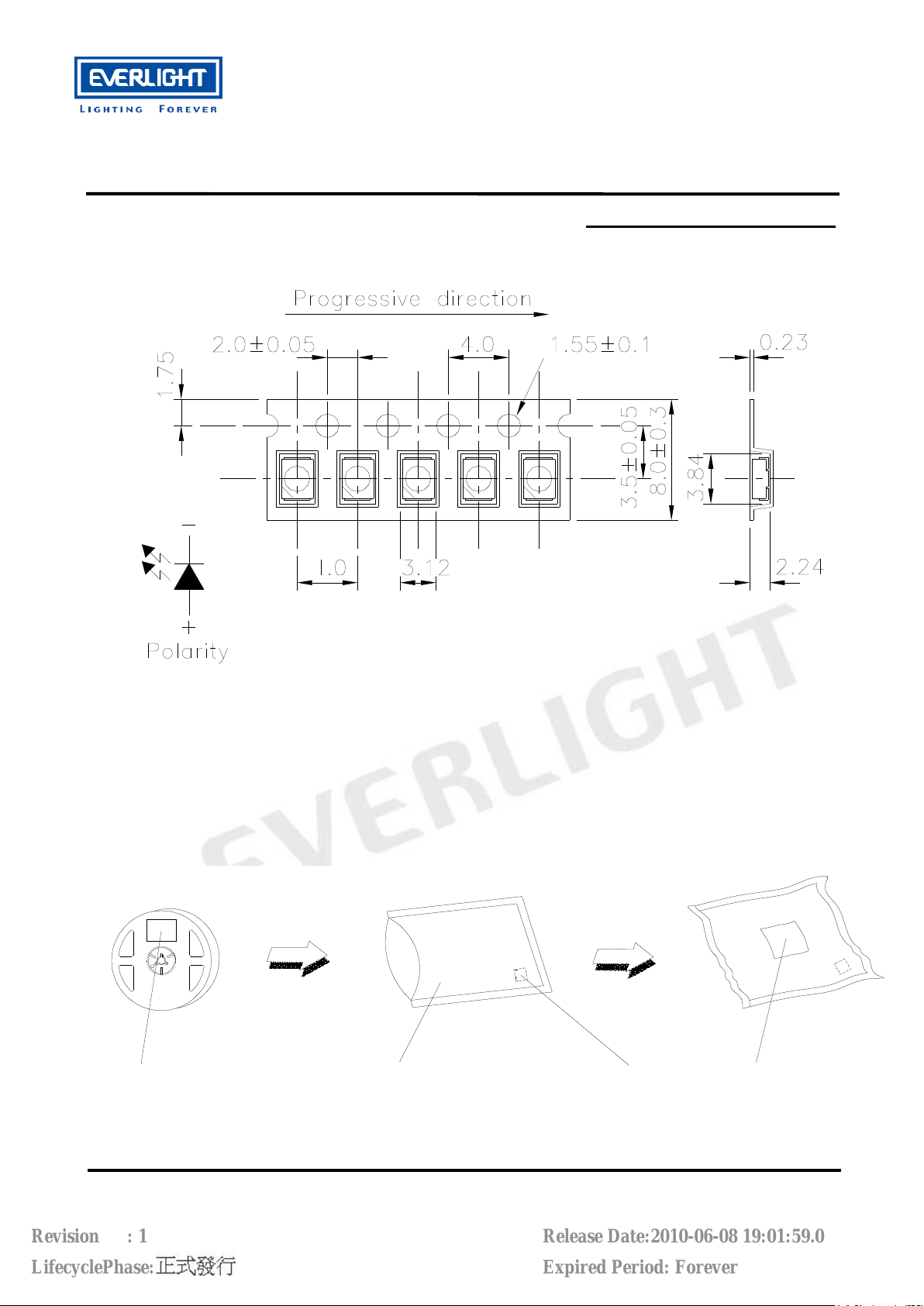

Carrier Tape Dimensions: Loaded Quantity 2000 pcs Per Reel.
Note: Tolerance unless mentioned is ±0.1mm; Unit = mm
Moisture Resistant Packaging
Label
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 7 of 10
Aluminum moistue-proof bag
LabelDesiccant
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 8
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs
Reliability Test Items and Conditions
The reliability of products shall be satisfied with items listed below. Confidence level
:10%
LTPD
:90%
No. Items Test Condition
1 Reflow Soldering
2 Temperature Cycle
3 Thermal Shock
4 High Temperature Storage
5 Low Temperature Storage
Temp. : 260℃±5℃
Min. 5 sec.
H : +100
L : -40℃ 15min
H : +100℃ 5min
L : -10℃ 5min
Temp. : 100℃
Temp. : -40℃
℃ 15min
∫ 5 min
∫ 10 sec
Test
Hours/Cycles
6 Min. 22 PCS 0/1
300 Cycles 22 PCS.
300 Cycles 22 PCS.
1000 Hrs. 22 PCS. 0/1
1000 Hrs. 22 PCS. 0/1
Sample
Size
Ac/Re
0/1
0/1
6 DC Operating Life
7
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 8 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
High Temperature / High
Humidity
I
= 20 mA / 25℃
F
85℃/85%RH
1000 Hrs. 22 PCS. 0/1
1000 Hrs. 22 PCS. 0/1
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 9
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs
Precautions for Use
1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big
current change ( Burn out will happen ).
2. Storage
2.1 Do not open moisture proof bag before the products are ready to use.
2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.
2.3 After opening the package: The LED's floor life is 168hrs under 30℃ or less and 60% RH or
less. If unused LEDs remain, it should be stored in moisture proof packages.
2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.
Baking treatment : 60±5℃ for 24 hours.
3. Soldering Condition

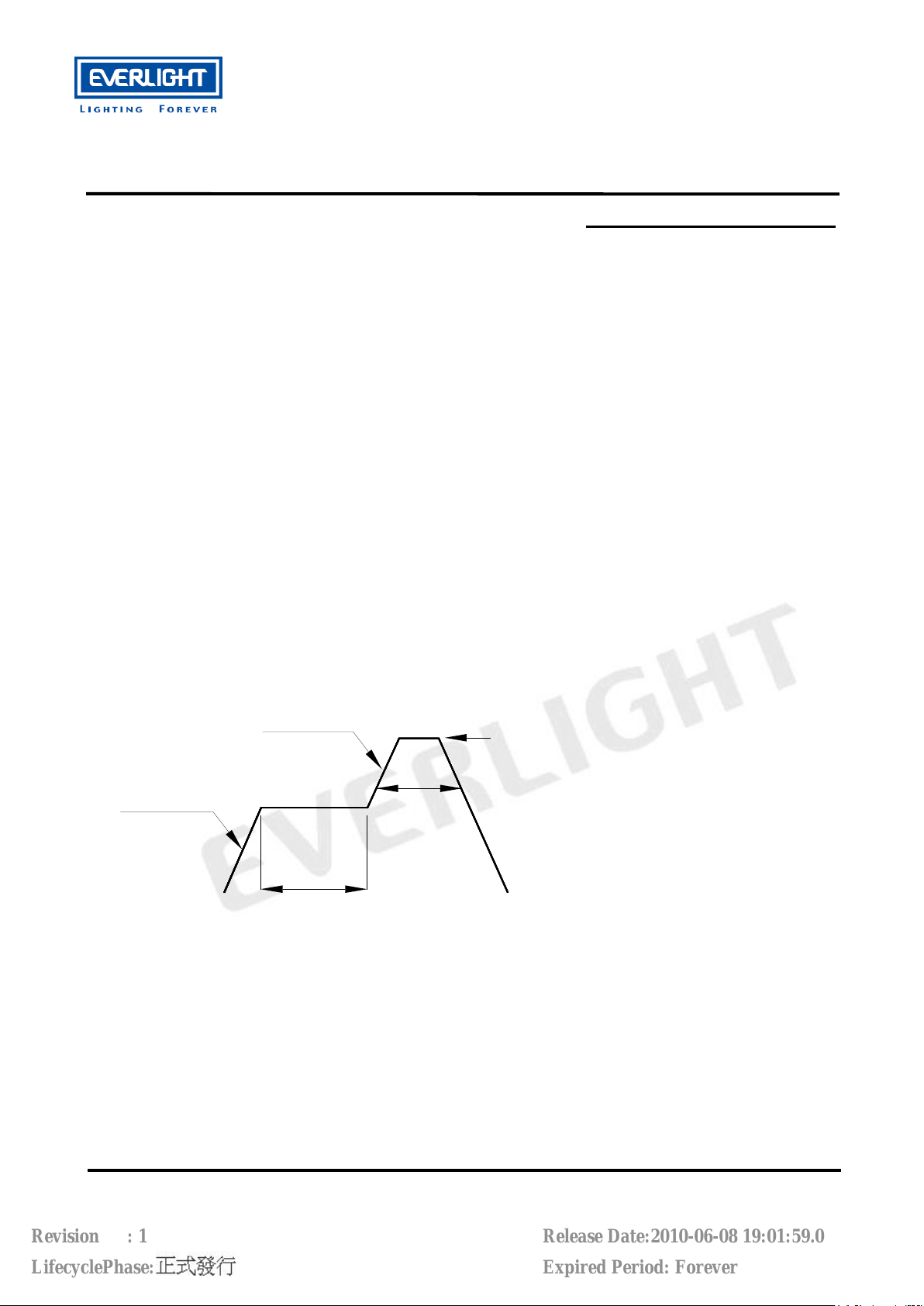

3.1 Pb-free solder temperature profile
1~5 °C / Sec.
260°C. Max.
10 Sec. Max.
1~5 °C / Sec.
3.2 Reflow soldering should not be done more than two times.
3.3 When soldering, do not put stress on the LEDs during heating.
3.4 After soldering, do not warp the circuit board.
Pre-heating
180~200°C
120 Sec. Max.
60 Sec. Max.
Above 220°C
.
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 9 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
Page 10
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet Top View LEDs
4. Soldering Iron
Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds
within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals,
and do soldering of each terminal. Be careful because the damage of the product is often started at
the time of the hand solder.

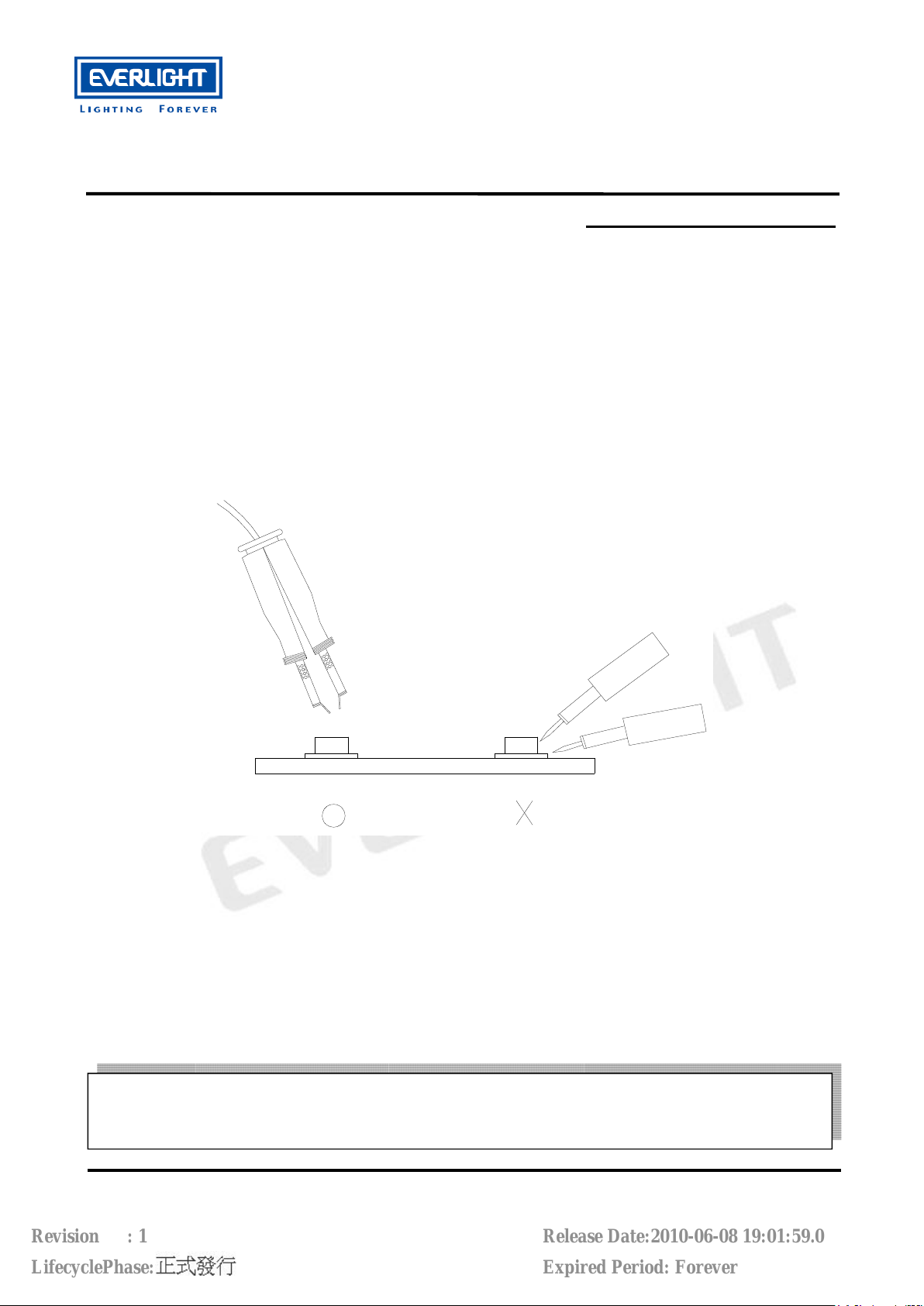

5. Repairing
Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a
double-head soldering iron should be used (as below figure). It should be confirmed beforehand
whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com
Everlight Electronics Co., Ltd. http://www.everlight.com Rev. 1 Page: 10 of 10
Device No. :DSE-0003710 Prepared date: 2-JUNE -2010 Prepared by: Irene Lin
Revision : 1 LifecyclePhase:
Release Date:2010-06-08 19:01:59.0 Expired Period: Forever
