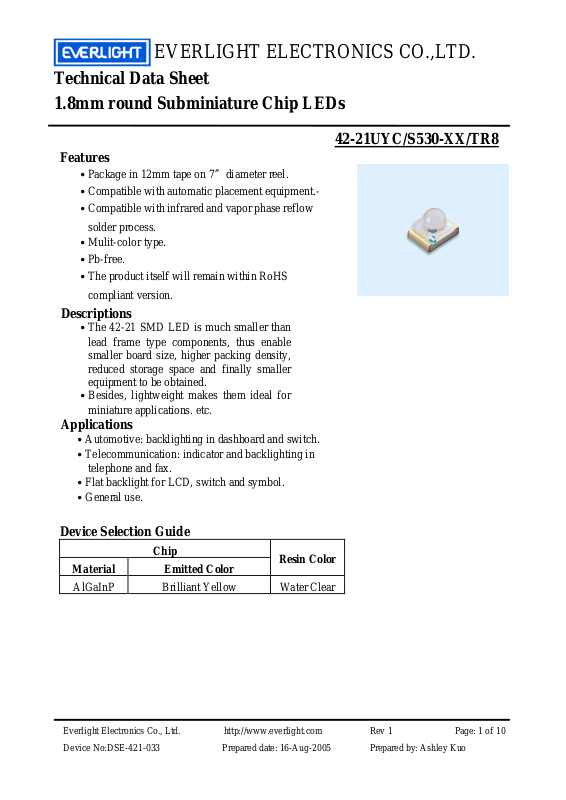

EVERLIGHT EVL 42-21UYC/S52 Datasheet

EVERLIGHT ELECTRONICS CO.,LTD.

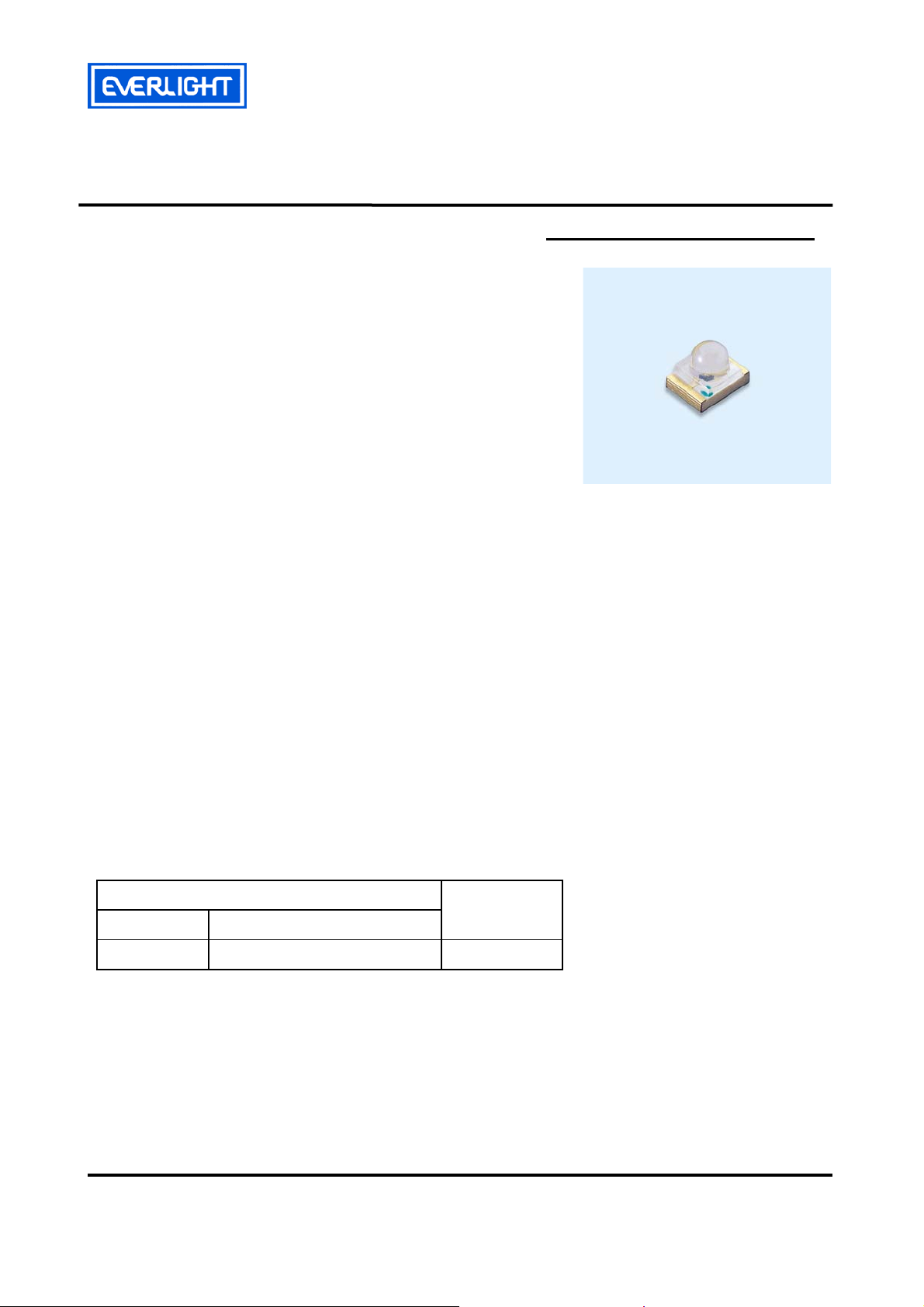

Technical Data Sheet

1.8mm round Subminiature Chip LEDs

42-21UYC/S530-XX/TR8

Features

․Package in 12mm tape on 7〞diameter reel.
․Compatible with automatic placement equipment.-
․Compatible with infrared and vapor phase reflow

solder process.

․Mulit-color type.
․Pb-free.
․The product itself will remain within RoHS

compliant version.

Descriptions

․The 42-21 SMD LED is much smaller than

lead frame type components, thus enable
smaller board size, higher packing density,
reduced storage space and finally smaller
equipment to be obtained.

․Besides, lightweight makes them ideal for

miniature applications. etc.

Applications

․Automotive: backlighting in dashboard and switch.
․Telecommunication: indicator and backlighting in

telephone and fax.

․Flat backlight for LCD, switch and symbol.
․General use.

Device Selection Guide

Chip

Resin Color

Material Emitted Color

AlGaInP Brilliant Yellow Water Clear

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 1 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

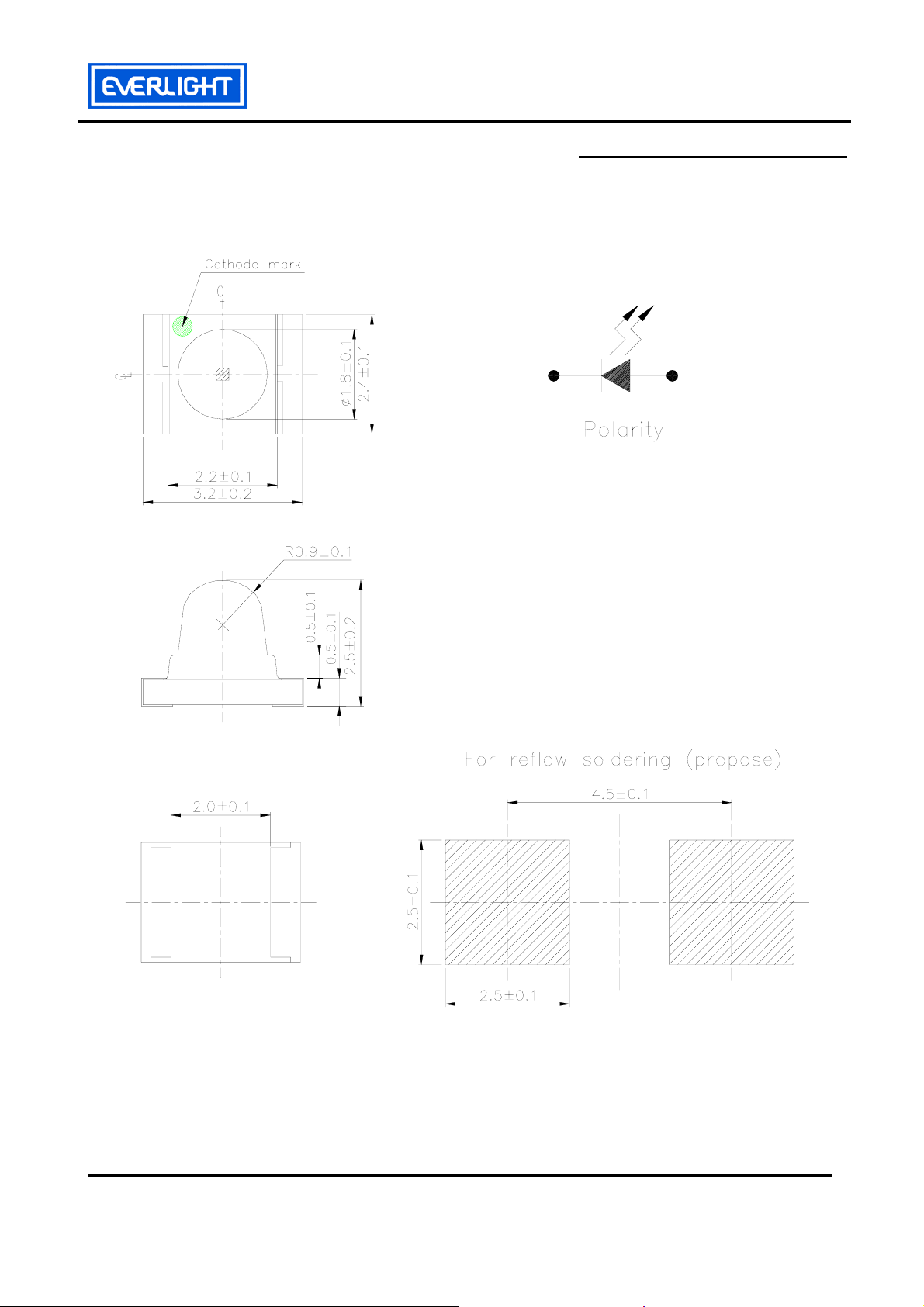

Package Outline Dimensions

42-21UYC/S530-XX/TR8

-

+

Note: The tolerances unless mentioned is ±0.1mm,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 2 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Rating Unit
Reverse Voltage VR 5 V
Forward Current IF 25 mA

Peak Forward Current

(Duty 1/10 @1KHz)

Power Dissipation Pd 60 mW

Electrostatic Discharge(HBM) ESD 2000 V

Operating Temperature Topr -40 ~ +85

Storage Temperature Tstg -40 ~ +90

Soldering Temperature Tsol

IFP 60 mA

Reflow Soldering : 260 ℃ for 10 sec.

Hand Soldering : 350 ℃ for 3 sec.

℃
℃

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 3 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

Electro-Optical Characteristics (Ta=25℃)

Parameter Symbol

Luminous Intensity Iv

Viewing Angle 2θ1/2 ----- ----- 20 ----- deg IF=20mA

Peak Wavelength λp ----- ----- 591 ----- nm IF=20mA

Dominant Wavelength

λd ----- ----- 589 ----- nm

Spectrum Radiation

Bandwidth

△λ ----- ----- 15 ----- nm

*Chip

Rank

A2
A3
A4
A5
A6

Min. Typ. Max. Unit Condition

99
230
329
395
493

247 ----­362 ----­493 ----­625 ----­723 -----

mcd IF=20mA

IF=20mA

IF=20mA

Forward Voltage VF

Reverse Current IR ----- ----- ----- 10 μA

----- 1.7 2.0 2.4

*42-21UYC/S530-XX/TR8

Chip Rank

V

IF=20mA

VR=5V

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 4 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

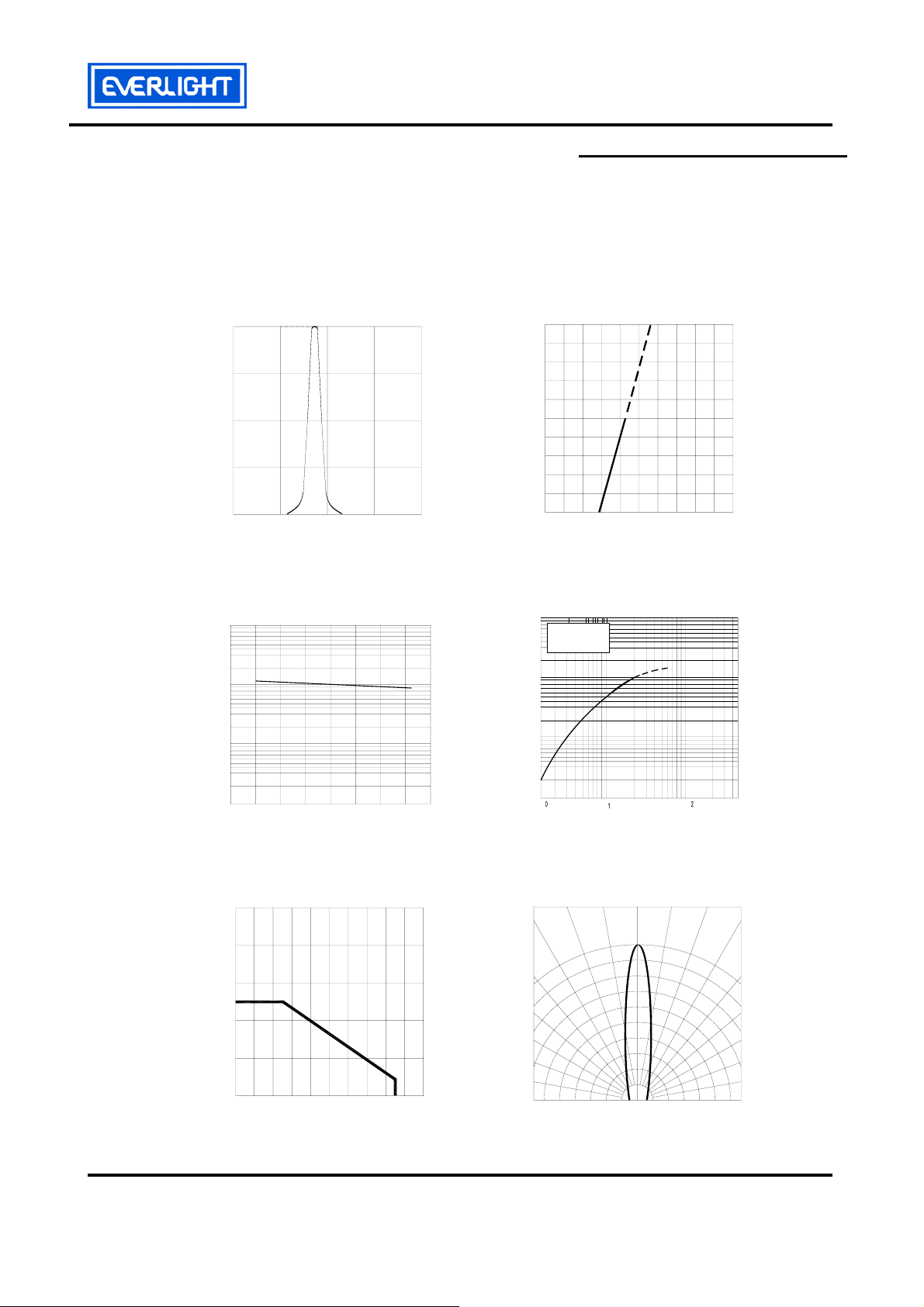

Typical Electro-Optical Characteristics Curves

)

%

(

Relative luminous intensity

)

%

(

Spectrum Distribution

100

75

50

25

0

500

550 600

Wavelength λ (nm)

Luminous Intensity vs.

Ambient Temperature

1000

100

10

Ta=25°C

650 700

Forward Current vs.
Forward Voltage

50

40

I (mA)

F

30

25
20

10

Forward Current

0

1.2

Forward Voltage V (V)

Luminous Intensity vs

Forward Current

1000

)

f

=

K

100

10

1

u

D

t

y

%

(

Ta=25°C

2.82.01.6 2.4 3.0

F

Ta=25°C

z

H
=

1

/

1

0

Relative luminous intensity

Relative luminous intensity

1

-60

50

40

I (mA)

F

30
25

20

10

Forward Current

0

-20-40 0 206040 10080

Ambient Temperature Ta (°C)

Forward Current Derating Curve

0

Ambient Temperature Ta (°C)

402060 10085

1

10

Forward Current

Radiation Diagram

1.0

0.9

0.8

0.7

10

0° 10°

10

I (mA)

F

Ta=25°C

20°

0.40.30.5 0.1 0.2

30°

40°

50°

60°

70°

80°
90°

0.6

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 5 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

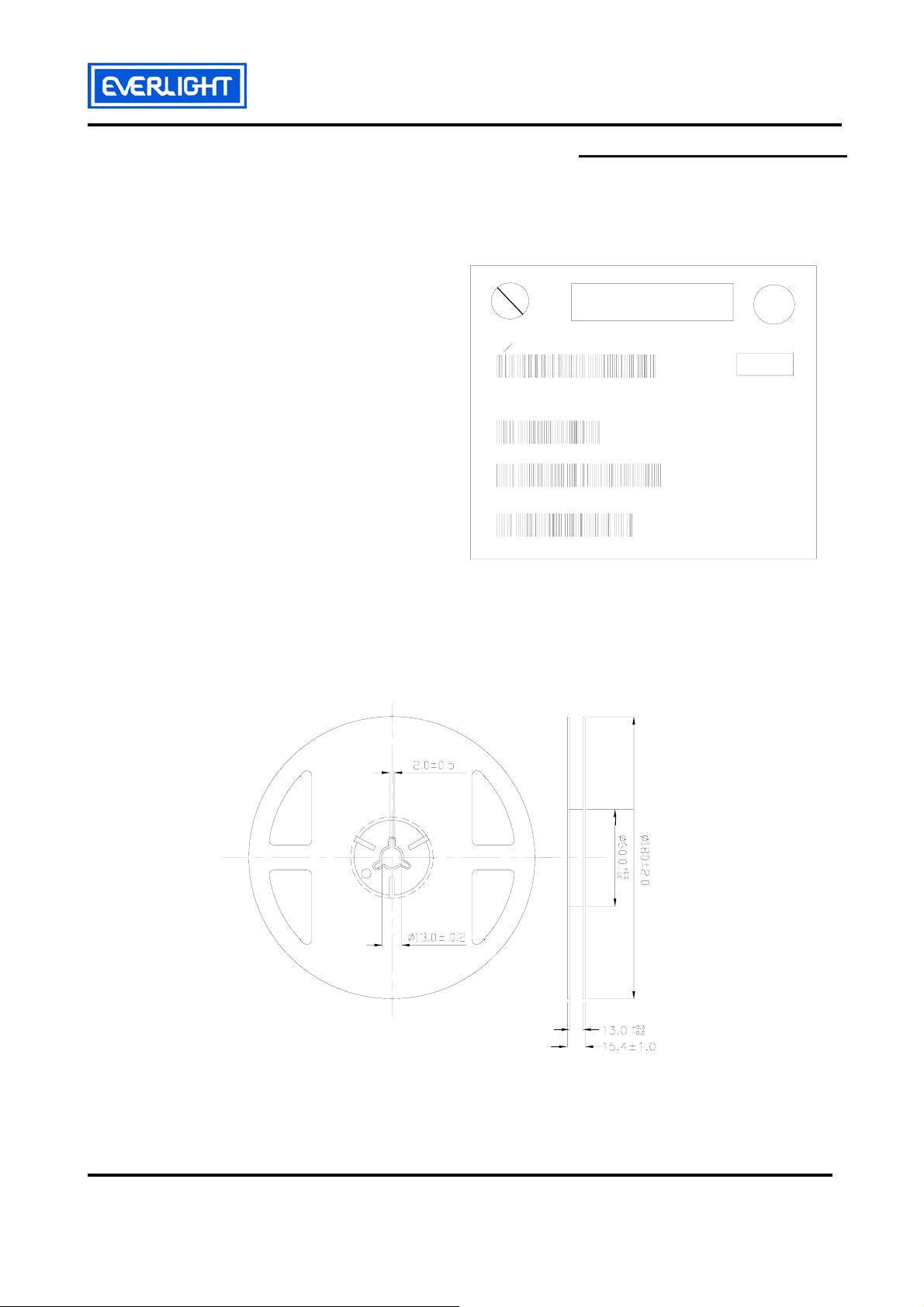

Label Explanation

CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank

Pb

CPN :
P

N : XXXXXXXXXXXXX

XXXXXXXXXXXXX

QTY : XXX

LOT NO : XXXXXXXXXX

Reference : XXXXXXXX

EVERLIGHT

MADE IN TAIWAN

Reel Dimensions

RoHS

CAT : XXX
HUE : XXX
REF : XXX

Note: Tolerances Unless Dimension ±0.1mm,Unit = mm

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 6 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

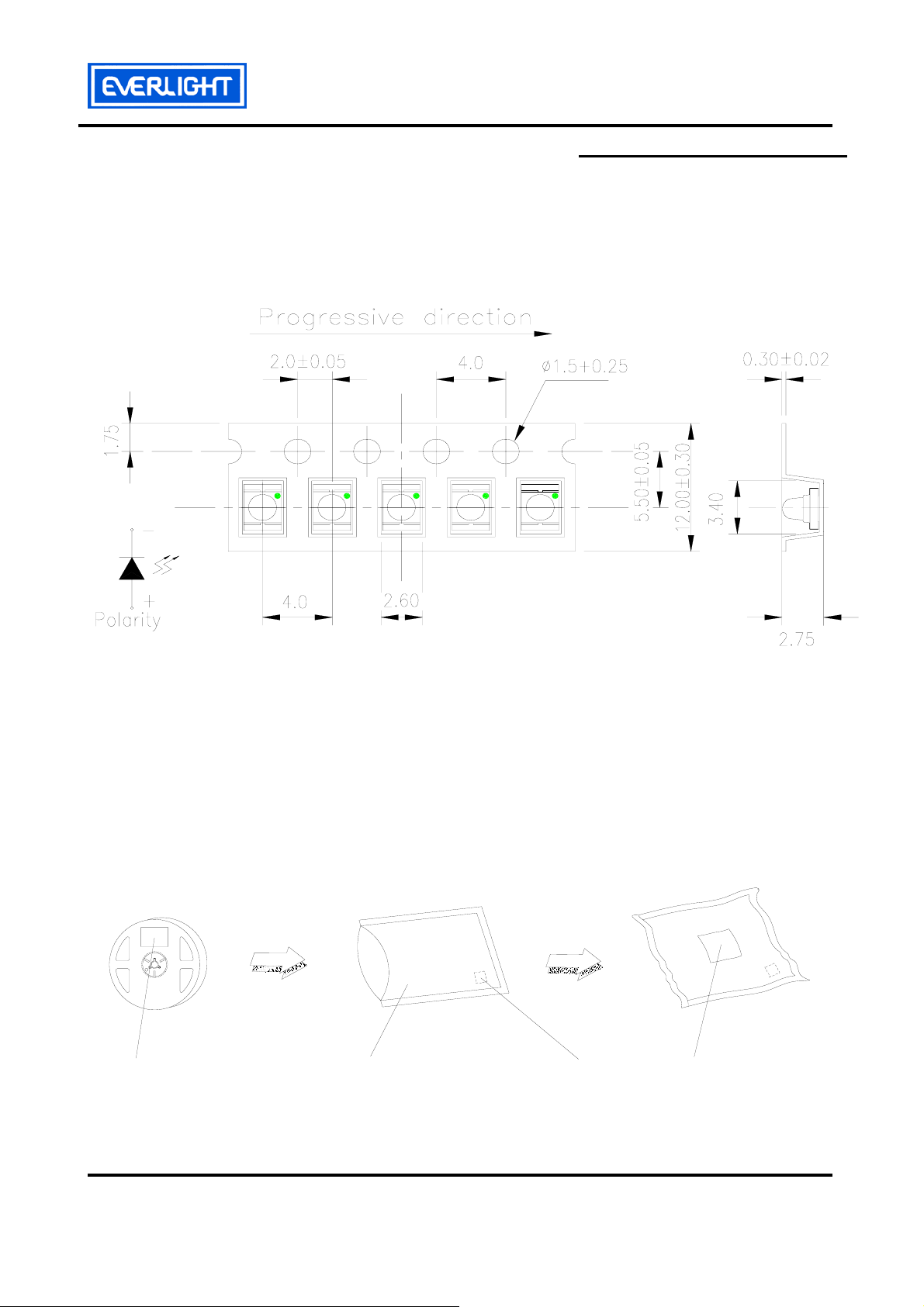

Carrier Tape Dimensions: Loaded quantity 1000 PCS per reel

Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm

Moisture Resistant Packaging

Label

Aluminum moisture-proof bag

Desiccant Label

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 7 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

Reliability Test Items And Conditions

The reliability of products shall be satisfied with items listed below.
Confidence level：90%

LTPD：10%

No. Items Test Condition

Test

Hours/Cycles

Temp. : 260℃±5℃

1 Reflow Soldering

Min. 5sec.

6 Min.

H : +100℃ 15min

2 Temperature Cycle

∫ 5 min

300 Cycles

L : -40℃ 15min

H : +100℃ 5min

3 Thermal Shock

∫ 10 sec

300 Cycles

L : -10℃ 5min

4

High Temperature

Temp. : 100℃

1000 Hrs.

Storage

5

Low Temperature

Temp. : -40℃

1000 Hrs.

Storage

6 DC Operating Life IF = 20 mA

1000 Hrs.

Sample

Ac/Re

Size

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

22 PCS. 0/1

7

High Temperature /

85℃/ 85%RH

1000 Hrs.

22 PCS. 0/1

High Humidity

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 8 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

Precautions For Use

1. Over-current-proof
Customer must apply resistors for protection, otherwise slight voltage shift will cause big
current change ( Burn out will happen ).

2. Storage

2.1 Do not open moisture proof bag before the products are ready to use.

2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less.

2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less.
If unused LEDs remain, it should be stored in moisture proof packages.

2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the
storage time, baking treatment should be performed using the following conditions.

Baking treatment : 60±5℃ for 24 hours.

3. Soldering Condition

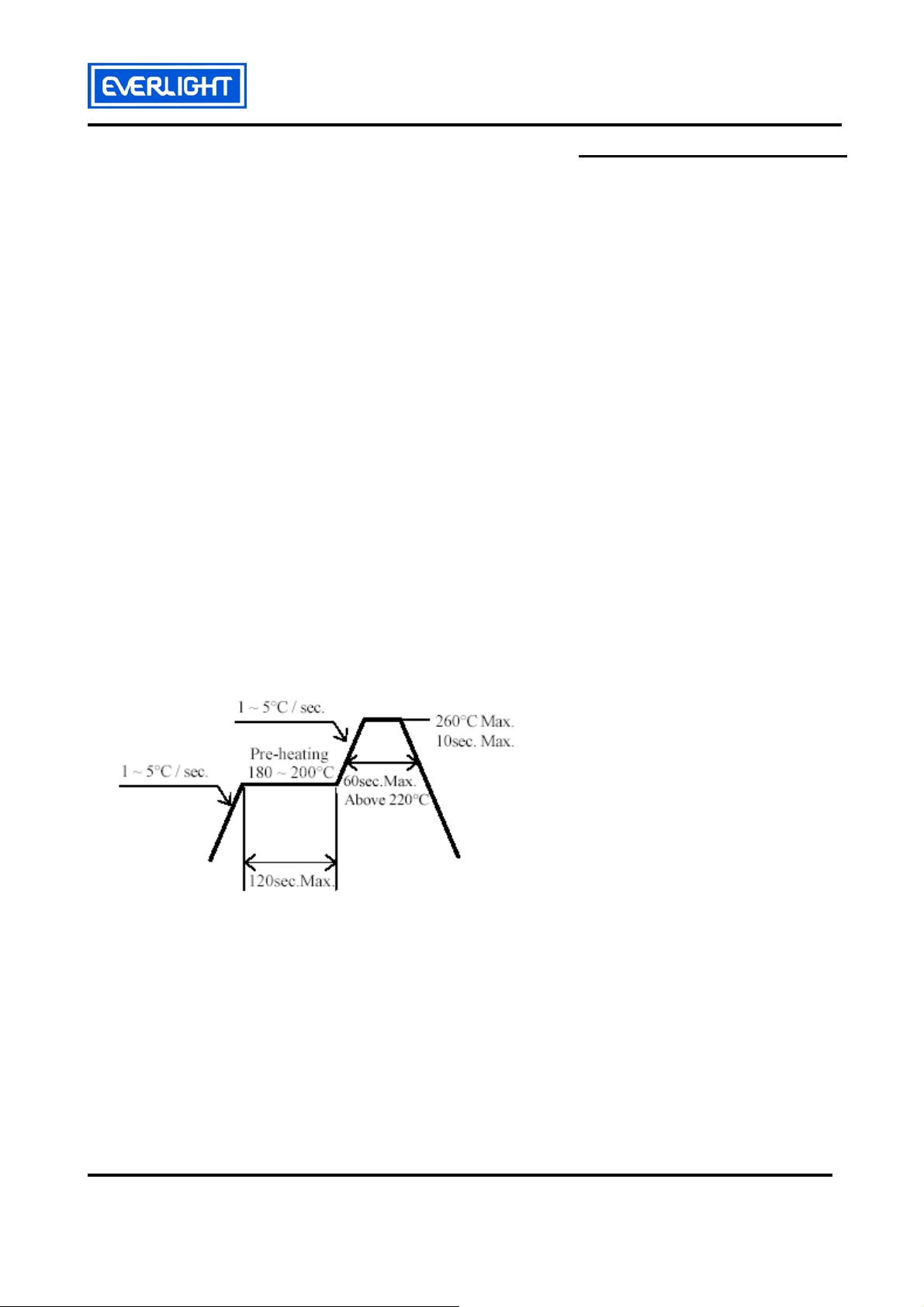

3.1 Pb-free solder temperature profile

3.2 Reflow soldering should not be done more than two times.

3.3 When soldering, do not put stress on the LEDs during heating.

3.4 After soldering, do not warp the circuit board.

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 9 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo

EVERLIGHT ELECTRONICS CO.,LTD.

42-21UYC/S530-XX/TR8

4.Soldering Iron

Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3

seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more
intervals, and do soldering of each terminal. Be careful because the damage of the product is often
started at the time of the hand solder.

5.Repairing
Repair should not be done after the LEDs have been soldered. When repairing is
unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed
beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

EVERLIGHT ELECTRONICS CO., LTD. Tel: [phone]
Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: [phone]
Tucheng, Taipei 236, Taiwan, R.O.C http://www.everlight.com

Everlight Electronics Co., Ltd. http://www.everlight.com Rev 1 Page: 10 of 10

Device No:DSE-421-033 Prepared date: 16-Aug-2005 Prepared by: Ashley Kuo
