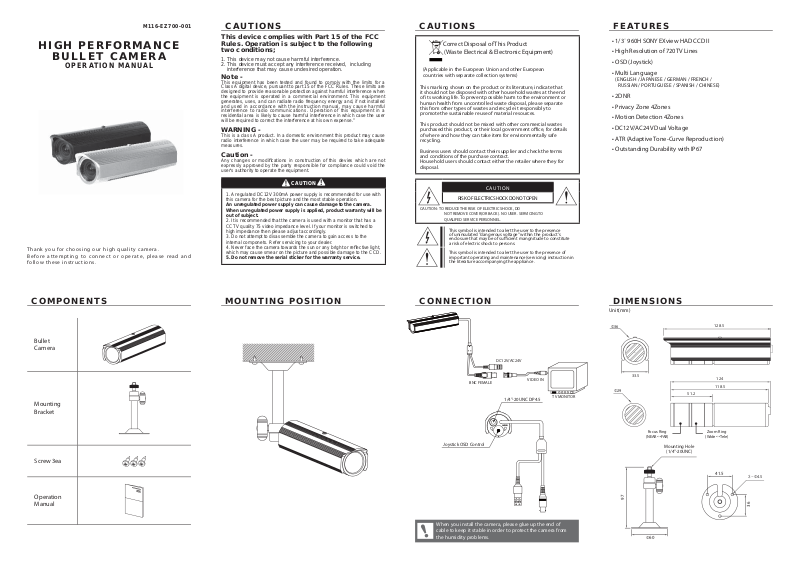

EverFocus EZ700W, EZ700B User Manual

M116-EZ700-001

HIGH PERFORMANCE

BULLET CAMERA

OPERATION MANUAL

Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and
follow these instructions.

CAUTIONS CAUTIONS

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

Note -

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.”

WARNING -

This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Caution -

Any changes or modifi cations in construction of this devies which are not
expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

CAUTION

1. A regulated DC12V 300mA power supply is recommended for use with
this camera for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be
out of subject.

2. It is recommended that the camera is used with a monitor that has a
CCTV quality 75 video impedance level. If your monitor is switched to
high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the
internal componets. Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or refl ective light,
which may cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European
countries with separate collection systems)

This marking shown on the product or its literature, indicate that
it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes
purchased this product, or their local government o ce, for details
of where and how they can take item for environmentally safe
recycling.

Business users should contact their supplier and check the terms
and conditions of the purchase contract.
Household users should contact either the retailer where they for
disposal.

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER(OR BACK). NO USER. SERVICING TO
QUALIFED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's
enclosure that may be of su cient mangnitude to constitute
a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of
important operating and maintenance(servicing) instruction in
the literature accompanying the appliance.

CAUTION

FEATURES

• 1/3¨ 960H SONY EXview HAD CCD II

• High Resolution of 720TV Lines

• OSD (Joystick)

• Multi Language

(ENGLISH / JAPANESE / GERMAN / FRENCH /
RUSSIAN / PORTUGUESE / SPANISH / CHINESE)

• 2DNR

• Privacy Zone 4Zones

• Motion Detection 4Zones

• DC12V/AC24V Dual Voltage

• ATR (Adaptive Tone-Curve Reproduction)

• Outstanding Durability with IP67

COMPONENTS MOUNTING POSITION CONNECTION DIMENSIONS

Unit(mm)

36

Ф

Bullet
Camera

DC12V/AC24V

33.5

29

Ф

Focus Ring

(NEAR׳FAR)

Mounting Hole

(1/4"-20UNC)

97

Ф

60

Mounting
Bracket

Screw 3ea

Operation
Manual

BNC FEMALE

Joystick OSD Control

When you install the camera, please glue up the end of
cable to keep it stable in order to protect the camera from
the humidity problems.

VIDEO IN

1/4"-20UNC DP4.5

TV MONITOR

128.5

124

118.5

51.2

Zoom Ring

(Wide׳Tele)

41.5

3-Ф

4.5

36

OSD MENU STRUCTURE

MAIN MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU

MODE SHUT
BRIGHTNESS 000 ~ 255
MODE AGC,OFF
BRIGHTNESS x0.25,x0.50,x0.75,x1.00

1/50(PAL),1/60(NTSC)
1/100(NTSC),
1/120(PAL),1/250,1/500,
1/1000,1/2000,1/4000,1/10000

NTSC: 21 ~ 58
PAL: 21 ~ 63

LOW,MIDLOW,MID,
MIDHIGH,HIGH

OFF,ON,ENABLE
(CONTROLER)

1/4, 2/4, 3/4, 4/4

TOP

BOTTOM

LEFT

RIGHT

NTSC: 000 ~ 244
PAL:000 ~ 288
NTSC: 000 ~ 244
PAL:000 ~ 288
NTSC: 000 ~ 474
PAL:000 ~ 468
NTSC: 000 ~ 474
PAL:000 ~ 468

SHUTTER/
AGC

WHITE BAL

BACK LIGHT

PIC ADJUST

ATR

MOTION DET

NEXT
EXIT
SAVE ALL

AUTO

MANUAL

ATW

PUSH

USER1

USER2

ANTI CR

MANUAL

PUSH LOCK

OFF,BLC,HLC

MIRROR
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
GAIN
RETURN

ON

OFF

ON

OFF

HIGH LUMINANCE

LOW LUMINANCE

RETURN
MODE SHUT+AGC

SHUTTER

AGC 6,12,18,24,30,36,42,44.8
RETURN
SPEED 000 ~ 255
DELAY CNT 000 ~ 255
ATW FRAME x0.50,x1.00,x1.50,x2.00
ENVIRONMENT INDOOR, OUTDOOR
RETURN

B-GAIN 000 ~ 255
R-GAIN 000 ~ 255
RETURN
B-GAIN 000 ~ 255

R-GAIN 000 ~ 255

RETURN

LEVEL

RETURN

OFF,ON

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

LUMINANCE LOW,MID,HIGH

CONTRAST

RETURN

DETECT SENSE 000 ~ 127

BLOCK DISP

MONITOR AREA ON,OFF

AREA SEL

RETURN

MAIN MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU

PRIVACY

DAY / NIGHT

NR

CAMERA ID

LANGUAGE
CAMERA

RESET
BACK
EXIT
SAVE ALL

ON

OFF

AUTO

COLOR
B/W

NR MODE
Y LEVEL
C LEVEL
RETURN

ON

OFF
ENGLISH /

AREA SEL

COLOR 1 ~ 8
TRANSP 0.00, 0.50, 0.75, 1.00
MOSAIC OFF,ON
RETURN

BURST ON , OFF
DELLY CNT 0 ~255
DAY -> NIGHT 0 ~255
NIGHT -> DAY 0 ~255

BURST ON , OFF

OFF,Y,C,Y/C

000 ~ 015

000 ~ 015

EDIT MODE
RETURN

/ DEUTSCH / FRANCAIS /

日本語

1/4, 2/4, 3/4, 4/4

TOP

BOTTOM

LEFT

RIGHT

/ PORTUGUÊS / ESPAÑOL /

Русский

中文

NTSC: 000 ~ 244
PAL:000 ~ 288
NTSC: 000 ~ 474
PAL:000 ~ 468
NTSC: 000 ~ 474
PAL:000 ~ 468

SPECIFICATION

Signal Format NTSC PAL

Image Device 1/3” 960H SONY EXview HAD CCD II

Scanning
System

H.Resolution

Scanning
Frequency

15.734KHz(H),

59.94Hz(V )

2 : 1 Interlace

720TV Lines

15.625KHz(H),
50Hz(V )

Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)

E ective Pixels 976(H) X 494(V ) 976(H) X 582( V)

Electronic
Shutter Speed

1/60~1/100,000sec 1/50~1/100,000sec

S/N Ratio More than 50dB(AGC OFF)

Gamma r =0.45

Min.Illumination 0.06Lux(30 IRE@F1.2)

Sync System Internal

Video Output 1.0 Vp-p Composite 75(Ω) unbalanced

OSD Built in

BLC OFF/BLC/HLC

White
Balance

ATW/PUSH/USER1/USER2/ANTI CR/

MANUAL/PUSH-LOCK

2DNR OFF/ON(Level adjustable)

ATR OFF/ON(Level adjustable)

Privacy
Masking

4 Zones

Motion
Detection

4 Zones

Day & Night Color / BW / Auto(Digital D&N)
Lens f3.5 ~ 16.0mm

Language

Input Power
Source

Operating
Temperature

Storage
Temperature

ENGLISH / JAPANESE / GERMAN /

FRENCH / RUSSIAN /

PORTUGUESE / SPANISH / CHINESE

DC12V (±10%) Max 100mA

AC 24V (±10%) Max 1.3W

14°F~122°F (-10°C~+50°C)

-4°F~140°F (-20°C~+60°C)

Environmental IP67

Dimension Ø29 x 118.5mm

Speci cations and designs are subject to change for improving

the functionality of this product without notice.

UP

MENU

(SELECTION KEY)

LEFT

DOWN

RIGHT
