EverFocus EZ430 User Manual

EverFocus

Operation Instruction

Volume

1

11//33”” CCCCD

CCaam

meerraa,,

D

OOuuttddoooorr IIRR BBuulllleett CCoolloorr

wiitthh VVaarrii--ffooccaall

w

EEZZ443300

Operation Instruction

 2008 EverFocus Electronics Corp

Please read this manual first for correct installation and operation. This manual should be retained for
future reference. The information in this manual was current when published. The manufacturer
reserves the right to revise and improve its products. All specifications are therefore subject to change
without notice.

All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or

by any means without written permission of the EverFocus Electronics Corporation.

Precautions

1. Do not place any object on top of the cover.

2. Be careful when handling the camera, do not drop it or subject it to strong shock or vibration to

prevent any damages to it. Do not disassemble it or place it on an unstable base.

3. Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio

speakers because the magnetic fields generate from above devices will distort the video image.

4. Install the camera away from stoves, or other heat generating devices as the high temperature

could cause deformation, discoloration or other damages of the camera. Install the camera at
where the temperature range will stay between -40°C to 50°C (-40°F to 122°F).

5. Never aim the camera at the sun or other extremely bright objects whether it is in use or not.

6. Do not touch the surface of CCD sensor by hand directly. Use a soft cloth to remove the dirt

from the camera body. Use lens tissue or a cotton tipped applicator and ethanol to clean the
CCD sensor and the camera lens. When the camera is not in use, put the cover cap on the lens
mount.

7. All warnings on the products and in the operating instructions should be adhered to.

8. Do not use attachments not recommended by the appliance manufacturer as they may cause

hazards.

9. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will

be abused by persons walking on it.

10. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

11. Never push objects of any kind into his appliance through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in fire or electric shock.

12. Refer all work related to the installation of this product to qualified service personnel or system

installers.

Federal Communication Commission Interference

Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Table of Contents

1. Product Overview…………………………………………………….…5

1.1 Features ............................................................................5

1.2 Accessory Parts List.........................................................6

1.3 Specifications ...................................................................7

1.4 Dimensions........................................................................8

1.5 Camera Component Description.....................................10

1.6 Back Panel Layout ..........................................................11

2. INSTALLATION ………………………………………………………….12

2.1 Wiring and Mounting .......................................................12

2.2 Adjusting Camera Position .............................................13

2.3 Adjusting Image..............................................................14

4

CHAPTER 2 INSTALLATION

CHAPTER 1 PRODUCT OVERVIEW

Chapter

1

Product Overview

The EverFocus EZ430 is a true day/night weatherproof IR bullet style color camera.
Engineered with a motorized lens controller, you can adjust the zoom, focus and IRIS
level with a simple touch of a button located on the back panel of the camera housing.
EZ430 provides Cable Management Solution, allowing you to place cable wires inside
the camera housing and bracket to eliminate messy wiring and damage. Vandal resistant
and weatherproof IP66 rated, the EZ430 is perfect for any outdoor surveillance under
the most extreme weather conditions.

1.1 F eatures

 520 TVL of excellent high resolution technology
 Up to 30 meters/98 ft. of IR range
 Vari-focal lens to offer you a wide variety of angle viewing
 High sensitivity with SONY Super HAD CCD
 True Day/Night function with removable IR cut filter
 Motorized lens controller for easy zoom and focus adjustment
 IRIS level adjustment
 Cable wires are placed inside camera bracket to eliminate messy wiring and damage
 Intelligent Vari-frequency of IR control to save electricity and make brightness balance
 Split glass design to avoid LED light reflection
 Up to 20,000 hours of high IR LED lifespan
 Vandal resistant for intentional destruction
 Weatherproof and IP66 rated

5

CHAPTER 2 INSTALLATION

CHAPTER 1 PRODUCT OVERVIEW

1.2 Accessory Parts List

Please be careful when you unpack the box due to the electronics devices inside. Check

and make sure that you have all the items listed below inside the original box:
Camera Unit x 1
Bracket x 1 (Connected with camera body)
Operation Manual x 1
Mounting kit includes:

-Long Screws x 4 (for mounting bracket)

-Expanding Screws x 4

-Washer x 4

-Hex key Wrench x1

Please Note: If an item appears to have been damaged in shipment, replace it properly in its

carton and notify the shipper. If any items are missing, notify your EverFocus Electronics Corp.

Sales Representative or Customer Service. The shipping carton is the safest container in which

the unit may be transported. Save it for possible future use.

6

CHAPTER 1 PRODUCT OVERVIEW

CHAPTER 2 INSTALLATION

1.3 Specifications

Items Parameter
Pickup Device 1/3” SONY Super HAD CCD
Video Format NTSC or PAL

NTSC:525 TV lines, 60 fields/sec

Scanning System

Picture Elements 768 x 494(NTSC); 752 x 582 (PAL)
Horizontal Resolution 520 TV lines
Sensitivity 0.4 Lux / F=1.2(IR OFF) ; 0 Lux (IR ON)
S/N Ratio Over 48 dB(AGC Off )
Electronic Shutter 1/50(1/60)~1/100,000
Lens Type Vair-focal lens, f=2.9~10mm , f=9~22mm

PAL:625 TV lines, 50 fields/sec.

Back Light Comp. Yes
Auto Gain Control Yes
Auto White Balance Yes(2500°K ~9000°K)
True Day & Night Yes
Gamma Correction 0.45
Video Output BNC 1.0Vp-p, 75ohm
Sync. Mode Internal sync.
Power Source 12VDC/24VAC

12VDC:12W max. (Heater On & IR LED On)

Power Consumption

24VAC:15W max. (Heater On & IR LED On)
88mm(W) x 235.3mm(D) x 174.2mm(H);

Dimensions

3.46”(W)x 9.26”(D) x 6.86”(H)
Weight 1.15kg ; 2.53lbs
Operating Temperature -40℃ ~ 50℃; -40℉~122℉ (20%~80% Humidity)
IR Distance 30M / 98 feet
IR Wavelength 850nm
IR LED Lifespan 20,000 hours
Weatherproof IP66
Vandal Resistant Yes
Heater Yes, built-in
Certifications FCC/CE

7

CHAPTER 2 INSTALLATION

CHAPTER 1 PRODUCT OVERVIEW

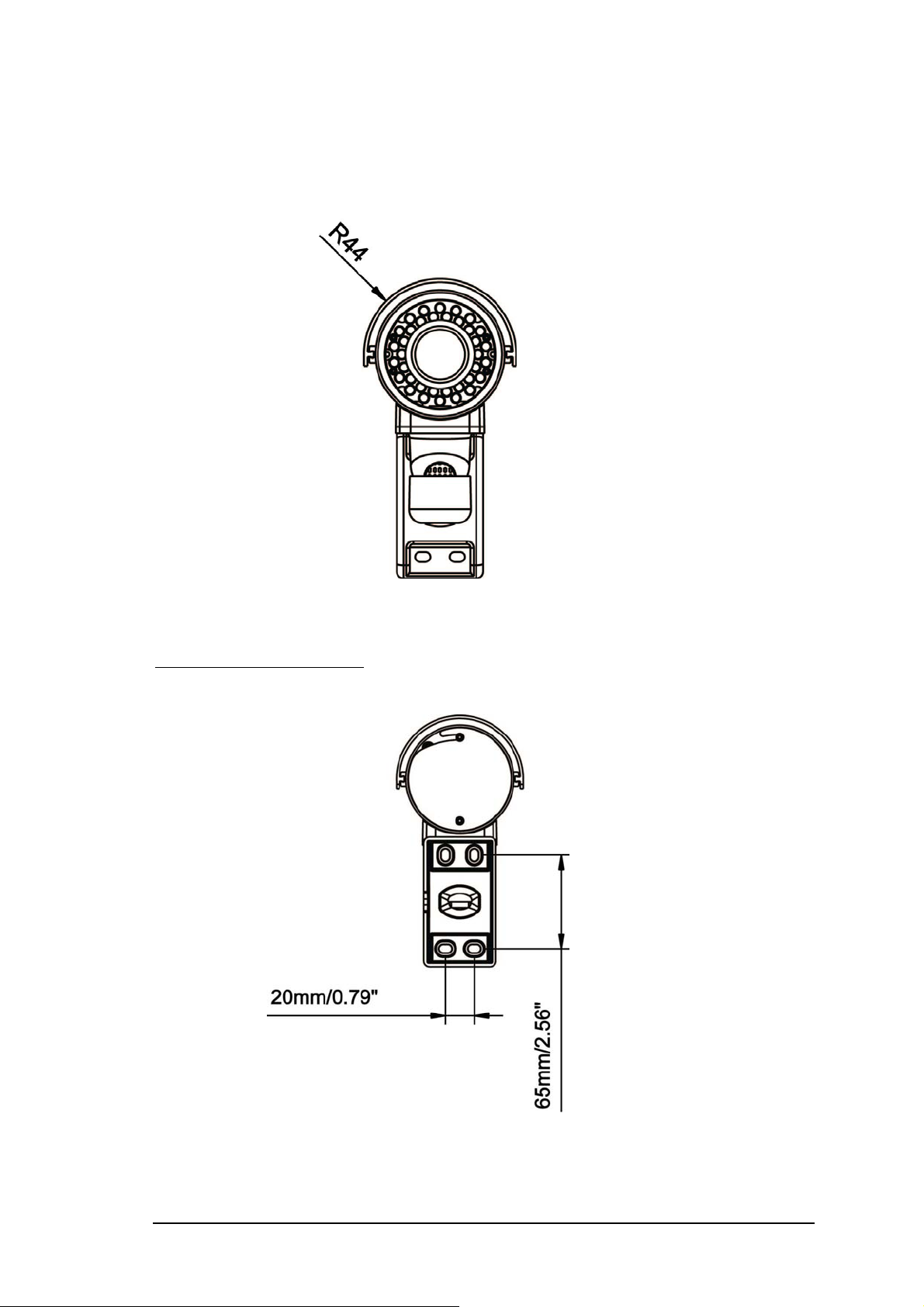

1.4 Dimensions

Radius: 88mm/3.46 inches

Dimension of holes to holes

8

CHAPTER 2 INSTALLATION

CHAPTER 1 PRODUCT OVERVIEW

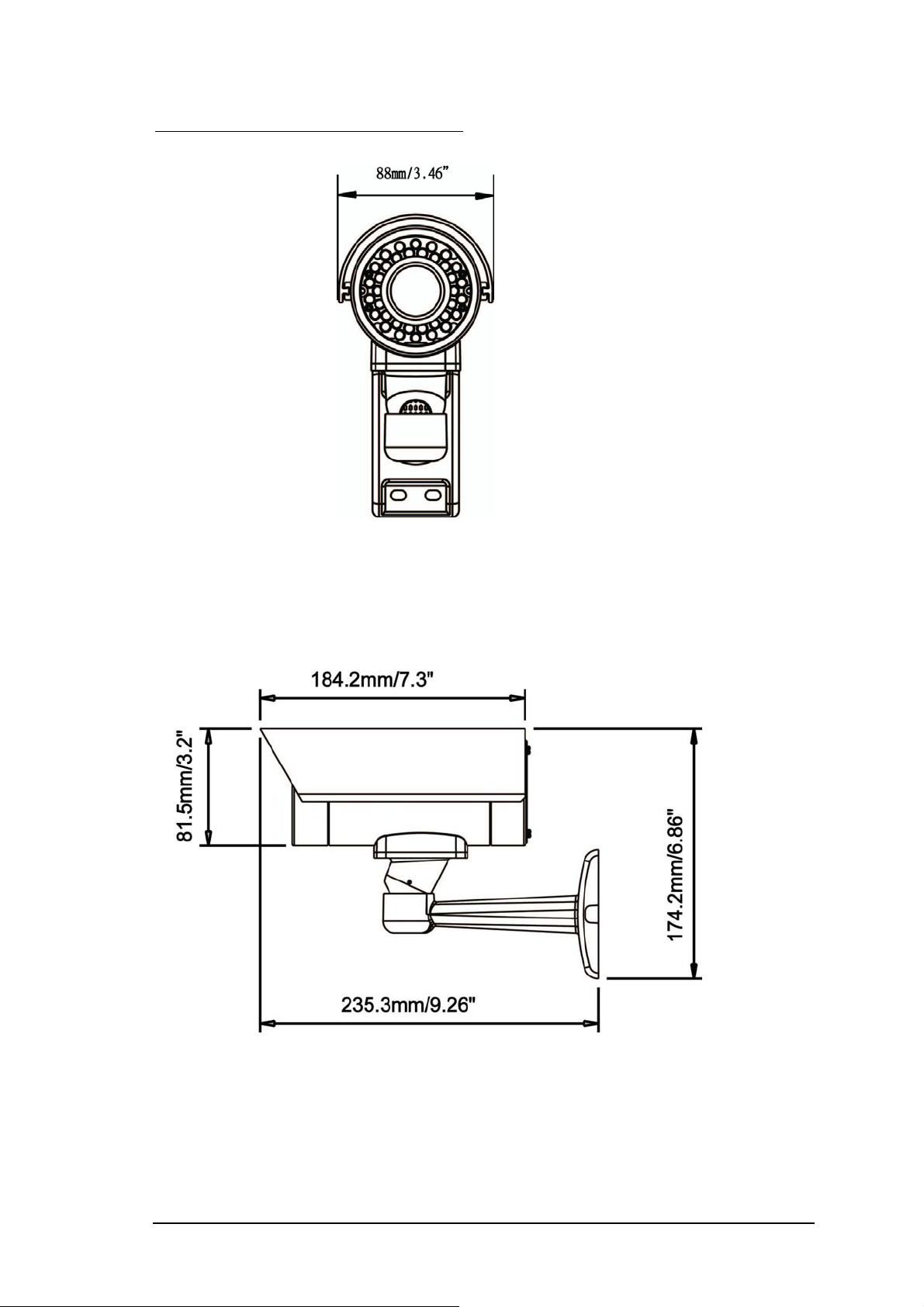

Dimension of whole camera with bracket

9

CHAPTER 1 PRODUCT OVERVIEW

CHAPTER 2 INSTALLATION

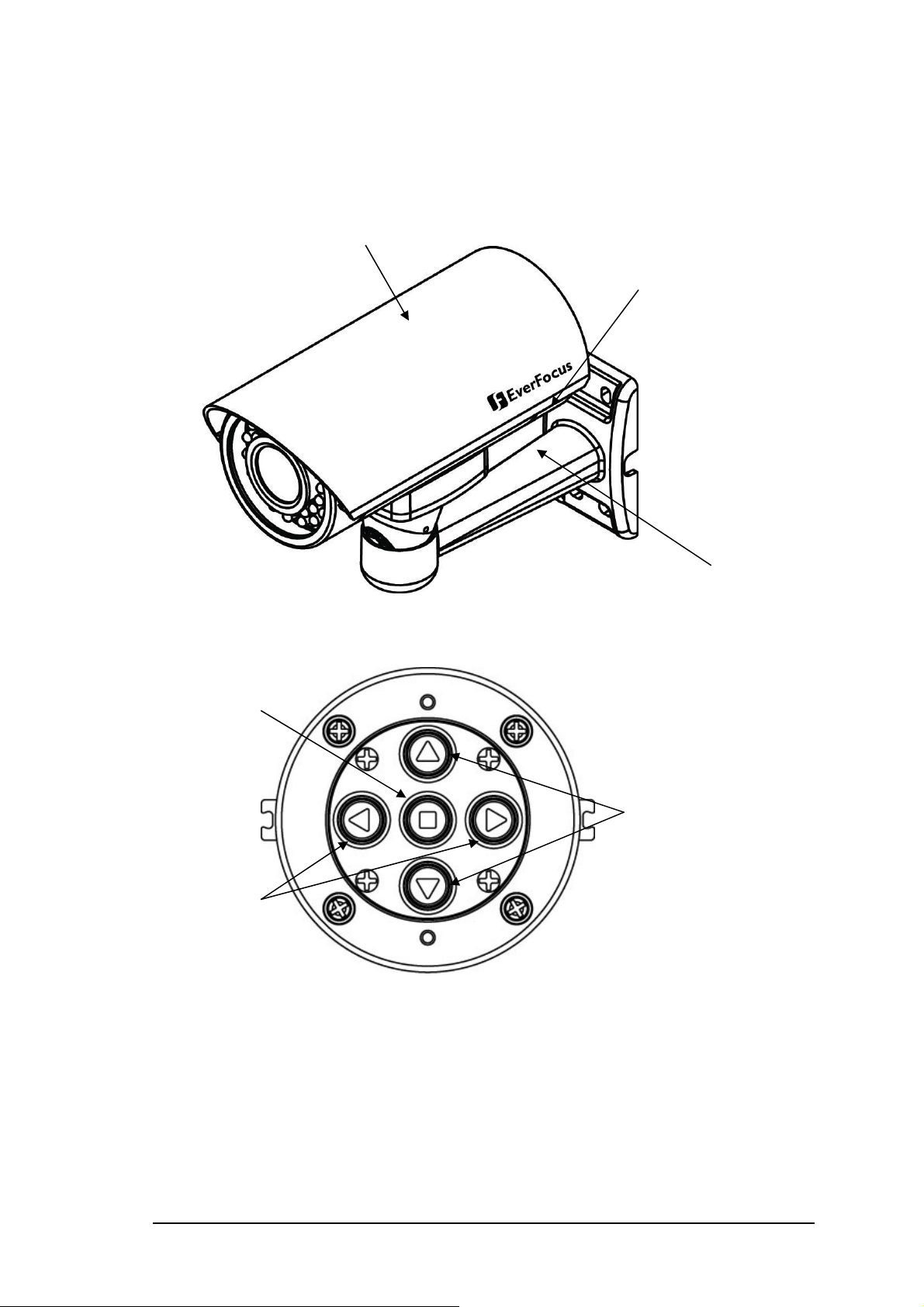

1.5 Camera Component Description

Sun Shield

Control Mode

Focus Control

Sunshield Fixing Screw

Zoom in/out and
IRIS Level Control

Bracket

10

CHAPTER 1 PRODUCT OVERVIEW

CHAPTER 2 INSTALLATION

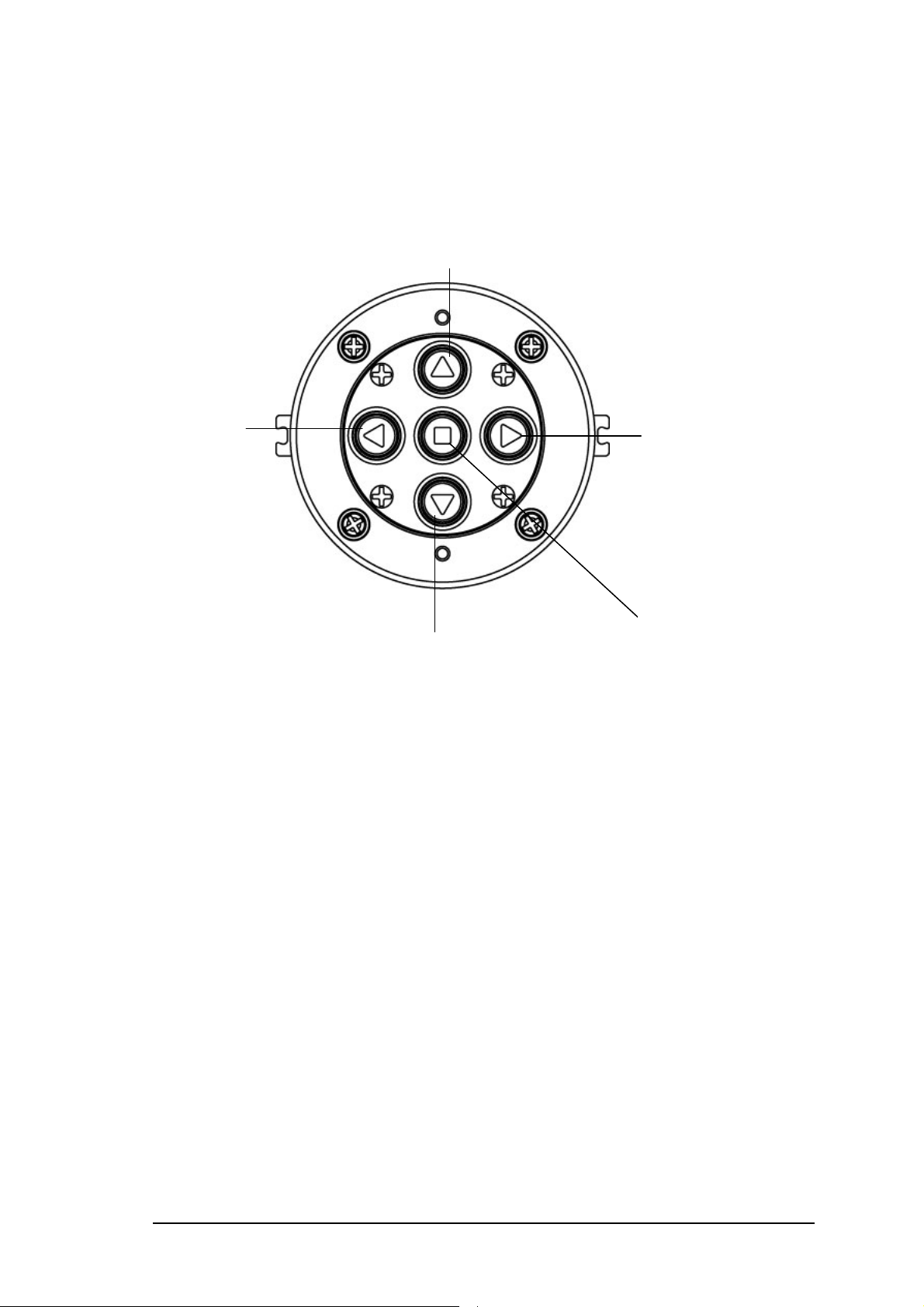

1.6 Back P anel Layout

Left

There are two modes in “Control Mode” button. When power is on, it turns to green
light. Press “Control Mode” can toggle switch green light and red light.

1. Green Light on
Press Up and Down keys to adjust Zoom In / Zoom out

Press Right and Left keys to adjust focus

2. Red Light

UP

Right

Control Mode

Down

(1) Press Up and Down keys to adjust IRIS Level.
(2) Press Left and Right keys simultaneously to reset the default value for IRIS level.

11

CHAPTER 2 INSTALLATION

Installation

This chapter will describe, in general terms, how to install the EZ430 camera.
STEPS:

1. Wire and mount the camera, See 2.1

2. Adjust the camera position, See 2.2

3. Adjusting image, See 2.3

Warning

Chapter

2

 To prevent electrical shock, turn off the electrical power before making

electrical connections.

 Do not connect high voltage power to the camera. It may damage the camera.
 Do not short circuit the power leads and expose the wire when connecting the

power supply to the camera

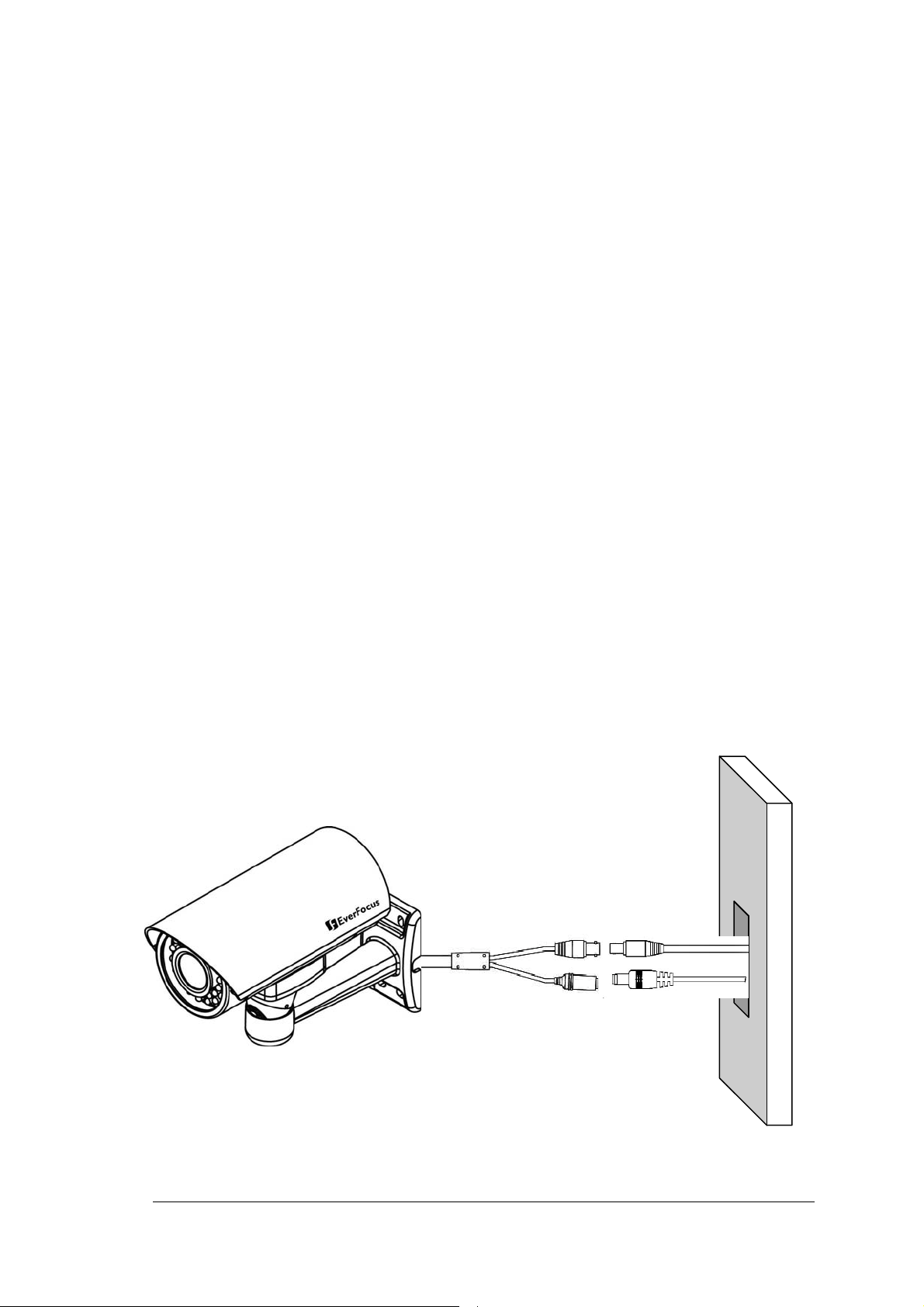

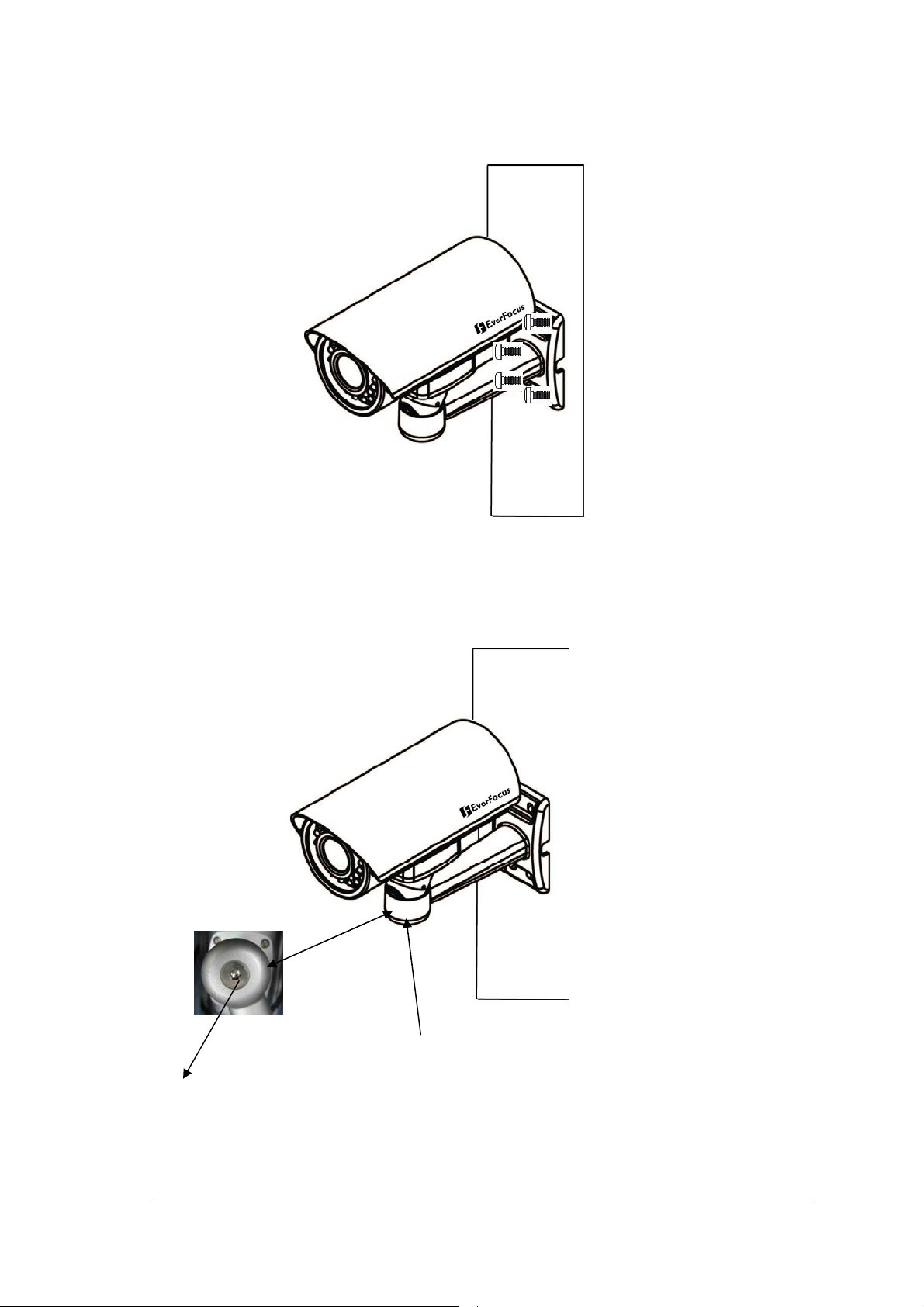

2.1 Wiring and Mounting

1. Pull the cables to be connected to power and video cables from wall.

12

CHAPTER 2 INSTALLATION

A

y

2. Fix the camera to the wall by using the 4 screws.

2.2 Adjusting Camera Position

Adjust camera for the best viewing angle by using hex key wrench.

Note: Before you adjust camera’s angle, please use Hex key Wrench to loose the
screw first. To adjust the angle easier and to avoid paint-off scratches the bracket.

djustment Horizontall

13

CHAPTER 2 INSTALLATION

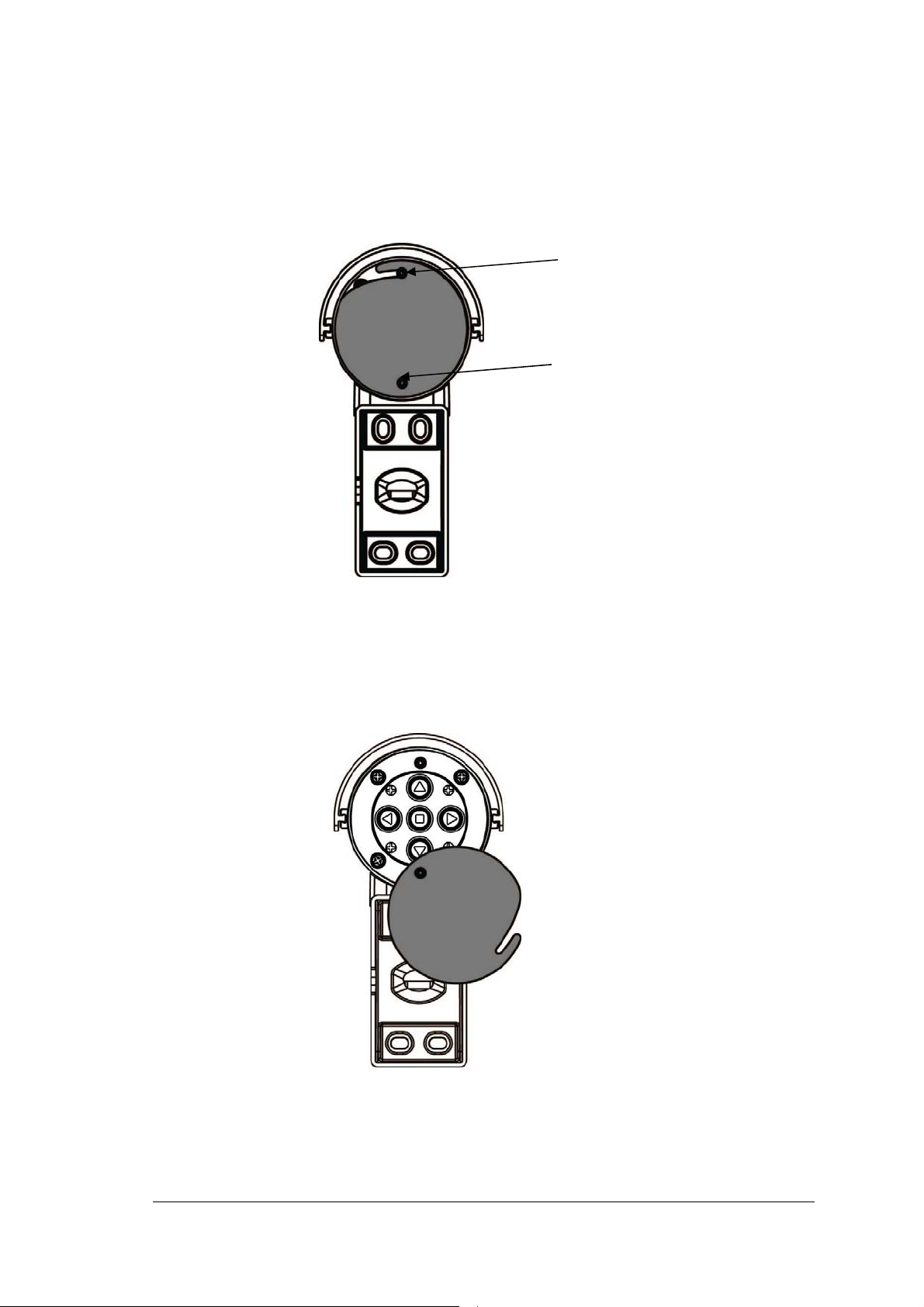

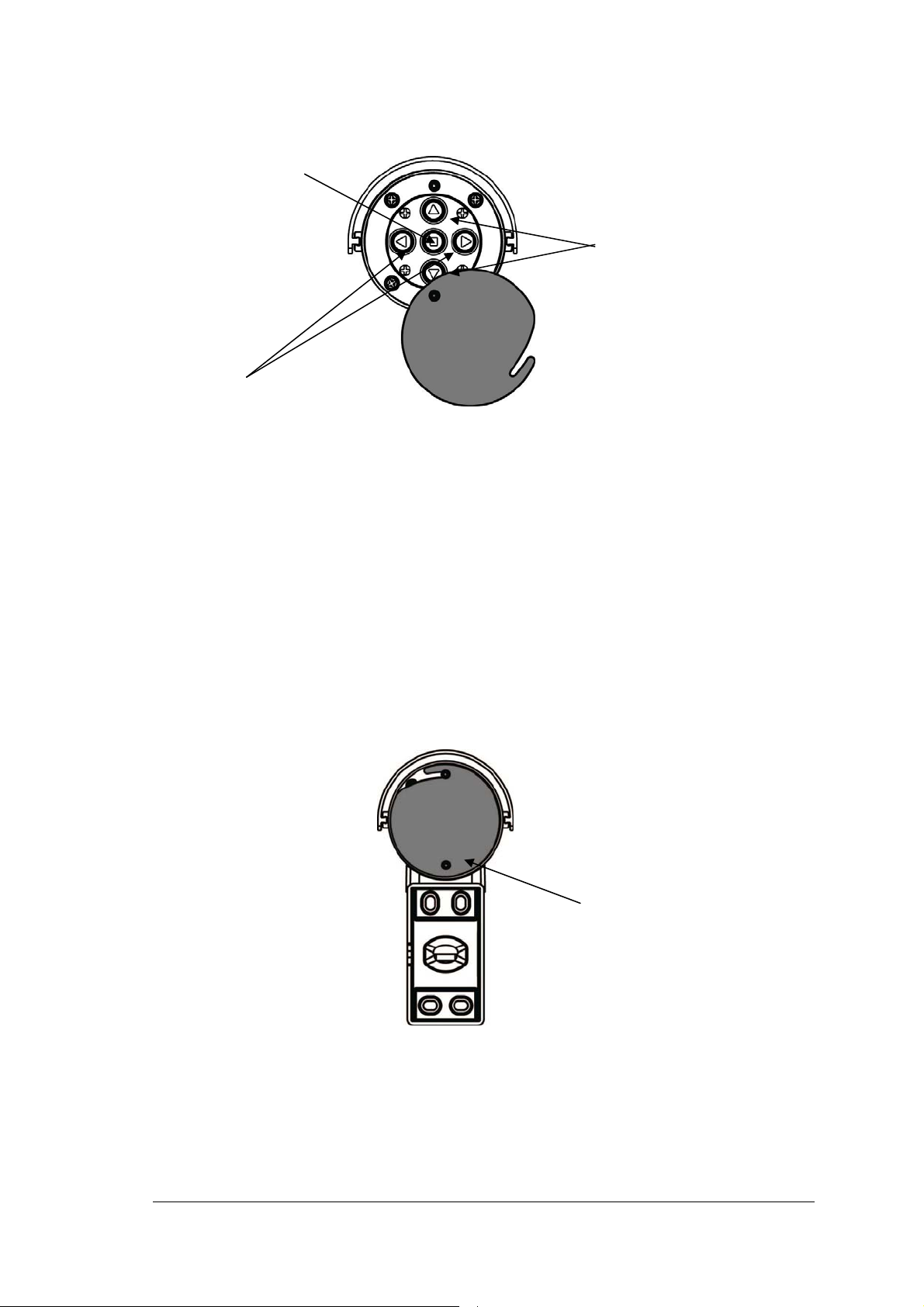

2.3 Adjusting Image

1. There is a protect cover at camera’s back panel, loose screw A.

2. Remove the “protect cover”.

Screw A

Screw B

14

CHAPTER 2 INSTALLATION

3. Adjust focus, zoom and IRIS level.

Control Mode

Adjust Focus

(1)Green Light on

Press Up and Down keys to adjust Zoom In / Zoom out

Press Right and Left keys to adjust focus

(2)Red Light

Adjust Zoom and IRIS level

(A) Press Up and Down keys to adjust IRIS Level.
(B) Press left and right keys simultaneously to reset the default value for IRIS

level.

4. Put on the protect cover

To avoid people touching the zoom and focus buttons, put on the protect cover all the
time after adjusted the image.

Put on the protect cover

15

Y

CHAPTER 2 INSTALLATION

Headquarter Office

Beijing office

12F, No.79 Sec.1 Shin-Tai Wu Road,
Hsi-Chi, Taipei, Taiwan
Tel: [phone]
Fax: [phone]

European Office

Albert-Einstein-Strasse 1,
D-46446 Emmerich, Germany
Tel: [phone]
Fax: [phone]

USA California Office

1801 Highland Ave. Unit A
Duarte, CA 91010 ,U.S.A
Tel: [phone]
Fax: [phone]

India Office

Suite 803, 8th Floor,
Housefin Bhavan,
C-21 Bandra Kurla Complex,
Bandra (East), Mumbai 400 051
Tel: [phone]

Room 609,Technology Trade Building.
Shangdi Information Industry Base,
Haidian District,Beijing China
Tel: [phone]
Fax: [phone]

Japan Office

5F Kinshicho City Building，2-13-4 Koto-bashi，
Sumida-Ku，Tokyo，130-0022，Japan
Tel: [phone]

Fax: [phone]

USA New York Office

415 Oser Ave Unit S
Hauppauge, NY 11788
Sales: [phone]
Fax: [phone]

our EverFocus product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their
end-of-life, should be disposed of
separately from your household wa
Please, dispose of this equipmen

our local community waste

y
collection/recycling centre.
In the European Union there
separate collection systems for use
electrical and electronic product.
Please, help us to conserve the
environment we live in!

are

Ihr EverFocus Produkt wurde entwickelt
und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte a
Ende ihrer Nutzungsdauer vom

ste.

Hausmüll getrennt entsorgt werden

t at

sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling Centre.

d

Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben

m

!

P/N: 4605XZ0430001AR_Ver.C

16
