Instruction Manual
EN-7517E / EN-7519E
17” and 19” Value TFT-LCD Monitor
Please read this manual thoroughly before use, and keep it handy for future reference.
SAFETY INSTRUCTION…………………………………………………………………….2 - 3
CAUTIONS ………………………………………..……………………………………………..4
FCC RF INTERFERENCE STATEMENT …………………………………………………….5
CONNECTING WITH EXTERNAL EQUIPMENT…………………………………………… 6
REMOTE FUNCTIONS ……………………………………………………………………….. 7
CONTROLS AND FUNCTIONS…………………………………………………………..8 - 20
MOUNTING GUIDE …………………………………………………………….……..…….. 21
D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………….22
POWER MANAGEMENT……………………………………………………………………..23
SPECIFICATIONS………………………………………………………………………. ……24
TROUBLESHOOTING GUIDE. ……………………………………………………………..25
.
1
……………………………………………………………………………
INSTRUCTION MANUAL
Important Safety Instruction
1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions..
8. Do not install near any heat sources such as radiators, heat registers,stoves,
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
Apolarized plug has two blades with one wider than the other.
Agrounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachment/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer
or sold with the apparatus. When a cart is used,
use caution when moving ..
the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus the apparatus has been exposed to rain or moisture does not
operate normally or has been dropped.
INSTRUCTION MANUAL
“WARNING - To reduce the risk of fire or electric shock, do not expose the
apparatus to rain or moisture.”
“The apparatus shall not be exposed to dripping or splashing and no objects filled
with liquids, such as vases, shall be placed on the apparatus.”
………………………………………………………………………………
2
This symbol is intended to alert the user to the presence of uninsulated :
dangerous voltage” with in the product’s enclosure that may be of
sufficient magnitude to constitute arisk of electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the appliance.
3
………………………………………………………………………………
INSTRUCTION MANUAL
CAUTIONk
The power supply cord is used as the main disconnect device, ensure that the
socket-outlet is located/installed near the equipment and is easily accessible.
ATTENTIONN
Le cordon d`alimentation est utillsé comme interrupteur général. La prise de
courant doit être située ou installée à proximité du matériel et être facile
d`accès
▶ NEVER REMOVE THE BACK COVER
Removal of the back cover should be carried out only by qualified personnel.
▶ DO NOT USE IN HOSTILE ENVIRONMENTS
To prevent shock or fire hazard, do not expose the unit to rain or moisture.
This unit is designed to be used in the office or home. Do not subject the unit to vibrations,
dust of corrosive gases.
▶ KEEP IN A WELL VENTILATED PLACE
Ventilation holes are provided on the cabinet to prevent the temperature from rising.
Do not cover the unit or place anything on the top of unit.
▶ AVOID HEAT
Avoid placing the unit in direct sunshine or near a heating appliance.
▶ TO ELIMINATE EYE FATIGUE
Do not use the unit against a bright back ground and where sunlight or other light sources will
shine directly on the monitor.
▶ BE CAREFUL OF HEAVY OBJECT
Neither the monitor itself nor any other heavy object should rest on the power cord.
Damage to a power cord can cause fire or electrical shock.
INSTRUCTION MANUAL
……………………………………………………………………………
4
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio, TV technician for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by
the grantee or manufacturer could void the users authority to operate such equipment.
▶ DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus set out in the radio interference regulation of Canadian Department of
communications.
5
………………………………………………………………………………
A. BOTTOM PANEL CONTROL
1. DC 12V IN
2. D-SUB IN
PC Signal Input
3. VIDEO 1(AV1) IN
Composite signal Input for AV1
4. VIDEO 1(AV1) OUT
Video looping output for AV1
1
2
34
5
6
INSTRUCTION MANUAL
8
7
10
9
11
5. VIDEO 2(AV2) IN
Composite signal Input for AV2
6. VIDEO 2(AV2) OUT
Video looping output for AV2
7. 8 AUDIO IN (L+R)
Stereo Audio Signal Input
9. S-VIDEO (Y/C) IN
Y/C separated signal input
10. S-VIDEO (Y/C) OUT
Y/C separated signal looping output
11. PC STEREO IN
INSTRUCTION MANUAL
B. REMOTE CONTROLLER
……………………………………………………………………………
1. POWER( )
Turns the power ON or OFF. There will be a few
seconds delay before the display appears.
2. SOURCE
Select pc or video( AV1 / AV2 / S-Video / PC ) sources.
3. APC (Auto Picture Control)
Select picture mode.
4. ACC (Auto Colour Control)
Select Colour mode.
5. AV1
Select AV1 mode
6. AV2
Select AV2 mode
7. S-VIDEO
Select S-VODEO mode
8. PC
Select PC mode
9. AUTO
Auto geometry adjustment in PC Source.
10. MUTE
Mute the sound.
11. MENU
Activates and exits the On Screen Display.
12. EXIT
Exit the On Screen Display.
13. VOL( )
Increases or decreases the level of audio volume.
14. UP/DOWN
Move to OSD menu.
15. ENTER
Accepts your selection or displays the current mode.
16. INFO
Input mode information Display.
17. STILL
Pause the picture.
6
7
……………………………………………………………………………
INSTRUCTION MANUAL
1 2 3 4 5 6 7 8 9
1. SOURCE
Select input source, and move the previous menu.
2. MENU
Activates and exits the On Screen Display.
This button can also be used to move previous menu or status.
OSD MENU(MAIN) : Custom, Picture/Sound,Setup
3/4. AUTO/▼ / ▲
This button allows user to enter the sub-menu of the activated function
AUTO: Auto geometry adjustment in PC Source.
5/6. VOL
Adjust the volume / Adjust menu settings.
7. IR Sensor
Remote controller sensor.
8. POWER ON/OFF( )
Turns the power ON or OFF. There will be a few seconds delay before the display appears.
The power LED(next to the power switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again and the power LED goes Red.
INSTRUCTION MANUAL
……………………………………………………………………………
OSD MENU DESCRIPTION
A: CUSTOM MENU (Only Video mode)
Press the MENU button and then up(▲) / down(▼) button to select the Custom menu.
8
Press the up(▲) / down(▼) button to select Custom sub menu.
Press the left(◀) /right(▶) button to adjust picture setting.
Press the MENU button to save.
Brightness: Increase or decrease the intensity of the image.
Contrast: Increase or decrease the intensity (lightness or dimness) of the image.
Color: Increase or decrease the colour of the picture.
Tint: Increase or decrease the tint of the picture.
Sharpness: Increase or decrease the sharpness of the picture.
9
……………………………………………………………………………
A: CUSTOM MENU (Only PC mode)
INSTRUCTION MANUAL
Press the MENU button and then up(▲) / down(▼) button to select the Custom menu.
Press the up(▲) / down(▼) button to select Custom sub menu.
Press (◀) /right(▶) button to adjust picture setting.
Press the MENU button to save.
INSTRUCTION MANUAL
……………………………………………………………………………
10
B. Picture / Sound Menu(Only Video mode)
Press the MENU button and then up(▲) / down(▼) button to select the Picture / Sound.
Press the right(▶) or ENTER button.

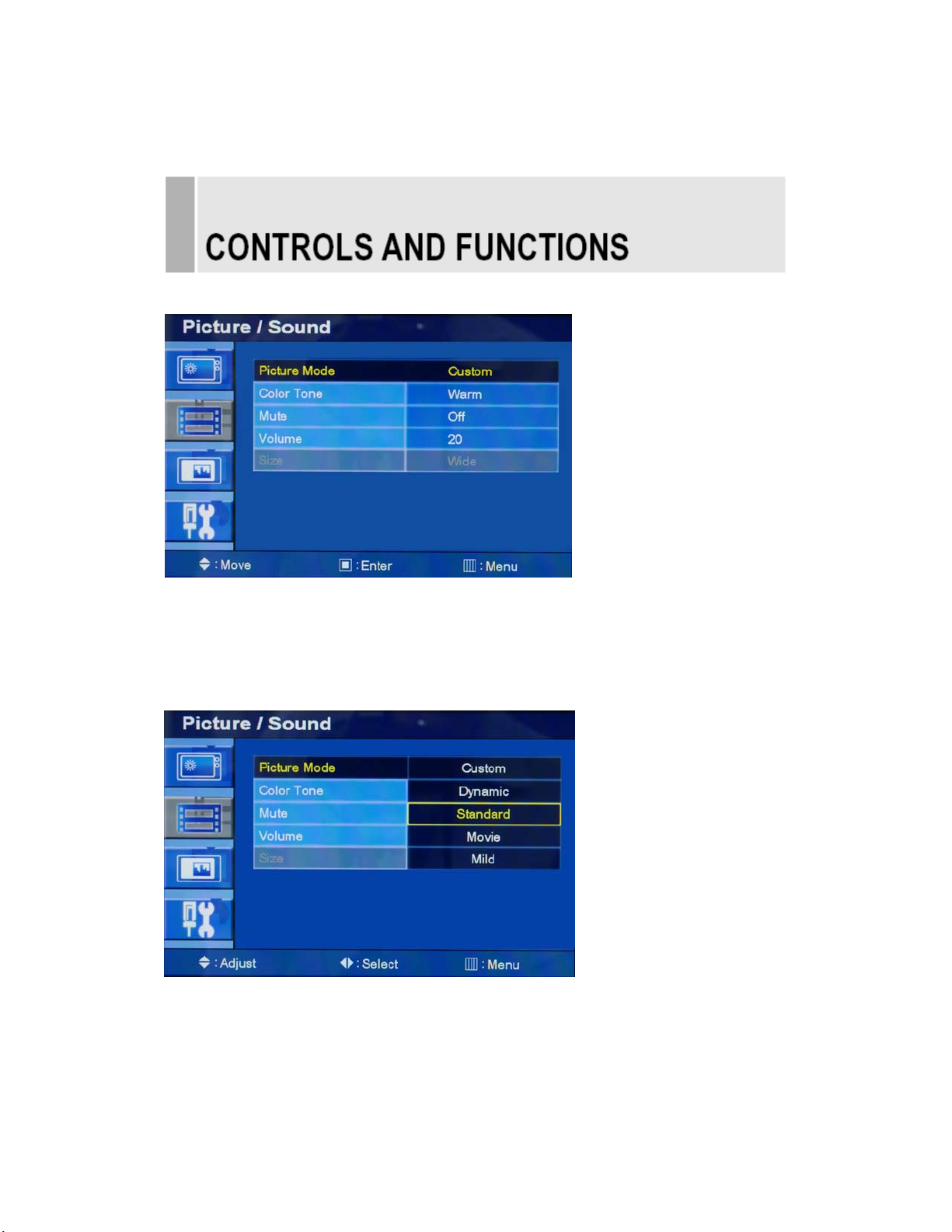

1. Picture Mode
Press the up(▲) / down(▼) button to select the Picture Mode.
Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the desire
Picture Mode.
Press the MENU button to save.
11
……………………………………………………………………………
2. Color Tone
INSTRUCTION MANUAL
Press the up(▲) / down(▼) button to select the Color Tone.
Press the (▶) or ENTER button and then up(▲)/down(▼) button to select the desired color tone.
Press the MENU button to save.
INSTRUCTION MANUAL
……………………………………………………………………………

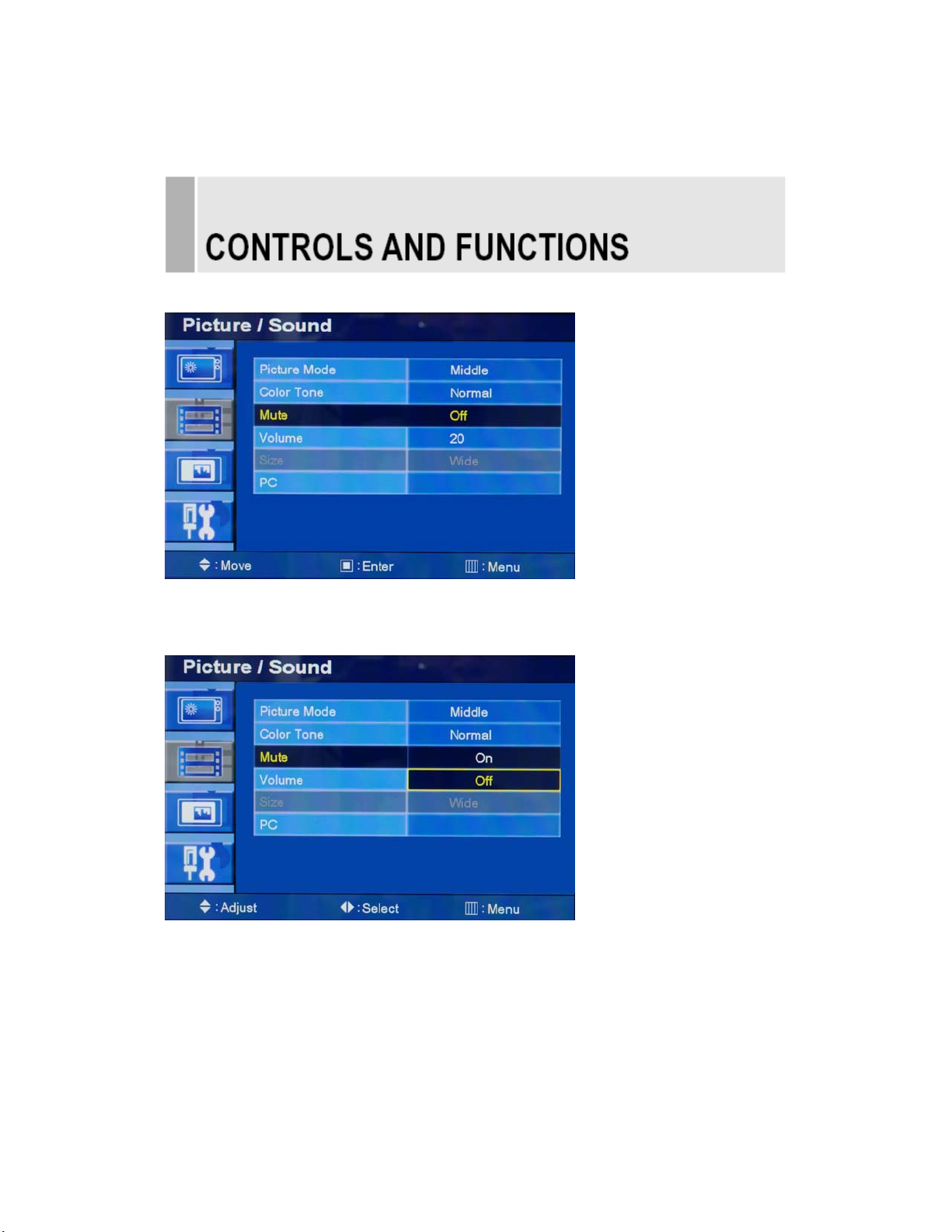

3. Mute
Press the up(▲) / down(▼) button to select the Mute.
12
Press the (▶) or ENTER button and then up(▲)/down(▼) button to select the desired Mute.
Press the MENU button to save.
13
……………………………………………………………………………
4. Volume
Press the up(▲) / down(▼) button to select the Volume.
Press (◀) /right(▶) button to adjust Volume.
Press the MENU button to save.
INSTRUCTION MANUAL
5. PC (Only PC mode)
Press the up(▲) / down(▼) button to select the PC
Press the ▶ or ENTER button
INSTRUCTION MANUAL
………………………………………………………………………………
14
Press the up(▲) / down(▼) button to select PC sub menu
Press the right(▶) or ENTER button and then left (◀) /right(▶) button to adjust PC setting.
Press the MENU button to save.
Auto Adjust: Auto geometry adjustment
Phase: Adjust the number of horizontal picture elements.
H. position: Move image horizontally on screen right or left.
V. position:
Frequency:
Move image vertically on screen up or down.
Adjust the vertical noise of screen image.
C. SETUP MENU
Press the MENU button and then up(▲) / down(▼) button to select the Setup menu.
Press the right(▶) or ENTER button
.
15
……………………………………………………………………………
1.Reset
Press ENTER button to select the reset
INSTRUCTION MANUAL
Reset: Select to reset all setting to the factory default values.
INSTRUCTION MANUAL
………………………………………………………………………………
2. Language
Press the up(▲) / down(▼) button to select the Language menu.
Press the right(▶) or ENTER button.
16
Press the up(▲) / down(▼) button to select language.
Press the MENU button to save.
17 ……………………………………………………………………………
3. OSD Tone
Press the up(▲) / down(▼) button to select the OSD tone menu.
Press the right(▶) or ENTER button
Press the up(▲) / down(▼) button to select the desire OSD Tone.
Press the MENU button to save.
INSTRUCTION MANUAL
INSTRUCTION MANUAL
………………………………………………………………………………
4. Blue Screen
Press the up(▲) / down(▼) button to select the blue screen.
Press the right(▶) or ENTER button.
18
Press the up(▲) / down(▼) button to select on or off.
Press the MENU button to save.
19
……………………………………………………………………………
5. Key Lock
Press the up(▲) / down(▼) button to select the key lock menu.
Press the right(▶) or ENTER button
Press the up(▲) / down(▼) button select on or off
Press the MENU button to save.
INSTRUCTION MANUAL
INSTRUCTION MANUAL
………………………………………………………………………………
20
Wall mountable using two methods:
1) Using the 200 mm pre-cut holes
2) Using the VESA standard wall mount design and the 100mm hole pattern on the back panel
to install the LCD monitor to the wall.
21
……………………………………………………………………………
▶
PIN ASSIGNMENTS
INSTRUCTION MANUAL
▶
ACCESSORY
1. POWER CORD
2. USER’S MANUAL
3. PC cable
4. Adaptor
5. Remote Control
6. Batteries
7. Wall mount (Option)
8. Rack mount (Option)
INSTRUCTION MANUAL
This monitor features a power management system to “power down” upon receipt of the
VESA DPMS(The display power management signaling) from a VESA DPMS video card.
The VESA DPMS-compliant video card performs this signaling system through not sending
horizontal, vertical, or sync signal.
This monitor enters an appropriate mode through identifying each of the three modes of the
signaling system.
……………………………………………………………………………
22
POWER CONSUMPTION
MODE POWER CONSUMPTION
ON < 50W
STANDBY < 11W
SUSPEND < 11W
ACTIV OFF < 8.5W
LED INDICATOR
The power management feature of the monitor is comprised of four stages: On(Green),
Standby, Suspend, Active off(Green on/off 1 sec) and Unsupported mode(Green).
MODE LED COLOR MONITOR OPERATION
ON
STANDBY
SUSPEND
ACTIV OFF
UNSUPPORTES
MODE
POWER OFF
GREEN Normal Operation
GREEN
ON/OFF
1 SEC
GREEN
GREEN OFF Not Operation
Screen blanks after preset idle time
And some electronic circuits or all
Circuitry in the monitor shut down.
Normal operation but the on screen
Display will show error massage
23
……………………………………………………………………………
LCD- Type
RESOLUTION
(H x V)
FREQUENCY
INPUT SIGNAL
ACTIVE DISPLAY
AREA (W x H)
17˝ Diagonal AM-TFT(Active-Matrix) 19˝ Diagonal AM-TFT(Active-Matrix)
Pixel pitch(mm) : 0.264(H) x 0.264(V) Pixel pitch(mm) : 0.294(H) x 0.294(V)
BRIGHTNESS: 300cd/㎡(Typical) BRIGHTNESS: 300cd/㎡(Typical)
CONTRAST RATIO: 1000:1(Typical) CONTRAST RATIO: 800:1(Typical)
RESPONSE TIME: 5msec(Typical) RESPONSE TIME: 5msec(Typical)
337.9 mm X 270.3 mm 376.32mm X 301mm
17“ 19“
HORIZONTAL: 31- 64KHz
VERTICAL: 56-75Hz
VIDEO(2ch input 1.0Vp-p,
75Ω terminated, loop-through out)
SYNC(Separate TTL Level)
S-VIDEO(1ch input (Y/C) ,
loop-through out)
AV(composite) Sound in
PC Stereo Sound
INSTRUCTION MANUAL
1280X1024 @60Hz
PACKING
DIMENSIONS
(W x D x H)
WEIGHT
ELECTRICAL
RATINGS
436mm X 476mm X 225mm 490mm X 506mm X 225mm
Net Weight : 6.2Kg Net Weight : 6.61Kg
Gross Weight : 7.8Kg Gross Weight : 8.43Kg
DC 12V/ 3A DC 12V/ 3.5A
▶▶ NOTE :
Technical specifications are subject to change without notice.
INSTRUCTION MANUAL
“Going to Sleep”
message on screen
……………………………………………………………………………
24
WEEE Symbols
Correct Disposal of This Product
(Waste Electrical &Electronic
Equipment)
(Applicable in the European Union and other
European countries with separate collection systems)
This marking shown on the product or its literature,indicates
that it should not be disposed with
other household wastes at the end of its working life.To
prevent possible harm to the
environment or human health from uncontrolled waste
disposal,please separate this from other
types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product,or their
local government office,for details of where and how they
can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase
contract.This product should not be mixed with other
commercial wastes for disposal.
Y
Taiwan - Headquarter Office
12F, No.79 Sec.1 Shin-Tai Wu Road,
Hsi-Chi, Taipei, Taiwan
Tel: +886-2-26982334
Fax: +886-2-26982380
Europe - Germany Office
Albert-Einstein-Strasse 1,
D-46446 Emmerich, Germany
Tel: +49-2822-9394-0
Fax: +49-2822-939495
USA - California Office
1801 Highland Ave. Unit A
Duarte, CA 91010 ,U.S.A
Tel: +1-626-844-8888
Fax: +1-626-844-8838
China - Beijing Office
Room 609,Technology Trade Building.
Shangdi Information Industry Base,
Haidian District,Beijing China
Tel: +86-10-62971096
Fax: +86-10-62971423
Japan Office
1809 WBG Marive East 18F,
2-6 Nakase, Mihama-ku,
Chiba City 261-7118, Japan
Tel: +81-43-212-8188
Fax: +81-43-297-0081
USA - New York Office
415 Oser Ave Unit S
Hauppauge, NY 11788
Sales: +1-631-436-5070
Fax: +1-631-436-5027
our EverFocus product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their end-oflife, should be disposed of separately
from your household waste .
Please, dispose of this equipment at
your local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to conserve the
environment we live in!
Ihr EverFocus Produkt wurde
entwickelt und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden kö nnen.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte
am Ende ihrer Nutzungsdauer vom
Hausmüll getrennt entsorgt werden
sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben
!
P/N: L39ME0187 Rev.0
Loading...
