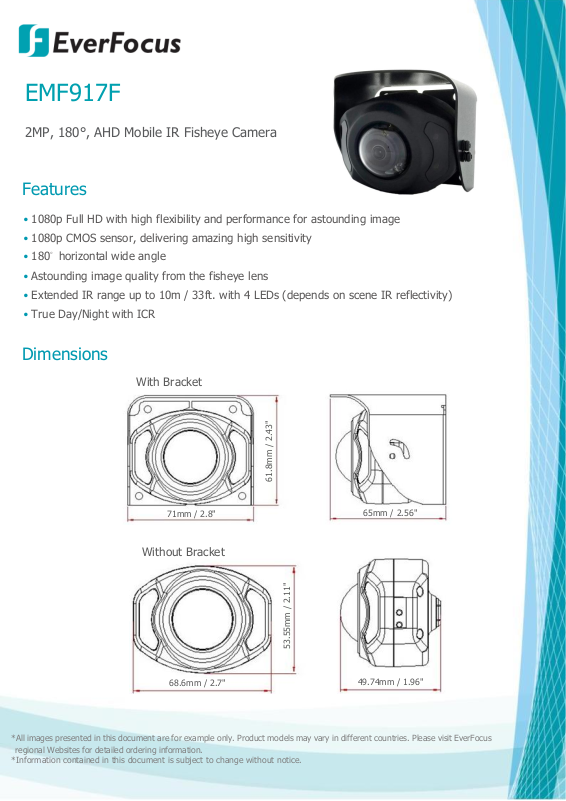

EverFocus EMF917F Specsheet
• 1080p Full HD with high flexibility and performance for astounding image
• 1080p CMOS sensor, delivering amazing high sensitivity
• 180° horizontal wide angle
• Astounding image quality from the fisheye lens
• Extended IR range up to 10m / 33ft. with 4 LEDs (depends on scene IR reflectivity)
• True Day/Night with ICR
With Bracket
Without Bracket
71mm / 2.8"
61.8mm / 2.43"
65mm / 2.56"
68.6mm / 2.7"
53.55mm / 2.11"
49.74mm / 1.96"
EMF917F
2MP, 180°, AHD Mobile IR Fisheye Camera
Features
Dimensions
*All images presented in this document are for example only. Product models may vary in different countries. Please visit EverFocus
regional Websites for detailed ordering information.
*Information contained in this document is subject to change without notice.
Find Out More At:
EverFocus Taiwan HQ:
TEL: +886 2 2662 2338 2334
www.everfocus.com.tw
marketing@everfocus.com.tw
EverFocus USA - California:
TEL: +1 626 844 8888
www.everfocus.com
sales@everfocus.com
International Branch Offices:
China, Japan
Viewing Angle
Scanning System
Cable Type
PN
180°
NTSC
BNC + 12VDC Power
2W09170FNB0001R
M12
2W09170FNB0005R
Mini DIN
2W09170FNB0002R
PAL
BNC + 12VDC Power
2W09170FPB0001R
M12
2W09170FPB0005R
Mini DIN
2W09170FPB0002R
Model No.
EMF917F
Pickup Device
1/2.8" Sony 2MP CMOS Sensor
Day / Night
Supported
Video Format
NTSC / PAL
Video format
AHD 1080p only
Effective Pixels
1920 (H) x 1080 (V)
Scanning System
Progressive Scan
Sensitivity
0 Lux with IR On
Power Source
12VDC
Unit Cell Size
2.9 μm×2.9μm
Power
Consumption
6W max.
Lens Type
1.72mm Fisheye Lens
Environmental
IP68 Weather Resistant
Lens F.O.V.
H:180°, F:2.0
Humidity
Less than 80%
Cable Types
(Selectable)
BNC + 12VDC Power
M12 (video signal and power)
Mini DIN (video signal and power)
Dimensions
(H x W x D)
71 x 61.8 x 65mm / 2.8” x 2.43” x 2.56”
(with Bracket)
IR LEDs
4 IR LEDs
Weight
226g / 0.5lb
IR Distance
Up to 10m / 33ft.
(depends on scene IR reflectivity)
Operating
Temperature
0°C ~ 55°C / 32˚F~131˚F
Certificates
CE, FCC, E-Mark, EN50155, RoHS
Product Selection
Specifications
