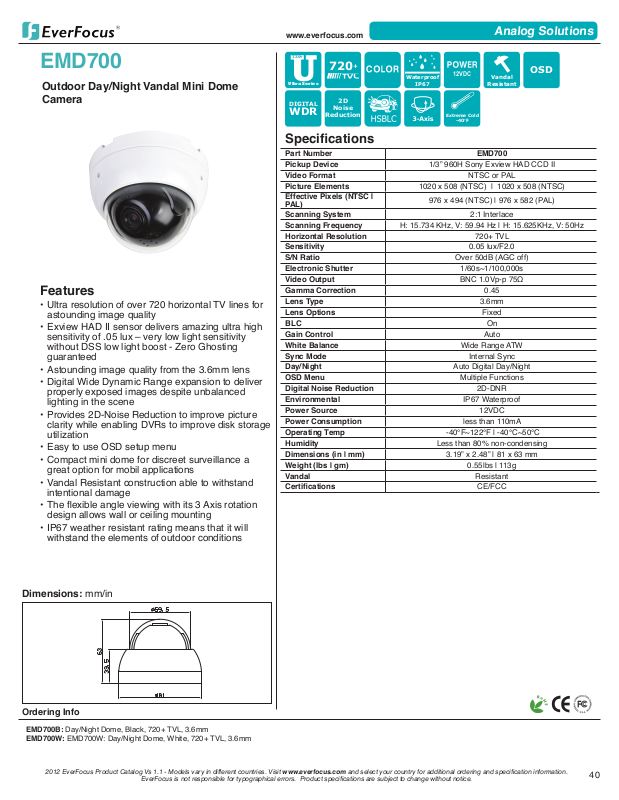

EverFocus EMD700W, EMD700B Specsheet

www.everfocus.com

U

Analog Solutions

EMD700

Outdoor Day/Night Vandal Mini Dome
Camera

Features

• Ultra resolution of over 720 horizontal TV lines for
astounding image quality

• Exview HAD II sensor delivers amazing ultra high
sensitivity of .05 lux – very low light sensitivity
without DSS low light boost - Zero Ghosting

guaranteed

• Astounding image quality from the 3.6mm lens

• Digital Wide Dynamic Range expansion to deliver

properly exposed images despite unbalanced
lighting in the scene

• Provides 2D-Noise Reduction to improve picture
clarity while enabling DVRs to improve disk storage

utilization

• Easy to use OSD setup menu

• Compact mini dome for discreet surveillance a

great option for mobil applications

• Vandal Resistant construction able to withstand

intentional damage

• The exible angle viewing with its 3 Axis rotation
design allows wall or ceiling mounting

• IP67 weather resistant rating means that it will
withstand the elements of outdoor conditions

720+

Ultra Series

DIGITAL

WDR

720

2D

Noise

Reduction

+

Waterproof

IP67

12VDC

Extreme Cold

º

F

-40

Vandal

Resistant

OSD

Specications

Part Number EMD700
Pickup Device 1/3” 960H Sony Exview HAD CCD II
Video Format NTSC or PAL
Picture Elements 1020 x 508 (NTSC) | 1020 x 508 (NTSC)
Effective Pixels (NTSC |

PAL)
Scanning System 2:1 Interlace
Scanning Frequency H: 15.734 KHz, V: 59.94 Hz | H: 15.625KHz, V: 50Hz
Horizontal Resolution 720+ TVL
Sensitivity 0.05 lux/F2.0
S/N Ratio Over 50dB (AGC off)
Electronic Shutter 1/60s~1/100,000s
Video Output BNC 1.0Vp-p 75Ω
Gamma Correction 0.45
Lens Type 3.6mm
Lens Options Fixed
BLC On
Gain Control Auto
White Balance Wide Range ATW
Sync Mode Internal Sync
Day/Night Auto Digital Day/Night
OSD Menu Multiple Functions
Digital Noise Reduction 2D-DNR
Environmental IP67 Waterproof
Power Source 12VDC
Power Consumption less than 110mA
Operating Temp -40°F~122°F | -40°C~50°C
Humidity Less than 80% non-condensing
Dimensions (in | mm) 3.19” x 2.48” | 81 x 63 mm
Weight (lbs | gm) 0.55lbs | 113g
Vandal Resistant

Certications CE/FCC

976 x 494 (NTSC) | 976 x 582 (PAL)

Dimensions: mm/in

Ordering Info

EMD700B: Day/Night Dome, Black, 720+ TVL, 3.6mm
EMD700W: EMD700W: Day/Night Dome, White, 720+ TVL, 3.6mm

2012 EverFocus Product Catalog Vs 1.1 - Models vary in different countries. Visit www.everfocus.com and select your country for additional ordering and specication information.

EverFocus is not responsible for typographical errors. Product specications are subject to change without notice.
