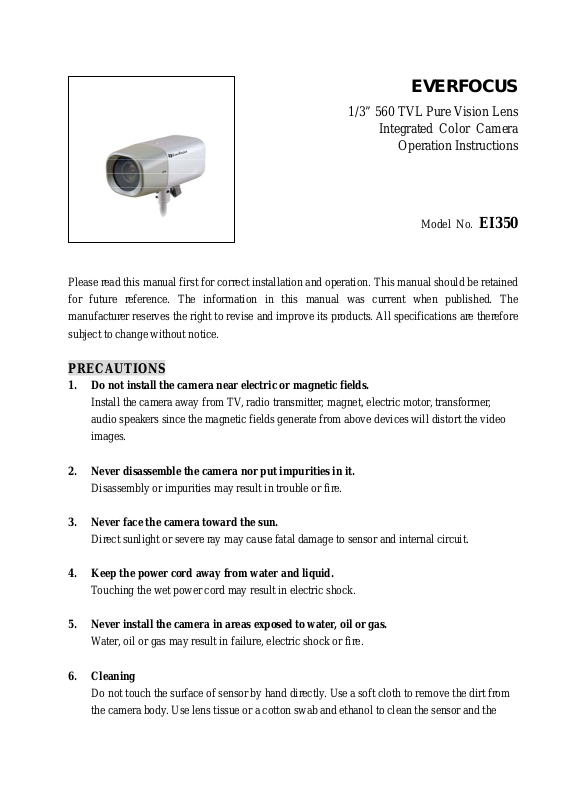

EVERFOCUS

1/3” 560 TVL Pure Vision Lens

Integrated Color Camera

Operation Instructions

Model No. EI350

Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices will distort the video
images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from
the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or
power source ratings.

Use the camera at temperatures within 0℃~50℃ (32℉ ~ 122℉) and humidity between
20%~ 80%. The input power source is 12VDC/24VAC.

PREFACE

The camera features a high performance, high-resolution 1/3" color CCD processor and
built-in vari-focal lens, which provides excellent picture quality, flexibility and cost savings.
A mounting bracket is included with every camera making it one of the most complete and
easy to install camera packages on the market.

FEATURES

z 1/3” SONY Super HAD with low light sensitivity of 0.5 lux/F=1.2
z Industry leading super high-res. with 560 TVL
z Revolutionary integrated 10-bit Digital Signal Processor (DSP) delivers excellent

picture quality an sharp color images

z Intelligent backlight compensation
z Utilizes Pure V ision Technology

PACKAGE CONTENTS

z Camera Unit x 1
z Mounting Bracket x 1
z Manual x 1

1

SPECIFICATIONS

Pickup Device 1/3'' SONY Super HAD CCD
Video Format NTSC or PAL

Scanning System

NTSC: 525 TV lines, 60 fields/sec

PAL: 625 TV lines, 50 fields/sec
Picture Elements 768 x 494(NTSC) ; 752 x 582(PAL)
Horizontal Resolution 560TVL
Sensitivity 0.5Lux/F=1.2
S/N Ratio Over 48dB(AGC off)
Electronic Shutter 1/50(1/60)~1/100,000

Vari-focal lens, Auto Iris
Lens Type

f=3.8~9.5mm, F=1.2
Back Light Comp. ON/OFF Switch
Auto Gain Control ON/OFF Switch
Flickerless ON/OFF Switch
Auto White Balance Yes
Gamma Correction 0.45
Video Output BNC 1.0Vp-p , 75ohm
Sync. Mode Line Lock/Internal Sync
Power Source 12VDC/24VAC

24VAC: 7.5VA max.
Power Consumption

12VDC: 4.5W max.

66mm(W) x 59mm(H) x 146mm(D);
Dimensions

2.56" (W) x 2.3"(H) x 5.7"(D)

Weight 0.4kg ; 0.9lbs

Aluminum, Dimension 145 (H) x 56.5 (O.D.) mm / 5.7"(H) x
Mounting Bracket:

2.2(O.D); Max Load 3 kgs

Operating Temperature 0°C~50°C ; 32°F~122°F(20%~80% Humidity)
Service Kit: Mounting bracket x 1 pcs
Certifications FCC/CE

2
