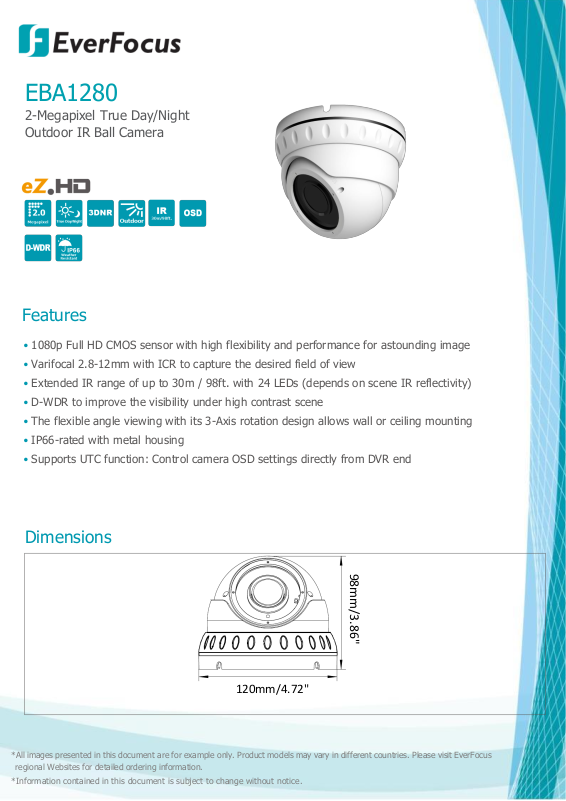

EverFocus EBA1280 Specsheet
• 1080p Full HD CMOS sensor with high flexibility and performance for astounding image
• Varifocal 2.8-12mm with ICR to capture the desired field of view
• Extended IR range of up to 30m / 98ft. with 24 LEDs (depends on scene IR reflectivity)
• D-WDR to improve the visibility under high contrast scene
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Supports UTC function: Control camera OSD settings directly from DVR end
120mm/4.72"
98mm/3.86"
EBA1280
2-Megapixel True Day/Night
Outdoor IR Ball Camera
Features
Dimensions
*All images presented in this document are for example only. Product models may vary in different countries. Please visit EverFocus
regional Websites for detailed ordering information.
*Information contained in this document is subject to change without notice.
Find Out More At:
TEL: +1 626 844 8888
International Branch
BA-E320
Color: White
Size (Φ x H): 138 x 54mm / 5.43” x 2.13”
Weight: 700g / 1.5lb
Material: Metal
BA-E245
Color: White
Size (W x D x H): 245 x 160 x 163mm/9.65” x 6.3” x 6.42”
Weight: 2.1kg / 4.63lb
Material: Metal: Metal
Model No.
EBA1280
Pickup Device
1080P Full HD CMOS sensor
Video Format
AHD / TVI / CVI / CVBS
System Format
NTSC / PAL (switchable via OSD)
S/N Ratio
≥50dB
Effective Pixels
1920 (H) x 1080 (V)
OSD Languages
English / Simplified Chinese / Traditional
Chinese / Japanese / Korean / Portuguese /
Russian / Spanish / Italian / French / Polish
Scanning System
Progressive Scan
DNR
2DNR / 3DNR
Sensitivity
N/A
D-WDR
Close / Open
Electronic
Shutter
N/A
Sens-up
N/A
Gamma
Correction
N/A
Mirror / Flip
N/A
Lens Type
2.8-12mm varifocal with ICR, F1.6
Motion Detection
Supported
FOV (D x H x V)
116~38° x 98~33° x 51~19°
Privacy Mask
Supported
BLC
On / Off
Environmental
IP66 Weather Resistant
AGC
Auto
Power Source
12VDC, 800mA
White Balance
Auto / Manual
Max. Power
Consumption
9.6W
Sync. Mode
Internal
Operating
-10°C ~ 50°C / 14°F ~ 122°F
Day / Night
Auto / Color / B&W
Humidity
Less than 95%
UTC Function
Supported
Dimensions
(Φ x H)
120x 98mm / 4.72" x 3.86"
IR LEDS
24 Units
Weight
800g / 1.76lb
IR Distance
Up to 30m / 98ft. (Depends on scene
IR reflectivity)
Certificates
CE, FCC, RoHS
Optional Accessories
Specifications
