Everdure RBEE61 Installation Manual

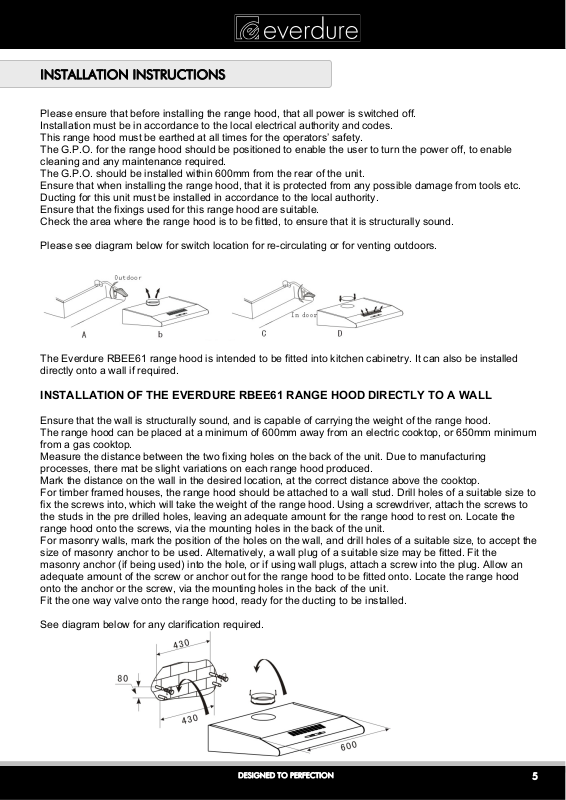

INSTALLATION INSTRUCTIONS

Please ensure that before installing the range hood, that all power is switched off. Installation must be in accordance to the local electrical authority and codes. This range hood must be earthed at all times for the operators’ safety. The G.P.O. for the range hood should be positioned to enable the user to turn the power off, to enable cleaning and any maintenance required. The G.P.O. should be installed within 600mm from the rear of the unit. Ensure that when installing the range hood, that it is protected from any possible damage from tools etc. Ducting for this unit must be installed in accordance to the local authority. Ensure that the fixings used for this range hood are suitable. Check the area where the range hood is to be fitted, to ensure that it is structurally sound.

Please see diagram below for switch location for re-circulating or for venting outdoors.

The Everdure RBEE61 range hood is intended to be fitted into kitchen cabinetry. It can also be installed directly onto a wall if required.

INSTALLATION OF THE EVERDURE RBEE61 RANGE HOOD DIRECTLY TO A WALL

Ensure that the wall is structurally sound, and is capable of carrying the weight of the range hood. The range hood can be placed at a minimum of 600mm away from an electric cooktop, or 650mm minimum from a gas cooktop. Measure the distance between the two fixing holes on the back of the unit. Due to manufacturing processes, there mat be slight variations on each range hood produced. Mark the distance on the wall in the desired location, at the correct distance above the cooktop. For timber framed houses, the range hood should be attached to a wall stud. Drill holes of a suitable size to fix the screws into, which will take the weight of the range hood. Using a screwdriver, attach the screws to the studs in the pre drilled holes, leaving an adequate amount for the range hood to rest on. Locate the range hood onto the screws, via the mounting holes in the back of the unit. For masonry walls, mark the position of the holes on the wall, and drill holes of a suitable size, to accept the size of masonry anchor to be used. Alternatively, a wall plug of a suitable size may be fitted. Fit the masonry anchor (if being used) into the hole, or if using wall plugs, attach a screw into the plug. Allow an adequate amount of the screw or anchor out for the range hood to be fitted onto. Locate the range hood onto the anchor or the screw, via the mounting holes in the back of the unit. Fit the one way valve onto the range hood, ready for the ducting to be installed.

See diagram below for any clarification required.

DESIGNED TO PERFECTION

INSTALLATION OF THE EVERDURE RBEE61 RANGE HOOD TO A CABINET

The diagram below shows the distance required between the holes in the top of the range hood. Due to manufacturing procedures, it is recommended that the dimension be checked on the range hood before installing. Drill the 6 x 4mm diameter holes into the bottom of the cupboard. Fit the one way valve onto the range hood, ready for installation of the ducting. Install the range hood to the bottom of the cupboard using the screws supplied with the range hood. The holes in the range hood are already threaded. Fully tighten the screws.

See diagram below for any clarification required.

FUMES & VAPOURS

CEILING

Ø120mm FLUE PIPE DUCTED TO OUTSIDE

CEILING

FUMES & VAPOURS

DUCTED OPTION

RE-CIRCULATING OPTION
