QUICK REFERENCE GUIDE

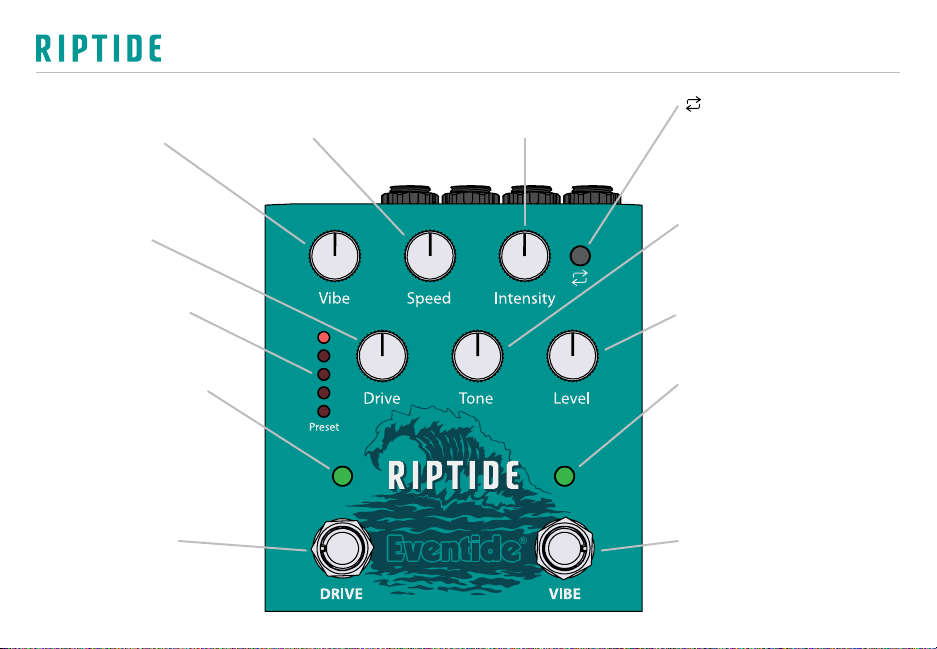

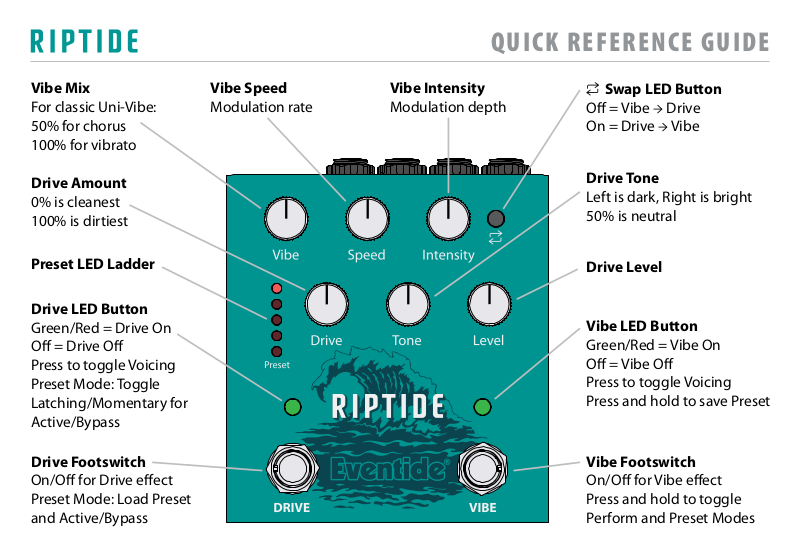

Vibe Mix
For classic Uni-Vibe:
50% for chorus
100% for vibrato
Drive Amount
0% is cleanest
100% is dirtiest
Preset LED Ladder
Drive LED Button
Green/Red = Drive On
O = Drive O
Press to toggle Voicing
Preset Mode: Toggle
Latching/Momentary for
Active/Bypass
Drive Footswitch
On/O for Drive eect
Preset Mode: Load Preset
and Active/Bypass
Vibe Speed
Modulation rate
Vibe Intensity
Modulation depth
Swap LED Button
O = Vibe → Drive
On = Drive → Vibe
Drive Tone
Left is dark, Right is bright
50% is neutral
Drive Level
Vibe LED Button
Green/Red = Vibe On
O = Vibe O
Press to toggle Voicing
Press and hold to save Preset
Vibe Footswitch
On/O for Vibe eect
Press and hold to toggle
Perform and Preset Modes
Page 2
Two Eects in One
Alternate Voicings
The perfect pairing of tones to surf the slow vibey
waves or drive to pulsing depths.
Drive: a balanced distortion with superb dynamics and
touch sensitivity.
Vibe: a faithful emulation of the classic Uni-Vibe™
by Shin-ei — in stereo!
Press Swap

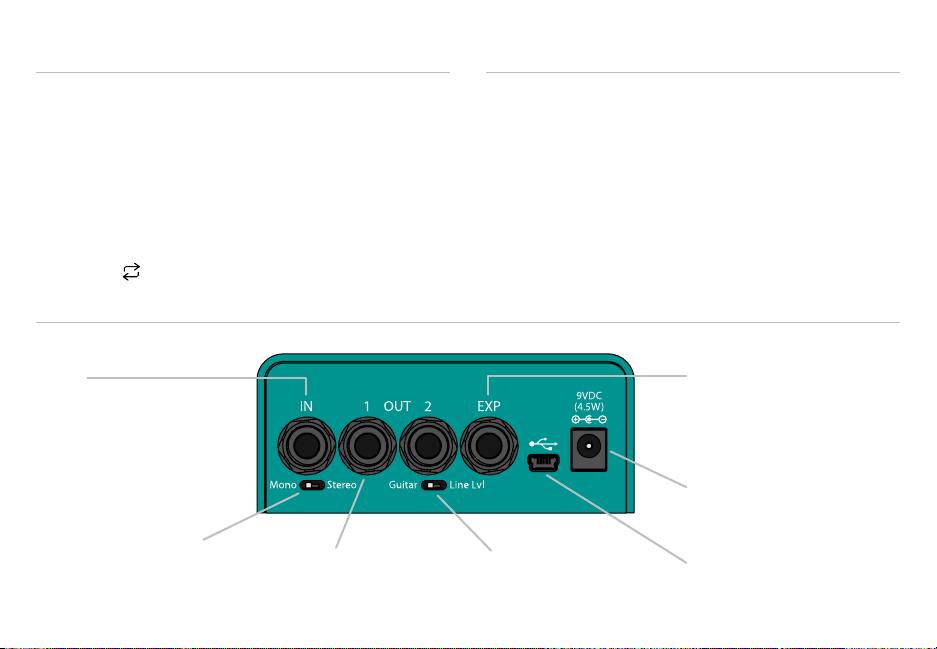

Input
Standard TS (Mono)
or TRS (Stereo)
Mono/Stereo Switch
Left = Mono (TS plug)
Right = Stereo (TRS plug)
In Stereo: Tip is OUT1, Ring is OUT2
LED Button to change the eect order.
Outputs 1 & 2
In Mono, both outputs
have the same dry signal
Both Drive and Vibe have an alternate voicing that can
be toggled by pressing the LED Buttons above their
corresponding footswitch. The color of the LED Button
indicates the chosen voicing.
Green Drive is a dynamic, mid range crunch.
Red Drive is a smooth and boosted overdrive.
Green Vibe is the traditional Uni-Vibe.
Red Vibe is a deeper, phasey Vibe.
EXP
Connect Expression Pedal,
Aux Switches or TRS MIDI
(See System Setup)
Power
9VDC center-negative
I/O Level Switch
Left = Guitar (instrument)
Right = Line/Eects Loop
Mini USB
Software updates and
MIDI over USB
Page 3
Presets 5 On Board, 127 Via MIDI
The current Preset is indicated on the Preset LED Ladder. When a Preset is modied the Preset LED blinks once.
Perform and Preset Modes
Press and hold Vibe Footswitch to toggle between
Perform and Preset Modes. Preset LEDs will blink twice.
Perform Mode: Footswitches turn Drive and Vibe
eects on and o, and the corresponding LED Buttons
toggle between 2 available voicings (Green or Red).
Preset Mode: Vibe Footswitch selects Preset 1–5, and
Drive Footswitch controls Pedal Active/Bypass.
Catch Up Knob Function
When loading a new Preset, knob positions will not
align with their current parameter values. As a result,
turning a knob will likely cause an audibly abrupt
change. With Catch Up enabled, the sound does not
change until the Knob is moved to the position of the
current value.
See “System Setup” on how to enable Catch Up.
Save Preset
To save one of the ve onboard Presets:
1. Press and hold Vibe LED Button. Blinking Ladder LEDs
and LED Buttons indicate you have entered Save Mode.
2. Press Vibe LED Button to select Preset 1–5.
3. Press Drive LED Button to save Preset.
LEDs stop blinking to let you know the Preset is saved.
NOTE: Save Mode times out after a few seconds.
Pressing either Footswitch exits Save Mode.
Load Presets
In Presets Mode, to select and load a Preset:
1. Press Vibe Footswitch to select Preset 1–5.
Preset 1 (top LED) to Preset 5 (bottom LED) blinks.
2. Press Drive Footswitch to load the Preset.
LED stops blinking.
Page 4
Expression Pedal MIDI Messages
Morphing from Heel to Toe
Use an Expression Pedal to change any grouping
of Knob Parameters in one smooth gesture. Easily
Program an Expression Pedal by setting end points for
Heel and Toe. Here’s how:
1. Press Exp Pedal fully Heel down.
2. Adjust any combination of Knob Parameters to set
the Heel values.
3. Press Exp Pedal fully Toe down.
4. Adjust any combination of Knob Parameters to set
the Toe values.
5. Save it or lose it. See “Presets.”
Clear Expression Pedal Mappings
To clear the Expression Pedal mappings for all Knob
Parameters, press and hold the Drive Footswitch and,
while holding, press and hold the Drive LED Button
until the Preset Ladder LEDs ash twice.
NOTE: To use an Expression Pedal, the EXP Jack must be
set to either [EXP] or [EXP + AUX] in System Setup.
Save Preset
Press and hold the Vibe LED Button to enter Save Mode,
then a MIDI program change message will save a Preset
to the Preset slot of the given value 1–127.
Load Preset
MIDI program change message loads the Preset from
the Preset slot of the given value 1–127. The bottom
two Ladder LEDs will be lit when Presets 6–127 are
selected externally via MIDI.
CC PARAMETER
4 Expression Pedal
9 Tap Rate
1452Pedal Active/Bypass
Drive On/O
CC PARAMETER
53 Vibe On/O
54 Drive Voicing
5556Vibe Voicing
Swap Eect Order
Knob Parameters
CC VIBE PARAMETER
20 Vibe
21 Speed
22 Intensity
CC DRIVE PARAMETER
23 Drive
24 Tone
25 Level
Page 5

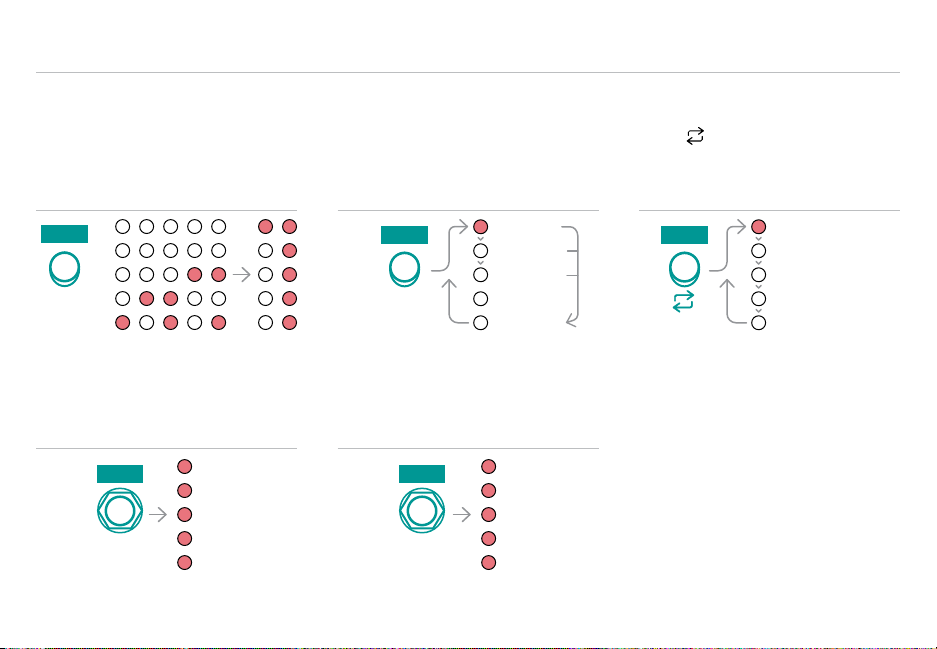

System Setup
Enter System Setup
To access these Global Settings, apply power while holding Drive Footswitch and Swap LED Button. Top two
Preset LEDs are on when in System Setup. Changes are stored as they are made. Cycle power to exit System Setup.
Set MIDI Channel
PRESS
VIBE
BUTTON
1 2 3 4 165 ...
Set MIDI Channel: Press Vibe LED Button
Factory Default = OMNI
Set MIDI Clock
PRESS
ON
DRIVE
SWITCH
MIDI Clock disables Aux Tap switch and CC 9
Factory Default = O
Set Bypass Mode
PRESS
DRIVE
BUTTON
Only applies to Pedal Bypass
Factory Default = BUFFER
Catch Up ON/OFF
PRESS
VIBE
SWITCH
Factory Default = O
BUFFER
RELAY
DSP+FX
KILL DRY
ON
Set EXP Pedal Jack
PRESS
EXP (Default)
EXP + AUX
TRIPLE AUX
MIDI BOX
BUTTON
EXP+AUX
TIP = Expression Pedal
RING = Tap RATE
TRIPLE AUX
TIP = Increment Preset
RING = Decrement Preset
TIP + RING = Load Preset
Note: Times out after a few seconds
MIDI BOX
Receive and Send MIDI via a MIDI
Converter Box (Tip Active)
MIDI TRS
Receive MIDI directly with a DIN
to TRS or TRS cable
MIDI TRS
Page 6
Downloads for Mac and PC available at eventideaudio.com/riptide
Restore Factory Settings: Power on while pressing Drive Footswitch and Drive LED Button
Software Update: Power on while pressing Vibe Footswitch and Vibe LED Button
Riptide Quick Reference Guide for Firmware v1.0+ Eventide Part#141348 Rev A
Eventide is a registered trademark of Eventide Inc.
© 2023 Eventide Inc. eventideaudio.com @eventideaudio
