EVCO EC3563 User Manual

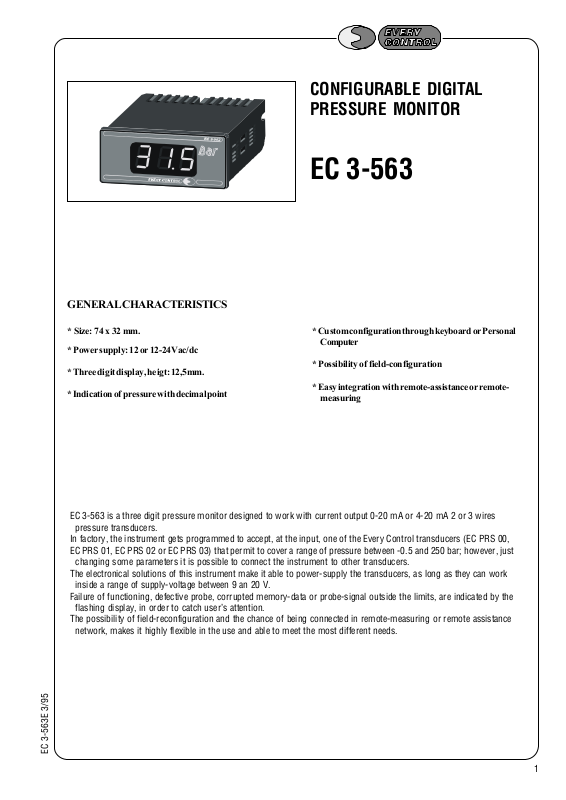

GENERAL CHARACTERISTICS

CONFIGURABLE DIGITAL
PRESSURE MONITOR

EC 3-563

* Size: 74 x 32 mm.

* Power supply: 12 or 12-24Vac/dc

* Three digit display, heigt: 12,5mm.

* Indication of pressure with decimal point

EC 3-563 is a three digit pressure monitor designed to work with current output 0-20 mA or 4-20 mA 2 or 3 wires

pressure transducers.
In factory, the instrument gets programmed to accept, at the input, one of the Every Control transducers (EC PRS 00,
EC PRS 01, EC PRS 02 or EC PRS 03) that permit to cover a range of pressure between -0.5 and 250 bar; however, just

changing some parameters it is possible to connect the instrument to other transducers.
The electronical solutions of this instrument make it able to power-supply the transducers, as long as they can work

inside a range of supply-voltage between 9 an 20 V.
Failure of functioning, defective probe, corrupted memory-data or probe-signal outside the limits, are indicated by the

flashing display, in order to catch user's attention.
The possibility of field-reconfiguration and the chance of being connected in remote-measuring or remote assistance

network, makes it highly flexible in the use and able to meet the most different needs.

* Custom configuration through keyboard or Personal

Computer

* Possibility of field-configuration

* Easy integration with remote-assistance or remote-

measuring

EC 3-563E 3/95

1

MOUNTING

For a proper mounting, take note of the attached indications; be sure that the conditions of use (voltage of power-

supply, environment temperature, humidity) are inside the instrument working limits.

Voltage at terminal 12 is not stabilized. If the transducer is powered by the instrument, it should be verified that in all

working conditions, especially for high signal output, the voltage on the transducer does not drop below the
minimum working value, in order to guarantee a correct measure.

WARNING : according to the source of power-supply, find a protection able to limit the quantity of current

absorbed by the instrument in case the failure.

CONFIGURATION

Push and keep it pushed for 4 sec. at least :

"PA" will appear on the display

Release and push it straight after:

the first modifiable parameter will appear on the screen

Release and push until the requested parameter appears

Keep pushed for 4 sec. at least :

the parameter value will appear on the screen

Keep pushed again for 4 sec. at least :

the displayed value start increasing at the speed of 1 digit for 1/2 sec.

Release at the reaching of the requested value.

WARNING: The parameter value gets increased at the speed of 1 digit for 1/2 sec., until the upper end of scale reaching,

afterwards the instrument returns to the lower end of scale, and from here it keeps increasing.

To exit the configuration

Push again after the selection of the last available parameter, or wait 50 seconds, or switch the power supply off

and then switch it on.

SIGNALS AND ALARMS

"E0" flashing on the display means one of the following defects: probe-signal outside the limits, defective probe or

wrong connection (in case of not connected probe, the indication "E0" will appear if the parameter is /0=30 (4-20
mA) and "0" if the parameter is /0=31 (0-20 mA)).

"E2" flashing on the display: failure of memorised configuration-data; try to switch the power-supply off, and then, switch

it on.

EC 3-563E 3/95

2

CONFIGURATION PARAMETERS

CODE PARAMETER DESCRIPTION MIN MAX U.M. STANDARD

/ PROBE

/0 kind of probe 30 = 4-20 mA ; 31 = 0-20 mA 3 0 3 1 ---- 30

/1 calibration -9.0 +10 bar 0

/2 digital filter(speed response) 0=0s; 1=0.4s; 2=1.2s; 3=3.0s; 4=8.0s; 5=19.8s; 6=48.0s 0 6 —— 3

/4 without leading zeros 0=NO; 1=SI 0 1 —— 1

/5 with decimal point 0=NO; 1=SI 0 1 ---- 0

/6 start of scale for input 0-20 mA or 4-20 mA corrispondent to input's minimum value -9 9 999 b ar see table

/7 end of scale for input 0-20 mA or 4-20 mA corrispondent to input's maximum value -99 99 9 ba r see table

L NETWORK CONNECTION

L1 instrument address 1 15 —— 1

L2 instrument group 0 7 ---- 0

notes

N.B. On request, it is possible to configure the instrument with different unit of measure.
The transducers pressure ranges are to be considered as " relative to atmospheric pressure ";

the unit of measure is bar (1 bar = 0.1 MPa; 1 MPa = 10 bar).

TABLE

connected range parameter /6 parameter /7

transducer (bar) (bar) (bar)

EC PRS 00 -0.5÷ 7 -0.5 7

EC PRS 01 0÷25 0 25

EC PRS 02 0÷30 0 30

EC PRS 03 0÷ 250 0 250

CUSTOM configurable according to the needs

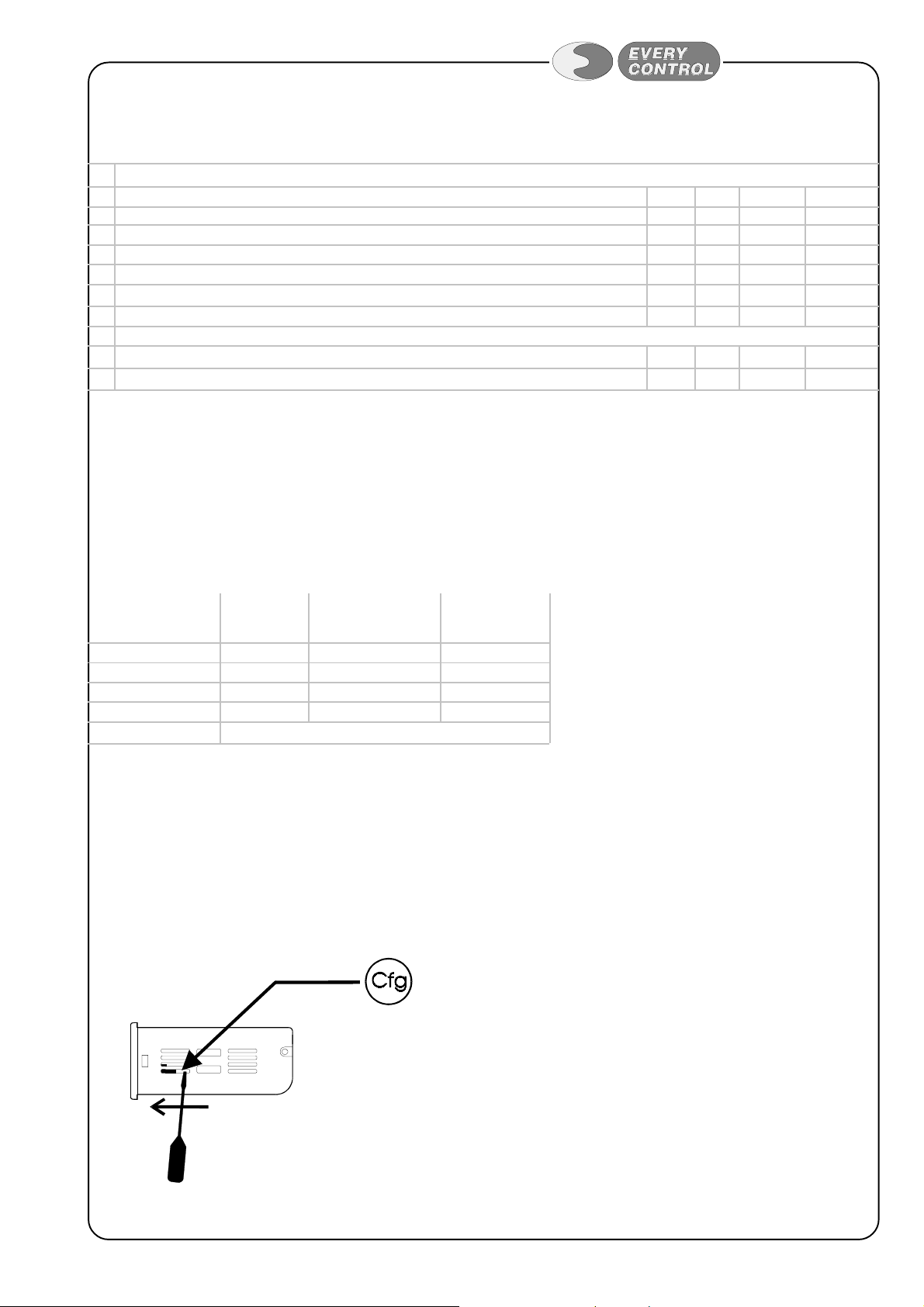

HOW TO ENTER THE CONFIGURATION KEY

Use a suitable tool (for instance, a small top screw-driver) to operate on the key though the side openings.

EC 3-563E 3/95

3

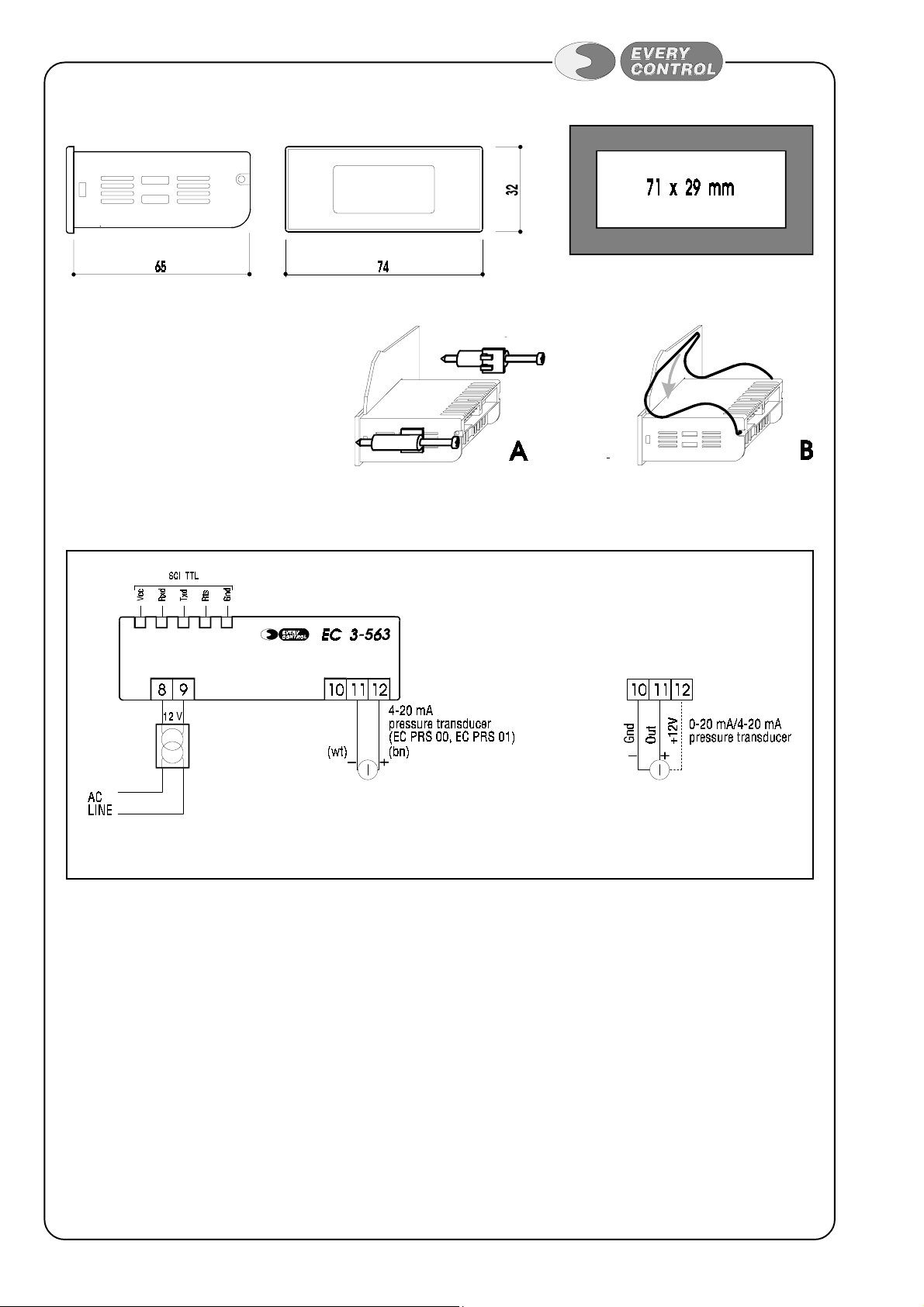

SIZE AND PIERCING TEMPLATE

OPTIONS OF MOUNTING

- Screw-brackets (A) .

- Spring-bracket (B).
The panel thickness will be

between 1 and 5 mm.

ELECTRICAL CONNECTIONS Example of typical application

ELECTRO-MECHANICAL CHARACTERISTICS

Box: Self-extinguishing plastic (PC-ABS) according to

UL94 V-0.

Size: 74 x 32 x 65 mm.
Mounting : Panel-mounting through fixing brackets.
Environment temperature: from 0 to + 60°C.
Humidity : 10...90% not condensing.
Connections : Screw connectors.
Insulation-class : II (With transformer, according to EN

60742).
Power-supply : 12 Vac/dc (Standard) or 12...24Vac/dc
(on request); 1 W.
Inputs for measure: 1 configurable for pressure
transducers with current output (4-20 mA or 0-20 mA).
Input resistance : 56 ohm.

4

EVERY CONTROL srl - Via Mezzaterra 6 - 32036 Sedico - BELLUNO - ITALY

Tel [phone] (3 linee r.a.) - FAX [phone]

Transducer power-supply: available at terminal 12
(voltage 12V +30%, -20%).

Range of measure:

from -0.5 to 7 bar (if programmed for EC PRS 00),
from 0 to 25 bar (if programmed for EC PRS 01),
from 0 to 30 bar (if programmed for EC PRS 02),
from 0 to 250 bar (if programmed for EC PRS 03).

Resolution: 0.1 bar or 1 bar.
Display: 3 digits display.
Serial port for data exchange : TTL with EVCOBUS

(standard protocol).

EC 3-563E 3/95
