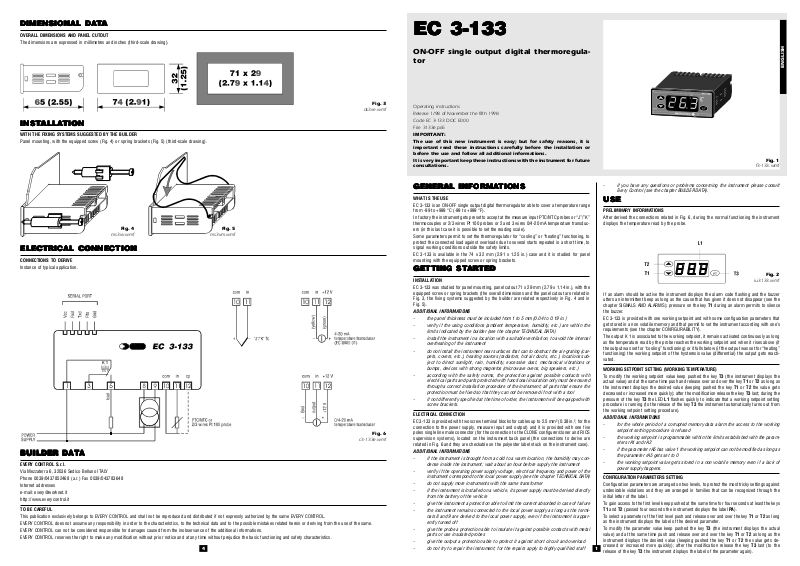

EVCO EC3133 User Manual

DIMENSIONAL DADIMENSIONAL DA

DIMENSIONAL DA

DIMENSIONAL DADIMENSIONAL DA

OVERALL DIMENSIONS AND PANEL CUTOUT

The dimensions are expressed in millimetres and inches (third-scale drawing).

TT

AA

T

A

TT

AA

EC 3-133EC 3-133

EC 3-133

EC 3-133EC 3-133

ON-OFF single output digital thermoregula­tor

ENGLISH

ds3ve.wmf

INSTINST

ALLAALLA

ALLA

ALLAALLA

TIONTION

TION

TIONTION

TT

T

TT

Fig. 4

ms3vv.wmf

AA

A

AA

ms3vm.wmf

4

Fig. 5

c3-133e.wmf

INST

INSTINST

WITH THE FIXING SYSTEMS SUGGESTED BY THE BUILDER

Panel mounting, with the equipped screw (Fig. 4) or spring brackets (Fig. 5) (third-scale drawing).

ELECTRICAL CONNECTIONELECTRICAL CONNECTION

ELECTRICAL CONNECTION

ELECTRICAL CONNECTIONELECTRICAL CONNECTION

CONNECTIONS TO DERIVE

Instance of typical application.

BUILDER DABUILDER DA

BUILDER DA

BUILDER DABUILDER DA

EVERY CONTROL S.r.l.

Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Phone [phone] (a.r.) Fax [phone]
Internet addresses
e-mail: [e-mail]
http://www.everycontrol.it

TO BE CAREFUL

This publication exclusively belongs to EVERY CONTROL and shall not be reproduced and distributed if not expressly authorized by the same EVERY CONTROL.
EVERY CONTROL does not assume any responsibility in order to the characteristics, to the technical data and to the possible mistakes related herein or deriving from the use of the same.
EVERY CONTROL can not be considered responsible for damages caused from the inobservance of the additional informations.
EVERY CONTROL reserves the right to make any modification without prior notice and at any time without prejudice the basic functioning and safety characteristics.

Fig. 3

Fig. 6

Operating instructions

Release 1/98 of November the fifth 1998

Code EC 3-133 DOC E000

File 3133e.p65

IMPORTANT:

The use of this new instrument is easy; but for safety reasons, it is
important read these instructions carefully before the installation or
before the use and follow all additional informations.

It is very important keep these instructions with the instrument for future
consultations.

GENERAL INFORMAGENERAL INFORMA

GENERAL INFORMA

GENERAL INFORMAGENERAL INFORMA

WHAT IS THE USE

EC 3-133 is an ON-OFF single output digital thermoregulator able to cover a temperature range
from -99 to +999 °C (-99 to +999 °F).

In factory the instrument gets preset to accept at the measure input PTC/NTC probes or “J”/”K”
thermocouples or 2/3 wires Pt 100 probes or 2 and 3 wires 0/4-20 mA temperature transduc­ers (in this last case it is possible to set the reading scale).

Some parameters permit to set the thermoregulator for “cooling” or “heating” functioning, to
protect the connected load against overloads due to several starts repeated in a short time, to
signal working conditions outside the safety limits.

EC 3-133 is available in the 74 x 32 mm (2.91 x 1.25 in.) case and it is studied for panel
mounting with the equipped screw or spring brackets.

GETTING STGETTING ST

GETTING ST

GETTING STGETTING ST

INSTALLATION

EC 3-133 was studied for panel mounting, panel cutout 71 x 29 mm (2.79 x 1.14 in.), with the
equipped screw or spring brackets (the overall dimensions and the panel cutout are related in
Fig. 3, the fixing systems suggested by the builder are related respectively in Fig. 4 and in
Fig. 5).

ADDITIONAL INFORMATIONS

- the panel thickness must be included from 1 to 5 mm (0.04 to 0.19 in.)

- verify if the using conditions (ambient temperature, humidity, etc.) are within the
limits indicated by the builder (see the chapter TECHNICAL DATA)

- install the instrument in a location with a suitable ventilation, to avoid the internal
overheating of the instrument

- do not install the instrument near surfaces that can to obstruct the air-grating (car­pets, covers, etc.), heating sources (radiators, hot air ducts, etc.), locations sub­ject to direct sunlight, rain, humidity, excessive dust, mechanical vibrations or
bumps, devices with strong magnetos (microwave ovens, big speakers, etc.)

- according with the safety norms, the protection against possible contacts with
electrical parts and parts protected with functional insulation only must be ensured
through a correct installation procedure of the instrument; all parts that ensure the
protection must be fixed so that they can not be removed if not with a tool

- if not differently specified at the time of order, the instrument will be equipped with
screw brackets.

ELECTRICAL CONNECTION

EC 3-133 is provided with two screw terminal blocks for cables up to 2.5 mm² (0.38 in.², for the
connection to the power supply, measure input and output) and it is provided with one five
poles single line male connector (for the connection to the CLONE configurer/cloner and RICS
supervision systems), located on the instrument back panel (the connections to derive are
related in Fig. 6 and they are checkable on the polyester label stuck on the instrument case).

ADDITIONAL INFORMATIONS

- if the instrument is brought from a cold to a warm location, the humidity may con­dense inside the instrument; wait about an hour before supply the instrument

- verify if the operating power supply voltage, electrical frequency and power of the
instrument correspond to the local power supply (see the chapter TECHNICAL DATA)

- do not supply more instruments with the same transformer

- if the instrument is installed on a vehicle, its power supply must be derived directly
from the battery of the vehicle

- give the instrument a protection able to limit the current absorbed in case of failure

- the instrument remains connected to the local power supply as long as the termi­nals 8 and 9 are derived to the local power supply, even if the instrument is appar­ently turned off

- give the probe a protection able to insulate it against possible contacts with metal
parts or use insulated probes

- give the output a protection able to protect it against short circuit and overload

- do not try to repair the instrument; for the repairs apply to highly qualified staff

ARAR

AR

ARAR

TEDTED

TED

TEDTED

TIONSTIONS

TIONS

TIONSTIONS

- if you have any questions or problems concerning the instrument please consult
Every Control (see the chapter BUILDER DATA).

USEUSE

USE

USEUSE

PRELIMINARY INFORMATIONS

After derived the connections related in Fig. 6, during the normal functioning the instrument
displays the temperature read by the probe.

iu3133.wmf

If an alarm should be active the instrument displays the alarm code flashing and the buzzer
utters an intermittent beep as long as the cause that has given it does not disappear (see the
chapter SIGNALS AND ALARMS); pressure on the key T1 during an alarm permits to silence
the buzzer.

EC 3-133 is provided with one working setpoint and with some configuration parameters that
get stored in a non volatile memory and that permit to set the instrument according with one’s
requirements (see the chapter CONFIGURABILITY).

The output K 1 is associated to the working setpoint, it remains activated continuously as long
as the temperature read by the probe reaches the working setpoint and when it rises above (if
the output was set for “cooling” functioning) or it falls below (if the output was set for “heating”
functioning) the working setpoint of the hysteresis value (differential) the output gets reacti­vated.

WORKING SETPOINT SETTING (WORKING TEMPERATURE)

To modify the working setpoint value keep pushed the key T3 (the instrument displays the
actual value) and at the same time push and release over and over the key T1 or T2 as long as
the instrument displays the desired value (keeping pushed the key T1 or T2 the value gets
decreased or increased more quickly): after the modification release the key T3 last; during the
pressure of the key T3 the LED L1 flashes quickly to indicate that a working setpoint setting
procedure is running (to the release of the key T3 the instrument automatically turns out from
the working setpoint setting procedure).

ADDITIONAL INFORMATIONS

- for the whole period of a corrupted memory data alarm the access to the working
setpoint setting procedure is refused

- the working setpoint is programmable within the limits established with the param­eters rA1 and rA2

- if the parameter rA5 has value 1 the working setpoint can not be modified as long as
the parameter rA5 gets set to 0

- the working setpoint value gets stored in a non volatile memory even if a lack of
power supply happens.

CONFIGURATION PARAMETERS SETTING

Configuration parameters are arranged on two levels, to protect the most tricky settings against
undesirable violations and they are arranged in families that can be recognized through the
initial letter of the label.

To gain access to the first level keep pushed at the same time for four seconds at least the keys
T1 and T2 (passed four seconds the instrument displays the label PA).

To select a parameter of the first level push and release over and over the key T1 or T2 as long
as the instrument displays the label of the desired parameter.

To modify the parameter value keep pushed the key T3 (the instrument displays the actual
value) and at the same time push and release over and over the key T1 or T2 as long as the
instrument displays the desired value (keeping pushed the key T1 or T2 the value gets de­creased or increased more quickly); after the modification release the key T3 last (to the

1

release of the key T3 the instrument displays the label of the parameter again).

Fig. 1

f3-133.wmf

Fig. 2

To gain access to the second level enter inside the first level and select the label PA.
Keep pushed the key T3 (the instrument displays the actual value) and at the same time push

and release over and over the key T1 or T2 as long as the instrument displays -19 (keeping
pushed the key T1 or T2 the value gets decreased or increased more quickly): after the modi­fication release the key T3 last (to the release of the key T3 the instrument displays the label PA
again); keep pushed at the same time for four seconds at least the keys T1 and T2 (passed four
seconds the instrument displays the first parameter of the second level).

To select a parameter of the second level push and release over and over the key T1 or T2 as
long as the instrument displays the label of the desired parameter.

To modify the parameter value keep pushed the key T3 (the instrument displays the actual
value) and at the same time push and release over and over the key T1 or T2 as long as the
instrument displays the desired value (keeping pushed the key T1 or T2 the value gets de­creased or increased more quickly); after the modification release the key T3 last (to the
release of the key T3 the instrument displays the label of the parameter again).

To turn out from the configuration parameters setting procedure keep pushed at the same time
for four seconds at least the keys T1 and T2 or do not operate with the keys for fifty seconds
at least (time-out exit).

ADDITIONAL INFORMATIONS

- for the whole period of a corrupted memory data alarm the access to the configura­tion parameters setting procedure is refused

- the modification of a parameter value which unit of measure is the hour or the
minute or the second has not immediate effect; to obtain this effect it must not be
executed during the course of the value

- the configuration parameters values get stored in a non volatile memory even if a
lack of power supply happens.

CONFIGURABILITYCONFIGURABILITY

CONFIGURABILITY

CONFIGURABILITYCONFIGURABILITY

WORKING SETPOINT

LABEL MIN. MAX. U.M. ST. WORKING SETPOINT

rA1 rA2 °C 0 working setpoint

It establishes the temperature associated to the output K 1.

CONFIGURATION PARAMETERS

LABEL MIN. MAX. U.M. ST. PASSWORD
PA -90 100 --- 0 password (§)

It is the password that permits to gain access to the second level.

LABEL MIN. MAX. U.M. ST. MEASURE INPUT
/0 01 31 --- (*) kind of probe

It establishes the kind of probe that the instrument must recognize to its measure input, as
indicated:
01 = PTC probe 03 = NTC probe
10 = “J” thermocouple 11 = “K” thermocouple
20 = 3 wires Pt 100 probe 21 = 2 wires Pt 100 probe
30 = 2 and 3 wires 4-20 mA temperature transducer
31 = 2 and 3 wires 0-20 mA temperature transducer.

/1 -9 +10 °C 0 calibration (§)

It establishes a threshold to add algebraically to the signal coming from the measure input (for
instance to correct the signal).

/2 0 6 --- 3 digital filter

It establishes a time constant to apply to the signal coming from the measure input, as indi­cated:
0 = 0 sec. 1 = 0.4 sec.
2 = 1.2 sec. 3 = 3.0 sec.
4 = 8.0 sec. 5 = 19.8 sec.
6 = 48.0 sec.

/4 0 1 --- 0 leading zeroes displaying

It establishes if to display the leading zeroes, as indicated:
0 = the leading zeroes get not displayed
1 = the leading zeroes get displayed.

/5 0 1 --- 1 decimal point

It establishes the resolution with which the temperature gets displayed, as indicated:
0 = the temperature gets displayed with the resolution of the unit of measure
1 = the temperature gets displayed with the resolution of 1/10 of the unit of measure.

/6 -99 +999 points -20 lower end of scale for 0/4-20 mA input (it coincides with

It establishes the lower end of scale for 0/4-20 mA input and it must coincide with the mini­mum calibration value of the transducer.

/7 -99 +999 points +80 upper end of scale for 0/4-20 mA input (it coincides with

It establishes the upper end of scale for 0/4-20 mA input and it must coincide with the maxi­mum calibration value of the transducer.

LABEL MIN. MAX. U.M. ST. ON-OFF TEMPERATURE REGULATOR ASSOCIATED TO THE

rA0 -99 +99 °C (*) hysteresis (differential) (§)

It establishes the hysteresis (differential) relative to the working setpoint.

rA1 -99 +999 °C (*) minimum working setpoint programmable

It establishes the minimum working setpoint programmable; the instrument automatically veri­fies if the value established with the parameter rA1 is below the maximum working setpoint
programmable established with the parameter rA2.

rA2 -99 +999 °C (*) maximum working setpoint programmable

It establishes the maximum working setpoint programmable; the instrument automatically
verifies if the value established with the parameter rA2 is above the minimum working setpoint
programmable established with the parameter rA1.

rA3 0 1 --- 1 “cooling” or “heating” functioning

It establishes the output functioning, as indicated:

the minimum calibration value of the transducer)

the maximum calibration value of the transducer)

WORKING SETPOINT AND TO THE OUTPUT K 1

0 = “cooling” functioning
1 = “heating” functioning.

rA4 0 1 --- 0 kind of hysteresis (kind of differential)

It establishes the kind of hysteresis (kind of differential), as indicated:
0 = asymmetrical
1 = symmetrical.

rA5 0 1 --- 0 locking of the working setpoint modification

It establishes if to prevent the modification of the working setpoint, as indicated:
0 = the working setpoint can be modified
1 = the working setpoint can not be modified as long as the parameter rA5 gets set to 0.

LABEL MIN. MAX. U.M. ST. OUTPUT K 1 PROTECTION
CA0 0 999 sec. 0 disabling time to the output activation from the instru-

It establishes the time that disables the output activation from the moment of the instrument
start.

CA1 0 999 sec. 0 disabling time to the output activation from the previous

It establishes the time that disables the output activation from the moment of the previous
output activation.

CA2 0 999 sec. 0 disabling time to the output activation from the previous

It establishes the time that disables the output activation from the moment of the previous
output deactivation.

CA3 0 1 --- 0 output status during a probe failure alarm

It establishes the status to which the output gets forced during a probe failure alarm, as indi­cated:
0 = during a probe failure alarm the output gets forced to the status OFF
1 = during a probe failure alarm the output gets forced to the status ON.

CA4 0 1 --- 0 disabling time to the output activation and deactivation

It establishes if to disable the output activation and deactivation for a fixed time, as indicated:
0 = inactive
1 = the output activation and deactivation get disabled for 3 sec.

LABEL MIN. MAX. U.M. ST. TEMPERATURE ALARM REGULATOR ASSOCIATED TO THE

AA0 (*) +99 °C (*) hysteresis (differential)

It establishes the hysteresis (differential) relative to the parameter AA1.

AA1 -99 +999 °C 0 alarm setpoint

It establishes the temperature to which the temperature alarm gets activated according with
the modality established with the parameter AA4.

AA3 0 999 min. 0 disabling time to the alarm activation from the instru-

It establishes the time that disables the temperature alarm activation from the moment of the
instrument start.

AA4 1 7 --- 1 kind of alarm

It establishes the kind of temperature alarm that the instrument must manage, as indicated:
1 = the temperature alarm never gets activated
2 = absolute lower temperature alarm
3 = absolute upper temperature alarm
4 = lower temperature alarm relative to the working setpoint
5 = upper temperature alarm relative to the working setpoint
6 = lower temperature alarm relative to the working setpoint with automatic

recomputation and reenabling

7 = upper temperature alarm relative to the working setpoint with automatic

recomputation and reenabling.

LABEL MIN. MAX. U.M. ST. TEMPERATURE ALARM REGULATOR ASSOCIATED TO THE

Ab0 (*) +99 °C (*) hysteresis (differential)

It has the same significance of the parameter AA0.

Ab1 -99 +999 °C 0 alarm setpoint

It has the same significance of the parameter AA1.

Ab3 0 999 min. 0 disabling time to the alarm activation from the instru-

It has the same significance of the parameter AA3.

Ab4 1 7 --- 1 kind of alarm

It has the same significance of the parameter AA4.

LABEL MIN. MAX. U.M. ST. CONNECTION IN A SERIAL NETWORK WITH EVCOBUS

L1 1 15 --- 1 instrument address

It establishes the address to which the instrument (slave) answers when it is connected to a
serial network with EVCOBUS protocol communication managed from a master (for instance a
Personal Computer).

L2 0 7 --- 0 instrument group

It establishes the group to which the instrument (slave) answers when it is connected to a
serial network with EVCOBUS protocol communication managed from a master (for instance a
Personal Computer).

ADDITIONAL INFORMATIONS

- the symbol (§) indicates that the parameter is of the first level

- the symbol (*) indicates that the value depends from the measure input presetting
requested

- if the instrument is preset to accept at the measure input “J”/”K” thermocouples
the parameter /5 does not exist

- if the instrument is not preset to accept at the measure input 2 and 3 wires 0/4-20
mA temperature transducers the parameters /6 and /7 do not exist.

2 3

ment start

activation

deactivation

FIRST TEMPERATURE ALARM

ment start

SECOND TEMPERATURE ALARM

ment start

PROTOCOL COMMUNICATION

SIGNALS AND ALARMSSIGNALS AND ALARMS

SIGNALS AND ALARMS

SIGNALS AND ALARMSSIGNALS AND ALARMS

SIGNALS

If the LED L1 is turned ON it means that the output K 1 is activated.
If the LED L1 flashes it means that a count of a disabling time to the output K 1 activation is

running (see the parameters CA0, CA1, CA2 and CA4).
If the instrument displays the indication “

modified (see the parameters rA5).

ALARMS

If the instrument displays the indication “E2” flashing and the buzzer utters an intermittent
beep (corrupted memory data alarm) it means that there is a corruption of the configuration
data in the memory (turn OFF and turn ON again the instrument: if to the turning ON again the
alarm does not disappear the instrument must be replaced); during this alarm the access to
the working setpoint setting and the configuration parameters setting procedures is refused
and the output K 1 gets forced to the status OFF.

If the instrument displays the indication “E0” flashing and the buzzer utters an intermittent
beep (probe failure alarm) it means that: the kind of connected probe is not proper (see the
parameter /0), the probe is faulty (verify the probe integrity), there is a mistake in the instru­ment-probe connection (verify the instrument-probe connection integrity), the temperature
read by the probe is outside the limits permitted by the probe in use (verify that the tempera­ture near the probe be inside the limits permitted by the probe); during this alarm the output
K 1 gets forced to the status established with the parameter CA3.

If the instrument displays the indication “E0C” flashing and the buzzer utters an intermittent
beep (cold junction/third wire failure alarm) it means that, if the instrument is preset to
accept at the measure input “J”/”K” thermocouples there is a mistake in the cold junction
adjustment circuit (the instrument must be replaced), if the instrument is preset to accept at
the measure input 2/3 wires Pt 100 probes and it is set to recognize to its measure input 3
wires Pt 100 probes the third wire of the probe is not connected (verify the instrument-probe
connection integrity); during this alarm the output K 1 gets forced to the status established
with the parameter CA3.

If the instrument displays the indication “AL1” flashing alternated to the temperature read by
the probe and the buzzer utters an intermittent beep (first temperature alarm) it means that
the temperature read by the probe is outside the limit established with the parameter AA1 (see
the parameters AA0, AA1 and AA4); inactive.

If the instrument displays the indication “AL2” flashing alternated to the temperature read by
the probe and the buzzer utters an intermittent beep (second temperature alarm) it means that
the temperature read by the probe is outside the limit established with the parameter Ab1 (see
the parameters Ab0, Ab1 and Ab4); inactive.

If the instrument displays the indication “999” flashing (end of scale display) it means that the
temperature read by the probe is outside the working range permitted by the instrument (verify
that the temperature near the probe be inside the limits permitted by the instrument); inactive.

ADDITIONAL INFORMATIONS

- the alarm codes are related in order of precedence.

TECHNICAL DATECHNICAL DA

TECHNICAL DA

TECHNICAL DATECHNICAL DA

TECHNICAL DATA
Case: plastic black (PC-ABS), self-extinguishing.
Size: 74 x 32 x 65 mm (2.91 x 1.25 x 2.55 in.).
Installation: panel mounting, panel cutout 71 x 29 mm (2.79 x 1.14 in.),

Type of protection: IP 54.
Connections: screw terminal blocks with pitch 5 mm (0.19 in., power

Ambient temperature: from 0 to +60 °C (+32 to +140 °F, 10 ... 90 % of not con-

Power supply: 12 Vac/dc or 12-24 Vac/dc, 50/60 Hz, 1.5 VA.
Insulation class: II.
Alarm buzzer: incorporated.
Measure inputs: 1 configurable, hardware depending, for PTC/NTC probes

Working range: from -50 to +150 °C (-58 to +302 °F) for PTC probe, from

Setting range: from -99 to +999 °C (-99 to +999 °F).
Resolution: configurable for 0.1 (except the instruments preset to ac-

Display: 3-digit display 12.5 mm (0.49 in.) high red LED display

Outputs: one change-over contact 6 (3) A @ 250 Vac relay for regu-

Serial port: TTL with EVCOBUS protocol communication, for the con-

≡≡≡≡≡≡

≡≡≡” it means that the working setpoint can not be

≡≡≡≡≡≡

TT

AA

T

A

TT

AA

with the equipped screw or spring brackets.

supply and measure input) and with pitch 10 mm (0.39 in.,
output) for cables up to 2.5 mm² (0.38 in.²), five poles
single line male connector with pitch 5.08 mm (0.2 in.,
serial port).

densing relative humidity).

or “J”/”K” thermocouples or 2/3 wires Pt 100 probes or 2
and 3 wires 0/4-20 mA temperature transducers (Ri 56
Ohm); at terminal 12 +12 V (+30 %, -20 %) are available to
supply the transducer.

-40 to +110 °C (-40 to +230 °F) for NTC probe, from -99 to
+700 °C (-99 to +999 °F) for “J” thermocouple, from

-99 to +999 °C (-99 to +999 °F) for “K” thermocouple, from

-99 to +600 °C (-99 to +999 °F) for 2/3 wires Pt 100 probes,
configurable for 2 and 3 wires 0/4-20 mA temperature trans­ducers.

cept at the measure input “J”/”K” thermocouples) or 1 °C
(1 °F).

with automatic decimal point and minus sign, output sta­tus indicator.

lation load management.

nection to the CLONE configurer/cloner and RICS supervi­sion systems.

HOW TO ORDERHOW TO ORDER

HOW TO ORDER

HOW TO ORDERHOW TO ORDER

CODING SYSTEM
Instrument name: EC 3-133.
Desired measure input: P (for PTC/NTC probes),

Desired power supply: 012 (12 Vac/dc),

Options: custom configuration, temperature display in °F, green LED

J (for “J”/”K” thermocouples),
C (for 2/3 wires Pt 100 probes),
I (for 2 and 3 wires 0/4-20 mA temperature transducers).

024 (12-24 Vac/dc).

display, SSR output.
