C-PRO NANO
PROGRAMMABLE CONTROLLERS
HARDWARE MANUAL
CODICE 114CPRNHWE03
C-PRO NANO HARDWARE MANUAL
Important
Please read these instructions carefully prior to installation and use, and follow all the precautions for installation and electrical
connections; keep these instructions with the device for future consultation.
The device must be disposed of in accordance with local regulations pertaining to the collection of electrical and electronic
appliances.
Page 2
C-PRO NANO HARDWARE MANUAL
Contents
1 INTRODUCTION........................................................................................................................................4
2 COMPONENT AND AUXILIARY NETWORK SYSTEMS.................................................................. 5
3 TECHNICAL CHARACTERISTICS........................................................................................................ 6
3.1 C
3.2 T
3.3 C-PRO NANO
3.4 G
3.5 T
3.6 E
ONNECTIONS
HE
C-PRO NANO
ENERAL CHARACTERISTICS
ECHNICAL CHARACTERISTICS
LECTRICAL CHARACTERISTICS
......................................................................................................................................... 6
WIRING LAYOUT
DIMENSIONS/INSTALLATION
................................................................................................................. 11
...................................................................................................... 8
......................................................................................... 10
.............................................................................................................. 11
............................................................................................................. 12
4 THE C-PRO NANO USER INTERFACE............................................................................................... 14
5 C-PRO EXP MICRO I/O EXPANSION UNITS..................................................................................... 16
5.1 T
5.2 C-PRO EXP MICRO
HE
C-PRO EXP MICRO
WIRING LAYOUT
DIMENSIONS/INSTALLATION
.......................................................................................... 17
................................................................................ 19
6 ACCESSORIES.......................................................................................................................................... 19
6.1 U
SER TERMINALS
.................................................................................................................................. 19
6.1.1 V LEDi dimensions and installation............................................................................................. 20
6.1.2 V WALL dimensions and installation........................................................................................... 22
6.2 EVDFAN1
6.3 A
CCESSORIES FOR SUPERVISION AND MONITORING
CUT-OFF SPEED REGULATOR
............................................................................................... 29
............................................................................... 31
6.3.1 Non-insulated TTL/RS485 interface............................................................................................. 31
6.3.2 Insulated TTL/RS485 interface..................................................................................................... 31
6.4 P
ROGRAMMING ACCESSORIES
................................................................................................................ 33
6.4.1 EVKEY programming key............................................................................................................. 33
6.4.2 EVPROG programming kit........................................................................................................... 33
Page 3
C-PRO NANO HARDWARE MANUAL
1 Introduction
The C-PRO NANO family of programmable controllers is the ideal solution for refrigeration, ventilation and
air conditioning applications in low complexity situations. Both in terms of regulation operations and the user
interface, the controller software is fully programmable, in a simple and intuitive manner, thanks to the use of
the UNI-PRO development environment.
The C-PRO NANO is manufactured as a panel installation version.
Using the 6 relay outputs, it is possible to control various types of devices such as compressors, water
circulation pumps, defrosting elements, condensation or evaporation fans, cycle inversion valves, alarm
warning indicators etc. The control process makes use of NTC probes for monitoring temperature and
0/4-20 mA or 0-5V ratiometric transducers for monitoring pressure. There are two alternative versions
according to the kind of Bus used: CANBus version and IntraBus version.
The C-PRO NANO is also equipped with digital inputs for monitoring unit functions; and it is also possible to
connect until two I/O expansion units (IntraBus version) or the expansions of the C-PRO EXP-MICRO, C-PRO
EXP-KILO, C-PRO EXP-MEGA, C-PRO EXP-GIGA families to increase the I/O (CAN version).
All the parameters may be adjusted from the user interface, and it is possible to upload and download
configuration data by means of a programming key.
The display has four red-coloured digits (plus decimal points) and 16 icons of various colours; the keypad has 4
keys.

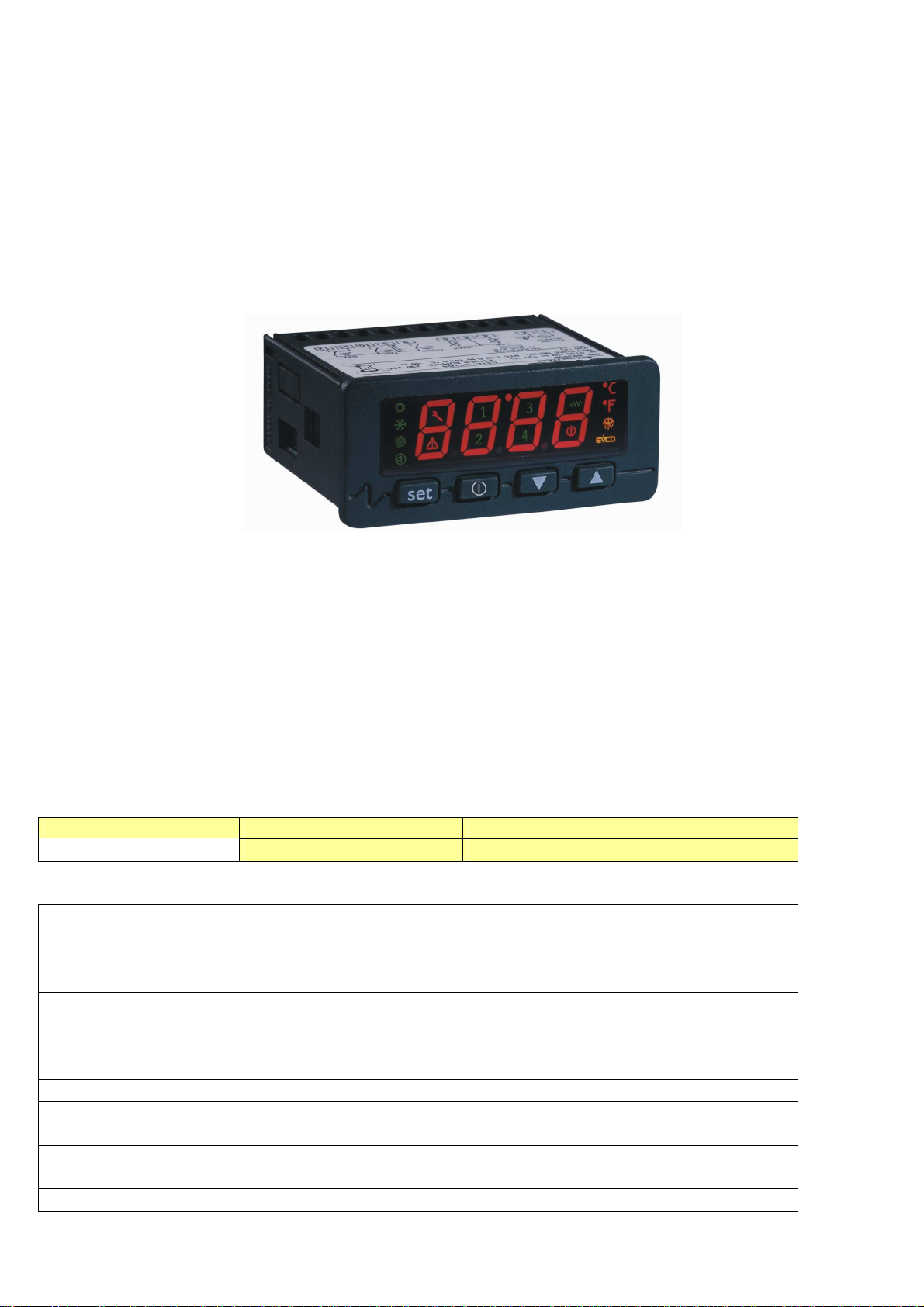

C-PRO NANO
Page 4
C-PRO NANO HARDWARE MANUAL
2 Component and auxiliary network systems
Page 5
C-PRO NANO HARDWARE MANUAL
3 Technical characteristics
3.1 Connections
Power supply:
The C-PRO NANO is powered by a 12 V AC supply. It may also be powered by a 12 V DC supply; in this
case, there is no option for controlling the fan cut-off modules. The maximum length of the power supply
connecting cables is 1 m.
Analogue input connections:
The C-PRO NANO has two analogue inputs for NTC probes and two for NTC probes or for 0/4-20 mA or 0-5V
ratiometric transducers. Selection is made by the UNI-PRO development system. The current transducers may
be supplied by means of the 12 V DC terminal (refer to the physical layout) with a non-stabilised voltage equal
to 12 V DC. The maximum length of the analogue input connecting cables is 3 m.
Digital input connections:
The C-PRO NANO has 5 non-optoisolated digital inputs (clean contact). The maximum length of the digital
input connecting cables is 3 m.
Digital output connections:
The C-PRO NANO has up to 6 electromechanical relay digital outputs. The maximum length of the digital
output connecting cables is 3 m.
Analogue output connections:
The C-PRO NANO has 1 pulse modulation analogue output to drive the cut phase modules. The maximum
length of this analogue output connecting cables is 1 m.
The C-PRO NANO has 2 voltage or current (optional) analogue outputs. The maximum length of these
analogue outputs connecting cables is 3 m.
Remote terminal connections (IntraBus):
The connection between the C-PRO NANO and the terminal is made using a 3 way cable. The maximum
length of the terminal connection cables is 1 m if using a DC supply from the controller; 30 m where the wallmounted keypad is supplied using a separate transformer.
Remote expansions connection (IntraBus):
The connection between the C-PRO NANO and the I/O expansion units is made using a 3 way cable. The
maximum length of the remote I/O expansion units connecting cables is 1 m.
User interface connections (CAN):
The connection between C-PRO NANO and the remote user interface is made using a 2 way cable (better if it
is two weaved couples) plus possible ground.
The maximum length of the connection cables to the remote user interface depends of the CAN port baud rate .
- 1.000 m with 20.000 baud
- 500 m with 50.000 baud
- 250 m with 125.000 baud
- 50 m with 500.000 baud.
The CAN port baud rate is settable by parameter.
Page 6
C-PRO NANO HARDWARE MANUAL
Connection with a remote expansion (or an other CAN controller) :
The connection between C-PRO NANO and the remote expansion (or other CAN controller) is made using a 2
way cable (better if weaved) plus possible ground.
The maximum length of the connection cables to the remote controllers or expansions depend on the CAN port
baud rate (see above section “User interface connections”)
C-PRO NANO and the expansion ( or other CAN controller) power supplies has to be electrically
insulated one from the other.
Notes on the electrical connections
- do not use electric or pneumatic screw-wrenches on the terminal board
- if the device has been moved from a cold to a warm environment, condensation may have formed
inside; please wait approx. one hour prior to switching on
- ensure that the voltage, frequency and operational power of the device are compatible with the local
power supply
- disconnect the power prior to proceeding with any kind of maintenance operation
- do not use the device as a safety device
- for repairs and any information relating to the device, contact the Evco dealer network.
Caution
The instructions governing maximum connecting cable lengths imply that a range of precautions are being
observed:
In order to avoid exemption problems, it is good practice to comply with the following instructions:
- Avoid locations with antennae
- Avoid cabling probe inputs and relay outputs together; generally avoid mixing low and high voltage
signals
- Avoid wrapping cabling around power components
In order to avoid safety problems, it is good practice to comply with the following instructions:
- Avoid premises with relative humidity >90%
- Avoid water
- Avoid corrosive environments
- Avoid explosive environments
Special recommendations
Finally, ensure that the operating conditions are within the limits of use described in the technical
characteristics.
Page 7
C-PRO NANO HARDWARE MANUAL
3.2 The C-PRO NANO wiring layout
The C-PRO NANO control unit wiring layout is shown below, with the meanings of the inputs and outputs
given in the tables.
C-PRO NANO wiring diagram
Connector 1: Output relay connection
Conn. Abbrev. Description
C1-1 DO4 Relay No.4, breaker normally open
C1-2 DO3 Relay No.3, breaker normally open
C1-3 COMMON1 Relays No.s 1,2,3,4 - common
C1-4 DO5 Relay No.5, breaker normally open
C1-5 DO2 Relay No.2, breaker normally open
C1-6 DO1 Relay No.1, breaker normally open
C1-7 COMMON1 Relays No.s 1,2,3,4 - common
C1-8 COMMON1 Relays No.s 1,2,3,4 - common
C1-9 COMMON DO5 Relay No.5 - common
C1-10 Not used
C1-11 DO6 Relay No.6, breaker normally open
Connector 2: Connection for the parameter upload/download key and/or output for RS485 module
and/or controller flash download module
Page 8
C-PRO NANO HARDWARE MANUAL
Connector 3: Analogue output connector
Conn. Abbrev. Description (V+I version)
C3-1 AO2 0-10 V DC
C3-2 GND Common analogue output
C3-3 AO3 4-20 mA
Description (I+I version)
C3-1 AO2 4-20 mA
C3-2 GND Common analogue output
C3-3 AO3 4-20 mA
Description (V+V version)
C3-1 AO2 0-10 V DC
C3-2 GND Common analogue output
C3-3 AO3 0-10 V DC
Connector 4: Connector for low voltage signals
Conn. Abbrev. Description
C4-1 12 V AC (Power) Device power supply (12 V AC/DC)
C4-2 5V Ratiometric power supply
C4-3 GND Common analogue and digital inputs
C4-4 GND Common analogue and digital inputs
C4-5 AI4 Analogue input No. 4 (for NTC probes or for 0/4-20 mA or 0-5V
transducers)
C4-6 AI3 Analogue input No. 3 (for NTC probes or for 0/4-20 mA or 0-5V
transducers)
C4-7 AI2 Analogue input No. 2 (for NTC probes)
C4-8 AI1 Analogue input No. 1 (for NTC probes)
C4-9 12 V AC (Power) Device power supply (12 V AC/DC)
C4-10 12 V DC Current transducer and cut-off module power supply (50 mA max.
not protected against short circuits)
C4-11 AO1 Cut-off module impulse output
C4-12 DI5 Digital input No. 5
C4-13 DI4 Digital input No. 4
C4-14 DI3 Digital input No. 3
C4-15 DI2 Digital input No. 2
C4-16 DI1 Digital input No. 1
Connector 5: Connector for remote keypad and I/O expansion unitb(IntraBus)
Conn. Abbrev. Description
C5-1 12 V DC Remote keypad power supply (12 V DC 50 mA max.; not protected
against short circuits)
(Please note: any expansion units must have a local power supply)
C5-2 GND Common
C5-3 DATA Powered serial connection
Connector 5: Connector for remote keypad and I/O expansion unit (CAN)
Conn. Abbrev. Description
C5-1 CAN+ Connector for the serial CAN+ connection
C5-2 GND Ground reference connection
C5-3 CAN- Connector for the serial CAN- Connection
Page 9
C-PRO NANO HARDWARE MANUAL
3.3 C-PRO NANO dimensions/installation

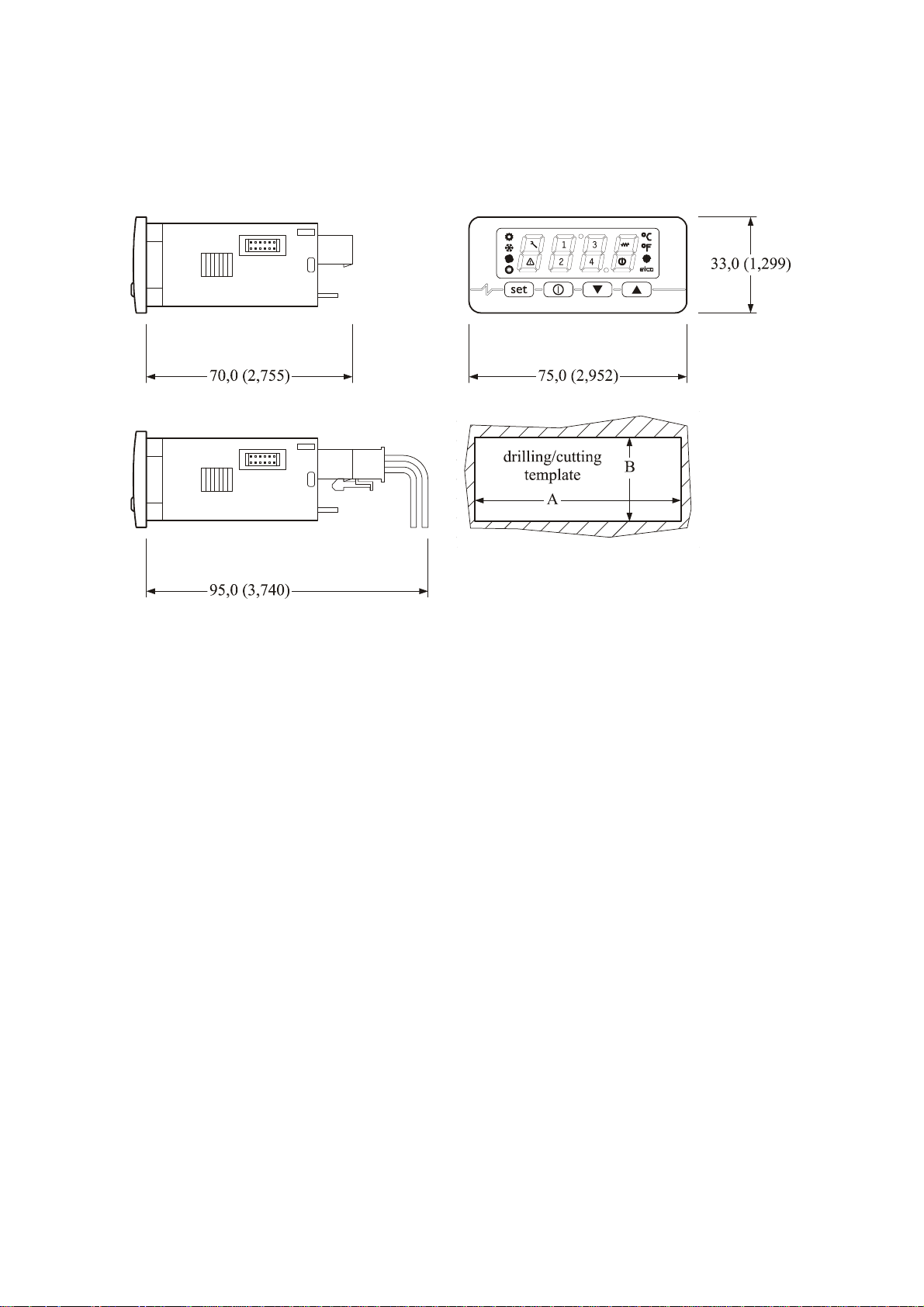

The mechanical dimensions for the C-PRO NANO are given below; the measurements are in mm (in).
For fitting, use the snap-on brackets provided.
Dimension Minimum Typical Maximum
A 71.0 (2.795) 71.0 (2.795) 71.8 (2.826)
B 29.0 (1.141) 29.0 (1.141) 29.8 (1.173)
Recommendations for installation:
- the panel thickness must not exceed 8 mm (0.314 in)
- 95.0 (3.740) is the maximum depth with casing 0065300060 correctly inserted (the connector is not
supplied with the device)
- ensure that the operating conditions (operating temperature, humidity, etc.) are within the limits
indicated in the technical data sheets
- do not install the device near to any sources of heat (heating elements, hot air conduits, etc.),
equipment containing powerful magnets (large diffusers, etc.), areas affected by direct sunlight, rain,
humidity, excessive dust, mechanical vibration or shock
- in compliance with safety regulations, the device must be installed correctly, and in such a way as to
protect against any contact with electrical parts; all safety devices must be fixed so that they cannot be
removed without the use of tools.
Page 10
C-PRO NANO HARDWARE MANUAL
3.4 General characteristics
Safety reference standards EN60730-1
Scope of the device A programmable electronic controller for
refrigeration, ventilation and air
conditioning applications
Storage conditions -10T70°C Non-condensing RU<80%
Operational conditions 0T50°C Non-condensing RU<80%
Electric shock protection class Add-on control device; assumes the
classification of the equipment into
which it is integrated
Disconnection type Reduced interruption (relay breakers)
PTI of the insulation materials >=250 V
Case Panel mounted
Action type 1C
Pollution Normal
Software class A
Insulated parts electrical stress period Long
Front panel protection classification IP65
3.5 Technical characteristics
Low voltage signal connections 16 way Mini-Fit
Power connector 12 way Inarca Edge connector
Connection for connecting the EVCO powered serial
port to the remote keypad and/or remote I/O expansion
card
Connection for parameter key, TTL serial output for
RS485 module, Flash programming interface
Connection for D/A output JST 3 way P2.5
16 WAY MINI-FIT CONNECTOR SPECIFICATIONS
SUPPLIER
Please note:
use the special tool for crimping
CONNECTOR CODE
Cable diameter > 0.75 mm2; as
altenative, 12 way Sauro Edge connector
JST 3 way P2.5
6 way AMP micro-match
CONTACT CODE
CVILUX
SELECOM
JUSCOM
CONEXCON
MOLEX
CP-01 116010 (V2)
CP-01 116020 (V0)
6137R16WO (V2)
1090-557-162 (V2)
6740-1161 (V2)
6740-1160 (V0)
39-01-2160 (V2)
39-01-2165 (V0)
Page 11
CP-01 1000102 (AWG16÷24)
6137TR1 (AWG16÷20)
6137TR2 (AWG22÷26)
1150-156-012 (AWG18÷22)
1150-156-002 (AWG22÷26)
6744-2000 (AWG18÷22)
39-00-0038 (AWG18÷24)
39-00-0046 (AWG22÷28)
C-PRO NANO HARDWARE MANUAL
3.6 Electrical characteristics
CPU Microcontroller 8 bit
Program flash memory 128 Kbyte
RAM for data memory 4 Kbyte
EEPROM 4 Kbyte
A/D 8 channels at 10 bit
Power supply Voltage 12 V AC/DC
Range -10% +15%
Frequency 50/60 Hz / DC
Maximum input power 6 VA
Fuse rating External
Digital outputs
Type Electromechanical relays
Maximum breaker current at 250 V AC
Number of processing cycles 100,000
Minimum switching interval 20 s
Micro-switch action type 1C
Insulation between relays and low
Insulation between relays Functional
Insulation between relays and DO6 Reinforced
Digital inputs
Type Clean contact
Breaker closure current to earth 2 mA
Maximum closure resistance 100 Ω
OFF to ON detection time 100 ms
ON to OFF detection time 100 ms
Analogue inputs for
NTC probes Type
NTC measurement range
NTC measurement accuracy
NTC measurement sensitivity
Analogue inputs for
NTC probes or Type
Ratiometric pressure NTC measurement range
Transducers NTC measurement accuracy
NTC measurement sensitivity
Type Current
Current measurement range
Current measurement accuracy ±0.08 mA
Current measurement sensitivity 0.01 mA
Number 6
2 (1) A for DO1, DO2, DO3
Use all common connectors.
and DO4
3 (1) A for DO5 and DO6
Reinforced
voltage
Number 5
Number 2
NTC (10 KΩ ±1% @25°C)
-40°C ÷ 100°C
±1°C
0.1°C
Number 2
NTC (10 KΩ ±1% @25°C)
-40°C ÷ 100°C
±1°C
0.1°C
0/4 ÷ 20 mA
Input resistance
Type
Voltage measurement range
Voltage measurements accuracy
Voltage measurement sensitivity
Page 12
200 Ohm
Ratiometric
0 ÷ 5V
±50 mV
10 mV
C-PRO NANO HARDWARE MANUAL
Fan analogue output
Number 1
Type EVCO impulse cut-off
UART1 TTL
Number 1
for RS485 serial port Type UART
(Modbus) Physical layer TTL level signals
Maximum baud rate 19200 bit/s
Connector 6 way AMP micro-match
Please note: The same connector for
the serial port is used for the
parameter key and for the interface
used for programming the
microcontroller flash memory
Serial output for remote
Number 1
I/O expansion unit Type EVCO powered serial port
and remote keypad Physical layer 12 V DC, GND, DATA
Baud rate 19200 bit/s
Connector sconn. JST 3 way P2.5
Analogue output
Number 1+1
Voltage + Current, Connector sconn. JST 3 way P2.5
Voltage + Voltage or Power supply Internal (non optoisolated)
Current + Current Type Current
Current range
4 ÷ 20 mA
Current output accuracy ±0.4 mA
Current output sensitivity 0.01 mA
Current output load
47 ÷ 300 Ω
Adjustment time 1 s
Type Voltage
Voltage range
0 ÷ 10 V
Voltage output accuracy ±200 mV (unloaded)
Voltage output sensitivity 10 mV
Output impedance
100 Ω
Adjustment time 1 s
CAN communication
Number 1
Bus
type CAN V2.0B no optoinsulated
Physical layer 2 wires + common wire
(ISO 11898)
Baud rate (max. length = 1000 m) 20K
Baud rate (max. length = 500 m) 50K
Baud rate (max. length = 250 m) 125K
Baud rate (max. length = 50 m) 500K
Connector Disconnectable screw terminals
Note:
1) baud rate selectable by parameters
2)
The CAN connection consists of a cable with twisted pair (both shielded and
not shielded). The first and the last elements of the system must have the bus
terminating resistor connected (impedance is 120Ω).
Page 13
C-PRO NANO HARDWARE MANUAL
4 The C-PRO NANO user interface
The display has four red-coloured digits (plus decimal points) and 16 icons of various colours; the keypad has 4
keys.
C-PRO NANO
Display Number of digits 4
Colour
Red
Summer icon (air conditioning display)
Colour
Circuit 1 icon (refrigeration display)
Winter icon (air conditioning display)
Colour
Circuit 2 icon (refrigeration display)
Fan icon (air conditioning display)
Colour
High pressure circuit icon (refrigeration display)
Pump icon (air conditioning display)
Colour
Low pressure circuit icon (refrigeration display)
EVCO icon Colour
Defrost icon (air conditioning display)
Colour
Fan icon (refrigeration display)
°F icon (air conditioning display)
Colour
Bar icon (refrigeration display)
°C icon Colour
Green
Green
Green
Green
Amber
Amber
Red
Red
Page 14
C-PRO NANO HARDWARE MANUAL
Maintenance icon Colour
Alarm icon Colour
Icon 1 Colour
Icon 2 Colour
Icon 3 Colour
Icon 4 Colour
Heating element icon (air conditioning display)
Colour
Red
Red
Green
Green
Green
Green
Green
Compressor icon (refrigeration display)
On-Off icon Colour
Red
Keys Number of keys 4
Set / enter key Normal pressing ENTER (confirms the value/runs the
command)
Pressed for approx. 3
Accesses programming parameters
seconds
OnOff/esc key Normal pressing ESC (cancels the value/returns to the
previous menu)
Pressed for approx. 3
Powers the unit on/off
seconds
Up key Normal pressing UP
Secondary function Programmable
Down key Normal pressing DOWN
Secondary function Programmable
Esc+enter keys Pressed for approx. 3
seconds
Up+down key Pressed for approx. 3
seconds
Accesses the second level programming
parameters
Displays device/firmware version, revision
information
Page 15
C-PRO NANO HARDWARE MANUAL
5 C-PRO EXP MICRO I/O expansion units
The C-PRO EXP MICRO I/O expansion units allow expansion of the controllers I/O capacity. There are two
types of expansion unit, one sealed in a case with 4 DIN modules, and another open mounted on a base with 4
DIN modules.
C-PRO EXP MICRO
Sealed case version with 4 DIN
modules
Page 16
C-PRO EXP MICRO
Open version mounted on a base
with 4 DIN modules
C-PRO NANO HARDWARE MANUAL
5.1 The C-PRO EXP MICRO wiring layout (IntraBus version)
The references to connecting cable lengths reported in chapter 3 are also valid for I/O expansion units.
The C-PRO EXP MICRO expansion unit wiring layout is shown below, with the meanings of the inputs and
outputs given in the tables.
The C-PRO NANO and C-PRO EXP MICRO power supplies must be galvanically isolated
Connector 1: Output relay connection
Conn. Abbrev. Description
C1-1 DO1 Relay No.1, breaker normally open
C1-2 COMMON DO1 Relay No.1 - common
C1-3 DO2 Relay No.2, breaker normally open
C1-4 COMMON DO2 Relay No.2 – common
C1-5 DO3 Relay No.3, breaker normally open
C1-6 COMMON DO3 Relay No.3 - common
C1-7 DO4 Relay No.4, breaker normally open
C1-8 COMMON DO4, DO5 Relay No.s 4, 5 - common
C1-9 DO5 Relay No.5, breaker normally open
C1-11 DO6 Relay No.6, breaker normally open
C-PRO EXP MICRO wiring diagram
from one another.
Page 17
C-PRO NANO HARDWARE MANUAL
C1-12 COMMON DO6 Relay No.6 - common
Connector 2: Connector for low voltage signals
Conn. Abbrev. Description
C2-1 12 V AC (Power) Device power supply (12 V AC/DC)
C2-2 Not connected Not connected
C2-3 GND Common analogue and digital inputs
C2-4 GND Common analogue and digital inputs
C2-5 AI4 Analogue input No. 4 (for NTC probes or for 0/4-20 mA or 0-5V
transducers)
C2-6 AI3 Analogue input No. 3 (for NTC probes or for 0/4-20 mA or 0-5V
transducers)
C2-7 AI2 Analogue input No. 2 (for NTC probes)
C2-8 AI1 Analogue input No. 1 (for NTC probes)
C2-9 12 V AC (Power) Device power supply (12 V AC/DC)
C2-10 12 V DC Current transducer and cut-off module power supply (50 mA max.
not protected against short circuits)
C2-11 AO1 Cut-off module impulse output
C2-12 DI5 Digital input No. 5
C2-13 DI4 Digital input No. 4
C2-14 DI3 Digital input No. 3
C2-15 DI2 Digital input No. 2
C2-16 DI1 Digital input No. 1
Connector 3: Connector to the controller (IntraBus)
Conn. Abbrev. Description
C3-1 VDC Power supply
C3-2 GND Common
C3-3 DATA Powered serial connection
Connector 3: Connector to the controller (CAN)
Conn. Abbrev. Description
C3-1 + Connector for the serial CAN + connection
C3-2 GND Ground reference connector
C3-3 - Connector for the serial CAN - connection
Page 18
C-PRO NANO HARDWARE MANUAL
5.2 C-PRO EXP MICRO dimensions/installation
The mechanical dimensions for the C-PRO EXP MICRO are given below; the measurements are in mm (in).
6 Accessories
6.1 User terminals (IntraBus)
User terminals allow the control units to be controlled remotely (display and commands). There are two
interface types, one panel-mounted, the other wall-mounted. The interface is connected to the special (powered)
serial connector of the C-PRO NANO controllers.
V LEDi
Panel-mounted version
V WALL
Wall-mounted version
Page 19
C-PRO NANO HARDWARE MANUAL
6.1.1 V LEDi dimensions and installation
For panel installation, use the snap-on brackets provided
Local panel interface dimensions
Connections
123
CI1
DATA
GND
12Vdc
Local panel interface connections
Connector CI1: Interface connector
Conn. Abbrev. Description
CI1-1 12 V DC Keypad power supply
CI1-2 GND Common
CI1-3 DATA EVCO powered serial port
C-PRO NANO with V LEDi wiring diagram
Page 20
C-PRO NANO HARDWARE MANUAL
The user interface has a 7 segment, 4 digit display (plus decimal point), 6 icons, and the user mode is achieved
using 4 keys.
Display Number of digits 4
Colour
Red
Summer icon Colour
Winter icon Colour
Compressor icon Colour
Pump icon Colour
Defrost icon Colour
Alarm icon Colour
Red
Red
Red
Red
Red
Red
Keys Number of keys 4
Set / enter key Normal pressing ENTER (confirms the value/runs the
command)
Pressed for approx. 3
Accesses programming parameters
seconds
On-Off/esc key Normal pressing ESC (cancels the value/returns to the
previous menu)
Pressed for approx. 3
Powers the unit on/off
seconds
Up key Normal pressing UP
Secondary function Programmable
Down key Normal pressing DOWN
Secondary function Programmable
Esc+enter keys Pressed for approx. 3
seconds
Up+down key Pressed for approx. 3
seconds
Accesses the second level programming
parameters
Displays device/firmware version, revision
information
Page 21
C-PRO NANO HARDWARE MANUAL
CI2
3
1
2
V
a
c
4
1
2
V
a
c
6.1.2 V WALL dimensions and installation
For wall installation, use appropriate rawplugs and screws.
Wall-mounted version - dimensions
Connections
GND
DATA
2
1
Wall-mounted version wiring diagram
Page 22
C-PRO NANO HARDWARE MANUAL
Connector CI2: Terminal connector powered by a separate transformer
Conn. Abbrev. Description
CI2-1 12 V AC Remote interface AC power supply
CI2-2 12 V AC Remote interface AC power supply
CI2-3 DATA EVCO powered serial connection
CI2-4 GND Common
C-PRO NANO with V WALL wiring diagram (terminal powered by a separate 12 V AC
transformer; the maximum length of the terminal power cables is 1 m, the maximum length of
cables connecting the C-PRO NANO and V WALL is 30 m)
Make the C-PRO NANO – V WALL connection using a twisted-pair cable; ensure that the cable does not run
along side any high voltage sections.
Connector CI2: Terminal connector, powered by the C-PRO NANO
Conn. Abbrev. Description
CI2-1 12 V DC Keypad DC power supply
CI2-2 GND Common
CI2-3 DATA EVCO powered serial connection
CI2-4 GND Common
C-PRO NANO with V WALL wiring diagram (terminal powered by C-PRO NANO; the maximum
length of the connecting cables is 1 m)
Page 23
C-PRO NANO HARDWARE MANUAL
The user interface has a 7 segment, 4 digit display (plus decimal point), 6 icons and the user mode is achieved
using 4 keys.
Display Number of digits 4
Colour
Red
Led L0 Colour
Led L1 Colour
Led L2 Colour
Led L3 Colour
Led L4 Colour
Led L5 Colour
Red
Red
Red
Red
Red
Red
Keys Number of keys 4
Set / enter key Normal pressing ENTER (confirms the value/runs the
command)
Pressed for approx. 3
Accesses programming parameters
seconds
On-Off/esc key Normal pressing ESC (cancels the value/returns to the
previous menu)
Pressed for approx. 3
Powers the unit on/off
seconds
Up key Normal pressing UP
Secondary function Programmable
Down key Normal pressing DOWN
Secondary function Programmable
Esc+enter keys Pressed for approx. 3
seconds
Up+down key Pressed for approx. 3
seconds
Accesses the second level programming
parameters
Displays device/firmware version, revision
information
Page 24
C-PRO NANO HARDWARE MANUAL
6.2 Remote User interface (CAN)
The user interfaces allow to install a display and keyboard remotely far from the controller .
“V-VIEW” user interface (with a alfanumeric 4 x 20 characters LCD display) can be connected to the CAN
port of the C-PRO NANO controller. On request a graphic 240 x 128 pixel LCD display (V-GRAPH) user
interface is also available .
6.2.1 V-VIEW
The visualized text on the LCD display, the LEDs and key functions of the user interface are realized with
UNI-PRO software development system and use a “browser” technology to load the C-PRO MICRO pages and
to refresh the visualized variable value. The user interface is directly interfaced with the controller without
downloading any software.
The typical implemental functionality are :
• intuitive navigation with “ browser style”
• text and icon combination
• tables utilization with “scroll” possibilities.
6.2.1.1 V-VIEW User Interface
V-VIEW
Page 25
C-PRO NANO HARDWARE MANUAL
The following table summarizes the keyboard button meaning:
BUTTONS MAIN FUNCTION SECONDARY FUNCTION
Predefined as UP
Predefined as DOWN
Predefined as LEFT
Predefined as RIGHT
Predefined as ESC Stand-By command
Predefined as ENTER 1° programming level command
Programmable Alarm reset / identification
Programmable
Programmable
Programmable
Programmable
Programmable
Controller configuration parameters
+
command
2° programming level command
+
3° programming level command
+
The following table summarizes the meaning of the LEDs on front panel :
LED FUNCTION
Predefined (blinking during the
LM
parameters configuration of the
controller)
LS Programmable
LP Programmable
L0 Programmable
L1 Programmable
L2 Programmable
L3 Programmable
L4 Programmable
L5 Programmable
Page 26
C-PRO NANO HARDWARE MANUAL
6.2.1.2 V-VIEW wiring layout
6.2.1.3 V-VIEW specifications
General specifications
Safety standards references EN 60730-1
Purpose of the device To be integrated in equipment
Electronic control device connections Plug-in terminal block 5mm pitch
for conductors up to 2.5 mm2
Storage temperature limits -20T70 °C (@RH<90% non-condensing)
Ambuent temperature limits -10T60 °C
0T50 °C for version with integrated LCD
(@RH<90% non-condensing)
Electrical shock protection classification
PTI of insulation materials used >250
Housing
Installation Pannel mounting
Housing 160 x 160 mm
Electrical specifications
Power supply Main (input) 12Vdc, 0.2A
EEPROM Memory for parameters 256 byte
Microprocessor 16 bit CPU
Oscillator frequency 16 MHz
Number 1
An integrated control device takes up the
classification of the equipment which it is
integrated with
Page 27
C-PRO NANO HARDWARE MANUAL
Serial CAN Communication
Buzzer Number
LCD Dispay 4 x 20 alfanumeric backlight 1
Type CAN V2.0B
Physical Layer 2 wires + common, ISO 11898 standard
Baud rate (L max. = 10 m) 20K
Baud rate (L max. = 5 m) 50K
Baud rate (L max. = 2 m) 125K
Baud rate (L max. = 1 m) 500K
Connector Sconnectable terminals
Note: baud rate can be selected by parameter
Note: The physical level of the CAN consists of a cable with twisted pair (both shielded
and not shielded). The terminator's impedance is 120Ω. A second cable with twisted
pairis used for feeding and common (ground)
Buttons 12 Keyboard
Led 9
not optoisolated
1
Page 28
C-PRO NANO HARDWARE MANUAL
6.3 EVDFAN1 cut-off speed regulator
The EVDFAN1 is a cut-off speed regulator for controlling single-phase fans (fans with maximum current
absorption equal to 5 A).
It is ideal for controlling the condensation/evaporation fans on a refrigeration control unit.
EVDFAN1
The fan module is available as an open card version, and is mounted on a plastic base suitable for fitting on a
DIN rail.
135 mm x 71 mm
DIN rail fan module dimensions
Connections
C-PRO NANO with EVDFAN1 wiring diagram
Page 29
C-PRO NANO HARDWARE MANUAL
Terminals 1 and 2: Control input connector (Phoenix pull-out)
Conn. Abbrev. Description
1 12 V DC 12 V DC power supply
2 AO1 Impulse cut-off input
Terminals 3, 4, 5 and 6: Power connectors (FAST-ON)
Conn. Abbrev. Description
3 LOAD Load
4 LOAD Load (Neutral)
5 LOAD Neutral 230 V AC
6 LOAD Live 230 V AC
The cut-off module allows the control of single-phase fans with a maximum current equal to 5 A. The fan
module live feed must be the same as that feeding the controller.
If the C-PRO NANO has a DC power supply, then it is not possible to control the fans using the EVDFAN1.
Example:
V AC = 230 V
I max = 5 A
VA (max) = 230*5 = 1150 VA
W (max) = 230*5*cosφ = 1150 Watts if cosφ=1
Page 30
C-PRO NANO HARDWARE MANUAL
6.4 Accessories for supervision and monitoring
These modules allow the conversion of TTL signals to RS485 signals (with or without isolation) for supervision
using the MODBUS protocol.
The modules connect to the special 6 way AMP micro-match connector on the controller; this connector is
shared with the parameter programming key and with the controller flash memory programming tools.
6.4.1 Non-insulated TTL/RS485 interface
EVIF20TSX
6.4.2 Insulated TTL/RS485 interface
EVIF21TS7I dimensions/installation
EVIF21TS7I
Dimensions/Installation on DIN rail
Page 31
EVIF21TS7I connections
C-PRO NANO HARDWARE MANUAL
Insulated interface wiring diagram
Connector
Conn. Abbrev. Description
11 + RS485+
13 - RS48515 shield COMMON
75 Power supply 230 V AC
77 Power supply 230 V AC
Page 32
C-PRO NANO HARDWARE MANUAL
1
2
3
6
7
8
Micro-Match / RJ11
6.5 Programming accessories
6.5.1 EVKEY programming key
The EVKEY programming key allows
downloading/uploading parameters
(even when the controller is not powered; in this
case it is necessary to use the EVPS power
supply).
The key is connected to the special 6 way AMP
micro-match connector, also used for
supervision.
EVKEY
6.5.2 EVPROG programming kit
The EVPROG programming kit allows downloading programs into the flash memory of the C-PRO NANO
controller (even when the controller is not powered; in this case, it is necessary to use the EVPS power supply).
The EVPROG is connected to the special 6 way AMP micro-match connector, also used for the parameter
programming key or for supervision.
The kit is comprised of the following components:
1. The EVIF20TRX interface.
2. Pony Prog (9 pin – RJ 11) tray adapter.
3. ECCC506 telephone cable.
Preparation of the EVPROG kit hardware:
Connect the Pony Prog tray adapter to the
computer serial port. Connect the EVIF20TRX
interface to the controller AMP micro-match
connecter. Connect one end of the ECCC506
AB CDEF
9
45
telephone cable to the Pony Prog tray adapter,
and the other end to the EVIF20TRX interface.
RJ11 / DB-9
EVPROG
Page 33
C-PRO NANO HARDWARE MANUAL
PRO EXP
7 CAN Connection
C-PRO NANO can be connected to other controllers, to expansion modules and to one or more user interfaces
using either local or wide CAN serial port. The CAN bus uses the ISO 11898 standard, a balanced two-wire
communication very similar to the RS 485 standard.
Resistors with a recommended rating of 120-124 ohm have to be fitted at each end of the bus.
120ohm
If connection is established through the Local CAN bus, it is possible to power a user interface using the 4terminal connector, according to the following table:
CAN+
CAN-
C-PRO NANO V-VIEW User Interface
C3-1 (CAN+) PA 2 (CAN+)
C3-3 (CAN-) PA 3 (CAN-)
C3-2 (GND ) PA 4 (GND )
CAN
NODE
(C-PRO
NANO)
CAN
NODE
(C-
MICRO)
PA 1 (VCD) needs independent power supply
CAN
NODE
(V-VIEW)
120ohm
The maximum number of expansions and user terminals is 32.
The maximum number of controllers for the user terminal V-VIEW is 2.
Page 34
C-PRO NANO HARDWARE MANUAL
7.1 Notes on the parameter of the controller relative to the CAN net
configuration
To log on the controller parameters configuration procedure relative to the analogic output act in the following
way :
Both for the remote or built-in user interface :
1. Ensure that the controller and the user interface are both switched on and no utilization is connected
with the analogic output
2. Keep pressed at the same time and buttons for two seconds : the first available voice
will be visualized (the voices are relative to the controller; for the voices relative to the user
interface repeat the selection from “reset”).
To select the controller parameters relative to the CAN network configuration:
1. Press and release button to select “CAN” voice.
2. Press and release button: if the controller is visualizing the net parameters, the voice “Input
Password” will be visualized: in this case see the following 3. and 4. (in opposite case see directly point 5.).
3. Press and release button: the cursor blinking.
4. Press and release button to set “ -19”.
5. Press and release button: the first voice available will be visualized.
To select a parameter:
1. Press and release button
To modify a parameter:
1. Press and release button: the cursor blinking.
2. Press and release or buttons to select the value
3. Press and release button to confirm the selection done.
4. Switch – off the controller.
For a quick closing procedure :
1. Press and release repeatedly button
Page 35
C-PRO NANO HARDWARE MANUAL
The main parameters of the CAN net are the following :
• “My Node” (represents the data sender ID )
• “Network Node” (represents the receiver ID)
• Baud rate (represent the data transmissions speed; initially it can be useful to let this value
set at “Auto”; in this way the device will try to connect a few time with different speed)
• Master (represents network operation) when instrument is set as master it checks device network to find
Devices presence. A controller with I/O expansions needs to have MASTER = TRUE.
Predefined value :
• the parameter My Node for a controller is set at 1
• the parameter My Node for an expansion is set at 2
• the parameter My Node for a user interface is set at 99.
Every device in the network represents a knot (the maximum knot numbers are 32); each knot has an ID (the Id
range is from 1 to 127).
Every device in the network has to be set as regards the network components through “Network Node”
parameters.
Example:
If a controller, an expansion and a user interface are installed, set the following value on the controller in the
following way :
1. Assign at “Network Node 1” the address “2” (expansion).
2. Assign at “Network Node 2” the address “99” (user interface).
Repeat the same operations for the expansion and the user interface.
ATTENTION: the parameters as regards the net could be overwritten by the application software.
Page 36
C-PRO NANO HARDWARE MANUAL
C-PRO NANO hardware manual.
Version 1.03 January 2009.
CODE 114CPRNHWE03.
File 114CPRNHWE03.pdf.
This document is the exclusive property of Evco, whereby any reproduction or distribution is strictly forbidden, unless expressly directly authorised by Evco. Evco
assume no responsibility in relation to the characteristics, technical data and any possible errors reported in this document or deriving from the use of the same. Evco
cannot be held responsible for any damage caused by failure to observe these warnings. Evco reserves the right to make modifications of any kind and without prior
warning without prejudicing the essential operational and safety characteristics.
Page 37
HEAD OFFICE
Evco
Via Mezzaterra 6, 32036 Sedico Belluno ITALY
Tel: 0437-852468
Fax: 0437-83648
info@evco.it
www.evco.it
OVERSEAS OFFICES
Control France
155 Rue Roger Salengro, 92370 Chaville Paris FRANCE
Tel: 0033-1-41159740
Fax: 0033-1-41159739
control.france@wanadoo.fr
Evco Latina
Larrea, 390 San Isidoro, 1609 Buenos Aires ARGENTINA
Tel: 0054-11-47351031
Tel: 0054-11-47351031
evcolatina@anykasrl.com.ar
Evco Pacific
59 Premier Drive Campbellfield, 3061, Victoria Melbourne, AUSTRALIA
Tel: 0061-3-9357-0788
Fax: 0061-3-9357-7638
everycontrol@pacific.com.au
Evco Russia
111141 Russia Moscow 2-oy Proezd Perova Polya 9
Tel: 007-495-3055884
Fax: 007-495-3055884
info@evco.ru
Every Control do Brasil
Rua Marino Félix 256, 02515-030 Casa Verde São Paulo SÃO PAULO BRAZIL
Tel: 0055-11-38588732
Fax: 0055-11-39659890
info@everycontrol.com.br
Every Control Norden
Cementvägen 8, 136 50 Haninge SWEDEN
Tel: 0046-8-940470
Fax: 0046-8-6053148
mail2@unilec.se
Every Control Shanghai
B 302, Yinhai Building, 250 Cao Xi Road, 200235 Shanghai CHINA
Tel: 0086-21-64824650
Fax: 0086-21-64824649
evcosh@online.sh.cn
Every Control United Kingdom
Unit 19, Monument Business Park, OX44 7RW Chalgrowe, Oxford, UNITED KINGDOM
Tel: 0044-1865-400514
Fax: 0044-1865-400419
info@everycontrol.co.uk
Loading...
