USER'S MANUAL
MODEL:FR-291 WH
FR-291 SS
Page 2
1
1 Structure lllustration
4. Lamp cover
5. Shelf
6. Vegetable basket
7. Freezer door rail
8. Refrigerator door rail
9. Bottle rack
10. Vegetable basket cover
11. Adjustable feet
1. Freezer temperature
control knob
2. Refrigerator temperature control
knob
3. Shelf
10
11
9
8
7
3
2
1
5
6
4
PS: If we change some small parts of the refrigerator
it is for you to use it
more conveniently. Sorry for no giving notice.
The sample cutline is representation of this series of refrigerator, which have
similar structure and different capacity .
Page 3
2
1.Install on a completely flat and rigid surface.
Level the refrigerator by rotating the adjustable
Legs located at the front two corners.
The refrigerator is then securely positioned.
2.Leave at least 2 cm between both sides of
the refrigerator and the wall, and at least 30
cm between the top of the refrigerator and
the surface immediately above, so that the
refrigerator will not touch any of the
surrounding surfaces.
3.Choose a location which is not expose t o
sunlight, relatively free from dust, heat and
humidity, and offers good ventilation.
Above 30 cm
Above 2 cm
3. Cautions for Safety
1.The power plug should have its own
socket, as adapter may cause the
socket to overheat.
2.Don't store inflammable materials
such as ether, benzine, LP gas and
glue etc in the refrigerator.
2 Instructions for installation
3.This appliance is not intended for use by persons (including children) with reduced
physical, Sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
4.For appliances with type Y attachment:
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
5.WARNING---The customer don't allow to replace or repair the power
cord and plug privately, only trained and qualified service personnel
should repair or service refrigerator equipment.

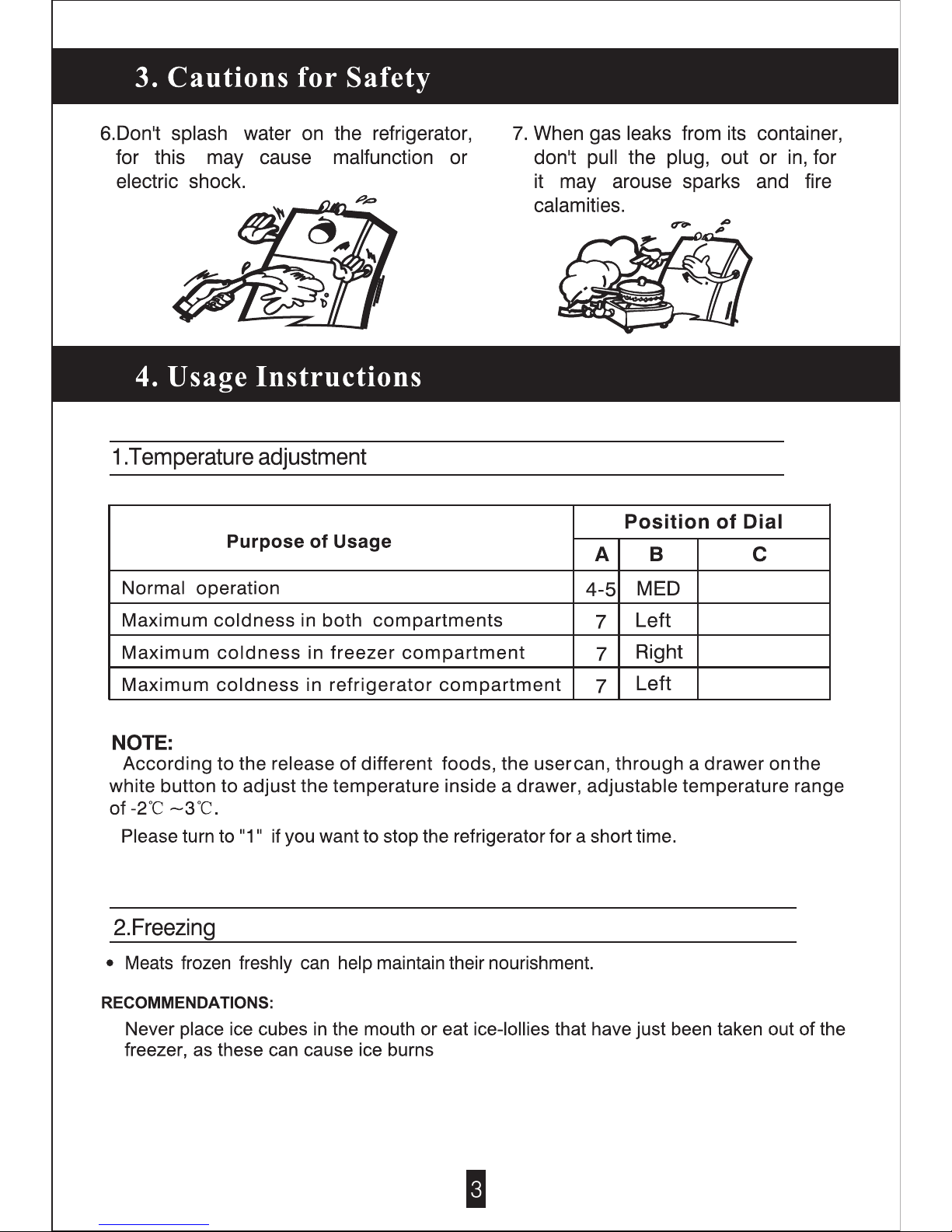

Page 4
Page 5
4. Usage Instructions
4
4.Refrigeration
5.Placement of food
There should always be some
space between food to maintain
cold air circulation.
Fruits, vegetables are to be
stored in vegetable case. Wrap
them with fresh preservation paper
to avoid drying.
Food should be wrapped tidily
to avoid them from becoming dry
and with odour.
Hot foodstuffs should be cooled
down before being placed in the
compartments. Otherwise th ein ternal
temperature of the compartments
or electric consumption w ill increase.
Foods with rich water substance
such as bean c urd a nd v egetable
should be stored in the front
bottom part of the refrigerator
compartment to avoid being
frozen.
c
a
r
e
f
o
r
b
e
i
n
g
f
r
o
z
e
n
Keep the chilled case at about
0 , for best storing of meat, fish,
shell-fish and milk. The optimum
storing period is within three days.
3.Placement of food
Applying automatic defrosting system makes defrosting very convenient.
6.Automatic defrosting

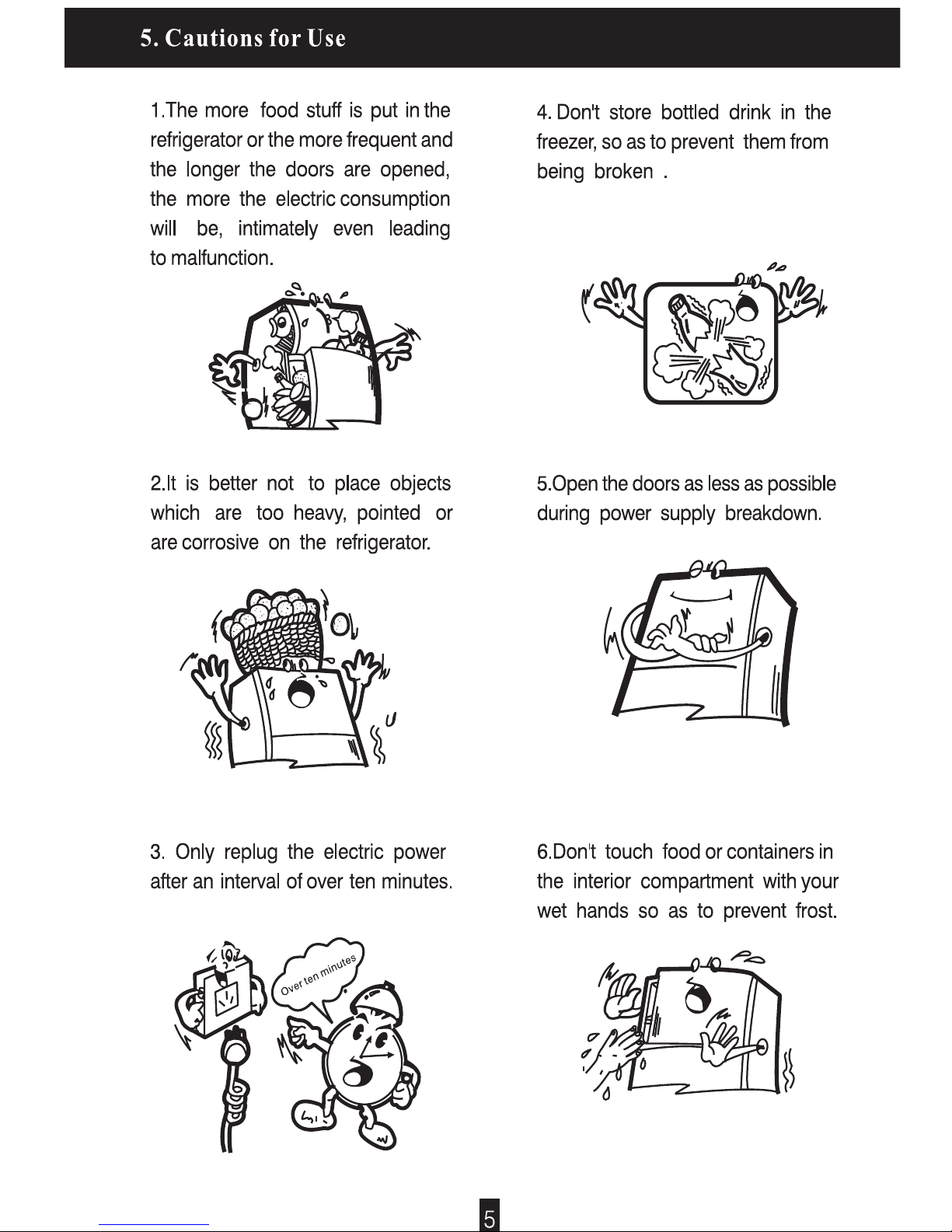

Page 6
Page 7
6. Maintenance
6
2.Cleansers such as soap powder,
abrasive cleaning powder, alkali
cleansers, chemical cloth, thinner,
alcohol, acid petroleum product
and hot water should not be used
to clean the refrigerator a s they m ay
damage the painted cover and
plastics.
3.The drain pan should be cleaned
at least once a year.
5.As the door gasket is easy to be
dirtied and fogged, so clean it
frequently.
1.While cleaning the refrigerator,
pull out the electric power plug, rub
carefully with a piece of cloth
socked with natural cleanser then
wipe with clean water.
4.If the refrigerator is out of use for
a long time, please pull out the
plug, clean and dry the interior
compartment, then close the doors
tightly.

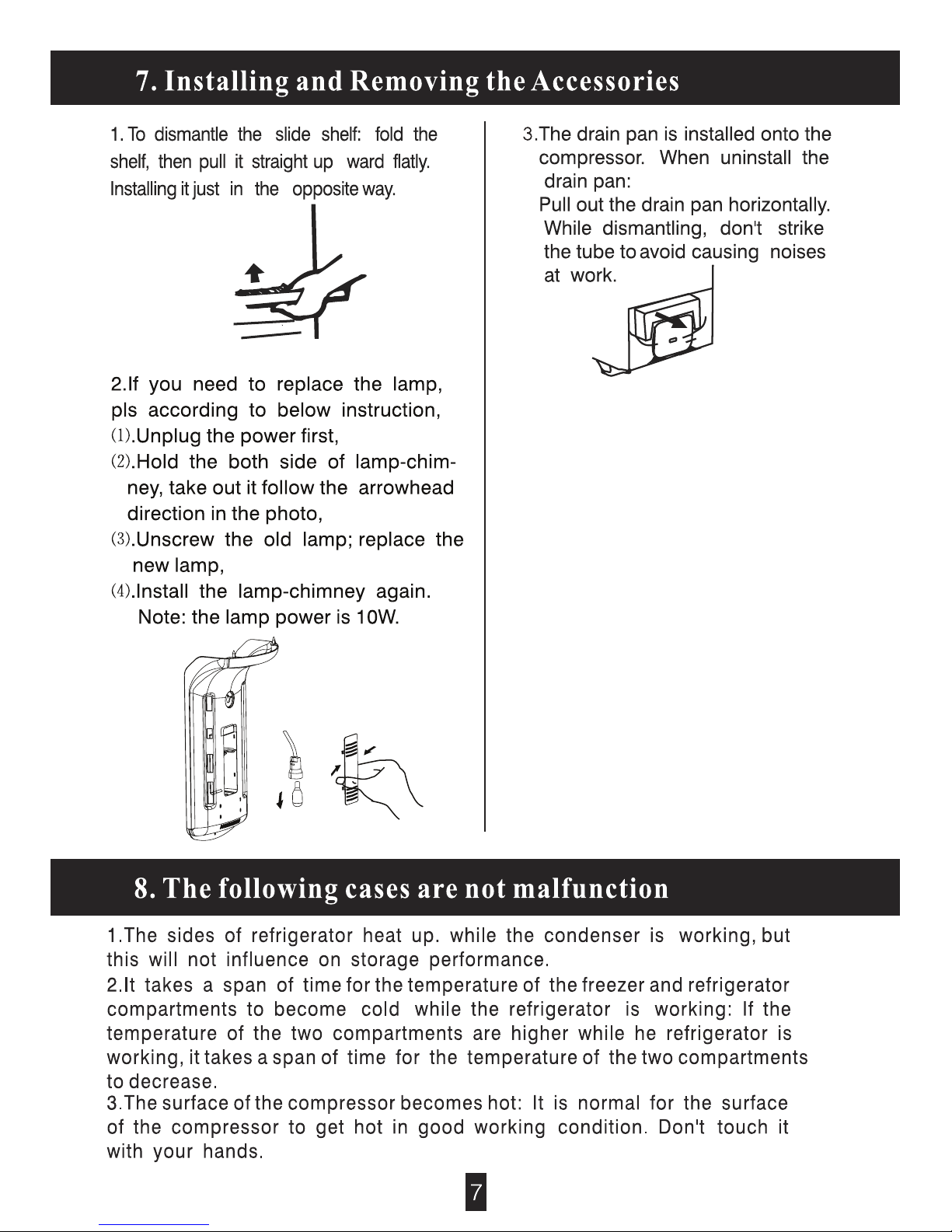

Page 8

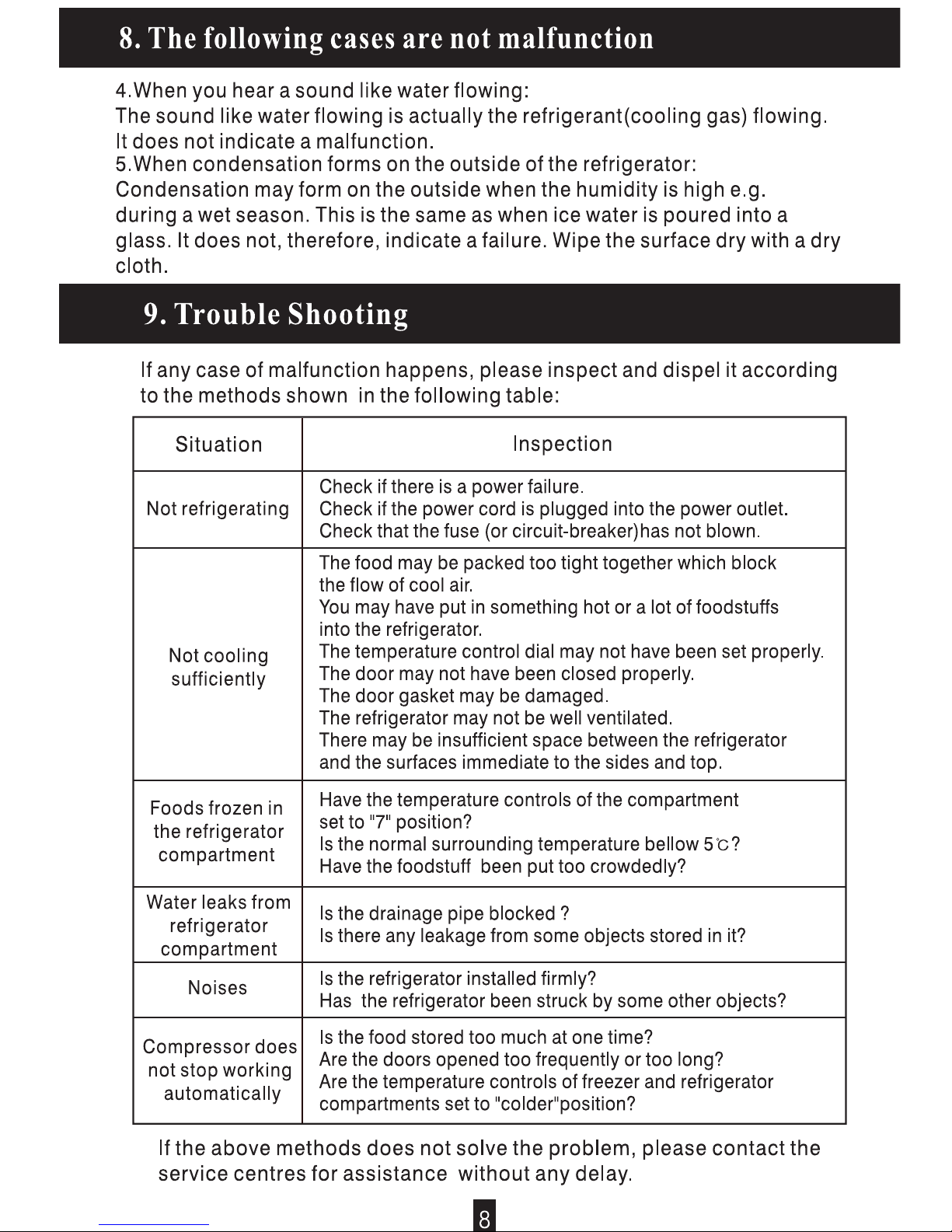

Page 9
Page 10
A) TYPE X ATTACHMENT WITH SPECIALLY PREPARED CORD-DAMAGED SUPPLY CORDS MUST
BE REPLACED BYA SPECIAL CORD OR ASSEMBLYAVAILABLE FROM THE MANUFACTURER OR
ITS SERVICEAGENT
B) TYPE Y ATTACHMENT-DAMAGED SUPPLY CORDS TO BE REPLACED BY THE MANUFACTURER,
SERVICEAGENT OR SIMILARLY QUALIFIED PERSON TO AVOID HAZARD
C) TYPE Z ATTACHMENT-DAMAGED SUPPLY CORD CANNOT BE REPLACED AND THE APPLIANCE
SHOULD BE SCRAPPED
