Euromaid EHPD700W User Manual

User Manual

Description 7KG Heat Pump Dryer
MODEL NO. EHPD700W

Contents Page

1. Important instructions for safety and environment

1.1

1.1.1

1.1.2

1.2

1.3

1.4

1.5

1.6

1.7

1.8

General Safety
Electrical Safety

Product Safety

Stacking over a washing machine

Intended Use
Child Use

Compliance with the WEEE regulations and disposing of the waste product

Compliance with the RoHS directive

Package Information

Technical Specification

2. Your dryer

2.1 Overview

2.2 Package Contents

3. Installation

3.1 Appropriate installation location

3.2 Removing the transportation assembling location

3.3 Connecting to the drain

3.4 Adjusting the dryer

3.5 Transportation of the dryer

3.6 Warning about sounds

3.7 Changing the illumination lamps

4. Preparation

4.1 Laundry suitable for drying in the dryer

4.2 Laundry not suitable for drying in the dryer

4.3 Preparing laundry for drying

4.4 Things to be done for energy savings

4.5 Correct load capacity

5. Operating the product

5.1 Control Panel

5.2 Symbols

5.3 Preparation of drying maching

5.4 Program selection and consumption chart

5.5 Auxiliary functions

5.6 Warning indicators

5.7 Starting the program

5.8 Child Lock

5.9 Changing the program after it is started

5.10 Cancelling the program

5.11 End the program

6. Maintenance and cleaning

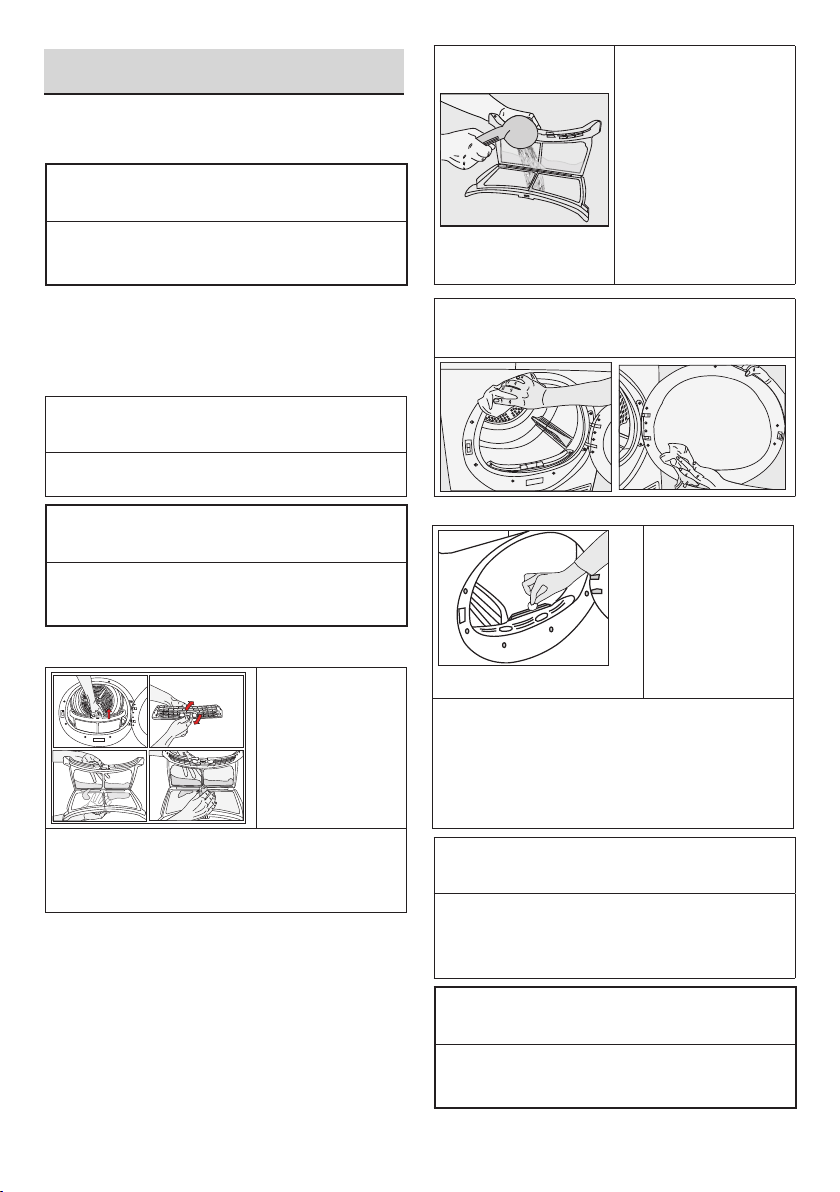

6.1 Cleaning Lint Filter / Loading Door Inner Surface

6.2 Cleaning the sensor

6.3 Draining the water tank

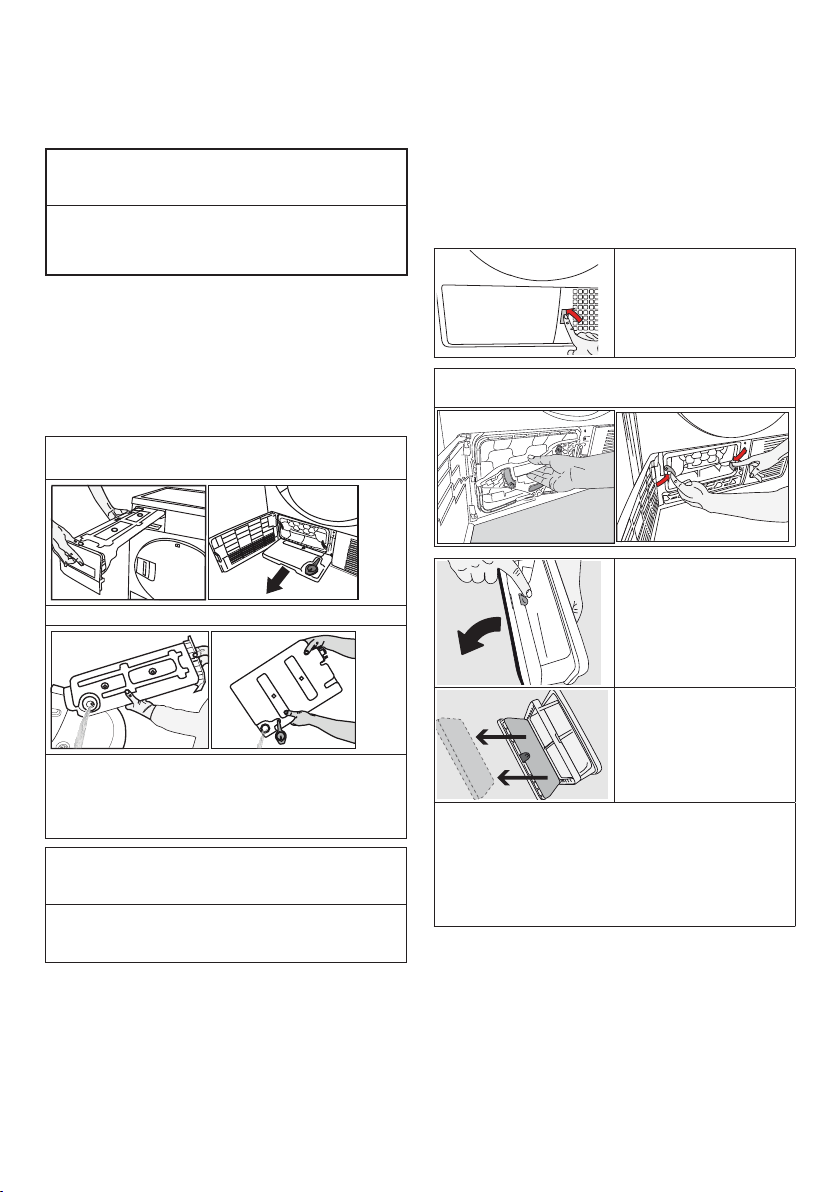

6.4 Cleaning the filter drawer

6.5 Cleaning the evaporator

7. Troubleshooting

8. Manufactures Guarantee

Pg 4

Pg 5
Pg 5
Pg 5
Pg 7
Pg 8
Pg 8
Pg 8
Pg 8
Pg 8
Pg 9

Pg 10

Pg 10

Pg 10

Pg 10

Pg 10
Pg 10
Pg 11
Pg 11
Pg 12
Pg 12

Pg 12

Pg 13

Pg 13

Pg 13
Pg 13
Pg 13
Pg 13

Pg 14

Pg 14
Pg 14
Pg 14

Pg 15
Pg 17

Pg 17
Pg 17
Pg 17
Pg 18

Pg 18
Pg 19

Pg 20

Pg 20

Pg 20
Pg 21
Pg 21

Pg 22

Pg 23

Pg 24

Please read this user manual first!

Dear Customer,
Thank you for preferring a Euromaid
product. We hope that your product which
has been manufactured with high quality and
technology will give you the best results. We
advise you to read through this manual and the
other accompanying documentation carefully
before using your product and keep it for
future reference. If you transfer the product
to someone else, give its manual as well. Pay
attention to all details and warnings specified
in the user manual and follow the instructions
given therein.
Use this user manual for the model indicated
on the cover page.

• Read the instructions.

Explanation of symbols

Throughout this user manual the following
symbols are used:

DANGER!

B

• Warning against electric shock.

WARNING!

• Warning against scalding hazard.

NOTE

C

• Important information or useful hints about
usage.

Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations.

Do not dispose of the packaging wastes with
the domestic waste or other wastes, discard
them to the dedicated collection points
designated by the local authorities.

DANGER!

• Warning against fire hazard.

WARNING!

A

• Warning for hazardous situations with regard
to life and property.

WARNING!

• Warning against hot surfaces.

2960312888

1 Important instructions for safety and environment

NOTE

C

• This section contains safety
instructions that will help protect
from risk of personal injury or
property damage. Failure to follow
these instructions shall void any
warranty.

1.1 General safety

WARNING!

A

• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.

• Children should be supervised to
ensure that they do not play with the
appliance. Cleaning and maintenance
works should not be performed by
children.

• Children should be kept away unless
continuously supervised.

• Adjustable feet should not be
removed. The gap between the dryer
and the floor should not be reduced
with materials such as carpet, wood
and tape. This will cause problems
with the dryer.

A

WARNING!

• Always have the installation and
repairing procedures carried out by

Authorised Service Agent.

the
The manufacturer shall not be held
liable for damages that may arise
from procedures carried out by
unauthorised persons.

• Never wash the dryer by spraying
or pouring water onto it! There is
the risk of electric shock!

For the products with a steam
function:

WARNING!

A

• Use only distilled water or water
condensed in the water tank of the
machine in steam programs. Do
not use mains water or additives.
When using condensed water in the
water tank, it should be filtered and
cleared of fibres.

• Do not open the door when steam
programs are running. Hot water
may be expelled.

• Before putting laundry in a steam
program, stains on it should be
removed.

• You may only put laundry that is not
dirty or stained but permeated with
unpleasant odour in steam (odour
removal) program.

• Do not use any dry cleaning sets
or additional materials in a steam
program or in any program.

Dryer / User Manual

4

1.1.1 Electrical safety

DANGER!

B

•

Electrical safety instructions
should be followed while
electrical connection is made
during the installation.

•

The appliance must not be
supplied through an external
switching device, such as a
timer,or connected to a circuit
that is regularly switched on
and off by utility.

• Connect the dryer to a grounded
outlet protected by a fuse at the
value specified on the type label.
Have the grounding installation
performed by a qualified electrician.
The manufacturer shall not be liable
for any damages that will arise when
the dryer is used without grounding
in accordance with the local
regulations.

• The voltage and allowed fuse
protection is stated on the type label

plate.

• The voltage specified on the type
label must be equal to your mains

voltage.

• Unplug the dryer when it is not in
use.

• Unplug the dryer from the mains
during installation, maintenance,
cleaning and repair works.

• Do not touch the plug with wet
hands! Never unplug by pulling
on the cable, always pull out by
grabbing the plug.

B

DANGER!

•

Do not use extension cords, multi­plugs or adaptors to connect the dryer
to power supply in order to decrease
the risk of fire and electric shock.

•

Power cable plug must be easily
accessible after installation.

•

If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in
order to avoid a hazard.

•

If the dryer is faulty, it must not
be operated unless it is repaired
by an authorised service agent!
There is the risk of electric shock!

1.1.2 Product safety

DANGER!

• Superheating of the clothes inside
of the dryer can occur if you cancel
the programme or in the event of
a power failure whilst the dryer is
running, this concentration of heat
can cause self-combustion and fire
so always activate the ventilation
programme to cool down or quickly
remove all laundry from the dryer in
order to hang them up and dissipate
the heat.

Points to be taken into
consideration for fire hazard:

Below specified laundry or items
must not be dried in the dryer
considering fire hazard.

• Unwashed laundry items

5

A

WARNING!

• Ensure that the air inlet of the dryer
is open and it is well-ventilated.

• Product contains R290 refrigerant.

• R290 is an environment-friendly, but
flammable refrigerant.

• Keep the product away from
potential heat sources that may
cause it to ignite.

DANGER!

• Items soiled with oil, acetone,
alcohol, fuel oil, kerosene, stain
removers, turpentine, paraffin or
paraffin removers must be washed
in hot water with plenty of detergent
before being dried in the dryer.

For this reason especially the items
containing the above specified
stains must be washed very well,
to do this use adequate detergent
and choose a high washing
temperature.

Below specified laundry or
items must not be dried in the
dryer due to the fire hazard:

• Garments or pillows bolstered with
rubber foam (latex foam), shower
bonnets, water resistant textiles,
materials with rubber reinforcement
and rubber foam pads.

• Clothing cleaned with industrial
chemicals.

I

Dryer / User Manual

DANGER!

Items such as lighter, match,
coins, metal parts, needle etc. may
damage the drum set or may lead
to functional problems. Therefore
check all the laundry that you will
load into your dryer.
Never stop your dryer before the
programme completes. If you must
do this, remove all laundry quickly
and lay them out to dissipate the
heat.

• Clothes that are washed
inadequately may ignite on their
own and may even ignite after items
in the dryer.

• You must provide enough ventilation
in order to prevent gasses exiting
from devices operating with other
types of fuels including the naked
flame from accumulating in the
room due to the back fire effect.

• Oil-affected items can ignite
spontaneously, especially when
exposed to heat sources such as in
a tumble dryer. The items become
warm, causing an oxidation reaction
in the oil. Oxidation creates heat. If
the heat cannot escape, the items
can become hot enough to catch
fire. Piling, stacking or storing oil-

fected items can prevent heat

af
from escaping and so create a fire
hazard.

• If it is unavoidable that fabrics that
contain vegetable or cooking oil or
have been contaminated by hair
care products be placed in a tumble
dryer they should first be washed in
hot water with extra detergent - this
will reduce, but not eliminate, the
hazard.

6

A

WARNING!

• Underwear that contains metal
reinforcements should not be dried
in the dryer. Dryer may be damaged
if metal reinforcements come loose
and break off during drying.

NOTE

C

• Use softeners and similar products
in accordance with the instructions
of their manufacturers.

Always clean the lint filter before or
after each loading. Never operate
the dryer without the lint filter
installed.

WARNING!

A

• Never attempt to repair the dryer
by yourself. Do not perform any
repair or replacement procedures
on the product even if you know
or have the ability to perform the
required procedure unless it is
clearly suggested in the operating
instructions or the published service
manual. Otherwise, you will be
putting your life and others’ lives in
danger.

• There must not be a lockable,
sliding or hinged door that may
block the opening of the loading
door in the place where your dryer
is to be installed.

• Install your dryer at places suitable
for home use. (laundry room)

• Make sure that pets do not enter
the dryer. Check the inside of the
dryer before operating it.

A

WARNING!

• Do not lean on the loading door
of your dryer when it is open,
otherwise it may fall over.

• The lint must not be allowed to
accumulate around the tumble dryer

• The tumble dryer is not to be used if
industrial chemicals have been used
for cleaning.

• Fabric softeners, or similar products.
should be used as specified by the
fabric softener instructions.

• Exhaust air must not be discharged
into a flue which is used for
exhausting fumes from appliances
burning gas or other fuels.

• The final step of the drying cycle
(cool-down cycle) occurs without
applying heat to ensure that the
items are left at a temperature that
will not damage them.

1.2 Stacking over a washing machine

• A fixing device should be used between
the two machines when stacking the
dryer above a washing machine. Ensure
you follow the instructions on the
Stacking Kit very carefully.

• Total weight of the washing machine
and the dryer -with full load- when
they are placed on top of each other
reaches to approx. 180 kilograms. Place
the products on a solid floor that has
sufficient load carrying capacity!

A

• Washing machine cannot be placed on

WARNING!

the dryer. Pay attention to the above
warnings during the installation on your
washing machine.

7

Installation Table for Washing Machine and Dryer

Washing Machine Depth

Dryer
Depth

62 cm

60 cm

54 cm

60 cm

54 cm

Can be installed Cannot be

Can be
installed Cannot be installed

< 50 cm

installed

1.3 Intended use

• Dryer has been designed for domestic
use. It is not suitable for commercial
use and it must not be used out of its
intended use.

• Use the dryer only for drying laundry that
are marked accordingly.

• The manufacturer waives any
responsibility arisen from incorrect usage
or transportation.

1.4 Child safety

• Packaging materials are dangerous for
the children. Keep packaging materials
away from children.

• Electrical products are dangerous for the
children. Keep children away from the
product when it is operating. Do not let
them tamper with the dryer. Use the child­proof lock in order to prevent the children
to tamper with the dryer.

NOTE

C

Child-proof lock is on the control panel.

(See Child lock)

• Keep loading door closed even when the
dryer is not in use.

1.5 Compliance with the WEEE
regulation and disposing of the waste
product

This product complies with EU
WEEE Directive (2012/19/EU). This
product bears a classification
symbol for waste electrical and
electronic equipment (WEEE).

This product has been
manufactured with high quality parts and
materials which can be reused and are suitable
for recycling. Do not dispose of the waste
product with normal domestic and other
wastes at the end of its service life. Take it
to the collection center for the recycling of
electrical and electronic equipment. Please
consult your local authorities to learn about
these collection centers.

DANGER!

• R290 is an flammable refrigerant. Thus,
ensure that the system and the pipes
are not harmed during operation and
handling.

• Keep the product away from potential
heat sources that may cause it to ignite in
case of damage.

• Do not dispose of the product by putting
it in fire.

1.6 Compliance with RoHS Directive:

The product you have purchased complies
with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials
specified in the Directive.

1.7 Package information

Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the packaging
materials together with the domestic or other
wastes. Take them to the packaging material
collection points designated by the local
authorities.

Dryer / User Manual

8

1.8 Technical Specifications

EN

Height (Min. /
Max.)

Width 59,7 cm

Depth 56,8 cm

Capacity (max.) 7 kg**

Net weight

(± %10)

Voltage

Model code

* Min. height: Height with adjustable feet are
closed.
Max. height: Height with adjustable feet are
opened maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading
door.

NOTE

C

• Technical specifications of the dryer
are subject to change without notice to
improve the quality of the product.

• Figures in this manual are schematic and
may not match the product exactly.

• Values stated on markers on the dryer
or in the other published documentation
accompanying with the dryer are
obtained in laboratory in accordance with
the relevant standards. Depending on
operational and environmental conditions
of the dryer, these values may vary.

84,6 cm / 86,6 cm*

44 kg

See type label***Rated power input

9

2 Your Dryer

11

10

1

2

3

4
5

6

7

8

9

3 Installation

2.1 Overview

1. Top panel

2. Control panel

3. Loading door

4. Kick plate opening button

5. Ventilation grids

6. Adjustable legs

7. In models where the tank is placed below,

the water tank is inside the toe board

8. Type label

9. Lint filter

10. Water tank drawer (in models where the
tank is placed above)

11. Power cord

2.2 Package Contents

1. Water
drain
hose *

2. Filter
drawer
spare
sponge*

3. User
Manual

4. Drying

*Optional - may not be included, depends on
model.

basket*

Dryer / User Manual

5. Drying
basket
user
manual*

6. Water
Filling
Container*

7. Pure
Water*

8.
Fragrance
Capsules
Group*

Before the calling the nearest Authorized
Service for the installation of the dryer, ensure
that electrical installation and water drain is
appropriate referring to the user’s manual.
If they are not suitable, contact a qualified
electrician and technician to make necessary
arrangements.

NOTE

C

• Preparation of the dryer’s location
as well as the electrical and waste
water installations is under customer’s
responsibility.

WARNING!

A

• Prior to installation, visually check if the

dryer has any defects on it. If the drier
is damaged, do not have it installed.
Damaged products cause risks for your
safety.

• Let your dryer wait for 12 hours before

starting to use it.

3.1 Appropriate installation location

Install the dryer on a stable and level surface.
Dryer is heavy. Do not move it by yourself.

• Operate your dryer in a well ventilated,
dust-free environment.

• The gap between the dryer and the
surface should not be reduced by the
materials such as carpet, wood and tape.

• Do not cover the ventilation grills of the
dryer.

• There must not be a lockable, sliding or
hinged door that may block the opening
of the loading door in the place where
your dryer is to be installed.

• Once the dryer is installed, it should stay
at the same place where its connections
have been made. When installing the
dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).

• Place the dryer at least 1 cm away from
the edges of other furniture.

• Your dryer can be operated at
temperatures between +5°C and +35°C.
If the operating conditions fall outside
of this range, operation of the dryer will
be adversely affected and it can get
damaged.

10

• The rear surface of the tumble dryer shall
be placed against a wall.

DANGER!

B

Do not place the dryer on the power cable.

* Ignore following warning if your
product’s system does not contains
R290.

DANGER!

• Dryer contains R290 refrigerant.*

• R290 is an environment-friendly, but
flammable refrigerant.*

• Ensure that the air inlet of the dryer is
open and it is well-ventilated.*

• Keep potential flame sources away from
the dryer.*

• It is hazardous for anyone other than

an Authorised Service Person to
service this appliance. In Queensland ­the authorised Service Person MUST
hold a Gas Work Authorisation for
hydrocarbon refrigerants to carry out
servicing or repairs where the gas
system is being opened or charged.

3.2 Removing the transportation
safety assembly

WARNING!

A

• Remove the
transportation
safety assembly
before using the
dryer for the first
time.

3.3 Connecting to the drain

You can directly drain accumulated water
through the water drain hose supplied with
the product instead of periodically draining the
water collected in the water tank.

Connecting the water drain hose

1

3 4

3

Connect one end of the drain hose

supplied with the dryer to the connection
point from where you removed the hose of
the product in previous step.

2

1-2 Pull hose at

the behind of
the dryer by
hand in order
to disconnect
it from where it
is connected.
Do not use
any tools to
remove the
hose.

4 Connect the other end of the drain hose

directly to the wastewater drain or to the
washbasin.

NOTE

C

• Water drain hose should be attached to a
height of maximum 80 cm.

• Make sure that the water drain hose is not
stepped on and it is not folded between
the drain and the machine.

• If there is an accessories pack supplied
with your product, please see the detailed
description.

3.4 Adjusting the feet

• Turn the feet to
left or right until
the dryer stands

level and firmly.

11

3.5 Transportation of the dryer

Drain all water that has remained in the dryer.
If direct water drain connection is made, then
remove the hose connections.

A

WARNING!

• We recommend carrying the dryer in
upright position. If it is not possible to
carry the machine in the upright position,
we recommend carrying it by tilting
towards the right side when looked from
the front.

3.6 Warnings about sounds

NOTE

C

• It is normal to
hear a metallic
noise from the
compressor
sometimes during
operation.

• Water collected during operation is
pumped to water tank. It is normal to
hear pumping noise during this process.

3.7 Changing the illumination lamp

In case an illumination lamp is used in your
laundry dryer.To change the Bulb/LED used
for illumination of your tumble dryer, call your
Authorized Service.The lamp(s) used in this
appliance is not suitable for household room
illumination. The intended purpose of this
lamp is to assist the user to place laundry in
the tumble dryer in a comfortable way. The
lamps used in this appliance have to withstand
extreme physical conditions such as vibrations
and temperatures above 50 °C

Dryer / User Manual

12

4 Preparation

4.1 Laundry suitable for drying in the
dryer

Always obey the instructions given on the
garment tags. Dry only the laundry having a
label stating that they are suitable for drying in
a dryer.

4.2 Laundry not suitable for drying in
the dryer

Do not dry

Items with this symbol
dried in the dryer.

NOTE

C

• Delicate embroidered fabrics, woollen,
silk garments, delicate and valuable
fabrics, airtight items and tulle curtains
are not suitable for machine drying.

4.3 Preparing laundry for drying

• Laundry may be tangled with each other
after washing. Separate the laundry items
before placing them into the dryer.

• Dry garments having metal accessories
such as zippers, inside out.

• Fasten the zippers, hooks and buckles
and button sheets.

4.4 Things to be done for energy

saving

• Spin your laundry at the highest speed
possible when washing them. Thus,
the drying time is shortened and energy
consumption is reduced.

• Sort out the laundry depending on their
type and thickness. Dry the same type of
laundry together. For example thin kitchen
towels and tableclothes dry quicker than
thick bathroom towels.

• Follow the instructions in the user manual
for programme selection.

• Do not open the loading door of the
machine during drying unless necessary.
If you must open the loading door, do not
keep it open for a long time.

• Do not add wet laundry while the dryer is
in operation

• For models with a condenser unit: clean

with dryer

should not be

the condenser once in a month or after
every 30 operations regularly.

• Clean the filter periodically.Read the
Maintenance and cleaning of filters for
detalied information.

• For models with flue unit: comply with the
flue connection instructions and clean the
flue.

• During the drying process, air the room
well where your tumble dryer is operating

• On models with heat pump, check the
condenser at least every 6 months and
clean it if it is dirty.

• If you are using the environmentally­friendly filter, you do not need to clean it at
every cycle. Replace the filter cloth when
the environmentally-friendly filter symbol is
displayed on the screen..

4.5 Correct load capacity

Follow the instructions
in the “Programme
selection and
consumption table”.
Do not load more than
the capacity values
stated in the table.

Following weights are given as examples.

Laundry

Cotton
quilt covers
(double)

Cotton quilt
covers (single)

Bed sheets
(double)

Bed sheets
(single)

Large
tablecloths

Small
tablecloths

Tea towels 100

Bath towels 700 T-Shirts 125

Hand towels 350

Approximate
weights (g)*

1500 Blouses 150

1000 Cotton shirts 300

500 Shirts 250

350

700 Dresses 350

250 Jeans 700

Laundry

Cotton

dresses

Handkerchiefs

(10 pieces)

*Dry laundry weight before washing.

Approximate

weights (g)*

500

100

13

5 Operating the product

1

5.1 Control Panel

1. On/Off/Program selection

2. Start/Pause button

3. Delay Start button

5.2 Symbols

4

5

4. Dryness

5. Alarm Duration

3

2

Tank

full

End/anti-

creasing

Bedding/

Duvet

Filter drawer /

Filter

Heat exchanger

cleaning

On/O Delay Start

Cottons Eco

cleaning

Express

Drying

Child-proof

lock

Cupboard

Dry

Dryness

Level+

Mute

Iron Dry

Dryness
Level++

Volume up

(BabyProtect+)

5.3. Preparation of drying machine

• Plug the drying machine.

• Open the loading door.

• Place the laundry to the drying machine
without jamming them.

• Push and close the loading door.

WARNING!

A

• Ensure that no
laundry is jammed
to the loading
door.

Delicates

Jeans

Hygiene

Express

14’

BabyProtect

Shirt 30'

Refreshment

Extra dry

Shirts

Cupboard

dry plus

Low

temperature

select

Sport

Start

pause

cancel

Daily

Freshen Up

Synthetics

Wool Refresh

Select the desired program using the On/Off/
Program selection knob, the machine will turn
on.

NOTE

C

• Selecting a program using the On/Off/
Program selection button does not mean
that the program started. Press the
Start

/ Pause button to start the program.

Cottons

Drying Rack/

TimeDry

Dryness

Level

Mix

Express

30’

DownWear

Dryer / User Manual

14

5.4 Program selection and consumption chart

EN

Programmes Programme Description

You may dry your cotton laundry to be

Cottons Iron Dry

ironed in this program to have them
slightly damp for ease of ironing. (Shirt,
T-shirt, tablecloth, etc.)

Capacity (kg)

Spin speed in

washing machine

(rpm)

Drying Time

7 1000 139

(minutes)

Cottons Eco Dry

Cottons Cupboard Dry

Cottons Extra Dry

Synthetics Iron Dry

Synthetics Cupboard Dry

Timer Programmes

Refresh

It dries single layer, casual cotton textiles
in the most economical way.

You may use this program for extra
dryness in thick laundry such as pants,
tracksuit. You can put your laundry in the
wardrobe without ironing.

You may dry your thick cotton laundry in
this program such as towels, bathrobe,
etc. You can put your laundry in the
wardrobe without ironing.

You may dry your synthetic laundry to
be ironed in this program to have them
slightly damp for ease of ironing. (Shirt,
T-shirt, tablecloth, etc.)

You may dry all your synthetic laundry in
this program. (Shirt, T-shirt, underwear,
tablecloth, etc.) You can put your laundry
in the wardrobe without ironing.

You may select from time programmes
between 10 and 160 minutes to
achieve the desired drying level at low
temperature. In this programme, tumble
drier’s operation lasts for the set time
independently from the dryness of laundry.
This product is available to be used with a
drying basket as option. For products that
are sold without a basket, you can obtain
a basket from an authorized service and
use the drying programs specified above.
For details of use, see the drying basket
user guide.

Ventilates for 10 minutes without blowing
hot air. You can ventilate the cotton and
linen clothes that have been enclosed for
a long time with this program to remove
their odour. You can use this program to
ventilate and soften wool laundry that can
be washed in a washing machine. Do not
use for full drying.

7 1000 174

7 1000 179

7 1000 210

4 800 59

4 800 70

- - -

- - 10

15

Delicates

Jeans

Sport

Mixed

Hygienic Care

Bedding

Xpress 30

Energy consumption values

It dries the shirts in a more sensitive
manner, and causes less creasing and
easier ironing.

You may dry denim pants, skirts, shirts or
jackets in this program.

Use it to dry your clothes made of
synthetics, cotton or mixed fabrics or
waterproof products such as functional
jacket, raincoat etc. Turn them inside out
prior to drying.

You can dry both cotton and synthetic
laundry with this programme.Sports and
fitness clothes may be dried with this
program.

It is a long-term program that you can
use for the clothes (baby clothes, towels,
underwear, etc. cotton) you require
hygiene. Hygiene is provided with high
temperature. It is especially suitable for
durable fabrics.

You can dry your feather or fibre filled
textile that has “can be dried in dryer
label” as a single piece of laundry. You can
dry double duvet, pillow or coats as single
piece of laundry. Dry your cloths such as
coats and jackets turned inside out.

Use this program to have 2 shirts ready
for ironing.

2 1200 50

4 1200 125

2 1000 135

4 1000 110

5 800 185

- 800 165

0,5 1200 30

Energy

Programmes Capacity (kg)

consumption

value kWh per

Energy

rating star

year

Cottons-Extra Dry*

Dryness Level 1

7 144 6

* : Energy Label standard program (AS/NZS 2442) “All the filters must be cleaned prior to test
series.”
* : Energy Label standard program (EN 61121:2012) All values in the table are determined

All values given in the table have been fixed according to standard laboratory conditions.
according to EN 61121:2012 standard. Consumption values may vary from the values in the chart

These values may deviate from the table according to the laundry type, laundry spin speed,
depending on laundry type, wringing speed, ambient conditions and voltage levels.

environmental conditions and voltage fluctuations.

Dryer / User Manual

16

5.5 Auxiliary functions

Alarm / Duration

Drying machine makes an audible warning
when the program is completed. If you don’t
want the machine to make an audible warning,

ress the “Alarm / Duration” button. When you

p
press the Alarm / Duration button, a light will
illuminate and no audible warning will be made
when the program ends.

NOTE

C

• You can select this function before or
after the program starts.

Alarm/Duration button is used to adjust
program duration while the Rack/Time
programs are selected.
Dryness Level
Dryness Level button is used for adjusting to
desired dryness level. Program duration may
change depending on the selection.

NOTE

C

• You can activate this function only prior
to start of program.

Delay Start

You can delay the end time of the program
u

p to 24 hours with Delay/Start function.

1. Open the loading door and place the
laundry.

2. Select the drying program.

3. Press the Delay/Start selection button

and

set the delay time you wish. Delay/

Start LED will illuminate.

4. Press the Start / Pause. Delay/Start

countdown starts. “:” Separator in the
middle of displayed delay time flashes.

NOTE

C

• You can add or remove laundry within
end time. Displayed time is the sum of
normal drying time and end time. Delay
Start LED will turn off at the end of
countdown, drying starts and drying LED
will illuminate.

Changing the delay start time

If you want to change the d
countdown:
Cancel the program by turning the On/Off/
Program selection knob. Select the program
you want and repeat the Delay Start selection
process.
Cancelling the end time function
If you want to cancel the Delay Start
countdown and start the program immediately:
Cancel the program by turning the On/Off/
Program selection knob. Select the program
you want and press the Start/Pause-by button.

5.6 Warning indicators

NOTE

C

• Warning indicators may vary depending
on the model of your dryer.

Filter cleaning

When the program is completed, the warning
indicator for filter clean

Water tank

When the program is completed, the warning
indicator to empty the water tank turns on.
If the water tank fills up while the program
continues, the warning indicator starts flashing
and the machine goes into stand-by. In this
case, empty the water tank and start the
program by pressing the Start / Stand-by
button. Warning indicator turns off and program
resumes.

Filter drawer /Heat exchanger cleaning

When the programme is finished, the cleaning
symbol of the heat exchanger or filter drawer
may light up.

5.7 Starting the program

Press the Start/Pause button to start the
program.
Start/Pause and Drying indicators will illuminate
to indicate that program started.

5.8 Child Lock

The drying machine has a child lock which
prevents the program flow from being
interrupted when the buttons are pressed
during a program. When the child lock is
activated, all buttons on the panel except
the On/Off/Program selection knob are
deactivated.

uration during the

ing turns on.

17

Press the Dryness and Alarm buttons
s

imultaneously for 3 buttons to activate the
child lock.
The child lock has to be deactivated to be
able to start a new program after the current
program is finished or to be able to interfere
with the program. To deactivate the child lock,
keep the same buttons pressed for 3 seconds.

NOTE

C

• When the child lock is activated, the child
lock warning indicator on the screen
turns on.

• Child lock deactivates when the drying
machine is turned off and on by the On/
Off/Cancel knob.

NOTE

C

• When the drying machine runs and
the child lock is active, it beeps twice
when the program selection knob is
turned. If the child lock is deactivated
without returning the program selection
knob to its previous position, program
will terminate due to the change in the
program selection knob position.

5.9 Changing the program after it is
started

You can change the program you selected to
dry your laundry with a different program after
the drying machine starts running

•

For instance, select Extra Dry program
by turning the On/Off/Program selection
knob to select Extra Dry instead of Ir
Dry.
Press the Start/Pause button to start the

•
program.

Adding and removing whilst the dryer is
paused

If you want to add or remove
from the drying machine after the drying
program starts:

• Press the Start/Pause button to pause the
dryer. The drying operation stops.

clothes to/

on

• Open the loading door whilst the unit is

paused and add or remove laundry
items.

• Press the Start/Pause button to start
the program.

NOTE

C

• Adding laundry after the drying operation
starts may cause the dried laundry inside
the machine to mix with wet laundry and
leave the laundry damp at the end of
operation.

• Adding or removing laundry during drying
may be repeated as many times as you
wish. But this operation continuously
interrupts the drying operation, and thus
increases program duration and energy
consumption. So, it is recommended to
add laundry before the program starts.

• If a new program is selected by turning
the program selection knob while the
drying machine is in stand-by, the
running program terminates.

WARNING!

• Do not touch the inner surface of the

drum while adding or removing clothes
during a continuing program. The drum
surface is hot.

5.10 Cancelling the program

If you want to cancel the program and
terminate the drying operation for any reason
after the drying machine starts running, turn
the On/Off/Cancel knob, the program will be
cancelled.

WARNING!

A

• The inside of the drying machine shall
be extremely hot when you cancel the
program during machine operation, so
run the refresh program to allow it to cool
down.

Dryer / User Manual

18

5.11 End of program

When the program ends, the Fibre Filter
Cleaning and Water Tank warning symbols
on the program observation indicator turn on.
Loading door may be opened and the dryer
machine becomes ready for another run.
Bring the On/Off/Program selection knob to
On/Off position to turn the drying machine off.

NOTE

C

• If the laundry is not removed after the
program is completed, the wrinkle
prevention function activates for 2 hours
to prevent the laundry inside the machine
to get wrinkled. The program tumbles
the laundry with 10-minute intervals to
prevent them from wrinkling.

19

6 Maintenance and cleaning

Service life of product extends and frequently
experienced problems will be reduced if it is
cleaned at regular intervals.

WARNING!

A

• Please unplug your product before
performing maintenance and cleaning
instructions. (eg control panel, body, etc.)

6.1 Cleaning Lint Filter / Loading
Door Inner Surface

Lint and fiber released from the laundry to the
air during the drying cycle are collected in the
Lint Filter.

NOTE

C

• You can clean the lint filter housing with a
vacuum cleaner.

WARNING!

A

• Always clean the lint filter and the inner
surfaces of the loading door after each
drying process.

To clean the lint filter:

• Open the
loading door.

• Remove the
lint filter by
pulling it up
and open the
lint filter.

• Clean lint, fiber, and cotton raveling by
hand or with a soft piece of cloth.

• Close the lint filter and place it back into
its housing.

A layer can build up
on the filter pores that
can cause clogging
of the filter after using
the dryer for a while.
Wash the lint filter with
warm water to remove
the layer that builds
up on the lint filter
surface. Dry the lint
filter completely before
reinstalling it.

• Clean the entire inner surface of the
loading door and loading door gasket
with a soft damp cloth.

6.2 Cleaning the sensor

There are
dampness sensors
in the dryer that
detect whether
the laundry is dry
or not.
To clean the
sensors:

• Open the loading door of the dryer.

• Allow the machine to cool down if it is still
hot due to the drying process.

• Wipe the metal surfaces of the sensor
with a soft cloth, dampened with vinegar
and dry them.

NOTE

C

• Clean metal surfaces of the sensors 4
times a year.

• Do not use metal tools when cleaning
metal surfaces of the sensors.

Dryer / User Manual

A

WARNING!

• Never use solvents, cleaning agents or

similar substances for cleaning due to the
risk of fire and explosion!

0

2

6.3 Draining the water tank

Dampness of the laundry is removed and
condensed during drying process and the
water that arise accumulates in the water tank.
Drain the water tank after each drying cycle.

WARNING!

A

• Condensed water is not drinkable!

• Never remove the water tank when the
program is running!

If you forget to drain the water tank, the
machine will stop during the subsequent drying
cycles when the water tank is full and the Water
Tank warning symbol will flash. If this is the
case, drain the water tank and press Start /
Pause button to resume the drying cycle.
To drain the water tank:

1. Remove the water tank in the drawer
or container carefully.

2. Drain the water in the tank.

6.4 Cleaning the filter drawer

Lint and fiber that could not be captured by the
lint filter are blocked in the filter drawer behind
the kick plate. Clean the filter periodically when
there is visible air collection on it or when
the symbol lights up, if there is a filter drawer
cleaning warning symbol available.
There is a one stage filter. This one stage filter is
made from sponge
To clean the filter drawer:

• Press the kick
plate button to
open the kick
plate.

• Open the filter drawer cap turning the
cap lock on it and pull it out..

• Open the filter
drawer by
pressing the red
button.

• If there is lint accumulation in the funnel
of the water tank, clean it under running
water.

• Place the water tank into its seat.

NOTE

C

• If the direct water draining is used as an
option, there is no need to empty the
water tank.

21

• Take out the filter
drawer sponge.

• Clean the fluff and lint over the filter
sponge washing it with your hands.
Remove the moisture squeezing the
sponge with your hands after washing it.

• Clean the fluff, lint and cotton pellets with
your hands or with a soft cloth.

• If you observe a
layer over the filter
which can block
the filter, remove
the layer washing
with a water and
then cleaning it.
Dry the filter cloth
properly before
replacing the filter
drawer.

• Replace the filter drawer and tighten the
cap turning the filter drawer lock turning it
in the arrow direction.

NOTE

C

• There may be no cloth in the filter
cassette of your drying machine,
depending on its model.

• Place the sponge
back into its
place.

NOTE

C

• Please place the sponge carefully inside
the frame of the filter cassette shown by
arrows in order to avoid squeezing when
filter drawer closed”.:

• Close the filter
drawer as to lock
the red button.

• Close the kick plate
cover.

WARNING!

A

• Drying without the filter drawer sponge in
place will damage the machine!

NOTE

C

• A dirty lint filter and filter drawer will cause
longer drying periods and higher energy
consumption.

6.5 Cleaning the evaporator

• Clean the lint
accumulated
on the fins of
the evaporator
located behind
the filter drawer
with a vacuum
cleaner.

Dryer / User Manual

A

WARNING!

• You can also clean by hand provided that
you wear protective gloves. Do not attempt
to clean with bare hands. Evaporator fins
can harm your hand.

22

7 Troubleshooting

Drying operation takes too long.
Fibre filter pores might be clogged. >>> Wash the filter with
warm water.
Filter drawer might be clogged. >>> Clean the sponge and
filter cloth (if any) in the filter drawer. (for the products with
a heat pump)
The condenser might be blocked. >>> Wash the
condenser.(for the products with a condenser )
The ventilation grills in front of the machine may be closed.
>>> Remove any objects in front of the ventilation grills that
blocks air.
Ventilation may be inadequate because the area the
machine is installed in is too small. >>> Open the door or
windows to prevent the room temperature from rising very
high.
A lime layer may have accumulated on the humidity sensor.
>>> Clean the humidity sensor.
Excessive amount of laundry might be loaded. >>> Do not
load the drying machine excessively.
Laundry might not have been wrung adequately. >>>
Perform a higher speed wringing on the washing machine.
Clothes come out damp after drying.
A program not suitable for the laundry type may have been
used.>>> Check the maintenance labels on the clothes
and select a program suitable for the clothes’ type or use
time programs as extra.
Fibre filter pores might be clogged. >>> Wash the filter with
warm water.
The condenser might be blocked. >>> Wash the
condenser. (for the products with a condenser)
Filter drawer might be clogged. >>> Clean the sponge and
filter cloth (if any) in the filter drawer.(For the products with
a heat pump)
Excessive amount of laundry might be loaded. >>> Do not
load the drying machine excessively.
Laundry might not have been wrung adequately. >>>
Perform a higher speed wringing on the washing machine.

Drying machine does not turn on or program cannot be
started. Drying machine does not run after it is configured.

Power plug might be unplugged. >>> Make sure the
power cord is plugged in.
Loading door might be open. >>> Ensure that the loading
door is properly closed.
A program might not be set or Start/Pause button might
not be pressed. >>> Check that the program is set and

the dryer is not paused.

Child lock may be activated. >>> Turn off the child lock.
Program terminated prematurely for no reason.
Loading door might not be closed completely. >>> Ensure
that the loading door is properly closed.
There might be a power outage. >>> Press the Start/
Pause button to start the program.
Water tank may be full. >>> Empty the water tank.
Clothes have shrunk, hardened or spoiled.
A program not suitable with the laundry type might have
been used. >>> Check the maintenance labels on the
clothes and select a program suitable for the clothes.

The lighting inside the drying machine does not turn on.
(For models with a lamp)

Drying machine might not be turned on with the On/Off
button or program might not be selected for machines
without an On/Off button. >>> Make sure that the drying
machine is turned on.
Lamp might be malfunctioning. >>> Contact your
Authorised Service Agent to replace the lamp.

Filter cleaning warning symbol/LED is on/flashing.
Fibre filter might not be cleaned. >>> Clean the filter.
The filter slot might be clogged with lints. >>> Clean the
filter slot.
A layer of fluff might have accumulated clogging up the lint
filter pores. >>> Wash the filter with warm water.
The condenser might be blocked. >>> Wash the
condenser.
Water drips from the loading door.
Fibres might have gathered on the inner sides of the
loading door and the loading door gasket. >>> Clean the
inner surfaces of the loading door and the loading door
gasket surfaces.
Loading door opens by itself.
Loading door might not be closed completely. >>> Push
the loading door until the closing sound is heard.
Water tank warning symbol / led is on/flashing.
Water tank may be full. >>> Empty the water tank.
Water discharge hose might have collapsed. >>> If the
product is connected directly to the water drain check the
water discharge hose.

WARNING!

A

• If the problem persists after following the
instructions in this section, contact your
vendor or an Authorised Service Agent. Never
try to repair your product yourself.

NOTE

C

• In an event that you encounter an issue on

any part on your appliance, you can ask for
a replacement by contact the authorised
service agent service with the appliance model
number.

• Operating the appliance with non-authentic
parts may lead the appliance to malfunction.

• Manufacturer and distributor are not liable
for malfunctions resulting from using non­authentic parts.

Dryer / User Manual

23

8

Manufacturee Guarantee

This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69
118 275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex
New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in
respect of the Euromaid product.

1. Euromaid Express Warranty

Subject to the exclusions below, we warrant that the product will not have any
electrical or mechanical breakdowns within:

a) In the case of Euromaid products used for personal, domestic or household

purposes, a period of 2 years (AU) / 2 years (NZ) from the date the product is
purchased as a brand-new product from a retailer located in Australia / New
Zealand.

b) In the case of Euromaid products used for purposes other than personal,

domestic or household purposes (including business or commercial use), a
period of 90 days from the date the product is purchased as a brand-new
product from a retailer located in Australia / New Zealand. Euromaid products
are designed and intended for domestic use only; and

c) All warranty repairs must be carried out by Glen Dimplex or their nominated

service agent
Note: warranty periods detailed above may vary in line with agreements with
select retail and builder partners and may differ between Australia and New
Zealand.
The benefits conferred by this express warranty are in addition to the Consumer
Guarantees referred to in section 3 and any other statutory rights you may have
under the Australian / New Zealand Consumer Law and/or other applicable
laws.

2. Warranty exclusions

This express warranty does not apply where:

a) The product has been installed, used or operated otherwise than in accordance

with the product manual or other similar documentation provided to you with the
product;

b) The product requires repairs due to damage resulting from accident, misuse,

incorrect installation, insect or vermin infestation, improper liquid spillage,
cleaning or maintenance, unauthorised modification, use on an incorrect
voltage, power surges and dips, voltage supply problems, tampering or
unauthorised repairs by any persons, use of defective or incomp
accessories or exposure to abnormally corrosive conditions, events independent
of human control which occurred after the goods left the control of Glen
Dimplex;

24

atible

Dryer / User Manual

c) The repair relates to the replacement of consumable parts such as fuses and bulbs
or any other parts of the product which require routine replacement;

d)

You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in
section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new
product.

Consumer guarantees

3.

Our goods come with guarantees that cannot be excluded under the Australian / New
Zealand Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

4.

How to make a claim

You may make a claim under this warranty through our website, contacting our
customer care line or via email. Contact details for Glen Dimplex Australia and New
Zealand can be found at the end of this document
To make a valid claim under this warranty, you must:

a) Lodge the claim with us as soon as possible and no later than 14 days after you

first become aware of the breakdown;

b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the

form of a store receipt, new home handover form or other payment receipt
documentation; and

d) If required by us, provide us (or any person nominated by us) with access to the

u

premises at which the product is located at times nominated by
can inspect the product).

s (so that we

Dryer / User Manual

25

5. Warranty claims

If you make a valid claim under this warranty and none of the exclusions set out in
section 2 apply, we will, at our election, either repair the product or replace the
product with a product of identical specification (or where the product is superseded
or no longer in stock, with a product of as close a specification as possible).

Goods presented for repair may be replaced by refurbished goods of the same type
rather than being repaired. Refurbished parts may be used to repair the goods.
Products are design
you under this warranty for business loss or damage of any kind whatsoever.

ed and supplied for normal domestic use. We will not be liable to

Glen Dimplex Australia Pty Ltd

www.glendimplex.com.au

Australia
Ph: 1300 556 816

[e-mail]

Glen Dimplex New Zealand Ltd

www.glendimplex.co.nz

New Zealand
Ph: 09 274 8265

[e-mail]

26

Dryer / User Manual

Dryer / User Manual

27

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND
USING THE APPLIANCE.

The manufacturer will not be responsible for any damage to property or to persons
caused by incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription
errors, contained in this manual. In addition, the appearance of the figures reported is
also purely indicative.

The manufacturer reserves the right to make changes to its products when considered
necessary and useful, without affecting the essential safety and operating
characteristics.
designs of their products.

Whilst every effort is made to produce up to date literature, this document should not
be regarded as an infallible guide. Actual product only should be used to derive cut out
sizes. All appliances must be installed by a qualified person/s with adherence to the
relevant electrical, plumbing and building codes, with compliance being issued as
required by state or national legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in
adherence to the relevant standards by a licenced installer.
For maximum effectiveness and efficiency all rangehoods should be installed with the
use of ductwork, by a licenced installer with adherence to the relevant state and national
building codes and regulations.

Glen Dimplex constantly seeks ways to improve the specifications and

All Glen Dimplex appliances are for Domestic use only, and must be installed by a
licence installer into Domestic Applications only, without exception and to the required
Authorities guidelines. Any installation outside of this will VOID warranty. Alfresco areas
are not a Domestic application.

Distributed by:

Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd

www.glendimplex.com.au www.glendimplex.co.nz

For service advice, please contact the Customer Care Centre by phone or email below.

Australia
Ph: 1300 556 816

[e-mail]

New Zealand
Ph: 09 274 8265

[e-mail]

VERSION1REVISION20201211
