Euromaid EFF54SS User Manual

User Manual

540mm Upright Electric Cooker

EFF54W / EFF54SS

EEF54W / EFF54SS Upright Cooker User Manual Page i

CONTENTS

Conditions of use 2

Safety precautions 2

Other Important Safety Information 2

Warnings for use of oven and appliance hob 3

Product description 4

First time use of the appliance 5

Using the oven of your electric cooker 6

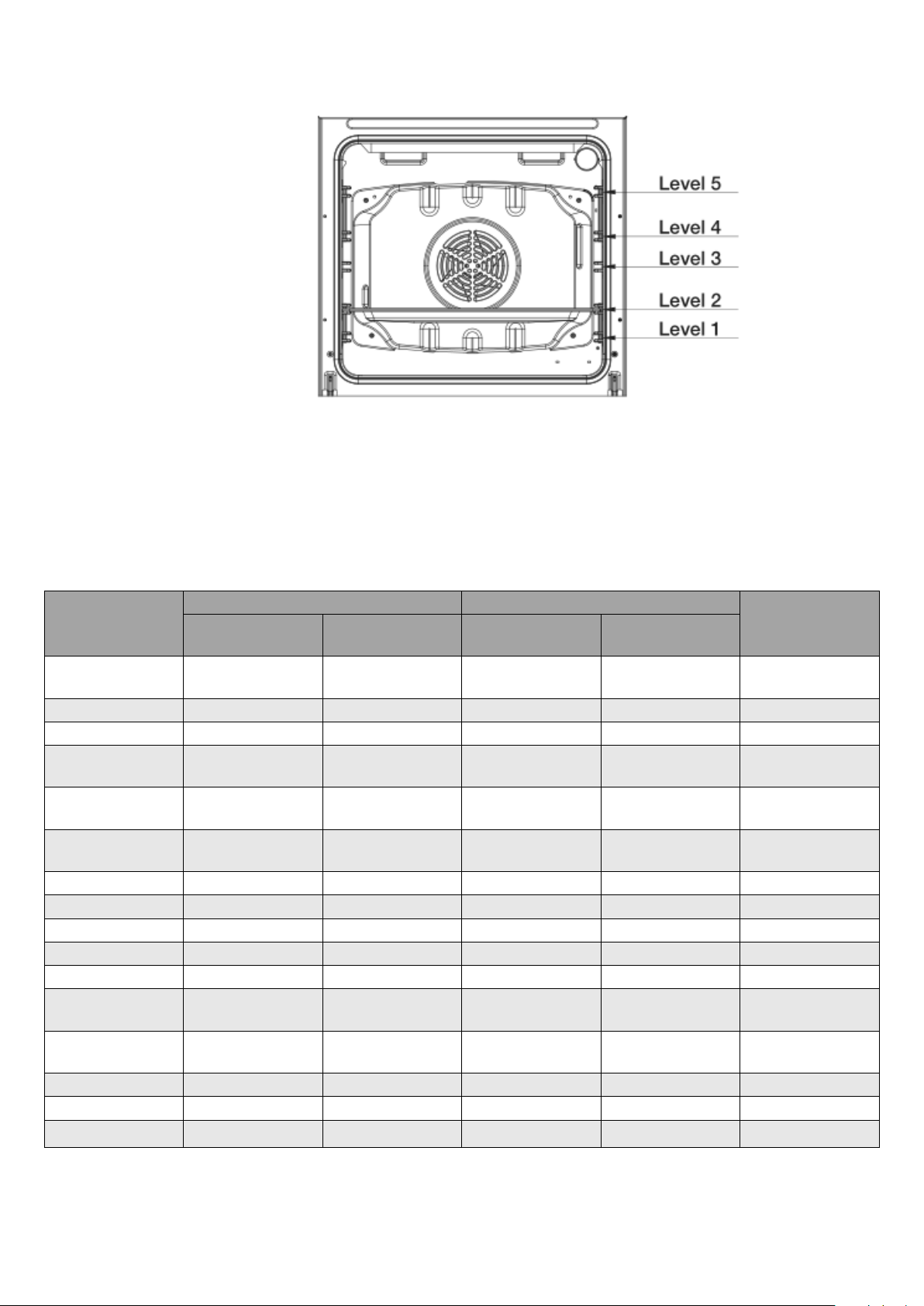

Oven shelf location 7

Oven cooking guide 7

Understanding baking problems 8

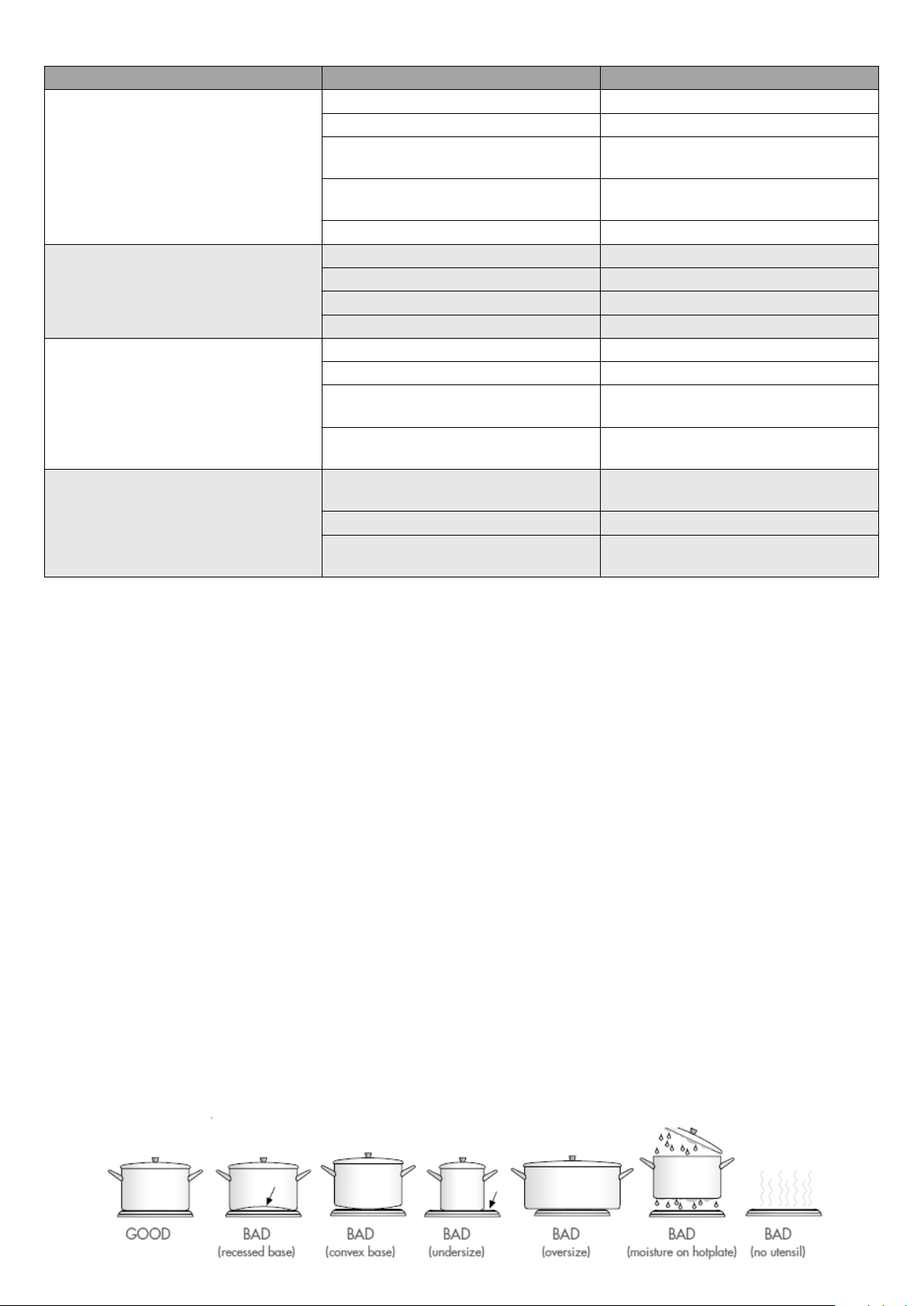

Using the hotplates of your cooker 9

Using the hotplates of your electric cooker 10

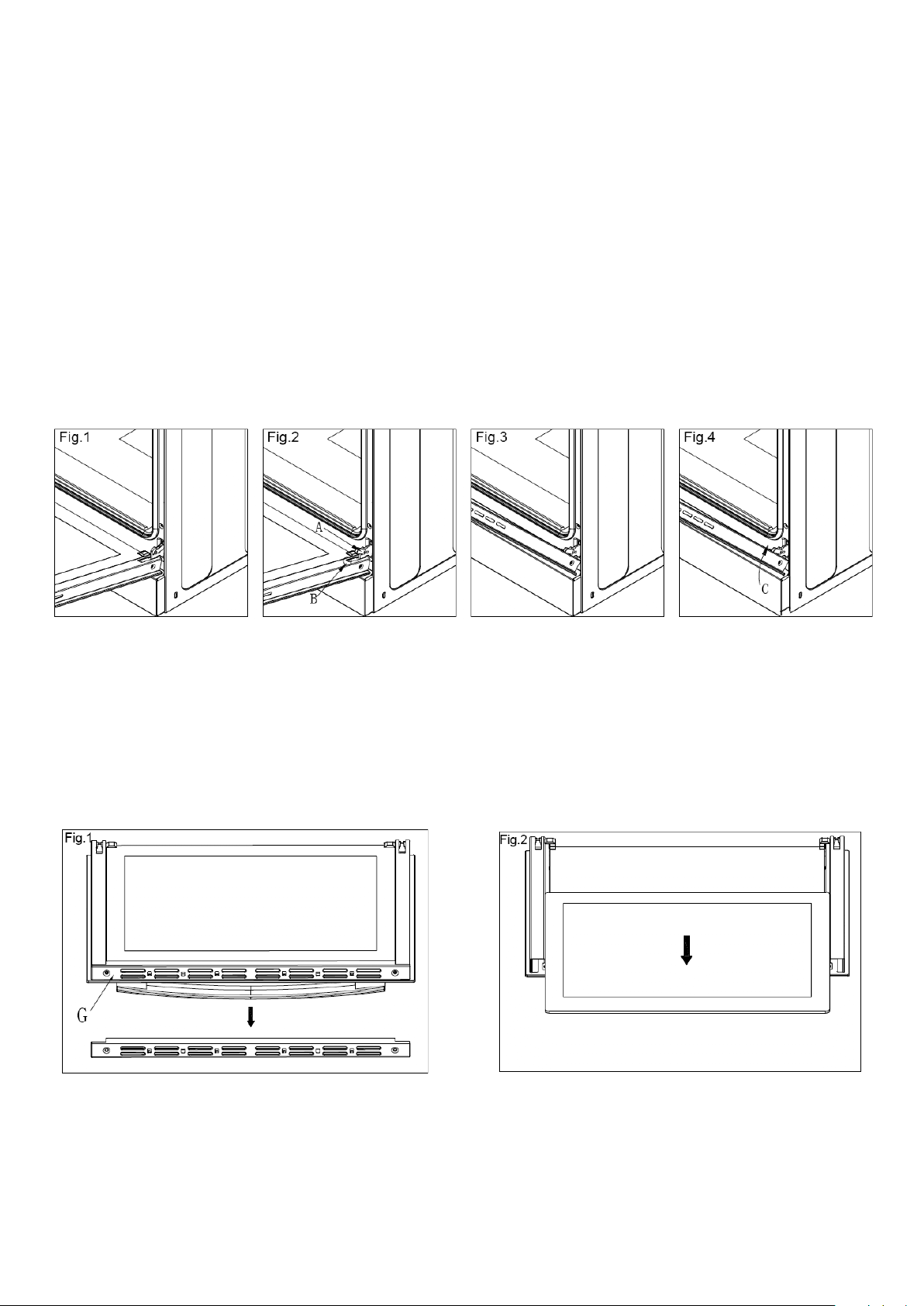

Cleaning the COOKER 11

Information about the cooling fan 13

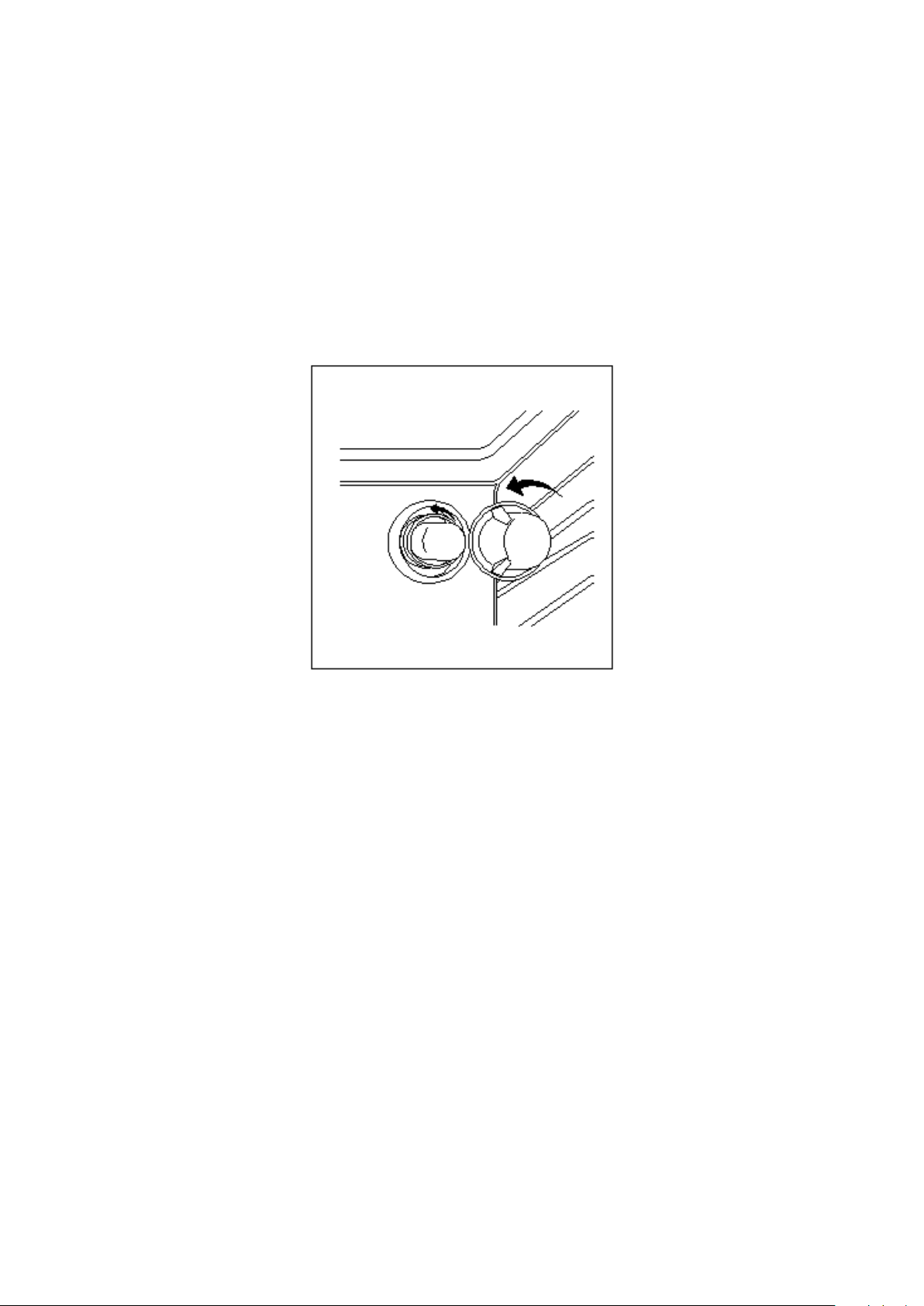

Replacing the Oven Lamp 13

Solving Problems 14

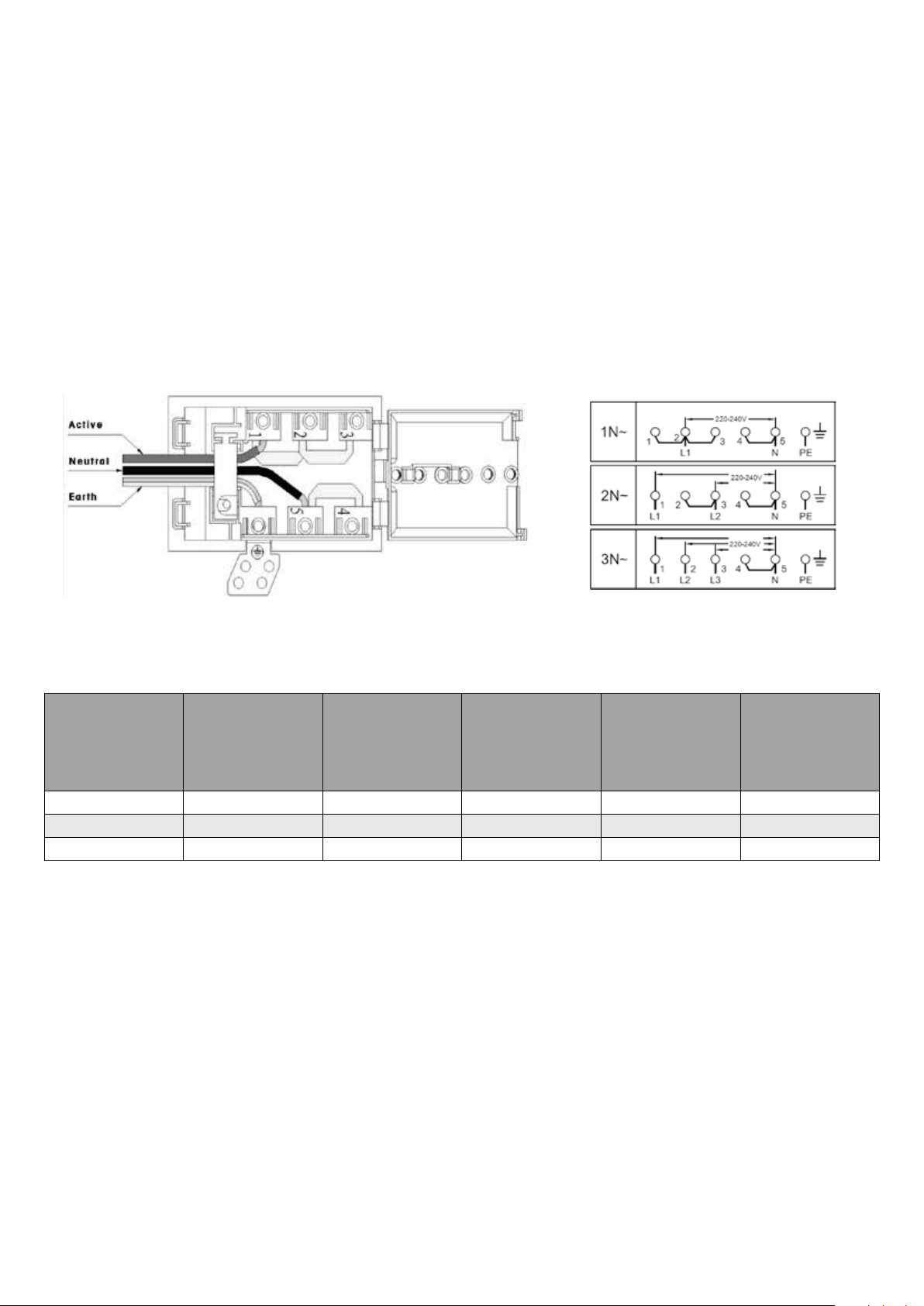

Installing cooker - power connections 15

Installing your new cooker 16

Installation Sequence 17

Ambry installation 17

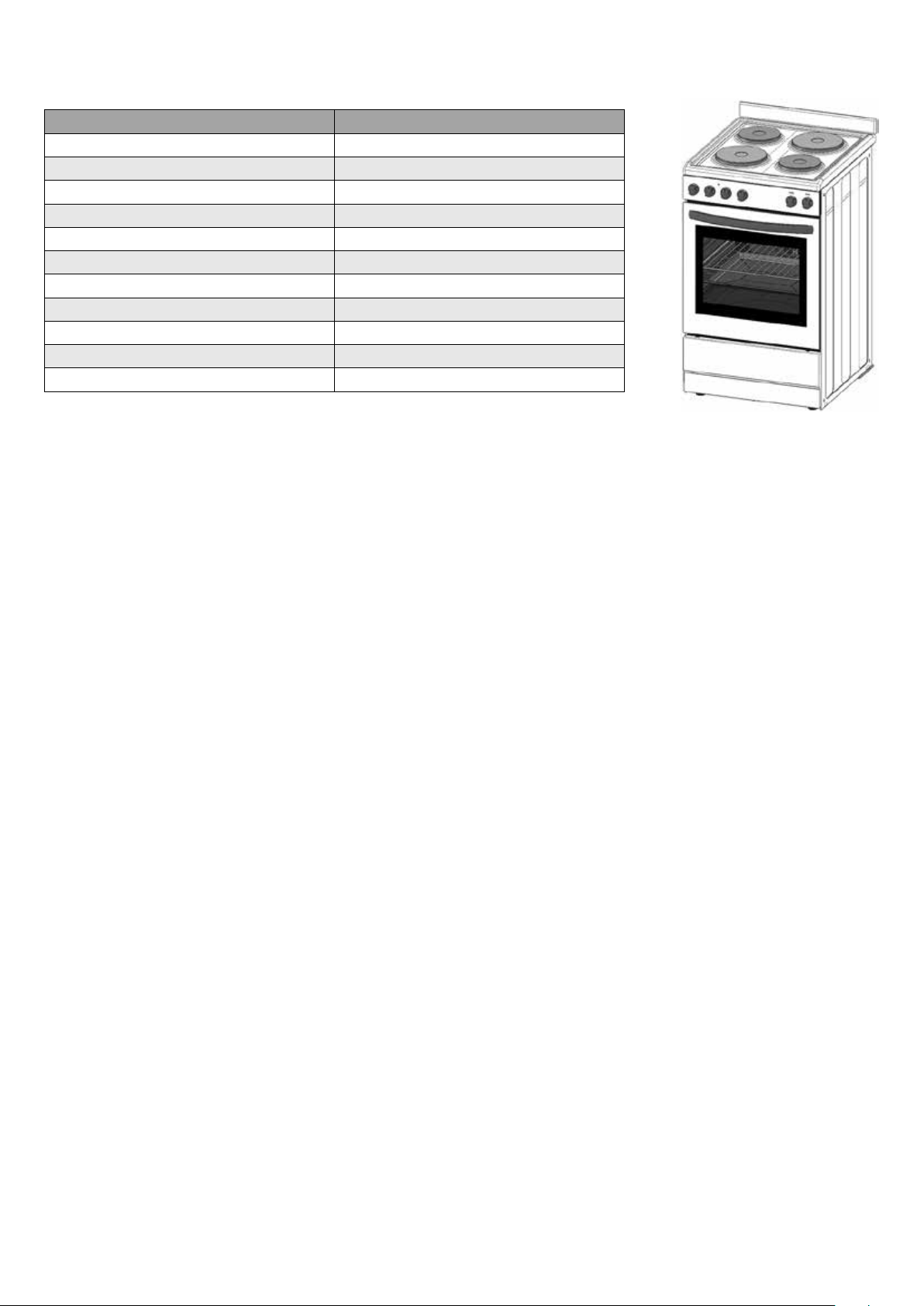

Technical specifications 18

We recommend that you read the instructions in this Manual carefully before use for the best performance and to extend
the life of your appliance, as it will provide you with all the instructions you require to ensure its safe installation, use and
maintenance. Always keep this Manual close to hand since you may need to refer to it in the future. Thank you.

Page 1 EEF54W / EFF54SS Upright Cooker User Manual

CONDITIONS OF USE

This appliance is intended to be used for domestic use, not commercial use.

SAFETY PRECAUTIONS

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.

• Warning – ensure that no downward pressure is applied to the oven door when open.
in particular, do not allow a child to climb on to open oven door

• Warning - accessible parts can become hot during use, especially the oven door.
To avoid burns, young children must be kept away.

• Young children should be supervised to ensure they do not play with this appliance.

• During use this appliance becomes hot.
Care should be taken to avoid touching hot external and internal surfaces when in use. Use oven gloves.

• Install cooker, shelving and fittings in accordance with this manual.

• Ensure all specified vents, openings and airspaces are not blocked.

• To ensure your safety all electric appliances should only be installed or service by qualified staff.
If the supply cord when fitted, is damaged, it must be replaced a service agent or similarly qualified
person in order to avoid a hazard.

• Do not spray aerosols in the vicinity of this appliance while it is in operation.

• Do not store flammable materials in the appliance or near this appliance.

• Do not modify this appliance.

• Appliance must be installed according to current laws and regulations by qualified tradesmen/Installers

The Manufacturers, Importers/Distributors and Retailers shall not be liable to any legal liability,
personal injury and property damage due to incorrect operation or incorrect Installation.

OTHER IMPORTANT SAFETY INFORMATION

This appliance must not be used as a space heater.

Do not obstruct the ventilation slots on front or back of appliance.

Do not remove any labels or use abrasive/ corrosive cleaners on.

According to the electrical safety regulations the appliance equipment must be properly earthed.

Do not use corrosive cleaners e.g. oven cleaners that contain caustic soda.

EEF54W / EFF54SS Upright Cooker User Manual Page 2

WARNINGS FOR USE OF OVEN AND APPLIANCE HOB

Oven warnings

• Do not push down or apply any weight on open oven door.

• Do not line oven with foil or place anything on the bottom of the oven while baking to avoid permanent damage,

as trapped heat will crack or craze the enamel floor of the oven cavity liner.

• Use of olive oil and other poly-unsaturated oils (vegetable oils) when roasting uncovered food causes deposits

inside the oven which are very difficult to remove.

Hotplate and burner warnings

• Do not allow pots to boil dry, as damage to hotplate may result.

• Do not operate hotplates or burners without a pot, fry pan etc.

• Do not allow cookware to overhang hob onto adjacent bench tops, this will cause scorching to the bench

top surface.

• Stainless steel sealing ring around the hotplate will discolour due to heat.

Disposal of packaging

• Please recycle the cardboard and also any polystyrene packaging where possible.

Installation, Cleaning and Servicing

• An authorized person must install this appliance.

• Before using the appliance, ensure that all packing materials are removed from the appliance.

• In order to avoid any potential hazard, the Installation Instructions must be followed.

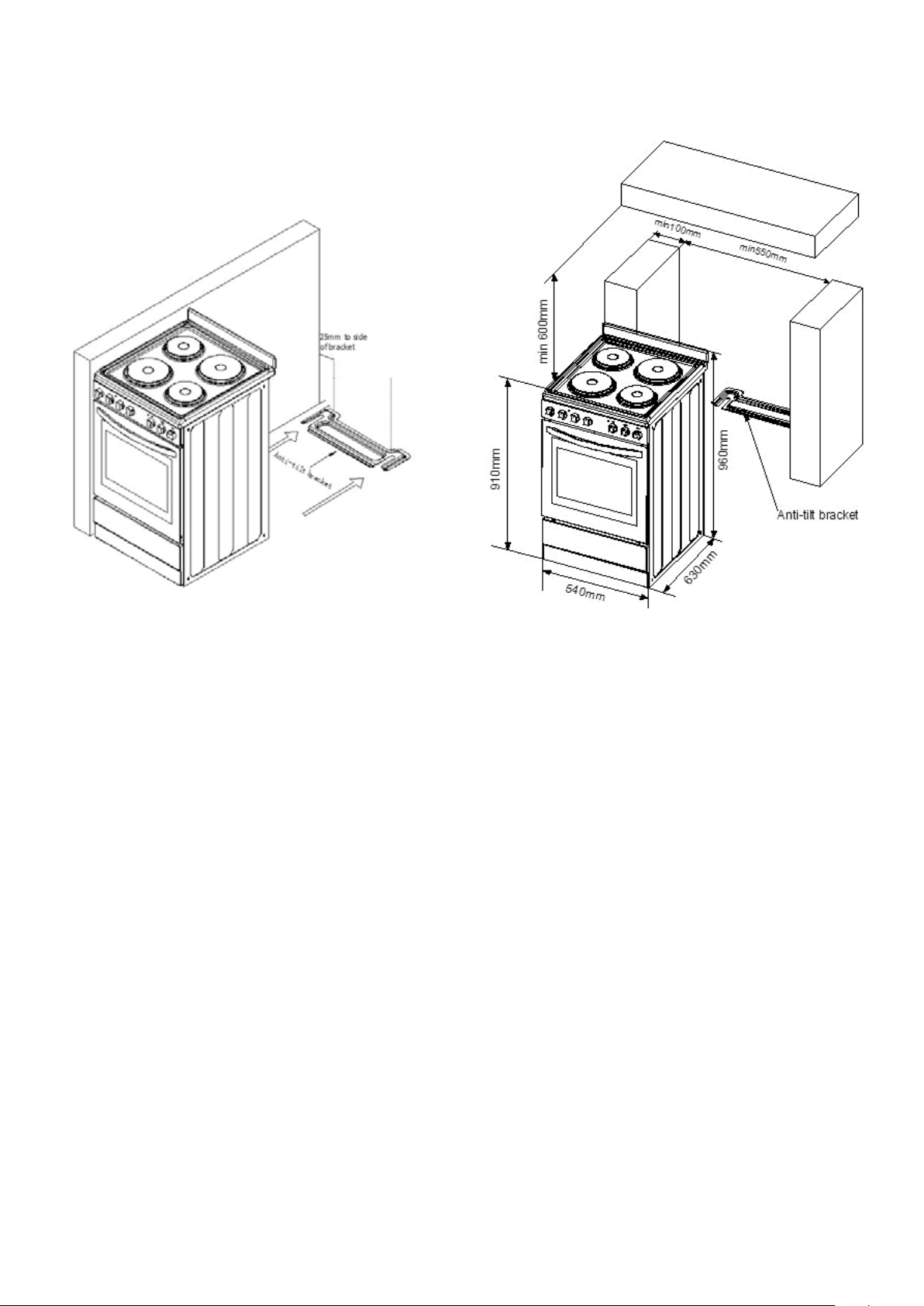

• In order to avoid accidental tipping of the appliance (for example, by a child climbing onto the open oven door),

the anti tilt plate must be installed.

• Where the appliance is installed next to cabinets, the cabinet material must be capable of withstanding 85°C.

• Only authorized personnel should carry out servicing.

• Always ensure the appliance is switched off before cleaning.

• Do not use caustic soda- based cleaners.

• Do not use steam cleaners, as this may cause moisture build up.

• Always clean the appliance immediately after any food spillage.

• Appliances requiring connection to 220-240V and must be earthed.

Page 3 EEF54W / EFF54SS Upright Cooker User Manual

PRODUCT DESCRIPTION

Description of electric cooker

1. Cooktop hob area

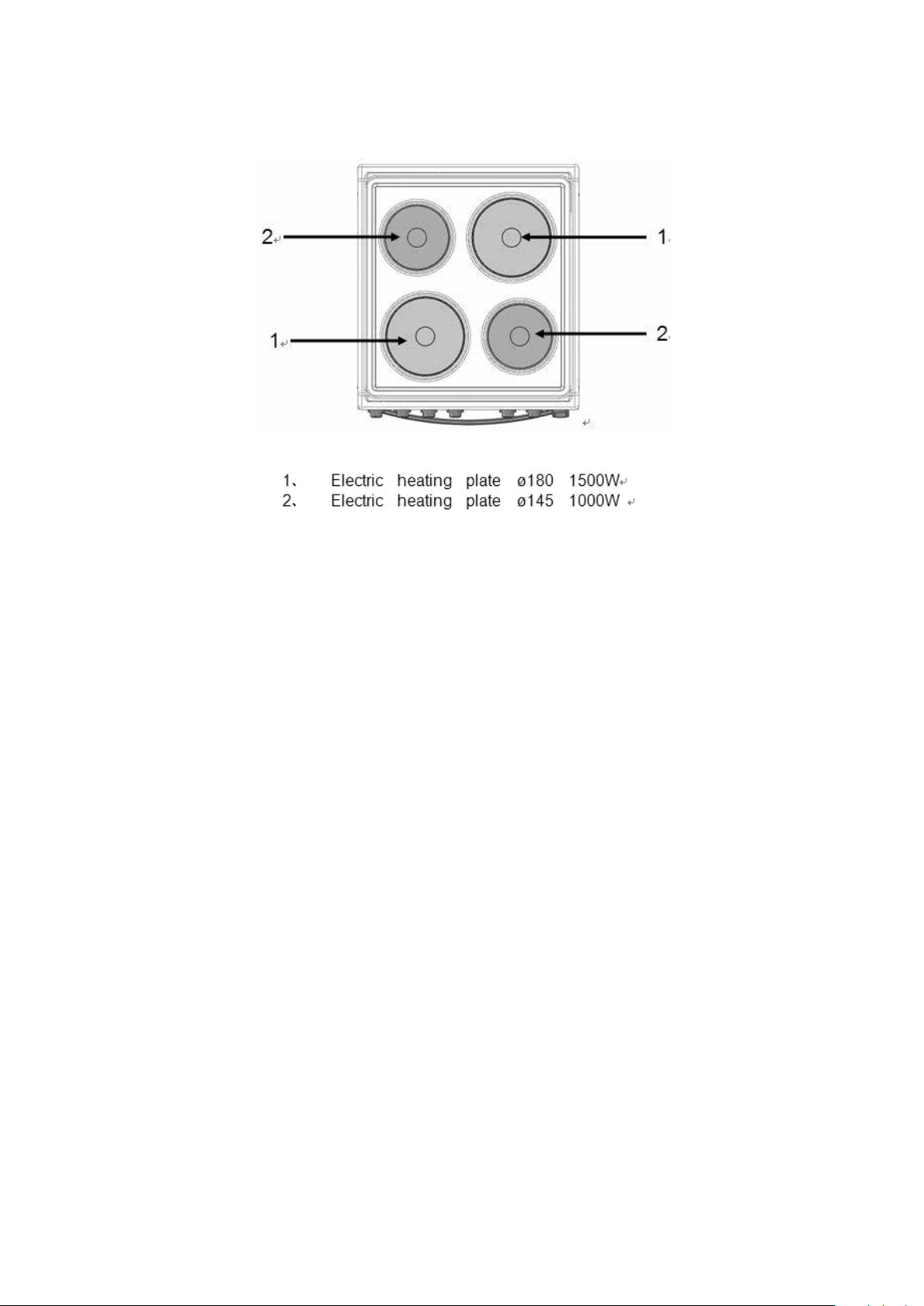

2. Hotplate Burner (4 of)

3. Control Panel

4. Chrome oven shelf (1 supplied)

5. Baking tray with grill insert (1 supplied)

6. Oven Door

7. Oven Inner Door Glass

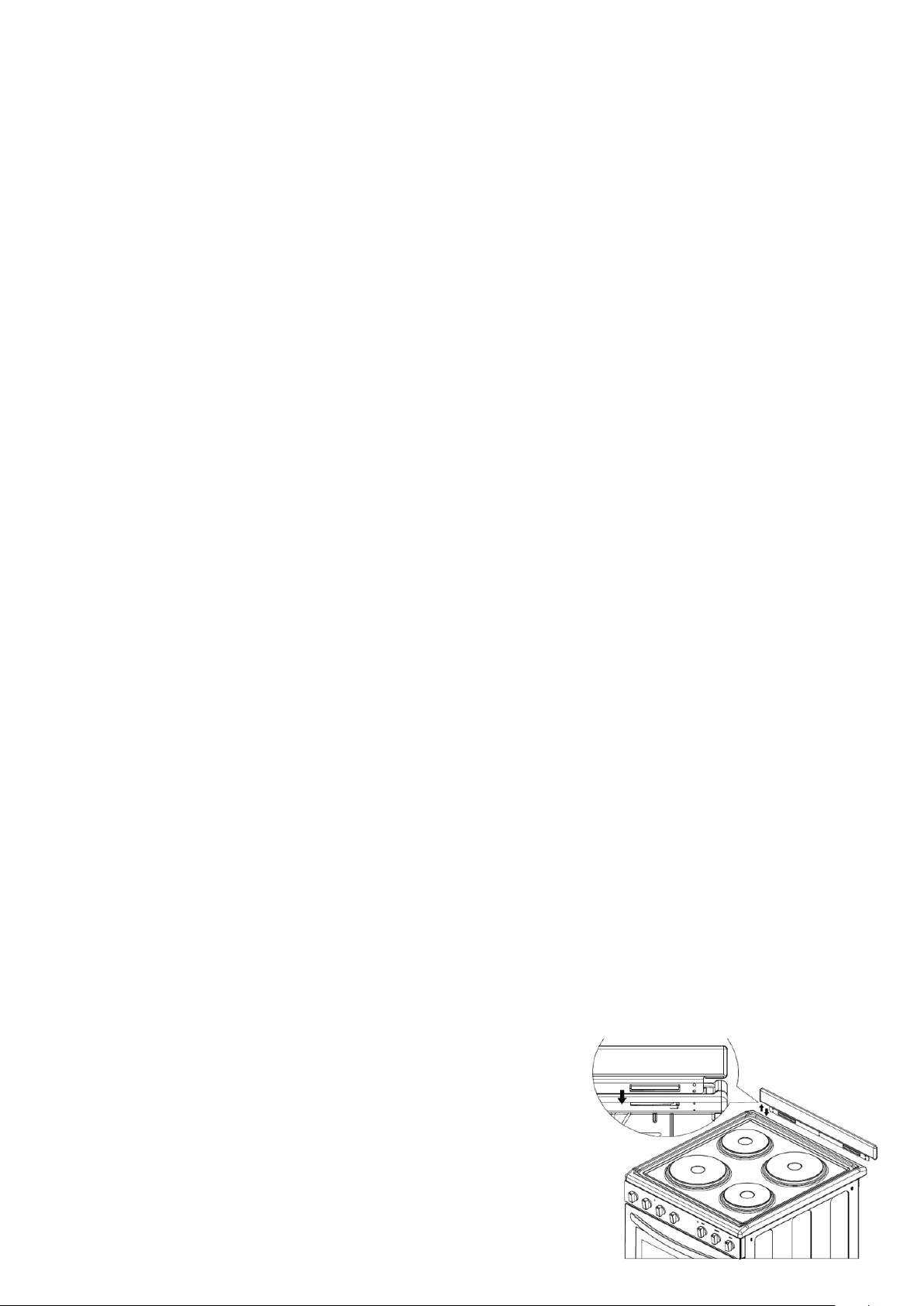

8. Splashback (1 supplied)

9. Integrated Grill element

10. Fan forced oven element

11. Fan & element cover

12. Front panel

13. Anti-tilt bracket

14. Anti slip feet

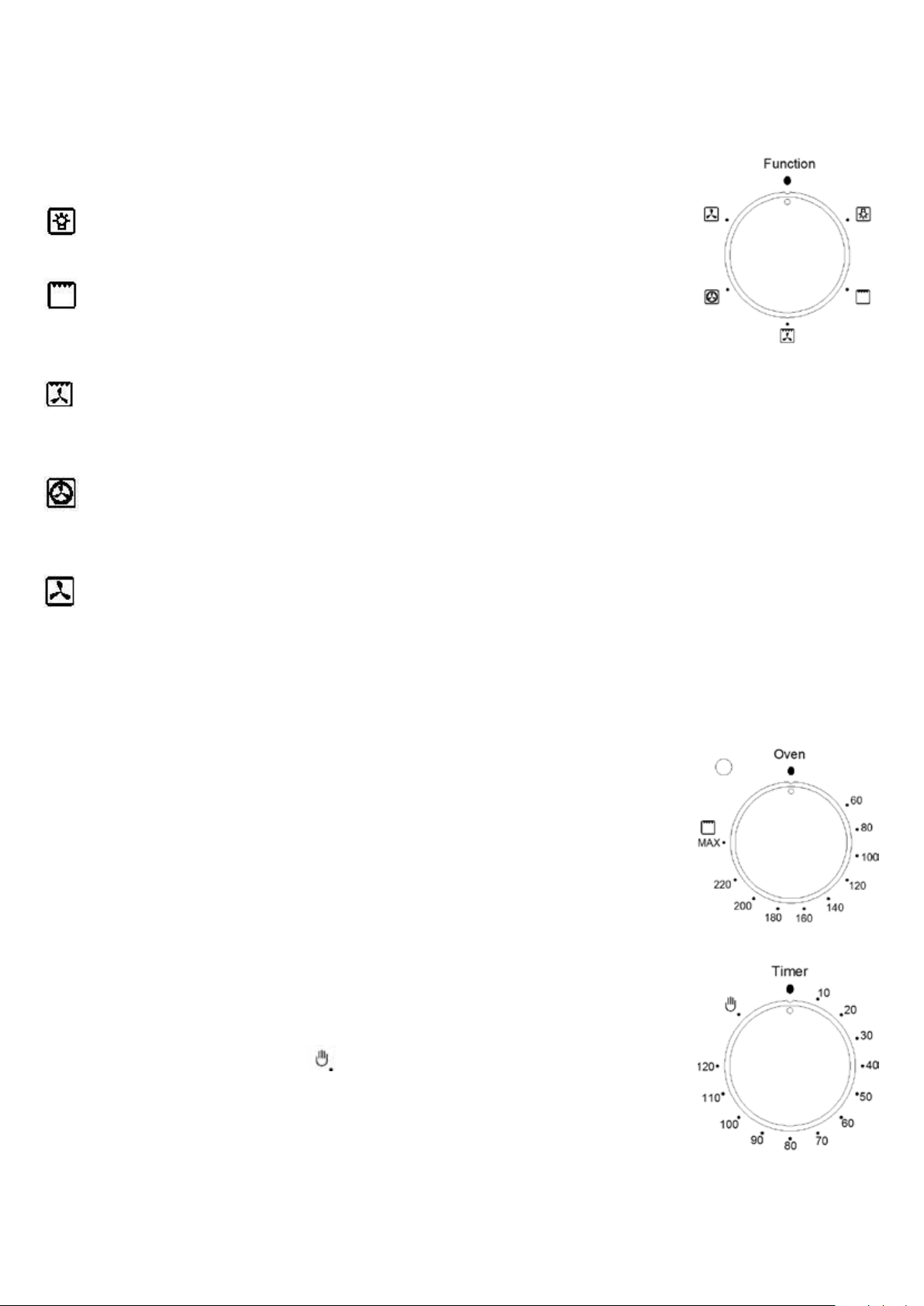

Controls

Front control panel (various models)

1. Hotplate Indicator Lamp (where fitted)

• Comes on when a hotplate is turned on.

2. Oven Indicator Lamp

• Lamp is on when oven element is heating up oven or cycling on.

3. 120 Minute Ringer Timer (optional)

• Sets “reminder” alarm count-down time or if oven is being used,

switches oven OFF after cooking time set has ended.

4. Function switch Control Knob

• Sets Oven Function/ Mode.

5. Oven Temperature Control Knob

• Sets temperature for baking.

6. Hotplate Control Knob - can be rotated in either direction

• Adjusts temperature of hotplate.

7. Programmable Clock (where fitted)

• Sets baking/grilling reminder times.

• Sets automatic cooking duration and stop time

Note: Clock time must be set before oven can operate

EEF54W / EFF54SS Upright Cooker User Manual Page 4

FIRST TIME USE OF THE APPLIANCE

Setting the time

If you have purchased a model fitted with a 3 button programmable timer,
you must set the time of day before you can operate your appliance. Note:
The clock has a 24 hour display

• After the appliance has been electrically connected “00.00” will be displayed

and the “

• To set the time of day, press the “–” or “+” buttons. 15 seconds after the last change,

the “

” will flash.

” will disappear, confirming the time has been set.

Fitting oven shelves

• Ensure shelf orientation is correct (refer picture).

• Slide into oven at an angle until raised back of shelf is

past the stop on side runners.

• Lower front of shelf and push in until stop is reached.

NOTE: The top ledge is not a shelf position

Preparing your appliance for the first time

• Wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth.

• New appliances can have an odour during first operation. It is recommended to ‘run in’ your oven before you cook

for the first time. Run the oven at 180°C for 2-4 hours and ensure that the room is well ventilated.

• Please install oven furniture as outlined in the “Fitting Oven Accessories and Cleaning” section.

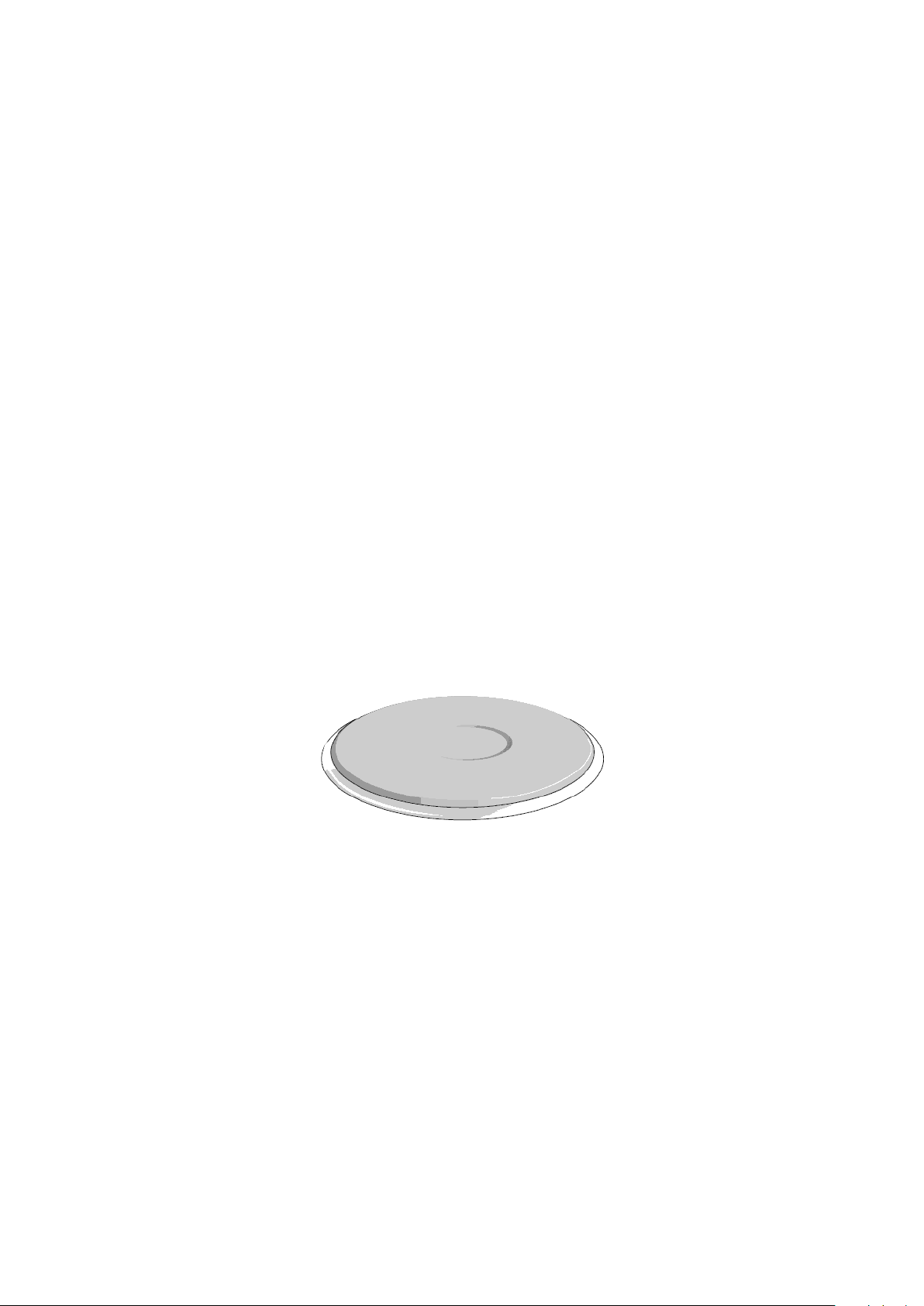

• If your appliance is fitted with solid hotplates, turn heat setting to high for 3 minutes to fully harden the coating.

When cooled, apply a thin coating of cooking oil to seal the surface.

Using the oven

Oven safety warnings

• Always follow the instructions for putting the shelves and side racks into the oven, to avoid accidents.

• Do not line the oven with foil, it will damage the enamel.

• Do not place cookware or anything else on the bottom of conventional oven model as

trapped heat will damage the oven

• Do not touch the hot surfaces or heating elements inside the oven.

• Do not use the oven door as a shelf.

• Do not push down on the open oven door.

• Do not place shelves on top of upper most shelf runner as there are no stops for shelf withdrawal.

Page 5 EEF54W / EFF54SS Upright Cooker User Manual
