Eurocom LV220 User Manual

Preface

Notice

The company reserves the right to revise this publication or to change its contents without notice. Information
contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or
any subsequent vendor. They assume no responsibility or liability for any errors or inaccuracies that may appear
in this publication nor are they in anyway responsible for any loss or damage resulting from the use (or misuse)
of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, trans­mitted or reduced to any machine readable form without prior consent from the vendor, manufacturer or creators
of this publication, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trade­marks of their respective companies. They are mentioned for identification purposes only and are not intended
as an endorsement of that product or its manufacturer.
©February 2007

Trademarks

This product incorporates copyright protection technology that is protected by method claims of certain U.S. pat­ents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended fo r home
or other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineer­ing or disassembly is prohibited.
Intel Core is a trademark/registered trademark of Intel Corporation.

I

Preface

FCC Statement

(Federal Communications Commission)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in­stalled and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the service representative or an experienced radio/TV technician for help.



Warning

Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not ex­pressly approved by the manufacturer for compliance with the above standard s could void your authority to operate the
equipment.

II

Preface

IMPORTANT SAFETY INSTRUCTIONS

Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock, and injury
to persons when using any electrical equipment:

1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sin k or laundry tub, in a wet
basement or near a swimming pool.

2. Avoid using this equipment with a telephone line (other than a cordless type) during an electrical storm. There
may be a remote risk of electrical shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord indicated in this manual.

5. This product is intended to be supplied by a Listed Power Unit - Full Range AC/DC Adapter - AC Input 100 ­240V, 50 - 60Hz / DC Output 20V, 9.0A (180W).

CAUTION

Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.

TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER, TELE-

COMMUNICATION LINE CORD

This Computer’s Optical Device is a Laser Class 1 Product

III

Preface

Instructions for Care and Operation

The computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:

1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.

2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating ele-
ment. This is an electrical appliance. If water or any other liquid gets into it, the computer could be badly dam­aged.

3. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other
strong magnetic fields. These can hinder proper performance and damage your data.

4. Follow the proper workin g procedu res for t he computer. Shut the computer down properly and don ’t forge t
to save your work. Remember to periodically save your data as data may be lost.

5. Take care when using peripheral devices.

IV

Power Safety

The computer has specific power requirements:

• When you want to unplug the power cord, be sure to disconnect it by the plug head, not

by its wire.

• Make sure the socket and any extension cord(s) you use can support the total current

load of all the connected devices.

• Before cleaning the computer, make sure it is disconnected from any external power

supplies.

Do not plug in the power
cord if you are wet.

Do not use the power cord if
it is broken.

Do not place heavy objects
on the power cord.

Preface



Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off the
power, and discon­nected all peripherals
and cables (including
telephone lines).

V

Preface

Cleaning

Do not apply cleaner directly to the computer, use a soft clean cloth.
Do not use volatile (petroleum distillates) or abrasive cleaners on any part of the computer.

Servicing

Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the
computer to electric shock. Refer all servicing to authorized service personnel. Unplug the computer from the
power supply. Then refer servicing to qualified service personnel under any of the following conditions:

• When the power cord is damaged or frayed.

• If the computer has been exposed to any liquids.

• If the computer does not work normally when you follow the operating instructions.

• If the computer has been dropped or damaged (do not touch the poisonous liquid if the LCD panel breaks).

• If there is an unusual odor, heat or smoke coming from your computer.

VI

Preface

Ergonomics

We designed your Multimedia PC system to be functional as well as attractive. To get most out of it, here are
some suggestions on how to position and use the computer:

• The top third of the LCD (screen) should be at eye-level or slightly below.

• The LCD should be at least 18"/45cm. directly in front of you.

• If the screen resolution (e.g. 1024x768) makes you strain to read, change it: In Windows Control Panel, double-click

Display (icon) and click Settings (tab). Then adjust the “Screen area” to something more comfortable (e.g. 800x600).

• Angle the LCD (see “Tilting the LCD Screen” on page 1 - 10) so that it doesn’t reflect any light into your eyes.

• Use a chair which offers good back support (especially lower-back). The seat should allow your feet to rest flat on the

floor or on a footrest directly in front of you.

• If possible, illuminate your work area with natural daylight or use a steady-glowing (non-flickering) light source.

• Place the keyboard and mouse so that your arms are at your sides and your forearms are roughly parallel to the floor.

Your wrists should flex slightly downward as you work. Your neck and shoulders should also be relaxed.

• T ake a break from the computer. Get up, stretch, flex your wrists, walk about, and look at something else for about 10

minutes every hour.

VII

Preface

VIII

Contents

Notice ................................................................................. I

FCC Statement .............................................................II

Instructions for Care and Operation ..........................IV

Power Safety ...............................................................V

Cleaning ..................................................................... VI

Servicing .................................................................... VI

Ergonomics ....................................................................VII

Preface

System Map: Right View .............................................1-13

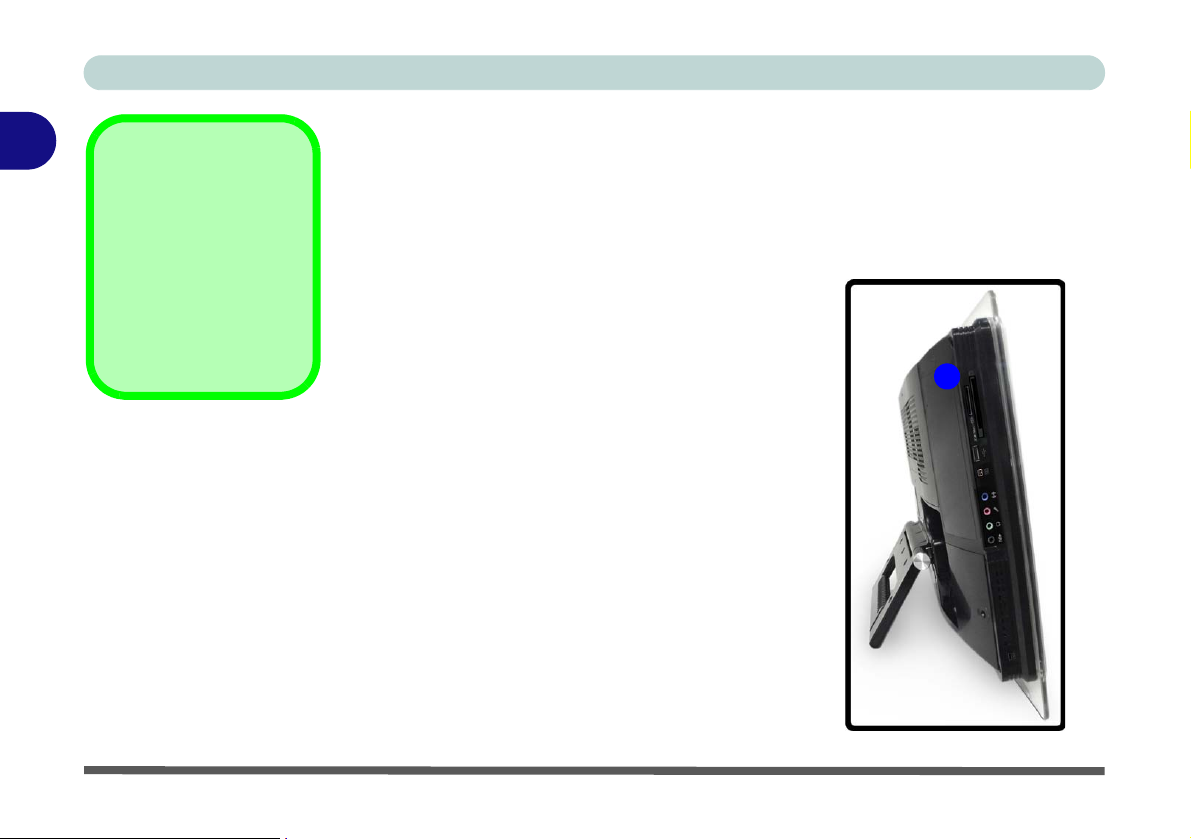

System Map: Left View ...............................................1-14

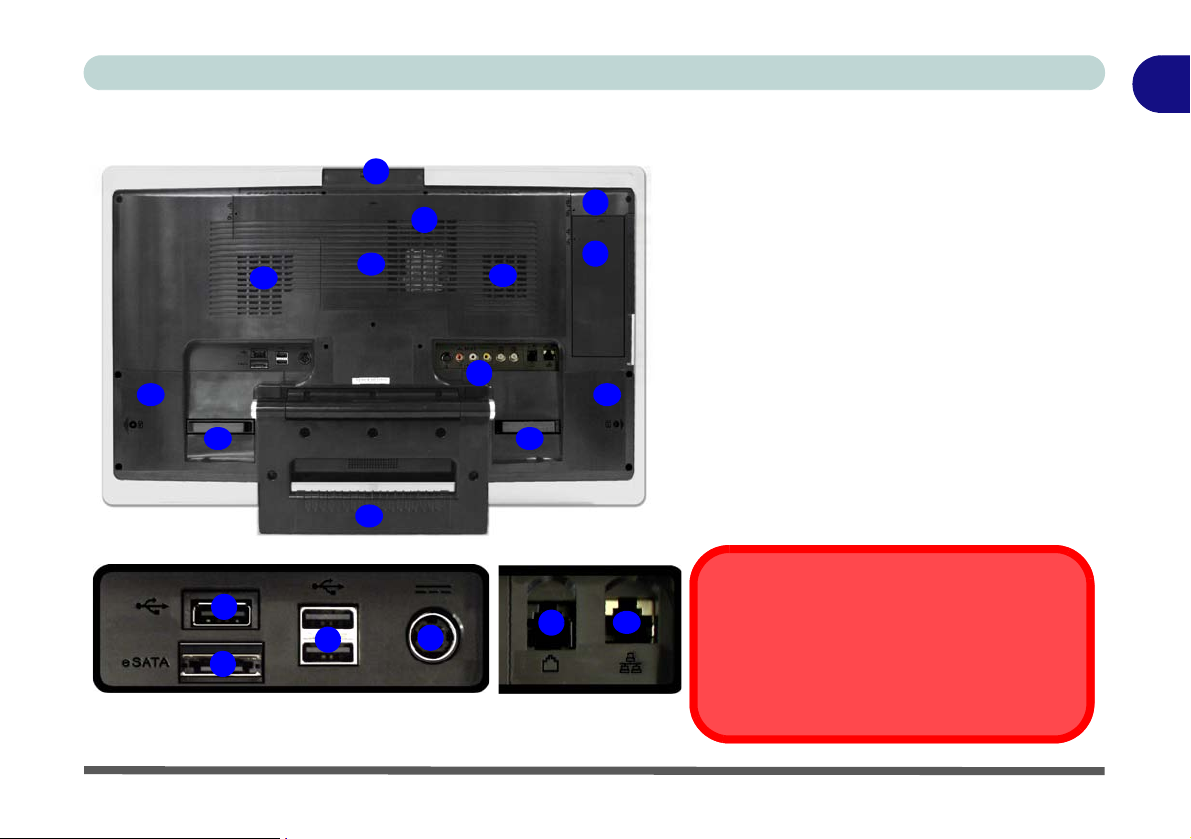

System Map: Rear View ..............................................1-15

Audio/Video Jacks .......................................................1-16

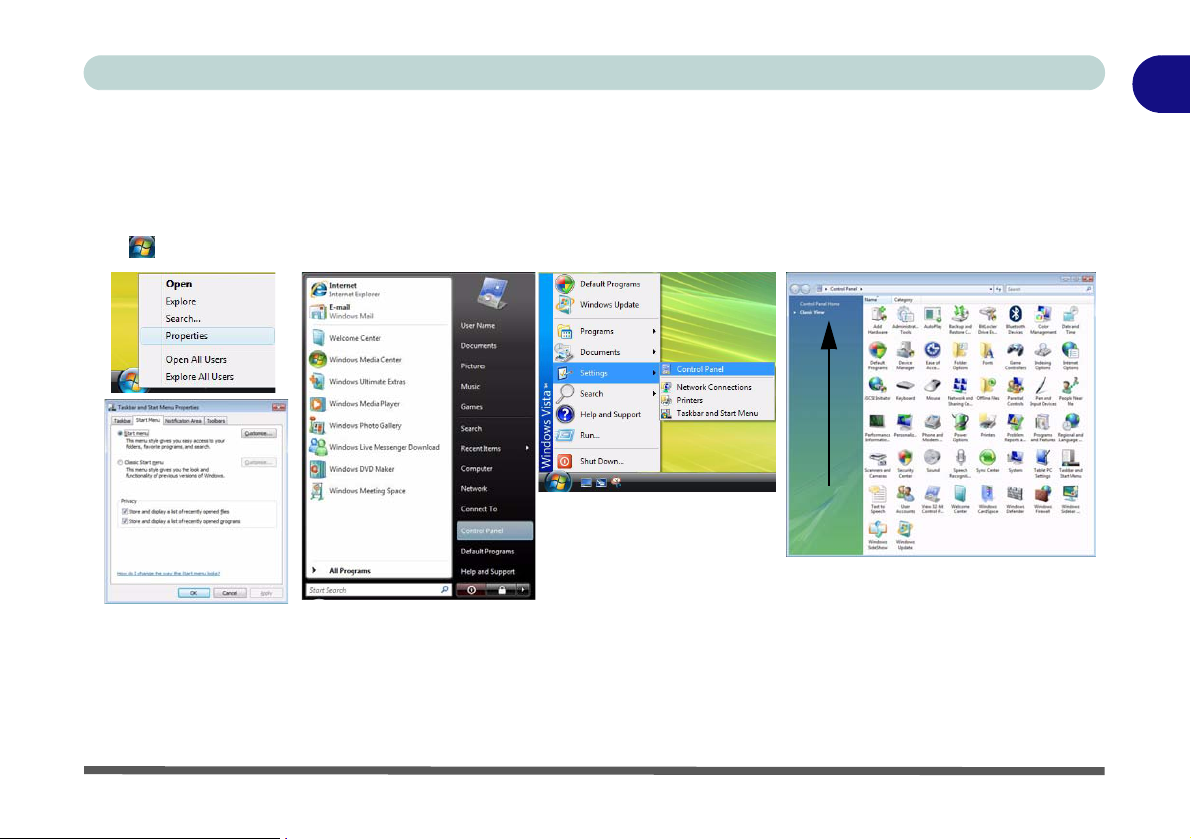

Windows Vista Start Menu & Control Panel ...............1-17

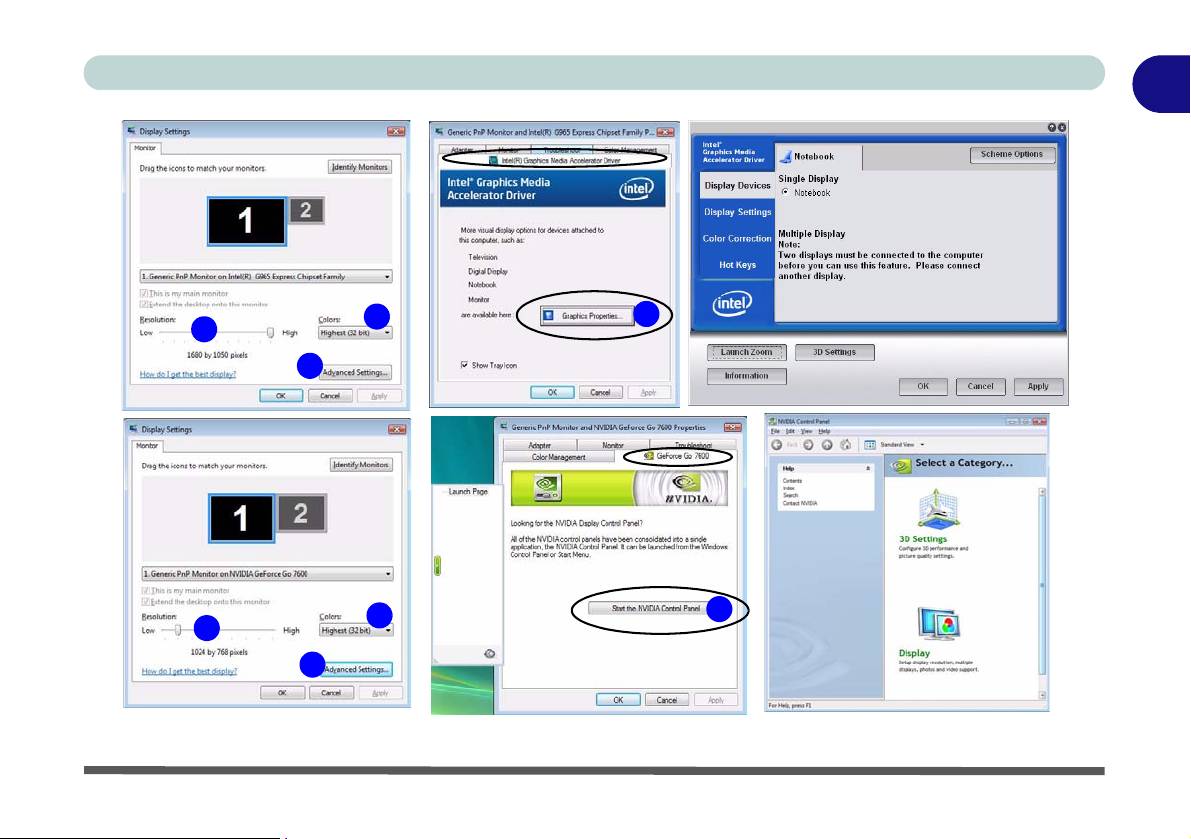

Video Features .............................................................1-18

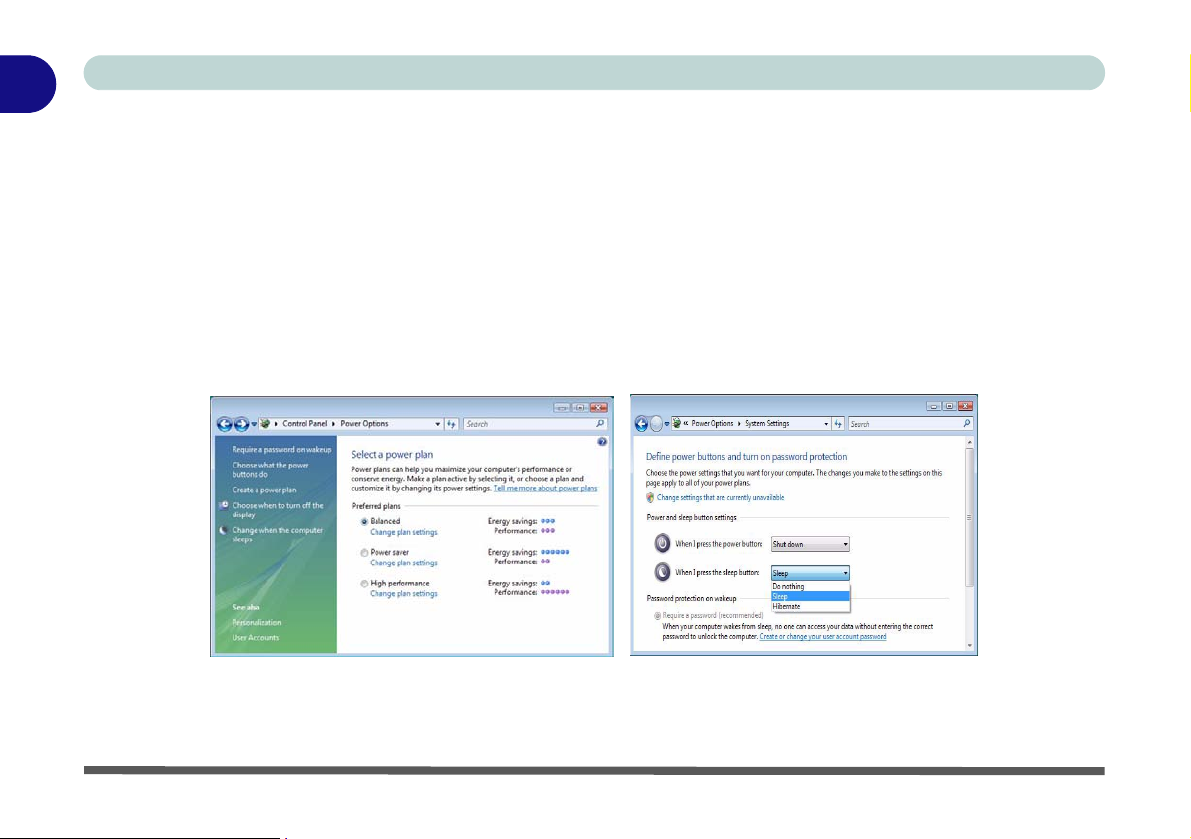

Power Options ............................................ .... .... ..........1-20

Quick Start Guide

Overview ........................................................................1-1

Model Differences .........................................................1-2

Advanced Users .............................................................1-4

Beginners and Not-So-Advanced Users ........................1-4

Warning Boxes ..............................................................1-4

Not Included ..................................................................1-5

System Software ............................................................1-6

System Startup ...............................................................1-7

System Map: Front View & Top View (Model A) ........1-8

System Map: Front View & Top View (Model B) ........1-9

Tilting the LCD Screen ................................................1-10

Moving the Computer ..................................................1-11

Wall Mounting Information .........................................1-11

LED Indicators ................................................. .... ........1-12

Features & Components

Overview ........................................................................2-1

Hard Disk Drive .............................................................2-2

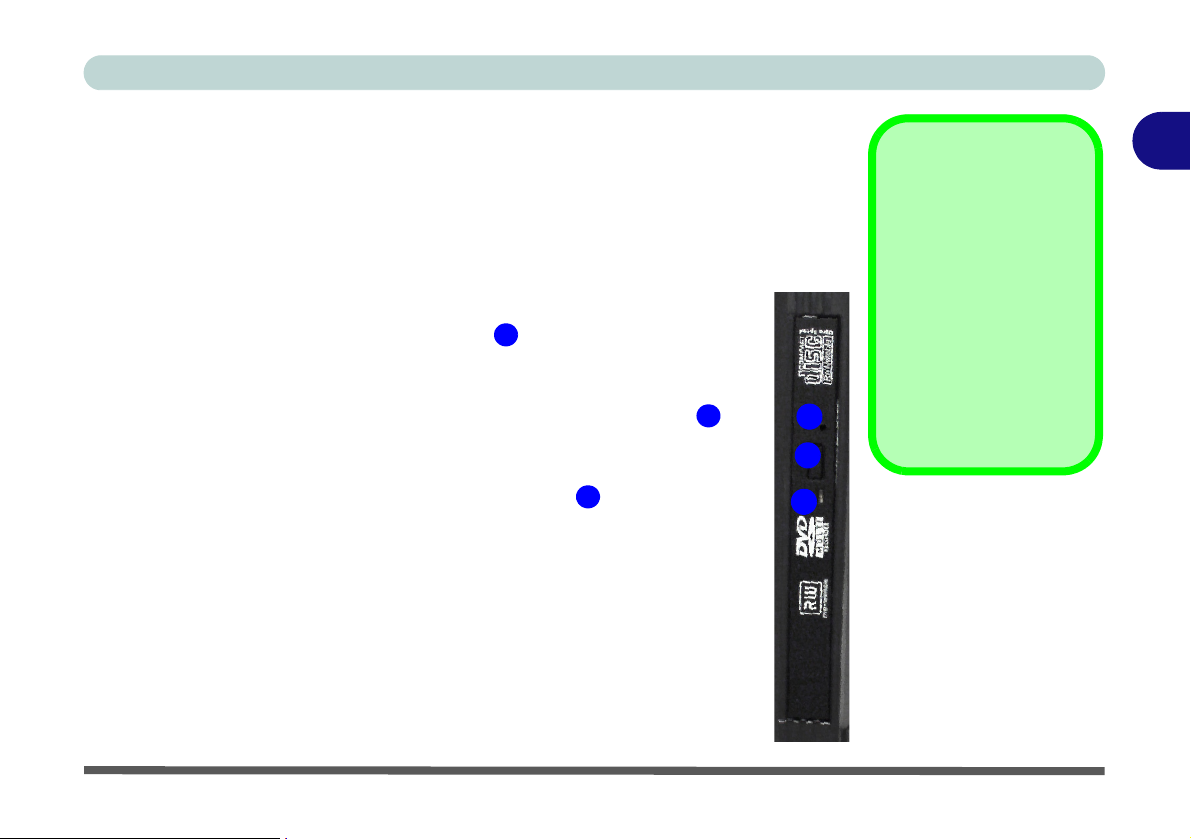

Optical (CD/DVD) Device ............................................2-3

Loading Discs ................................................................2-3

Handling CDs or DVDs .................................................2-4

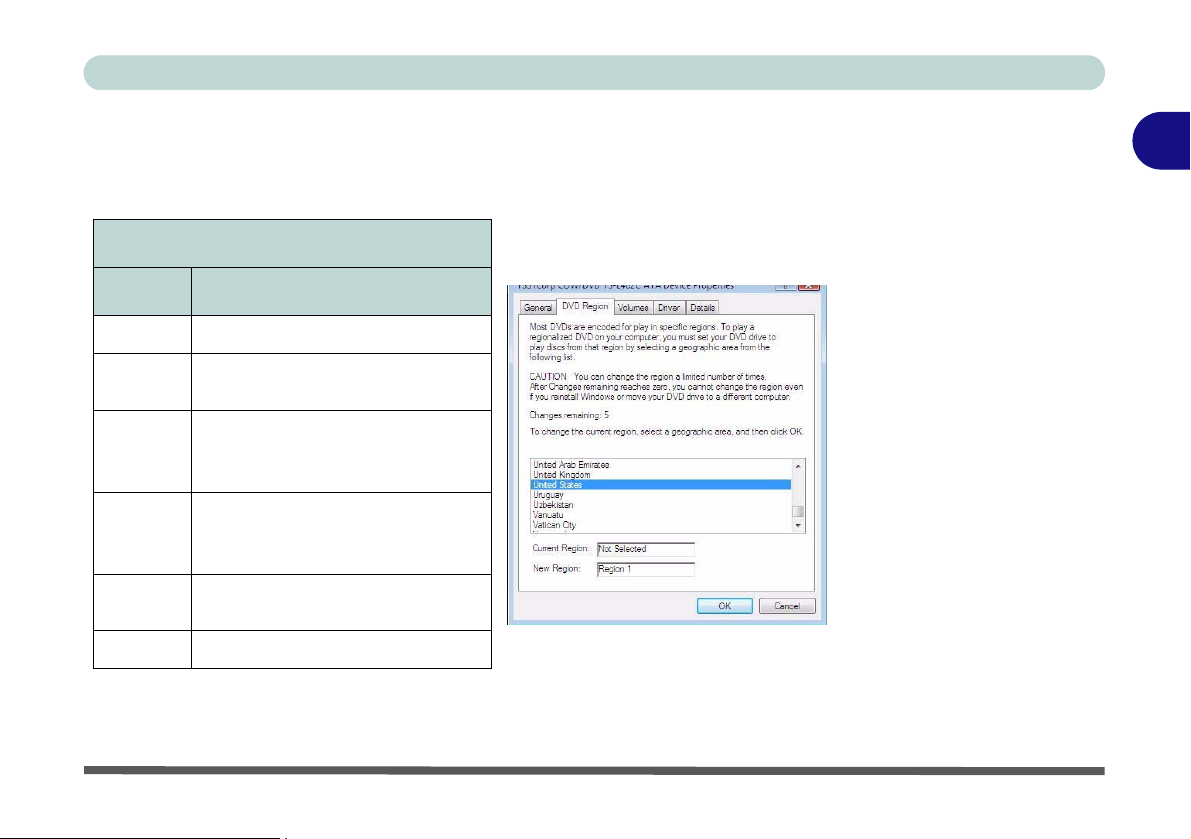

DVD Regional Codes ............................................ ... .... .2-5

7-in-1 Card Reader .........................................................2-6

ExpressCard Slot ............................................................2-7

Inserting and Removing ExpressCards .......................... 2-7

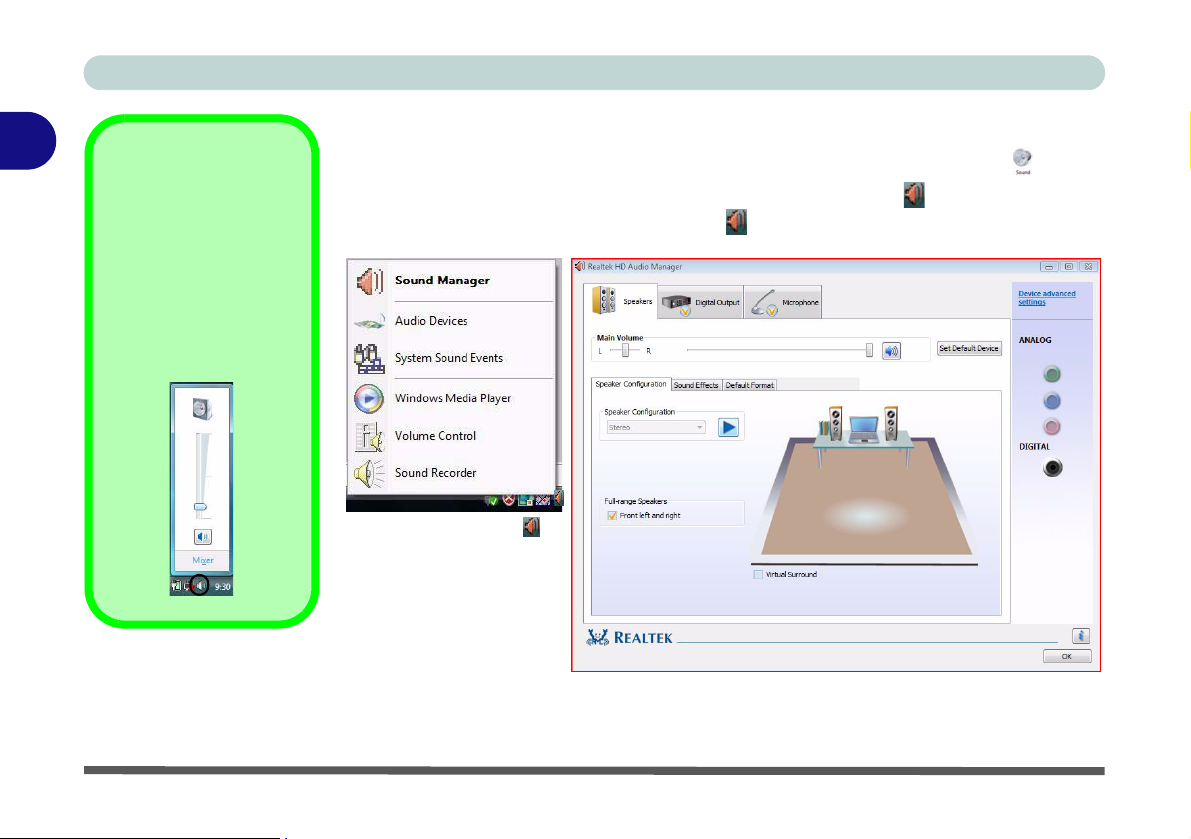

Audio Features ...............................................................2-8

Hot Key Buttons ............................................................2-9

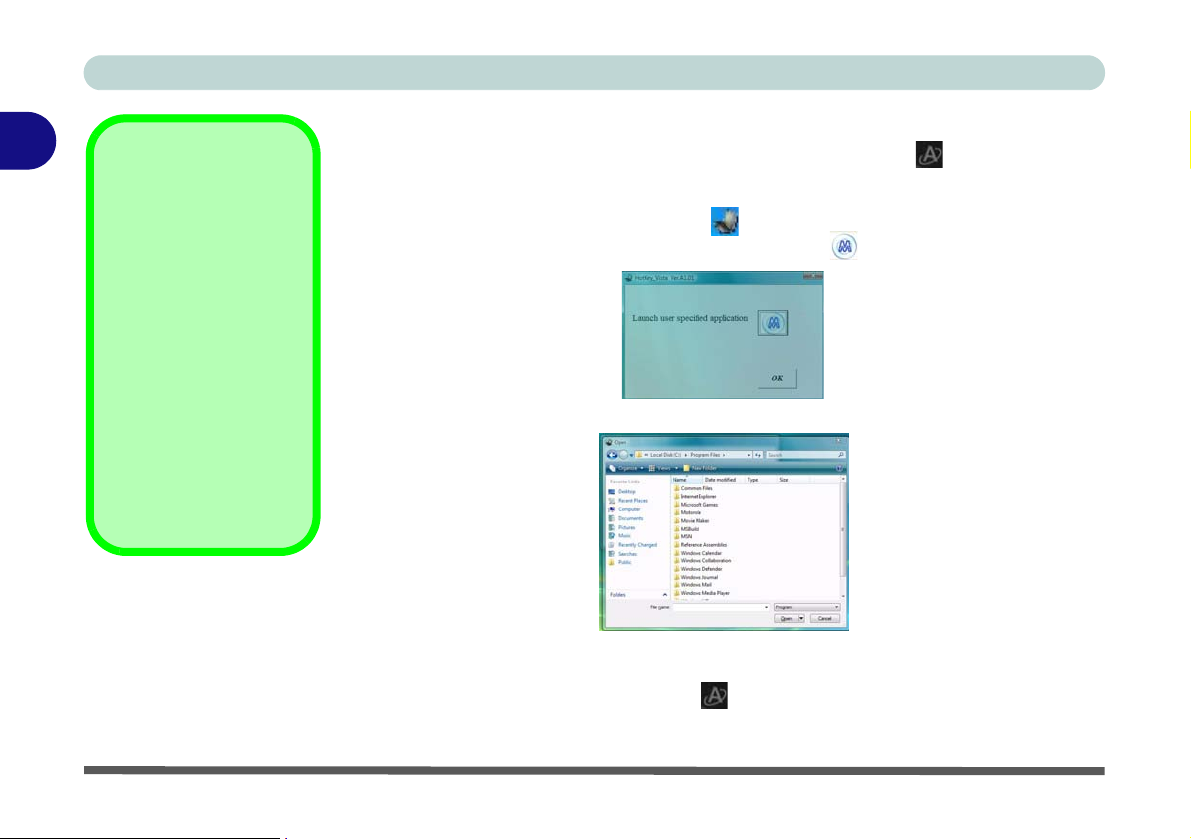

Application Hot Key ....................................................2-10

Adding a Printer ................................................. .... ......2-11

USB Printer ..................................................................2-11

IX

Preface

Parallel Printer .............................................................2-11

Power Management

Overview ........................................................................3-1

Turning on the Computer ...............................................3-2

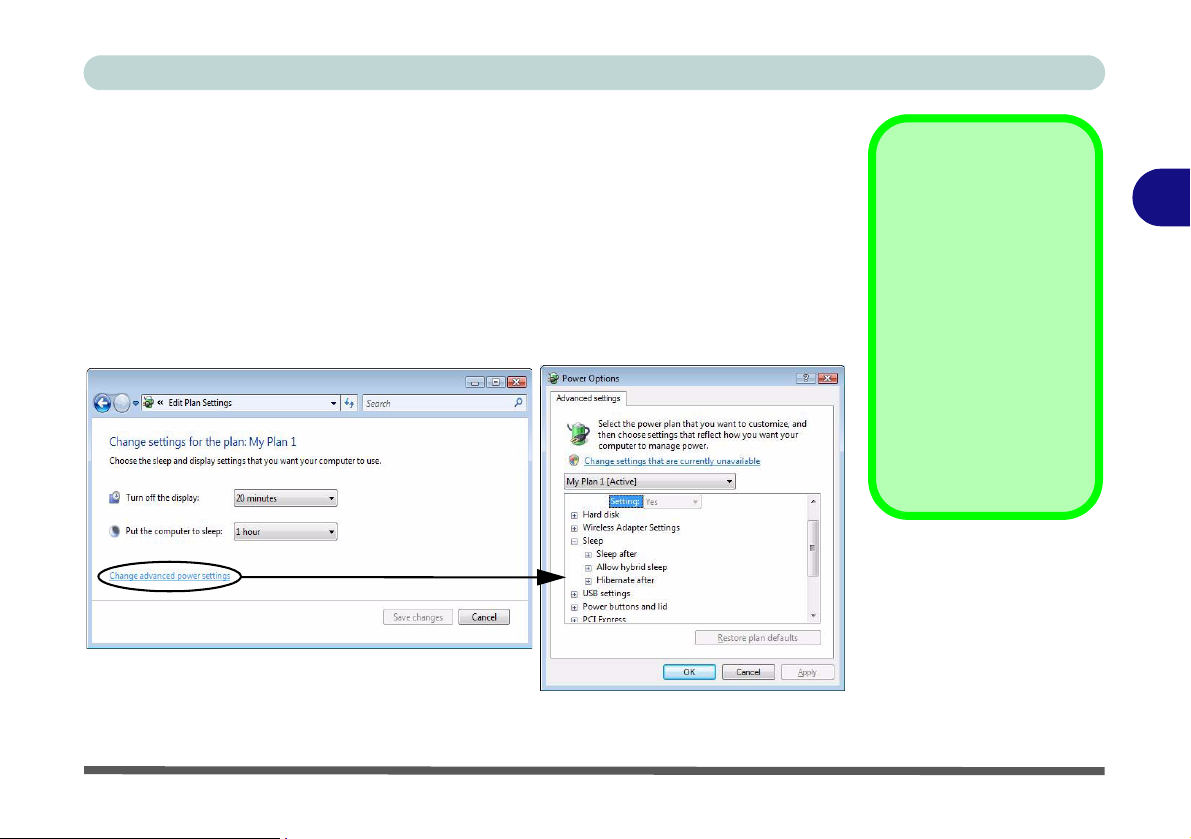

Power Plans ...................................................................3-3

System Power Options ...................................................3-5

Hibernate vs. Shut Down ...............................................3-5

Sleep vs. Hibernate ........................................................3-5

Sleep ..............................................................................3-6

Hibernate ........................................................................3-6

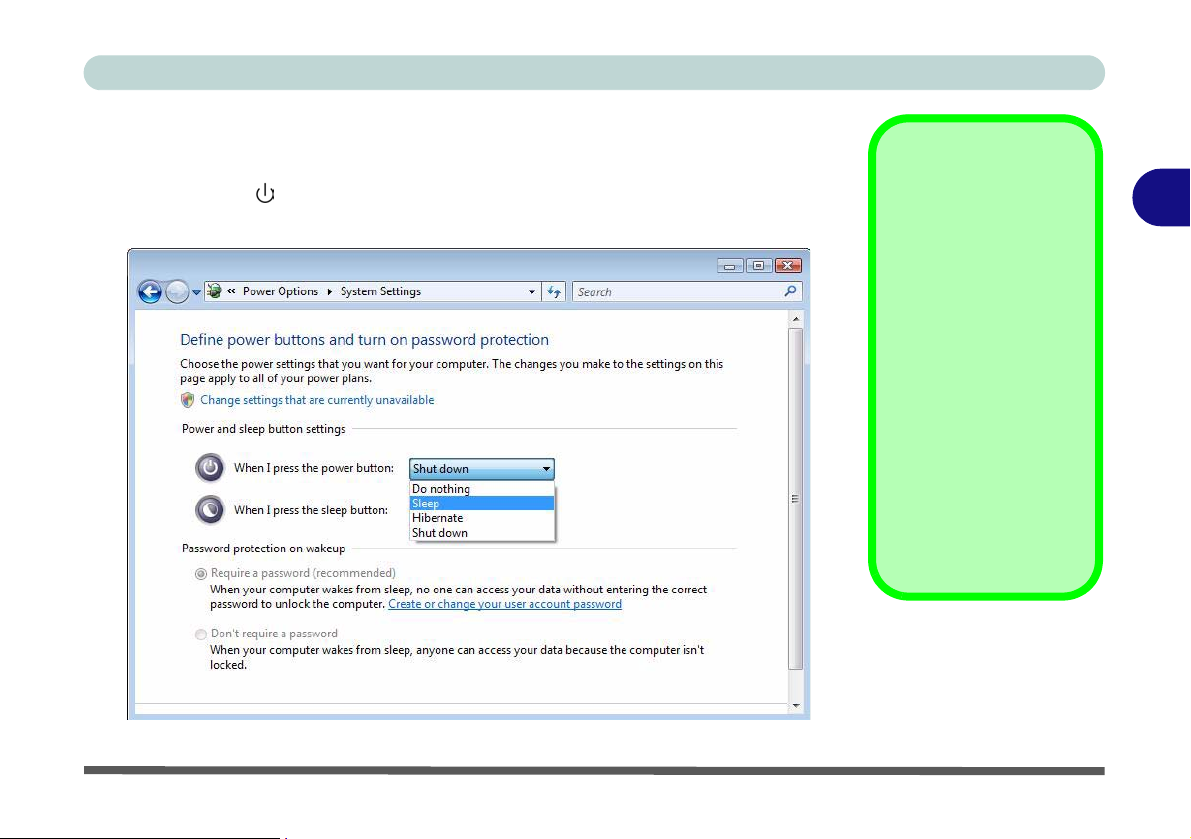

Configuring the Power Button .......................................3-7

Drivers & Utilities

RAID & AHCI Setup .....................................................4-1

What to Install ................................................................4-1

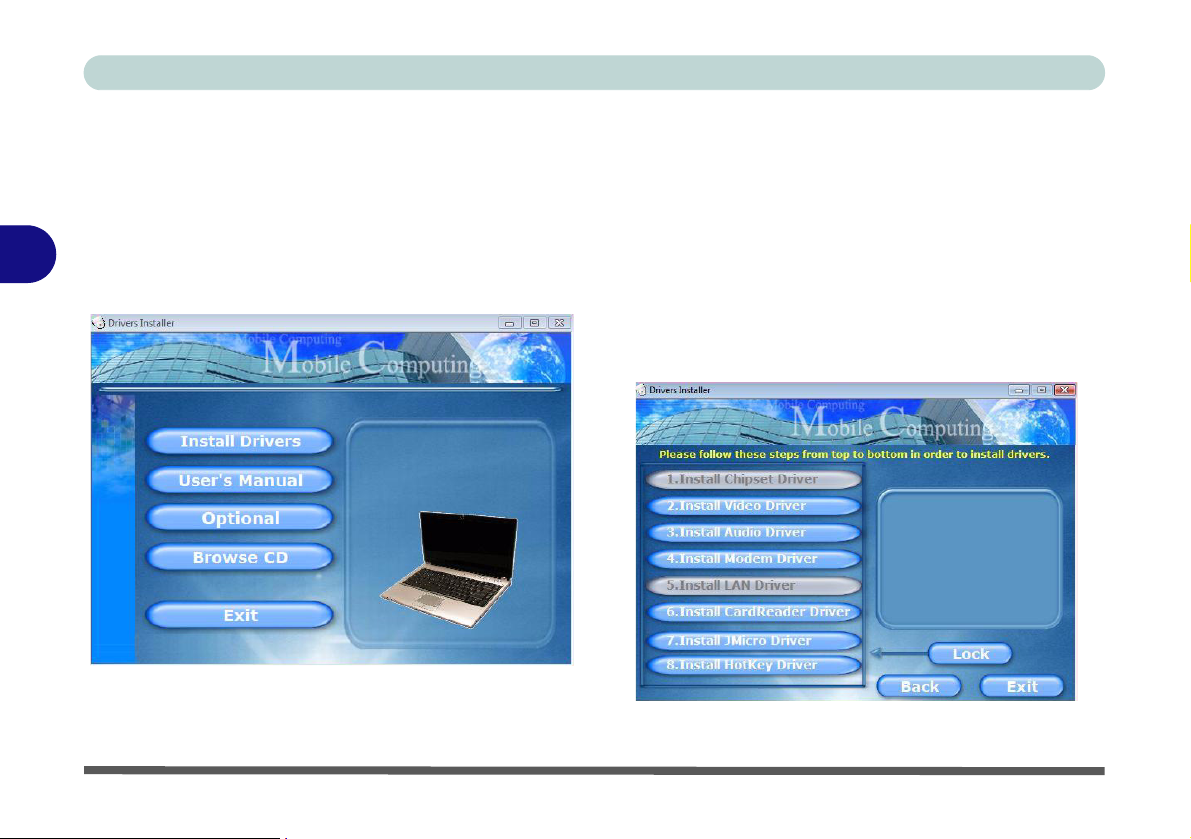

Driver Installation ..........................................................4-2

Updating/Reinstalling Individual Drivers ......................4-3

Manual Driver Installation .............................................4-4

User Account Control (Win Vista) ................................4-5

Windows Security Message ...........................................4-5

New Hardware Found ....................................................4-5

Chipset ........................................................................... 4-5

Intel Video .....................................................................4-5

NVIDIA Video ..............................................................4-5

Audio .............................................................................4-5

Modem ...........................................................................4 -6

LAN ...............................................................................4-6

Card Reader ...................................................................4-6

JMicron ..........................................................................4-6

Hot Key ..........................................................................4-6

Module Drivers ..............................................................4-7

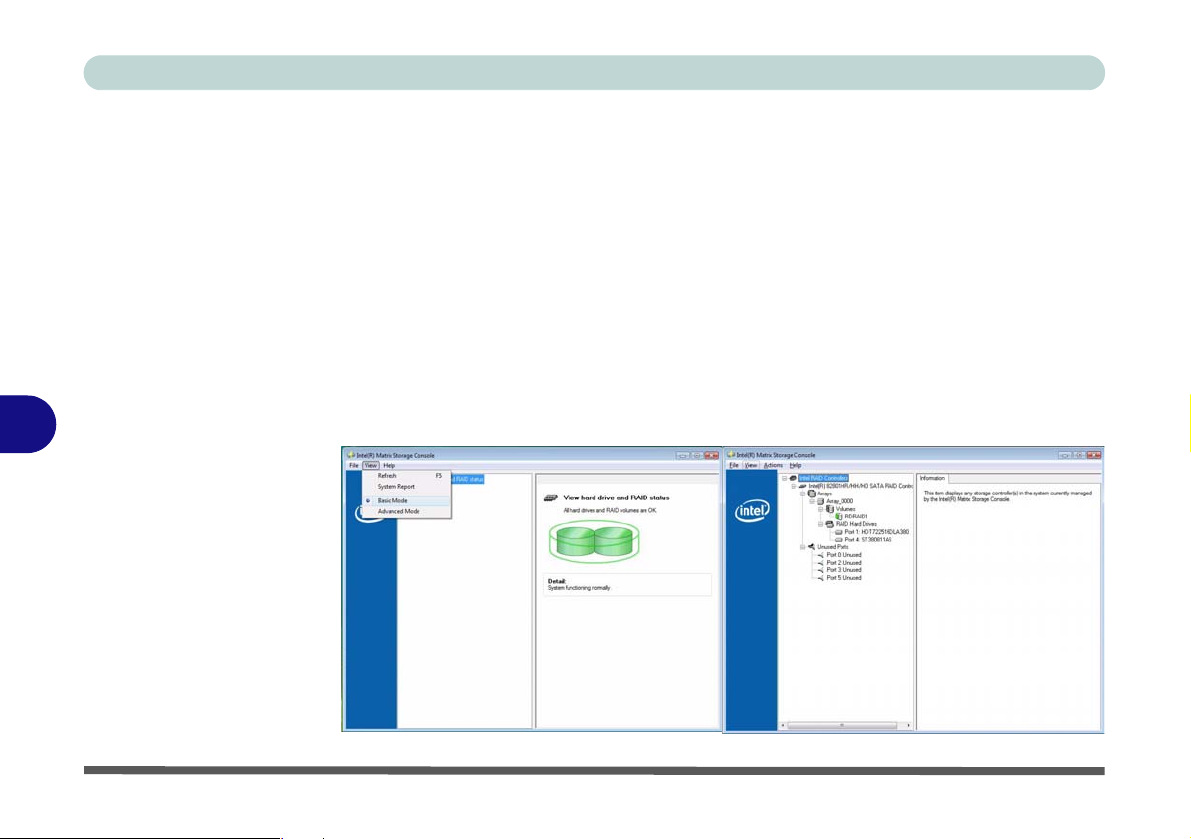

RAID & AHCI ...............................................................4-7

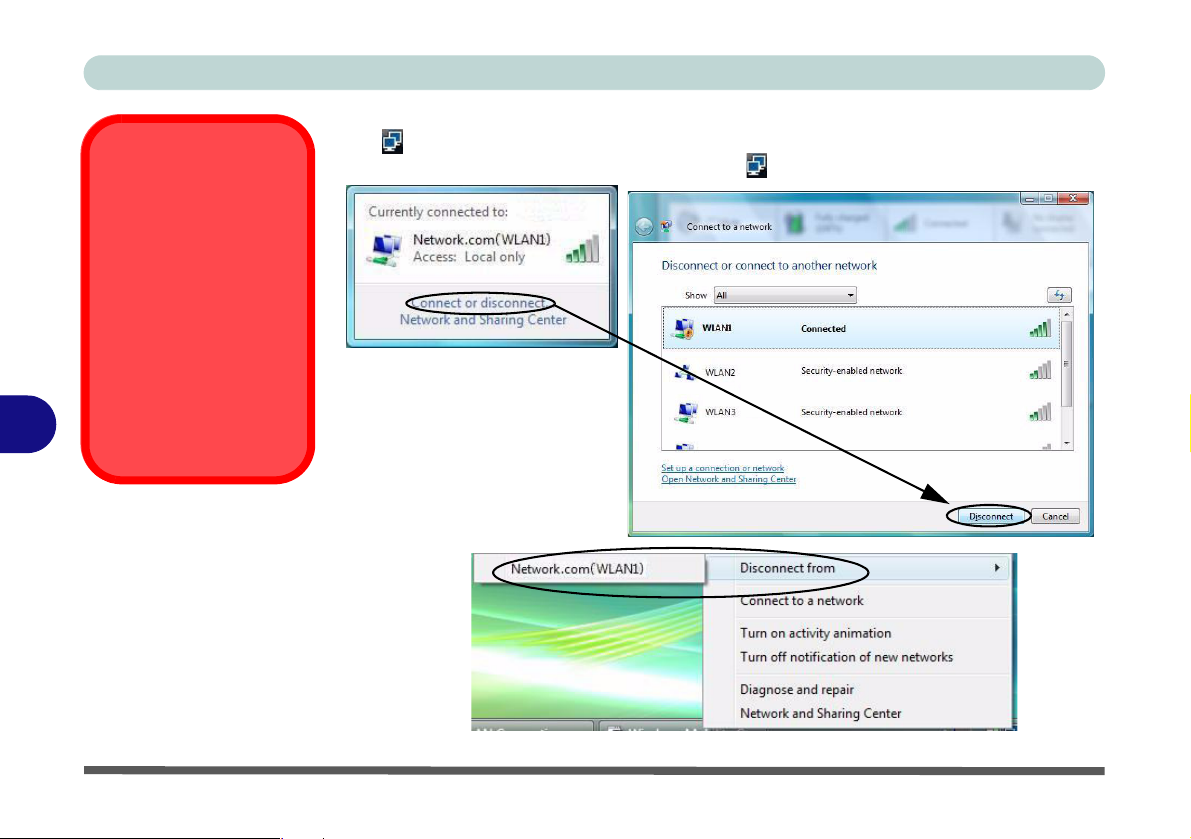

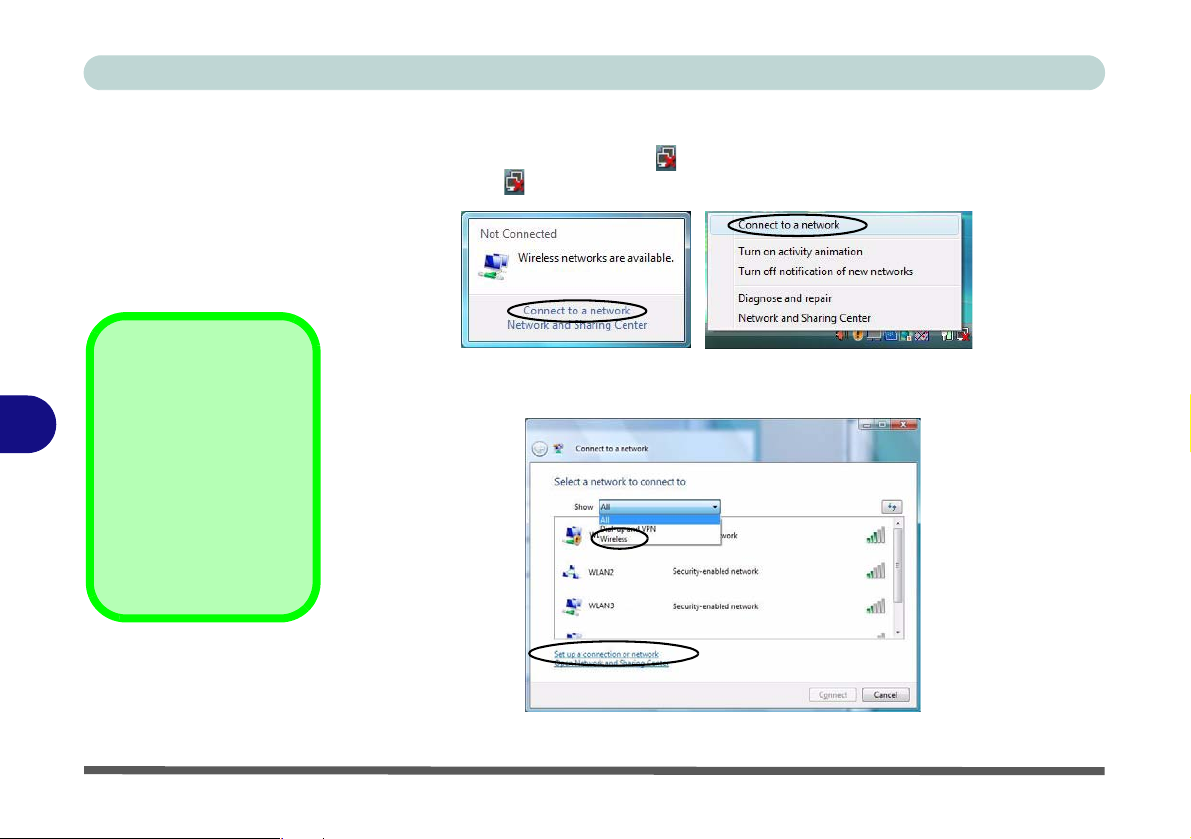

Wireless LAN ................................................................4-7

PC Camera .....................................................................4-7

Bluetooth ........................................................................4-7

Remote Control Unit ......................................................4-7

TV Tuner ........................................................................4-7

Wireless Kit ...................................................................4-7

BIOS Utilities

Overview ........................................................................5-1

The Power-On Self Test (POST) ................................... 5-2

Failing the POST ...........................................................5-2

Fatal Errors ............................................................ ........5-2

Non-Fatal Errors ............................................................5-3

The Setup Program ........................................................5-4

Entering Setup ................................................................5-4

Setup Screens .................................................................5-5

Main Menu .....................................................................5-6

X

Preface

System Time & Date (Main Menu) ...............................5-6

Installed Memory/Available to OS/

Used by devices (Main Menu) .......................................5-6

Advanced Menu .............................................................5-7

Chipset Information Menu (Advanced Menu) ..............5-7

Reset Configuration Data: (Advanced Menu) ...............5-8

Legacy USB Support: (Advanced Menu) ......................5-8

Boot-time Diagnostic Screen: (Advanced Menu) ..........5-8

Energy Lake: (Advanced Menu) ...................................5-8

IGD Memory Size (Advanced Menu >

Advanced Chipset Control) ...........................................5-9

SATA RAID Enable: (Advanced Menu) .......................5-9

SATA AHCI Enable: (Advanced Menu) .......................5-9

Security Menu ..............................................................5-10

Set Supervisor Password (Security Menu) ..................5-10

Fixed disk boot sector: (Security Menu) .....................5-11

Password on boot: (Security Menu) ............................5-11

Boot Menu ...................................................................5-12

Exit Menu ....................................................................5-13

Upgrading The Computer

Overview ........................................................................6-1

When Not to Upgrade ....................................................6-2

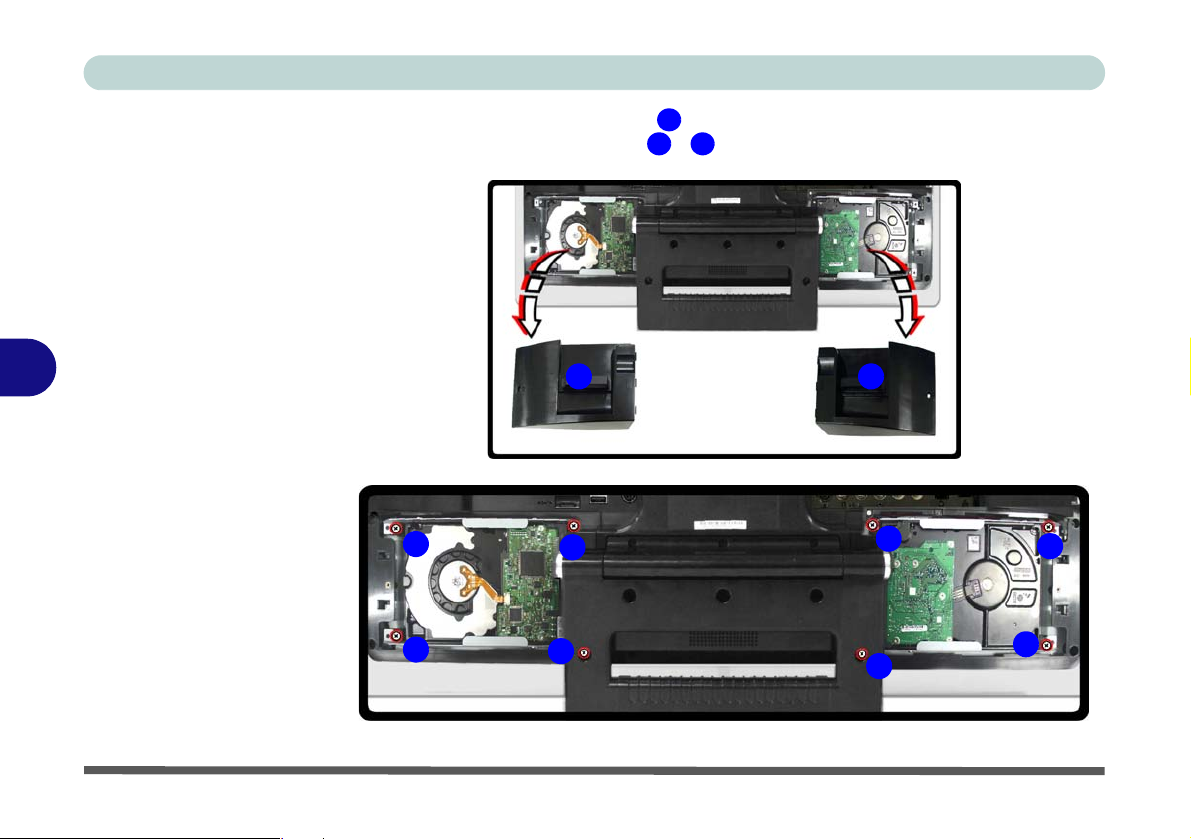

Upgrading the Hard Disk Drive(s) ................................6-3

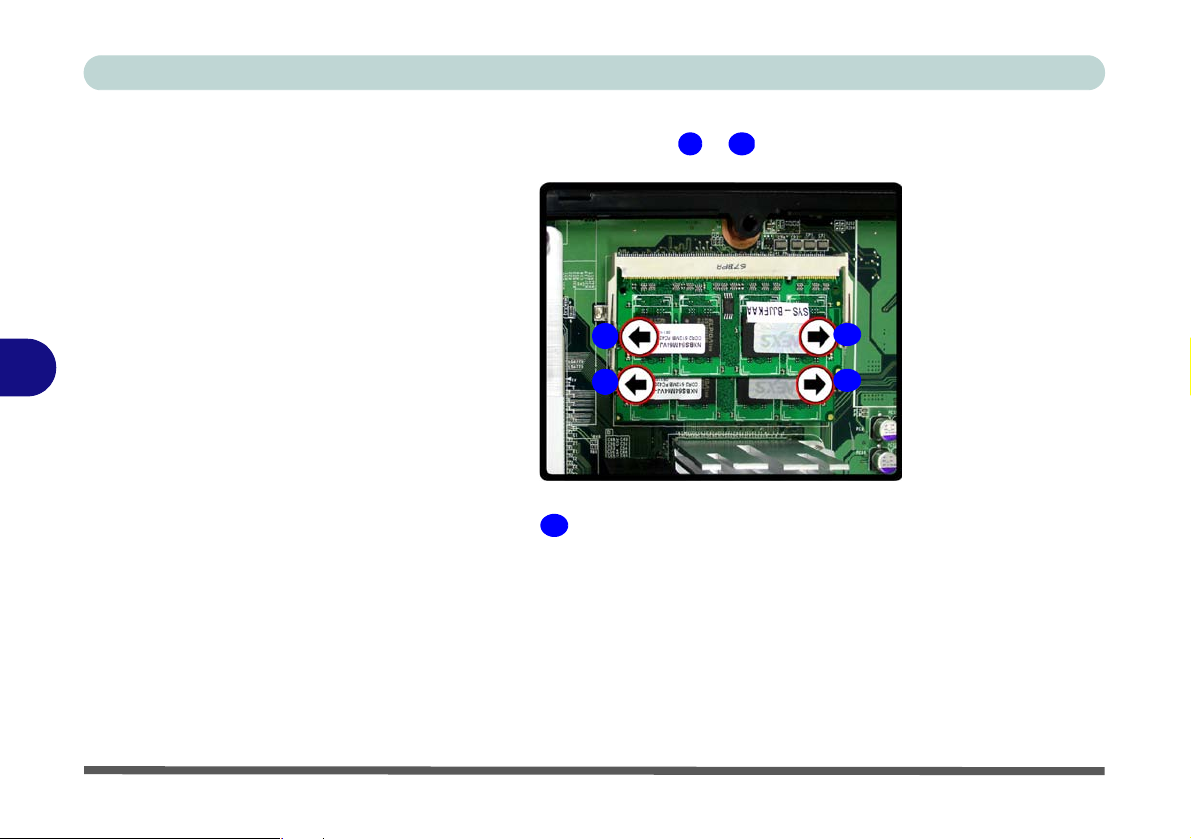

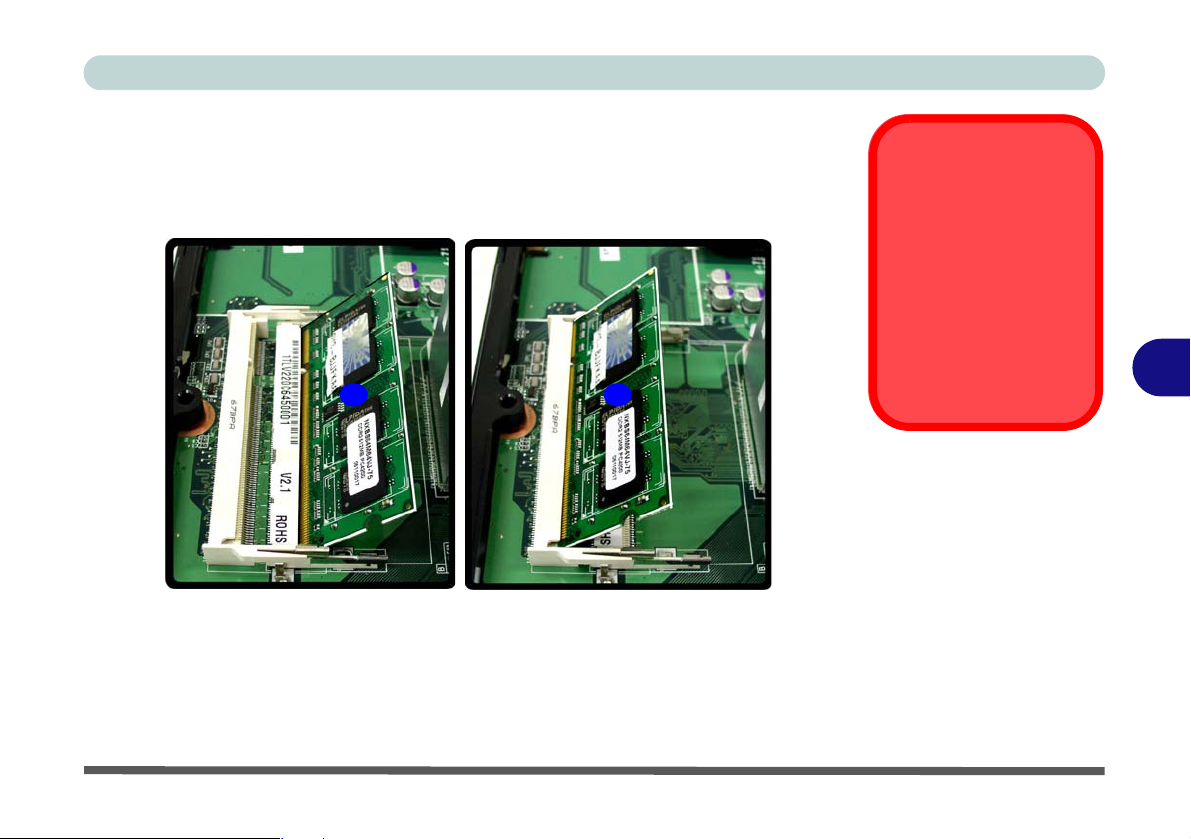

Upgrading the System Memory (RAM) ........................6-6

Upgrading the Processor ..............................................6-10

Modules

Overview ........................................................................7-1

Setting Up SATA RAID or AHCI Modes .....................7-2

Intel Matrix ....................................................................7-6

Wireless LAN Modules .................................................7-7

WLAN Driver Installation ............................................. 7 -7

Connecting to a Wireless Network ................................7-8

Bluetooth Module ........................................................7-11

Bluetooth Driver Installation .......................................7-11

Remote Control Unit ....................................................7-13

Consumer Infrared Driver Installation .........................7-13

Hybrid Mini-PCI TV Tuner Module ...........................7-15

MPC788/MPC718 Driver & Software ........................7-16

Digital TV Broadcast Signal ........................................7-17

TV Recording and Power Schemes .............................7-17

PC Camera Module ......................................................7-18

PC Camera Driver Installation .....................................7-18

PC Camera Audio Setup ..............................................7-19

BisonCam .....................................................................7-21

Eliminating Screen Flicker ..........................................7-22

Wireless Keyboard & Mouse Kit .................................7-23

Wireless Kit Hardware Setup ......................................7-24

Wireless Kit Driver ......................................................7-26

XI

Preface

Troubleshooting

Overview ........................................................................8-1

Basic Hints and Tips ......................................................8-2

Backup and General Maintenance .................................8-3

Viruses ........................................................................... 8-4

Upgrading and Adding New Hardware/Software ..........8-5

Problems and Solutions .................................................8-7

Interface (Ports & Jacks)

Overview .......................................................................A-1

Ports and Jacks ..............................................................A-2

Card Reader Port .......................................................... .A-2

DC-In Jack ....................................................................A-2

E-SATA Port ................................................................A-2

Headphone-Out Jack (Green) .......................................A-2

Line-In Jack (Blue) .......................................................A-2

Microphone-In Jack (Pink) ...........................................A-2

RJ-11 Phone Jack ..........................................................A-3

Mini-IEEE 1394 Port ....................................................A-3

RJ-45 LAN Jack ...........................................................A-3

Security Lock Slot ........................................................A-3

S/PDIF-Out Jack ...........................................................A-3

USB 2.0/1.1 Ports .........................................................A-4

Audio/Video Jacks ........................................................A-5

Intel Video Driver Controls

Video Driver Installation ..............................................B-1

Intel Video ....................................................................B-1

Dynamic Video Memory Technology ..........................B-1

Intel GMA Driver Controls ...........................................B-2

Scheme Options ............................................................B-4

NVIDIA Video Driver Controls

Video Driver Installation ..............................................C-1

NVIDIA Video .............................................................C-1

NVIDIA Control Panel .................................................C-2

Specifications

Processor ....................................................................... D-2

Core Logic ....................................................................D-2

Memory ......................................................................... D-2

Security ......................................................................... D-2

BIOS .............................................................................D-2

LCD ..............................................................................D-2

Video Adapter Options .................................................D-3

Storage ..........................................................................D-3

Audio ............................................................................D-3

Keyboard & Pointing Device ........................................D-3

ExpressCard Slot ...........................................................D-3

XII

Preface

Interface ........................................................................ D-4

Card Reader ................................................................. .D-4

Communication .............................................................D-4

Power Management ......................................................D-4

Power ............................................................................ D-5

Environmental Spec ......................................................D-5

Physical Dimensions & Weight ....................................D-5

Optional ........................................................................D-5

Windows XP Information

DVD Regional Codes ................................................... E-2

Windows XP Start Menu & Control Panel ................... E-3

Audio Features .............................................................. E-4

Hot Key Buttons ...........................................................E-5

Application Hot Key ............................................ .... ..... E-6

Video Features .............................................................. E-7

Intel Video Driver Controls .......................................... E-9

Video Driver Installation .............................................. E-9

Intel Video .................................................................... E-9

Dynamic Video Memory Technology .......................... E-9

Intel GMA Control Panel ............................................ E-10

Scheme Options ..........................................................E-12

NVIDIA Video Driver Controls ................................. E-13

Video Driver Installation ............................................ E-13

NVIDIA Video ........................................................... E-13

NVIDIA nView Desktop Manager ............................. E-15

Power Management .................................................... E-16

Power Schemes ...........................................................E-17

System Power Options ................................................E-18

Hibernate Mode vs. Shutdown ....................................E-18

Standby Mode vs. Hibernate Mode ............................ E-18

Standby ....................................................................... E-19

Hibernate ..................................................................... E-19

Configuring the Power Button ....................................E-20

Driver Installation .......................................................E-21

What to Install .............................................................E-22

Updating/Reinstalling Individual Drivers ................... E-23

New Hardware Found .................................................E-24

Driver Installation Procedure ...................................... E-24

Chipset ........................................................................ E-24

Intel Video ..................................................................E-25

NVIDIA Video ...........................................................E-25

Audio .......................................................................... E-25

Modem ........................................................................ E-26

LAN ............................................................................ E-26

CardReader ................................................................. E-27

JMicron (for E-SATA) ................................................E-27

Hot Key .......................................................................E-27

Module Drivers ...........................................................E-27

Wireless LAN Modules ..............................................E-28

XIII

Preface

Intel WLAN Driver Installation .................................. E-29

802.11 b/g USB Wireless LAN Driver Installation .... E-30

Peer to Peer Network Setup ........................................ E-31

Bluetooth Module ....................................................... E-33

Bluetooth Driver Installation ...................................... E-33

Remote Control Unit ................................................... E-35

Consumer Infrared Driver Installation ........................ E-35

Hybrid Mini-PCI TV Tuner Module .......................... E-37

Installing the MPC788 Driver &

Cyberlink PowerCinema ............................................. E-37

PC Camera Module ..................................................... E-38

PC Camera Driver Installation .................................... E-38

PC Camera Audio Setup ............................................. E-39

Bison Cap .................................................................... E-41

Eliminating Screen Flicker ......................................... E-42

Wireless Keyboard & Mouse Kit ............................... E-43

Wireless Kit Driver ..................................................... E-43

Setting Up SATA RAID or AHCI Modes .................. E-44

RAID Mode ................................................................E-44

AHCI Mode ................................................................E-44

Intel Matrix Driver Installation ...................................E-50

XIV

Quick Start Guide

Chapter 1: Quick Start Guide

Overview

This Quick Start Guide is a brief introduction to the basic features of your computer, to navigating around the
computer and to getting your system started. The remainder of the manual covers the following:

• Chapter 2 A guide to using some of the main features of the computer e.g. the storage devices (hard disk,

optical device, 7-in-1 card reader, ExpressCard), Audio & Printer.

• Chapter 3 The computer’s power management options.

• Chapter 4 The installation of the drivers and utilities essential to the operation or improvement of some of the

computer’s subsystems.

• Chapter 5 An outline of the computer’s built-in software or BIOS (Basic Input Output System).

• Chapter 6 Instructions for upgrading your computer.

• Chapter 7 A quick guide to the computer’s SATA RAID, Wireless LAN, Bluetooth, PC Camera, TV Tuner

and Wireless Kit modules (some of which are optional depending on your purchase configuration).

• Chapter 8 A troubleshooting guide.

• Appendix A Definitions of the interface, ports/jacks which allow your computer to communicate with external

devices.

• Appendix B Information on the Intel Video driver controls.

• Appendix C Information on the NVIDIA Video driver controls.

• Appendix D The computer’s specification.

• Appendix E Information on the Window’s XP OS.

1

Overview 1 - 1

1

Quick Start Guide

Model Differences

This computer series includes two different model types based upon the size of LCD screen. The models are
otherwise identical in appearance, ports and features etc.

Both models feature EITHER integrated Intel video, OR an NVIDIA video card, depending on your purchase
option.

Both models may have an optional RF keyboard (factory option only) and mouse supplied, if included in your
purchase option.

Both models may be supplied with an optional Mini-PCI TV Tuner module. This allows the computer to func­tion as a multimedia entertainment center, allows you to watch cable and air television channels (digital and an­alog). The Hybrid Mini-PCI TV Tuner is supplied with a remote control unit which gives you full control over
the multimedia features of the computer.

1 - 2 Overview

Quick Start Guide

Feature Model A Model B

1

LCD Type

Video

Adapter

Design

*See “Specifications” on page D - 1 for full details.

19.0" WXGA+ (1440 * 900) TFT
16:10 Wide Screen TFT

NVIDIA GeForce Go 7600 Video (discrete video option)*

Intel G965 Integrated Video (Integrated video option)*

Table 1 - 1 - Model Differences

22.0" WSXGA+ (1680 * 1050)
16:10 Wide Screen TFT

OR

Overview 1 - 3

1

Quick Start Guide

Advanced Users

If you are an advanced user you may skip over most of this Quick Start Guide. However you may find it useful
to refer to “What to Install” on page 4 - 1, “BIOS Utilities” on page 5 - 1 and “Upgrading The Computer” on

page 6 - 1. You may also find the notes marked with a

 of interest to you.

Beginners and Not-So-Advanced Users

If you are new to computers (or do not have an advanced knowledge of them) then the information contained in
this Quick Start Guide should be enough to get you up and running. Eventually you should try to look through
all the documentation (more detailed descriptions of the functions, setup and sy stem controls are covered in the
remainder of the User’s Manual), but do not worry if you do not understand everything the first time. Keep this
manual nearby and refer to it to learn as you go. You may find it useful to refer to the notes marked with a
indicated in the margin. For a more detailed description of any of the interface ports and jacks see “Interface

(Ports & Jacks)” on page A - 1.



Notes

Check the light colored boxes with the mark above to find detailed information about the computer’s features.

 as

Warning Boxes

No matter what your level please pay careful attention to the warning and safety information indicated by the

 symbol. Also please note the safety and handling instructions as indicated in the Preface.

1 - 4 Overview

Quick Start Guide

Not Included

Operating Systems (e.g. Windows Vista/Windows XP) and applications (e.g. word processing, spreadsheet and
database programs) have their own manuals, so please consult the appropriate manuals.



Drivers

If you are installing new system software, or are re-configuring your computer for a different system, you will need to install
the drivers listed in “Drivers & Utilities” on page 4 - 1. Drivers are programs which act as an interface between the com­puter and a hardware component e.g. a wireless network module. It is very important that you install the drivers in the order
listed in Table 4 - 1, on page 4 - 3. You will be unable to use most advanced controls until the necessary drivers and utilities
are properly installed. If your system hasn’t been properly configured (your service representative may have already done
that for you), refer to “What to Install” on page 4 - 1 for installation instructions.

Ports and Jacks

See “Ports and Jacks” on page A - 2 for a description of the interface (ports & jacks) which allow your computer to com­municate with external devices, connect to the internet etc.

1

Overview 1 - 5

1

Quick Start Guide

System Software



TV Tuner Module

Support

Note that the TV Tuner
module (factory) options
in Windows Vista are
supported by the Win-

dows Media Center

software which comes
built-in to the Windows

Vista Home Premium

and Ultimate Editions
only.

If your purchase in­cludes a TV Tuner op­tion, and you are re­configuring your system
for a different system,
you should install either

Windows Home Premi­um or Ultimate Edi-

tions only.

Your computer may already come with system software pre-installed. Where this is
not the case, or where you are re-configuring your computer for a different system,
you will find the following operating systems are supported.

Operating System Notes

*Windows XP (32-bit) Home & Professional

Editions with Service Pack 2

Windows Vista (64-bit) Home Basic Edition

Windows Vista (64-bit) Home Premium

Edition

Windows Vista (64-bit)

Business/ Enterprise/ Ultimate Editions

In order to run Windows Vista without
limitations or decreased performance, your
computer requires a minimum 1GB of
system memory (RAM).

Table 1 - 2 - Operating Systems Supported

*Note: For information on the Windows XP OS (specifically power, video and driver
information) see “Windows XP Information” on page E - 1.

1 - 6 Overview

Quick Start Guide

System Startup

1. Remove all packing materials, CDs/DVDs an d floppy disks etc.

2. Securely attach any peripherals you want to use with the computer to their ports.

3. Attach the AC/DC adapter to the DC-In jack at the rear of the computer, then plug the AC power cord into an
outlet, and connect the AC power cord to the AC/DC adapter.

4. Push the power button to turn the computer “on”.

1

1

1

Figure 1 - 1 - Power Button Location

System Startup 1 - 7

1

Quick Start Guide

System Map: Front View & Top View (Model A)

1. Optional Built-In PC Camera

2. Power LED

3. Consumer Infrared Transceiver
(Communicates with Optional TV Remote)

4. LCD

5. LED Indicators

6. Speakers

7. Power Button

8. Brightness Hot Key Button*

9. Application Hot Key Button*

*Requires Hot Key Driver

3

6

1

4

2

6

5

9

Figure 1 - 2 - Front View (Model A)

78

1 - 8 System Map: Front View & Top View (Model A)

System Map: Front View & Top View (Model B)

1. Optional Built-In PC Camera

3

1

4

6

2

6

5

2. Power LED

3. Consumer Infrared Transceiver
(Communicates with Optional TV Remote)

4. LCD

5. LED Indicators

6. Speakers

7. Power Button

8. Brightness Hot Key Button*

9. Application Hot Key Button*

*Requires Hot Key Driver

Quick Start Guide

1

9

Figure 1 - 3 - Front View (Model B)

78

System Map: Front View & Top View (Model B) 1 - 9

1

Quick Start Guide

Tilting the LCD Screen

It is possible to adjust the angle of the LCD screen in order to get the best possible view without glare etc.

1. Make sure the computer is sitting on a flat even surface.

2. Grip the computer at the top of the screen with one hand, and use the other hand to pull the stand out until you
hear a click (at about 40 degrees).

3. The screen angle can safely be adjusted by pushing it back from the top of the screen to tilt it to the appropriate
viewing angle (the stand will push back from 40 degrees to about 90 degrees).

Figure 1 - 4 - Tilting The Screen



Stand Position

The stand position may be adjusted between 40 and 90 degrees. DO NOT PLACE THE STAND IN THE UPRIGHT TRANS­PORT POSITION AS IT IS VERY UNSTABLE, and not suitable for viewing.

1 - 10 Tilting the LCD Screen

Quick Start Guide

Moving the Computer

We strongly recommend using both hands to move the computer. You can use one hand to grip the computer by
the stand, and the other to hold the top of the LCD screen. The computer may be transported in the upside down
position by using the stand as a handle, but using both hands to carry it.

It is recommended that you carry the computer with the LCD facing your body to avoid scratching the surface
against other objects. However take care not to scratch the LCD with any personal items, belt fittings or jewelry
etc.(one hand gripping the stand and the other gripping the top of the computer to avoid accidentally dropping it).

Wall Mounting Information

The computer may be mounted on a wall for display. The system meets VESA (FDMI) Standard (100mm *
100mm) for wall mounting. However if you intend to wall mount the system please contact your service center
for information in order to avoid personal injury, or damage to the computer.

1

Tilting the LCD Screen 1 - 11

1

Quick Start Guide

LED Indicators

The LED indicators on the computer display helpful information about the current status of the computer.

Table 1 - 3 - LED Indicators

Icon Color Description

Green The computer is On

Blinking Green The computer is in Sleep

Orange The AC/DC Adapter is Plugged in & the Computer is Powered Off

Green System Activity

Green The Optional WLAN Module is Installed

Orange The Optional Bluetooth Module is Installed

Green/Orange Both the Optional WLAN Module and Optional Bluetooth Module are Installed

1 - 12 LED Indicators

System Map: Right View



CD Emergency Eject

Quick Start Guide

Figure 1 - 5 - Right View

1. Optical (CD/DVD) Device

2. Vent/Fan Intake/Outlet

1

If you need to manually
eject a CD/DVD (e.g. due
to an unexpected power
interruption) you may
push the end of a straight­ened paper clip into the
emergency eject hole. Do
not use a sharpened pen­cil or similar object that
may break and become
lodged in the hole.

Media Warning

Don’t try to remove a flop­py disk/CD/DVD while the
system is accessing it.
This may cause the sys­tem to “crash”.



Changing DVD Regional Codes

Go to the Control Panel and double-click De-

1

2

vice Manager (Hardware and Sound) and then

click the + next to DVD/CD-ROM drives. Dou­ble-click on the DVD-ROM device to bring up
Properties, and select the DVD Region (tab).
This control panel allows you to adjust the re­gional code (see “DVD Regional Codes” on

page 2 - 5).

DVD region detection is device dependent, not
OS-dependent. You can select your module’s re­gion code 5 times. The fifth selection is perma­nent. This cannot be altered even if you change
your operating system or you use the module in
another computer.

System Map: Right View 1 - 13

1

Quick Start Guide

System Map: Left View

Figure 1 - 6 - Left View

1. ExpressCard Slot 54/34

2. 7-in-1 Card Reader

3. 1 * USB 2.0 Port

4. Mini-IEEE 1394 Port

5. Line-In Jack (Blue)

6. Microphone-In Jack (Pink)

7. Headphone-Out Jack
(Green)

8. S/PDIF-Out Jack (Black)

9. Vent/Fan Intake/Outlet

10. Security Lock Slot

The card reader allows you to use the most

popular digital storage card formats:

MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /

MS Pro (Memory Stick Pro)

MS Duo (requires PC adapter) / Mini SD (requires PC adapter) /

RS MMC (requires PC adapter)



ExpressCard Slot

The ExpressCard Slot accepts either Ex-

pressCard/34 or ExpressCard/54 formats.

Mini-IEEE 1394 Port

The Mini-IEEE 1394 port only supports SELF
POWERED IEEE 1394 devices.



7-in-1 Card Reader

1

2

3

4
5

6

7

8

9

10

1 - 14 System Map: Left View

System Map: Rear View

1

4

12

13

14

5

6

12

11

5

7

Quick Start Guide

1

Figure 1 - 7 - Rear View

2

3

12

1. Camera Angle Switch

2. USB Port Cover (see pages 7 - 24 & A - 4)

3. Module Cover

4. Rear Component Cover

5. 3 * USB 2.0 Ports

6. 1 External SATA Port

7. DC-In Jack

8

13

14

8. Audio/Vide o Jacks (See over)

9. RJ-11 Phone Jack

10. RJ-45 LAN Jack

11. Stand

12. Vent/Fan Intake/Outlet

13. Hard Disk Covers

14. Cable Holders (To Secure Audio/Video/
USB Cables etc.)



9

10

To prevent your computer from overheating
make sure nothing blocks the vent(s)/fan in­take(s)/outlet(s) while the computer is in use.

Overheating

System Map: Rear View 1 - 15

1

Quick Start Guide

Audio/Video Jacks

42 431 2

Figure 1 - 8 - Audio/Video Jacks

Port/Jack Connection



CATV Cable Safety

Make sure that your CATV sys­tem installer has connected the
coaxial cable shield to the
grounding system of the building,
as close to the point of cable en­try as practical.

1 - 16 Audio/Video Jacks

1

S-Video-In Jack

2

Right & Left Audio-In Jacks

3

Composite Video-In Jack

4

CATV-In (Coaxial) Jacks

(for TV Tu ne r Option Only)

Table 1 - 4 - Jack Connections

Connect an S-Video Cable to this Jack to

Display External Video Sources on the LC D

Connect Analog Audio Cables to Play External

Audio Sources Through the Computer’s

Speakers

Connect a Composite Video Cable to this Jack

to Display External Video Sources on the LCD

Connect a CATV Cable or Digit al Aerial to

Display Cable TV Pictures on the LCD

Quick Start Guide

Windows Vista Start Menu & Control Panel

Most of the control panels, utilities and programs within Windows Vista (and most other Windows versions) are
accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk
drive, and a shortcut will usually be placed in the Start menu and/or the desktop. Right-click the Start menu
icon , and then select Properties if you want to customize the appearance of the Start menu.

Click here to toggle Classic View

Figure 1 - 9 - Start Menu & Control Panel

In many instances throughout this manual you will see an instruction to open the Control Panel. The Control
Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features

in Windows (e.g. power, video, network, audio etc.). Windows Vista provides basic controls for many of the fea-
tures, however many new controls are added (or existing ones are enhanced) when you install the drivers listed
in Table 4 - 1, on page 4 - 3. To see all controls it may be necessary to toggle to Classic View on.

1

Windows Vista Start Menu & Control Panel 1 - 17

1

Quick Start Guide

Video Features

This computer features either Intel integrated video, or an NVIDIA PCI Express discrete video, depending
on your purchase option (see “Video Adapter Options” on page D - 3). You can configure display options, from
the Display Settings control panel in Windows as long as the appropriate video driver is installed. For more
detailed video information see “Intel Video Driver Controls” on page B - 1 or “NVIDIA Video Driver Con-

trols” on page C - 1. To access Display Settings in Windows Vista:

1. Click Start, and click Control Panel (or point to Settings and click Control Panel).

2. Click Adjust screen resolution under the Appearance and Personalization menu (or double-click
Personalization > Display Settings).

3. Move the slider to the preferred setting in Resolution: (Figure 1 - 10 on page 1 - 19).

4. Click the arrow, and scroll to the preferred setting In Colors: (Figure 1 - 10 on page 1 - 19).

5. Click Advanced Settings (button) (Figure 1 - 10 on page 1 - 19).

3

For Intel GMA

1. Click Intel(R) Graphi cs Media Accelerator (tab).

2. Click

3. The Intel GMA control panel can also be accessed by clicking the icon in the taskbar and selecting

Graphics Properties

Graphics Properties from the menu.

(button) (

4

Figure 1 - 10 on page 1 - 19

For NVIDIA GeForce Go

1. Click GeForce Go..... (tab).

2. Click Start the NVIDIA Control Panel (Figure 1 - 10 on page 1 - 19) to access the control panel.

3. The NVIDIA Control Panel can also be accessed by right-clicking the desktop, and then clicking NVIDIA

Control Panel.

5

1

2

) to access the

Intel GMA Control Panel

.

1 - 18 Video Features

Quick Start Guide

1

1

3

1

3

2

2

Figure 1 - 10 - Display Settings

4

5

Video Features 1 - 19

1

Quick Start Guide

Power Options

The Power Options (Hardware and Sound menu) control panel icon in Windows (see page 1 - 17 ) allows you
to configure power management features for your computer. You can conserve power by means of power plans
and configure the options for the power button, sleep button, display and sleep mode from the left menu. Note
that the Power saver plan may have an affect on computer performance.

Click to select one of the existing plans, or click Create a power plan in the left menu and select the options to
create a new plan. Click Change Plan Settings and click Change advanced power settings to access further con-
figuration options. See “Power Management” on page 3 - 1 for more details.

1 - 20 Power Options

Note: Sleep is the default power saving state in Windows Vista

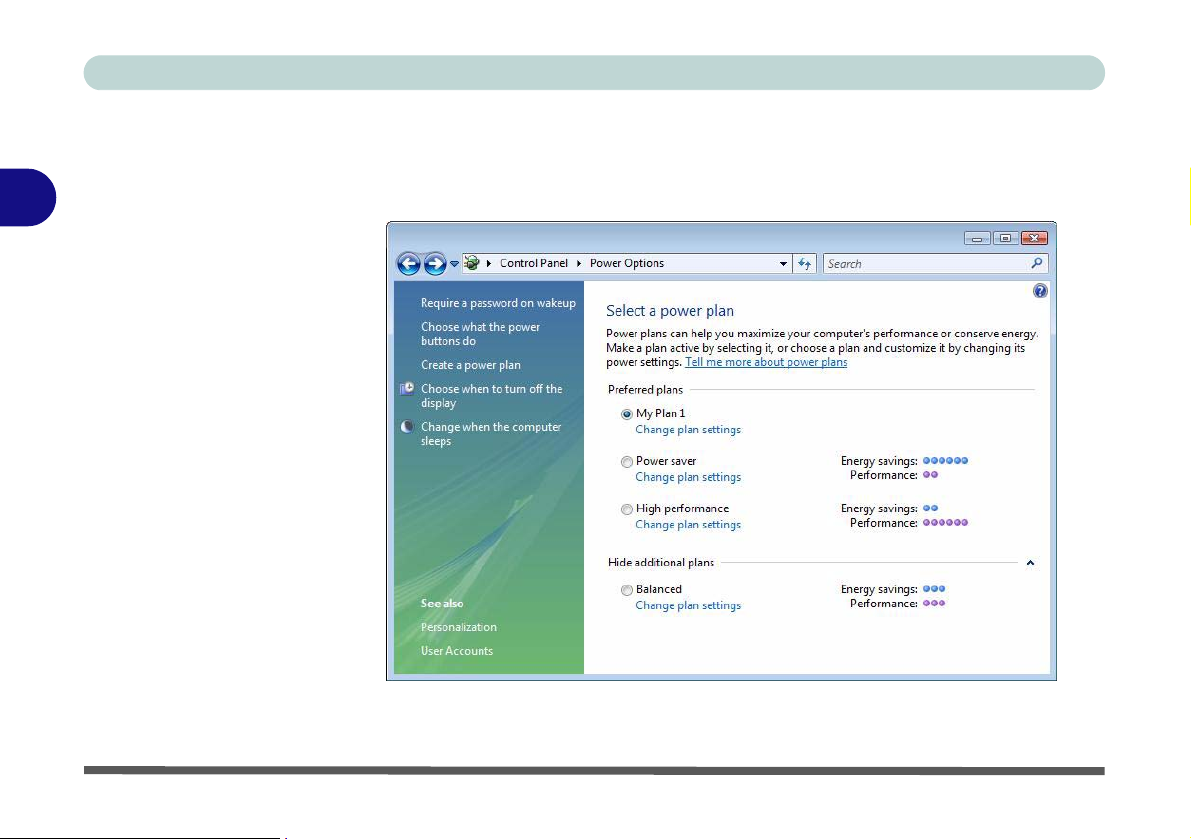

Figure 1 - 11 - Power Options

Features & Components

Chapter 2: Features & Components

Overview

Read this chapter to learn more about the following main features and components
of the computer:

•Hard Disk Drive

• Optical (CD/DVD) Device

• 7-in-1 Card Reader

• ExpressCard Slot

• Audio Features

• Hot Key Buttons

• Adding a Printer

2

Overview 2 - 1

Features & Components

2

Before attempting to ac­cess any of the internal
components of your
computer please ensure
that the machine is not
connected to the AC
power, and that the ma­chine is turned off. Also
ensure that all peripher­al cables, including
phone lines, are discon­nected from the comput­er.



Power Safety

Hard Disk Drive

The hard disk drive(s) is(are) used to store your data in the computer. The hard
disk(s) can be taken out to accommodate other 3.5" serial (SATA) hard disk drives
with a height of 26mm(h). If you have included the 2nd RAID SATA HDD option
see “Setting Up SATA RAID or AHCI Modes” on page 7 - 2 for instructions on
configuring the system.

Hard Disk

Figure 2 - 1

Hard Disk Location

2 - 2 Hard Disk Drive

Features & Components

Optical (CD/DVD) Device

There is a bay for a 5.25" optical (CD/DVD) device (12.7mm height). The actual de­vice will depend on the module you purchased (see “Storage” on page D - 3). The
optical device is usually labeled “Drive D:” and may be used as a boot device if
properly set in the BIOS (see “Boot Menu” on page 5 - 12).

Loading Discs

To insert a CD/DVD, press the open button and carefully place a CD/
DVD onto the disc tray with label-side facing up (use just enough force for
the disc to click onto the tray’s spindle). Gently push the CD/DVD tray in
until its lock “clicks” and you are ready to start. The busy indicator will
light up while data is being accessed, or while an audio/video CD, or DVD,
is playing. If power is unexpectedly interrupted, insert an object such as a
straightened paper clip into the emergency eject hole to open the tray.

1

2

3

1

3

2



Sound Volume

Adjustment

How high the sound vol­ume can be set depends
on the setting of the vol­ume control within Win-
dows. Click the Volume
icon on the taskbar to
check the setting (see

“Audio Features” on
page 2 - 8).

Figure 2 - 2

Optical Device

2

Optical (CD/DVD) Device 2 - 3

Features & Components

2

CD Emergency Eject

If you need to manually
eject a CD (e.g. due to
an unexpected power
interruption) you may
push the end of a
straightened paper clip
into the emergency eject
hole. However please
do NOT use a sharp­ened pencil or similar
object that may break
and become lodged in
the hole.

Disk Eject Warning

Don’t try to remove a
CD/DVD while the sys­tem is accessing it. This
may cause the system
to “crash”.



Proper handling of your CDs/DVDs will prevent them from being damaged. Please
follow the advice below to make sure that the data stored on your CDs/DVDs can be
accessed.

Note the following:

• Hold the CD or DVD by the edges; do not touch the surface of the disc.

• Use a clean, soft, dry cloth to remove dust or fingerprints.

• Do not write on the surface with a pen.

• Do not attach paper or other materials to the surface of the disc.

• Do not store or place the CD or DVD in high-temperature areas.

• Do not use benzene, thinner, or other cleaners to clean the CD or DVD.

• Do not bend the CD or DVD.

• Do not drop or subject the CD or DVD to shock.

Handling CDs or DVDs

2 - 4 Optical (CD/DVD) Device

Features & Components

DVD Regional Codes

To change the DVD regional codes see “Changing DVD Regional Codes” on

page 1 - 13.

DVD Regional Coding

Region Geographical Location

1 USA, Canada

2

3

4

5

6China

Western Europe, Japan, South

Africa, Middle East & Egypt

South-East Asia, Taiwan, South

Korea, The Philippines, Indonesia,

Hong Kong

South & Central America, Mexico,

Australia,

New Zealand

N Korea, Russia, Eastern Europe,

India & Most of Africa

2

Table 2 - 1

DVD Regional Coding

Figure 2 - 3

DVD Regions

Optical (CD/DVD) Device 2 - 5

Features & Components

2

Card Reader Cover

Make sure you keep the
cover in the card reader
when not in use. This
will help prevent foreign
objects and/or dust get­ting in to the card read­er.



7-in-1 Card Reader

The card reader allows you to use some of the latest digital storage cards. Push the
card into the slot and it will appear as a removable device, and can be accessed in
the same way as your hard disk (s). Make sure you install the Card Reader Card driv­er (see “Card Reader” on page 4 - 6).

• MMC (MultiMedia Card)

• SD (Secure Digital)

• MS (Memory Stick)

• MS Pro (Memory Stick Pro)

1

• MS Duo (requires PC adapter*)

• Mini SD (requires PC adapter*)

Figure 2 - 4

Left View

1. Card Reader

• RS MMC (requires PC adapter*)

*Note: The PC adapters are usually supplied with
these cards.

2 - 6 7-in-1 Card Reader

Features & Components

ExpressCard Slot

The computer is equipped with an ExpressCard/34/54 slot that reads Express Card/
34 and ExpressCard/54 formats. ExpressCards are the successors to PCMCIA (PC
Cards).

ExpressCard/54 is used for applications which require a larger interface slot, e.g.
CompactFlash card reader. The number denotes the card width; 54mm for the Ex­press Card/54 and 34mm for the ExpressCard/34.

Inserting and Removing ExpressCards

• Align the ExpressCard with the slot and push it in until it locks into place.

• To remove an ExpressCard, simply press the card to eject it.



ExpressCard

Slot Cover

Make sure you keep the
rubber cover provided in
the ExpressCard slot
when not in use. This
will help prevent foreign
objects and/or dust get­ting in to the Express­Card Slot.

2

ExpressCard Slot 2 - 7

Features & Components

2



Audio Features

You can configure the audio options on your computer from the Sound control

Sound Volume

Adjustment

The sound volume level
is set using the volume
control within Windows.
Click the volume icon in
the taskbar to check the
setting.

panel in Windows, or from the Realtek HD Audio Manager icon in the taskbar/
control panel (right-click the taskbar icon to bring up an audio menu).

Right-click the icon
to access the menu
above.

Figure 2 - 5

Realtek Audio

Manager

2 - 8 Audio Features

Features & Components

Hot Key Buttons

The hot key buttons on the top of the computer allow you to alter the brightness of
the screen, and give instant access to a user-defined application, with one quick but­ton press.

1 2

After installing the driver (see page 4 - 6) an icon will appear in the taskbar. Dou­ble-click the icon to bring up the configuration menu to define which application
to open when the application hot key button is pressed (see over). If you click the
close icon , run the program from the file location (C:\Program Files
(x86)\Hotkey_Driver\HotkeyDriver.exe).

Brightness Hot Key

Repeatedly press the brightness hot key button to adjust the brightness. A visual in­dicator will appear on-screen to indicate the brightness level (as long as the hot key
driver is running in the taskbar).

1. Application Hot Key

2. Brightness Hot Key

2

Figure 2 - 6

Hot Key Buttons

Figure 2 - 7

Brightness Indicator

Hot Key Buttons 2 - 9

Features & Components

2

You will need to locate
the actual application
executable (.exe) file,
not just the shortcut. To
find the application right­click its shortcut on the
desktop and click Prop-

erties. Click the short­cut (tab) and see where

the executable file is lo­cated by clicking the

Open File Location

(button).



Application.exe

To configure a program to open when the application hot key button is pressed
(Windows Media Player is the default program), follow the instructions below.

1. Double-click the Hot Key driver icon in the taskbar.

2. Click Launch user specified application (button) .

3. An Open dialog box will appear on the screen.

Figure 2 - 8

Application Hot Key

Hot Key Driver

4. Browse to the directory where the desired application.exe program exists.

5. Double-Click on the program file or choose Open, and click OK (button).

6. Press the application hot key button to open the program (as long as the hot
key driver is running in the taskbar).

2 - 10 Hot Key Buttons

Features & Components

Adding a Printer

The most commonly used peripheral is a printer. The following conventions will
help you to add a printer, however it is always best to refer to the printer manual for
specific instructions and configuration options.

USB Printer

Most current printers have a USB interface connection. You may use any one of the
ports to connect the printer.

Install Instructions:

1. Set up the printer according to its instruction s (unpacking, p aper tr ay, toner/ink car­tridge etc.).

2. Turn ON the computer.

3. Turn ON the printer.

4. Connect the printer’s USB cable to one of the USB ports on the computer.

5. Windows will identify the printer and either load one of its own drivers or ask you
to supply one. Follow the on-screen instructions.

Parallel Printer

This is still a very common type of printer. The install instructions are in the sidebar,
however you will need to purchase a Parallel to USB converter.



Parallel Printer

After setting up the print­er attach the parallel ca­ble to the printer.

Connect the printer’s
parallel cable to the Par­allel to USB converter,
and then plug the con­verter into the USB port.

Turn ON the printer,
then turn ON the com­puter.

Windows will identify the
printer and either load
one of its own drivers or
ask you to supply one.
Follow the on-screen in­structions.

2

Adding a Printer 2 - 11

Features & Components

2

2-12

Chapter 3: Power Management

Power Management

Overview

To conserve power, your computer’s power management conserves power by con­trolling individual components of the computer (the monitor and hard disk drive) or
the whole system. This chapter covers:

• Turning on the Computer

• Power Plans

• System Power Options

• Configuring the Power Button

The computer uses enhanced power saving techniques to give the operating system
(OS) direct control over the power and thermal states of devices and processors. For
example, this enables the OS to set devices into low-power states based on user set­tings and information from applications.

Using some form of power management greatly increases the life span of the
LCD.

3

Overview 3 - 1

Power Management

Turning on the Computer



3

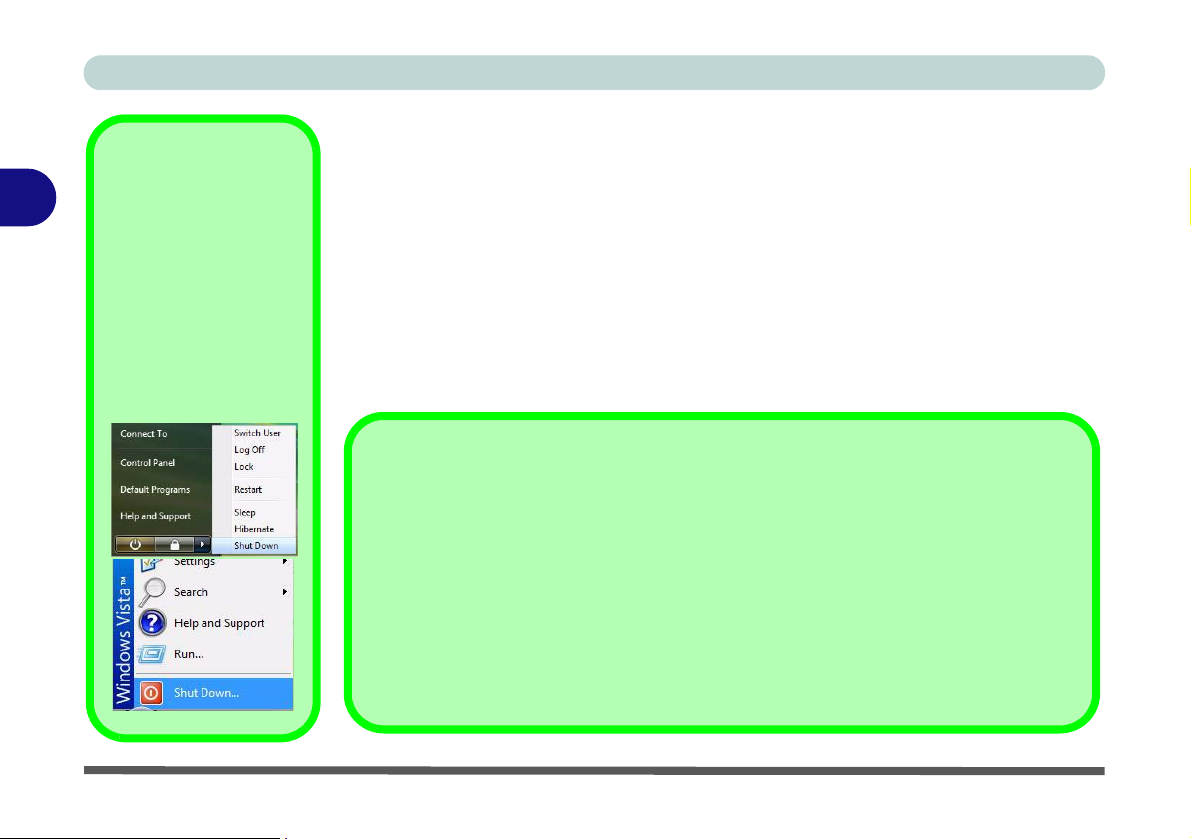

Shut Down

Note that you should al­ways shut your comput­er down by choosing the
Shut Down command
from the Lock Button

Menu in Windows Vis-
ta. This will help prevent

hard disk or system
problems.

To the computer on simply press the power button on the top of the computer.
When the computer is on, you can use the power button as a Sleep/Hibernate hot-

key button when it is pressed for less than 4 seconds (pressing and holding the power
button for longer than this will shut the computer down). Use Power Options
(Hardware and Sound menu) control panel in Windows Vista to configure this fea­ture.

Note that if you have included the Hybrid TV Tuner in your purchase option, you
may use the remote control unit to send the computer in to a power saving state.



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the pow­er button for 4 seconds, or longer, to force the system to turn itself off.

Power Button Sleep

Sleep is the default power mode when the power button is pressed for less than 4 seconds.
You may configure the options for the power button from the Power Options (Hardware
and Sound menu) control panel in Windows Vista (see your OS’s documentation, or

“Configuring the Power Button” on page 3 - 7 for details).

3 - 2 Turning on the Computer

Power Plans

The computer can be configured to conserve power by means of power plans. You
can use (or modify) an existing power plan, or create a new one.

The settings may be adjusted to set the display to turn off after a specified time, and
to send the computer into Sleep after a period of inactivity.

Click Change plan settings and then click Change advanced power settings to ac­cess further configuration options in Advanced Settings.

Power Management



Resuming
Operation

If the display is off the
system can resume by
pressing any key on the
keyboard.

Password

It is recommended that
you enable a password
on system resume in or­der to protect your data.

Figure 3 - 1

Power Plan

Advanced Settings

3

Power Plans3-3

Power Management

Each Windows power plan will also adjust the processor performance of your ma­chine in order to save power. This is worth bearing in mind if you are experiencing
any reduced performance.

3

Figure 3 - 2

Power Plans

3 - 4 Power Plans

System Power Options

You can use the system power options to stop the computer’s operation and restart
where you left off. The system features Sleep and Hibernate power saving states.

Hibernate vs. Shut Down

Hibernate and Shut Down are the same in that the system is off and you need to press
the power button to turn it on. Their main difference is:

When you come back from hibernation, you can return to where you last left off
(what was on your desktop) without reopening the application(s) and file(s) you last
used.

You can use either method depending on your needs.

Sleep vs. Hibernate

If you want to stay away from your work for just a while, you can put the system into

Sleep instead of in hibernation. It takes a longer time to wake up the system from
Hibernate mode than from Sleep mode.

Power Management



Sleep Button

The Sleep Button
in the Start Menu (not
available in Classic
View) can be used to
send the computer into
Sleep.

Note that Sleep is the
default power saving
state in Windows Vista.

3

System Power Options 3 - 5

Power Management

Sleep

Sleep uses very little system power, and takes a short time to return to full operation.

3

After an extended period of time in Sleep the computer will save the contents of sys­tem memory (e.g. any open documents and applications) to the hard disk and shut
the system down. When you are not using your computer for a certain length of time,
which you specify in the operating system, it will enter Sleep mode to save power.

Hibernate

Hibernate uses no power and saves all of your information on a part of the hard disk
before it turns the system off. Although it saves the most power it takes the longest
time to return to full operation. You will need to enable Hibernate mode from the
Advanced Settings in power plans, or you put the system directly into Hibernate
mode from the Lock Button Menu. The system will resume from Hibernate
mode by pressing the power button.

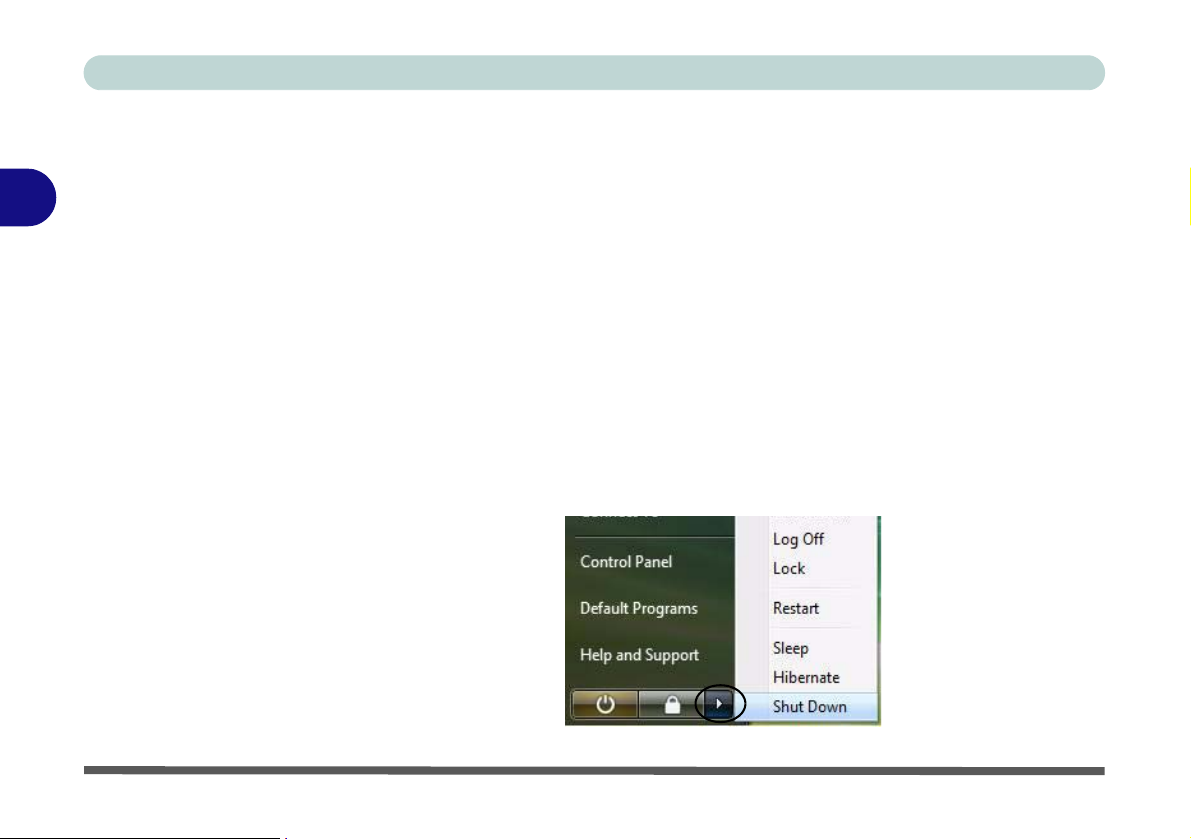

Figure 3 - 3

Lock Button Menu

Hibernate

3 - 6 System Power Options

Configuring the Power Button

The power button may be set to send the computer in to either Sleep or Hibernate.
In Sleep, the LED will blink green. In Hibernate the LED will be orange. If only
the display is turned off, the LED will remain green.

Power Management



Password

Protection

It is recommended that
you enable a password
on wake up in order to
protect your data.

However you can dis­able this setting from the
Power Options menu
by clicking Require a

password on wakeup

in the left menu, and se­lecting the options (click

Change settings that
are currently unavail­able).

Figure 3 - 4

Power Options

Define Power

Buttons

3

Configuring the Power Button 3 - 7

Power Management

3

3-8

Chapter 4: Drivers & Utilities

Drivers & Utilities

This chapter deals with installing the drivers and utili­ties essential to the operation or improvement of some
of the computer’s subsystems. The system takes ad­vantage of some newer hardware components for
which the latest versions of most available operating
systems haven’t built in drivers and utilities. Thus,
some of the system components won’t be auto-config­ured with an appropriate driver or utility during oper­ating system installation. Instead, you need to
manually install some system-required drivers and
utilities.

RAID & AHCI Setup

Note that setting up the RAID system and installing
the driver for Windows needs to be done prior to in­stalling the Windows OS, and therefore before install­ing the other drivers listed here (see “Setting Up

SATA RAID or AHCI Modes” on page 7 - 2).

What to Install

The Device Drivers & Utilities + User’s Manual CD­ROM (Win Vista OR WinXP) contains the drivers and

utilities necessary for the proper operation of the com­puter. There will be two CDs provided; one will con­tain drivers for Windows Vista, the other will contain
drivers for Windows XP (make sure you install the ap­propriate drivers for your system).

Table 4 - 1, on page 4 - 3 lists what you need to install

and it is very important that the drivers are in-
stalled in the order indicated (see Appendix E for
Windows XP information).

4

What to Install 4 - 1

Drivers & Utilities

Driver Installation

Insert the Device Drivers & Utilities + User’s Manual
CD-ROM and click Install Drivers (button)/Optional

(button).

4

If you wish to install the drivers manually see page 4 -

4

.

Figure 4 - 1 - Drivers Installer Screen 1

1. Check the driver installation order from Table 4 - 1,

on page 4 - 3 (the driver s mus t be installed in

this order) which is the same as that listed in the

Drivers Installer menu below.

2. Click to select the driver you wish to install, after
installing each driver it will become grayed out (if
you need to reinstall any driver, click the Unlock
button).

3. Follow the instructions for each individual driver
installation procedure as listed on the following
pages.

Figure 4 - 2 - Drivers Installer Screen 2

4 - 2 Driver Installation

Drivers & Utilities

Windows Vista Driver Page

Chipset (Included in Windows Vista OS) N/A

Intel Video Page 4 - 5

NVIDIA Video Page 4 - 5

Audio Page 4 - 5

Modem Page 4 - 6

LAN

(Included in Windows Vista OS) N/A

Card Reader Page 4 - 6

JMicron Page 4 - 6

Hot Key

Remote Control Unit (for Remote Control Unit) Page 7 - 13

(for Brightness and Application Hot Keys) Page 4 - 6

Intel Matrix (for RAID/AHCI) Page 7 - 6

Wireless LAN Modules Page 7 - 7

Bluetooth Module Page 7 - 11

Hybrid Mini-PCI TV Tuner Module Page 7 - 16

PC Camera Module Page 7 - 18

Wireless Keyboard & Mouse Kit Page 7 - 26

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it
may be necessary to uninstall the original driver.To do
this go to the Control Panel in the Windows OS and
double-click the Programs and Features icon (Pro-
grams > Uninstall a program). Click to select the
driver (if it is not listed see below) and click Uninstall,
and then follow the on screen prompts (it may be nec­essary to restart the computer). Reinstall the driver as
outlined in this chapter.

If the driver is not listed in the Programs and Fea-
tures menu:

1. Click Start, and click Control Panel (or point to
Settings and click Control Panel).

2. Double-click Device Manager (Hardware and
Sound > Device Manager).

3. Double-click the device you wish to update/reinstall
the driver for (you may need to click “+” to expand
the selection).

4. Click Driver (tab) and click the Up date Driver or

Uninstall button and follow the on screen prompts.

4

Table 4 - 1 - Driver Installation

Driver Installation 4 - 3

Drivers & Utilities

Manual Driver Installation

If you wish to install the drivers manually, click the Exit button to quit the Drivers Installer application, and
then browse to the executable file in the location listed in the table below and follow the installation procedure
for each driver. Note that X is the drive letter assigned to the CD/DVD-ROM drive.

.

4

Driver Driver Location Driver Driver Location

Chipset N/A (Included in Windows Vista OS) Intel Matrix (for RAID) Vista 64-bit X:\Others\01Matrix\iata_cd.exe

Intel Video Vista 64-bit X:\Drivers\01VGA\Intel\64bit\Setup.exe

NVIDIA Video Vista 64-bit X:\Drivers\01VGA\Nvidia\64bit \setup.exe

Audio Vista 64-bit X:\Drivers\02Audio\Setup.exe Bluetooth Module Vista 64-bit X:\Others\03Bluetooth\setup.exe

Modem Vista 64-bit X:\Drivers\03Modem\ssetup.exe

LAN N/A (Included in Windows Vista OS)

Card Reader Vista 64-bit X:\Drivers\05CReader\64bit\setup.exe PC Camera Module Vista 64-bit X:\Others\05Camera\64bit\setup.exe

JMicron Vista 64-bit X:\Drivers\06Micron\setup.exe

Hot Key Vista 64-bit X:\Drivers\07HotKey\Setup.exe

WLAN Driver Installation

(Intel)

WLAN Driver Installation

(AzureWave)

Remote Control Unit (for

TV Tuner)

Hybrid Mini-PCI TV Tuner
Module

Wireless Keyboard &
Mouse Kit

Vista 64-bit X:\Others\02Wlan\Intel\iProDifX.exe

Vista 64-bit X:\Others\02Wlan\AzureW\setup.exe

Vista 64-bit X:\Others\04CIR\64bit\Setup.exe

* Note that the MPC788 Hybrid TV Tuner
software is provided on a separate CD

Vista 64-bit X:\Others\06WKit\SetupKey64.exe

Table 4 - 2 - Driver Location

4 - 4 Driver Installation

Drivers & Utilities

User Account Control (Win Vista)

If a User Account Control prompt appears as part of
the driver installation procedure, click Continue or
Allow, and follow the installation procedure as direct­ed.

Windows Security Message

If you receive a Windows security message as part of
the driver installation process. Just click “Install this
driver software anyway” or Install to continue the in­stallation procedure.

You will receive this message in cases where the driv­er has been released after the version of Windows you
are currently using. All the drivers provided will have
already received certification for Windows.

New Hardware Found

If you see the message “New Hardware Found”
(Found New Hardware Wizard) during the installa­tion procedure (other than when outlined in the driver
install procedure), click Cancel to close the window,
and follow the installation procedure as directed.

Chipset

This driver is included in the Windows Vista OS and
therefore does not need to be installed from the CD.

Intel Video

1. Click 2.Install Video Driver > Yes.

2. Click Next > Yes > Next > Next.

3. Click Finish to restart the computer.

NVIDIA Video

1. Click 2.Install Video Driver > Yes.

2. Click Next.

3. Click Finish to restart the computer.

Audio

1. Click 3.Install Audio Driver > Yes.

2. Click Next.

3. Click Finish to restart the computer.

4

Driver Installation 4 - 5

Drivers & Utilities

Modem

1. Click 4.Install Modem Driver > Yes.

2. Click OK.

3. The modem is ready for dial-up configuration.

4



Modem Country Selection

Be sure to check if the modem country selection is ap­propriate for you (Control Panel > Phone and Modem

Options).

LAN

This driver is included in the Windows Vista OS and
therefore does not need to be installed from the CD.

Card Reader

1. Click 6.Install CardReader Driver > Yes.

2. Click Next.

3. Click the button to accept the license, and then
click Next.

4. Click Finish.

JMicron

1. Click 7.Install JMicro Driver > Yes.

2. Click Next > Install.

3. Click Finish to restart the computer.

Hot Key

1. Click 8.HotKey Driver > Yes.

2. Click Next > Install.

3. Click Finish > Finish to restart your computer.

4 - 6 Driver Installation

Drivers & Utilities

Module Drivers

See the pages indicated for the driver installation pro­cedures for any optional modules included in your pur­chase option.

RAID & AHCI

See the setup procedure for your RAID module in

“Setting Up SATA RAID or AHCI Modes” on page 7

- 2, and driver installation procedure in “Intel Matrix”
on page 7 - 6.

Wireless LAN

See the install procedure for your WLAN module in

“Wireless LAN Modules” on page 7 - 7.

PC Camera

See the install procedure in “PC Camera Module” on

page 7 - 18.

Bluetooth

See the install procedure in “Bluetooth Module” on

page 7 - 11.

Remote Control Unit

See the install procedure for the consumer infrared
driver in “Remote Control Unit” on page 7 - 13.

TV Tuner

The drivers and utilities for the optional TV Tuner are
provided on a separate CD. Some general guidelines
are outlined in “Hybrid Mini-PCI TV Tuner Module”

on page 7 - 15.

Wireless Kit

See the install procedure for the wireless kit driver in

“Wireless Keyboard & Mouse Kit” on page 7 - 23.

4

Driver Installation 4 - 7

Drivers & Utilities

4

4-8

BIOS Utilities

Chapter 5: BIOS Utilities

Overview

This chapter gives a brief introduction to the computer’s built-in software:

Diagnostics: The POST (Power-On Self Test)

Configuration: The Setup utility

If your computer has never been set up, or you are mak ing important chan ges to the
system (e.g. hard disk setup), then you should review this chapter first and note the
original settings found in Setup. Even if you are a beginner, keep a record of the set­tings you find and any changes you make. This information could be useful if your
system ever needs servicing.

There is one general rule: Don’t make any changes unless you are sure of what you
are doing. Many of the settings are required by the system, and changing them could
cause it to become unstable or worse. If you have any doubts, consult your service
representative.



BIOS Settings

Warning

Incorrect settings can
cause your system to
malfunction. To correct
mistakes, return to Set-

up and restore the Set­up Defaults with <F9>.

5

Overview 5 - 1

BIOS Utilities

The Power-On Self Test (POST)

Each time you turn on the computer, the system takes a few seconds to conduct a
POST, including a quick test of the on-board RAM (memory).

As the POST proceeds, the computer will tell you if there is anything wrong. If there
is a problem that prevents the system from booting, it will display a system summary
and prompt you to run Setup.

5

If there are no problems, the Setup prompt will disappear and the system will load
the operating system. Once that starts, you can’t get into Setup without rebooting.

Failing the POST

Errors can be detected during the POST. There are two categories, “fatal” and “non­fatal”.

Fatal Errors

These stop the boot process and usually indicate there is something seriously wrong
with your system. Take the computer to your service representative or authorized
service center as soon as possible.

5 - 2 The Power-On Self Test (POST)

Non-Fatal Errors

This kind of error still allows you to boot. You will get a message identifying the
problem (make a note of this message!) followed by the prompt:

• Press <F1> to resume

• <F2> to enter Setup

BIOS Utilities

Press F1 to see if the boot process can continue. It may work, without the correct
configuration.

Press F2 to run the Setup program and try to correct the problem. If you still get an
error message after you change the setting, or if the “cure” seems even worse, call
for help.

The Power-On Self Test (POST) 5 - 3

5

BIOS Utilities

The Setup Program

The Phoenix Setup program tells the system how to configure itself and manage ba-
sic features and subsystems (e.g. port configuration).

Entering Setup

To enter Setup, turn on the computer and press F2 during the POST. The prompt

5

(Press F2 to Enter Setup) is usually present for a f ew seconds after you turn on the
system. If you get a “Keyboard Error”, (usually because you pressed F2 too quickly)
just press F2 again.

If the computer is already on, reboot using the Ctrl + Alt + Delete combination and
then hold down F2 when prompted. The Setup main menu will appear.

5 - 4 The Setup Program

Setup Screens

The following pages contain additional advice on portions of the Setup.

Along the top of the screen is a menu bar with five (5) menu headings. When you
select a heading, a new screen appears. Scroll through the features listed on each
screen to make changes to Setup.

Instructions on how to navigate each screen are in the box along the bottom of the
screen. If these tools are confusing, press F1 to call up a General Help screen, and
then use the arrow keys to scroll up or down the page.

The Item Specific Help on the right side of each screen explains the highlighted
item and has useful messages about its options.

If you see an arrow next to an item, press Enter to go to a sub-menu on that sub­ject. The sub-menu screen that appears has a similar layout, but the Enter key may
execute a command.

BIOS Utilities



Setup Menus

The Setup menus
shown in this section are
for reference only. Your
computer’s menus will
indicate the configura­tion appropriate for your
model and options.

5

The Setup Program 5 - 5

BIOS Utilities

Main Menu

Figure 5 - 1

Main

Main Menu

5

Main Advanced Security Boot Exit

System Time: [22:29:05]

System Date: [01/23/2007]

 SATA Port 1 [165GB SATA1]
 SATA Port 2 [None]
 SATA Port 3 [None]
 SATA Port 4 [None]
 SATA Port 5 [None]
 SATA Port 6 [None]

Installed memory 1024 MB
Available to OS 1022 MB
Used by devices 2 MB

F1 Help  Select Item -/+ Change Values F9 Setup Defaults
Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Phoenix cME FirstBIOS Pro Setup Utility

14

<Tab>, <Shift Tab>, or
<Enter> selects field.

Item Specific Help

System Time & Date (Main Menu)

The hour setting uses the 24-hour system (i.e., ØØ = midnight; 13 = 1 pm). If you
can change the date and time settings in your operating system, you will also change
these settings. Some applications may also alter data files to reflect these changes.

Installed Memory/Available to OS/Used by devices (Main Menu)

This item contains information on the system memory, and is not user configurable.
The system will auto detect the amount of memory installed.

5-6Main Menu

Advanced Menu

BIOS Utilities

Phoenix cME FirstBIOS Pro Setup Utility

Main Advanced Security Boot Exit

Setting itmes on this menu to incorrect

values may cause your system to malfunction.

Chipset Information Menu

Reset Configuration Data: [No]
Legacy USB Support: [Enabled]
Boot-time Diagnostic Screen: [Disabled]
Energy Lake: [Disabled]
IGD - Memory Size: [256MB]
SATA RAID Enable: [Disabled]
SATA AHCI Enable: [Disabled]

F1 Help  Select Item -/+ Change Values F9 Setup Defaults
Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Advanced

Setup Warning

Item Specific Help

Select options for
Advanced Chipset
features.



Chipset Information Menu (Advanced Menu)

This menu provides information on the BIOS version and CPU type.

Figure 5 - 2

Advanced Menu

5

Advanced Menu 5 - 7

BIOS Utilities

Reset Configuration Data: (Advanced Menu)

This item is set to No as default. You can change the setting to Yes if you have in­stalled a new add-on which has reconfigured the system, resulting in such a serious
system conflict that the operating system is unable to boot.

Legacy USB Support: (Advanced Menu)

Choose “Enabled” if you intend to use USB devices in systems which do not nor-

5

mally support USB functionality (e.g. DOS). The default setting is “Enabled” and
does not need to be changed if you intend to use your USB devices in Windows.

Boot-time Diagnostic Screen: (Advanced Menu)

Use this menu item to enable/disable the Boot-time Diagnostic Screen (or POST
screen).

Energy Lake: (Advanced Menu)

Energy Lake is a special sleep mode system which allows your system to Quick
Resume when you use a remote control unit.

5 - 8 Advanced Menu

IGD Memory Size (Advanced Menu > Advanced Chipset Control)

Press Enter here to select the amount of pre-allocated graphics memory for the in­tegrated graphics device (Intel Video option only). The default setting is 256MB.

SATA RAID Enable: (Advanced Menu)

This menu item allows you to enable/disable SATA RAID for your hard disks. You
should only enable/disable this item BEFORE installing an operating system,

and after you have backed up all necessary files and data (see sidebar).

SATA AHCI Enable: (Advanced Menu)

This menu item allows you to enable/disable SATA RAID for your hard disks. You
should only enable/disable this item BEFORE installing an operating system,

and after you have backed up all necessary files and data (see sidebar).

BIOS Utilities



RAID

Enable/Disable

Warning

DO NOT Enable/Dis­able SATA RAID or
SATA AHCI unless you

intend to reinstall your
operating system. Make
sure you have backed
up all your data before
doing so (see “Setting

Up SATA RAID or
AHCI Modes” on
page 7 - 2).

5

Advanced Menu 5 - 9

BIOS Utilities

Main Advanced Security Boot Exit

F1 Help  Select Item -/+ Change Values F9 Setup Defaults
Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

Item Specific Help

Supervisor Password
controls access to the
setup utility.

Security

Phoenix cME FirstBIOS Pro Setup Utility

Supervisor Password Is: Clear

Set Supervisor Password [EEnter]

Fixed disk boot sector: [Normal]
Password on boot: [Disabled]

Security Menu

Figure 5 - 3

Security Menu

5



Security Menu

The changes you make
here affect the access to
the Setup utility itself,
and also access to your
machine as it boots up
after you turn it on.
These settings do not
affect your machine or
network passwords
which will be set in your
software OS.

Set Supervisor Password (Security Menu)

You can set a password for access to the Setup utility. This will not affect access to
the computer OS, (only the Setup utility) unless you choose to set a Password on
Boot (see over).

5 - 10 Security Menu

Fixed disk boot sector: (Security Menu)

Choose Write Protect to protect the area of the hard disk containing information on
how to start up the computer from having information written to it. This helps pre­vent viruses from affecting this area, however, it is not a substitute for proper virus
protection supplied by updated anti-virus software, merely an extra safeguard (see

“Viruses” on page 8 - 4).

Password on boot: (Security Menu)

Specify whether or not a password should be entered to boot the computer. If “En­abled” is selected, only users who enter a correct password can boot the system (see

the warning in the sidebar). The default setting is “Disabled”.

Note: To clear existing passwords press Enter and type the existing password, then

press Enter for the new password (without typing any password entry) and Enter
again to confirm the password clearance.

BIOS Utilities



Password Warning

If you set a boot pass­word (Password on boot
is “Enabled“), NEVER
forget your password.

5

The consequences of
this could be serious. If
you cannot remember
your boot password you
must contact your ven­dor and you may lose all
of the information on
your hard disk.

Security Menu 5 - 11

BIOS Utilities

Boot Menu

Figure 5 - 4

Boot Menu

5

Main Advanced Security Boot Exit

Boot priority order:

1: USB KEY:

2: USB FDC:
3: PCI SCSI: FUJITSU MHT2060BH
4: IDE HDD:
5: PCI BEV: IBA GE Slot 00C8 v1243
6:
7:
8:

Excluded from boot order:

: All IDE HDD
: IDE CD:
: All IDE CDROM
: All USB Floppy
: USB USB KEY
: USB HDD:
: ALL USB HDD

F1 Help  Select Item -/+ Change Values F9 Setup Defaults
Esc Exit  Select Menu Enter Select Sub-Menu F10 Save and Exit

PhoenixBIOS Setup Utility

Item Specific Help

Keys used to view or
configure devices:
Up and Down arrows
select a device.
<+> and <-> moves
the device up or down.
<f> and <r> specifies
the device fixed or
removable.
<x> exclude or include
the device to boot.
<Shift + 1> enables or
disables a device.
<1 - 4> Loads default



boot sequence.

When you turn the computer on it will look for an operating system (e.g. Win­dowsXP) from the devices listed in this menu, and in this priority order. If it cannot

find the operating system on that device, it will try to load it from the next device in
the order specified in the Boot priority order. Item specific help on the right is
available to help you move devices up and down the order.

5 - 12 Boot Menu

Exit Menu

BIOS Utilities

PhoenixBIOS Setup Utility

Main Advanced Security Boot Exit

Exit Saving Changes

Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes

F1 Help  Select Item -/+ Change Values F9 Setup Defaults
Esc Exit  Select Menu Enter Execute Command F10 Save and Exit

Exit

Item Specific Help

Exit System Setup and
save your changes to
CMOS.

Choosing to Discard Changes, or Exit Discarding Changes, will wipe out any
changes you have made to the Setup. You can also choose to restore the original Set-
up defaults that will return the Setup to its original state, and erase any previous
changes you have made in a previous session.

Figure 5 - 5

Exit Menu

5

Exit Menu 5 - 13

BIOS Utilities

5

5-14

Upgrading The Computer

Chapter 6: Upgrading The Computer

Overview

This chapter contains information on upgrading the computer. Follow the steps out­lined to make the desired upgrades. If you have any trouble or problems you can con­tact your service representative for further help. Before you begin you will need:

• A small crosshead or Phillips screwdriver

• A small regular slotted (flathead) screwdriver

• An antistatic wrist strap
Before working with the internal components you will need to wear an antistatic

wrist strap to ground yourself because static electricity may damage the compo­nents.

The chapter includes:

• Upgrading the Hard Disk Drive(s)

• Upgrading the System Memory (RAM)

Please make sure that you review each procedure before you perform it.



Warranty Warning

Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.

6



Note

Note that the disassem­bly pictures are correct
at time of going to press.
However computer de­signs are subject to con­tinual updates and
changes, and some
models may appear
slightly different from
those pictured.

Overview 6 - 1

Upgrading The Computer

When Not to Upgrade



Power Safety

Warning

Before you undertake
any upgrade proce­dures, make sure that
you have turned off the
power, and disconnect-

6

ed all peripherals and
cables (including tele­phone lines).

These procedures involve opening the system’s case, adding and sometimes replac­ing parts.

You should not perform any of these upgrades if:

• Your system is still under warranty or a service contract

• You don’t have all the necessary equipment

• You’re not in the correct environment

• You doubt your abilities

Under any of these conditions, contact your service representative to purchase or re­place the component(s).



Removal Warning

When removing any cover(s) and screw(s) for the purposes of device upgrade, remember
to replace the cover(s) and screw(s) before turning the computer on.

6 - 2 Overview

Upgrading The Computer

Upgrading the Hard Disk Drive(s)

The hard disk drive(s) can be taken out to accommodate other 3.5" serial (SATA)
hard disk drives with a height of 26mm (h) (see “Storage” on page D - 3).

1. Turn the computer off and disconnect all peripherals and cables (including tele­phone lines).

2. Place the computer on a flat stable surface, preferably on a protective covering to
avoid damage to the LCD screen.

3. Locate the hard disk bay cover and remove screw / , depending on which
hard disk you want to replace.

4. Remove the hard disk cover(s) by sliding it(them) in the direction of arrow

1 2

3

.



HDD System

Warning

New HDD’s are blank. Be­fore you begin make sure:
You have backed up any
data you want to keep from
your old HDD.
You have all the CD-ROMs
and FDDs required to in­stall your operating system
and programs.
If you have access to the in­ternet, download the latest
application and hardware
driver updates for the oper­ating system you plan to in­stall. Copy these to a
removable medium.

6

1 2

3

3

Upgrading the Hard Disk Drive(s) 6 - 3

Figure 6 - 1

Hard Disk Bay &

Screws

Upgrading The Computer

5. Remove the ha rd disk cover(s) .

6. Remove the ha rd disk screws - from the hard disk(s) you want to replace.

4

5 8

Figure 6 - 2

HDD Cover

Removal & Screws

6

5

6

4 4

8

7

5

8

7

6

6 - 4 Upgrading the Hard Disk Drive(s)

Upgrading The Computer

7. Carefully disconnect cable(s) from the hard disk(s) you want to replace.

8. Remove the hard disk scr ew s - , and brackets & .

9. Reverse the process to install any new hard disk.

10. If you are configuring the hard disks in AHCI mode or as a RAID system see

“Setting Up SATA RAID or AHCI Modes” on page 7 - 2.

9
10 13 14 15

9

13

12

15

14

10

Figure 6 - 3

HDD Cable(s) &

Bracket Removal

6

11

Upgrading the Hard Disk Drive(s) 6 - 5

Upgrading The Computer

Upgrading the System Memory (RAM)

The computer has two memory sockets for 200 pin Small Outline Dual In-line (SO­DIMM) DDRII (DDR2) 533/667 type memory modules (see “Memory” on page D

- 2 for details of supported module types).

1. Turn the computer off and disconnect all peripherals and cables (including tele­phone lines).

2. Place the computer on a flat stable surface, preferably on a protective covering to
avoid damage to the LCD screen.

6

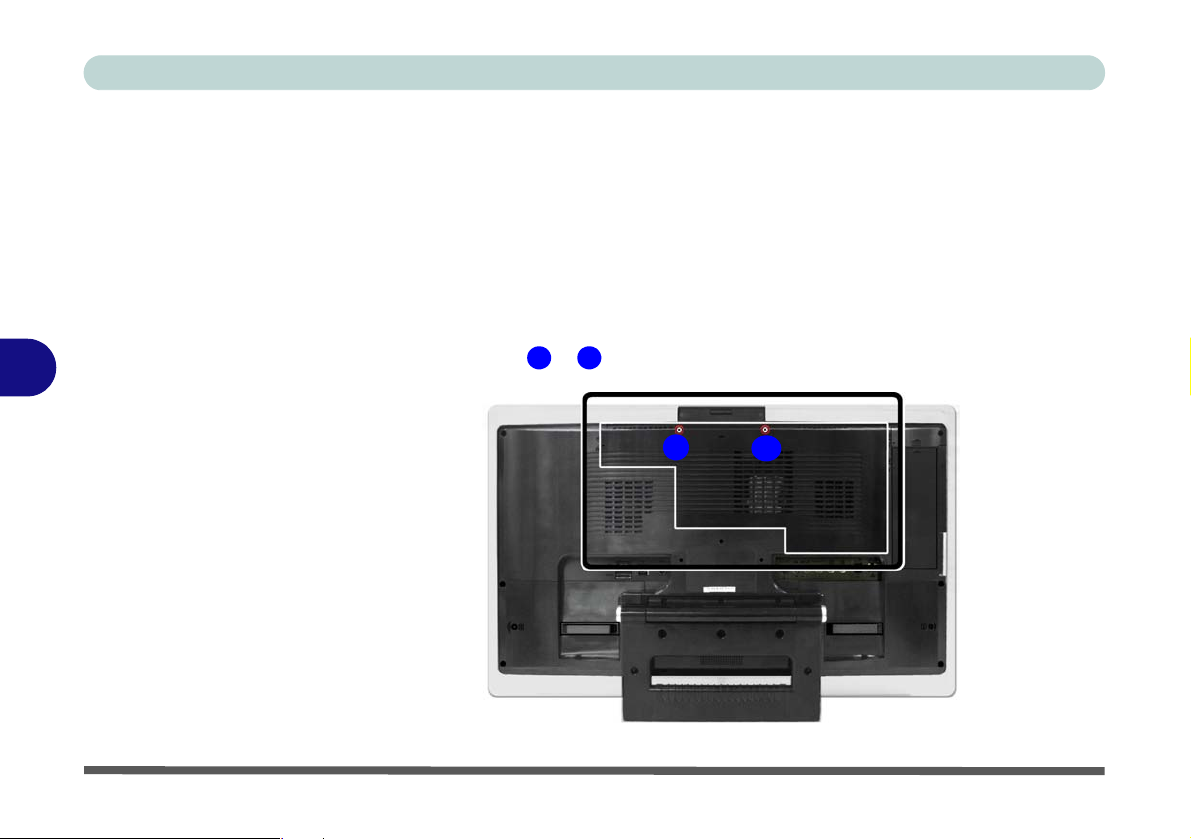

3. Remove screws & .

1 2

Figure 6 - 4

Component Cover

Screws

6 - 6 Upgrading the System Memory (RAM)

1

2

Upgrading The Computer

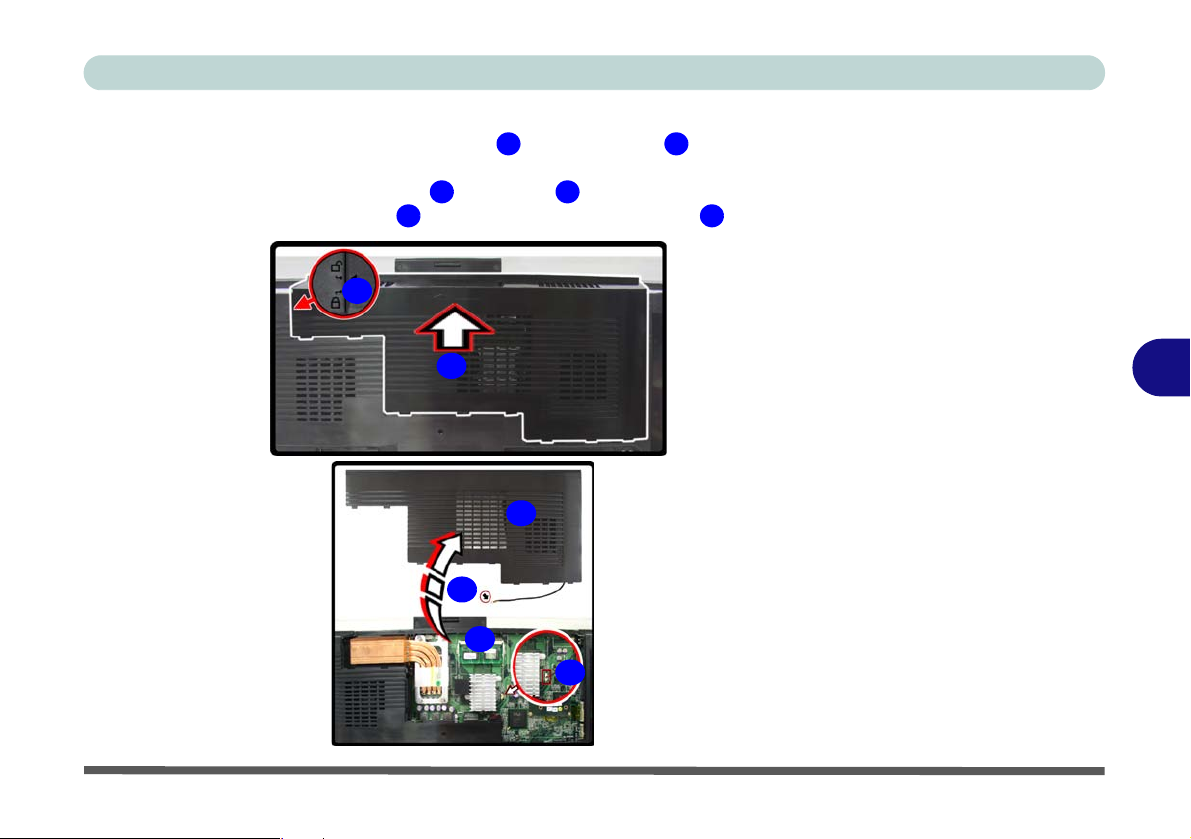

4. Carefully (a fan and cabl e ar e attached to th e un de r side of the cove r) slide th e
component cover in the direction of arrow , until the arrow aligns with the
unlock symbol.

5. Carefully disconnect the fan cable from point on the mainboard.

6. Remove the component cover and locate the memory socket .

5 6

7 8

4

3 4

3

7

5

8

6

Figure 6 - 5

Component Cover

Removal

6

Upgrading the System Memory (RAM) 6 - 7

Upgrading The Computer

7. Gently pull the two release latches on the sides of the memory socket in the
direction indicated by the arrows ( &

9 10

).

Figure 6 - 6

RAM Module

Release

6

9
9

10

10

8. The RAM module will pop-up, and you can remove it.

9. Pull the latches to release the second module if necessary.

10. Insert a new module holding it at about a 30° angle and fit the connectors firmly
into the memory slot.

11. The module’s pin alignment will allow it to only fit one way. Make sure the module
is seated as far into the slot as it will go. DO NOT FORCE the module; it should fit
without much pressure.

12. Press the module in and down towards the mainboard until the slot levers click into
place to secure the module.

11

6 - 8 Upgrading the System Memory (RAM)

Upgrading The Computer

13. Replace the component cover (don’t forget to reconnect the fan cable) and the
screws.

14. Restart the computer to allow the BIOS to register the new memory configuration
as it starts up.

11 11



Contact Warning

Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.

Figure 6 - 7

RAM Module

Removal

6

Upgrading the System Memory (RAM) 6 - 9

Upgrading The Computer

Upgrading the Processor



Warranty

The CPU is not a user
serviceable part. Open­ing this compartment, or
accessing the CPU in
any way, may violate
your warranty.

6

Unauthorized tampering
with the HDD may also
violate your warranty.

If you want to upgrade your computer by replacing the existing processor with a fast­er/new one you will need to contact your customer service representative. We rec­ommend that you do not do this yourself, since if it is done incorrectly you may
damage the processor or mainboard.

6 - 10 Upgrading the Processor

Chapter 7: Modules

Overview

This chapter contains the information on the various modules (some of which are
optional) which may come with your computer, depending on the configuration
purchased. If you are unsure please contact your service representative.

The chapter includes information on the following:

• Setting Up SATA RAID or AHCI Modes

• Wireless LAN Modules

• Bluetooth Module

• Remote Control Unit & Hybrid Mini-PCI TV Tuner Module

• PC Camera Module

• Wireless Keyboard & Mouse Kit

Modules

7

Overview 7 - 1

Modules

Table 7 - 1

RAID Levels

Setting Up SATA RAID or AHCI Modes

RAID

If your purchase includes the RAID (Redundant Array of Independen t Disks) option,
the following pages provide an introduction to configuring your hard disks in RAID
mode. A RAID requires two hard disks, and you may use your hard disks in combi­nation with Striping (RAID 0) or Mirroring (RAID 1) for either fault tolerance or
performance.

RAID Level Description

7

RAID 0

RAID 1

AHCI Mode

Advanced Host Controller Interface (AHCI) is an interface specification that allows
the storage driver to enable advanced Serial ATA features such as Native Command
Queuing (for maximum hard disk efficiency and performance). AHCI mode can be
supported by one or two hard disks.

7 - 2 Setting Up SATA RAID or AHCI Modes

Identical drives reading and writing data in parallel to increase performance. RAID 0
implements a striped disk array and the data is broken into blocks and each block is
written to a separate disk drive.

Identical drives in a mirrored configuration used to protect data. Should a drive that is
part of a mirrored array fail, the mirrored drive (which contains identical data) will
handle all the data. When a new replacement drive is installed, data to the new drive is
rebuilt from the mirrored drive to restore fault tolerance.

Prepare the following before setting up your Serial ATA hard disks in RAID or
AHCI mode:

1. The Microsoft Windows Vista OS CD.

2. The second hard disk (required for RAID but not required for AHCI) installed in
the optional device drive bay (see page 6 - 3).

SATA RAID or AHCI Setup Procedure (BIOS)

3. Start-up your computer and press <F2> to enter the BIOS.

4. Go to the Advanced menu.

• For RAID Mode: - Set "SATA RAID Enable" (“SATA RAID Enable:

(Advanced Menu)” on page 5 - 9) to "Enabled".

OR

• For AHCI Mode: - Set "SATA AHCI Enable" (“SATA AHCI Enable:

(Advanced Menu)” on page 5 - 9) to "Enabled".

5. Press Esc and go to the Boot menu.

6. Set the external CD/DVD-ROM Drive (mak e sure the Microsoft Windows OS
CD is inserted) as the first device in the boot order from the Boot menu.

7. Attach the external USB floppy disk drive to one of the computer’s USB ports.

8. Select Exit Saving Changes from the Exit menu (or press F10 and Enter) and
press Enter to exit the BIOS and reboot the computer.

Modules

7

Setting Up SATA RAID or AHCI Modes 7 - 3

Modules

For RAID Only (for AHCI Mode go to “Intel Matrix” on page 7 - 6)



Array Types

A Mirrored Array
(RAID 1) provides full
data protection, as
data can simply be
copied from a healthy
disk to a replacement
for any failed disk.

A Striped Array

7

(RAID 0) is NOT fault­tolerant. The failure of
one drive will result in
the loss of all data in
the array. It is de­signed to increase disk
performance by
spreading the I/O load
across the channels
and drives.

Figure 7 - 1

Intel(R) Matrix

Storage Manager

1. Press Ctrl + i to enter RAID configuration menu.

Intel(R) Matrix Storage Manager option ROM v6.0.0.1022 ICH8R wRAID5
Copyright (C) 2003-06 Intel Corporation. All Rights Reserved.

RAID Volumes:

None Defined

Physical Disks:
Port Drive Model Serial # Size Type/Status(Vol ID)

1 HDT722516DLA380 VDK71
4 ST380811AS 5PS196TS 74.5GB Non-RAID Disk

[]-Select [ESC]-Exit [ENTER]-Select Menu

[ MAIN MENU ]

1. Create RAID Volume

2. Delete RAID Volume

3. Reset Disks to Non-RAID

4. Exit

[ DISK/VOLUME INFORMATION ]

GTE17AH6K 153.4GB Non-RAID Disk

2. Select 1.Create RAID Volume and press Enter.

3. Specify the RAID volume name and then press Tab or Enter to advance to the
next field.

4. Specify the RAID level (RAID 0 or RAID 1 - see Table 7 - 1, on page 7 - 2 and
sidebar) and then press Tab or Enter to advance to the next field.

5. Press Enter and the system will select the physical disks to use.

6. Press Enter and select (if applicable) the Strip Size (best set to default).

7. Press Enter and select the Capacity size (best set to default).

8. Press Enter to Create Volume.

7 - 4 Setting Up SATA RAID or AHCI Modes

9. Confirm the selection by pressing Y.

10. This will now return to the main menu.

Intel(R) Matrix Storage Manager option ROM v6.0.0.1022 ICH8R wRAID5
Copyright (C) 2003-06 Intel Corporation. All Rights Reserved.

RAID Volumes:
ID Name Level Strip Size Status Bootable

1 My RAID RAID0(Stripe) 128KB 149.1GB Normal Yes

Physical Disks:
Port Drive Model Serial # Size Type/Status(Vol ID)

1 HDT722516DLA380 VDK71GTE17AH6K 153.4GB Member Disk(0)
4 ST38081

1AS 5PS196TS 74.5GB Member Disk(0)

[]-Select [ESC]-Exit [ENTER]-Select Menu

[ MAIN MENU ]

1. Create RAID Volume

2. Delete RAID Volume

3. Reset Disks to Non-RAID

4. Exit

[ DISK/VOLUME INFORMATION ]

11. Select 4.Exit and press Enter, then press Y to exit the RAID configuration menu.

12. As the computer starts up, press a key when you see the message "Press any
key to boot from CD".

13. Press Enter to continue installing the operating system as normal (see your
Windows documentation if you need help on installing the Windows OS).

14. Install the Windows drivers as per Table 4 - 1, on page 4 - 3, including the Intel
Matrix Driver (see overleaf)

Modules

Figure 7 - 2

RAID Created

7

Setting Up SATA RAID or AHCI Modes 7 - 5

Modules

Intel Matrix

1. Insert the Device Drivers & Utilities + User’s Manual CD-ROM (Win
Vista) into the CD/DVD drive.

2. Click Optional.

3. Click 1.Install Intel Matrix > Yes.

4. Click Next > Next > Yes > Next.

5. Click Finish to restart the computer

6. The Intel Matrix Storage Console displays status information on your
RAID configuration.

7. Run Intel Matrix Storage Console from the Programs/All Programs menu.

8. The

7

Intel(R) Matrix Storage Manager

status.

provides information on the RAID

Figure 7 - 3

Intel(R) Matrix

Storage Console

7 - 6 Setting Up SATA RAID or AHCI Modes

Wireless LAN Modules

If you have included either an Intel PRO/Wireless 3945ABG (802.11a/b/g) PCIe
WLAN module, or 802.11b/g USB WLAN module, in your purchase option the
LED will be green. Install the driver as indicated below.

WLAN Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual CD-ROM (Win
Vista) into the CD/DVD drive.

2. Click Optional.

3. Click 2.Wireless Lan > Yes.

4. Click Finish to complete the installation.

5. The operating system is the default setting for Wireless LAN control in
Windows Vista (see overleaf).

Modules

7

Wireless LAN Modules 7 - 7

Modules

Figure 7 - 4

Taskbar Menus

Connecting to a Wireless Network

1. Click the taskbar wireless icon , and then click Connect to a network (or right­click the icon , and then click Connect to a network).

Click icon

Right-click icon



Network and

7

Sharing Center

You can also use the

Network and Sharing
Center control panel in
Windows (Network and
Internet) to connect to

any available wireless
networks.

Figure 7 - 5

Connect to a

Network

7 - 8 Wireless LAN Modules

2. In the Show list, click to choose Wireless from the drop-down menu.

3. A list of currently available networks will appear.

4. Click a network, and then click Connect.

5. If you do not see a network you want to connect to, click Set up a connection or
network (a list of options will appear allowing manual searching, and creating a
new network).

6. Move the cursor over the taskbar icon to see the connection status (see below).

Modules

Figure 7 - 6

Connecting

7

Figure 7 - 7

Connection Status

Wireless LAN Modules 7 - 9

Modules

7. To disconnect from the wireless network you can click the taskbar wireless icon



, and then select Connect or disconnect to access the network menu, and

click Disconnect (or right-click the icon , and then click Disconnect from).

Security Enabled

Networks

You should try to make
sure that any network you
are connecting to is a se­cure network.

Connecting to unsecure net­works may allow unautho­rized access to your

7

computer, documents, web­sites and files etc.

Click icon

Figure 7 - 8

Disconnecting

7 - 10 Wireless LAN Modules

Right-click icon

Bluetooth Module

If you have included a Bluetooth module in your purchase option the LED will
be orange.

Bluetooth Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual CD-ROM (Win
Vista) into the CD/DVD drive.

2. Click Optional.

3. Click 3.Install Bluetooth Driver > Yes.

4. Choose the language you prefer, and click OK.

5. Click Next.

6. Click the button to accept the license agreement, and then click Next.

7. Click Next > Install.

8. Click Finish, and the BlueSoleil icon will appear on the desktop.

9. You can configure the settings at any time by going to the IVT Corpora-

tion BlueSoleil - Main Window (Start > Programs/All Programs > IVT
BlueSoleil > BlueSoleil), or by clicking the desktop icon .

Modules

7

Bluetooth Module 7 - 11

Modules



User Guides & Help

View the BlueSoleil
User Guides from the

Help Menu (or press the
F1 key) in the IVT Cor­poration BlueSoleil ­Main Window control

panel.

7

Click the Help menu
and select Contents
and Index.

Look through Getting
Started or select the ap­propriate User Guide
from the Contents
menu.

Figure 7 - 9

BlueSoleil Main

Window & Help

7 - 12 Bluetooth Module
