EUPA VXZ User Manual

Download

Page 1

VXZ

Socket 370 Motherboard

USER’S MANUAL

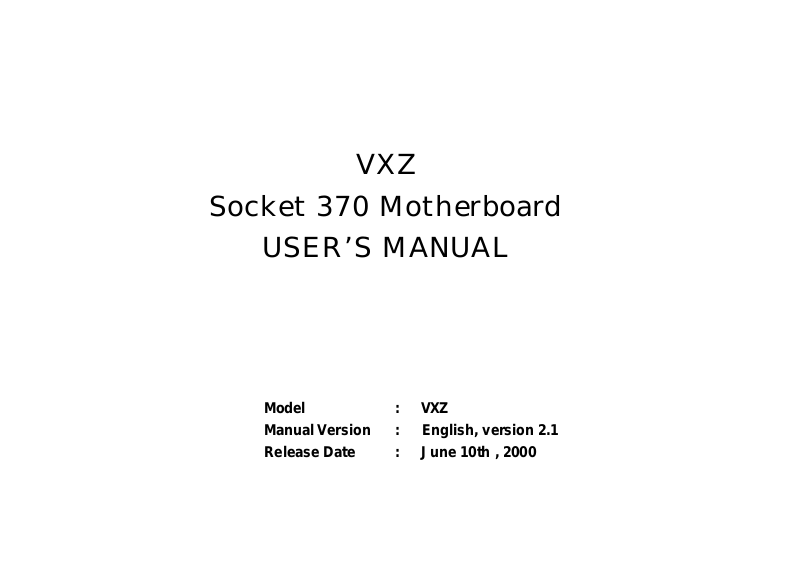

Model : VXZ Manual Version : English, version 2.1 Release Date : June 10th , 2000

Page 2

FCC & DOC Compliance

No part of this publication may be reproduced, transmitted, transcribed,

stored in a retrieval system or translated into any language in any form or by

any means, electronic, mechanical, magnetic, optical, manual or otherwise,

without the prior written consent of the copyright holders.

User’s Notice

The contents of this publication are subject to change. This company

reserves the right to alter the contents of this publication at any time and

without notice.The contents of this publication may contain inaccuracies or

typographical errors and is supplied for informational use only.

Intel and Pentium are registered trademarks of Intel Corporation.

OS/2 and IBM are registered trademarks of Intemational Business Machines.

Windows and MS-DOS are registered trademarks of Microsoft Corporation.

AWARD is a registered trademark of Award Software Inc.

Federal communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two

conditions:

! This device may not cause harmful interference. ! This device must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generatesm uses and can radiate radio frequency energy and, if not

installed and used in accordance with the manufacturers instructions, may cause harmful

interference to radio communication. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, whichcan be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following

measures:

! Re-orient or relocate the receiving antenna. ! Increase the separation between the equipment and the receiver.

! Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

! Consult the dealer or an experienced radio/TV technician for help.

Other brand, corporate, and product names may or may not be registered

trademarks or copyright of their respective companies.

Warning

The use of shielded cables for the connection of the monitor to the graphics card is required

to assure compliance with FCC regulations changes or modifications to this authority to

operate this equipment.

Page 3

Contents

Chapter 1 Overview

General Description...........................................................1-1

Check Your Items............................................................. 1-1

VXZ Specifications............................................................1-2

Motherboard Layout...........................................................1-3

Chapter 2 Hardware Installation

Set Jumpers.......................................................................2-2

Clear CMOS.....................................................................2-3

Install CPU.......................................................................2-4

CPU Setting......................................................................2-5

CPU Type Selection................................................................ 2-5

CPU Ratio.......................................................................................2-6

CPU Clock Frequency...................................................................2-7

System Memory Installation................................................2-8

Install DIMM..................................................................................2-9

Removing a Memory Module......................................................2-9

Install Expansion Cards.......................................................2-10

Connector Devices..............................................................2-11

Panel Connector...............................................................................2-11

Power Connector..............................................................................2-11

PS/2 Mouse & Keyboard Connectors..........................................2-12

Fan Connector..................................................................................2-12

USB device Connector....................................................................2-13

Serial Device (com1, com2), VGA & Printer Connectors...........2-13

Floppy drive Connector..................................................................2-14

IrDA Connector................................................................................2-14

Chapter 3 CMOS Setup Utility

CMOS Setup Main Menu.................................................3-1

Standard CMOS Setup.....................................................3-3

Advanced BIOS Features.................................................3-6

Advanced Chipset Features..............................................3-9

Integrated Peripherals.......................................................3-14

Power Management..........................................................3-17

PnP / PCI Configurations...................................................3-23

PC Health Status............................................................... 3-24

Load Fail-Safe Defaults........................................................3-26

Load Optimized Defaults.......................................................3-26

Set Supervisor / User Password.............................................3-27

Save & Exit Setup..................................................................3-28

Exit Without Saving.................................................................3-28

Chapter 4 Software Utility

AGP Driver Program............................................................4-1

IDE Driver Program..............................................................4-1

Chipset Register Driver Program............................................4-1

Audio Codec Driver Program.................................................4-1

VIA USB Driver Program......................................................4-1

IDE Hard Disk Connector................................................................2-15

AMR Connector.......................................................................................2-15

LAN & MODEM Wake Up Connectors...................................2-16

Game/Audio & CD_IN Connectors................................................2-16

Page 4

Chapter 1

Form Factor • M icro ATX form factor Board Size • 24.4cm x 19.3cm

CPU

• Supports Socket 370 Celeron (PPGA),Coppermine (FC-PGA) and

• Supports CPU Clock Frequency: 66/100/103/112/124/133/140/150MHz

System Memory

• DIMM 168-pin x 3 SDRAM maximum1.5G

• Supports 64M-bit SDRAM technology

Chipset

• VIA Chipset including:

- VIA VT82C694X (North bridge)

- VIA VT82C686A (South bridge)

Expansion Slots

• 1 x AGP Slot

• 2 x PCI Slots (all of them can be PCI master)

• 1 x AMR Slot

Seri al Port • Two serial ports UART 16550 compatible

Para llel Port

• One parallel port supports:

- SPP-standard parallel port

- EPP-enhanced parallel port

- ECP-extended capabilities port

Floppy Interface

• Support drivers inches / format with

- 3.5 inches-720KB/1.44MB/2.88MB

- 5.25 inches-360KB/1.2MB

IDE In terfa ce

• The VT82C686A includes dual channel master mode PCI support 4 IDE devices.

• Support PIO M ode 4, ULTRA DMA /33 & ULTRA DMA/66

USB Port

• Four USB ports supported

• Support USB Legacy Keyboard function

PS/2 Mouse

• PS/2 mouse supported by connector onboard

PS/2 keyboard • PS/2 keyboard supported by connector onboard

Sound Function

• On-board AC'97 System

• V IA 1611A Audio Codec

Fuse • Supports Recoverable fuse for USB, KB & M OUSE

RTC and Battery

• Built in S outh Bridge

• Lithium (CR-2032) battery

Power C onnector • AT X

Wake up Function

• Modem ring wake up

• LAN wake up

• RTC Alarm wake up

Hardware Monitor

• System fan speed monitor

• Voltage monitoring

• Temperature monitoring

BIOS

• Award BIOS

• Supports Suspend To RAM(optional)

• Supports AP M, DMI and A CPI

• Supports virus warning

• Supports Flash / U pgrade BIOS functions

LED Indicator

• Sy stem P ower LE D

• HDD activity LED

Overview

General DescriptionGeneral Description

General Description

General DescriptionGeneral Description

VXZ Specifications:VXZ Specifications:

VXZ Specifications:

VXZ Specifications:VXZ Specifications:

Overview

VIA Cyrix III serial CPUs.

Thanks for purchasing VXZ Socket 370 motherboard.VXZ is based on VIA chipset (North

Bridge VT82C694X & South Bridge VT82C686A). Its new features include that it support

AGP 2x/4x, super I/O, and voltage, temperature, and fan speed hardware monitoring, and there

are four USB connectors on board as well. It includes all of the required specifications like

Ultra DMA 66 interface, meanwhile it supports PC 133 system memory. VXZ provides you

perfect function to be the same with your system operation and end user. This users manual

contains all the information and features that show you how to use the VXZ motherboard.

Please take a moment to familiarize yourself with the design and organization of this manual.

Check Your Items

This VXZ motherboard package contains the following items. Please inspect the package

conents and confirm that everything is there. If anything is missing or damaged, call your

vendor for instructions before operating.

The Package includes:

One VXZ motherboard

" " One Floppy Interface Cable " One IDE Interface Cable " One Motherboard Resource CD " One User’s Manual

1-1 1-2

Page 5

Overview

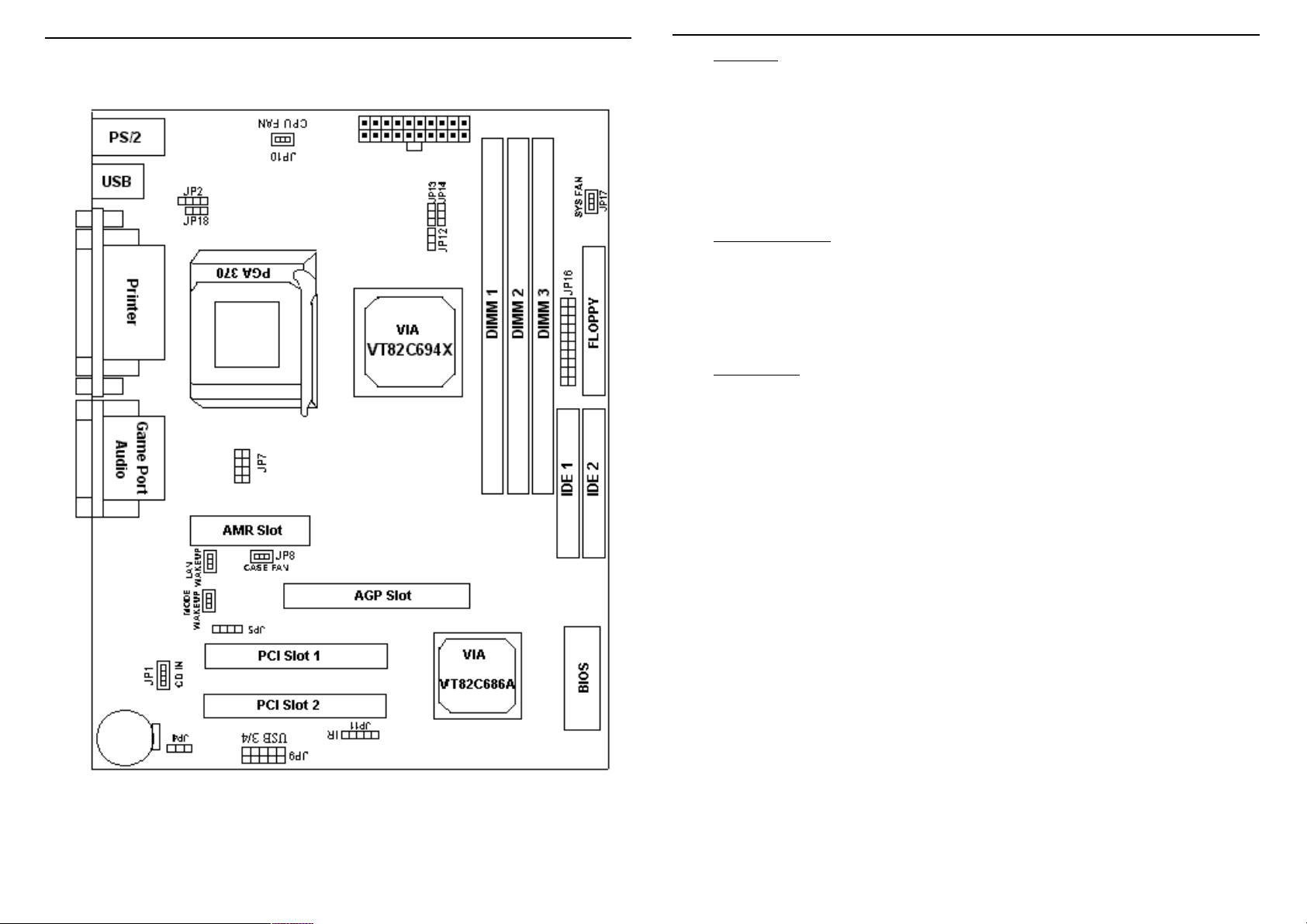

Motherboard Layout:Motherboard Layout:

Motherboard Layout:

Motherboard Layout:Motherboard Layout:

Jumpers

1. JP4 Clear CMOS

2. JP7 Ratio selection for CPU

3. JP2, JP18 Select CPU’s type

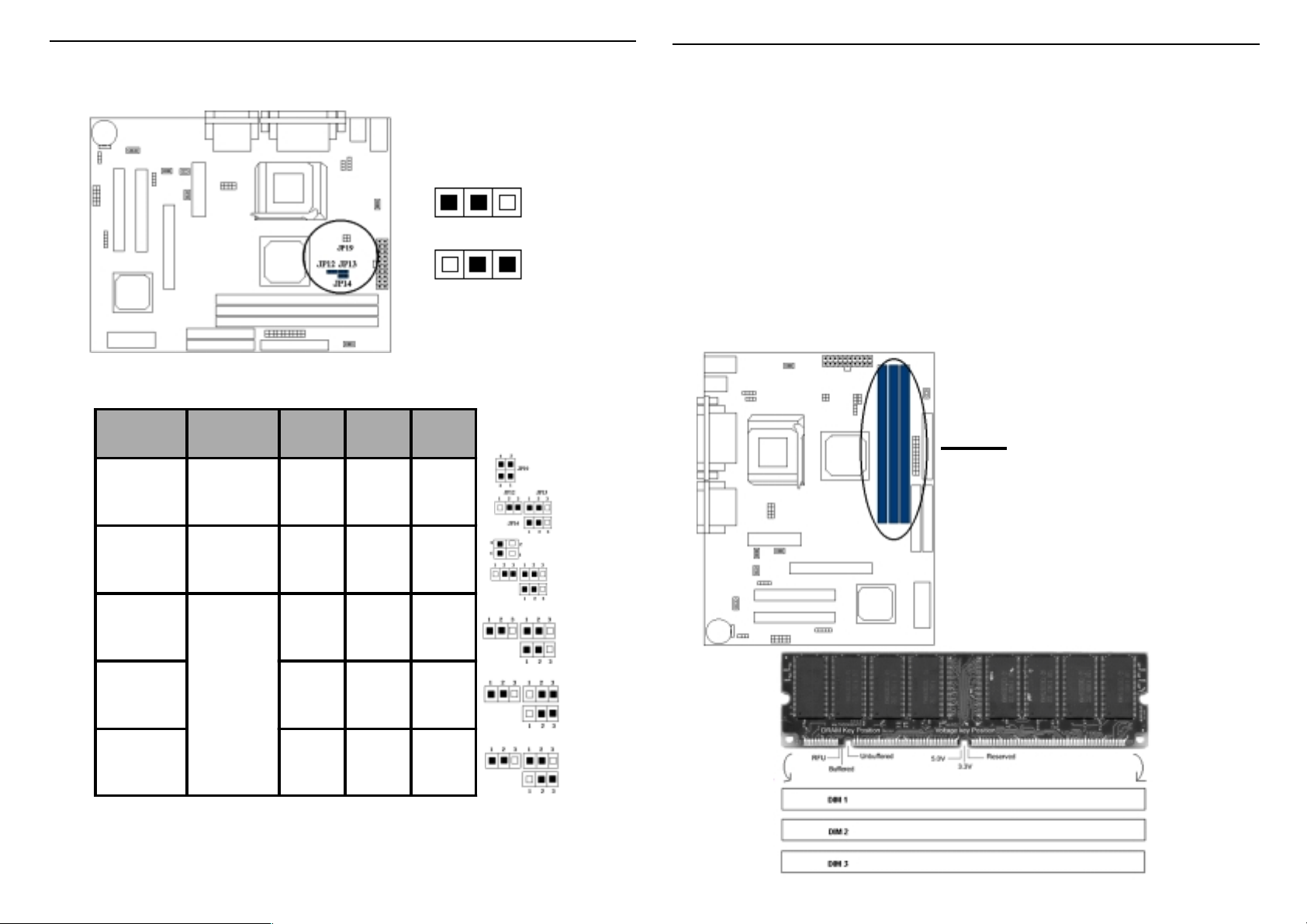

4. JP12, JP13, JP14, JP19 CPU Clock Frequency

5. J P 5 AMR jumper setting

6. JP9 USB Connector 3/4

Expansion Slots

1. AGP AGP Expansion slot

2. PCI slot1 to slot2 32-bit PCI Bus Expansion slot

3. AMR AMR Expansion Slot for AC’97 and MC’97

4. DIMM 1 to DIMM 3 Support 168-pin DIMM Memory

Connectors

1. IDE 1 Primary IDE Connector

2. IDE 2 Secondary IDE Connector

3. Floppy Floppy Drive Connector

4. IrDA (JP11) Infrared Ray Port Connector

5. SYS Fan (JP17) System Fan Connector

6. CPU Fan (JP10) CPU Fan Connector

7. Chassis Fan (JP8) Chassis Fan Connector

8. W ake on LAN LAN Wake Up Connector

9. Wake on MODEM MODEM Wake Up Connector

10. ATX Power ATX Power Connector

11. COM1/COM2 Serial Port1/Serial Port2 Connector

12. CD_IN (JP1) Audio CD-IN Connector

13. Audio/Game Port Audio / Game Port Connector

14. Printer Printer (Parallel) Port Connector

15. USB Universal Serial Bus Port1 and Port2

16. PS/2 connectors PS/2 Mouse & PS/2 Keyboard Connectors

17. Panel

-PowerOn ATX Power on / off switch (2-pin)

-Reset Reset Switch Connector (2-pin)

-HDD LED HDD LED Connector (2-pin)

-Power LED ATX Power LED Connector (3-pin)

-Speaker Chassis Speaker Connector (4-pin)

-KBLCK Keyboard Lock Switch Connector(2-pin)

1-3 1-4

Page 6

Hardware Installation

Chapter 2 Hardware Installation

This chapter gives you a step-by-step procedure on how to install your system and set

jumper. The motherboard has several user-adjustable jumpers on the board that allow

you to configure your system to suit your requirements.

Cautions: Protecting Against Electrostatic Discharge

Hardware Installation

Set Jumpers:Set Jumpers:

Set Jumpers:

Set Jumpers:Set Jumpers:

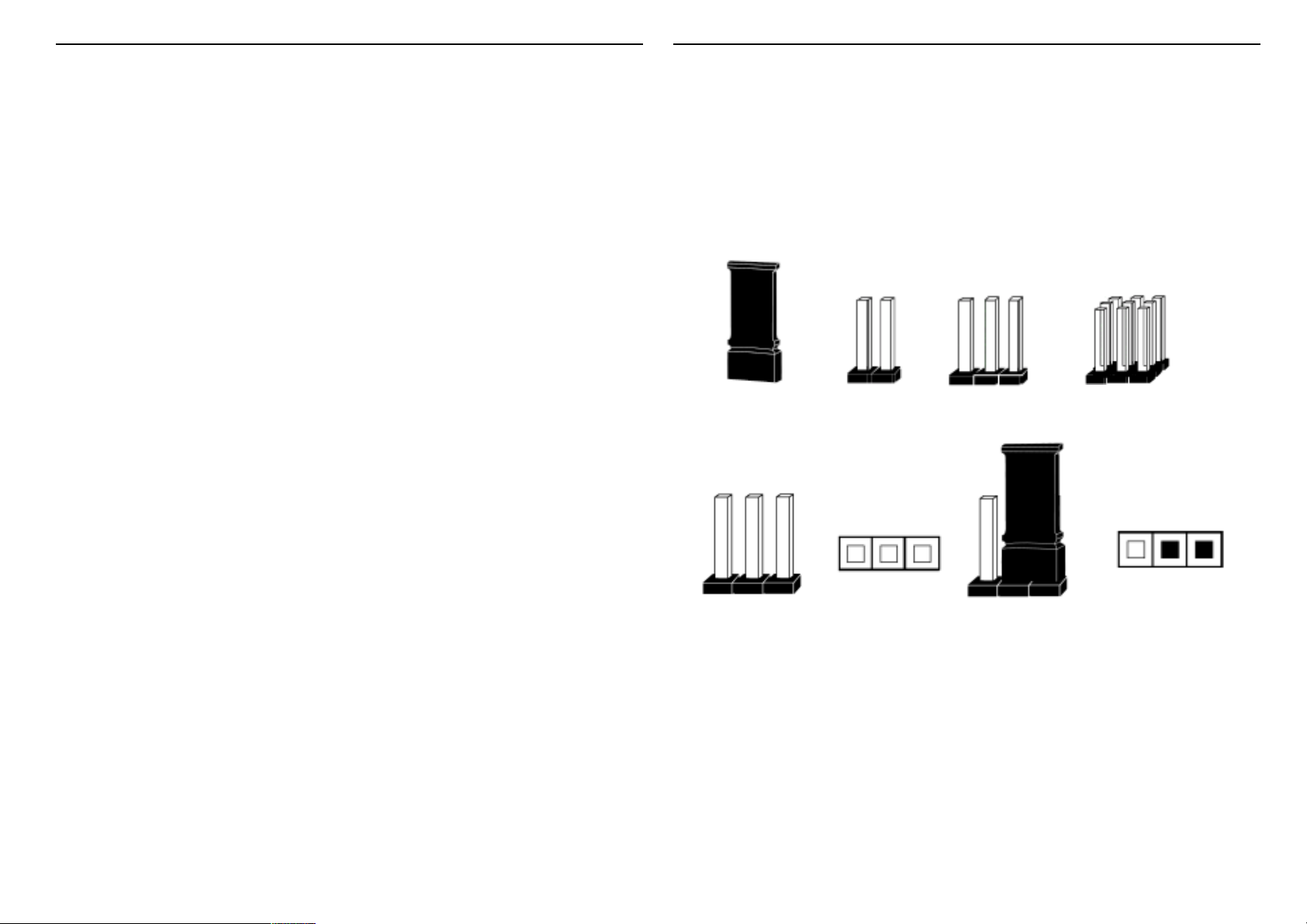

Jumpers are used to select the operation modes for your system. Some jumpers on the

board have three metal pins with each pin representing a different function.A 1 is

written besides pin 1 on jumpers with three pins. To set a jumper, a black cap containing

metal contacts is placed over the jumper pin/s according to the required configuration. A

jumper is said to be shorted when the black cap has been placed on one or two of its

pins. The types of jumpers used in this manual are shown below:

Static electricity can harm delicate components inside your system. To prevent static

damage, discharge static electricity from your body before you touch any of your

motherboard electronic components,such as the microprocessor.Observe the following

precautions:

- Do not removes the motherboard from its anti-static packaging until you are

ready to install it into a computer case.

- Before you handle the motherboard in any way, touch a grounded, antistatic

surface, such as an unpainted portion of the system chassis, for a few seconds

to discharge any built-up static electricity.

- Handle add-in cards and modules by the edges or mounting bracket.

Jumper Cap

2-pin Jumper

Open Short

3-pin Jumper

Jumper Block

Note:

Users are not encouraged to change the jumper settings not listed in this manual. Chang-

ing the jumper settings improperly may adversely affect system performance.

2-1 2-2

Page 7

Hardware Installation

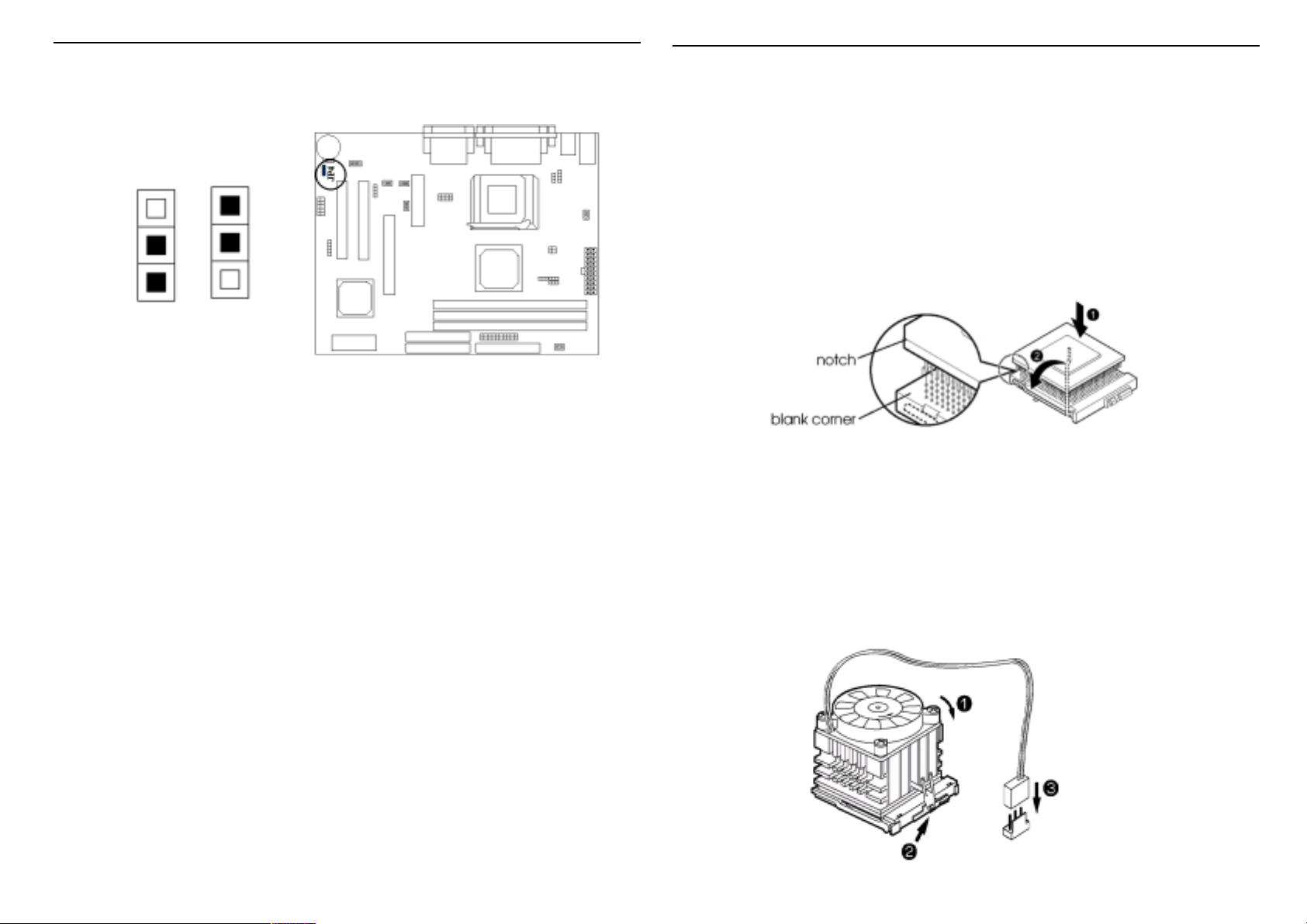

Clear CMOS: Clear CMOS:

Clear CMOS:

Clear CMOS: Clear CMOS:

JP4 CMOS

Clear CMOS

To Clear CMOS, please follow the steps below:

1. Power off the system and unplug the chassis AC power cord.

2. Short JP4 at pin 2-3 for few seconds.

3. Set JP4 back to its Normal position at pin1-2

4. Plug the AC power cord to the chassis.

JP4

Default (Normal)

Install CPUInstall CPU

Install CPU

Install CPUInstall CPU

The CPU module resides in the socket 370 on the motherboard.Please following the

steps introduced below to complete the CPU installation.

1) Locate the new processor you are installing over the socket so that the notched

corner on the processor (pin 1) can be aligned with the blank corner on the socket.

Then gently push the processor straight into the socket until its pins are completely

inserted into the holes of the socket.

Caution:

If you install the processor chip in the wrong orientation, you may burn the chip and void your warranty . So you should install it careful deeply.

5. Power on the system and load the BIOS set up default.

2-3 2-4

2) Press the ZIF handle back to close it.

3) Attach the heat sink to the processor socket and then connect a fan connector

cable from the CPU fan to the CPU fan connector.

Page 8

Hardware Installation

CPU SettingCPU Setting

CPU Setting

CPU SettingCPU Setting

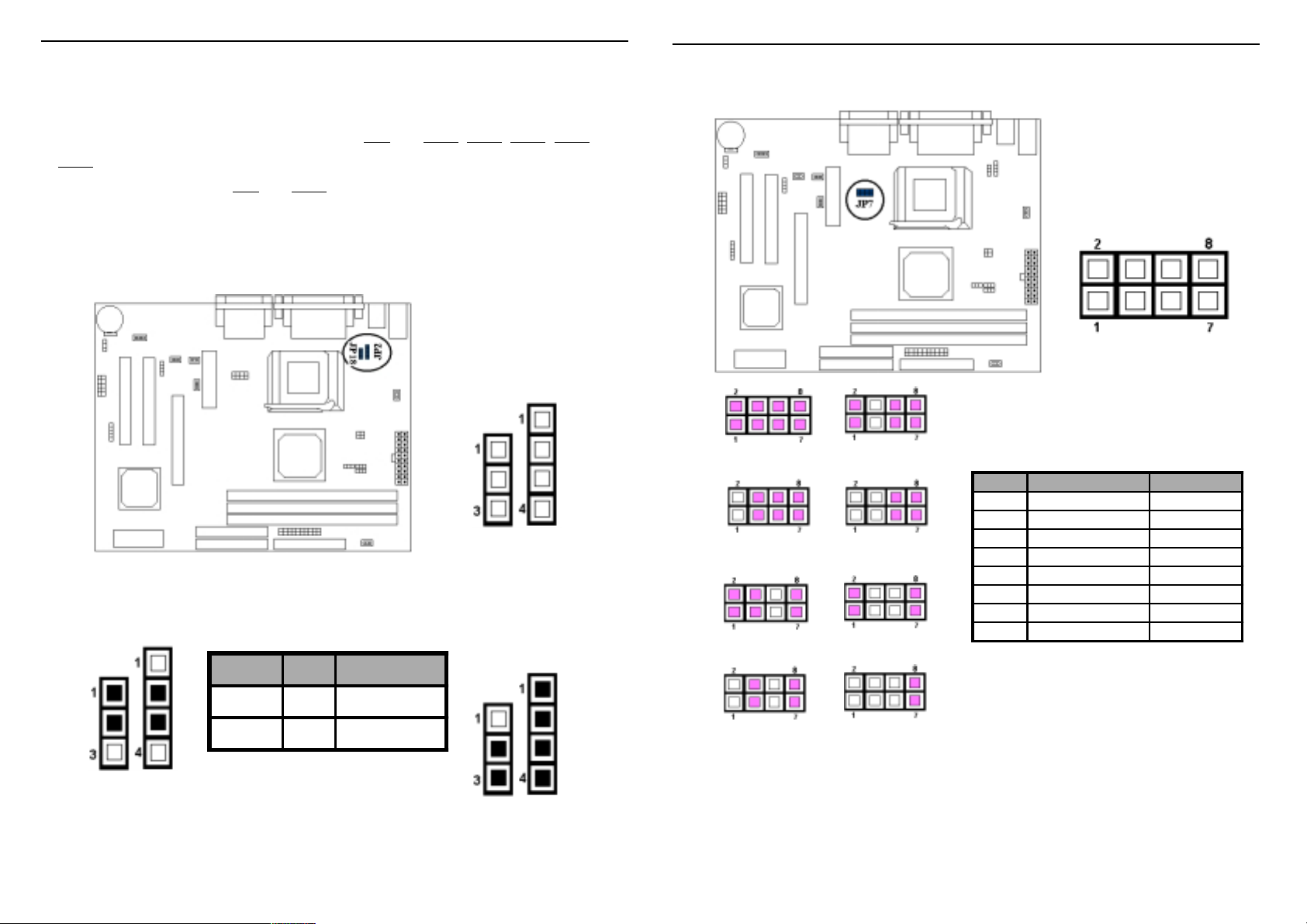

After installing the CPU, you must set the clock selection jumpers to match the fre-

quency of the CPU. Find the jumpers labeled

JP7 and JP12, JP13, JP14, JP19,

JP20, set these jumpers according to the figure below and table for CPU Clock Ratio

& Clock Frequency. Also

JP2 and JP18 are used for CPU Type setting. We recom-

mend them to users.

1. CPU Type Selection: JP2, JP18

JP2, JP18

CPU Type Selection

JP2

JP18

Intel

JP18

JP2

JP2 JP18 CPU TYPE

VIA Cyrix III

--Joshua

JP2

JP18

2-3 1-2 Intel

2. CPU Ratio: JP7

Item 1

Item 3

Item 5

Item 2

Item 4

Item 6

JP7

Clock Ratio

Item Core Fr eq./BUS Freq. JP7 Clock Ratio

Item 1 2 1-2 3-4 5-6 7-8 Item 2 3 1-2 5-6 7-8 Item 3 4 3-4 5-6 7-8 Item 4 5 5-6 7-8 Item 5 2.5 1-2 3-4 7-8 Item 6 3.5 1 -2 7-8 Item 7 4.5 3 -4 7-8 Item 8 5.5 7-8

1-2, 3-4 2-3 Joshua

Item 7

Note:Note:

Note:

Note:Note:

Item 8

JP7 Ratio setting is useless for the locked-CPU.

2-5 2-6

Page 9

Hardware Installation

3. CPU

CPU(MHz) JP19 JP12 JP13 JP14

âµèÃâµèÃ

âµèÃ

âµèÃâµèÃ

66 1-2, 3-4 2-3 1-2 1-2

ºº

ºJP12, JP13, JP14, JP19

ºº

3-Pin Jumper

1 2 3

Pin1-2

Pin2-3

System Memory InstallationSystem Memory Installation

System Memory Installation

System Memory InstallationSystem Memory Installation

There are 3 pieces 168-pin DIMM (Dual Inline Memory Module) sockets on the

motherboard which support SDRAM and EDO DRAM memory.

♦ To ensure reliability, it is recommended to use PC 100 SDRAM or PC 133 SDRAM

for your high clock SDRAM performance requirement.

♦ If you are using low clock SDRAMs, you should set the SDRAM clock option of

the BIOSs Chipset Feature Setup to HCLK-33 to ensure stability.

♦ DIMM Sizes supported: 8MB, 16MB, 32MB, 64MB, 128MB, 256MB. ♦ Total Memory Size = DIMM1 + DIMM2 + DIMM3, maximum up to 768MB.

There are 3x168-pin DIMM slots (DIMM1, DIMM2, DIMM3) that allow you to install the system memory max up to 768MB SDRAM.

100 3-4 2-3 1-2 1-2

133

140 1-2 2-3 2-3

150 1-2 1-2 2-3

OPEN

1-2 1-2 1-2

2-7 2-8

Page 10

Hardware Installation

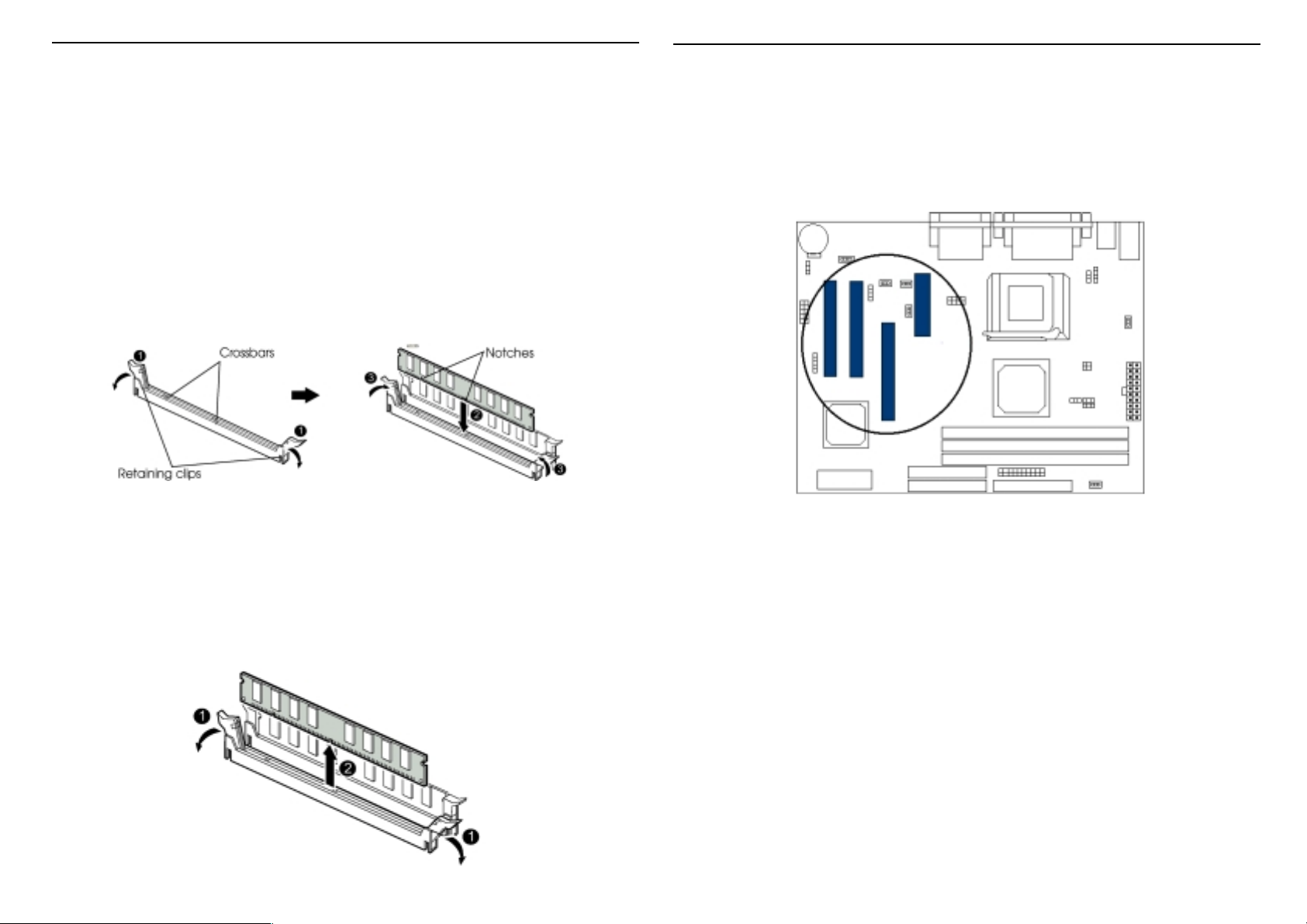

1. Install DIMM

1) After remove the cover, install the DIMM in the sockets marked with DIMM2,

if the DIMM has been installed in the DIMM1 socket. Release the plastic

retaining clips at each end of the socket by pressing the clips outward until they

snap open.

2) Orient a DIMM to the socket so the two notches in the DIMM connector are

aligned with the crossbars in the socket.

3) Press the DIMM straight into the socket until the retaining clips snap into place

around the ends of the DIMM.

Install Expansion CardsInstall Expansion Cards

Install Expansion Cards

Install Expansion CardsInstall Expansion Cards

This section describes how to connect an expansion card to one of your systems expan-

sion slots. Expansion cards are printed circuit boards that, when connected to the

mainboard, increase the capabilities of your system.VXZ features two PCI bus, one AGP

bus and one AMR bus expansion slots.

2 Removing a Memory Module

To remove memory modules, press the retaining clips outward simultaneously

until the DIMM disengages from the socket and then carefully remove the

DIMM from the socket.

2-9 2-10

Caution:

Adjust any switches or jumpers on the expansion card, if necessary. When you handle

the card, be careful not to touch any components on the circuit board or the gold-edged

connector.

1) After removing the cover, insert a flat blade screwdriver into a hole of the slot

cover you wish to remove.

2) Move the screwdriver up and down until the slot cover breaks away from the

chassis. Then lift the slot cover out of the chassis.

3) Hold the card along the top corners and guide it into the slot. When the expansion

card reaches the slot on the motherboard, push the card in firmly to insert it fully.

4) Secure the end of the card to the computer with retaining screw.

5) Connect any cables that should be attached to the card, and replace the system

cover.

Page 11

Hardware Installation

Connector DevicesConnector Devices

Connector Devices

Connector DevicesConnector Devices

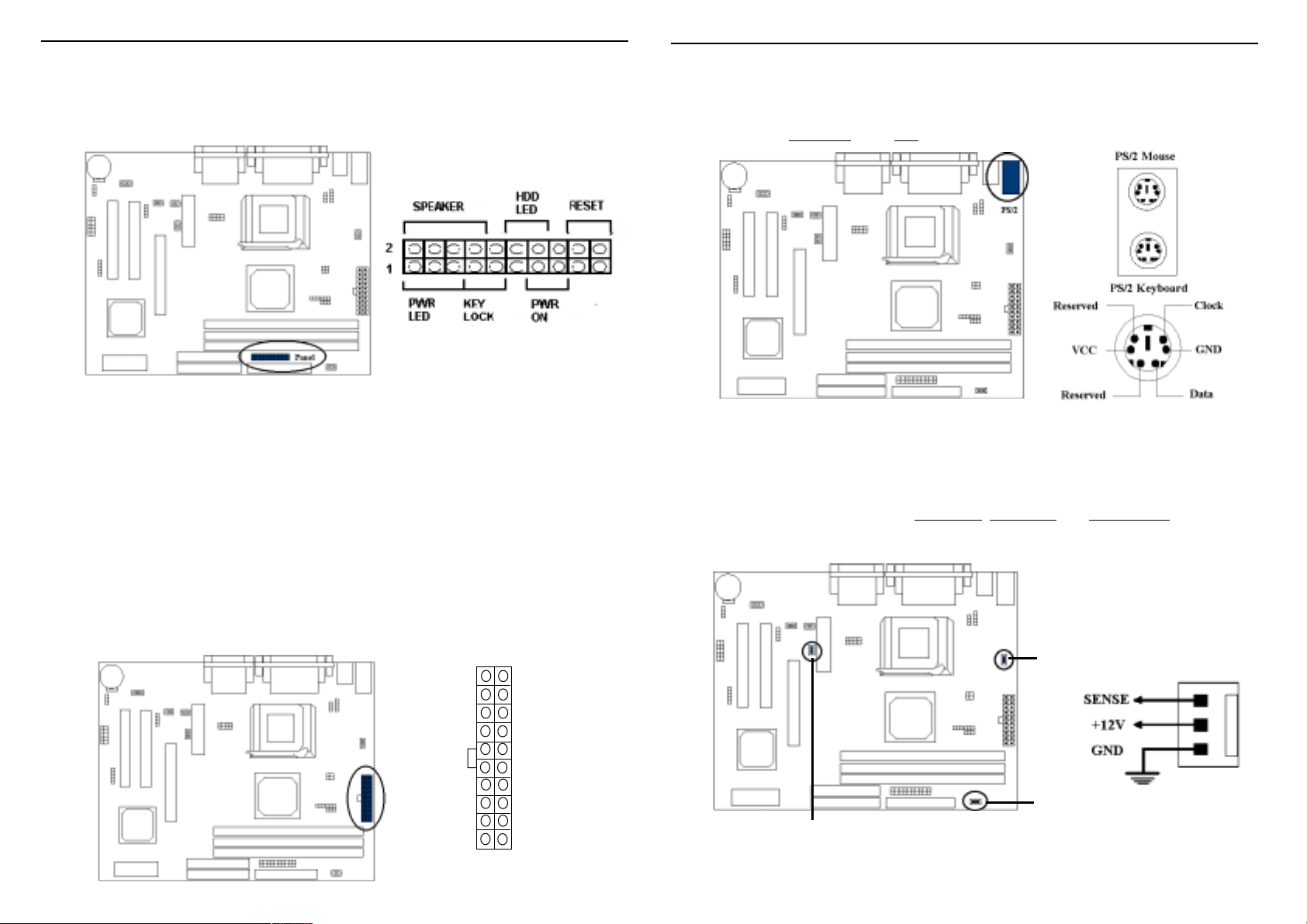

1. Pannel Connector

- PWR ON ATX Power Swith Connector(3 pins)

- RESET Reset Swith Connector (2 pins)

- HDD LED HDD LED Connector (2 pins)

- PWR LED ATX Power LED Connector (3 pins)

- SPEAKER Chassis Speaker Connector (4 pins)

- KEY LOCK Keyboard Lock Connector (2 pins )

2. Power Connector

3. PS/2 Mouse & Keyboard Connectors

Connect the PS/2 mouse and keyboard to the onboard 6-pin Mini-Din connector

marked as

MOUSE and KB.

4 FAN Connectors

Connect the CPU and SYS fan cables to the fan connectors shown below. The

fan connectors are marked as:

motherboard.

CPUFAN, SYSFAN and CASE FAN on the

2-11

Connect the 20-pin ATX power supply cable to this power connector. Make

sure the right plug-in direction and the power supply is off before connecting or

disconnecting the power cable.

ATX Power Connector

JP8

CHS FAN

JP10

CPU FAN

JP17

SYS FAN

CPU Fan

SYS Fan

CHS Fan

2-12

Page 12

Hardware Installation

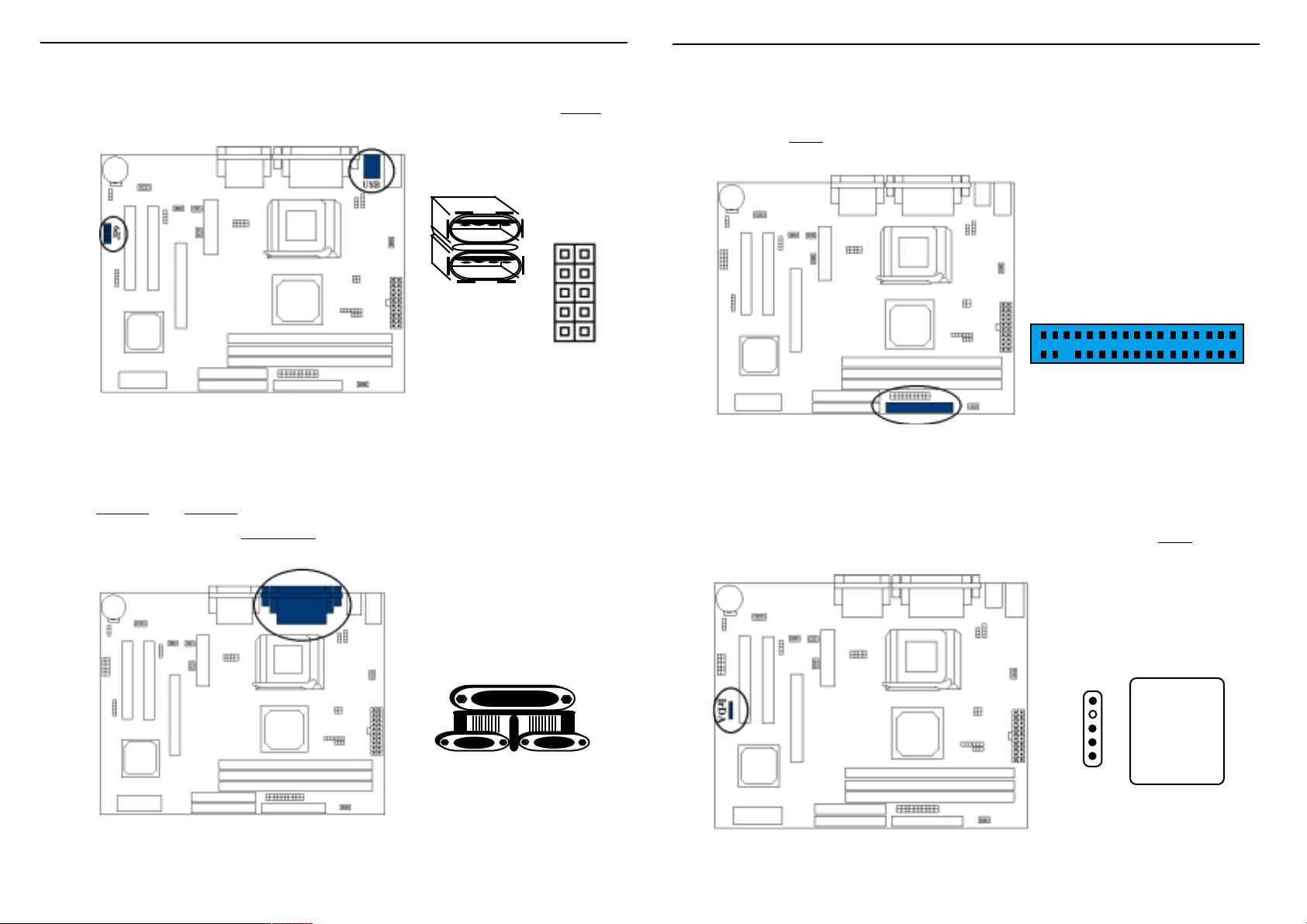

5. USB Connectors: JP9

Connect your USB devices to the USB connector onboard marked as USB.

JP9

USB 3/4

Top: USB1

Botton: USB2

6. Serial Device (COM1/COM2) and Printer Connectors

Connect your serial device(s) to the onboard 9-pin serial connectors marked as

COM 1 and COM 2. Connect your local printer to the onboard 25-pin printer

connector marked as

PRINTER.

7. Floppy Drive Connector

Connect the floppy drive cable to the onboard 34-pin floppy drive connector

marked as

FDD.

FLOPPY

8. IrDA Connector

Connect your IR device to the IrDA connector onboard marked as JP11.

JP11 IrDA

PRINTER

Pin Description 1 +5V 2NC 3 IRRX 4 GND 5 IRTX

COM1 COM2

1 2 3 4 5

2-13 2-14

Page 13

Hardware Installation

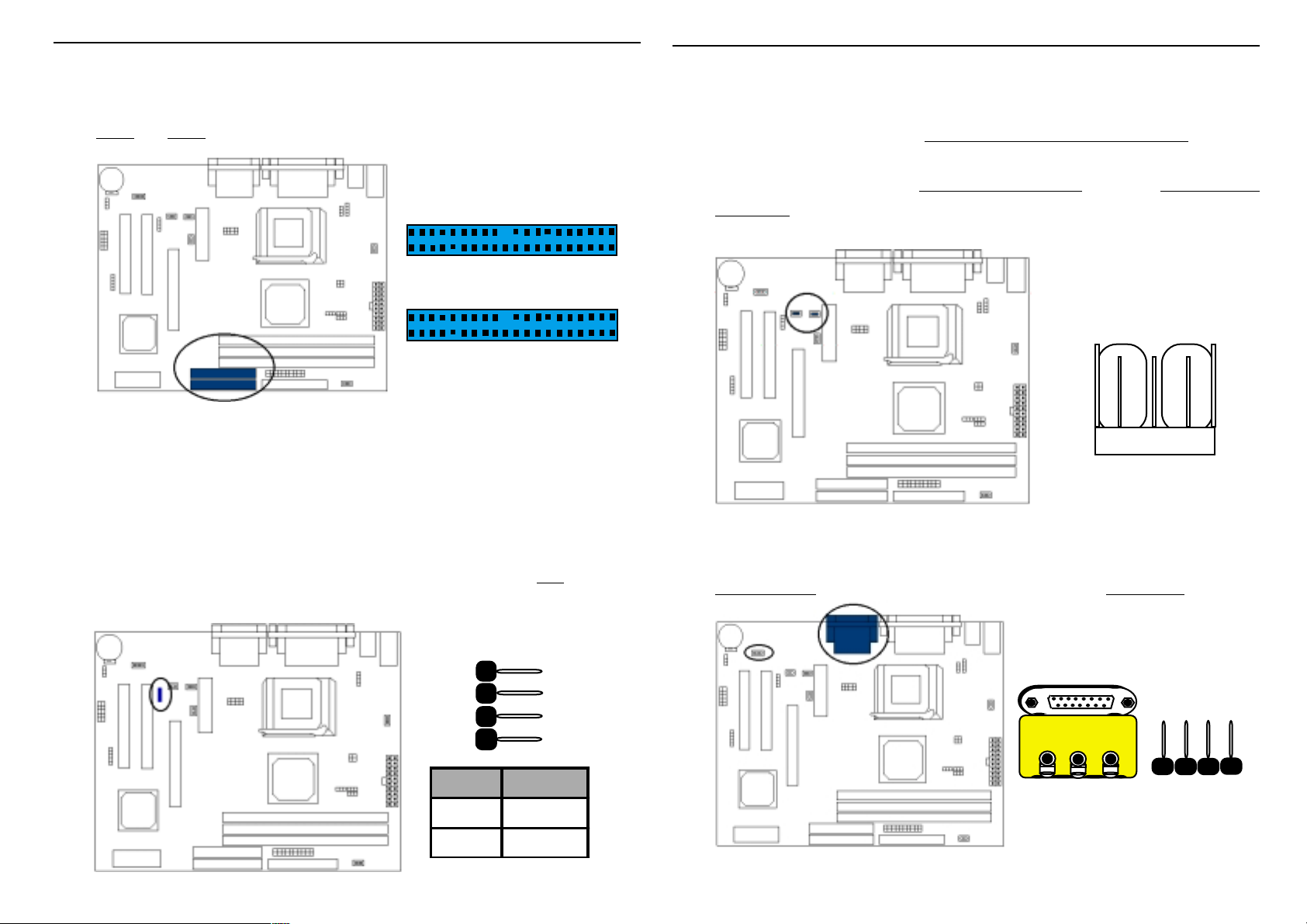

9. IDE Hard Drives Connector

Connect your IDE devices to the 40-pin IDE connectors onboard marked as

IDE1 and IDE2.

IDE1

IDE2

Each IDE channel, either Primary or Secondary, supports two IDE devices

which must be set differently to master mode and slave mode. (Refer to your

hard disk and CD-ROM user manual for detailed settings of IDE master and

slave mode.)

10. LAN & Modem Wake Up Connectors

This motherboard supports LAN wake up and MODEM wake up functions. To use

these two functions, you need a

network cards and softwares. To use the LAN Wake Up or Modem Wake Up

functions, you must enable the

ment Setup of the Award BIOS.

LAN Wake Up & Modem Wake Up supported

Power On By Ring/LAN field in the Power Manage

LAN WAKE UP

MODEM WAKE UP

10. AMR Connectors:

Connect the AMR card to the onboard AMR connector marked as JP5.

According to the following table, sets JP5 jumper.

JP5

JP5 AMR

1-2 Disabled

1-2, 3-4 Enabled

2-15

11. Game / MIDI & CD_IN Connectors:

Connect the game device to the onboard Game / Audio connector marked as

GAME PORT. The onboard CD_IN connector marked as CD-IN JP1.

Game Port

Line out

Line in

Mic in

JP1 CD_IN

2-16

Page 14

CMOS Setup Utility

Chapter 3 CMOS Setup Utility

The rest of this manual is intended to guide you through the process of configuring your system using Setup. While the BIOS is in control, the Setup program can be activated by pressing the <Del>key during the POST (Power On Self-Test).If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the “ RESET ” button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

CMOS Setup Main MenuCMOS Setup Main Menu

CMOS Setup Main Menu

CMOS Setup Main MenuCMOS Setup Main Menu

Once you enter the BIOS setup utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions . the arrow keys to select among the items and press <Enter> to accept and enter the submenu.

The main menu includes the following main setup categories, which defines basic information about your system. Below are the keyboard function keys you can use under the menu.

Menu function keys:

↑↑

↓↓

↑

↓

↑↑

↓↓

F10

ENTER

ESC

←←

←

←←

: To Move around the screen. An item is highlighted if it is selected.

→→

→

→→

: Help.

: Save CMOS Changes & Exit.

: To select or enter a submenu.

: To quit the BIOS Setup Utility.

!""Standard CMOS Features Load Fail-Safe Defaults

!""Advanced BIOS Features

!""Advanced Chipset Features Set Supervisor Password

!""Integrated Peripherals Set User Passoword

!""Power Management Setup Save & Exit Setup

!""PnP / PCI Configuration

!""PC Health Status

Esc : Quit

F10 : Save & Exit Setup

Abandon all datas

Load Optimized Defaults

Exit Without Saving

!"# $

: Select Item

3-1 3-2

Page 15

IDE H DD Auto-Detection P ress E nter Item H elp

IDE Primary Master

Access Mode

Auto

Menu Level

Change the day, month, year

and century

Capacity 0MB

Cylinder

Head

Precomp

Landin g Zon e

Sector

!"# $: Move Enter: Select

F5 : Previous Values

+/-/PU/ PD: Valu e F10: Save

F6 : Fail-safe defaults

Esc:Exit F1: General Help

F7 : Optimized Defaults

CMOS Setup Utility

Standard CMOS SetupStandard CMOS Setup

Standard CMOS Setup

Standard CMOS SetupStandard CMOS Setup

Press <Enter> to enter the submenu of detailed options, the following table shows the IDE primary master submenu.

The items in Standard CMOS Setup Menu are divided in 10 catagories. Each cata-

logue includes one or more than one setup items. Use the keys to highlight the item

and then use the / <PgUp> / <PgDn> keys to select the value you want in

↑ ↓ ← →

IDE Primary Master

each item.

Standard CMOS Features

Date (mm:dd:y y): Time (hh:mm:ss):

IDE Primary Master

IDE Primary Slave

IDE Secondary Master IDE Secondary Slave

Drive A Drive B

Video Hal t On

Base Memory Extended Memory

Total Memory

!"#$: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6: Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

Date & Time

To set the date and time, highlight the date area.Press /<PgUp>/ <PgDn> to set the current date. The date format is month: Jan. ~ Dec; date: 1 ~ 31; year: 1994 ~ 2079; hour: 00 ~ 23; and second: 00 ~ 59.

! Hard Disks → IDE Primary Master

3-3 3-4

Hard Disks Hard Disks

Hard Disks → IDE Primary Slave

Hard Disks Hard Disks Hard Disks Hard Disks

Hard Disks →

Hard Disks Hard Disks Hard Disks Hard Disks

Hard Disks → IDE Secondary Slave

Hard Disks Hard Disks

IDE Secondary Master IDE Secondary Master

IDE Secondary Master

IDE Secondary Master IDE Secondary Master

Mon, Mar 29 2000 16:19: 20 Item Help

Press Enter None

Press Enter None Press Enter None Press Enter None

1.44M. 3.5in Non e

EGA / VGA All, But Keyboard

640K 30720K

31744K

Menu Level

Change the day, mont h, year and century

↑ ↓ ← →

IDE HDD Auto-detection

Press enter to auto - detect the HDD on the channel. If detection is successful, it fills the remaining feilds on the menu.

IDE Primary Master

Selecting ‘manual’ lets you set the remaining fields on the screen. Selects the type of fixed disk. “User Type” will let you select the number of cylinders, heads, etc.

Note: Note:

Note: PRECOMP=65535 means NONE!

Note: Note:

The optional are: None, Auto (Default), Manual

The following options are selectable only

it em i s se t to ' M a nua l' :

Cylinder

Head

Precomp

Landing zone

Sector

Min = 0

Max = 65535

Min = 0

Max = 255

Min = 0

Max = 65535

Min = 0

Max = 65535

Min = 0

Max = 255

if the 'IDE Primary Master'

Set th e nu m ber of c ylind e r s for thi s hard disk.

Set th e nu m ber of r ead/wr it e hea ds

Warning: Setting a value of 65535 me ans no ha r d d i s k

Nu m b er of s ect ors per tr ack

Page 16

Virus Warning

CPU Internal Cache

External Cache

CPU L2 Cach e EC C Check ing

Quick Power On Self Test

First Boot Device

Se cond B oot D evic e

Third Boot device

Boot o ther d evice

Swap Floppy Drive

Boot U p Floppy Seek

Boot Up Numlock Status

Ga te A 20 Option

Typematic Rate Setting

* Typem atic Rate ( Chars/Sec)

* Typematic Delay (Msec)

Se curity Optio n

OS Select For DRAM > 64MB

Video BIOS shadow

C8000-CBFFF shadow

CC000-CFFFF shadow

D0000-D3FFF shadow

D4000-D7FFF shadow

D8000-DBFFF shadow

DC000-DFFFF shadow

Disabled

Enabled

Disabled

Floppy

HDD-0

LS/ZIP

Enabled

Disabled

Enabled

Fast

Disabled

250

Setu p

Non-OS2

Enabled

Disabled

Item Help

Menu Level

Allows you to choose the VIRUS

warning feature for IDE Hard D isk

boot sector protection. If this

function is enabled and someone

attemp t to w rite data i nto this area,

BI OS w ill s how a w arnin g me ssage

on s creen an d alarm beep .

!"#$

: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

CMOS Setup Utility

Access Mode

Choose the access mode for this hard disk. The optional are: Normal, LBA, Large, Auto (Default).

Capacity

Disk drive capacity (approximated). Note that this size is usually slightly greater than the size of the formatted disk given by a disk checking program. The optional are: Auto display your drive size.

Drive A / Drive B

Select the floppy drive type installed in your system. The available options for Drive A and Drive B. The optional are: 360K 5.25 in, 1.2M 5.25 in, 720K 3.5 in, 1.44M 3.5 in(Drive A de-

fault), 2.88M 3.5 in and NONE (Drive B default).

Video

Select the video display card type installed in your system. The optional are: EGA/VGA (Default), CGA 40, CGA 80 and Mono.

Advanced BIOSFeaturesAdvanced BIOSFeatures

Advanced BIOSFeatures

Advanced BIOSFeaturesAdvanced BIOSFeatures

Advanced BIOS Features

CMOS Setup Utility

Virus Warning

Halt On

This item defines the operation of the system POST (Power On Self-Test). You can use this item to select which kind of errors will cause the system to halt during POST. The optional are: All Errors, No Errors, All But Keyboard (Default), All But Diskette and All But Disk / Key

3-5 3-6

If this function enabled and someone attempt to write data into this area, BIOS will automatically show a warming message on screen and alarm beep. The optional are: Enabled, Disabled (Default)

CPU Internal / External cache

These two items controls Enable / Disable the CPU internal / external cache. The optional are: Enabled (Default), Disabled

CPU L2 Cache ECC Checking

This item allows you to enable / disable CPU L2 Cache ECC Checking. The optional are: Enabled (Default), Disabled

Page 17

CMOS Setup Utility

Quick Power On Self Test

This item speeds up Power On Self Test (POST) after you power up the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST. The optional are: Enabled, Disabled (Default)

First / Second / Third Boot Device

The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The optional are: Floppy (First Default), HDD-0(Second Default), LS /ZIP (Third

Default), HDD-1/2/3, ZIP 100, SCSI, CDROM, LAN, Disabled.

Boot Other Device

Select your Boot Device Priority. The optional are: Enabled (Default), Disabled

Swap Floppy Drive

If the system has two floppy drives, choose enable to assign physical drive B to logical drive A and vice-versa. The optional are: Enabled, Disabled (Default)

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller, when enabled, the typematic rate and typematic delay can be selected. The optional are: Enabled, Disabled(Default)

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you hold the key down. The optional are: 6 (Default), 8, 10, 12, 15, 20, 24, 30

Typematic Delay (Msec)

Select the delay time after the key is held down before it begins to repeat the key strokes. The optional are: 250 (Default), 750, 1000

Security option

Select whether the password is required every time when you enter setup. Setup -- The system will boot up. System -- The system will not boot and access to setup will be denied if the correct password is not entered at the prompt. The optional are: Setup (Default), System

Boot Up Floppy Seek

Seeks disk drives during boot up. The optional are: Enabled (Default), Disabled

OS Select for DRAM > 64MB

Select OS2 only if you are running OS/2 operating system with greater than 64MB of RAM on the system.

Boot Up NumLock Status

The optional are: Non-OS/2 (Default), OS/2

Selects power on state for NumLock. The optional are: Off, On (Default)

Video BIOS Shadow

This item defines if you leave default setting, video BIOS memory will be copied from

Gate A20 Option

Normal-a pin in the keyboard controller controls Gate A20. Fast- lets chipset control Gate A20.

ROM into DRAM area to enhance system performance as DRAM access time is faster than ROM

The optional are: Enabled (Default), Disabled

The optional are: Normal, Fast (Default)

3-7 3-8

Page 18

CMOS Setup Utility

C8000-CBFFF to DC000-DFFFF Shadow

Set Enabled if you know the address that your add on card ROM used to shadow them. If the item is Enabled, BIOS will copy the selected area from ROM to RAM to increase system performance. The optional are: SDRAM 10ns(Default), SDRAM 8ns, Normal, Medium, Fast, Turbo

Advanced Chipset FeaturesAdvanced Chipset Features

Advanced Chipset Features

Advanced Chipset FeaturesAdvanced Chipset Features

This item allows you to configure the system based on the specific features of the

chipset. This chipset manages bus speed and access to system memory recources,

and external cache. It must be stated that these items should never need to be

altered.The default settings have been chosen because they provide you the best

operating conditions for your system. The only time you might consider making any

changes if you discovered that the datas were being lost while control your system.

Advanced Chipset Features

Bank 0/1 DR AM T iming

Bank 2/3 DR AM T iming

Bank 4/5 DR AM T iming

SDRAM Cycle Length

DRAM Clock

Memory Hole

P2C/C2P Concu rrency

Fast R-W Turn A round

System BIOS Cacheable

Video RAM Cacheable

AGP Aperture Size

AG P-4x M ode

AG P Driving C ontrol

AG P Driving Value

Onchip USB

USB Keybo ard Support

USB M ouse Support

Onch ip Sound

Onch ip Modem

CPU to PCI Write Buffer

PCI D ynamic B ursting

PCI Master 0 WS Write

PCI Delay Transaction

PCI#2 A ccess #1 R etry

A GP Ma ste r 1 W S Wr ite

AGP Master 1 WS Read

Memory Parity / ECC Check

: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

!"#$

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

SDR AM 10ns

Host CLK

Disabled

Enabled

Disabled

64M

Enabled

Auto

Enabled

Disabled

Enable

Enabled

Disabled

Item Help

Menu Level

Bank 0/1 2/3 4/5 DRAM Timing

This item allows you to select the value in this field, depending on whether the board has paged DRAMs or EDO (extended data output) DRAMs. The optional are: SDRAM 10ns(Default), SDRAM 8ns, Normal, Medium, Fast, Turbo

SDRAM Cycle Length

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system

designer.

The optional are: 3(Default), 2

DRAM Clock

This item allows you to control the DRAM speed. The optional are: Host CLK(Default), Host-33M, Host+33M

Memory Hole

In order to improve performance, certain space in memory is reserved for ISA cards. This memory must be mapped into the memory space below 16MB. The optional are: 15M-16M Disabled(Default)

P2C/C2P Concurrency

This allows you to enable/disable the PCI to CPU, CPU to PCI concurrency. The optional are: Enabled(Default), Disabled

Fast R-W Turn Around

This item controls the DRAM timing. It allows you to enable/disable the fast read / write turn around. The optional are: Enabled, Disabled(Default)

System BIOS Cacheabled

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area,

a system error may result

3-9 3-10

Page 19

CMOS Setup Utility

Video RAM Cacheabled

Selecting Enabled allows caching of the Video RAM, resulting in better system performance. However, if any program writes to this memory area, a system error may result. The optional are: Enabled, Disabled(Default)

AGP Aperture Size

Select the size of Accelerated Graphics Port(AGP) aperture. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. The optional are: 128M

, ,

, 64M(Default)

, ,

, 32M, 16M, 8M, 4M

, ,

AGP - 4X Mode

This item allows you to enable / disable the AGP - 4X mode. The optional are: Enabled(Default), Disabled

AGP Driving Control

This item allows you to adjust the AGP Driving force. Choose Manual to key in a AGP driving Value in the next selection. This field is recommended to set in Auto for avoiding any error in your system. The optional are: Auto(Default), Manual

USB Mouse Support

Select Enabled if your system contains a Universal Serial Bus Controller and you have a USB Mouse. The optional are: Disabled (Default), Enabled

Onchip Sound

This item allows you to control the onboard AC97 audio. The optional are: Enabled (Default), Disabled

Onchip Modem

This item allows you to control the onboard MC97 modem. The optional are: Enabled (Default), Disabled

CPU to PCI Write Buffer

When this field is Enabled, writes from the CPU to the PCI bus ar buffered, to compensate for the speed difference between the CPU to the PCI bus. When Disabled, the writes are not buffered and the CPU must wait until the write is complete before starting another write cycle. The optional are: Enabled (Default), Disabled

PCI Dynamic Bursting

On Chip USB

This should be enabled if your system has a USB installed on the system board and you want to use it. Even when so equipped, if you add higher performance controller, you will

When Enabled, every write transaction goes to the write buffer. Burstable transactions then burst on the PCI bus and nonburstable transactions do not. The optional are: Disabled (Default), Enabled

need to disable this feature. The optional are: Enabled (Default), Disabled

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus Controller and you have a

PCI Master 0 WS Write

When Enabled, writes to the PCI bus are executed with zero wait state. The optional are: Enabled (Default), Disabled

USB keyboard. The optional are: Disabled (Default), Enabled

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The optional are: Enabled (Default), Disabled

3-11 3-12

Page 20

OnC hip ID E C hannel 0

OnC hip ID E C hannel 1

IDE P refet ch Mod e

Primary Master PIO

Primary Slave PIO

Sec ondary M aster PIO

Secondary Slave PIO

Primary Master UDM A

Primary Slave UDM A

Sec ondary M aster UD M A

Secondary Slave UDM A

Init Display First

IDE HDD Block Mode

Onboard FDD Controller

Onbo ard Serial P ort1

UART 2 Mode

* IR function Duplex

* T X, R X inv erting enable

Onbo ard Parallel Port

Onbo ard Parallel Port Mode

* E CP M ode U se DM A

* Parallel Port EPP Type

Onbo ard Lega cy A udio

Soun d Blaster

SB I/O Base Address

SB IRQ Select

SB DM A Select

MPU-401

MP U-401 I/O A ddress

Ga me Port (200-207)

Enabled

Auto

PCI Slot

Enabled

Auto

Standard

Half

No, Yes

378/IRQ 7

Normal

EPP1.9

Enabled

Disabled

220H

IRQ 5

DMA 1

Disabled

330-333 H

Enabled

Item Help

Me nu Lev el

!"#$

: M ove Enter: Select F5 : Previous Values +/-/PU/PD: Value F1 0: Save

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

CMOS Setup Utility

PCI #2 Access #1 Retry

When disabled, PCI#2 will not be disconnected until access finishes (default). When enable, PCI#2 will be disconnected if max retries are attempted without success. The optional are: Disabled (Default), Enabled

AGP Master1 WS Write

When Enabled, writes to AGP(Accelerated Graphics Port) are executed with one wait states. The optional are: Disabled (Default), Enabled

AGP Master1 WS Read

This item enabled to detect the memory parity and error checking & Correcting. The optional are: Disabled (Default), Enabled

Integrated PeripheralsIntegrated Peripherals

Integrated Peripherals

Integrated PeripheralsIntegrated Peripherals

Integrated Peripherals

3-13 3-14

On-Chip IDE Channel 0 / 1

The chipset contains a PCI IDE interface with support for two IDE channels. Select Enabled to activate the primary IDE interface. Select Disabled to deactivate this interface. The optional are: Enabled (Default), Disabled

IDE Prefetch Mode

The onboard IDE drive interfaces supports IDE prefetching for faster drive accesses. If you install a primary and/or secondary add-in IDE interface, set this field to Disabled if the interface does not support prefetching.

The optional are: Enabled (Default), Disabled

Page 21

CMOS Setup Utility

Primary / Secondary Master / Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The optional are: Auto (Default), Mode 0, Mode 1, Mode 2, Mode3, Mode 4

Primary / Secondary Master / Slave UDMA

Ultra DMA/66 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 98 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/66, select Auto to enable BIOS support. The optional are: Auto(Default), Disabled

Init Display First

This item allows you to decide to active whether PCI Slot of VGA card or AGP first. The optional are: PCI Slot (Default), AGP

Onboard Serial Port 1/2

Select an address and corresponding interrupt for the first and second serial ports. The optional are: Auto (Port 1 & Port 2 Default), Disabled, 3F8 / IRQ4, 2F8 / IRQ3, 3E8 / IRQ4, 2E8 / IRQ3

UART 2 Mode

This item allows you to select which mode for the Onboard Serial Port 2 The optional are: Standard (Default), HPSIR, ASKIR

IR Function Duplex

This item allows you to select the IR half/full duplex function. The optional are: Half (Default), Full

TX, RX

This item allow you to enable the TX, RX inverting which depends on different H/W requirement. This field is not recommended to change its default setting for avoiding any error

in your system

inverting enable

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/ write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support. The optional are: Enabled (Default), Disabled

The optional are: No & No, No & Yes(Default), Yes & No, Yes &Yes.

Onboard Parallel Port

Select a logical LPT port address and corresponding interrupt for the physical parallel port. The optional are: 378/IRQ7(Default), 278/IRQ5, 3BC/IRQ7, Disabled

Onboard Parallel Mode

Onboard FDD Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you want to use it. If you install add-in FDC or the system has no floppy drive, select Disabled in this field.

The optional are: Enabled (Default), Disabled

Select an operating mode for the onboard parallel (printer) port. Select Normal, Compat- ible, or SPP unless you are certain your hardware and software both support one of the

other available modes. The optional are: Normal (Default), EPP, ECP, ECP/EPP

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode. The optional are: 3 (Default), 1

3-15 3-16

Page 22

CMOS Setup Utility

Power Management HDD Power Down Doze Mode Suspend Mode

User Define Dis abled Dis abled Dis abled

Item Help

Menu Level

!"#$: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

CMOS Setup Utility

EPP Parallel Port EPP Type

Select EPP port type 1.7 or 1.9. The optional are: EPP 1.9(Default), EPP 1.7

Onboard Legacy Audio

This field controls the onboard legacy audio.

# Sound Blaster : Disabled(Default)

# SB I/O Base Address : 220H(Default)

# SB IRQ Select : IRQ 5(Default)

# SB DMA Select : DMA 1(Default)

# MPU-401 : Disabled(Default)

# MPU-401 I/O Address : 330-333H(Default)

# Game Port (200-207H) : Enabled(Default)

Power Management SetupPower Management Setup

Power Management Setup

Power Management SetupPower Management Setup

The Power Management Setup allows you to configure your system effectively save energy while operating in a manner consistent with your own style of computer use.

Power Management Setup

ACPI Function

This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). The optional are: Enabled(Default), Disabled

Power Management

This category allows you to select the type (or degree) of power saving and is directly related to the following modes:

1. HDD Power Down

2. Doze Mode

3. Suspend Mode

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active. The optional are: Disable (Default), 1 Min--15 Min

ACPI function

Power M anagement

ACPI Suspend Type

PM Control by APM

Video Off Option

Video Off M ethod

MODEM Use IRQ

Soft -Off by PW R-B TT N

Wake up event

3-17 3-18

!"# $

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

: Move En ter: Sele ct F5 : Prev io us Val ues +/- /PU/P D: Value F10: S ave

Enabled

Press Enter

S1(POS)

Yes

Suspen

V/H SYNC Blank

Instant-Off

Press Enter

Item Help

Menu Level

Off

Doze Mode

When enabled and after the set time of system inactivity, the CPU clock will run at slower speed while all other devices still operate at full speed. The optional are: Disable(Default), 1Min, 2Min, 4Min, 6Min, 8Min, 10Min, 20Min, 30Min, 40Min, 1Hour

Suspend Mode

When enabled and after the set time of system inactivity, all devices except the CPU will be shut off. The optional are: Disable(Default), 1Min, 2Min, 4Min, 6Min, 8Min, 10Min, 20Min, 30Min, 40Min, 1Hour

Page 23

CMOS Setup Utility

VGA

LPT & COM

HDD & FDD

PCI Master

KB Pow er On

M odem, R ing LA N

RTC Alarm Resume

* Date (Of Month)

* Resume Time (hh:mm:ss)

IRQs Activity Monito ring

Off

LPT/COM

Off

Disabled

Press Enter

Item Help

Menu Level

!"#$

: Mo ve Ente r: Select F5 : Previou s Values +/-/P U/PD : Value F 10: Save

F 6 : Fa il-safe d efaults Esc:E xit F 1: G eneral Help F7 : O ptimized D efaults

CMOS Setup Utility

There are four selections for Power Management, three of which have fixed mode settings.

Disa ble ( defau lt) No Power M anag ement . Disabl es all four mo des

Minimum power management. Doze Mode = 1 hr. Standby

Min. Pow er Savi ng

Max . Power Sa ving

User Defined

Mod e = 1 hr., Suspen d Mod e = 1 hr., and HD D Pow er Dow n = 15 min.

Maximum power management ONLY AVAILABLE FOR SL CP U'S. Doz e Mode = 1 m in., Sta ndby M ode = 1 mi n., Susp end M ode = 1 mi n., and HDD Power Down = 1 min.

Allows you to set each mode individually. When not disabled, each of the ranges are from 1 min. to 1 hr. except for HDD Power Down which ranges from 1 min. to 15 min. and disable.

ACPI Suspend Type

This item lets you select a method of ACPI suspend. The optional are: S1(POS) (Default), S3(STR)

PM Control by APM

When enabled, an Advanced Power Management device will be activated to enhance the Max. Power Saving mode and stop the CPU internal clock. If Advance Power Management (APM) is installed on your system, selecting Yes gives better power savings.

The optional are: No, Yes(Default)

Video Off Method

This determines the manner in which the monitor is blanked.

This selection will cause the system to turn off the vertical and

V/H SYNC+Blank

horizontal synchronization ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video buffer.

Select this option if your monitor supports the Display Power

DPMS Support

Management Signaling (DPMS) standard of the Video Electronics Standards to select video power management values.

The optional are: V/H SYNC + Blank (Default), Blank Screen, DPMS Support

MODEM User IRQ

This determines the IRQ in which the MODEM can use.

The optional are: NA, 3(Default), 4, 5, 7, 9, 10, 11

Soft-Off by PWRBTN

Pressing the power button for more than 4 seconds forces the system to enter the SoftOff state when the system has “hung.”. The optional are: Delay 4 sec, Instant-Off (Default)

Wake Up Events(PM events)

Video Off Option

When enabled, this feature allows the VGA adapter to operate in a power saving mode.

PM events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system

Always On Monitor will remain on during power saving modes.

Suspend

The optional are: Always On, Suspend

All Modes

3-19 3-20

Monitor blanked when the systems enters the Suspend

Off

mode.

Monitor blanked when the system enters any power

Off

saving mode.

&off (Default), All Modes &Off

remains alert for anything which occurs to a device which is configured as On, even when the system is in a power down mode.

Wake Up Events

Page 24

CMOS Setup Utility

VGA

When On, you can set the VGA awakens the system. The optional are:

Off (Default), On

LPT & COM

When On of LPT & COM, any activity from one of the listed system peripheral devices or IRQs wakes up the system. The optional are: NONE, LPT, COM, LPT/COM (Default)

HDD & FDD

When On of HDD & FDD, any activity from one of the listed system peripheral devices wakes up the system. The optional are: On(Default), Off

PCI Master

When On of PCI Master, any activity from one of the listed system peripheral devices wakes up the system. The optional are: Off(Default), On

KB POWER ON

The item lets you select power on with keyboard. The optional are: Enabled, Disabled(Default)

Modem Ring Resume

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state.

The optional are: Enabled, Disabled(Default)

RTC Alarm Resume

When Enabled, your can set the date and time at which the RTC (real-time clock) alarm awakens the system from Suspend mode. The optional are: Enabled, Disabled(Default)

IRQs Activity Monitoring

The following is a list of IRQ’s, interrupt ReQuests, which can be exempted much as the COM ports and LPT ports above can. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.

When set On, activity will neither prevent the system from going into a power management mode nor awaken it.

IRQs Activity Monitoring

Prima ry INTR IRQ3 (COM2) IRQ4 (COM1) IRQ5 (LPT 2) IRQ6 (Floppy disk) IRQ7 (LPT 1) IRQ8 (RTC Alarm) IRQ9 (IRQ2 Redir) IRQ10 (Reserved) IRQ11 (Re serv ed) IRQ12 (PS/2 Mouse) IRQ13 (Coprocessor) IRQ14 (Hard Disk) IRQ15 (Reserved)

!"#$: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

ON Prima ry Prima ry Prima ry Prima ry Prima ry Disabled Secondary Secondary Secondary Prima ry Prima ry Prima ry Disabled

Item H elp

Menu Level

3-21 3-22

Page 25

Current CPU Temp. Current System Temp . Current CPUFAN1 Speed Current CPUFAN2 Speed Vcore

2.5 V

3.3 V 5V 12V

Item Help

Menu Level

!"#$: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

CMOS Setup Utility

PnP / PCI ConfigurationsPnP / PCI Configurations

PnP / PCI Configurations

PnP / PCI ConfigurationsPnP / PCI Configurations

This section describes configuring the PCI bus system. PCI- Peripheral Component

Interconnect, is a system which allows I/O devices to operate at speeds nearing the

speed of CPU itself using when communicates with its own special components.This

section covers some very technical items and it is strongly recommended that only expe-

rienced users should make any changes to the default settings.

PnP / PCI Configuration

PNP O S Installed Reset Configuration Data

Recources Controlled By * IRQ Recource s * DMA Recources

PCI/ VGA Palette Snoop Assi gn IRQ For VGA Assi gn IRQ For USB

!"#$: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

No Dis abled

Auto( ESC D) Press Enter Press Enter

Dis abled Enabled Enabled

Item Help

Menu Level Select Yes if you are us ing a Plug a nd Play capable operating system. Selec t No if you nee d the BIOS to configure non-boot device s

Resources controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the

boot and Plug and Play compatible devices. However, this capability means absolutely

nothing unless you are using a Plug and Play operating system such as Windows98.

The optional are: Auto(ESCD) (Default), Manual

PCI/VGA Palette Snoop

Leave this field at Disabled. The optional are: Enabled, Disabled(Default)

Assign IRQ For VGA & USB

Enable/Disable to assign IRQ for VGA & USB.

The optional are: Enabled(Default), Disabled

PC Health StatusPC Health Status

PC Health Status

PC Health StatusPC Health Status

This section helps you to get more information about your system including CPU tem-

PNP OS Installed

perature, FAN speed and voltages. It is recommended that you contact with your

This item allows you to determine PnP OS is installed or not. The optional: Yes, No (Default)

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system cannot boot. The optional are: Enabled, Disabled(Default)

3-23 3-24

motherboard supplier to get proper value about your setting of the CPU temperature.

PC Health Status

Page 26

!""

Standard CMOS Features

!""

Frequency / Voltage Control

!""

Advan ced BIOS Features Load Fail-Safe Defaults

!""

Advanced Chipset Features Load Optimized Defaults

!""

Integrated Peripherals Set Supervisor Passo rd

!""

Power Management Setup Set Use r Passoword

!""

PnP / PCI Configuration Save & Exit Setup

!""

PC Health Status Exit Without Saving

Esc : Quit

!"#$

: Select Item

F10 : Save & Exit Setup

Abandon all datas

!""

Standard CMOS Features

!""

Frequency / Voltage Control

!""

Advanced BIOS Features Load Fail-Safe Defaults

!""

Advanced Chipset Features Load Optimized Defaults

!""

Integrated Peripherals Set Supervisor Passord

!""

Power Management Setup Set User Passoword

!""

PnP / PCI Co nfi gur ation Sav e & Exit Se tup

!""

PC Health Status Exit Without Saving

Esc : Quit

!"# $

: Select Item

F10 : Save & Exit Setup

Abandon all datas

CMOS Setup Utility

Current CPU Temp.

Show you the current CPU temperature.

Current System Temp.

Show you the current system temperature.

Current CPU FAN1 Speed

Show you the current CPUFAN 1 speed.

Current CPU FAN2 Speed

Show you the current CPUFAN2 speed.

Vcore

Show you the current system voltage.

Load Fail-Safe DefaultsLoad Fail-Safe Defaults

Load Fail-Safe Defaults

Load Fail-Safe DefaultsLoad Fail-Safe Defaults

This option allows you load Fail-Safe Defaults settings. To load setup default, press <Y>

key to confirm the operation when you see the below display.

Load Fail - Safe Defaults (Y / N)? N

Load Optimized DefaultsLoad Optimized Defaults

Load Optimized Defaults

Load Optimized DefaultsLoad Optimized Defaults

This option allows you load Optimized Defaults settings to optimize your system. To load

optimized default, press <Y> key to confirm the operation when you see the below

display.

3-25 3-26

Load Optimized Defaults (Y / N)?

Page 27

CMOS Setup Utility

Set Supervisor / User PasswordSet Supervisor / User Password

Set Supervisor / User Password

Set Supervisor / User PasswordSet Supervisor / User Password

Password prevents unauthorized use of your computer. If you set a password, the

system prompts for the correct password before boot or access to setup. The main

difference between Supervisor Password and User Password is the privilege. Because

Supervisor Password allows you to modify all CMOS setup but User password only

some of them.

Their steps all as follows:

1. Highlight the item Set Supervisor Password / Set User Password on the main

menu and press ENTER.

2. The password dialog box will appear.

3. If you are installing a new password, carefully type in the password. Press

ENTER after you have typed in the password. If you are deleting a password that is already installed just press ENTER when the password dialog box appears.

4. The system will ask you to confirm the new password by asking you to type it in a

second time. Carefully type the password again and press ENTER, or just press ENTER if you are deleting a password that is already installed.

Save & Exit SetupSave & Exit Setup

Save & Exit Setup

Save & Exit SetupSave & Exit Setup

Highlight this item and press ENTER to save the changes that you have made in the

setup utility and exit the setup program. When the Save and Exit dialog box appears,

press <Y> to save and exit, or press <N> to return to the setup main menu.

Exit WExit W

Exit W

Exit WExit W

Use this option to exit setup utility without saving the CMOS value changes.

ithout Savingithout Saving

ithout Saving

ithout Savingithout Saving

5. If you typed the password correctly, the password will be installed.

[NOTE]

If you forget your password, or you want to cancel your password, you can do theIf you forget your password, or you want to cancel your password, you can do the

If you forget your password, or you want to cancel your password, you can do the

If you forget your password, or you want to cancel your password, you can do theIf you forget your password, or you want to cancel your password, you can do the steps as the following:steps as the following:

steps as the following:

steps as the following:steps as the following:

(1) Password forgotten:

i. Turn off the system. ii. Short JP1 at Pin 2-3 for a few seconds to clear CMOS. iii. Set the JP1 back to Pin 1-2. iv. Power on the system.

(2) Clear Password:

Clear your password by key in the password you installed before, then go to password setting to press ENTER twice.

3-27 3-28

Page 28

Chapter 4 Software Utility

The support software for this motherboard is supplied in a CD. All the support programs are stored in separate folders, so you can find the program you need easily enough. We recomend you to choose the program which you need most, it will assist your computer system to high performance. The support software contains the following programs:

AGP Driver Program

IDE Driver Program

Chipset Register Driver Program

Audio Codec Driver Program

VIA USB Driver Program

AGP Driver ProgramAGP Driver Program

AGP Driver Program

AGP Driver ProgramAGP Driver Program

AGP Driver Program: \ide\via\AGP4X\setup\setup.exe

This Page Is Blank For Note

IDE Driver ProgramIDE Driver Program

IDE Driver Program

IDE Driver ProgramIDE Driver Program

IDE Driver Program: \ide\via\IDE\setup.exe

Chipset Register Driver ProgramChipset Register Driver Program

Chipset Register Driver Program

Chipset Register Driver ProgramChipset Register Driver Program

Chipset Register Driver Program: \ide\via\Reg\setup\setup.exe

Audio Codec Driver ProgramAudio Codec Driver Program

Audio Codec Driver Program

Audio Codec Driver ProgramAudio Codec Driver Program

Audio Codec Driver Program: \audio\via1611\setup.exe

VIA USB Driver ProgramVIA USB Driver Program

VIA USB Driver Program

VIA USB Driver ProgramVIA USB Driver Program

VIA USB Driver Program: \ide\via\viausb\setup.exe

4-1
