EUPA ITZV7 User Manual

ITZV7





Flex-ATX Intel 810E

Socket 370 Motherboard

USER’S MANUAL

Model : ITZV7



Manual Version : English, version 1.0
Release Date : Sep 7th, 2000

Copyright

Copyright 2000 by this company. All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language in any form or by
any means, electronic, mechanical, magnetic, optical, manual or otherwise,
without the prior written consent of the copyright holders.

Notice

The contents of this publication are subject to change. This company
reserves the right to alter the contents of this publication at any time and
without notice.The contents of this publication may contain inaccuracies or
typographical errors and is supplied for informational use only.

Intel and Pentium are registered trademarks of Intel Corporation.

OS/2 and IBM are registered trademarks of Intemational Business Machines.

Windows and MS-DOS are registered trademarks of Microsoft Corporation.

AWARD is a registered trademark of Award Software Inc.

Other brand, corporate, and product names may or may not be registered
trademarks or copyright of their respective companies.

FCC & DOC Compliance

Federal communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:

! This device may not cause harmful interference.
! This device must accept any interference received, including interference

that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generatesm uses and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instructions, may cause harmful
interference to radio communication. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, whichcan be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:

! Re-orient or relocate the receiving antenna.
! Increase the separation between the equipment and the receiver.
! Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.
! Consult the dealer or an experienced radio/TV technician for help.

Warning

The use of shielded cables for the connection of the monitor to the graphics card is required
to assure compliance with FCC regulations changes or modifications to this authority to
operate this equipment.

Contents

Chapter 1 Overview

General Description................................................................1-1

Check Your Items............................................................. ......1-1

ITZV7 Specifications..............................................................1-2

ITZV7 Components...............................................................1-3

Motherboard Layout................................................................1-5

Chapter 2 Hardware Installation

Set Jumpers................................................................................2-2

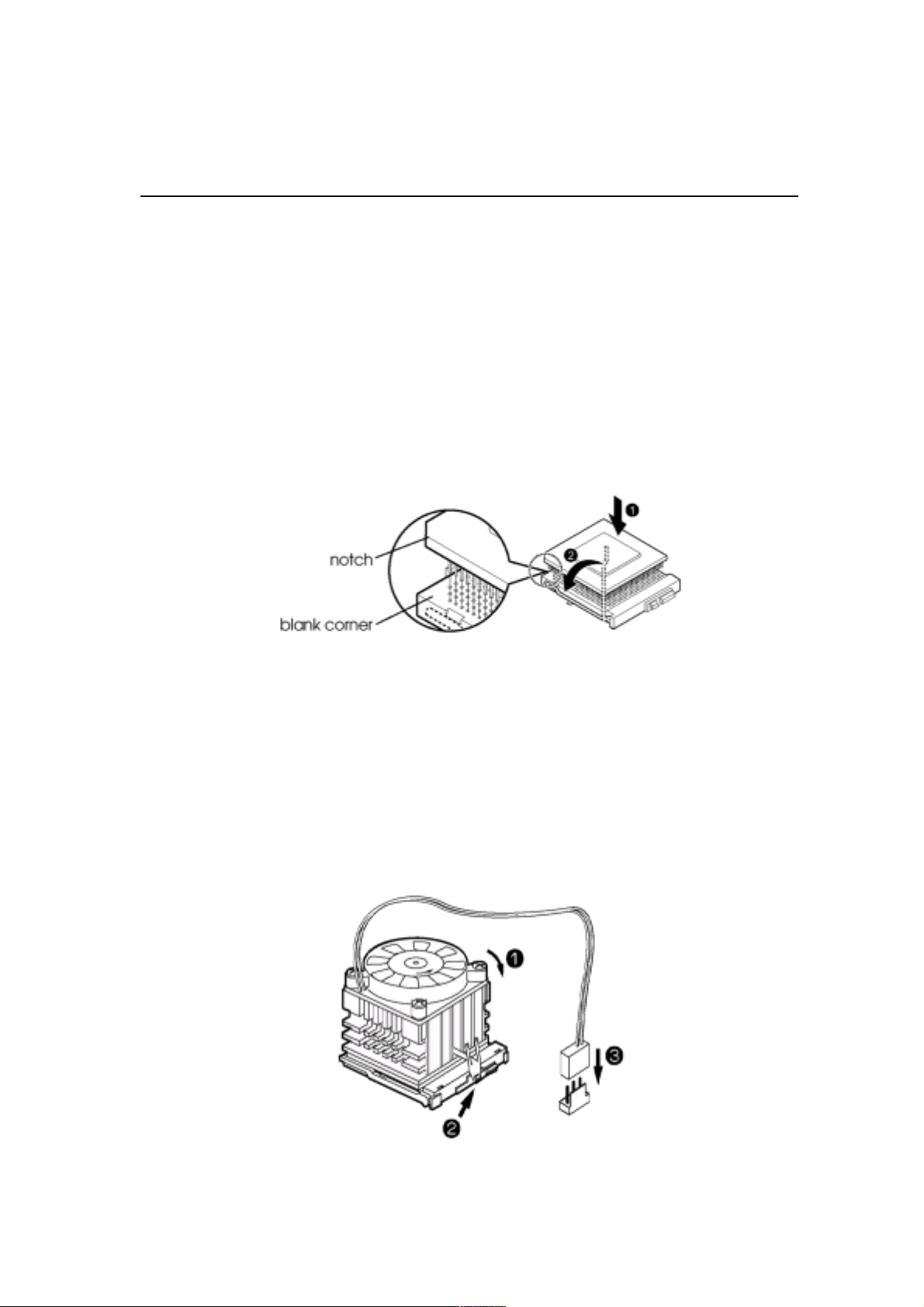

Install CPU.................................................................................2-3

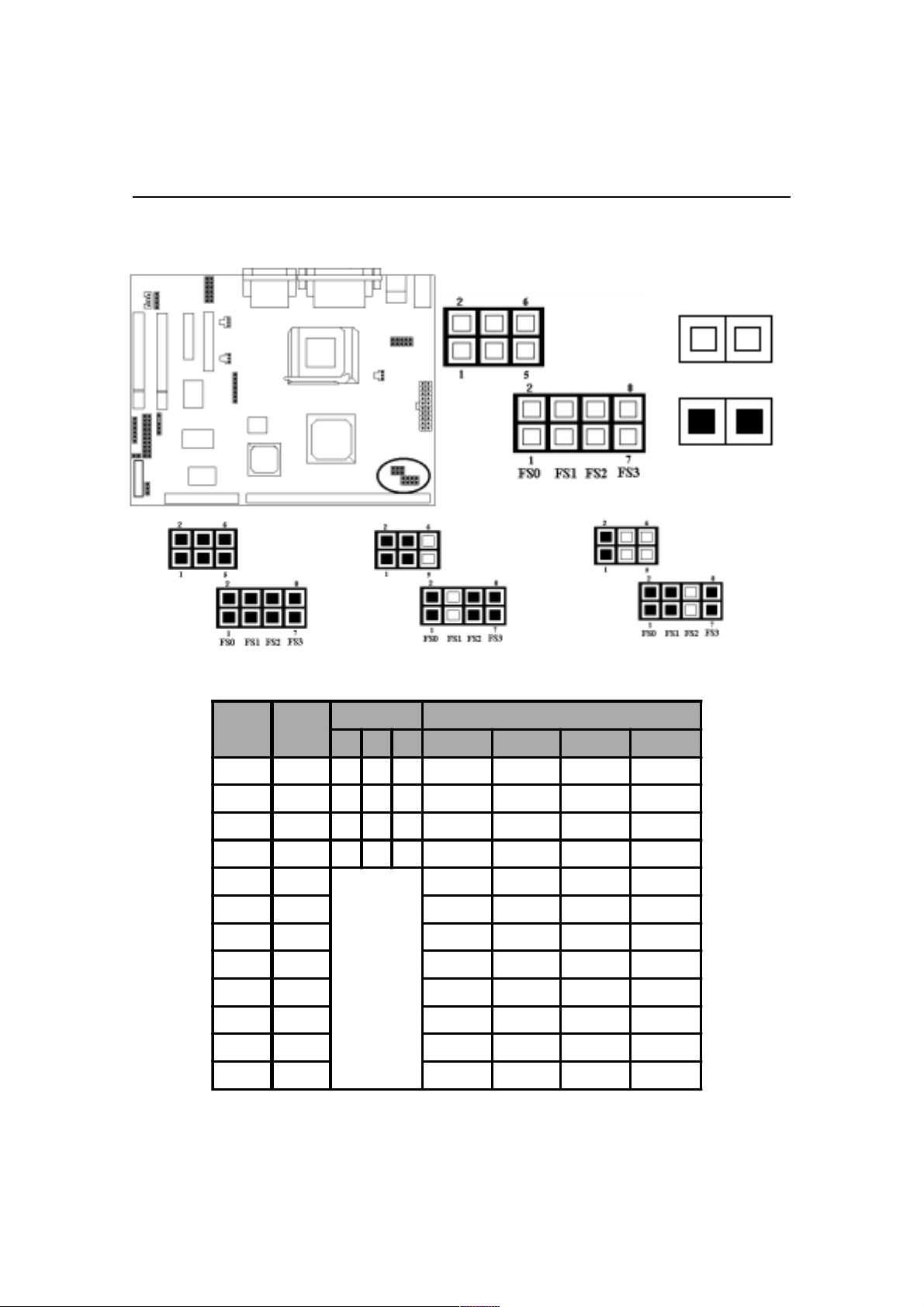

CPU Setting................................................................................2-4

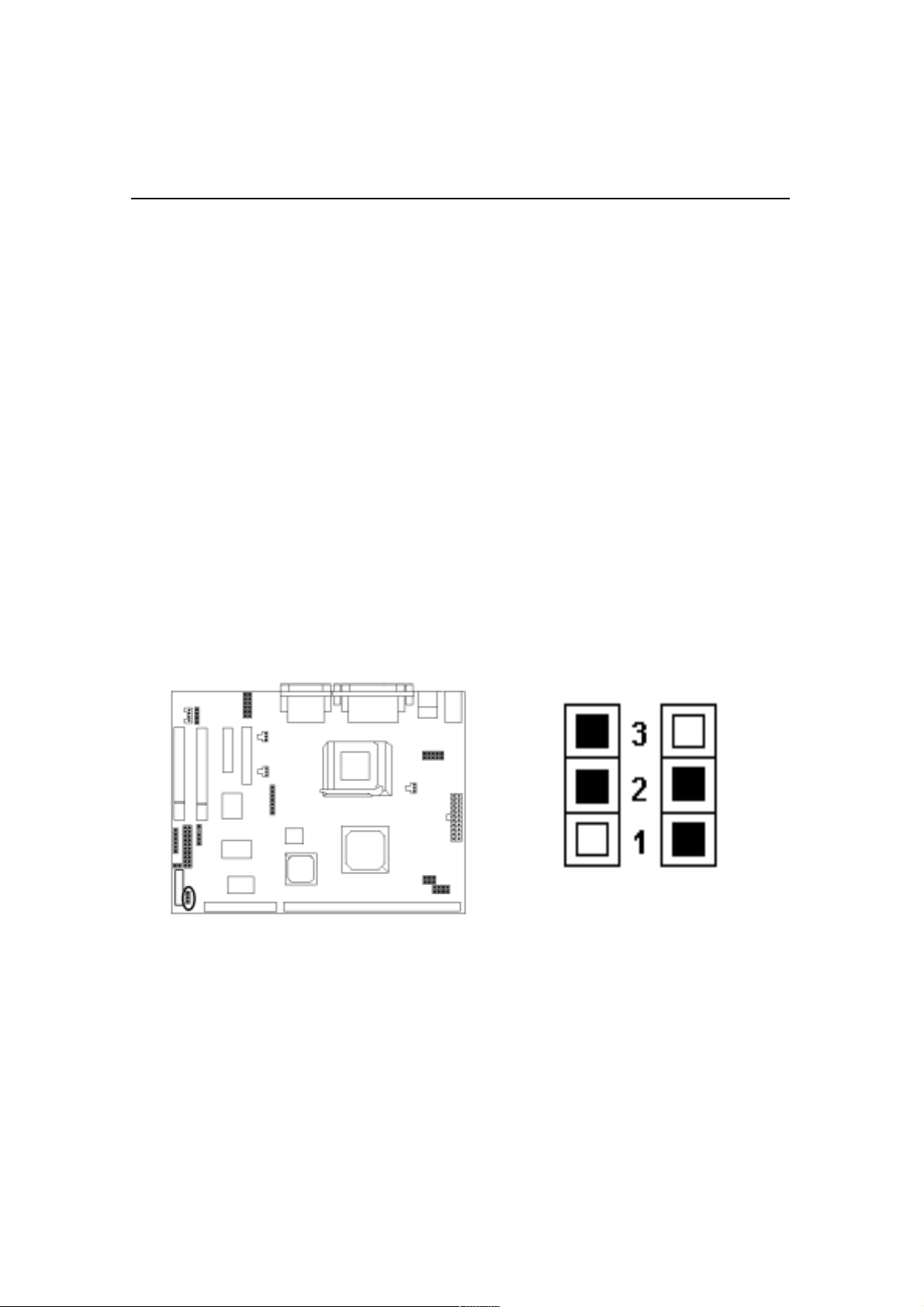

Clear CMOS.....................................................................2-4

Jumper setting....................................................................2-5

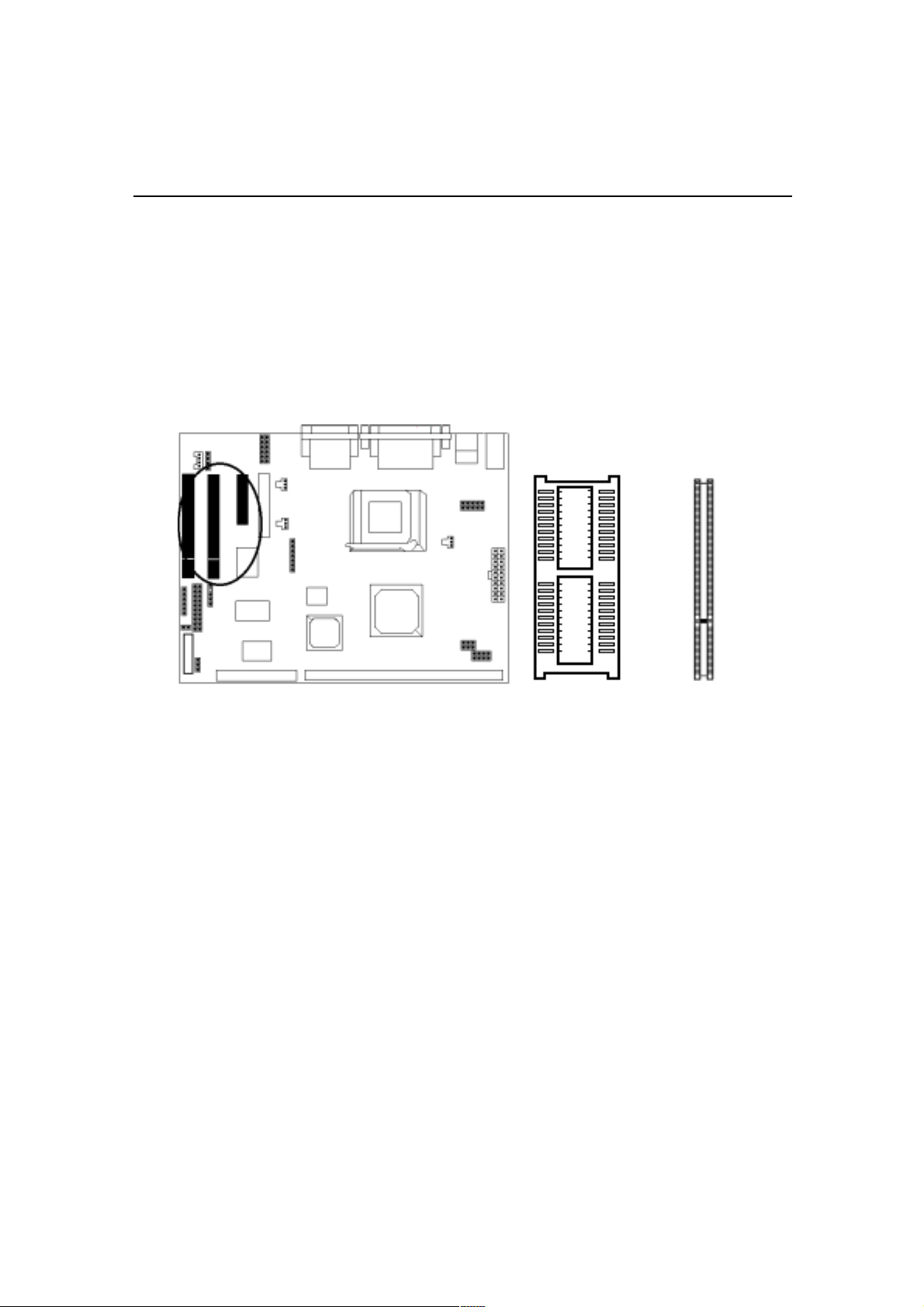

System Memory Installation...................................................... 2-6

Install Expansion Cards...................................................... ...............2-8

Connectors................................................................................. 2-9

Panel Connector...............................................................2-9

Power Connector.............................................................2-9

Fan Connector................................................................. 2-10

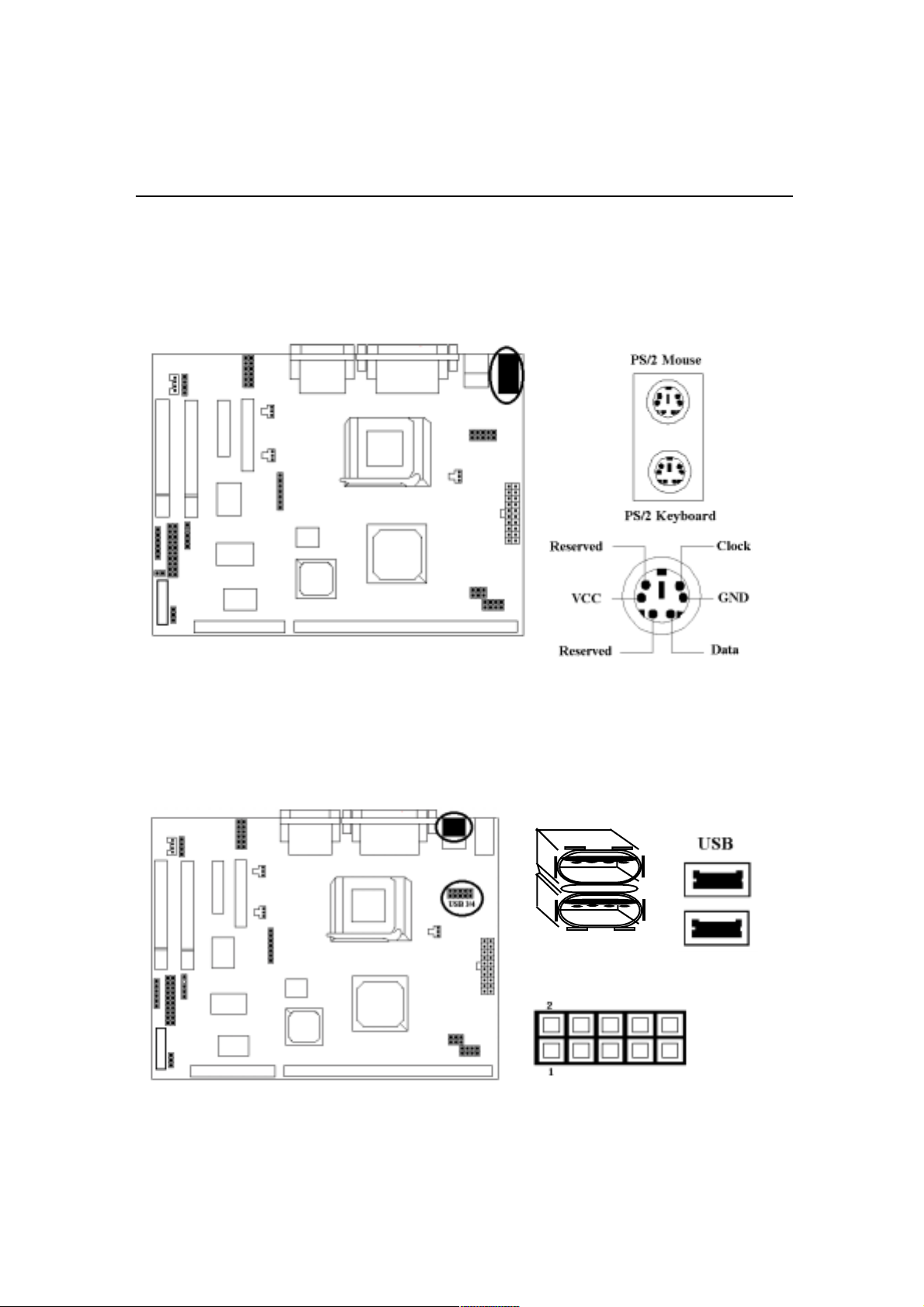

PS/2 Mouse & Keyboard Connectors...............................2-11

USB device Connector......................................................2-11

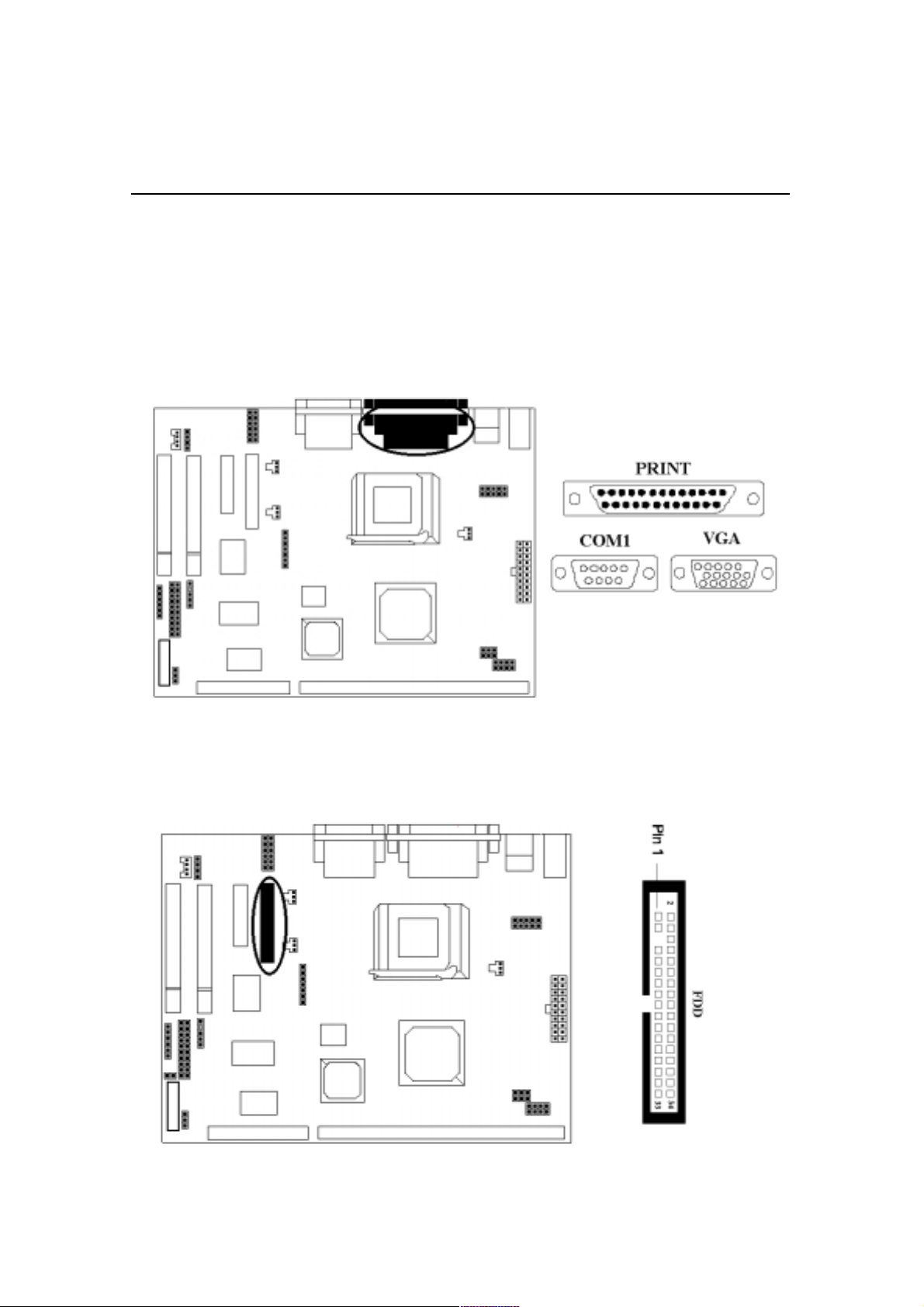

Serial Device com1, VGA & Printer Connectors.............2-12

Floppy drive Connector............................................................2-12

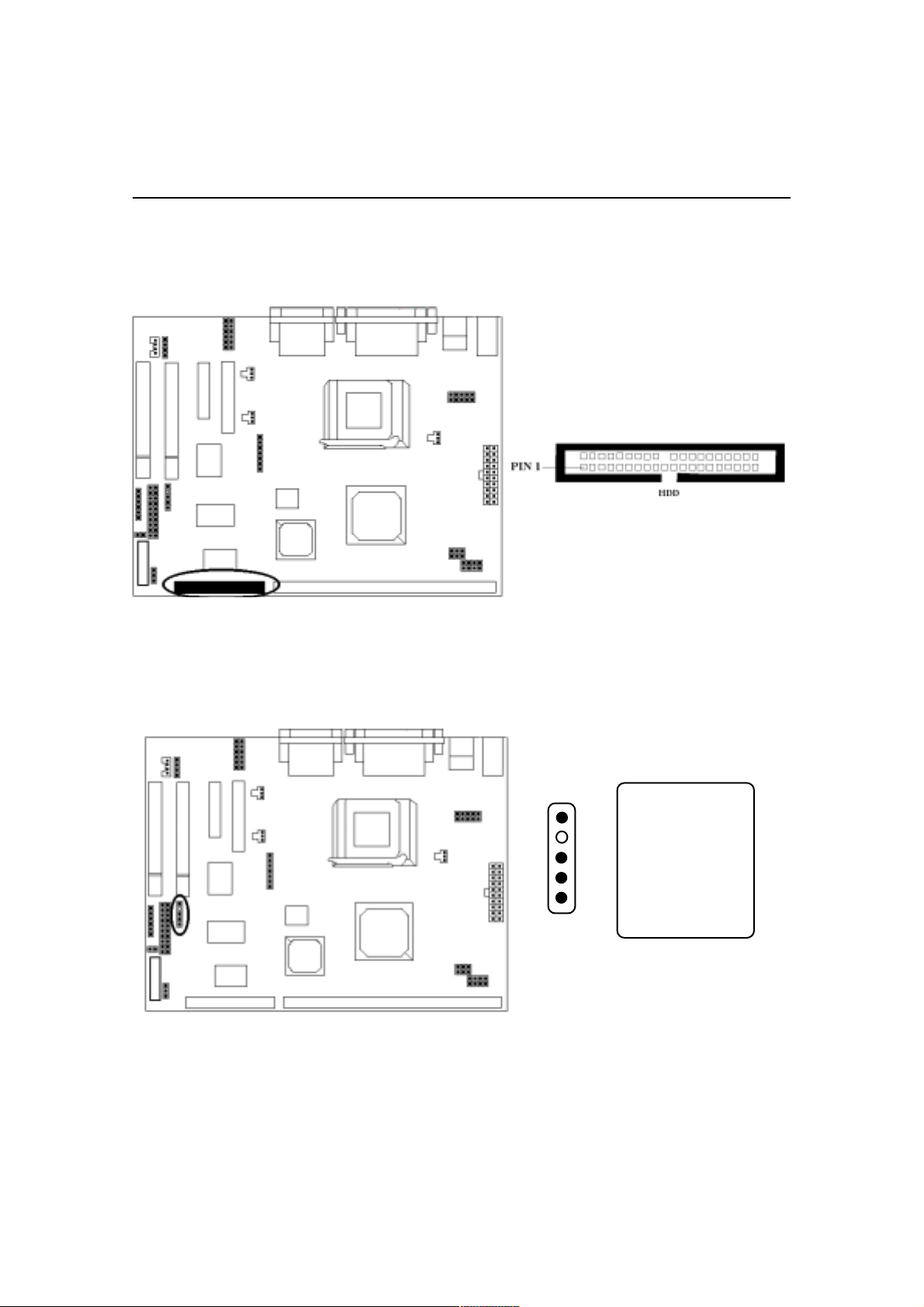

HDD Hard Disk Connector ......................................................2-13

IrDA Connector................................................................2-13

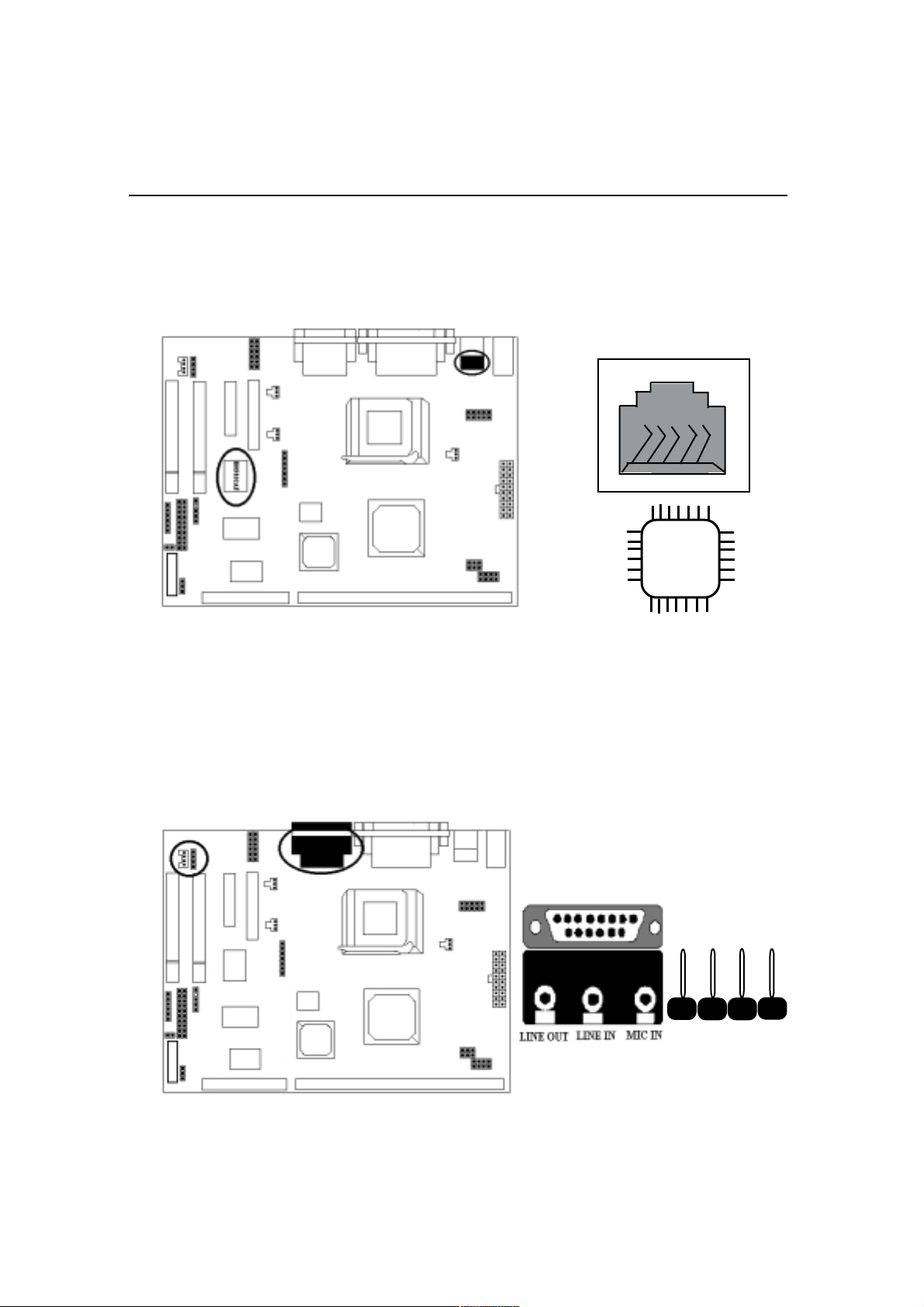

LAN Connector ..............................................................2-14

Game/Audio & CD_IN Connectors.................................2-14

Audio, Speaker, Joystick pinheaders.......................................2-15

TV-OUT,5V STB power pinheaders (optional)......................2-15

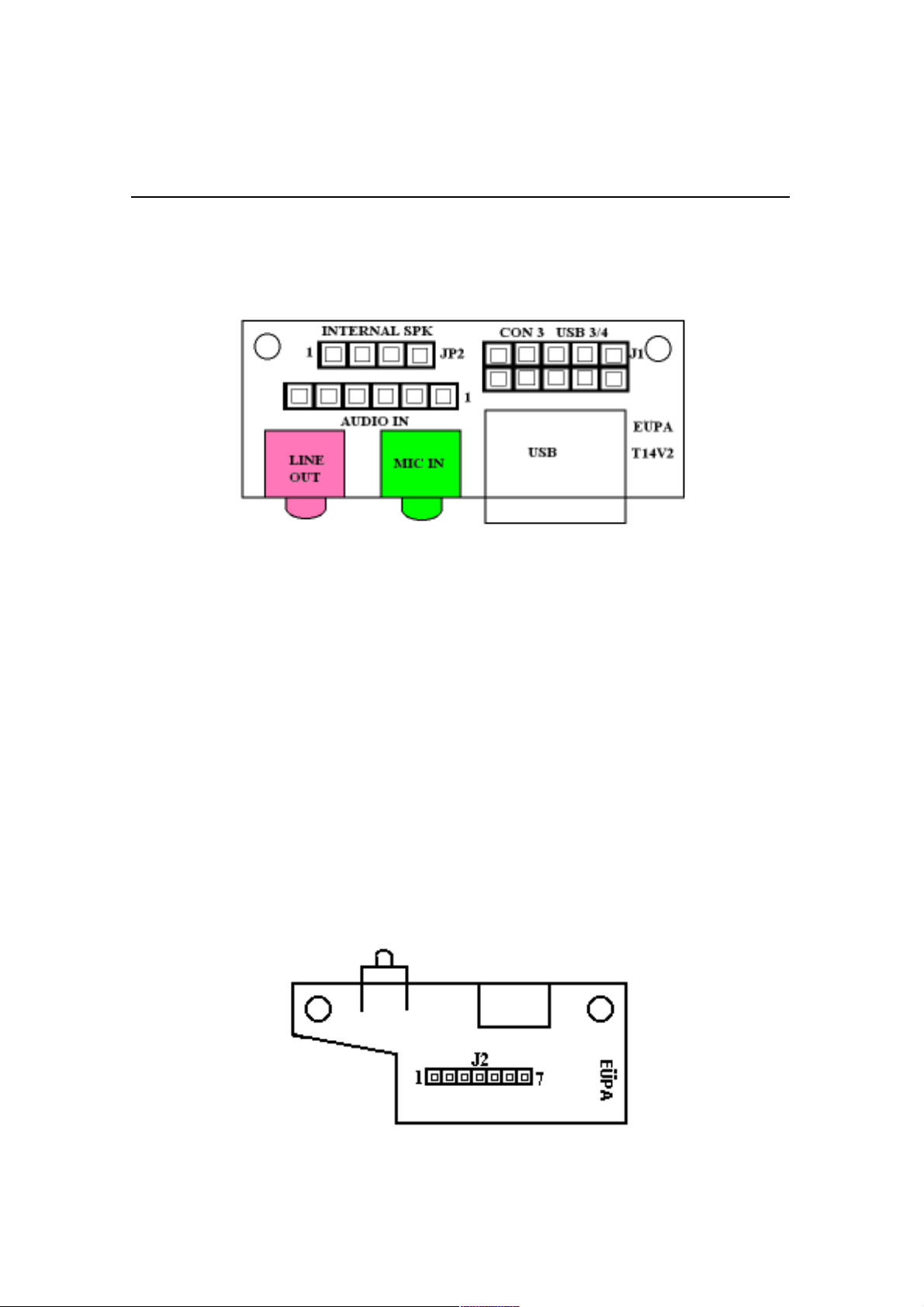

Aiding Bracket....................................................................................2-16

Contents

Chapter 3 CMOS Setup Utility

CMOS Setup Main Menu.................................................................. 3-1

Standard CMOS Setup........................................................................3-3

Advanced BIOS Features....................................................................3-5

Advanced Chipset Features................................................................3-8

Integrated Peripherals..........................................................................3-12

Power Management Setup..................................................................3-16

PnP / PCI Configuration.....................................................................3-20

PC Health............................................................................................3-21

Frequency / Voltage Control..............................................................3-22

Load Fail-Safe Defaults......................................................................3-23

Load Optimized Defaults....................................................................3-24

Set Supervisor / User Password.........................................................3-24

Save & Exit Setup..............................................................................3-26

Exit Without Saving............................................................................3-26

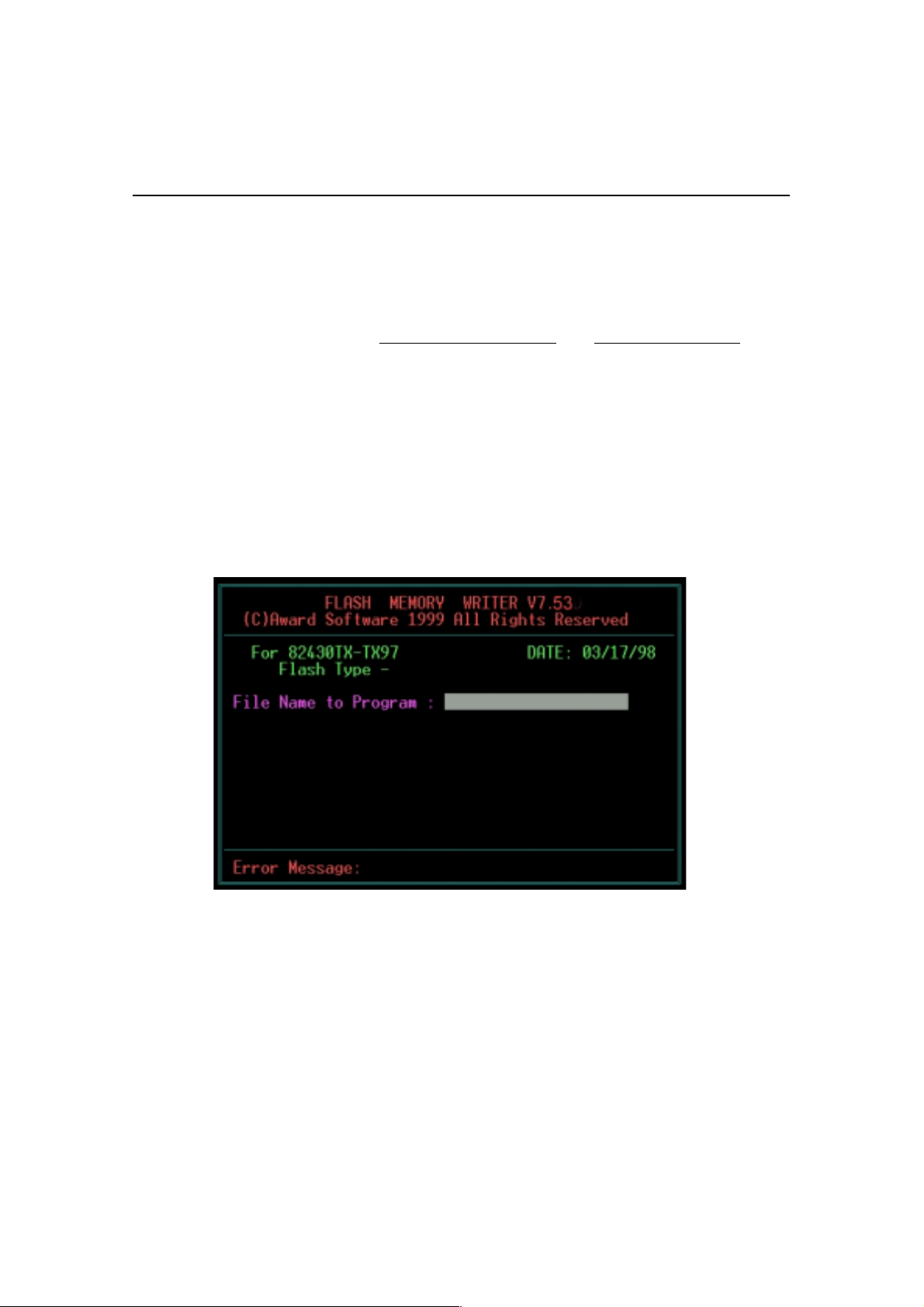

How to Update BIOS........................................................................3-27

Chapter 4 Software Utility

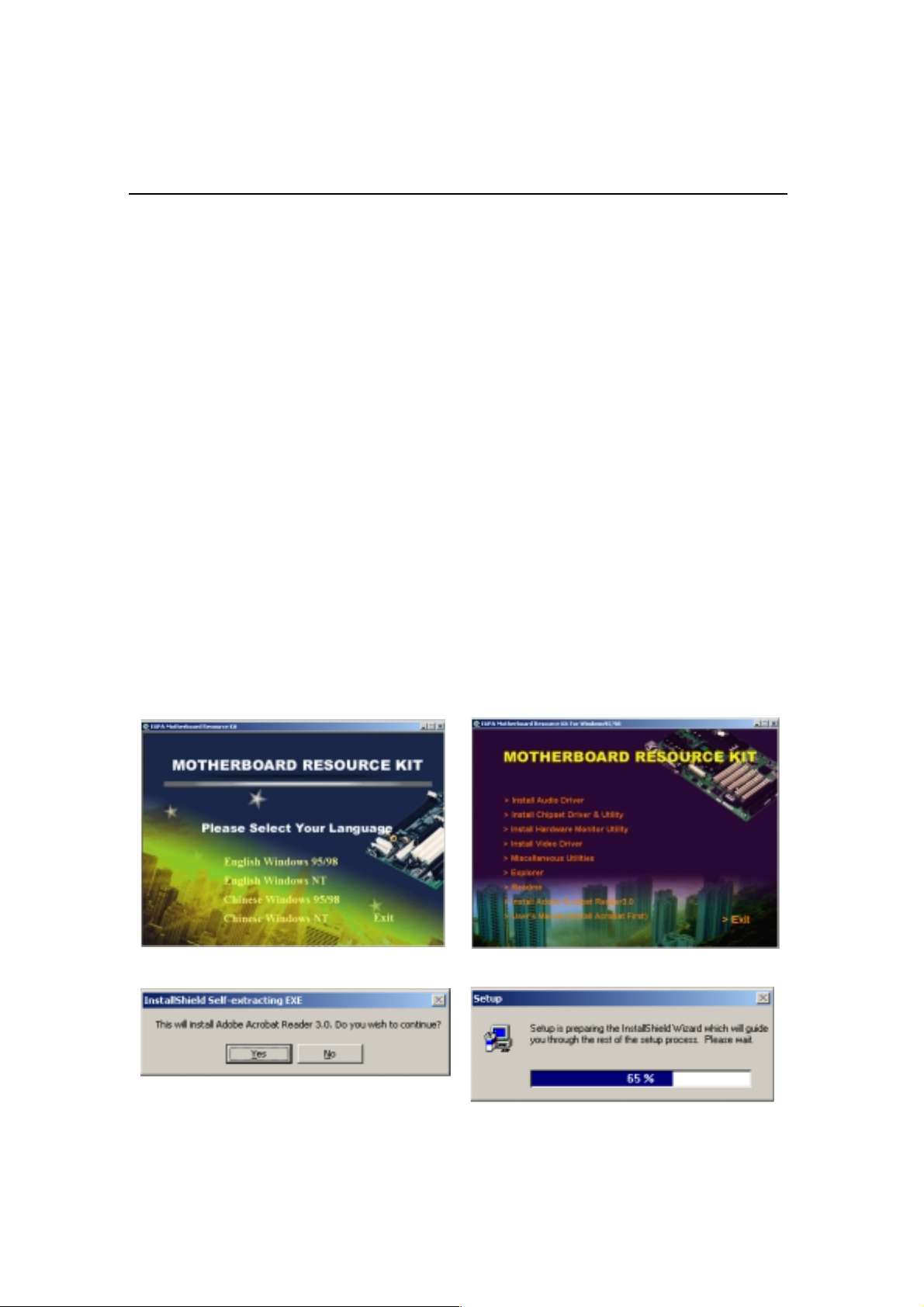

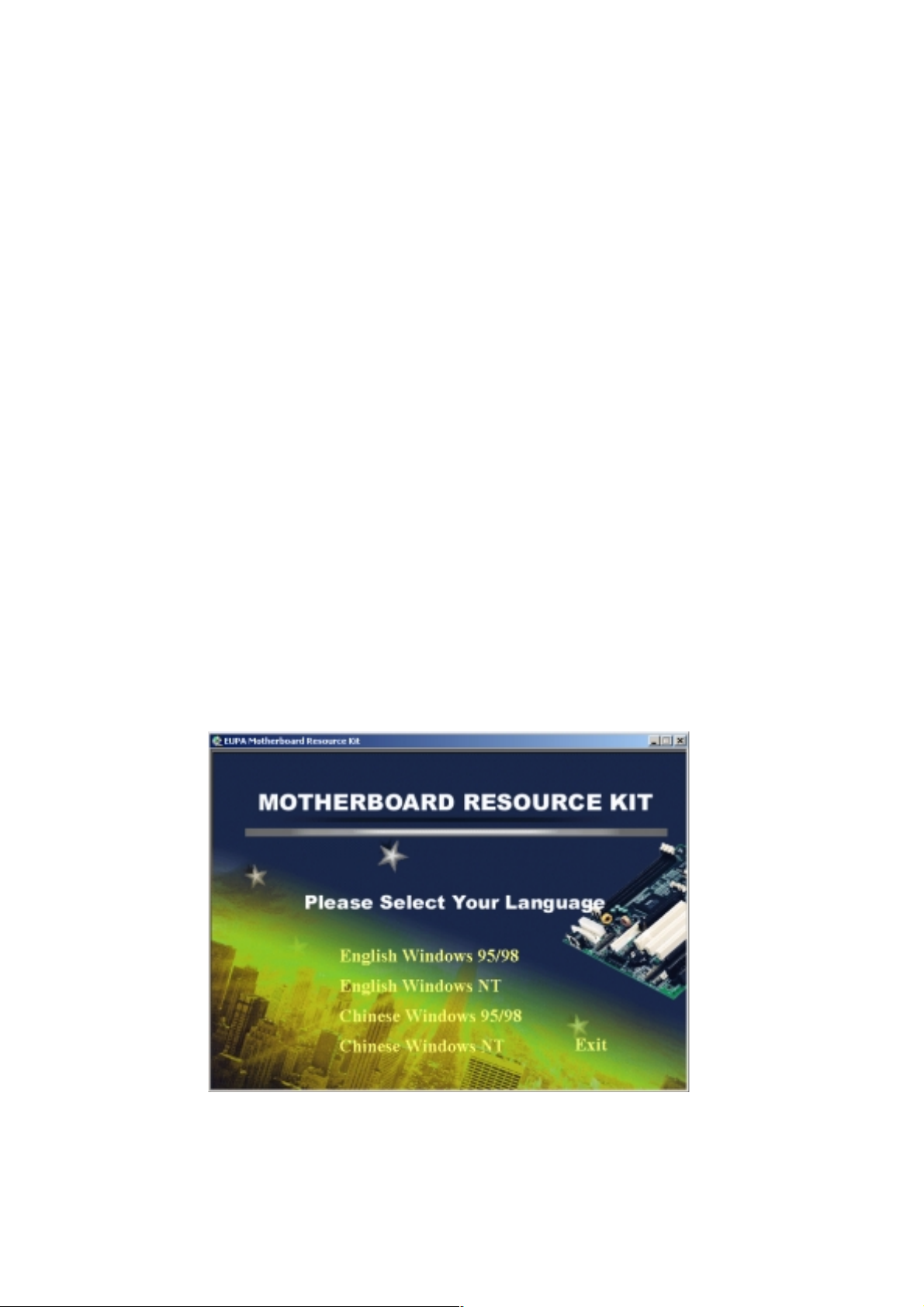

Installing Interface...............................................................................4-1

Installing Driver Location................................................................. 4-2

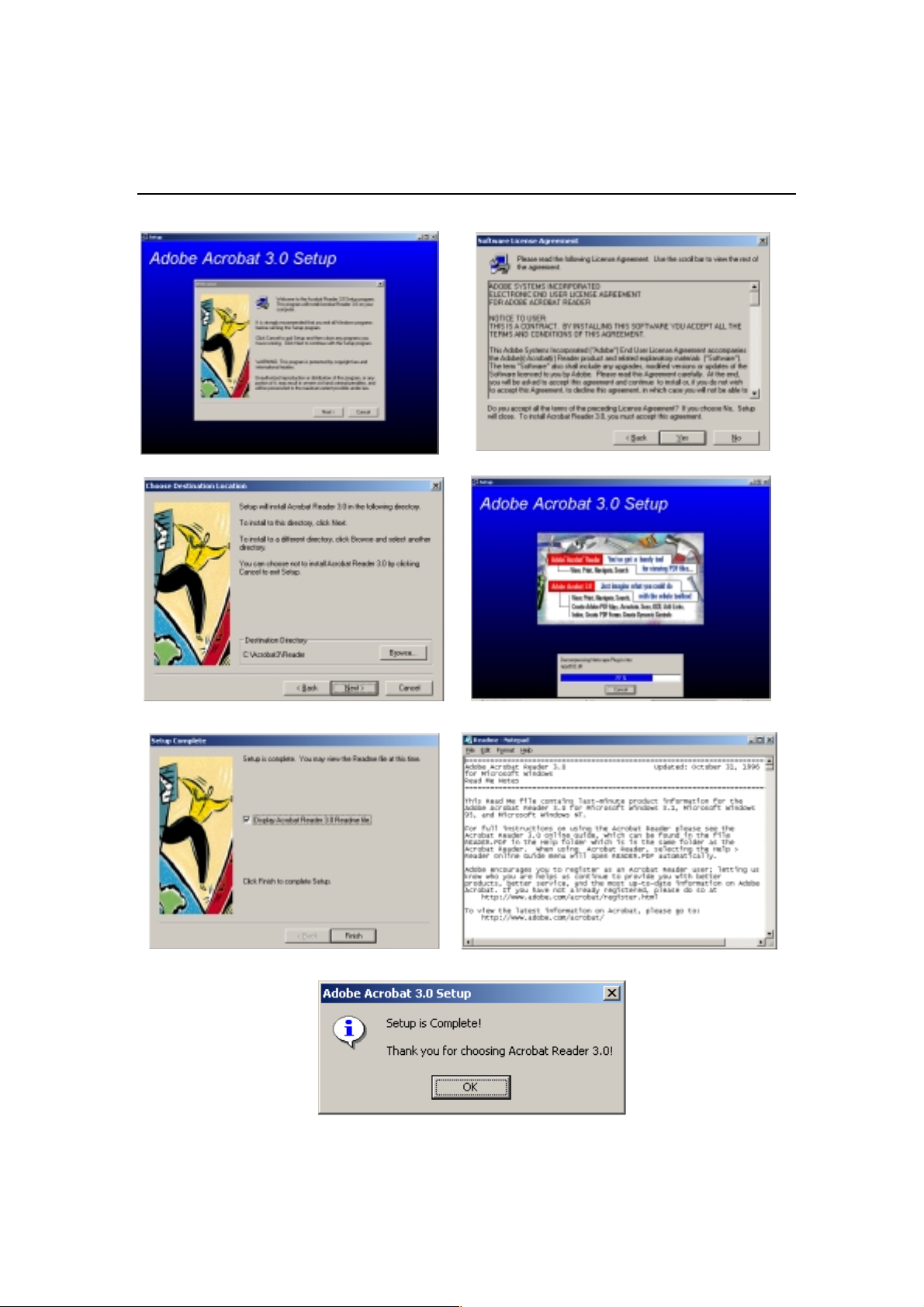

Installing ADOBE Acrobat Read Driver............................................ 4-2

Chapter 1
Overview

General DescriptionGeneral Description

General Description

General DescriptionGeneral Description

Thanks for purchasing EUPA ITZV7 Socket 370 motherboard. ITZV7is based on
Intel 810E chipset -- 82810E(GMCH) & 82801AA(ICH) which is for Celeron
(PPGA) and P!!! & Celeron (FC-PGA) and VIA Cyrix III Socket 370 processors.
The product integrates i752 graphic controller in GMCH. It designs 1 DIMM to
support 256MB system memory. Also it employs AC ’ 97 system, Ultra DMA 66
function, 4 USB and LAN function. Suspend To RAM and Audio, Speaker, Joystick
pinheaders are provided as well. This user’s manual contains all the information and
features that show you how to control ITZV7 motherboard. Please take a moment to
familiarize yourself with the design and organization of this manual.

TM

TM

Check Your Items

This ITZV7 motherboard package contains the following items. Please inspect the
package contents and confirm that everything is there. If anything is missing or
damaged, call your vendor for instructions before operating.

The Package includes:

!
! One Floppy Interface Cable
! One IDE Interface Cable
! One TV-OUT bracket
! One Audio bracket
! One Motherboard Resource CD
! One User’s Manual

1-1

One ITZV7 motherboard

ITZV7 Specifications:ITZV7 Specifications:

ITZV7 Specifications:

ITZV7 Specifications:ITZV7 Specifications:

Form Factor FLEX-ATX

Board Size 22.8cm x 18.3cm

Sup ports Socket 370 Intel P!!! & Celeron (FC-P GA ), Celeron (PP GA )

CPU

Sys tem M emory DIM M 168-p in x 1, SDRAM max imum 256M B SD RAM

Chipset

Sound Function ON board AC'97 system, Crystal4299 Audio Codec

Graphic i752 Built in 82810EGMCH

I/ O Int erf ace

Parallel Port

Floppy Interface

IDE Interface

Fuse Support Recoverable fuse for USB,KB & MOUSE

RTC and Battery

Power Connector ATX

Other Key Feature Monitor voltage and system environment temperature

BIOS

LED Indicator

and VIA Cyrix III CPUs

Supports FSB 66/100/133MHz

Intel 82810E GMCH

Intel 82801AA ICH

2 USB Ports, 2 USB pinheaders

1 MIDI /Game port (Line-in, Line-out, Mic-in)

1 Front Audio pinheader, 1 Joystick pinheader

1 TV-OUT pinheader (select for Video or S ports)--optional

1 LAN Port (10M / 100M auto detect)

1 PS/2 Mouse port, 1 PS/2 Keyboard port

1 VGA port

1 IrDA pinheader, 1 serial port

One parallel port suppo rts:

-SPP-standard parallel port

-EPP-enhanced parallel port

-ECP-extended capabilities port

Support drivers inches/format with:

-3.5 inches-720KB/1.44MB/2.88M B

-5.25 inches-360KB/1.2MB

One IDE Interface support 2 x IDE HDD or CDROM

Sup port PIO M ode 2, ULTR A DM A/33 & U LTR A DMA/66

Built in ICH

Lithium (CR-2032) battery

Awa rd BIOS

ITE Hardware M onitor

Sup ports Suspend To RA M (STR)

Supports virus warning

Supports Flash / Upgrade BIOS functions

System Power LED

HDD activity LED

System Suspend LED

Overview

1-2

Overview

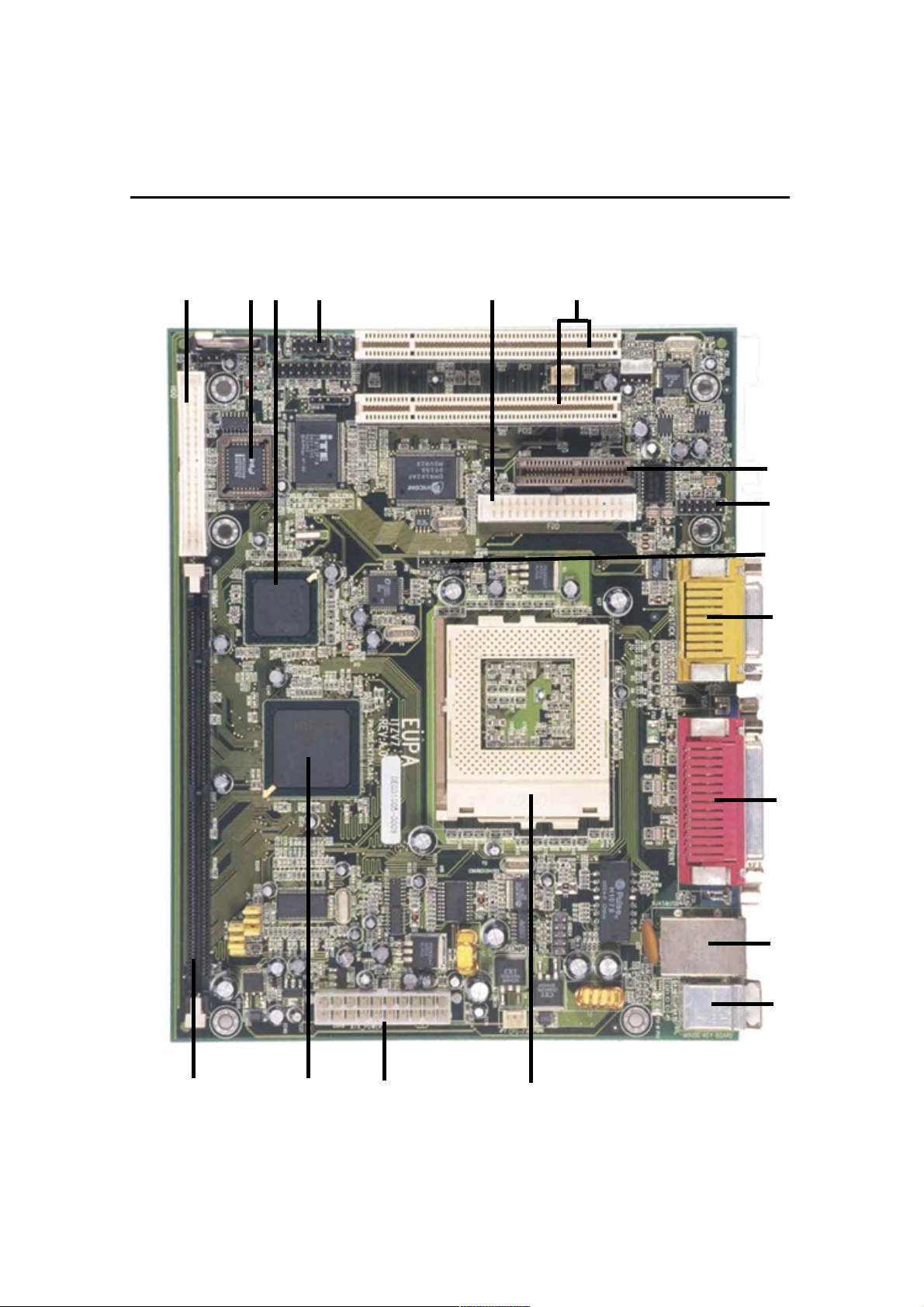

ITZV7 Component:ITZV7 Component:

ITZV7 Component:

ITZV7 Component:ITZV7 Component:

5

6 7 10

8

9

11

12

13

14

1-3

15

16

17

34

2

1

Overview

Please refer to next two pages about each component, and this manual will
explain every important one at the following chapter.

1. Socket 370 processors socket

2. ATX Power Port

3. North Bridge Intel 82810E

4. 1 DIMM socket

5. IDE Port

6. BIOS

7. South Bridge Intel 82801AA

8. Front Audio pinheader

9. Floppy Port

10. PCI slot

11. AMR Slot

12. Joystick Pinheader

13. TV-OUT pinheader

14. Game Port, Line-in, Line-out, Mic in

15. Printer, VGA, COM Port

16. USB, LAN devices ports

17. PS/2 Keyboard (Purple) / Mouse (Green)

1-4

Overview

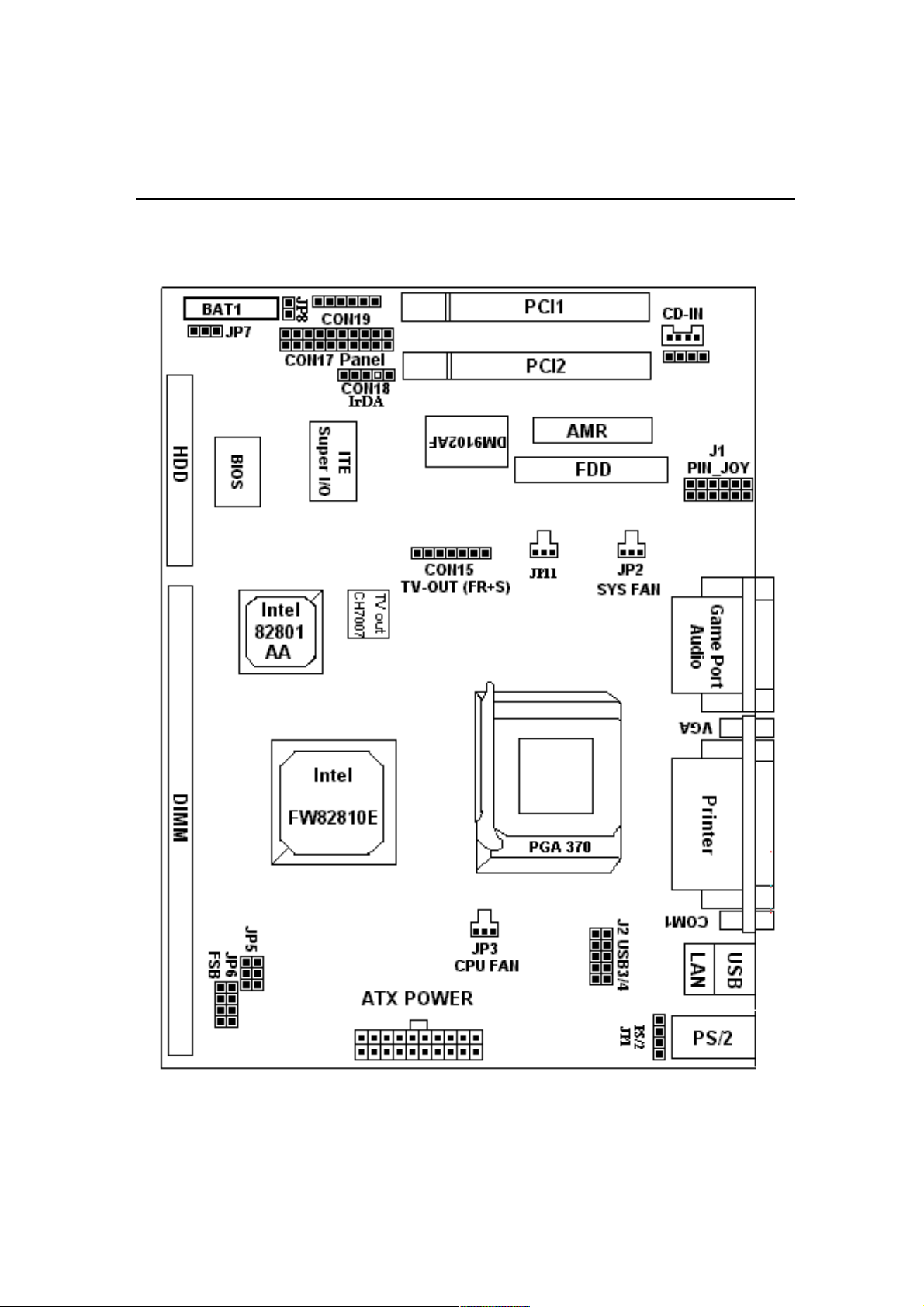

Motherboard Layout:Motherboard Layout:

Motherboard Layout:

Motherboard Layout:Motherboard Layout:

1-5

Overview

Jumpers

1. JP7 Clear CMOS

2. JP5, JP6 Select CPU clock frequency

Expansion Slots

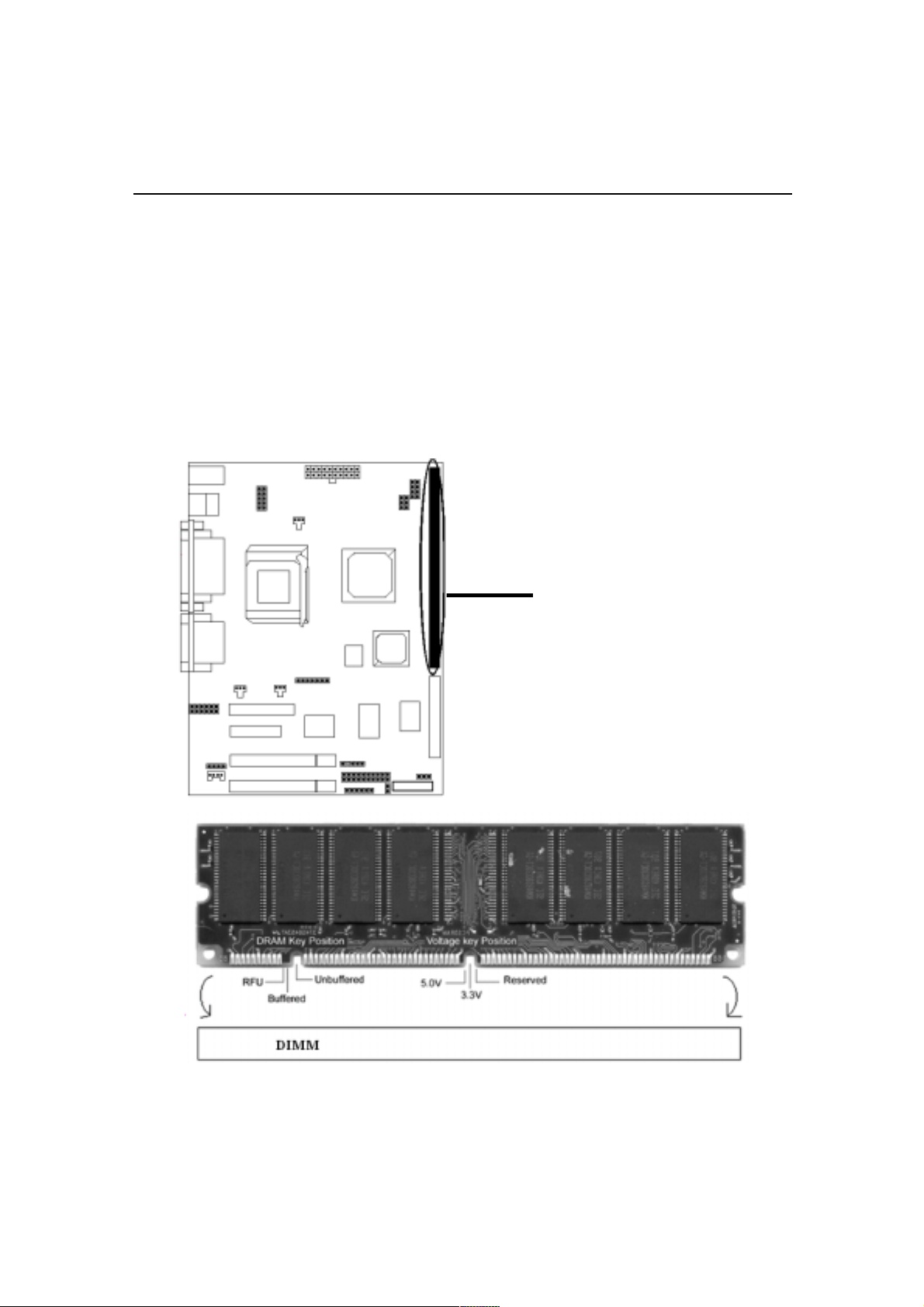

1. DIMM Support 168-pin DIMM Memory

2. PCI slot1 to slot2 32-bit PCI Bus Expansion slots

3. AMR AMR Expansion Slot for MC97 Devices

Connectors & Pinheader

1. PS/2 KB PS/2 Keyboard Connector

2. PS/2 Mouse PS/2 Mouse Connector

3. LAN LAN Connector

4. USB Universal Serial Bus Port1 and Port2

5. J2 USB 3/4

6. JP8 5V STB Power pinheader for special chassis(reserved)

7. Printer Printer (Parallel) Port Connector

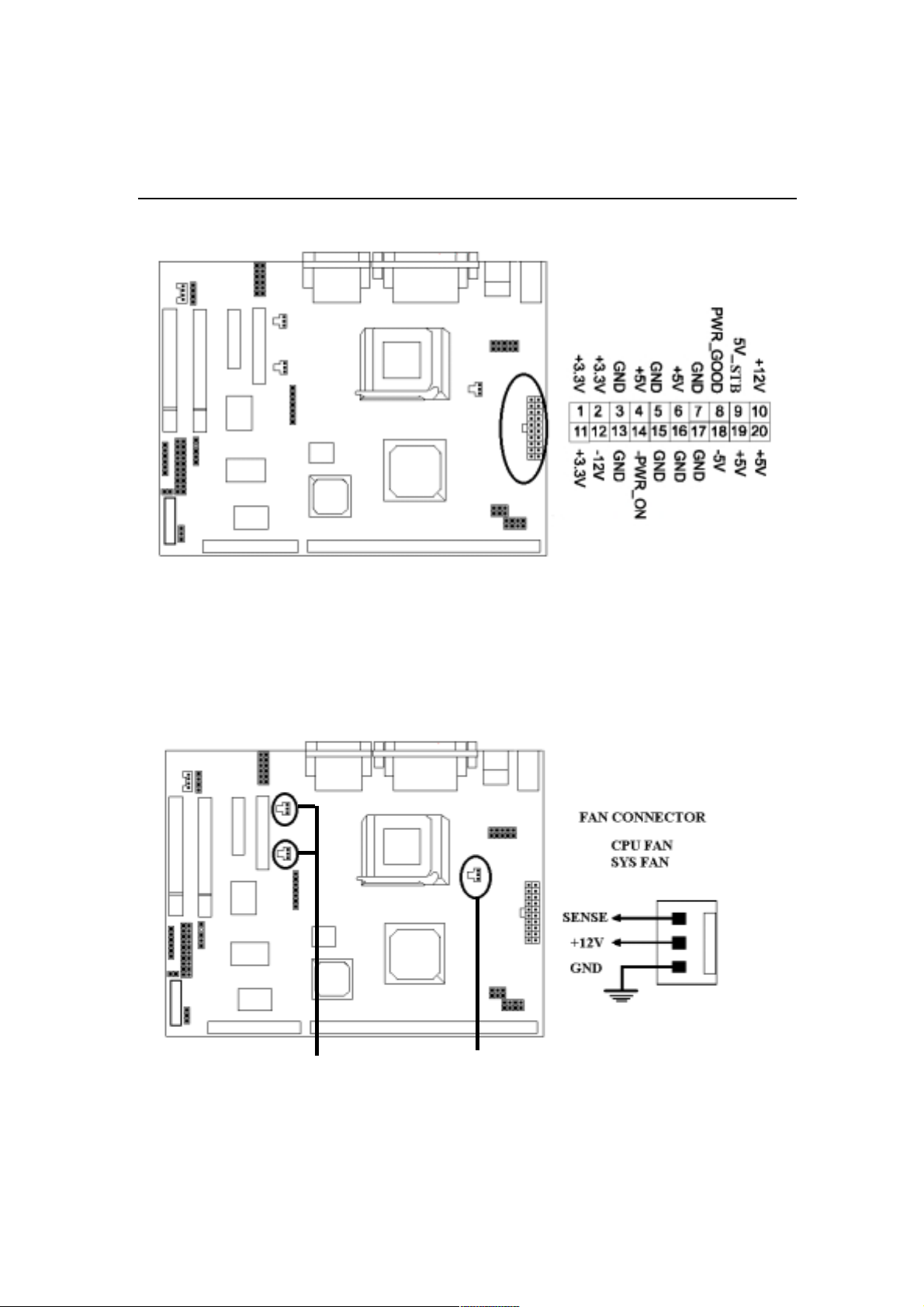

8. ATX Power ATX Power Connector

9. JP2 System Fan Connector

10. JP3, JP11 CPU Fan Connector

11. Floppy Floppy Drive Connector

12. HDD Primary IDE Connector

13. CON 18 IrDA Connector

14. CON 9 & CON 10 Audio CD-IN Connector

15. CON19 Front Audio (including Speaker of chassis)

16. J1 PIN-JOY (joystick pinheader)

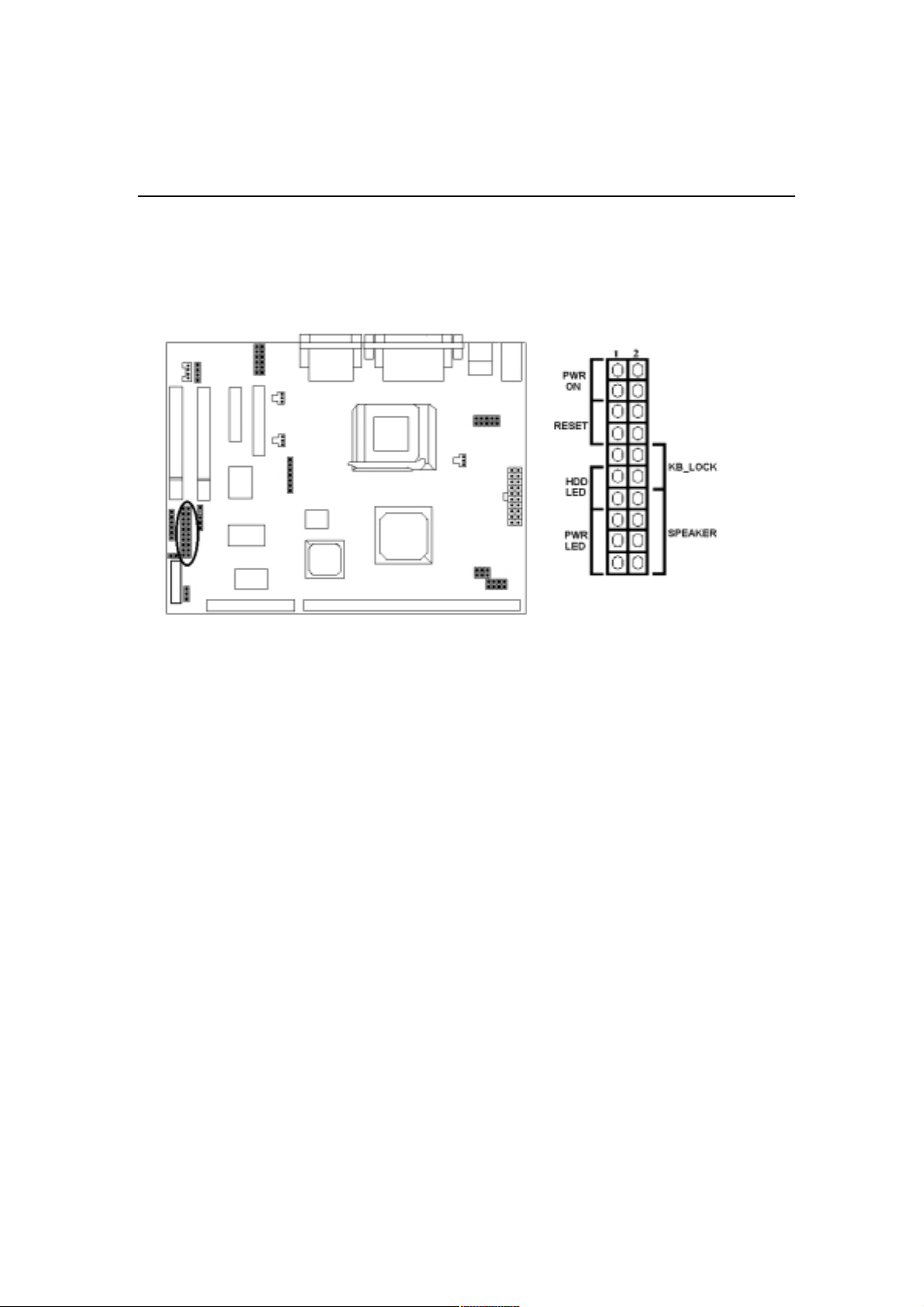

17. Panel(CON17)

- PWR LED ATX Power LED (3pins)

- SPEAKER Chassis Speaker (4pins)

- HDD LED HDD LED (3pins)

- RESET Reset Switch (2pins)

- PWR ON ATX Power Switch (2pins)

- KB-LOCK Keyboard Lock Switch (2 pins)

1-6

Chapter 2 Hardware Installation

This chapter gives you a step-by-step procedure on how to install your system and

set jumper. The motherboard has several user-adjustable jumpers on the board that

allow you to configure your system to suit your requirements.

Cautions: Protecting Against Electrostatic Discharge

Static electricity can harm delicate components inside your system. To prevent

static electricity damage, discharge static electricity from your body before you

touch any of your motherboard electronic components, such as the microproces-

sor. Observe the following precautions:

- Do not removes the motherboard from its anti-static packaging until you are

ready to install it into a computer case.

- Before you handle the motherboard in any way, touch a grounded, antistatic

surface, such as an unpainted portion of the system chassis, for a few seconds

to discharge any built-up static electricity.

- Handle add-in cards and modules by the edges or mounting bracket.

2-1

Hardware Installation

Set Jumpers:Set Jumpers:

Set Jumpers:

Set Jumpers:Set Jumpers:

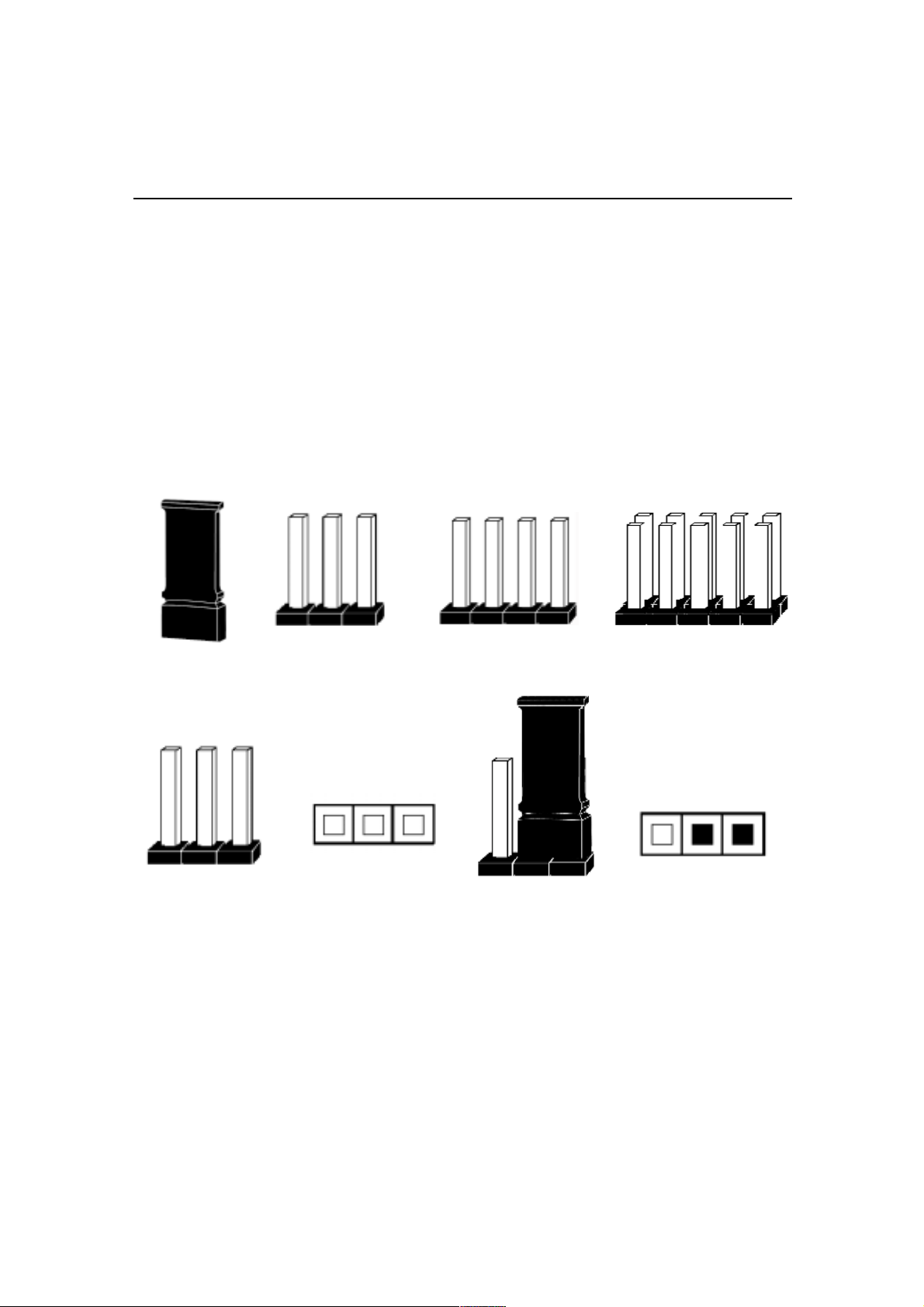

Jumpers are used to select the operation modes for your system. Each jumper on the

board has several metal pins with each pin representing a different function. A 1

is written besides pin 1 on jumpers with several pins. To set a jumper, a plastic cap

containing metal contactor is placed over the jumper pins according to the required

configuration. A jumper is said to be shorted when the plastic cap has been placed

on two pins of it.The types of jumpers used in this manual are shown below:

Jumper Cap 3-pin Jumper

Open

1

2

3

4-pin Jumper

3

2

1

Jumper Block

Short

Note:

Users are not encouraged to change the jumper settings not listed in this manual.

Changing the jumper settings improperly may adversely affect system performance.

2-2

Hardware Installation

Install CPUInstall CPU

Install CPU

Install CPUInstall CPU

The CPU module resides in the socket 370 on the motherboard. Please following

the steps introduced below to complete the CPU installation.

1) Locate the new processor you are installing over the socket so that the

notched corner on the processor (pin 1) can be aligned with the blank corner

on the socket. Then gently push the processor straight into the socket until

its pins are completely inserted into the holes of the socket.

Caution:

If you install the processor chip in the wrong orientation, you may burn the
chip and void your warranty. So you should install it careful deeply.

2) Press the ZIF handle back to close it.

3) Attach the heat sink to the processor socket and then connect a fan connector

cable from the CPU fan to the CPU FAN connector.

2-3

Hardware Installation

CPU SettingCPU Setting

CPU Setting

CPU SettingCPU Setting

After installing the CPU, you must set the clock selection jumpers to match the

frequency of the CPU. Find the jumpers labeled

ing to the figure below and table for CPU Clock Frequency.

JP5, JP6, set these jumpers accord-

Caution:

We don’t recommend user to try overclock, it may damage your CPU and
result in a slower speed. Please think carefully before you use overclock
function.

We introduce you how to clear CMOS, and enter into system BIOS, it could help you

accomplish CPU setting in BIOS easyly.

Clear CMOS: Clear CMOS:

Clear CMOS:

Clear CMOS: Clear CMOS:

JP7

JP7 Clear CMOS

Clear

CMOS

To Clear CMOS, please follow the steps below:

1. Power off the system and unplug the chassis AC power cord.

2. Short JP7 at pin 2-3 for few seconds.

3. Set JP7 back to its Normal position at pin1-2

4. Plug the AC power cord to the chassis.

5. Power on the system and load the BIOS set up default.

Normal

(Default)

2-4

Hardware Installation

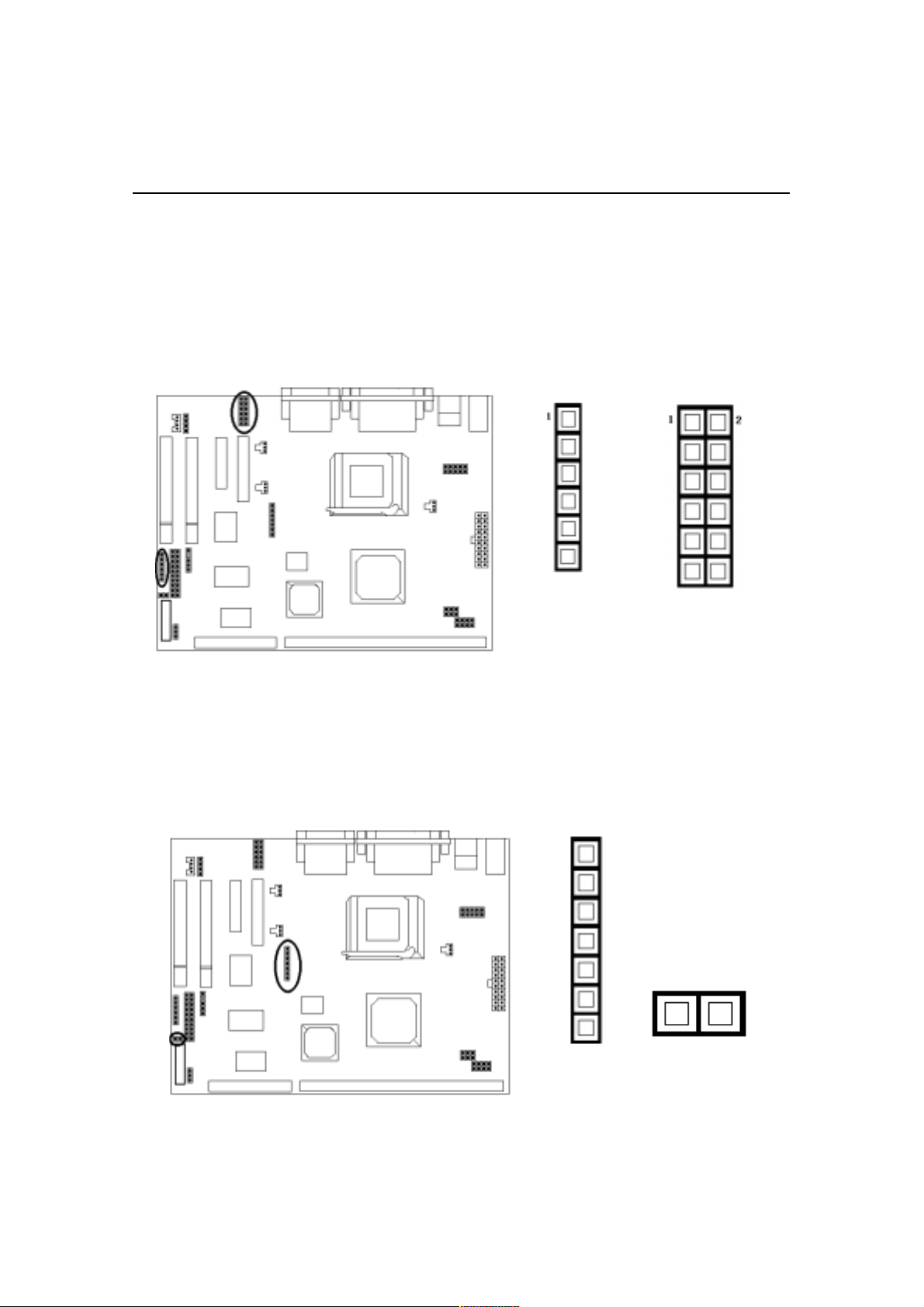

Jumper setting: JP5, JP6Jumper setting: JP5, JP6

Jumper setting: JP5, JP6

Jumper setting: JP5, JP6Jumper setting: JP5, JP6

2-Pin Jumper

JP5

OPEN (O)

JP6

SHORT (S)

JP5

JP6

JP6

66MHz

CPU

(MHz)

66 33.40 S S S S S S S
100 33.43 S S O S O S S
133 33.43 S O O S S O S
133 44.5 S O O S S O O

68 34.00

72.5 36.25 O O O O

103.00 34.33 O O S S

118.00 39.33 S O S O

124.00 41.33 O O S O

PCI

(MHz)

JP5 JP6

1-2 3-4 5-6

OPEN

JP5

100MHz

FS0(1-2) FS1(3-4) FS2(5-6) FS3(7-8)

OSSS

JP5

JP6

133MHz

2-5

137.00 45.67 O S O O

140.00 46.67 O S S O

150.00 50.00 S O O O

Hardware Installation

System Memory InstallationSystem Memory Installation

System Memory Installation

System Memory InstallationSystem Memory Installation

There are1 piece 168-pin DIMM (Dual Inline Memory Module) socket on the

motherboard which support SDRAM and EDO DRAM memory.

♦ T o ensure reliability, it is recommended to use PC 100 SDRAM for your high clock

SDRAM performance requirement.

♦ DIMM Sizes supported: 8MB, 16MB, 32MB, 64MB, 128MB, 256MB.

There are 1x168-pin DIMM
socket that allow you to install the
system memory max up to 256MB
SDRAM.

2-6

Hardware Installation

1 Install DIMM

1) Locate the DIMM socket on the motherboard.

2) Orient a DIMM to the socket so that the two notches in the DIMM connector

are aligned with the crossbars in the socket.

3) Press the DIMM straight into the socket until the retaining clips snap into

place around the ends of the DIMM.

2 Removing a Memory Module

To remove memory module, press the retaining clips outward simultaneously

until the DIMM disengages from the socket and then carefully remove the

DIMM from the socket.

2-7

Hardware Installation

Install Expansion CardsInstall Expansion Cards

Install Expansion Cards

Install Expansion CardsInstall Expansion Cards

This section describes how to connect an expansion card to one of your systems

expansion slots. Expansion cards are printed circuit boards that, when connected to

the mainboard, increase the capabilities of your system.ITZV7 features 2 PCI bus,

1 AMR expansion slot.

AMR PCI Slot

Caution:

Adjust any switches or jumpers on the expansion card, if necessary. When you

handle the card, be careful not to touch any components on the circuit board or the

gold-edged connector.

1) After removing the cover, insert a flat blade screwdriver into a hole of the

slot cover you wish to remove.

2) Move the screwdriver up and down until the slot cover breaks away from the

chassis. Then lift the slot cover out of the chassis.

3) Hold the card along the top corners and guide it into the slot. When the

expansion card reaches the slot on the motherboard, push the card in firmly

to insert it fully.

4) Secure the end of the card to the computer with retaining screw.

5) Connect any cables that should be attached to the card, and replace the system

cover.

2-8

Hardware Installation

Connectors:Connectors:

Connectors:

Connectors:Connectors:

1. Panel Connector:

-PWR ON ATX Power Switch (2pins)

-POWER LED ATX Power LED (3-pins)

-RESET Reset Switch (2pins)

-HDD LED HDD LED (2-pins)

-KB_LOCK Keyboard lock Switch (2-pins)

-SPEAKER Chassis Speaker (4-pins)

2. Power Connector

Connect the 20-pin ATX power supply cable to this power connector. Make sure

the right plug-in direction and the power supply is off before connecting or

disconnecting the power cable.

Remark: We suggest that users use 5 V STB and power source current

should be over 1A, otherwise it will affect system boot up.

2-9

3. Fan Connector

Hardware Installation

ATX Power

Connect the CPU and System fan cables to the fan connectors shown below.

The fan connectors are marked as:

SYS FAN

SYS FAN & CPU FAN on the motherboad.

CPU FAN

2-10

Hardware Installation

4. PS/2 Mouse & Keyboard Connectors

Connect the PS/2 mouse and keyboard to the onboard 6-pin Mini-Din connector

marked as

MOUSE and KB.

5. USB Device Connectors

Connect your USB device(s) to the onboard USB connector shown as below.

Top: USB1
Bottom: USB2

USB 3/4

2-11

Hardware Installation

6. Serial Device COM1, VGA and Printer Connectors

Connector your serial device(s) to the onboard serial connectors marked as COM1.

Connect the 15-pins VGA Monitor Output marked as

or other VGA compatible devices. Connect your local

25-pin printer connector marked shown as below.

7. Floppy Drive Connector

VGA to your system monitor
Printer to the onboard

Connect the floppy drive cable to the onboard 34-pin floppy drive connector

marked as

FDD.

2-12

Hardware Installation

8. HDD Hard Disk Connector

Connect your IDE devices to the onboard 40-pin IDE connectors marked as HDD.

9. IrDA Connector

Connect your IR devices to the onboard IrDA connectors shown as below.

1
2
3
4
5

IrDA

Pin Description

1 +5V
2NC
3 IRRX
4 GND
5IRTX

2-13

10. LAN Connector

Hardware Installation

Connect your

LAN port to the onboard and LAN chip are shown as below.

LAN Connector

DAVICOM

DM9102AF

11. Game / Audio Connector and CD_IN Connectors

The 15-pin female Game/Audio connector allows you to connect game joystick or

game pads for playing games. Connect MIDI devices for playing or editing audio.

The CD connector onboard marked as

CD-IN is for CD-ROM connection.

JOYSTICK

CD-IN

CON9&CON10

2-14

Hardware Installation

12. Audio, Speaker, Joystick pinheaders

The JP19 Front Audio and the 12-pin J1 PIN-JOY pinheaders allow you to plug

audio and joystick conntector in. (We suggest that you must not use ports and

pinheaders at the same time, or it would affect system unstability.)

JP19

Front Audio

J1
PIN-JOY

13. TV-OUT & 5V STB power pinheaders(optional & reserved)

The 7-pin TV-OUT pinheader onboard marked as CON15 allows you to connect

FR or S series TV connectors. The 2-pin

some types of special chassises.

JP8 connect 5V STB Power connector for

2-15

CON15

TV-OU (FR+S)

JP8

Hardware Installation

Aiding BracketAiding Bracket

Aiding Bracket

Aiding BracketAiding Bracket

1. Audio, Speaker, USB brackets

The JP2 Internal SPK is output speaker function of chassis, you may choose

it according your requirement.If you want to use USB 3/4 function on motherboard,

you would connect marked as

two USB freely.

J1 USB 3/4 to the bracket, then you may use another

Note!!

Dont forget to connect Audio In pinheader on bracketto the board which mark as
JP19 Front Audio , then you may realize the speaker function.And we should

remind you that

you apply to Game port on the motherboard.

2. TV-OUT bracket

If you want to use TV-OUT function, you should prepare one TV-OUT

bracket, connect

bracket show as below)

Line out & Mic in pinheader ( shown as up) will useless when

J2 on bracket to CON 15 TV-OUT pinheader on board.(The

2-16

Chapter 3 CMOS Setup Utility

The rest of this manual is intended to guide you through the process of configuring
your system using Setup. While the BIOS is in control, the Setup program can be
activated by pressing the <Del>key during the POST (Power On Self-Test).If the
message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the “ RESET ” button on
the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>,
and <Delete> keys.

CMOS Setup Main MenuCMOS Setup Main Menu

CMOS Setup Main Menu

CMOS Setup Main MenuCMOS Setup Main Menu

Once you enter the BIOS setup utility, the Main Menu will appear on the screen.
The Main Menu allows you to select from several setup functions . the arrow keys
to select among the items and press <Enter> to accept and enter the submenu.

3-1

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

!""Standard CMOS Features ! Frequency/Voltage Control

!""Advanced BIOS Features Load Fail-Safe Defaults

!""Advanced Chipset Features Load Optimized Defaults

!""Integrated Peripherals Set Supervisor Password

!""Power Management Setup

!""PnP / PCI Configuration

!""PC Health Status

Esc : Quit

F10 : Save & Exit Setup

Abandon all datas

Set User Passoword



Save & Exit Setup



Exit Without Saving



CMOS Setup Utility

The main menu includes the following main setup categories, which defines basic
information about your system. Below are the keyboard function keys you can use
under the menu.

Menu function keys:

↑↑

↓↓

↑

↓

↑↑

↓↓

F10

ENTER

ESC

F1

←←

←

←←

: To Move around the screen. An item is highlighted if it is selected.

→→

→

→→

: Help.

: Save CMOS Changes & Exit.

: To select or enter a submenu.

: To quit the BIOS Setup Utility.

3-2

CMOS Setup Utility

Standard CMOS SetupStandard CMOS Setup

Standard CMOS Setup

Standard CMOS SetupStandard CMOS Setup

The items in Standard CMOS Setup Menu are divided in 10 catagories. Each

catalogue includes one or more than one setup items. Use the keys to highlight

the item and then use the / <PgUp> / <PgDn> keys to select the value

↑ ↓ ← →

you want in each item.

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

Standard CMOS Features

Date (mm:dd:yy):
Time (hh:mm:ss):

!

IDE Primary Master
IDE Primary Slave

!

Drive A
Drive B

Video
Halt On

Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6: Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

6KA, )KC

16:19:20

1.44M. 3.5in
None

EGA / VGA
All, But Keyboard

29 2000

Item Help

Menu Level

Change the day, month, year
and century

!

Date & Time

To set the date and time, highlight the date area.Press /<PgUp>/ <PgDn>

↑ ↓ ← →

to set the current date. The date format is month: Jan. ~ Dec; date: 1 ~ 31; year:
1994 ~ 2079; hour: 00 ~ 23; and second: 00 ~ 59.

! Hard Disks → IDE Primary Master

! Hard Disks

→ IDE Primary Slave

3-3

CMOS Setup Utility

Access Mode

Choose the access mode for this hard disk.
The optional are: Normal, LBA, Large, Auto (Default).

Capacity

Disk drive capacity (approximated). Note that this size is usually slightly greater
than the size of the formatted disk given by a disk checking program.
The optional are: Auto display your drive size.

Drive A / Drive B

Select the floppy drive type installed in your system. The available options for
Drive A and Drive B.
The optional are: 360K 5.25 in, 1.2M 5.25 in, 720K 3.5 in, 1.44M 3.5 in(Drive A

default), 2.88M 3.5 in and NONE (Drive B default).

Video

Select the video display card type installed in your system.
The optional are: EGA/VGA (Default), CGA 40, CGA 80 and Mono.

Halt On

This item defines the operation of the system POST (Power On Self-Test). You can
use this item to select which kind of errors will cause the system to halt during
POST.
The optional are: All Errors, No Errors, All But Keyboard (Default), All But
Diskette and All But Disk / Key

3-4

CMOS Setup Utility

Advanced BIOSFeaturesAdvanced BIOSFeatures

Advanced BIOSFeatures

Advanced BIOSFeaturesAdvanced BIOSFeatures

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

Advanced BIOS Features

Virus Warning

CPU Internal Cache

Extern al Cache

CPU L2 Cache ECC Checking

Proces sor Number Feature

Quick Po wer On Self Test

First Boot Device

Second Boot Device

Third Boot device

Boot other device

Sw ap Flopp y Drive

Boot Up Floppy Seek

Boot Up Numlock Status

Gate A20 Option

Typematic Rate Settin g

* Typematic Rate (Chars/Sec)

* Typem atic Delay (Msec)

Security Option

OS Se lect For DRAM > 64MB

Report No FDD For WIN 95

Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

Disabled

Enabled

Enabled

Enabled

Enabled

Disabled

Floppy

HDD-0

LS120

Enabled

Disabled

Enabled

On

Fast

Disabled

6

250

Setup

Non-OS2

No

Item H elp

Menu Level

Allows you to choos e the VIRU S

warning feature for I DE Hard Dis k

boot s ector protection. If this

function is enabled and someone

attemp t to write data into this area,

BIOS will show a warning message

on screen and alarm beep.

!

Virus Warning

If this function enabled and someone attempt to write data into this area, BIOS will
automatically show a warming message on screen and alarm beep.
The optional are: Enabled, Disabled (Default)

CPU Internal / External cache

These two items controls Enable / Disable the CPU internal / external cache.
The optional are: Enabled (Default), Disabled

CPU L2 Cache ECC Checking

This item allows you to enable / disable CPU L2 Cache ECC Checking.
The optional are: Enabled (Default), Disabled

3-5

CMOS Setup Utility

Processor Number Feature

This item allows you to enable / disable Processor Number.
The optional are: Enabled (Default), Disabled

Quick Power On Self Test

This item speeds up Power On Self Test (POST) after you power up the computer.
If it is set to Enable, BIOS will shorten or skip some check items during POST.
The optional are: Enabled, Disabled (Default))

First / Second / Third Boot Device

The BIOS attempts to load the operating system from the devices in the sequence
selected in these items.
The optional are: Floppy (First Default), HDD-0(Second Default), LS120

(Third Default), HDD-1, ZIP 100, SCSI, CDROM, LAN, Disabled.

Boot Other Device

Select your Boot Device Priority.
The optional are: (Enabled Default), Disabled

Swap Floppy Drive

If the system has two floppy drives, choose enable to assign physical drive B to
logical drive A and vice-versa.
The optional are: Enabled, Disabled (Default)

Boot Up Floppy Seek

Seeks disk drives during boot up.
The optional are: Enabled (Default), Disable d

Boot Up NumLock Status

Selects power on state for NumLock.
The optional are: Off, On (Default)

3-6

CMOS Setup Utility

Gate A20 Option

Normal-a pin in the keyboard controller controls Gate A20.
Fast- lets chipset control Gate A20.
The optional are: Normal, Fast(Default)

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller, when enabled,
the typematic rate and typematic delay can be selected.
The optional are: Enabled, Disabled(Default)

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you hold the key
down.
The optional are: 6 (Default), 8, 10, 12, 15, 20, 24, 30

Typematic Delay (Msec)

Select the delay time after the key is held down before it begins to repeat the key
strokes.
The optional are: 250 (Default), 750, 1000

Security option

Select whether the password is required every time when you enter setup.
Setup -- The system will boot up.
System -- The system will not boot and access to setup will be denied if the correct
password is not entered at the prompt.
The optional are: Setup (Default), System

OS Select for DRAM > 64MB

Select OS2 only if you are running OS/2 operating system with greater than 64MB
of RAM on the system.
The optional are: Non-OS/2 (Default), OS/2

3-7

CMOS Setup Utility

Video BIOS Shadow

This item defines if you leave default setting, video BIOS memory will be copied
from ROM into DRAM area to enhance system performance as DRAM access time
is faster than ROM
The optional are: Enabled (Default), Disabled

Report No FDD For WIN 95

Whether report no FDD for WIN 95 or not.
The optional are: No(Default), Yes

Advanced Chipset FeaturesAdvanced Chipset Features

Advanced Chipset Features

Advanced Chipset FeaturesAdvanced Chipset Features

.

This item allows you to configure the system based on the specific features

of the chipset. This chipset manages bus speed and access to system memory

recources, and external cache. It must be stated that these items should never

need to be altered.The default settings have been chosen because they provide

you the best operating conditions for your system. The only time you might

consider making any changes if you discovered that the datas were being lost

while control your system.

3-8

CMOS Setup Utility

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

Advanced Chipset Features

SDRAM CAS Latency Time

SDRAM Cycle Time Tras/Trc

SDRAM RAS-to-CAS Delay

SDRAM RAS Precharge Time

System BIOS Cache able

Video BIOS Cacheable

Memo ry Hole At 15M-16M

CPU Latency Timer

Delayed Transaction

On-Chip Video Window Size

Use VGA BIOS in VBU Block

Local M emory Frequency

*Onboard Display Cache Setting*

CAS # Latency

Paging Mode Control

RAS-to-CAS Override

RAS # Timing

RAS # Precharge Timing

Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

3

6/8

3

3

Disabled

Disabled

Disabled

Disabled

Enabled

64MB

Enabled

100MH z

3

Open

by CAS# LT

Fast

Fast

]1Item Help

Menu Level

!

SDRAM CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of CAS latency
depends on the DRAM timing.
The optional are: 3(Default), 2

SDRAM Cycle Time Tras/Trc

Select the number of SCLKs for an access.
The optional are: 6/8 (Default), 5/7

SDRAM RAS-to-CAS Delay

When synchronous DRAM is installed in the system, this field lets you insert a timing
delay between the as CAS and RAS strobe signals, used DRAM is written to, read
from,or refreshed.
The optional are: 3(Default), 2

3-9

CMOS Setup Utility

SDRAM RAS Precharge Time

If an insufficient number of cycles is alllowed for the RAS to accumulate its charge
before DRAM refresh, the refresh may be incomplete and the DRAM may fail to
retain data.
The optional are: 3(Default), 2

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance.
The optional are: Enabled, Disabled(Default)

Video BIOS Cacheable

Select Enabled allows caching of the video BIOS, resulting in better system
performance.
The optional are: Enabled, Disabled(Default)

Memory Hole At 15M - 16M

When this area is reserved, it cannot be cached. The user information of peripheral that
need to use this area of system memory usually discusses their memory requirements.
The optional are: Enabled, Disabled(Default)

CPU Latency Timer

This option allows you to Enabled/Disabled CPU latency Timer.
The optional are: Enabled, Disabled(Default)

Delayed Transaction

Select Enabled to support compliance with PCI specification version 2.1.
The optional are: Enabled(Default), Disabled

3-10

CMOS Setup Utility

On-chip Video Window Size

Select the on-chip video window size for VGA drive use.
The optional are: Enabled, 32MB, 64MB(Default)

Use VGA BIOS in VBU Block

Let you determine whether use VGA BIOS in VBU Block or not.
The optional are: Enabled (Default), Disabled

Local Memory Frequency

Normally, the local memory frequency equals CPU frequency. But this item let you
choose local memory frequency, which means you can let memory and CPU work
in different frequency.
The optional are: 100MHz(Default), 133MHz

CAS # Latency

Select the local memory clock periods.
The optional are: 3(Default), 2

Paging Mode Control

Select the paging mode control.
The optional are: Open(Defautl), Close

RAS-to-CAS Override

Select the display cache clock periods control.
The optional are: By CAS # LT(Default), Override

RAS # Timing

This item controls RAS # Active to Protegra, and refresh to RAS # active delay
(in local memory clocks).

The optional are: Fast(Default), Slow

3-11

CMOS Setup Utility

RAS # Precharge Timing

This item controls RAS # precharge (in local memory clocks)
The optional are: Fast (Default), Slow

Integrated PeripheralsIntegrated Peripherals

Integrated Peripherals

Integrated PeripheralsIntegrated Peripherals

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

Integrated Peripherals

On-Chip Primary PCI IDE

On-Chip Secondary PCI IDE

IDE Primary Master PIO

IDE Primary Slave PIO

IDE Primary Master UDMA

IDE Primary Slave UDMA

USB Controller

USB Keyboard Support

Init Display First

AC97 Audio

AC 97 Mode m

IDE HDD Block Mode

KBC input clock

Power On function

KB Power ON Password

Hot Key Power On

Onboard FDC Controller

Onboard Serial Port1

UART Mode Select

UR2 Duplex mode

Onboard Parallel Port

Parall el Port Mode

ECP Mode Use DMA

Game Port Address

Midi Port Address

Midi Port IRQ

Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

Enabl ed
Enabl ed

Auto
Auto
Auto

Auto
Enabl ed
Disabled

PCI Slot
Auto
Auto

Enabl ed
8MHz
Any Key

Enter
Ctrl-F1
Enabl ed

3F8/IRQ4
Normal
Half

378/IRQ7
SPP
3
201

330
10

Item Help

Menu Level

!

On-Chip Primary / Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support for two
IDE channels. Select Enabled to activate each channel separately.
The optional are: Enabled (Default), Disabled

3-12

CMOS Setup Utility

IDE Primary Master / Slave PIO

The two IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4)

for each of the two IDE devices that the onboard IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device.
The optional are: Auto (Default), Mode 0, Mode 1, Mode 2, Mode3, Mode 4

IDE Primary Master / Slave UDMA

Ultra DMA/66 implementation is possible only if your IDE hard drive supports it
and the operating environment includes a DMA driver (Windows 98 OSR2 or a
third-party IDE bus master driver). If your hard drive and your system software
both support Ultra DMA/66, select Auto to enable BIOS support.
The optional are: Auto(Default), Disabled

USB Controller

Select Enabled if your system contains a Universal Seria Bus (USB) controller and
you have a USB peripheral.
The optional are: Enabled (Default), Disabled

USB Keyboard Support

Select Enabled if your system contains a universal Serial Bus (USB) controller and
you have a USB keyboard.
The optional are: Enabled, Disabled(Default)

Init Display First

This item allows you to decide to active whether PCI Slot of VGA card or AGP first.
The optional are: PCI Slot (Default), AGP

3-13

CMOS Setup Utility

AC 97 Audio / Modem

This item allows you to decide to enable/ disable the 810E chipset family to support
AC 97 audio / Modem.

The optional are: Auto (Default), Disabled

IDE HDD Block Mode

If your IDE hard drive supports block mode (most new drives do), select Enabled
for automatic detection of the optimal number of block read / write per sector the
drive can support.
The optional are: Enabled(Default), Disabled

KBC input clock

Set the KBC input clock.
The optional are: 8MHz (Default), 12MHz

POWER ON Function

Set the power on function mode for power on.
The optional are: Password, Hot Key, Mouse Move / Click, Any Key(Default),
BUTTON ONLY, Keyboard 98

KB Power ON Password

If Power On Function is set Password, this option let you set KB Power On
Password. Press <Enter> and enter your password.

Hot Key Power ON

This option let you choose Power ON Key from <Ctrl-F1> to <Ctrl-F12>.
The optional are: Ctrl-F1(Default), Ctrl-F12

3-14

CMOS Setup Utility

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the system
board and you wish to use it. If you install an add-in FDC or the system has no floppy
drive, select Disabled in this field.
The optional are: Enabled(Default), Disabled

Onboard Serial Port 1

Select an address and corresponding interrupt for the first and second serial ports.
The optional are: Auto, Disabled, 3F8 / IRQ4(Default), 2F8 / IRQ3, 3E8 / IRQ4,

2E8 / IRQ3

UART Mode Select

Let you choose UART Mode.
The optional are: Normal(Default), IrDA, ASKIR, SCR

UR2 Duplex Mode
Let you choose UR2 Duplex Mode.
The optional are: Half(Default), Full

Onboard Parallel Port

Select a logical LPT port address and corresponding interrupt for the physical parallel
port.
The optional are: 378/IRQ7(Default), 278/IRQ5, 3BC/IRQ7, Disabled

Parallel Port Mode

Select an operating mode for the on board parallel (printer) port.
The optional are: SPP(Default), EPP, ECP, ECP+EPP

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode.
The optional are: 3 (Default), 1

3-15

Game Port Address

Select an address for game port.
The optional are: Disabled, 201(Default), 209

Midi Port Address

Select an address for Midi Port.
The optional are: Disabled, 330 (Default), 300

Midi Port IRQ

Select a corresponding interrupt for Midi Port.
The optional are: 5, 10(Default)

Power Management SetupPower Management Setup

Power Management Setup

Power Management SetupPower Management Setup

CMOS Setup Utility

The Power Management Setup allows you to configure your system effectively save
energy while operating in a manner consistent with your own style of computer use.

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

Power Management Setup

ACP I function

ACP I Suspend Type

Power M anageme n

Video Off M ethod

Video Off In Sus pend

Suspend Type

MODEM Use IRQ

Suspend M ode

HD D Powe r Dow n

Soft-O ff by PW R-BT TN

Power on by ring

USB KB Wake-up From S3

Resume By Alarm

*Date (of Month) Alarm

* Time (hh:mm:ss:) Alarm

** Reload Global Timer Events **

Primary IDE 0

Primary IDE 1

FDD, COM, LPT Port

PC I PIRQ [A -D]#

Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6 : Fail-safe defaults Esc:Exit F1: G eneral Help F7 : Optimized Defaults

Enabled

S1(POS)

Us er Defi ne

DMPS

Yes

Stop Grant

3

Disabled

Disabled

Instan t-Off

Enabled

Disabled

Disabled

0

0 0 0

Disabled

Disabled

Disabled

Disabled

Item Help

Menu Level

!

3-16

CMOS Setup Utility

ACPI Function

This item allows you to enable/disable the Advanced Configuration and Power
Management (ACPI).
The optional are: Enabled(Default), Disabled

ACPI Suspend Type

Select type for ACPI Suspend.
The optional are: S1(POS)(Default), S3(STR)

Power Management

This category allows you to select the type (or degree) of power saving and is
directly related to the following modes:

Minimum power management. Doze Mode = 1 hr. Standby

Min. Power Saving

Max. Power Saving

User Defined

Mode = 1 hr., Suspend Mode = 1 hr., and HDD Power Down

= 15 min.

Maximum power management ONLY AVAILABLE FOR SL

CPU'S. Doze Mode = 1 min., Standby Mode = 1 min.,

Suspend Mode = 1 min., and HDD Power Down = 1 min.

Allows you to set each mode individually. When not disabled,

each of the ranges are from 1 min. to 1 hr. except for HDD

Power Down which ranges from 1 min. to 15 min. and disable.

Video OFF Method

Determines the manner in which the monitor is blanded. System turns off vertical
and horizontal synchronization ports and writes blanks to the video buffer. Select this
option if your monitor supports. System only writes blanks to the cideo buffer.
The optional are: DMPS(Default), V/H SYNC+BLANK, Blank Screen

Video Off in Suspend

Setup whether video off in suspend or not.
The optional are: Yes(Default), No

3-17

CMOS Setup Utility

Suspend Type

This item lets yhou select a method of global system suspend.
The optional are: Stop Grant (Default), PwrOn Suspend

MODEM User IRQ

This determines the IRQ in which the MODEM can use.

The optional are: NA, 3(Default), 4, 5, 7, 9, 10, 11

Suspend Mode

After the selected period of system inactivity, all devices except the CPU shut off.
The optional are: Disable(Default), 1Min, 2Min, 4Min, 8Min, 12Min, 20Min, 30Min,
40Min, 1Hour

HDD Power Down

After the selected period of drive inactivity, the hard disk drive powers down while
all other devices remain active

The optional are: Disable(Default), 1Min, 2Min, 3Min, 4Min, 5Min, 6Min, 7Min,
8Min, 9Min, 10Min, 1 1Min, 12Min, 13Min, 14Min, 15Min

Soft-Off by PWR-BTTN

When Enabled, turning the system off with the on/off button places the system in a
very low-power-usage state, with only enough circuity receiving power to detect

power button activity or resume by Ring activity.
The optional are: Instant-Off(Default), Delay 4 Sec.

Power On by Ring

Setup whether Power on by ring or not.
The optional are: Enabled(Default), Disabled

3-18

CMOS Setup Utility

USB KB Wake-up From S3

This item lets you select USB or KB wake up from S3
The optional are: Disabled (Default), Enabled

Resume by Alarm

Set whether resume by alarm or not.
The optional are: Disabled(Default), Enabled

Primary IDE 0/1

This option allows you determine whether enable Primary IDE 0/1 or not.
The optional are: Enabled, Disabled(Default)

FDD, COM, LPT Port

This option allows you set whether enable FDD, COM, LPT Port or not.
The optional are: Disabled(Default), Enabled

PCI PIRQ [A-D]#
This option lets you set PCI PIRQ[A-D]#.
The optional are: Disabled(Default), Enabled

3-19

CMOS Setup Utility

PnP / PCI ConfigurationsPnP / PCI Configurations

PnP / PCI Configurations

PnP / PCI ConfigurationsPnP / PCI Configurations

This section describes configuring the PCI bus system. PCI- Peripheral

Component Interconnect, is a system which allows I/O devices to operate at

speeds nearing the speed of CPU itself using when communicates with its own

special components.This section covers some very technical items and it is strongly

recommended that only experienced users should make any changes to the default

settings.

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

PnP / PCI Configuration

PNP OS Installed

Reset C onfiguration D ata

Recources Controlled By

* IRQ Recources
* DM A Recources

* Memory R ecou rces

PCI/VGA Palette Snoop

Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

No

Disabled

Auto(ESCD)

Press Enter
Press Enter

Press Enter

Disabled

Item Help

Menu L evel
Select Yes if yo u are using a

Plug an d Play capa ble
operating system. Select No

if you need the BIOS to

con figure no n-boot devices

!

PNP OS Installed

This item allows you to determine PnP OS is installed or not.
The optional: Yes, No (Default)

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset Extended System
Configuration Data (ESCD) when you exit Setup if you have installed a new add-on
and the system reconfiguration has caused such a serious conflict that the operating
system cannot boot.
The optional are: Enabled, Disabled(Default)

3-20

CMOS Setup Utility

Resources controlled By

The Award Plug and Play BIOS has the capacity to automatically configure

all of the boot and Plug and Play compatible devices. However, this

capability means absolutely nothing unless you are using a Plug and Play

operating system such as Windows98.

The optional are: Auto(ESCD) (Default), Manual

PCI/VGA Palette Snoop

Leave this field at Disabled.
The optional are: Enabled, Disabled(Default)

PC Health StatusPC Health Status

PC Health Status

PC Health StatusPC Health Status

This section helps you to get more information about your system including CPU

temperature, FAN speed and voltages. It is recommended that you contact with

your motherboard supplier to get proper value about your setting of the CPU

temperature.

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

PC Health Status

Voltage 0

Voltage 1

Voltage 2

Voltage 3

Voltage 4

Voltage 5

Voltage 6

Voltage 7

Voltage Battery

Temperature 1

Temperature 2

Temperature 3

Fan 1 Speed

Fan 2 Speed

Fan 3 Speed

Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save

F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

Menu Level

Item Help

!

3-21

CMOS Setup Utility

Frequency / VFrequency / V

Frequency / V

Frequency / VFrequency / V

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

Auto D etec t DI M M / PCI C lk

Sp read S pectrum .
Host CPU / DIMM/ PCI Clock

CPU R atio

Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults

oltage Controloltage Control

oltage Control

oltage Controloltage Control

Frequency / Voltage Control

Enabled

Disabled
Default

x3

Item Help

Me nu Leve l

!

Auto Detect DIMM / PCI Clk

To reduce the occurrence of electromagnetic interference (EMI), the BIOS detects
the presence or absence of components in DIMM and PCI slots and turns off
system clock generator pulses to empty slots.
The optional are: Enabled(Default), Disabled

Spread Spectrum

when the system clock generator pulses, the extreme values of the pulse generate

excess EMI. Enabling pulse spectrum spread modulation changes the extreme
values from spikes to flat curves, thus reducing EMI. This benefit may in some
cases be out weighedby problemswith timing-critical devices, such as a clock­sensitive SCSI device.
The optional are: Enabled, Disabled(Default)

Host CPU / DIMM / PCI Clock

Adjust Host CPU / DIMM PCI Clock.
The optional are: Default(Default), 66/100/33MHz, 68/102/34MHz, 75/112/37MHz,
100/100/33MHz, 103/103/34MHz, 124/124/41MHz, 133/133/44MHz, 150/150/
50MHz, 133/100/33MHz, 140/105/35MHz, 150/112/37MHz.

3-22

CMOS Setup Utility

Caution:

We dont recommend user to try overclock, it may damage your

CPU and result in a slower speed. Please think carefully before you

use overclock function.

CPU Clock Ratio

Setup CPU Clock Ratio.
The optional are: x3(Default), x3.5, x4, x4.5, x5, x5.5, x6, x6.5, x7, x7.5, x8

Load Fail-Safe DefaultsLoad Fail-Safe Defaults

Load Fail-Safe Defaults

Load Fail-Safe DefaultsLoad Fail-Safe Defaults

This option allows you load Fail-Safe Defaults settings. To load setup default,

press <Y> key to confirm the operation when you see the below display.

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

Standard CMOS Features

!""

Advanced BIOS Features Load Fail-Safe Defaults

!""

Advanced Chipset Features Load Optimized Defaults

!""

Integrated Peripherals Set Supervisor Passord

!""

Load Fail - Safe Defaults (Y / N)? N

Power Management Setup Set User Passoword

!""

PnP / PCI Configuration Save & Exit Setup

!""

PC Health Status Exit Without Saving

!""

Esc : Quit F10 : Save & Exit Setup

Abandon all datas

Frequency / Voltage Control

!""

3-23

CMOS Setup Utility

Load Optimized DefaultsLoad Optimized Defaults

Load Optimized Defaults

Load Optimized DefaultsLoad Optimized Defaults

This option allows you load Optimized Defaults settings to optimize your

system. To load optimized default, press <Y> key to confirm the operation

when you see the below display.

CMOS Setup Utility - Copyright (C) 1984-2000 Award Software

!""

Standard CM OS Fea tures

!""

Advanced BIOS Features Load Fail-Safe Defaults

!""

Advanced Chipset Features Load Optimized Defaults

!""

Integrated Peripherals Set Supervisor Passord

Load Optimized Defaults (Y / N)?

!""

Power Management Setup Set User Passoword

!""

PnP / PCI Configuration

!""

PC Health Status Exit Without Saving

Esc : Quit F10 : Save & Exit Setup

Abandon all datas

Set Supervisor / User PasswordSet Supervisor / User Password

Set Supervisor / User Password

Set Supervisor / User PasswordSet Supervisor / User Password

!""

Frequency / Voltage Control

Save & Exit Setup

Password prevents unauthorized use of your computer. If you set a password, the
system prompts for the correct password before boot or access to setup. The main
difference between Supervisor Password and User Password is the privilege.
Because Supervisor Password allows you to modify all CMOS setup but User
password only some of them.

3-24

CMOS Setup Utility

Their steps all as follows:

1. Highlight the item Set Supervisor Password / Set User Password on the main
menu and press ENTER.

2. The password dialog box will appear.

3. If you are installing a new password, carefully type in the password. Press

ENTER after you have typed in the password. If you are deleting a password
that is already installed just press ENTER when the password dialog box

appears.

4. The system will ask you to confirm the new password by asking you to type
it in a second time. Carefully type the password again and press ENTER, or
just press ENTER if you are deleting a password that is already installed.

5. If you typed the password correctly, the password will be installed.

[NOTE]

If you forget your password, or you want to cancel your password, you can do theIf you forget your password, or you want to cancel your password, you can do the

If you forget your password, or you want to cancel your password, you can do the

If you forget your password, or you want to cancel your password, you can do theIf you forget your password, or you want to cancel your password, you can do the
steps as the following:steps as the following:

steps as the following:

steps as the following:steps as the following:

(1) Password forgotten:

i. Turn off the system.
ii. Short JP7at Pin 2-3 for a few seconds to clear CMOS.
iii. Set the JP7 back to Pin 1-2.
iv. Power on the system.

(2) Clear Password:

Clear your password by key in the password you installed
before, then go to password setting to press ENTER twice.

3-25

CMOS Setup Utility

Save & Exit SavingSave & Exit Saving

Save & Exit Saving

Save & Exit SavingSave & Exit Saving

Highlight this item and press ENTER to save the changes that you have

made in the setup utility and exit the setup program. When the Save and Exit

dialog box appears, press <Y> to save and exit, or press <N> to return to the

setup main menu.

Exit WExit W

Exit W

Exit WExit W

Use this option to exit setup utility without saving the CMOS value changes.

ithout Savingithout Saving

ithout Saving

ithout Savingithout Saving

3-26

CMOS Setup Utility

How to Update YHow to Update Y

How to Update Y

How to Update YHow to Update Y

1. Create a bootable system floppy disk by typing [FORMAT A:/S] from the DOS
prompt without creating

2. Copy AWDFLASH.EXE to the just created boot disk.

3. Download an updated EUPA BIOS file from the Internet and save to the disk

you created earlier.(EUPA web site:

4. Boot from the disk you created earlier.

5. At the "A:\" prompt, type AWDFLASH and then press <Enter>. The screen

will displays the following window:

our Motherboard’our Motherboard’

our Motherboard’

our Motherboard’our Motherboard’

"AUTOEXEC.BAT" and "CONFIG.SYS" files.

www.eupacomputer.com)

s BIOS?s BIOS?

s BIOS?

s BIOS?s BIOS?

6. Type the new BIOS filename and the path, for example, A:\VXA.BIN and
then press <Enter>. Then prompt: Do you want to save BIOS?(Y/N) Press
<Y> to save current BIOS to file.Type the file name to save, then press
<Enter>.Prompt: Now backup system BIOS TO file!

3-27

CMOS Setup Utility

7. After the backup,prompt: Are you sure to program?(Y/N) Press <Y> to start
to program the new BIOS information into the flash ROM. When the pro­gramming isfinished.You may press <F1> to reset the PC or <F10> to Exit
the AWDFLASH.

WARNING!!!

If you encounter problems while updating the new BIOS, DO NOT turn off
your system since this might prevent your system from booting up. Just repeat
the process, and if the problem still persists, update the original BIOS file you
saved to disk above. If the Flash Memory Writer utility was not able to
successfully update a complete BIOS file, your system may not be able to
boot up. If this happens, your system will need service.

NOTE!!!

The previous screen displays are provided as example only and may not
reflect the screen contents displayed on your system.

3-28

Chapter 4 Software Utility

The support software for this motherboard is supplied in a CD. All the support pro­grams are stored in separate folders, so you can find the program you need easily
enough. We recomend you to choose the program which you need most, it will assist
your computer system to high performance.

Note !!!Note !!!

Note !!!

Note !!!Note !!!

For update driver, please visit EUPA web site:

www.eupacomputer.com.

Installing Interface:Installing Interface:

Installing Interface:

Installing Interface:Installing Interface:

After you insert CD driver, it runs automaticly and appear the interface as below:

4-1

Software Utility

Installing Driver Location:

Insert CD Driver to the CD-ROM, driver runs by itself, and appear the following
interface, please refer to the procedure, then finish installing.
the following Installing Driver

Intel Video Driver Location : \video\Intel\
IDE Driver Location: \IDE\Intel\

Audio Driver Location: \audio\Intel\
LAN Driver Location: \Lan\Davicom\

:

ITZV6 provides you

Installing ADOBE Acrobat Read Driver:

Insert CD Driver to the CD-ROM, driver runs by itself, and appear the following
interface, please refer to the procedure, then finish installing.

4-2

Software Utility

4-3

This Page Is Left For Note
