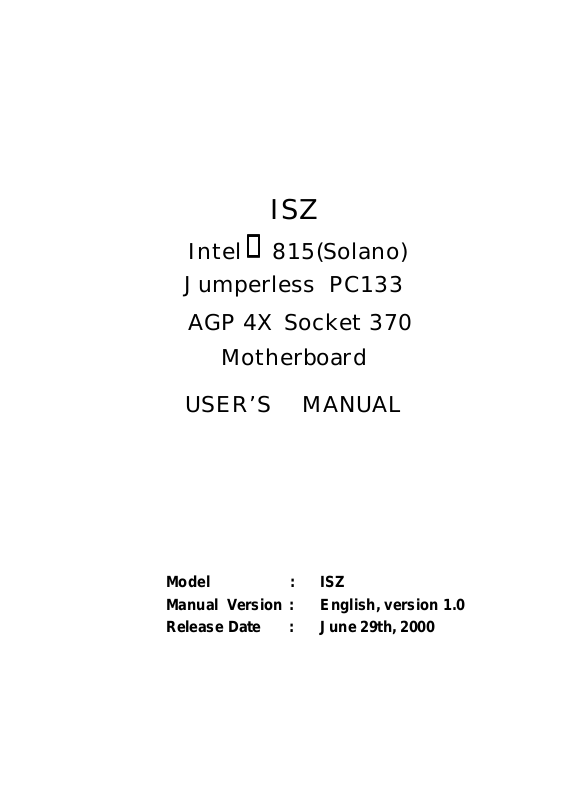

Page 1
ISZ
Intel 815(Solano)
Jumperless PC133
AGP 4X
Motherboard
USER’S MANUAL
Model : ISZ
Socket 370
Manual Version : English, version 1.0
Release Date : June 29th, 2000
Page 2
Contents
Chapter 1 Overview
General Description................................................................1-1
Check Your Items............................................................. ......1-1
ISZ Specifications..............................................................1-2
ISZ Components...............................................................1-3
Motherboard Layout................................................................1-5
Chapter 2 Hardware Installation

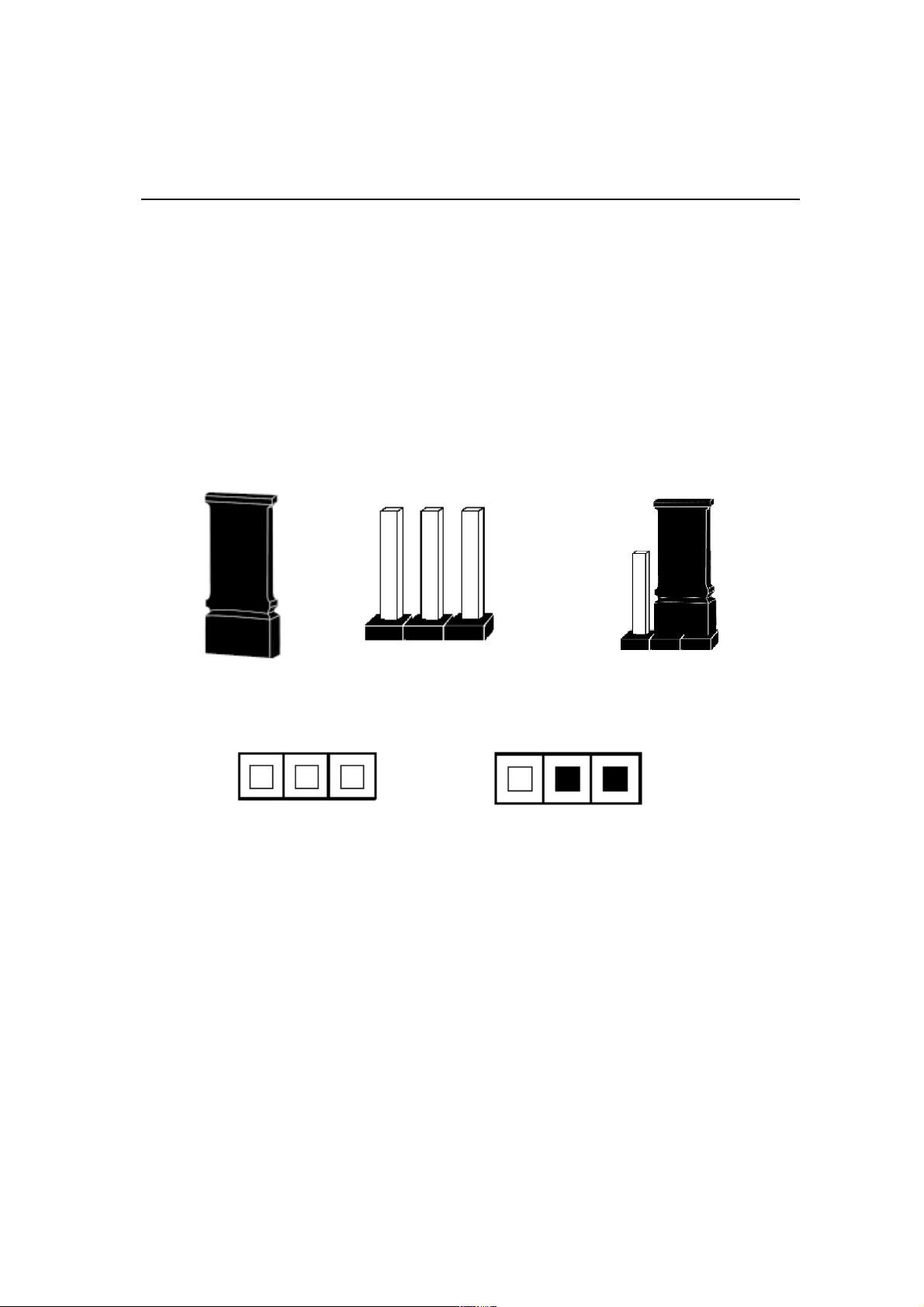

Set Jumpers................................................................................2-2

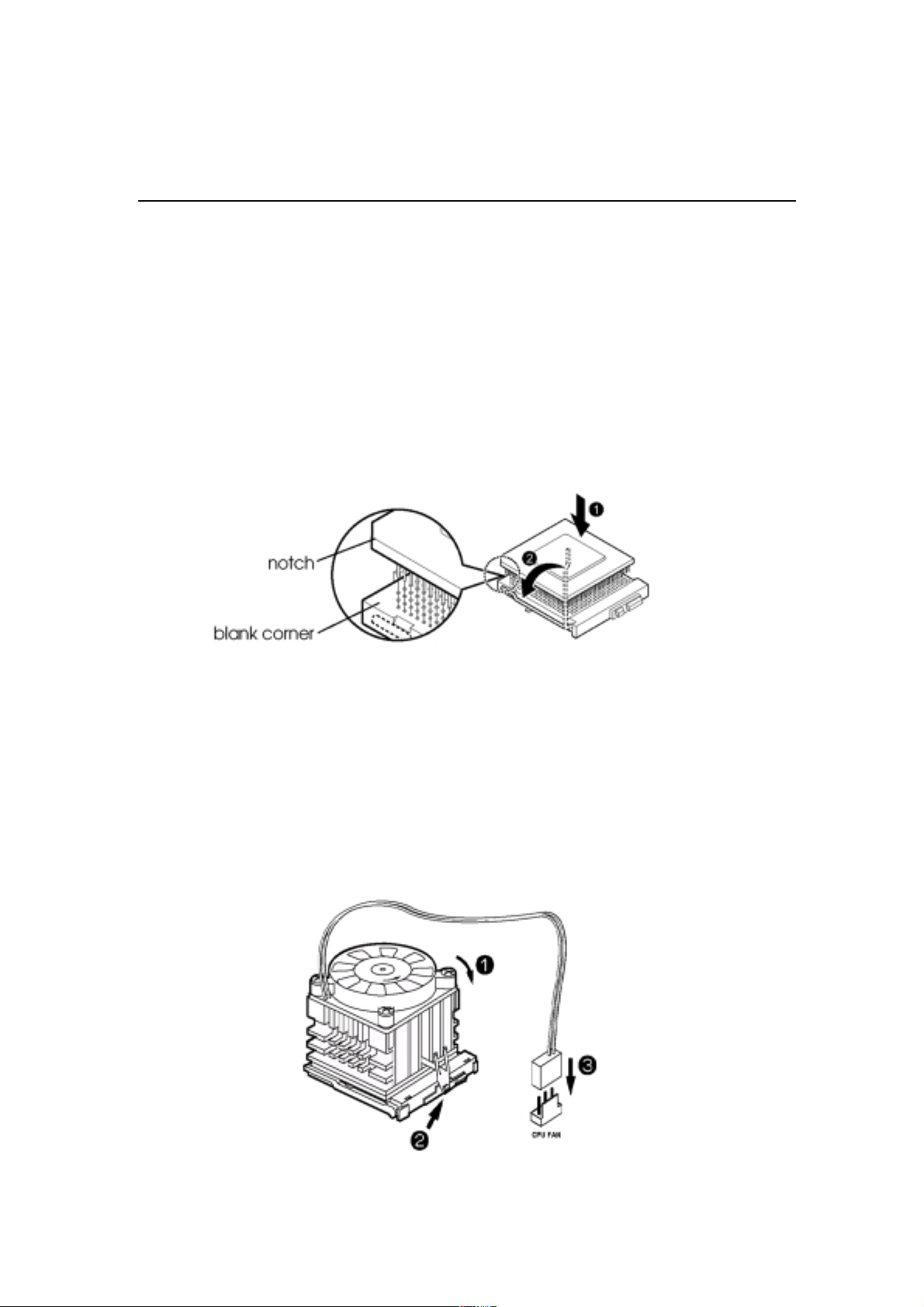

Install CPU.................................................................................2-3
CPU Setting................................................................................2-4

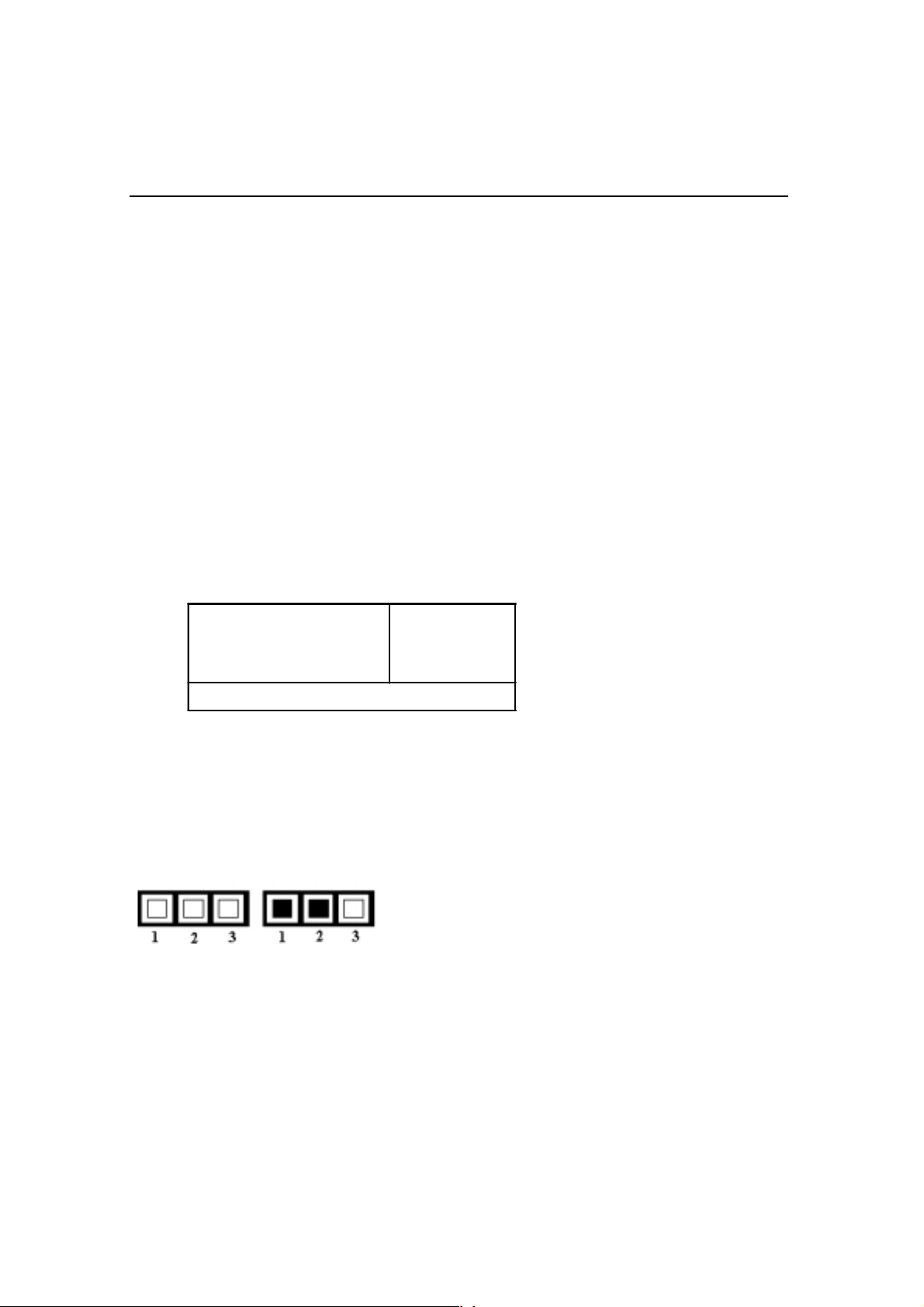

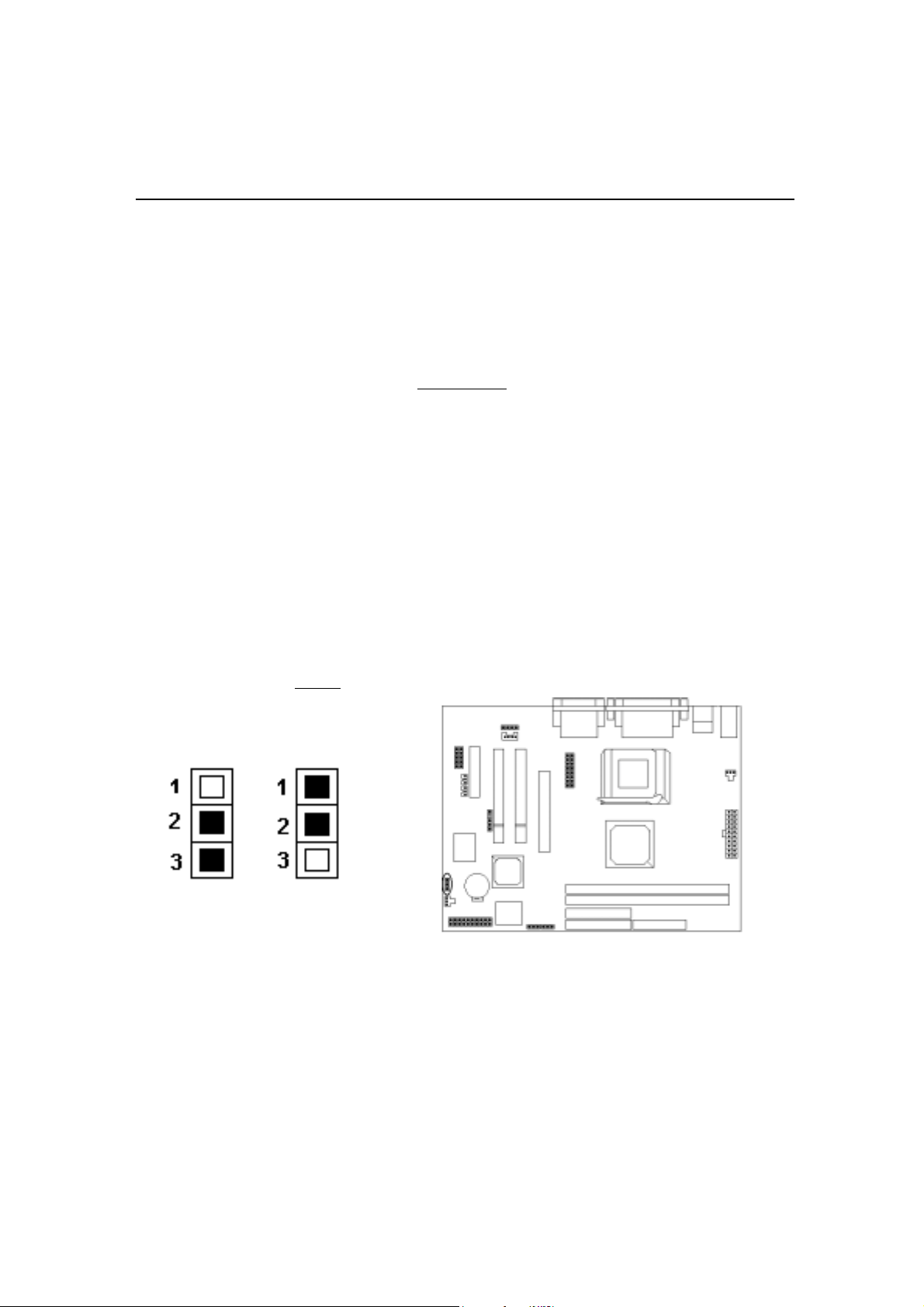

Clear CMOS.....................................................................2-4
Jumper setting....................................................................2-5
Over-Clock Setting..........................................................2-6
Connectors................................................................................. 2-8
Panel Connector...............................................................2-8

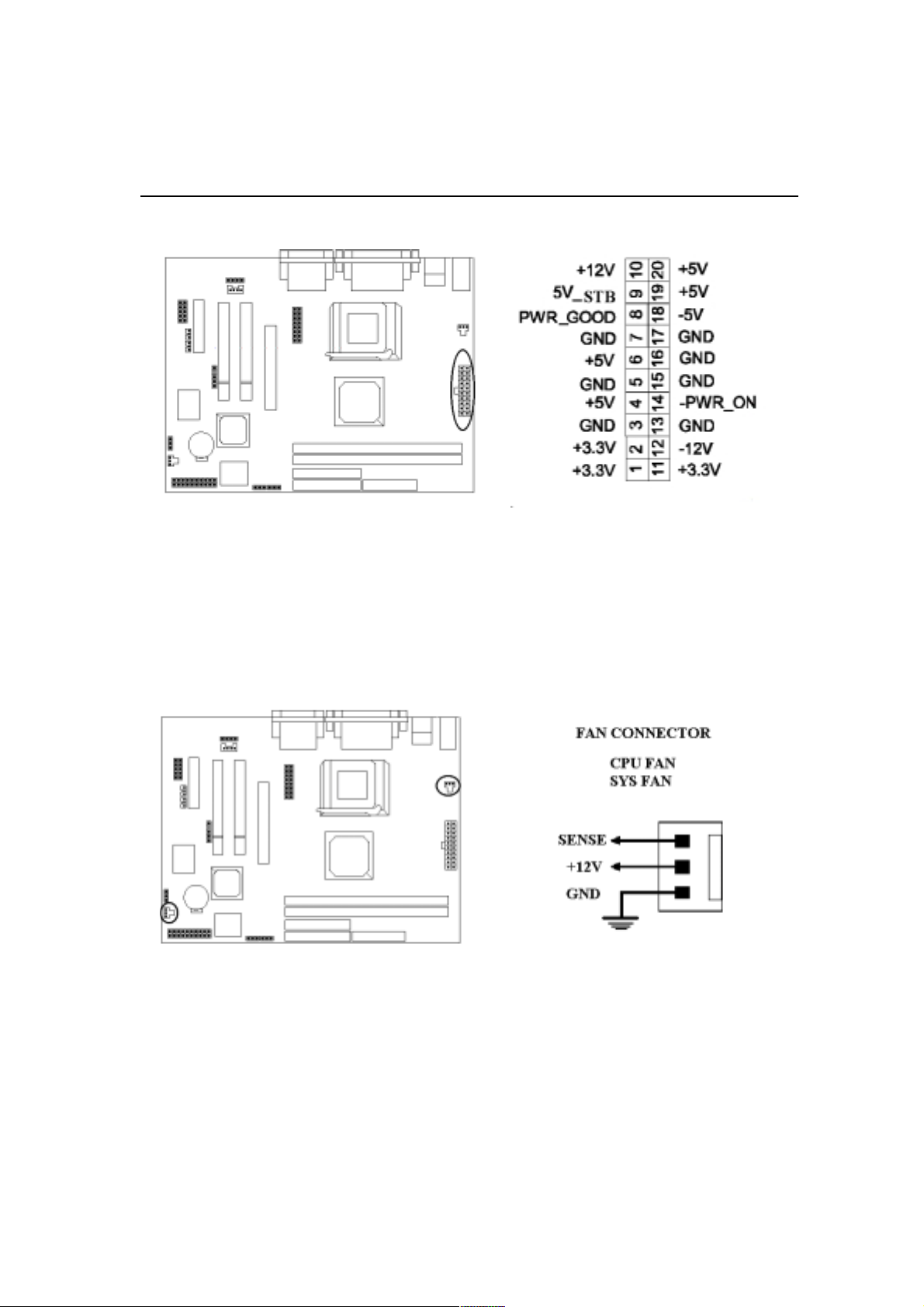

Power Connector.............................................................2-8
Fan Connector................................................................. 2-9

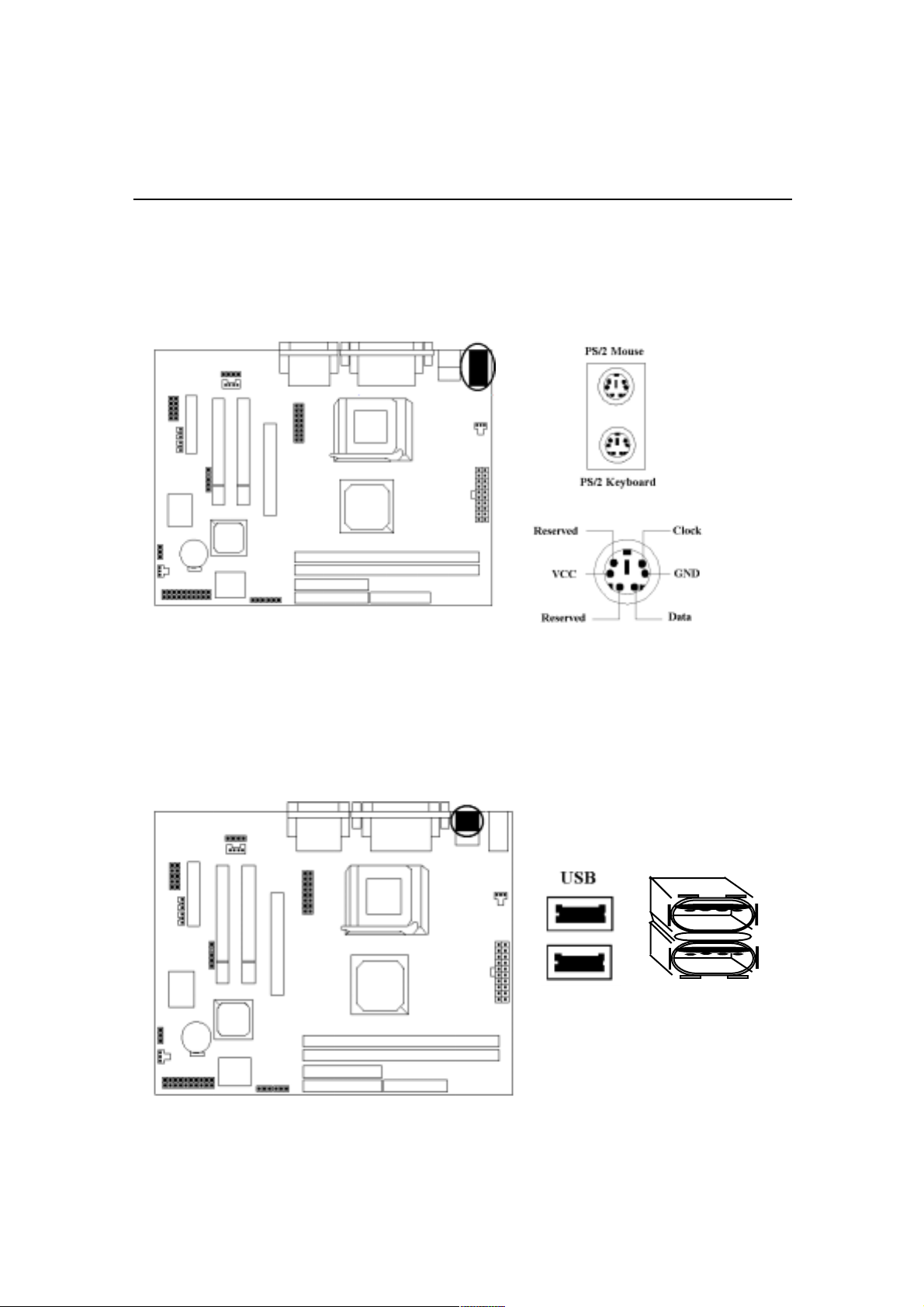

PS/2 Mouse & Keyboard Connectors...............................2-10
USB device Connector......................................................2-10

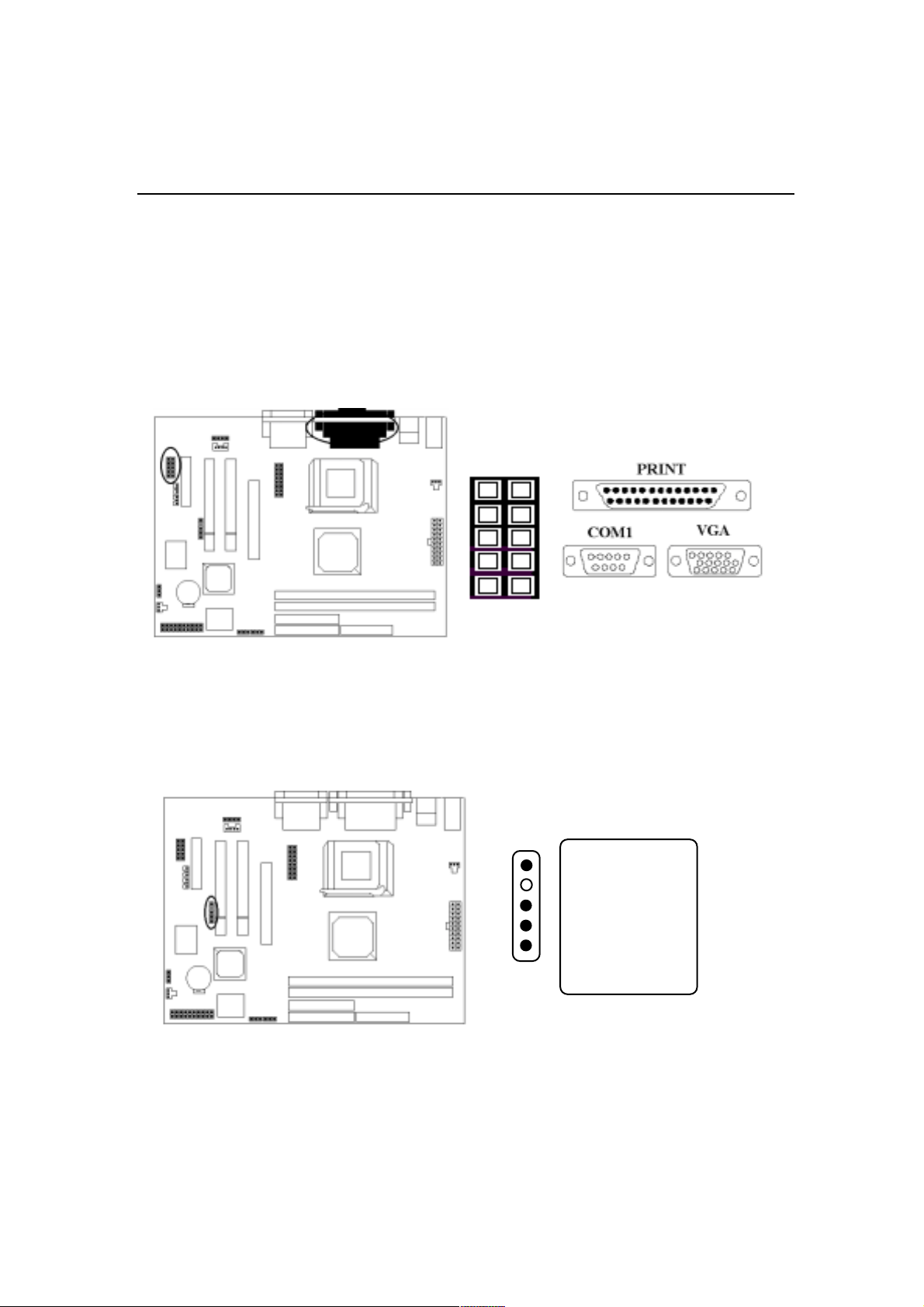

Serial Device com1, VGA & Printer Connectors.............2-11
IrDA Connector................................................................2-11

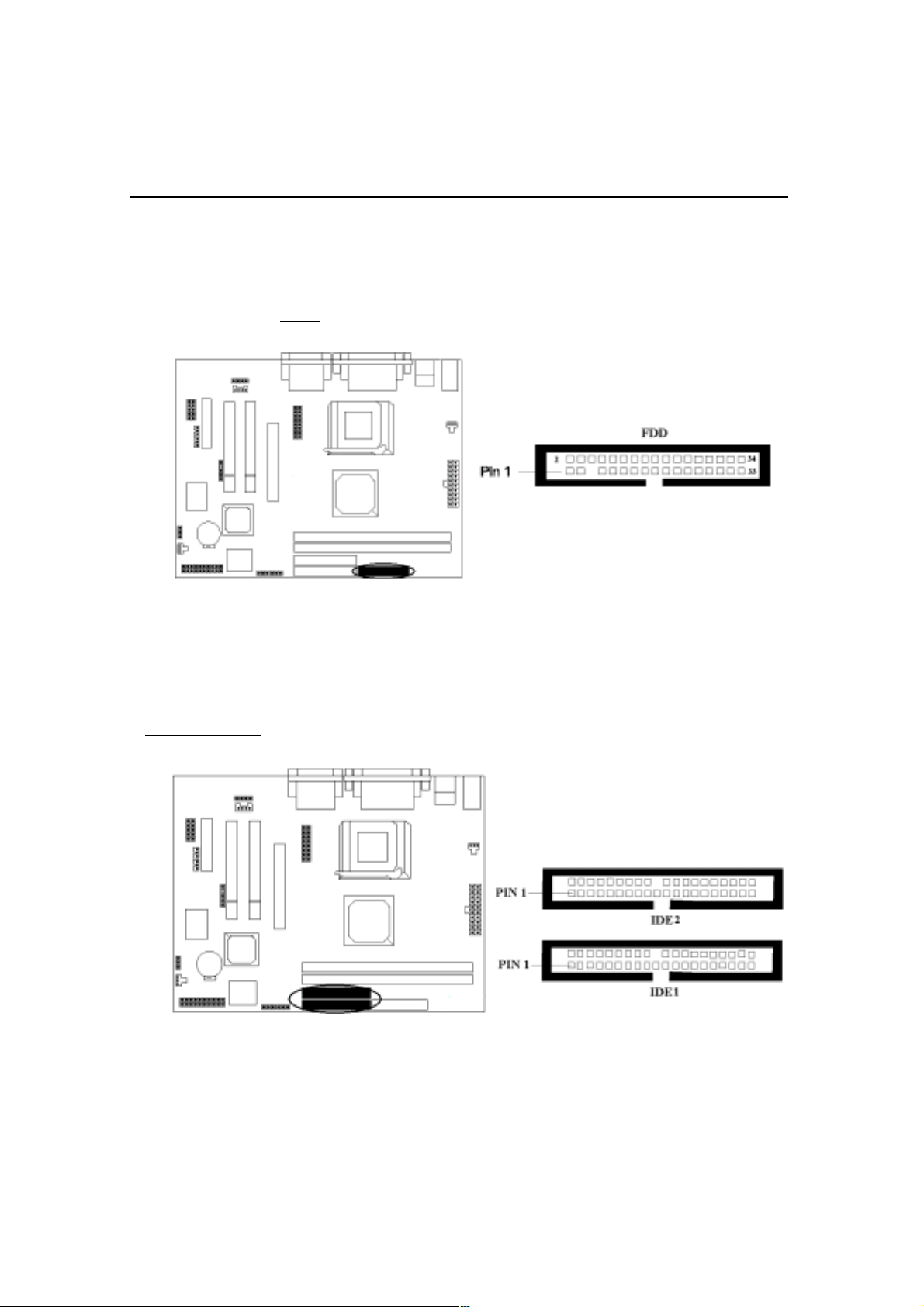

Floppy drive Connector....................................................2-12
IDE Hard Disk Connector................................................2-12

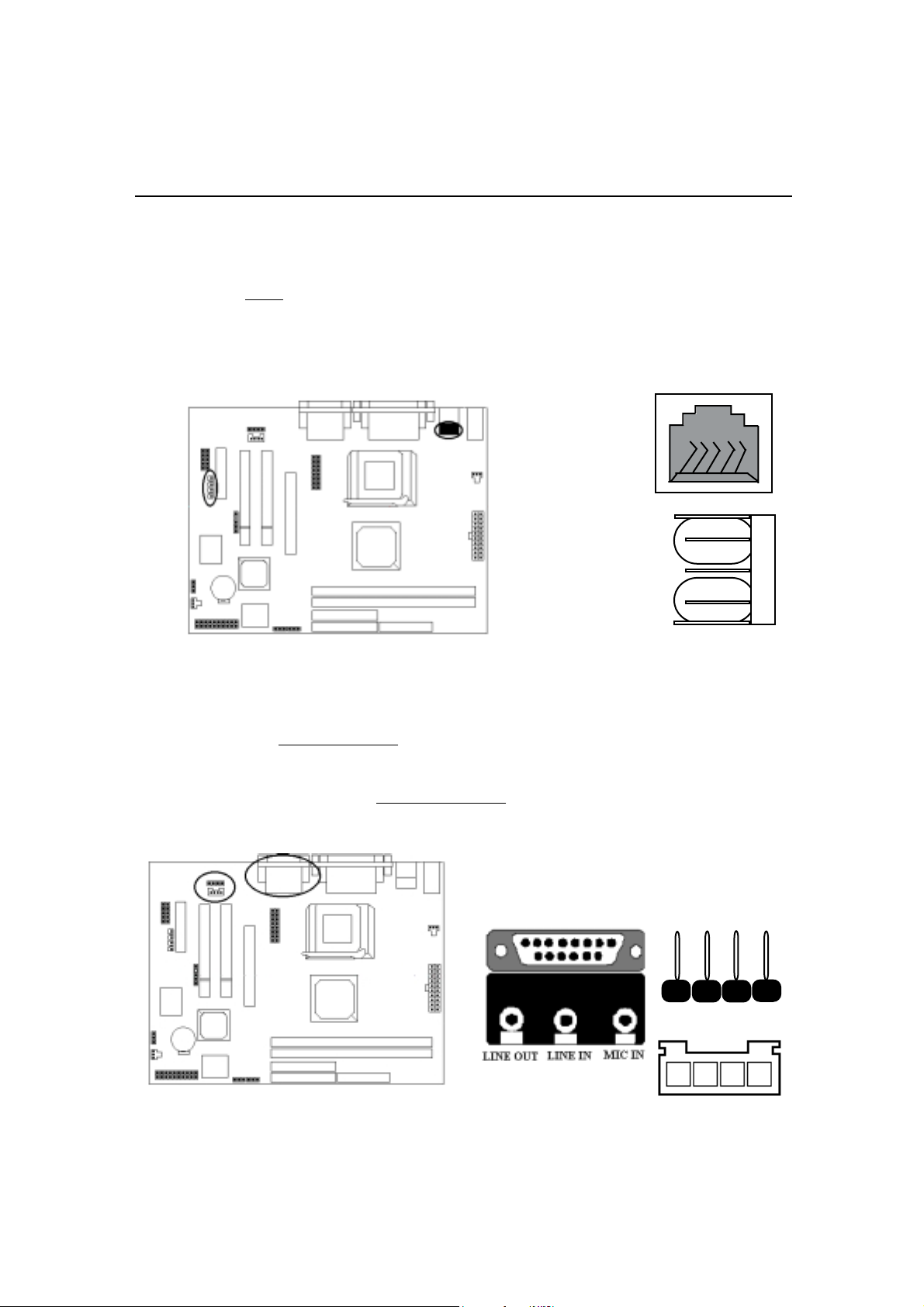

LAN Connector ..............................................................2-13
Game/Audio & CD_IN Connectors.................................2-13

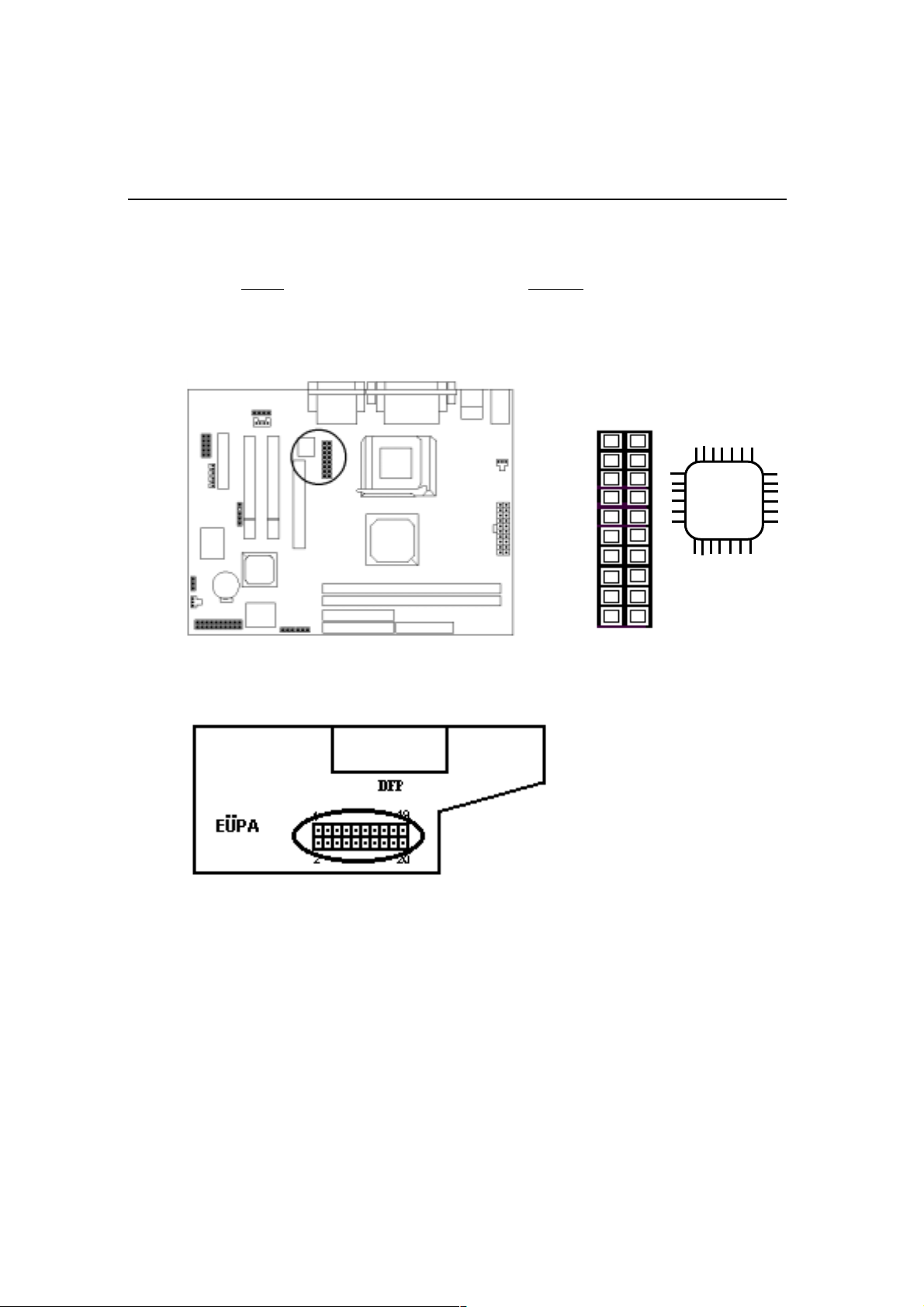

DFP Connector (optional).......................................................2-14

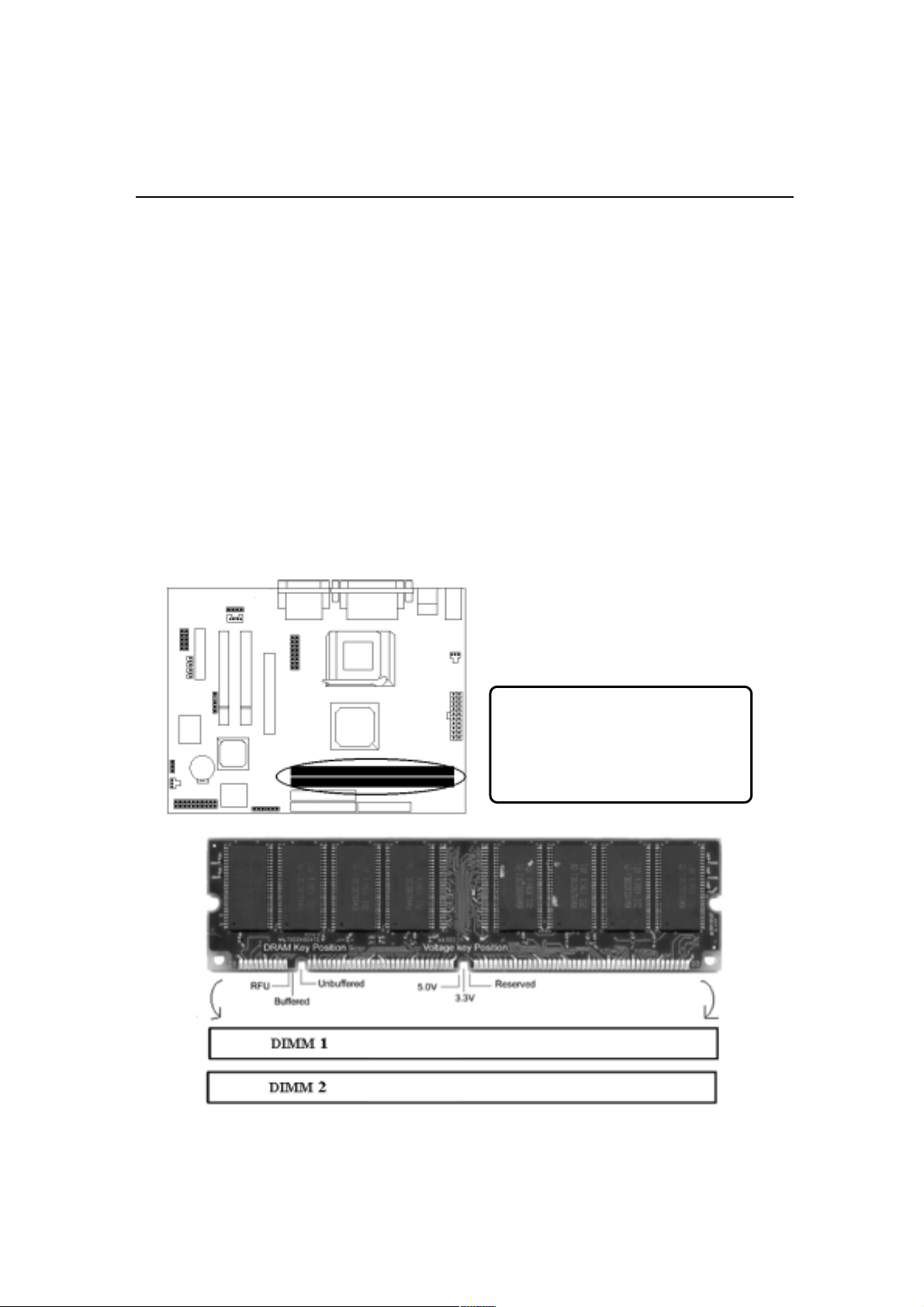

System Memory Installation...................................................... 2-15

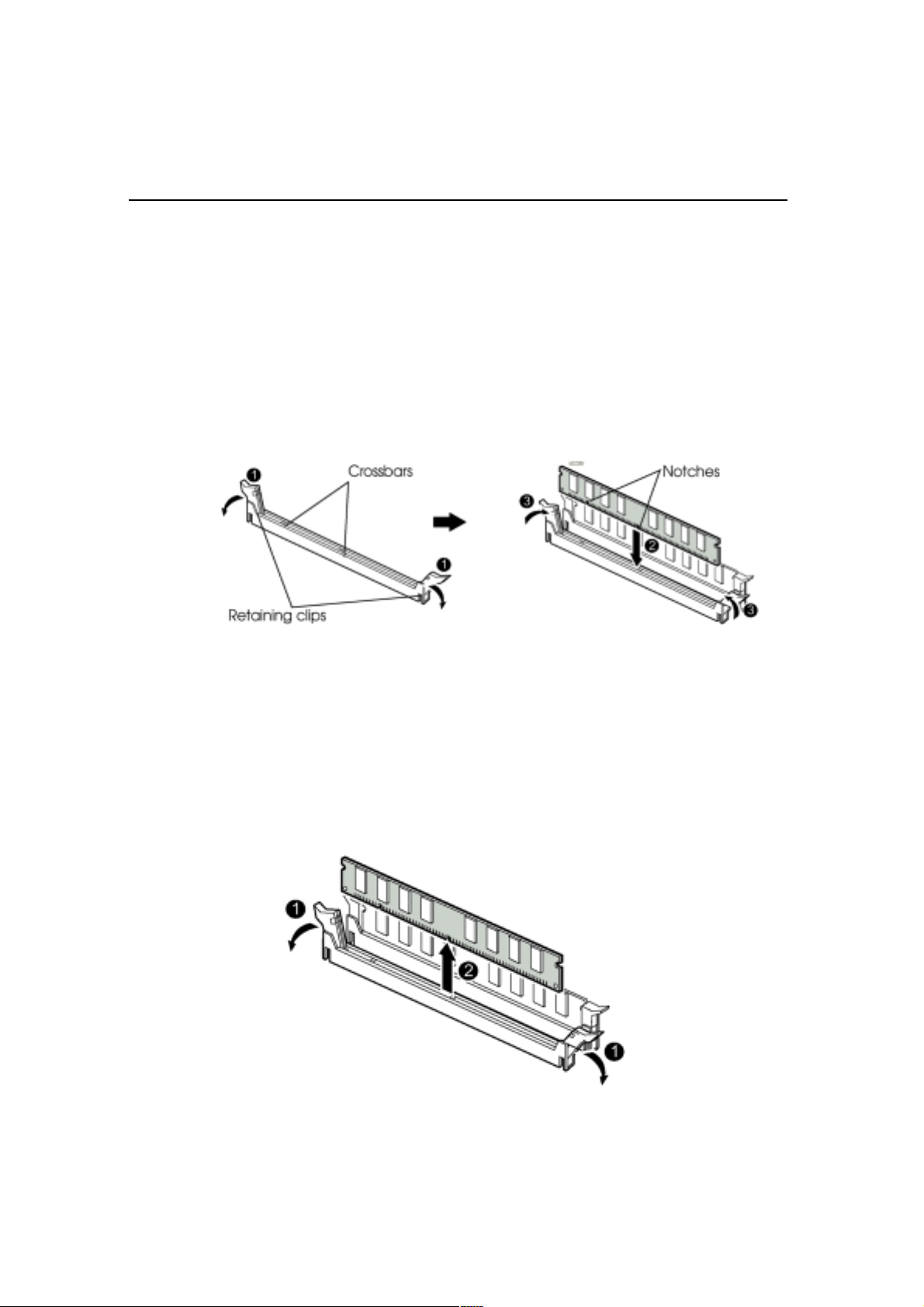

Install DIMM...................................................................2-16
Removing a Memory Module.........................................2-14
Page 3
Contents
Chapter 3 CMOS Setup Utility
CMOS Setup Main........................................................... 3-1
Standard CMOS Setup......................................................3-3
Advanced BIOS Features..................................................3-4
Advanced Chipset Features...............................................3-9
Integrated Peripherals........................................................3-12
Power Management Setup.................................................3-16
PnP / PCI Configuration...................................................................3-20
PC Health........................................................................................3-21
Frequency / Voltage Control..............................................................3-22
Load Fail-Safe Defaults.....................................................3-23
Load Optimized Defaults...................................................3-23
Set Supervisor / User Password.........................................3-24
Save & Exit Setup..............................................................3-25
Exit Without Saving...........................................................3-25

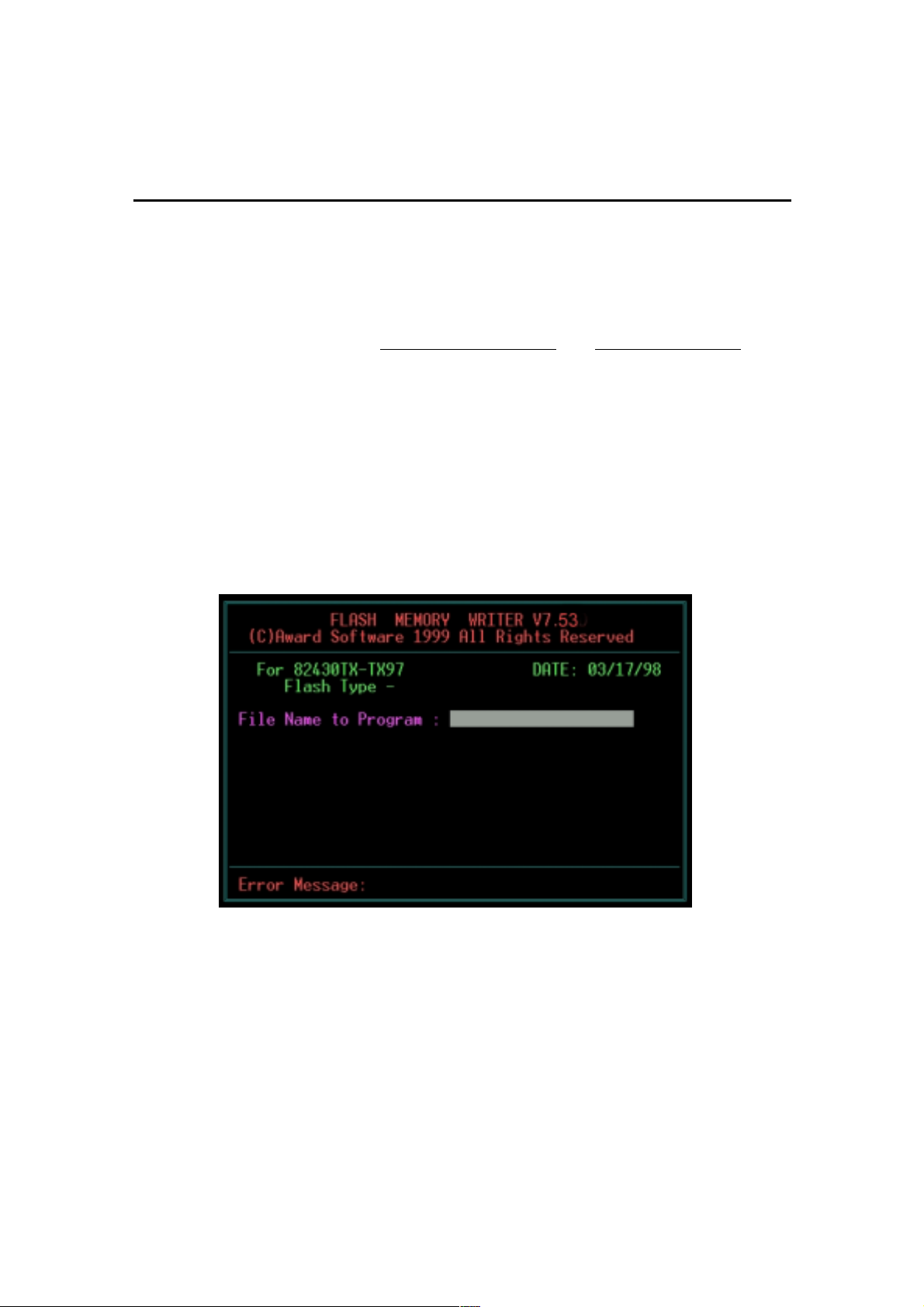

How to Update BIOS........................................................................3-26

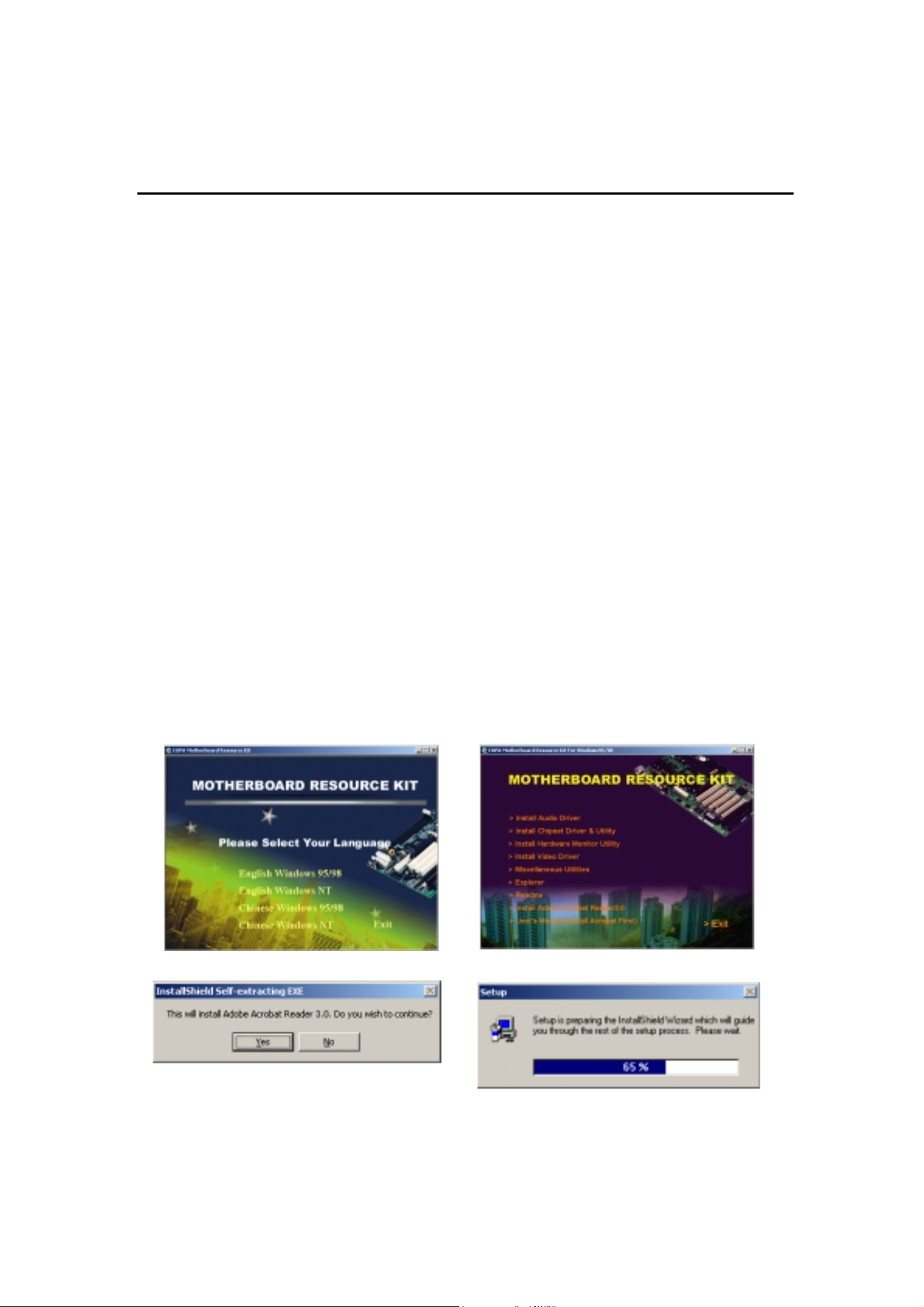

Chapter 4 Software Utility

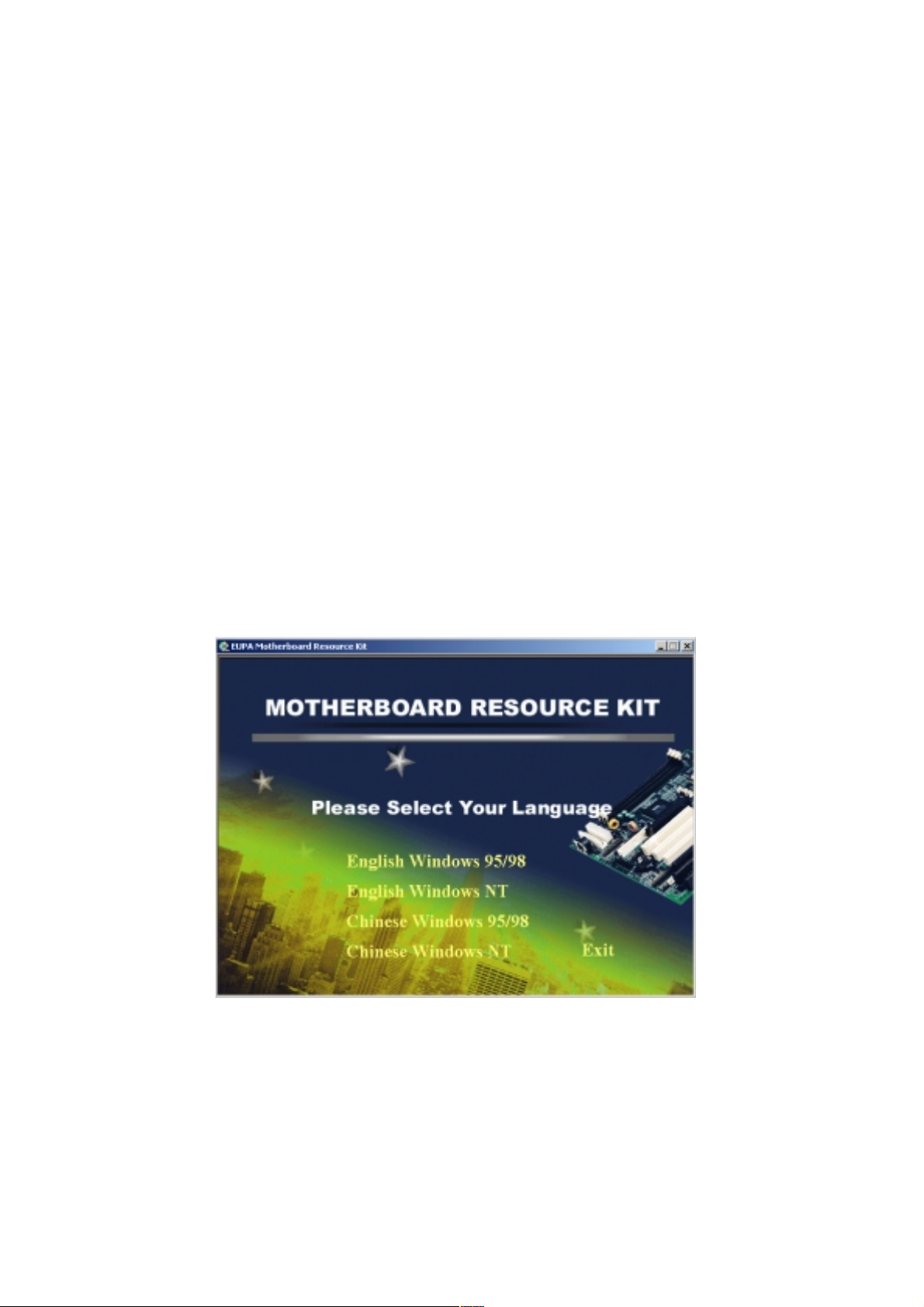

Installing Interface................................................................4-1
Installing Driver Location.................................................... 4-2

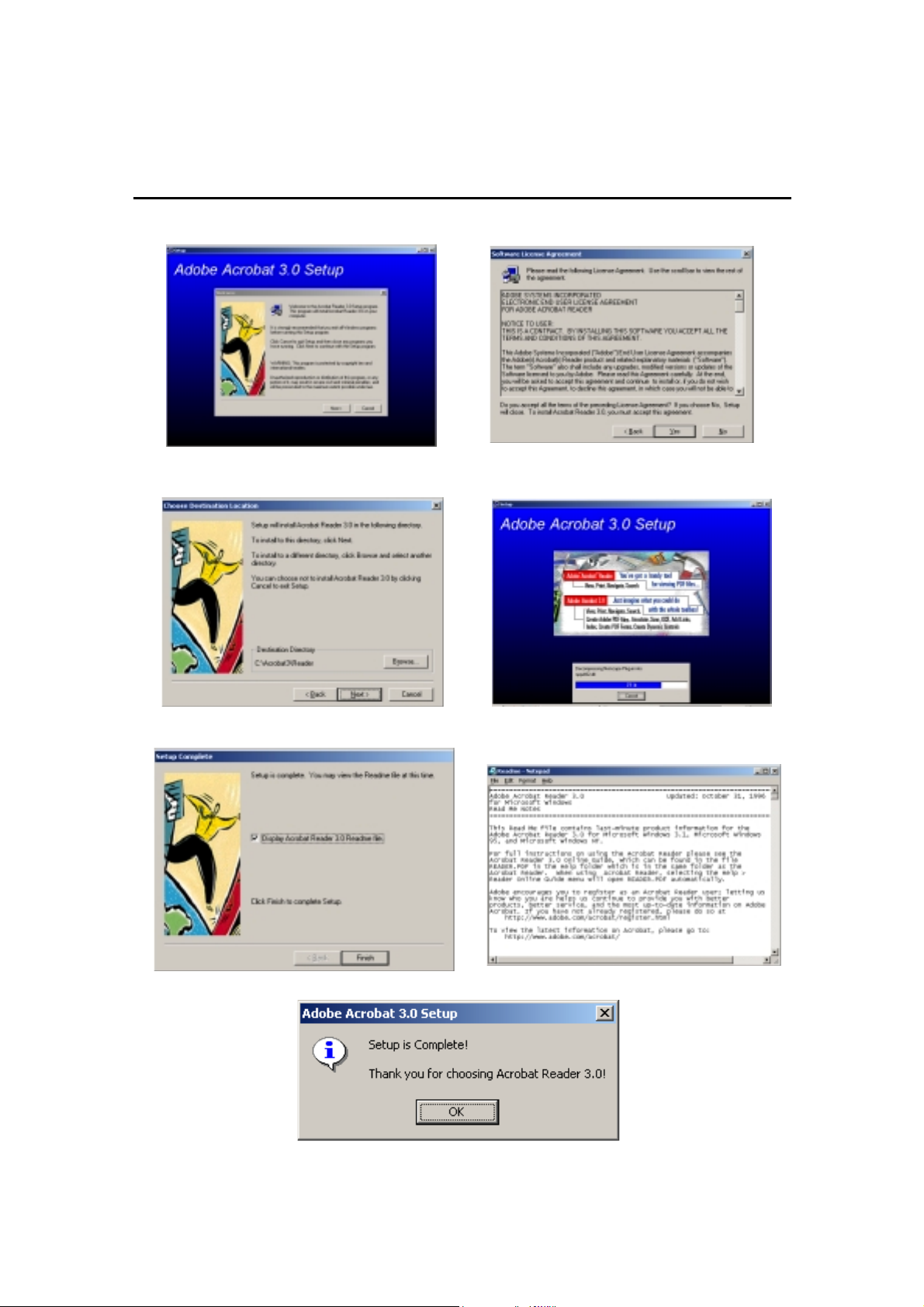

Installing ADOBE Acrobat Read Driver.............................. 4-2
Page 4
Copyright
Copyright 2000 by this company. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language in any form or by
any means, electronic, mechanical, magnetic, optical, manual or otherwise,
without the prior written consent of the copyright holders.
Notice
The contents of this publication are subject to change. This company
reserves the right to alter the contents of this publication at any time and
without notice.The contents of this publication may contain inaccuracies or
typographical errors and is supplied for informational use only.
Intel and Pentium are registered trademarks of Intel Corporation.
OS/2 and IBM are registered trademarks of Intemational Business Machines.
Windows and MS-DOS are registered trademarks of Microsoft Corporation.
AWARD is a registered trademark of Award Software Inc.
Other brand, corporate, and product names may or may not be registered
trademarks or copyright of their respective companies.
Page 5
FCC & DOC Compliance
Federal communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions:
! This device may not cause harmful interference.
! This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generatesm uses and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instructions, may cause harmful
interference to radio communication. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, whichcan be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
! Re-orient or relocate the receiving antenna.
! Increase the separation between the equipment and the receiver.
! Connect the equipment to an outlet on a circuit different from that to which
the receiver is connected.
! Consult the dealer or an experienced radio/TV technician for help.
Warning
The use of shielded cables for the connection of the monitor to the graphics card is required
to assure compliance with FCC regulations changes or modifications to this authority to
operate this equipment.
Page 6
Chapter 1
Overview
Thanks for purchasing EUPA ISZ Socket 370 motherboard. ISZ is based on Intel
815 chipset -- 82815(Solano) & 82801AA(ICH) which was for Intel P!!! (FC-
PGA), Celeron (PPGA) & (FC-PGA), and VIA Cyrix III Socket 370 proce-
ssors. The product integrates 2D/3D graphics accelerator. Also it supports AGP
2X/4X and 4M Frame Buffer on AIMM. It designs 2 DIMMs up to 512MB with PC
133 SDRAM. Also it employs AC 97 system, Ultra DMA 33/66 function and
support Suspend To RAM (STR).This users manual contains all the information
and features that show you how to control ISZ motherboard. Please take a moment
to familiarize yourself with the design and organization of this manual.
TM
R
R
Check Your Items
This ISZ motherboard package contains the following items. Please inspect the
package contents and confirm that everything is there. If anything is missing or
R
damaged, call your vendor for instructions before operating.
The Package includes:
"
One ISZ motherboard
" One Floppy Interface Cable
" One IDE Interface Cable
" One Motherboard Resource CD
" One User’s Manual
1-1
Page 7
ISZ Specifications:
Form Factor Micro-ATX
Board Size 24.4cm x 19.3cm
Supports Socket 370 Intel P!!! & C eleron(FC-PGA ), Celero n(PP GA)
CPU
System Memory DIMM 168-pin x 2, SDRAM maximum 512MB with PC133
Chipset
Expansion Slot
Sound Function ON board AC'97 system, Crystal4299 Audio C odec
Graphic
I/O Interface
Parallel Port
Floppy Interface
IDE Interface
Fuse Support Recoverable fuse for USB,KB & MOUSE
RTC and Battery
Power
Connector
Other Key
Feature
BIOS
LED Indicator
and VI A Cyrix III CPUs
Jumperfree, B IOS setup Mode
Supports FSB 66/100/133MHz
Intel 82815 GMCH
Intel 82801AA ICH
Intel 82802AB FWH
2 PCI
1 AMR (for modem)
1 AGP 4X (or can plug 4M Frame Buffer card on AIMM)
2D/3D graphic accelerator Built in 82815 GMCH
AGP 4X
2 USB Ports
1 Audio Port (MIDI / game port, Line-in, Line-out, Mic-in)
1 LAN Port (10M / 100M auto detect)--DAVICOM9102AF Chipset
1 PS/2 Mouse, 1 PS/2 Keyboard
1 VGA port
1 IrDA pinheader, 2 serial ports (1 pinheader)
One parallel port supports:
-SPP-standard parallel port
-EPP-enhanced parallel port
-ECP-extended capabilities port
Support drivers inches/format with:
-3.5 inches-720KB/1.44MB/2.88MB
-5.25 inches-360KB/1.2MB
Two IDE Interface support 4 x IDE HDD or CDROM
Support PIO Mode 4, ULTRA DMA/33 & ULTRA DMA/66
Built in ICH
Lithium(CR-2032) battery
ATX
Monitor FAN speed, voltage and system environment temperature
Suspend To RAM (STR)
Wake on Modem / Wake on LAN
Award Plug & Play BIOS support APM, DMI and ACPI
ITE Hardware Monitor
Supports virus warning
Supports Flash / Upgrade BIOS f unctions
System Power LED
HDD activity L ED
Overview
1-2
Page 8
Overview

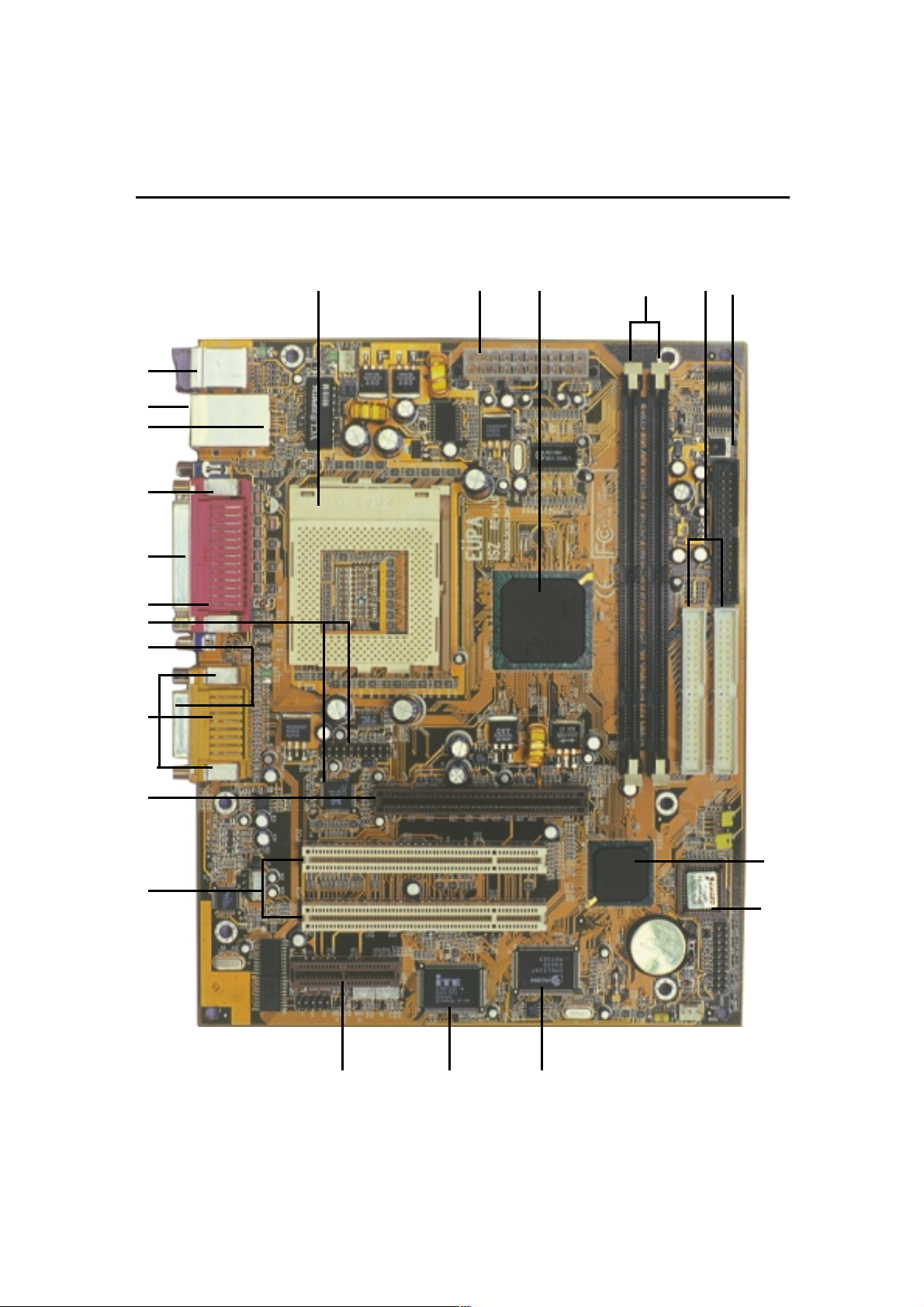

ISZ’ISZ’
ISZ’
ISZ’ISZ’
'
&
%
$
#
s Components:s Components:
s Components:
s Components:s Components:
!
" $
#
"
!
1-3
%
&
'
Page 9
Overview
Please refer to next two pages about each component, and this manual will
explain every important one at the following chapter.
1. Socket 370 processors socket
2. ATX Power Port
3. Intel 82815 North Bridge
4. DIMM sockets
5. IDE Ports
6. Floppy Port
7. Intel 82801AA South Bridge
8. Intel 82802AB (BIOS)
9. DM9102A LAN Chip (optional)
10. IT8712F-A Super I/O
11. Audio Modem Riser Card (AMR) slot
12. Peripheral Component Interface (PCI) Slots
13. Accelerated Graphics Port (AGP) slot
14. Audio Port --Mic in(down), Line in(mid), Line out(up)
15. Joystick Game Port
16. Sli 154 DFP chipset & DFP (optional)
17. VGA Port
18. Printer Port
19. Serial Port (com1)
20. LAN Port (up)
21. USB devices ports (down)
22. PS/2 Keyboard (down) / Mouse (up)
1-4
Page 10
Overview

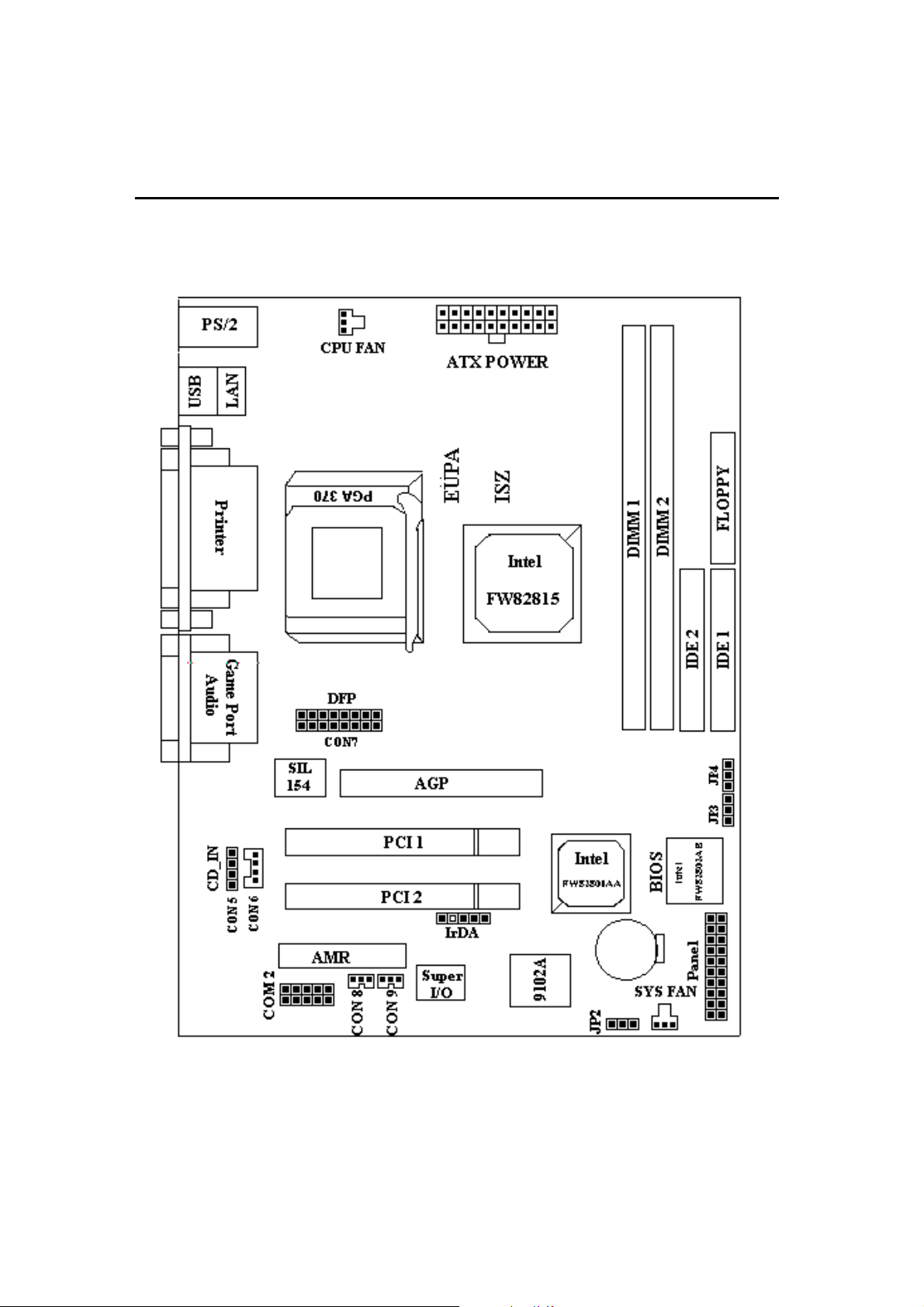

Motherboard Layout:Motherboard Layout:
Motherboard Layout:
Motherboard Layout:Motherboard Layout:
1-5
Page 11
Jumpers
1. JP2 Clear CMOS
2. JP3, JP4 Select CPU clock frequency
Expansion Slots
1. AGP AGP Expansion slot
2. PCI slot1 to slot2 32-bit PCI Bus Expansion slots
3. AMR AMR Expansion Slot for MC97 Devices
4. DIMM x 2 Support 168-pin DIMM Memory
Ports & Pinheaders
1. IDE 1 Primary IDE Port
2. IDE 2 Secondary IDE Port
3. Floppy Floppy Drive Port
4. ATX Power ATX Power Port
5. COM1 Serial Port1
6. COM2 Serial Port2 pinheader
7. CPU FAN CPU Fan pinheader
8. SYS FAN SYS Fan pinheader
9. IrDA Infrared ray Port pinheader
10. CON5 / CON6 Audio CD-IN pinheader
11. CON 8 LAN Wake Up pinheader
12. CON 9 MODEM Wake Up pinheader
13. Audio/Game Port Audio / Game Port
14. USB Universal Serial Bus Port1 andPort2
15. PS/2 Ports PS/2 Mouse & Keyboard Ports
16. Printer Printer (Parallel) Port
17. CON 7 DFP pinheader (optional)
18. CON10--Panel
- PWR LED ATX Power LED (3pins)
- SPEAKER Chassis Speaker (4pins)
- HDD LED HDD LED (2pins)
- RESET Reset Switch (2pins)
- PWR ON ATX Power Switch (2pins)
Overview
1-6
Page 12
Chapter 2 Hardware Installation
This chapter gives you a step-by-step procedure on how to install your system and
set jumper. The motherboard has several user-adjustable jumpers on the board that
allow you to configure your system to suit your requirements.
Cautions!! P rotecting Against Electrostatic Discharge
Static electricity can harm delicate components inside your system. To prevent
static electricity damage, discharge static electricity from your body before you
touch any of your motherboard electronic components, such as the microproces-
sor. Observe the following precautions:
- Do not removes the motherboard from its anti-static packaging until you are
ready to install it into a computer case.
- Before you handle the motherboard in any way, touch a grounded, antistatic
surface, such as an unpainted portion of the system chassis, for a few seconds
to discharge any built-up static electricity.
- Handle add-in cards and modules by the edges or mounting bracket.
2-1
Page 13
Hardware Installation
Set Jumpers:Set Jumpers:
Set Jumpers:
Set Jumpers:Set Jumpers:
Jumpers are used to select the operation modes for your system. Each jumper on the
board has several metal pins with each pin representing a different function. A 1
is written besides pin 1 on jumpers with several pins. To set a jumper, a plastic cap
containing metal contactor is placed over the jumper pins according to the required
configuration. A jumper is said to be shorted when the plastic cap has been placed
on two pins of it.The types of jumpers used in this manual are shown below:
Jumper Cap
Open set
3-pin Jumper
3
Short set
1
2
Note:
Users are not encouraged to change the jumper settings not listed in this manual.
Changing the jumper settings improperly may adversely affect system performance.
2-2
Page 14
Hardware Installation
Install CPUInstall CPU
Install CPU
Install CPUInstall CPU
The CPU module resides in the socket 370 on the motherboard. Please following the
steps introduced below to complete the CPU installation.
1) Locate the new processor you are installing over the socket so that the notched
corner on the processor (pin 1) can be aligned with the blank corner on the
socket. Then gently push the processor straight into the socket until its pins
are completely inserted into the holes of the socket.
Caution!!
If you install the processor chip in the wrong orientation, you may burn the chip
and void your warranty. So you should install it careful deeply.
2) Press the ZIF handle back to close it.
3) Attach the heat sink to the processor socket and then connect a fan connector
cable from the CPU fan to the CPU FAN connector.
2-3
Page 15
Hardware Installation
CPU Setting
After installing the CPU, you must set the clock selection jumpers to match the fre-
quency of the CPU. This product designs as Jumperless BIOS setup mode, you
can control over-clock through BIOS (Chapter 3 Frequency/Voltage Control).
Now please find the jumper labeled
and table for CPU normal clock frequency.
JP3 & JP4, set it according to the figure below
Caution !!
we dont recommend user to try overclock, it may damage your CPU and result in a
slower speed. Please think carefully before you use overclock function.
We introduce you how to clear CMOS, and enter into system BIOS, it could help you
accomplish CPU setting in BIOS easyly.
Clear CMOS: JP2
JP2 Clear CMOS
Clear CMOS
Normal
(Default)
To Clear CMOS, please follow the steps below:
1. Power off the system and unplug the chassis AC power cord.
2. Short JP2 at pin 2-3 for few seconds.
3. Set JP2 back to its Normal position at pin1-2
4. Plug the AC power cord to the chassis.
5. Power on the system and load the BIOS set up default.
2-4
Page 16
Hardware Installation

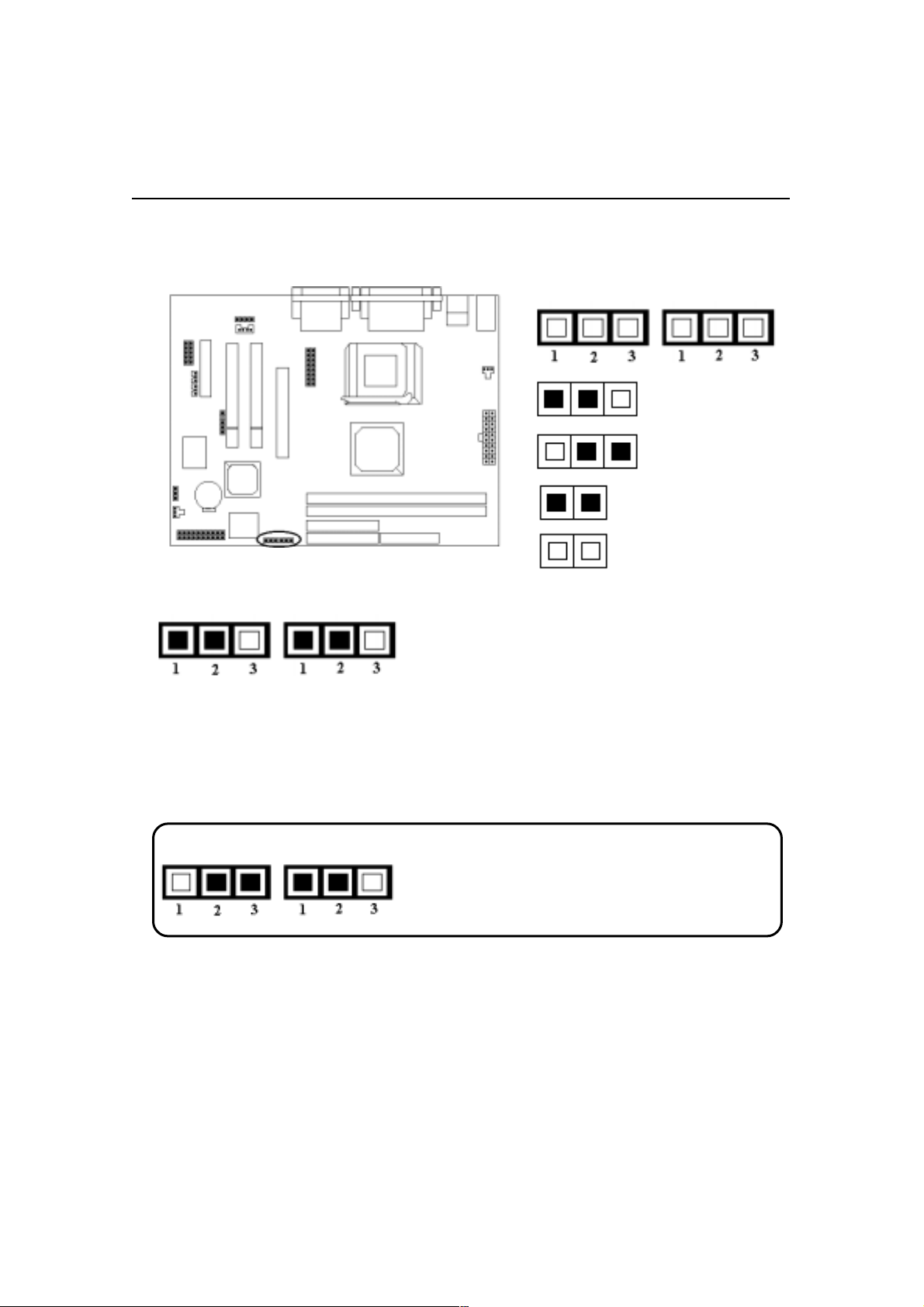

Jumper Setting (JP3 & JP4)Jumper Setting (JP3 & JP4)
Jumper Setting (JP3 & JP4)
Jumper Setting (JP3 & JP4)Jumper Setting (JP3 & JP4)
JP3
Auto Detect
JP4
JP3
3-Pin Jumper
1 2 3
1 2 3
JP4
Pin1-2 short
Pin2-3 short
short
open
Auto Detect is default for CPU of JP3 & JP4.
You need not set this jumper except you want to
over-clock.We recommend you to keep the default,
it will guarantee your system working stability.
2-5
Note:
JP3
JP4
This setting only fits for Celeron 300A CPU.
(Celeron 300A ‘s frequency is 66MHz.)
Page 17
Hardware Installation
Over-clock SettingOver-clock Setting
Over-clock Setting
Over-clock SettingOver-clock Setting
Meanwhile, the jumperfree mode allow processor settings to be made through the
BIOS setting. (Frequency / Voltage Control)
How to enter the BIOS?
While the BIOS is in control, the Setup program can be activated by pressing the
<Del>key during the POST (Power On Self-Test).
1. If your CPU is
66MHz clock frequency (Celeron)66MHz clock frequency (Celeron)
66MHz clock frequency (Celeron), you may select CPU
66MHz clock frequency (Celeron)66MHz clock frequency (Celeron)
host clock from the BIOS for overclock.
Frequency / Voltage Control
A uto Dete ct D IM M / PCI Clk
CPU H OST / Sprd Spec / PC133
CPU C lock Ratio
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
Enabled
Default
X3
Item H elp
Menu Le vel
!
CPU Host / Sprd Spec / PC133
Default...........................( )
66Mhz/0.60%/No............( )
68Mhz/off/No.................( )
75Mhz/off/No.................( )
78Mhz/off/No.................( )
80Mhz/off/No.................( )
Also, If you decide to make 66MHz CPU over-clock to 100MHz CPU, you may set
JP3 & JP4 manually as following:
JP3
JP4
Caution!!
Frequencies above 66MHz exceed the specifications
for the CPU and are not guaranteed to be stable and
results in damanging your peripheral devices.
2-6
Page 18
Hardware Installation
2. If your CPU is 100MHz clock frequency (FC-PGA Coppermine & VIA
CyrixIII), you may select CPU host clock from the BIOS for over-clock.
Frequency / Voltage Control
A uto Dete ct D IM M / PCI Clk
CPU H OST / Sprd Spec / PC133
CPU Clock Ratio
Enabled
Default
X3
Item H elp
Menu Le vel
!
CPU Host / Sprd Spec / PC133
Default...........................( )
100Mhz/0.60%/No............( )
110Mhz/off/No.................( )
114Mhz/off/No.................( )
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
117Mhz/off/No.................( )
122Mhz/off/No.................( )
127Mhz/off/No.................( )
129Mhz/off/No.................( )
Also, If you decide to make100MHz CPU over-clock to 133MHz CPU, you may set
JP3 & JP4 manually as well as following:
JP3
JP4
Caution!!
Frequencies above 100MHz exceed the specifica-
tions for the CPU and are not guaranteed to be stable
and results in damanging your peripheral devices.
3. If your CPU is 133MHz clock frequency (FC-PGA Coppermine & CyrixIII),
you may select CPU host clock from the BIOS for over-clock.
Frequency / Voltage Control
Au to D etect DIM M / P CI C lk
CPU H OS T / Sprd Spec / PC133
CPU C lock Ratio
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
Enabled
Default
X3
Item H elp
Menu L evel
!
CPU Host / Sprd Spec / PC133
Default...........................( )
133Mhz/0.45%/Yes............( )
140Mhz/off/Yes.................( )
144Mhz/off/No.................( )
146Mhz/off/No.................( )
150Mhz/off/Yes.................( )
157Mhz/off/No.................( )
160Mhz/off/No.................( )
166Mhz/off/No.................( )
2-7
Page 19
Connectors:Connectors:
Connectors:
Connectors:Connectors:
1. Panel Connector
-POWER LED ATX Power LED (3-pins)
-SPEAKER Chassis Speaker (4-pins)
Hardware Installation
-HDD LED HDD LED (2-pins)
-RESET Reset Switch (2-pins)
-PWR ON ATX Power Switch (2-pins)
-KEYLOCK Key Lock Switch(2-pins)
2. Power Connector
Connect the 20-pin ATX power supply cable to this power connector. Make sure the
right plug-in direction and the power supply is off before connecting or dis-
connecting the power cable.
Note: We suggest that users use 5 V STB and power source current
should be over 0.8A, otherwise it will affect system boot up.
2-8
Page 20
Hardware Installation
ATX Power Connector
3. Fan Connector
Connect the CPU and System fan cables to the fan connectors shown below.
The fan connectors are marked as:
SYS FAN & CPU FAN on the motherboad.
2-9
Page 21
Hardware Installation
4. PS/2 Mouse and Keyboard Connector
Connect the PS/2 Mouse and Keyboard to the onboard 6-pin Mini-Din connector
shown as below.
5. USB Connector
Connect your USB device(s) to the onboard USB connector shown as below.
Top: USB1
Bottom: USB2
2-10
Page 22
Hardware Installation
6. Serial Device COM1& com2, VGA and Printer Connectors
Connector your serial device(s) to the onboard serial connectors marked as
COM1 & COM2. Connect the 15-pins VGA Monitor Output marked as VGA to
your system monitor or other VGA compatible devices. Connect your local
to the onboard 25-pin printer connector marked shown as below.
COM2
7. IrDA Connector
Connect your IR devices to the onboard IrDA connectors shown as below.
Printer
2-11
1
2
3
4
5
IrDA
Pin Description
1 +5V
2NC
3 IRRX
4 GND
5IRTX
Page 23
Hardware Installation
8. Floppy Drive Connector
Connect the floppy drive cable to the onboard 34-pin floppy drive connector
marked as
FDD.
9. IDE Hard Disk Connectors
Connect your IDE devices to the onboard 40-pin IDE connectors marked as
IDE1 & IDE2 .
2-12
Page 24
Hardware Installation
10. LAN Connector (optional) & Wake Up function
Connect your
LAN port to the onboard LAN connector shown as below. Also
Wake on LAN & Modem pinheader, CON8 / CON 9 are on board.(Wake on
LAN & Wake on Modem functions should be supported Network Card
and Modem Card.)
LAN
Connector
(optional)
CON 8 & CON 9
Wake On LAN
Wake On Modem
11. Game / Audio Connector and CD_IN Connectors
The 15-pin female
Game/Audio connector allows you to connect game joystick or
game pads for playing games. Connect MIDI devices for playing or editing audio.
The CD connector marked as
CON5 & CON 6 are for CD-ROM connection.
JOYSTICK
CD-IN CON 5
CON 6
2-13
Page 25
Hardware Installation
12. DFP Connector(optional)
The 20-pin DFP connector onboard marked as CON 7 allows you to connect to
DFP daughter board. Also SLi154 chipset support this function. (we provide users
one DFP bracket showing like below.)
DFP Pinheader &Sound chip
,.2
SLi
154
We will porvide user one EUPA DFP bracket for using.
2-14
Page 26
Hardware Installation
System Memory InstallationSystem Memory Installation
System Memory Installation
System Memory InstallationSystem Memory Installation
There are 2 pieces 168-pin DIMM (Dual Inline Memory Module) sockets on the
motherboard which support SDRAM and EDO DRAM memory.
♦ To ensure reliability, it is recommended to use PC 100 or PC 133 SDRAM
for your high clock SDRAM performance requirement.
♦ If you are using low clock SDRAMs, you should set the SDRAM clock option
of the BIOSs Chipset Feature Setup to HCLK-33 to ensure stability.
♦ DIMM Sizes supported: 8MB, 16MB, 32MB, 64MB, 128MB, 256MB.
♦ Total Memory Size = DIMM 1 + DIMM 2, maximum up to 512 MB.
2-15
There are 2 x168-pin DIMM sock-
ets that allow you to install the sys-
tem memory max up to 512 MB
SDRAM.
Page 27
Hardware Installation
1 Install DIMM
1) Locate the DIMM socket on the motherboard.
2) Orient a DIMM to the socket so that the two notches in the DIMM conne-
ctor are aligned with the crossbars in the socket.
3) Press the DIMM straight into the socket until the retaining clips snap into
place around the ends of the DIMM.
2 Removing a Memory Module
To remove memory module, press the retaining clips outward simul-
taneously until the DIMM disengages from the socket and then carefully
remove the DIMM from the socket.
2-16
Page 28
Chapter 3 CMOS Setup Utility
The rest of this manual is intended to guide you through the process of configuring
your system using Setup. While the BIOS is in control, the Setup program can be
activated by pressing the <Del>key during the POST (Power On Self-Test).If the
message disappears before you respond and you still wish to enter Setup, restart the
system to try again by turning it OFF then ON or pressing the RESET button on
the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>,
and <Delete> keys.
CMOS Setup Main MenuCMOS Setup Main Menu
CMOS Setup Main Menu
CMOS Setup Main MenuCMOS Setup Main Menu
Once you enter the BIOS setup utility, the Main Menu will appear on the screen.
The Main Menu allows you to select from several setup functions . the arrow
keys to select among the items and press <Enter> to accept and enter the submenu.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
!""Standard CMOS Features
!""Advanced BIOS Features Load Fail-Safe Defaults
!""Advanced Chipset Features
!""Integrated Peripherals Set Supervisor Password
"
"Power Management Setup
!
""
PnP/PCI Configuration
!
""
PC Health Status
!
Esc : Quit
F10 : Save & Exit Setup
Abandon all datas
Frequency/Voltage Control
"
Load Optimized Defaults
Set User Password
Save & Exit Setup
Exit Without Saving
: Select Item
#$! "
3-1
Page 29
CMOS Setup Utility
The main menu includes the following main setup categories, which defines basic
information about your system. Below are the keyboard function keys you can use
under the menu.
Menu function keys:
↑↑
↓↓
↑
↓
↑↑
↓↓
F1
F10
ENTER
ESC
←←
←
←←
: To Move around the screen. An item is highlighted if it is selected.
→→
→
→→
: Help.
: Save CMOS Changes & Exit.
: To select or enter a submenu.
: To quit the BIOS Setup Utility.
3-2
Page 30
CMOS Setup Utility
Standard CMOS SetupStandard CMOS Setup
Standard CMOS Setup
Standard CMOS SetupStandard CMOS Setup
The items in Standard CMOS Setup Menu are divided in 10 catagories. Each
catalogue includes one or more than one setup items. Use the keys to highlight
the item and then use the / <PgUp> / <PgDn> keys to select the value
↑ ↓ ← →
you want in each item.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Standard CMOS Features
Date (m m:dd:yy):
Time (hh:mm:ss):
!
IDE Primary Master
!
IDE Pr imary Slave
IDE Secondary Master
!
IDE Secondary Slave
!
Drive A
Drive B
Vi deo
Halt On
Base Memory
Extended Memory
To ta l M em or y
#$! "
: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6: Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
Fri, May 19 2000
16:19:20 Item Help
Menu Level
Change the day, mont h, year
and century
1.44M. 3.5in
None
EGA / VGA
All, But Keyboard
640K
65472K
1024K
!
Date & Time
To set the date and time, highlight the date area.Press /<PgUp>/ <PgDn> to
↑ ↓ ← →
set the current date. The date format is month: Jan. ~ Dec; date: 1 ~ 31; year: 1994
~ 2079; hour: 00 ~ 23; and second: 00 ~ 59.
! Hard Disks → IDE Primary Master
! Hard Disks
→
IDE Primary Slave
! Hard Disks → Secondary Primary Master
! Hard Disks
→
Secondary Primary Slave
3-3
Page 31
CMOS Setup Utility
Press <Enter> to enter the submenu of detailed options, the following table shows
the IDE primary master submenu.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
IDE Primary Master
IDE HDD Auto-Detection Press Enter Item H elp
IDE P rimary Master
Access Mode
Capacity 3249MB
Cylinder
Head
Precomp
Landing Zone
Sector
: Move Enter: Select
#$! "
F5 : Previous Values
Auto
Auto
6296
16
65535
6295
63
+/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults
Menu Level
Change the day, month, year
and century
Esc:Exit F1: General Help
F7 : O ptimized Defaults
!
IDE HDD Auto-detection
Press Enter to auto - detect the HDDs size, head... on the channel. If detection is
successful, it fills the remaining feilds on the menu.
IDE Primary Master
Selecting manual lets you set the remaining fields on the screen. Selects the type
of fixed disk. User Type will let you select the number of cylinders, heads, etc.
Note: Note:
Note: PRECOMP=65535 means NONE!
Note: Note:
The optional are: None, Auto (Default), Manual
The following options are selectable onlyif the 'IDE Primary Master'
item is s e t t o 'M anu a l':
Cylinder
Head
Precomp
Landing zone
Sector
Min = 0
Max = 65535
Min = 0
Max = 255
Min = 0
Max = 65535
Min = 0
Max = 65535
Min = 0
Max = 255
Set the num ber of cylinders for this
hard disk.
Set the num ber of read/write heads
Warning: Setting a value of 65535
m ean s no ha rd di s k
Number of sectors per track
3-4
Page 32
CMOS Setup Utility
Access Mode
Choose the access mode for this hard disk.
The optional are: Normal, LBA, Large, Auto (Default).
Capacity
Disk drive capacity (approximated). Note that this size is usually slightly greater
than the size of the formatted disk given by a disk checking program.
The optional are: Auto display your drive size.
Drive A / Drive B
Select the floppy drive type installed in your system. The available options for
Drive A and Drive B.
The optional are: 360K 5.25 in, 1.2M 5.25 in, 720K 3.5 in, 1.44M 3.5 in(Drive A
default), 2.88M 3.5 in and NONE (Drive B default).
Video
Select the video display card type installed in your system.
The optional are: EGA/VGA (Default), CGA 40, CGA 80 and Mono.
Halt On
This item defines the operation of the system POST (Power On Self-Test). You can
use this item to select which kind of errors will cause the system to halt during
POST.
The optional are: All Errors, No Errors, All But Keyboard (Default), All But
Diskette and All But Disk / Key
3-5
Page 33
Advanced BIOS FeaturesAdvanced BIOS Features
Advanced BIOS Features
Advanced BIOS FeaturesAdvanced BIOS Features
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Advanced BIOS Features
CMOS Setup Utility
Virus Warning
CPU Internal Cache
External Cache
CPU L2 Cache ECC Checking
Pr oces sor Numb er Feature
Quick Power On S elf Test
First Boot Device
Second Boot D evice
Third Boot device
Boot other device
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up Numlock Status
Gate A20 Optio n
Typematic Rate Setting
x Typematic Rate (Chars/Sec)
x Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
Report No FDD For WIN 95
#$! "
: Move Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
Disabled
Enabled
Enabled
Enabled
Enabled
Disabled
Floppy
HDD-0
LS120
Enabled
Disabled
Enabled
On
Fast
Disabled
6
250
Setup
Non-OS2
No
Menu Level
Allows you to choose the
VIRUS warning feature for
IDE Hard Disk boot sector
protection. If this function is
enabled and someone
attempt to write data into
this area, BIOS w ill show a
warning message on screen
and alarm beep.
Item H elp
!
Virus Warning
If this function enabled and someone attempt to write data into this area, BIOS will
automatically show a warming message on screen and alarm beep.
The optional are: Enabled, Disabled (Default)
CPU Internal / External cache
These two items controls Enable / Disable the CPU internal / external cache.
The optional are: Enabled (Default), Disabled
CPU L2 Cache ECC Checking
This item allows you to enable / disable CPU L2 Cache ECC Checking.
The optional are: Enabled (Default), Disabled
Processor Number Feature
This item allows you to enable / disable Processor Number.
The optional are: Enabled (Default), Disabled
3-6
Page 34
CMOS Setup Utility
Quick Power On Self Test
This item speeds up Power On Self Test (POST) after you power up the computer. It
allows the system to skip certain tests while booting. This will decrease the time
needed to boot the system
The optional are: Enabled, Disabled (Default)
First / Second / Third Boot Device
The BIOS attempts to select your boot device priority.
The optional are: Floppy (First Default), HDD-0(Second Default), LS 120 (Third
Default), HDD-1/2/3, ZIP 100, SCSI, CDROM, LAN.
Boot Other Device
The BIOS attempts to select your boot device priority.
The optional are: Enabled (Default), Disabled
Swap Floppy Drive
If the system has two floppy drives, choose enable to assign physical drive B to
logical drive A and vice-versa.
The optional are: Enabled, Disabled (Default)
Boot Up Floppy Seek
Enabled tests floppy drives to determine whether they have 40 or 80 tracks.
The optional are: Enabled (Default), Disabled
Boot Up NumLock Status
Selects power on state for NumLock.
The optional are: Off, On (Default)
Gate A20 Option
Normal--a pin in the keyboard controller controls Gate A20.
Fast-- lets chipset control Gate A20.
The optional are: Normal, Fast (Default)
3-7
Page 35
CMOS Setup Utility
Typematic Rate Setting
Keystrokes repeat at a rate determined by the keyboard controller, when enabled,
the typematic rate and typematic delay can be selected.
The optional are: Enabled, Disabled(Default)
Typematic Rate (Chars/Sec)
Sets the number of times a second to repeat a key stroke when you hold the key
down.
The optional are: 6 (Default), 8, 10, 12, 15, 20, 24, 30
Typematic Delay (Msec)
Select the delay time after the key is held down before it begins to repeat the key
strokes.
The optional are: 250 (Default), 750, 1000
Security option
Select whether the password is required every time when you enter setup.
Setup -- The system will boot up.
System -- The system will not boot and access to setup will be denied if the correct
password is not entered at the prompt.
The optional are: Setup (Default), System
OS Select for DRAM > 64MB
Select OS2 only if you are running OS/2 operating system with greater than 64MB
of RAM on the system.
The optional are: Non-OS/2 (Default), OS/2
Report No FDD for WIN 95
Whether report no FDD for WIN 95 or not.
The optional are: Yes, No (Default)
3-8
Page 36
CMOS Setup Utility
Advanced Chipset FeaturesAdvanced Chipset Features
Advanced Chipset Features
Advanced Chipset FeaturesAdvanced Chipset Features
This item allows you to configure the system based on the specific features
of the chipset. The chipset manages bus speed and access to system memory
recources, and external cache. It must be stated that these items should never
need to be altered.The default settings have been chosen because they provide
you the best operating conditions for your system. The only time you might
consider making any changes if you discovered that the datas were being lost
while control your system.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Advanced Chipset Features
SDRAM CAS Latency Time
SDRAM Cy cle Time Tras/Trc
SDRAM RAS-to-CAS Delay
SDR AM RAS Pre charge Tim e
System BIOS Cacheable
Video BIO S Cacheable
Memory Hole At 15M-16M
CPU Latency Timer
Delayed Transaction
On-Chip Video Window Size
System Memory Frequency
AGP G raphics Aperture Size
3
6/8
3
3
Disabled
Disabled
Disabled
Disabled
Enabled
64MB
100MHz
64MB
Item H elp
Menu Level
!
* Onboard Display Cache Setting*
CAS# Latency
Paging Mode Control
RAS-to-CAS Override
RAS# Timing
RAS# Precharge Timing
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
3
open
by CAS# LT
Fas t
Fas t
SDRAM CAS Latency Time
When synchronous DRAM is installed, the number of clock cycles of CAS latency
depends on the DRAM timing.
The optional are: 3(Default), 2
SDRAM Cycle Time Tras/Trc
Select the number of SCLKs for an access.
The optional are: 6/8 (Default), 5/7
3-9
Page 37
CMOS Setup Utility
SDRAM RAS-to-CAS Delay
When synchronous DRAM is installed in the system, this field lets you insert a
timing delay between the as CAS and RAS strobe signals, used DRAM is written to,
read from,or refreshed.
The optional are: 3(Default), 2
SDRAM RAS Precharge Time
If an insufficient number of cycles is alllowed for the RAS to accumulate its charge
before DRAM refresh, the refresh may be incomplete and the DRAM may fail to
retain data.
The optional are: 3(Default), 2
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance.
The optional are: Enabled, Disabled(Default)
Video BIOS Cacheable
Select Enabled allows caching of the video BIOS, resulting in better system perfor-
mance.
The optional are: Enabled, Disabled(Default)
Memory Hole At 15M - 16M
When this area is reserved, it cannot be cached. The user information of peripheral
that need to use this area of system memory usually discusses their memory
requirements.
The optional are: Enabled, Disabled(Default)
CPU Latency Timer
This option allows you to Enabled/Disabled CPU latency Timer.
The optional are: Enabled, Disabled(Default)
3-10
Page 38
CMOS Setup Utility
Delayed Transaction
Select Enabled to support compliance with PCI specification version 2.1.
The optional are: Enabled(Default), Disabled
On-chip Video Window Size
Select the on-chip video window size for VGA drive use.
The optional are: Enabled, 32MB, 64MB(Default)
System Memory Frequency
Select System Memory Frequency.
The optional are: 100MHz(Default), 133MHz
AGP Graphics Aperture Size
Select the size of Accelerated Graphics Port (AGP) aperture. The aperture is a
portion of the PCI memory address range dedicated for graphics memory address
space. Host cycles that hit the aperture range are forwarded to the AGP without
any translation.
The optional are: 32MB, 64MB(Default)
System Memory Frequency
Select System Memory Frequency.
The optional are: 100MHz(Default), 133MHz, Auto
CAS # Latency
Select the local memory clock periods.
The optional are: 3(Default), 2
Paging Mode Control
Select the paging mode control.
The optional are: Open(Default), Close
3-11
Page 39
CMOS Setup Utility
RAS-to-CAS Override
Select the display cache clock periods control.
The optional are: by CAS # LT (Default), Override(2)
RAS# Timing
This item controls RAS# active to Protegra, and refresh to RAS# active delay ( in
local memory clocks).
The optional are: Slow, Fast(Default)
RAS# Precharge
This item controls RAS# precharge (in local memory clocks).
The optional are: Fast(Default), Slow
Integrated PeripheralsIntegrated Peripherals
Integrated Peripherals
Integrated PeripheralsIntegrated Peripherals
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
On-Chip Primary PCI IDE
On-Chip Secondary PCI IDE
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Se co nd ay Ma st er PIO
IDE Secondary Slave PIO
IDE Primary Master UD MA
IDE Primary Slave UDMA
IDE Se co nd ary M a ste r U DM A
IDE Se co nd ary S lav e U DM A
USB Controller
USB Keyboard Support
Init Display First
AC97 Au dio
AC 97 Modem
IDE HDD Block Mode
Power On function
Hot Key Power On
Onb oard FDC Control ler
Onboard Serial Port1
Onboard Serial Port2
UART Mode Select
UR2 Duplex mode
Onboar d Parallel Po rt
Parallel Port Mod e
ECP Mode Use DMA
PWRON After PW R-Fail
Game Port Address
Mi di Por t Ad dress
Mi di Por t IRQ
Enter : Select F5 : Previous Values +/- /PU/PD: Value F10 : Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
Integrated Peripherals
Enabled
Enabled
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Auto
Enabled
Disabled
PCI Slot
Auto
Auto
Enabled
Any key
Ctrl-F1
Enabled
3F8 /IRQ4
2F8 /IRQ3
Normal
Half
378/I RQ7
SPP
3
Off
201
330
10
Menu Level
Item Help
!
3-12
Page 40
CMOS Setup Utility
On-Chip Primary / Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with support two IDE
channels. Select Enabled to activate each channel separately.
The optional are: Enabled (Default), Disabled
IDE Primary / Secondary Master / Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for
each of the four IDE devices that the onboard IDE interface supports. Modes 0 through
4 provide successively increased performance. In Auto mode, the system automati-
cally determines the best mode for each device.
The optional are: Auto (Default), Mode 0, Mode 1, Mode 2, Mode3, Mode 4
IDE Primary / Secondary Master / Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it
and the operating environment includes a DMA driver (Windows 95 OSR2 or a
third-party IDE bus master driver). If your hard drive and your system software both
support Ultra DMA/33, select Auto to enable BIOS support.
The optional are: Auto(Default), Disabled
USB Controller
Select Enabled if your system contains a Universal Seria Bus (USB) controller and
you have a USB peripheral.
The optional are: Enabled (Default), Disabled
USB Keyboard Support
Select Enabled if your system contains a universal Serial Bus (USB) controller and
you have a USB keyboard.
The optional are: Enabled, Disabled(Default)
3-13
Page 41
CMOS Setup Utility
Init Display First
This item allows you to decide to active whether PCI Slot or on-chip VGA first.
The optional are: PCI Slot(Default), Onboard / AGP
AC 97 Audio
This item allows you to decide to enable/ disable the 810 chipset family to support
AC 97 audio.
The optional are: Auto (Default), Disabled
AC97 Modem
This item allows you to decide to enable/disable the 815 chipset family to support
AC97 Audio/Modem.
The optional are: Auto(Default), Disabled
IDE HDD Block Mode
If your IDE hard drive supports block mode (most new drives do), select
Enabled for automatic detection of the optimal number of block read / write per
sector the drive can support.
The optional are: Enabled(Default), Disabled
POWER ON Function
Set the power on function mode for power on.
The optional are: Hot Key, Mouse Click, Any Key(Default), BUTTON ONLY,
Keyboard 98
Hot Key Power ON
This option let you choose Power ON Key from <Ctrl-F1> to <Ctrl-F12>.
The optional are: Ctrl-F1(Default), Ctrl-F12
3-14
Page 42
CMOS Setup Utility
Onboard FDC Controller
Select Enabled if your system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. If you install an add-in FDC or the system has
no floppy drive, select Disabled in this field.
The optional are: Enabled(Default), Disabled
Onboard Serial Port1 / Serial Port2
Select an address and corresponding interrupt for the first and second serial ports.
The optional are: Auto, Disabled, 3F8 / IRQ4(Port 1 Default), 2F8 / IRQ3(Port 2
Default), 3E8 / IRQ4, 2E8 / IRQ3
UART Mode Select
Let you choose UART Mode.
The optional are: Normal(Default), IrDA, ASKIR, SCR
UR2 Duplex mode
Let you choose UR2 Duplex mode.
The optional are: Half(Defautl), Full
Onboard Parallel Port
Select a logical LPT port address and corresponding interrupt for the physical
parallel port.
The optional are: 378/IRQ7(Default), 278/IRQ5, 3BC/IRQ7, Disabled
Parallel Port Mode
Select an operating mode for the on board parallel (printer) port.
The optional are: SPP(Default), EPP, ECP, ECP+EPP
ECP Mode Use DMA
Select a DMA channel for the parallel port for use during ECP mode.
The optional are: 3(Default), 1
3-15
Page 43
PWRON After PWR-Fail
Select after power on fail status.
The optional are: Off(Default), On, Former-Sts
Game Port Address
Select an address for game port.
The optional are: Disabled, 201(Default), 209
Midi Port Address
Select an address for Midi Port.
The optional are: Disabled, 330 (Default), 300
Midi Port IRQ
Select a corresponding interrupt for Midi Port.
The optional are: 5, 10(Default)
CMOS Setup Utility
Power Management SetupPower Management Setup
Power Management Setup
Power Management SetupPower Management Setup
The Power Management Setup allows you to configure your system effectively
save energy while operating in a manner consistent with your own style of
computer use.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Power Management Setup
Menu Level
Item H elp
!
ACPI Function
ACPI Suspend Type
Power Management
Video Off Method
Video Off In Suspend
Suspend Type
MODEM Use IRQ
Suspend Mode
HDD Power Down
Soft-Off b y PW R-B TTN
Po wer O n by R ing
USB KB Wake-Up From S3
Res um e by Al arm
* Da t e (o f M o nth) A l ar m
* Time (hh:mm:ss) Alarm
** Reload Global Timer Events **
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM , LPT Port
PCI PIR Q [A -D ]#
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: G eneral Help F7 : Optimized Defaults
Enabled
S1(POS)
User Define
DPMS
Yes
Stop G r a nt
3
Disabled
Disabled
Instant-O ff
Disabled
Disabled
Disabled
0
0 0 0
Disabled
Disabled
Disabled
Disabled
Disabled
Disabled
3-16
Page 44
CMOS Setup Utility
ACPI Function
This item allows you to enable/disable the Advanced Configuration and Power
Management (ACPI).
The optional are: Enabled(Default), Disabled
ACPI Suspend Type
This item lets you select a method of ACPI suspend.
The optional are: S1(POS) (Default), S3(STR)
Power Management
There are three selections for Power Management, three of which have fixed
mode settings.
The optional are: User Define(Default), Min Saving, Max Saving
Minimum power management. Doze Mode = 1 hr. Standby
Min. Power Sav ing
Max. Power Sa ving
User D efi ned
Mode = 1 hr., Suspend Mode = 1 hr., and HDD Power Down
= 15 min.
Maximum power management ONLY AVAILABLE FOR SL
CPU'S. Doze Mode = 1 min., Standby Mode = 1 min.,
Suspend Mode = 1 min., and HDD Power Down = 1 min.
Allows you to set each mode individually. When not disabled,
each of the ranges are from 1 min. to 1 hr. except for HDD
Power Down which ranges fro m 1 min. to 15 min. and disable.
Video Off Method
Determines the manner in which the monitor is blanded. System turns off vertical
and horizontal synchronization ports and writes blanks to the video buffer. Select
this option if your monitor supports.System only writes blanks to the video buffer.
The optional are: V/H SYNC+Blank, DPMS (Default), Blank Screen
Video Off In Suspend
Setup whether video off in suspend or not.
The optional are: Yes (Default), No
3-17
Page 45
CMOS Setup Utility
Suspend Type
This item lets you select a method of global system suspend.
The optional are: Stop Grant(Default), PwrOn Suspend
Modem Use IRQ
This determines the IRQ in which the MODEM can use.
The choice: 3(Default), 4, 5, 7, 9, 10, 11, NA.
Suspend Mode
After the selected period of system inactivity, all devices except the CPU shut off.
The optional are: 1/2/4/8/12/20/30/40Min, 1 Hour, Disabled (Default)
HDD Power Down
After the selected period of drive inactivity, the hard disk drive powers down while
all other devices remain active.
The optional are: 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15 Min, Disabled(Default)
Soft-Off by PWR-BTTN
When Enabled, turning the system off with the on/off button places the system in a
very low-power-usage state, with only enough circuitry receiving power to detect
power button activity or Resume by Ring activity.
The optional are: Instant-Off (Default), Delay 4 Sec.
Power On by Ring
Setup whether Power on by ring or not.
The optional are: Disabled(Default), Enabled
USB KB Wake Up From S3
Setup whether USB KB Wake Up From S3.
The optional are: Enabled, Disabled(Default)
3-18
Page 46
CMOS Setup Utility
Primary IDE 0 / IDE 1
This option allows you determine whether enable Primary IDE 0/IDE 1 or not.
The optional are: Enabled, Disabled(Default)
Secondary IDE 0 / IDE 1
This option allows you determine whether enable Secondary IDE 0 / IDE 1 or not.
The optional are: Enabled, Disabled(Default)
FDD,COM,LPT Port
This option allows you set whether enable FDD, COM, LPT Port or not.
The optional are: Enabled, Disabled(Default)
PCI PIRQ[A-D]#
This option lets you set PCI PIRQ [A-D]#.
The optional are: Enabled, Disabled(Default)
3-19
Page 47
CMOS Setup Utility
PnP / PCI ConfigurationsPnP / PCI Configurations
PnP / PCI Configurations
PnP / PCI ConfigurationsPnP / PCI Configurations
This section describes configuring the PCI bus system. PCI- Peripheral
Component Interconnect, is a system which allows I/O devices to operate at
speeds nearing the speed of CPU itself using when communicates with its
own special components.This section covers some very technical items and
it is strongly recommended that only experienced users should make any
changes to the default settings.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
PnP / PCI Configuration
Reset Configuration Data
Recources Controlled By
* IRQ Recou rces
PCI/VGA Palette Snoop
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
Disabled
Auto(ESCD)
Press Enter
Disabled
Menu Level
Select Yes if you are using a
Plug and Play capable
operating system. Se lect N o
if you need the BIOS to
configure non-boot devices
Item He lp
!
Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to reset Extended System
Configuration Data (ESCD) when you exit Setup if you have installed a new add-on
and the system reconfiguration has caused such a serious conflict that the operating
system cannot boot.
The optional are: Enabled, Disabled(Default)
Resources controlled By
The Award Plug and Play BIOS has the capacity to automatically configure all of
the boot and Plug and Play compatible devices. However, this capability means
absolutely nothing unless you are using a Plug and Play operating system
such as Windows98.
The optional are: Auto(ESCD) (Default), Manual
3-20
Page 48
CMOS Setup Utility
PCI/VGA Palette Snoop
Leave this field at Disabled.
The optional are: Enabled, Disabled(Default)
PC Health StatusPC Health Status
PC Health Status
PC Health StatusPC Health Status
This section helps you to get more information about your system including
CPU temperature, FAN speed and voltages. It is recommended that you
contact with your motherboard supplier to get proper value about your
setting of the CPU temperature.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
PC Health Status
Shut down Temp erature
Voltage 0
Voltage 1
Voltage 2
Voltage 3
Voltage 4
Voltage 5
Voltage 6
Voltage Battery
Tempe ratu re 1
Tempe ratu re2
Fan Speed 1
Fan Speed 2
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F7 : Optimized Defaults
Current CPU Temp.
Show you the current CPU temperature.
Disabled
Item H elp
Menu Level
!
3-21
Page 49
CMOS Setup Utility
Frequency / VFrequency / V
Frequency / V
Frequency / VFrequency / V
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
Auto Detect DIMM / PCI Clk
CPU HOST / Sprd Spec/ PC133
CPU Clock Ratio
Enter: Select F5 : Previous Values +/-/PU/PD: Value F10: Save
F6 : Fail-safe defaults Esc:Exit F1: General Help F 7 : Optimized Defaults
oltage Controloltage Control
oltage Control
oltage Controloltage Control
Frequency / Voltage Control
Enabled
Default
X3
Item He lp
Menu Level
!
Auto Detect DIMM / PCI Clk
To reduce the occurrence of electromagnetic interference (EMI), the BIOS detects
the presence or absence of components in DIMM and PCI slots and turns off
system clock generator pulses to empty slots.
The optional are: Enabled(Default), Disabled
CPU HOST / Sprd Spec / PC133
Setup CPU Host Clock through the BIOS.
The optional are: Default(Default), 66Mhz/0.60%/No, 68Mhz/Off/No, 75Mhz/
Off/No, 78Mhz/Off/No, 80Mhz/Off/No, 100Mhz/0.60%/No, 105Mhz/Off/No,
110Mhz/Off/No, 114Mhz/Off/No, 117Mhz/Off/No, 122Mhz/Off/No, 127Mhz/Off/
No, 129Mhz/Off/No, 133Mhz/0.45%/Yes, 140Mhz/Off/Yes, 144Mhz/Off/No,
146Mhz/Off/No, 150Mhz/Off/Yes, 157Mhz/Off/No, 160Mhz/Off/No,
166Mhz/Off/No
CPU Clock Ratio
Setup CPU Clock Ratio through the BIOS.
The optional are: x3(Default), x3.5, x4, x4.5, x5, x5.5, x6, x6.5, x7, x7.5, x8
3-22
Page 50
CMOS Setup Utility
Load Fail-Safe DefaultsLoad Fail-Safe Defaults
Load Fail-Safe Defaults
Load Fail-Safe DefaultsLoad Fail-Safe Defaults
This option allows you load Fail-Safe Defaults settings. To load setup default,
press <Y> key to confirm the operation when you see the below display.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
!""
Standard CMOS Features
!""
Advanced BIOS Features Load Fail-Safe Defaults
!""
Advanced Chipset Features Load Optimized Defaults
!""
Integrated Peripherals Set Supervisor Passord
Load Fail - Safe Defaults (Y / N)? N
!""
Power Management Setup Set User Passoword
!""
PnP / PCI Configuration Save & Exit Setup
!""
PC Health Status Exit Without Saving
Esc : Quit F10 : Save & Exit Setup
Load Optimized DefaultsLoad Optimized Defaults
Load Optimized Defaults
Load Optimized DefaultsLoad Optimized Defaults
Abandon all datas
!""
Frequency / Voltage Control
This option allows you load Optimized Defaults settings to optimize your
system. To load optimized default, press <Y> key to confirm the operation
when you see the below display.
CMOS Setup Utility - Copyright (C) 1984-2000 Award Software
3-23
!""St an dar d CMOS Feat ure s !""Frequen cy / Volt ag e Contr ol
!""Advan ced BI OS Feature s Load Fail -Safe Def aults
!""Advan ced Ch ipset Fe atures Load Optimized Defaults
!""Int egrat ed Periph erals Set Su pervisor Pass ord
!""Power Manag ement Setu p
!""PnP / PCI Configura tion S ave & Exit Set up
!""PC Hea lt h St atus Exit Witho ut Savi ng
Esc : Quit F10 : Save & Exit Se tu p
Load Optimized Defaults (Y / N)?
Set User Passoword
Aband on al l data s
Page 51
CMOS Setup Utility
Set Supervisor / User PasswordSet Supervisor / User Password
Set Supervisor / User Password
Set Supervisor / User PasswordSet Supervisor / User Password
Password prevents unauthorized use of your computer. If you set a password, the
system prompts for the correct password before boot or access to setup. The main
difference between Supervisor Password and User Password is the privilege.
Because Supervisor Password allows you to modify all CMOS setup but User
password only some of them.
Their steps all as follows:
1. Highlight the item Set Supervisor Password / Set User Password on the main
menu and press ENTER.
2. The password dialog box will appear.
3. If you are installing a new password, carefully type in the password. Press
ENTER after you typed in the password. If you are deleting a password that is
already installed just press ENTER when the password dialog box appears.
4. The system will ask you to confirm the new password by asking you to type
it in a second time. Carefully type the password again and press ENTER, or
just press ENTER if you are deleting a password that is already installed.
5. If you typed the password correctly, the password will be installed.
[NOTE]
If you forget your password, or you want to cancel your password, you can do theIf you forget your password, or you want to cancel your password, you can do the
If you forget your password, or you want to cancel your password, you can do the
If you forget your password, or you want to cancel your password, you can do theIf you forget your password, or you want to cancel your password, you can do the
steps as the following:steps as the following:
steps as the following:
steps as the following:steps as the following:
(1) Password forgotten:
i. Turn off the system.
ii. Short JP2 at Pin 2-3 for a few seconds to clear CMOS.
iii. Set the JP2 back to Pin 1-2.
iv. Power on the system.
(2) Clear Password:
Clear your password by key in the password you installed
before, then go to password setting to press ENTER twice.
3-24
Page 52
CMOS Setup Utility
Save & Exit SetupSave & Exit Setup
Save & Exit Setup
Save & Exit SetupSave & Exit Setup
Highlight this item and press ENTER to save the changes that you have made
in the setup utility and exit the setup program. When the Save and Exit dialog
box appears, press <Y> to save and exit, or press <N> to return to the setup
main menu.
Exit WExit W
Exit W
Exit WExit W
Use this option to exit setup utility without saving the CMOS value changes.
ithout Savingithout Saving
ithout Saving
ithout Savingithout Saving
3-25
Page 53
CMOS Setup Utility
How to Update YHow to Update Y
How to Update Y
How to Update YHow to Update Y
1. Create a bootable system floppy disk by typing [FORMAT A:/S] from the DOS
prompt without creating
2. Copy AWDFLASH.EXE to the just created boot disk.
3. Download an updated EUPA BIOS file from the Internet and save to the disk
you created earlier.
4. Boot from the disk you created earlier.
5. At the "A:\" prompt, type AWDFLASH and then press <Enter>. The screen
will displays the following window:
our Motherboard’our Motherboard’
our Motherboard’
our Motherboard’our Motherboard’
"AUTOEXEC.BAT" and "CONFIG.SYS" files.
s BIOS?s BIOS?
s BIOS?
s BIOS?s BIOS?
6. Type the new BIOS filename and the path, for example, A:\VXA.BIN and
then press <Enter>. Then prompt: Do you want to save BIOS?(Y/N) Press
<Y> to save current BIOS to file.Type the file name to save, then press <Enter>.
Prompt: Now backup system BIOS TO file!
3-26
Page 54
CMOS Setup Utility
7. After the backup,prompt: Are you sure to program?(Y/N) Press <Y> to start
to program the new BIOS information into the flash ROM. When the progra-
mming isfinished.You may press <F1> to reset the PC or <F10> to Exit
the AWDFLASH.
WARNING!!!
If you encounter problems while updating the new BIOS, DO NOT turn off
your system since this might prevent your system from booting up. Just repeat
the process, and if the problem still persists, update the original BIOS file you
saved to disk above. If the Flash Memory Writer utility was not able to
successfully update a complete BIOS file, your system may not be able to
boot up. If this happens, your system will need service.
NOTE!!!
The previous screen displays are provided as example only and may not
reflect the screen contents displayed on your system.
3-27
Page 55
Chapter 4 Software Utility
The support software for this motherboard is supplied in a CD. All the support programs are stored in separate folders, so you can find the program you need easily
enough. We recomend you to choose the program which you need most, it will assist
your computer system to high performance.
wwwwww
Note: For update driver, please visit EUPA web site:
Installing InterfaceInstalling Interface
Installing Interface
Installing InterfaceInstalling Interface
After you insert CD driver, it runs automaticly and appear the interface as below:
.eupacomputer.eupacomputer
www
.eupacomputer
wwwwww
.eupacomputer.eupacomputer
.com.com
.com.
.com.com
Choose the language and interface you need.
4-1
Page 56
Software Utility
Installing Driver Location:
Insert CD Driver to the CD-ROM, driver runs by itself, and appear the following
interface, please refer to the procedure, then finish installing.
following Installing Driver
Intel Video Driver Location : /VIDEO/815VGA
Intel 815 Chipset Driver Location: /IDE/815/CHIPSET
IDE DMA66 Driver Location: /IDE/815/UltraATA
Audio Driver Location: /AUDIO/4299
LAN Driver Location: /LAN
:
ISZ provides you the
Installing ADOBE Acrobat Read Driver
Insert CD Driver to the CD-ROM, driver runs by itself, and appear the following
interface, please refer to the procedure, then finish installing.
4-2
Page 57
Software Utility
4-3
Page 58
This Page Is Left For Note
Loading...
