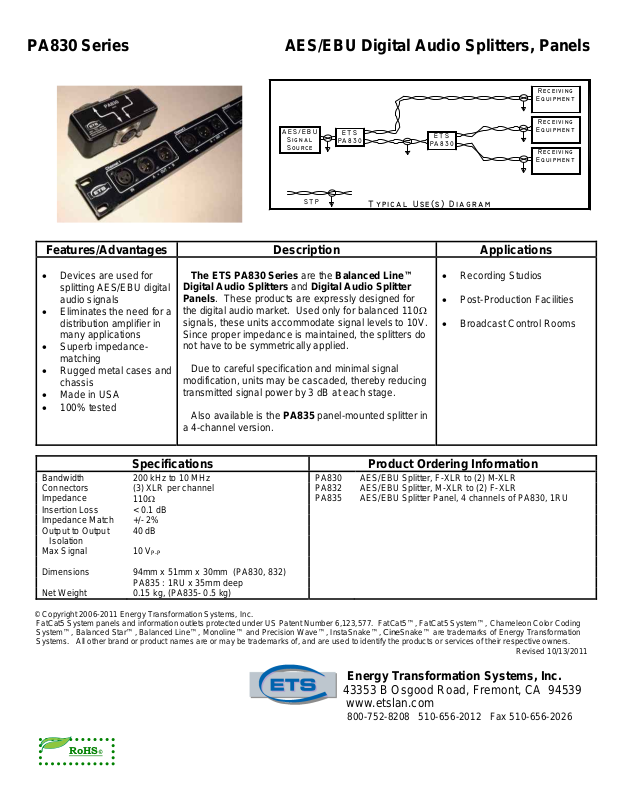

ETS PA830 User Manual

PA830 Series AES/EBU Digital Audio Splitters, Panels

AES/EBU

Signal
Source

ETS

PA830

ETS

PA830

STP

Typical Use(s) Diagram

Features/Advantages Description Applications

• Devices are used for
splitting AES/EBU digital
audio signals

• Eliminates the need for a
distribution amplifier in
many applications

• Superb impedance-
matching

• Rugged metal cases and
chassis

• Made in USA

• 100% tested

The ETS PA830 Series are the Balanced Line™
Digital Audio Splitters and Digital Audio Splitter
Panels. These products are expressly designed for

the digital audio market. Used only for balanced 110Ω
signals, these units accommodate signal levels to 10V.
Since proper impedance is maintained, the splitters do
not have to be symmetrically applied.

Due to careful specification and minimal signal
modification, units may be cascaded, thereby reducing
transmitted signal power by 3 dB at each stage.

Also available is the PA835 panel-mounted splitter in
a 4-channel version.

• Recording Studios

• Post-Production Facilities

• Broadcast Control Rooms

Specifications Product Ordering Information

Bandwidth 200 kHz to 10 MHz PA830 AES/EBU Splitter, F-XLR to (2) M-XLR
Connectors (3) XLR per channel PA832 AES/EBU Splitter, M-XLR to (2) F-XLR
Impedance
Insertion Loss < 0.1 dB
Impedance Match +/- 2%
Output to Output 40 dB
Isolation
Max Signal 10 V

Dimensions 94mm x 51mm x 30mm (PA830, 832)
PA835 : 1RU x 35mm deep
Net Weight 0.15 kg, (PA835- 0.5 kg)

© Copyright 2006-2011 Energy Transformation Systems, Inc.
FatCat5 System panels and information outlets protected under US Patent Number 6,123,577. FatCat5™, FatCat5 System™, Chameleon Color Coding
System™, Balanced Star™, Balanced Line™, Monoline™ and Precision Wave™, InstaSnake™, CineSnake™ are trademarks of Energy Transformation
Systems. All other brand or product names are or may be trademarks of, and are used to identify the products or services of their respective owners.
Revised 10/13/2011

110Ω

P-P

PA835 AES/EBU Splitter Panel, 4 channels of PA830, 1RU

Re ceiv ing

Equipment

Re ceiv ing

Equipment

Re ceiv ing

Equipment
