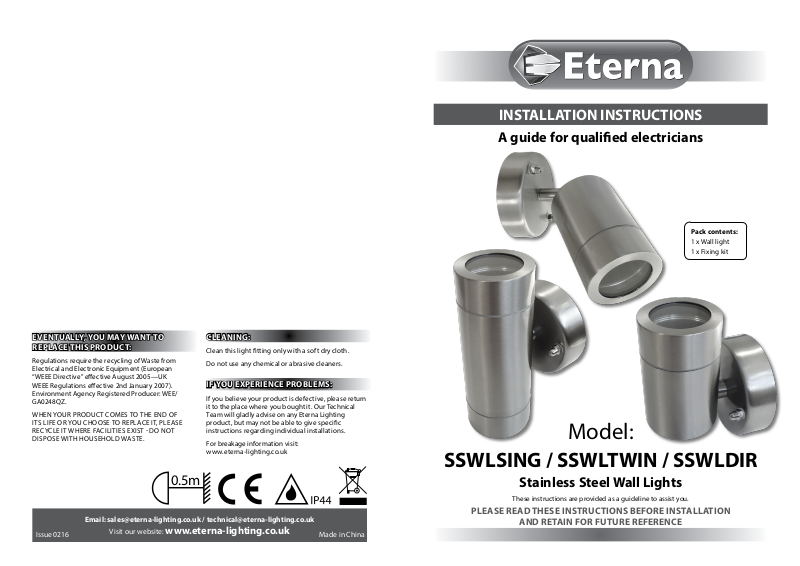

Page 1
INSTALLATION INSTRUCTIONS
A guide for qualied electricians
Pack contents:
1 x Wall light
1 x Fixing kit
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
“WEEE Directive” eective August 2005—UK
WEEE Regulations eective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUC T COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
0.5m
Email: [email protected] / [email protected]
Visit our website: www.eterna-lighting.co.uk
CLEANING:
Clean this light tting only with a soft dr y cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specic
instructions regarding individual installations.
For breakage information visit:
www.eterna-lighting.co.uk
Made in ChinaIssue 0216
Model:
SSWLSING / SSWLTWIN / SSWLDIR
Stainless Steel Wall Lights
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Page 2
READ THIS FIRST:
Check the pack and make sure you have all of the
parts listed on the front of this booklet. If not,
contact the outlet where you bought this product.
This product contains glass, care must be taken when
assembling, tting or handling to prevent personal
injury or damage to the product.
This product must be installed by a competent
person in accordance with the current building and
IEE wiring regulations.
As the buyer, installer and/or user of this product it
is your own responsibility to ensure that this tting
is t for the purpose for which you have intended
it. Eterna Lighting cannot accept any liability for
loss, damage or premature failure resulting from
inappropriate use.
This product is designed and constructed according
to the principles of the appropriate British Standard
and is intended for normal domestic ser vice. Using
this tting in any other environments may result in
a shortened working life, for example where there
is prolonged periods of use or higher than normal
ambient temperatures such as lighting public or
shared spaces or in nursing / care home facilities.
Switch o the mains before commencing installation
and remove the appropriate circuit fuse.
Suitable for indoor or outdoor use.
This product is suitable for installation on surfaces
with normal ammability e.g. wood, plasterboard,
masonry. It is not suitable for use on highly
ammable sur faces (e.g. polystyrene, textiles).
Before making xing hole(s), check that there are no
obstructions hidden beneath the mounting surface
such as pipes or cables.
The chosen location of your new tting should allow
for the product to be securely mounted and safely
connected to the mains supply (lighting circuit).
The lamp(s) must be positioned so that there is at
least 0.5M (500mm) between the lamp and any
illuminated surface. Spotlights should be positioned
well away from curtains and beds to ensure this
distance is maintained.
If the location of your new tting requires the
provision of a new electrical supply, the supply
must conform with the requirements of the Building
Regulations.
This product is designed for permanent connection
to xed wiring: this should be either a suitable
lighting circuit (protected with a 5 or 6 Amp MCB or
fuse) or a fused spur (with a 3 Amp fuse) via a fused
connection unit. We recommend that the supply
incorporates a switch for ease of operation.
Make connections to the electrical supply in
accordance with the following code:
Live - Brown or Red
Neutral - Blue or Black
Earth - Green and Yellow
This product must be connected to Earth.
IMPORTANT: always switch o at the mains before
changing the lamp.
You are advised at every stage of your installation to
double-check any electrical connections you have
made. After you have completed your installation
there are electrical tests that should be carried out:
these tests are specied in the Wiring Regulations
(BS7671) referred to in the Building Regulations.
NOTE:
This product may not be suitable for installation
close to the sea as this can lead to corrosion.
INSTALLATION:
01) Choose the location for your light tting giving
consideration to the points above.
02) Remove the two hexagonal nuts and the washers
from the front of the tting and lift out the black
wall bracket from the back.
03) Lift the terminal block o the black wall bracket.
04) Using the black wall bracket as a template, mark
the location of the xing holes on your mounting
surface.
05) Make the xing holes as appropriate to your
mounting sur face and xings.
06) Pierce the rubber grommet in the back of the wall
bracket just enough for the cable to pass through
and so that the grommet remains tight around
the cable.
07) Thread the cable through the grommet.
08) Secure the wall bracket to the wall.
09) Make the electrical connections according to the
colour code opposite.
10) Press the terminal block into place inside the
black wall bracket.
11) Check that the rubber gasket is correctly
positioned around the wall bracket and oer
the tting up to the bracket locating the two
protruding screws in the holes in the front of the
tting.
12) Position the two washers over the screws
and secure the tting in place using the two
hexagonal nuts removed earlier.
13) Fit the lamp (not supplied).
14) Adjust the head to the desired operational
position. (SSWLDIR only).
15) Restore the power and switch on.
LAMP REPLACEMENT:
Switch o the electricity at the mains. Unscrew and
remove end cover.
Twist the lamp anticlockwise and withdraw.
Replace lamp.
Re-t end cover taking great care not to damage the
silicone gaskets.
Restore the power and switch on.
REPLACEMENT LAMP TYPE:
Requires 1 x 35W Max. 240V GU10 halogen or LED
lamp (not included).
