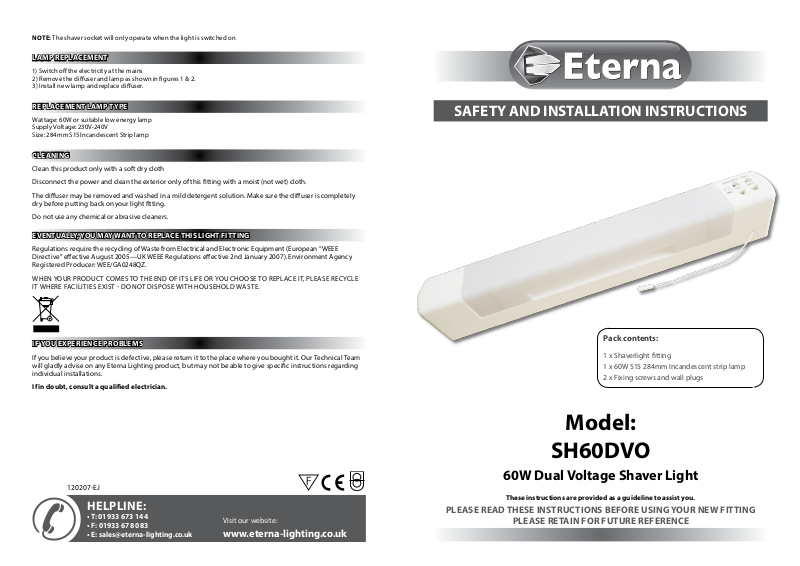

Page 1
NOTE: The shaver socket will only operate when the light is switched on
LAMP REPLACEMENT
1) Switch o the electricity at the mains
2) Remove the diuser and lamp as shown in gures 1 & 2.
3) Install new lamp and replace diuser.
REPLACEMENT LAMP TYPE
Wattage: 60W or suitable low energy lamp
Supply Voltage: 230V-240V
Size: 284mm S15 Incandescent Strip lamp
CLEANING
Clean this product only with a soft dr y cloth
Disconnec t the power and clean the exterior only of this tting with a moist (not wet) cloth.
The diuser may be removed and washed in a mild detergent solution. Make sure the diuser is completely
dry before putting back on your light tting.
Do not use any chemical or abrasive cleaners.
EVENTUALLY, YOU MAY WANT TO REPLACE THIS LIGHT FITTING
Regulations require the recycling of Waste from Electrical and Electronic Equipment (European “WEEE
Directive” eective August 2005—UK WEEE Regulations eective 2nd January 2007). Environment Agency
Registered Producer: WEE/GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF ITS LIFE OR YOU CHOOSE TO REPL ACE IT, PLEASE RECYCLE
IT WHERE FACILITIES EXIST DO NOT DISPOSE WITH HOUSEHOLD WASTE.
SAFETY AND INSTALLATION INSTRUCTIONS
IF YOU EXPERIENCE PROBLEMS
If you believe your product is defective, please return it to the place where you bought it. Our Technical Team
will gladly advise on any Eterna Lighting product, but may not be able to give specic instructions regarding
individual installations.
If in doubt, consult a qualied electrician.
120207-EJ
HELPLINE:
• T: 01933 673 144
• F: 01933 678 083
• E: [email protected]
Visit our website:
www.eterna-lighting.co.uk
Pack contents:
1 x Shaverlight tting
1 x 60W S15 284mm Incandescent strip lamp
2 x Fixing screws and wall plugs
Model:
SH60DVO
60W Dual Voltage Shaver Light
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR NEW FITTING
PLEASE RETAIN FOR FUTURE REFERENCE
Page 2
General Information
1
2
1
2
>Click<
N L
3
Mounting holes
Shaver
socket
Supply cable grip and terminal block viewed from underside of fitting
Top view of fitting without
tube and cover
5
Press these points on both sides to release
1
2
End View
4
Mounting
holes
Shaver
socket
Terminal
block viewed
from
underside of
fitting
N
L
3
Installation
READ THIS FIRST:
Check the pack and make sure you have all of the parts
listed on the front of this booklet. If not, contact the outlet
where you bought this product.
This product contains glass, care must be taken when
assembling, tting or handling to prevent personal injury
or damage to the product.
This product must be installed by a competent person
in accordance with the current building and IEE wiring
regulations.
As the buyer, installer and/or user of this product it is your
own responsibility to ensure that this product is t for the
purpose for which you have intended it. Eterna Lighting
cannot accept any liability for loss, damage or premature
failure resulting from inappropriate use.
If in any doubt, consult a qualied electrician.
This product is designed and constructed according to
the principles of the appropriate British Standard and is
intended for normal domestic service. Using this tting
in any other environments may result in a shortened
working life.
Switch o the mains before commencing installation and
remove the appropriate circuit fuse or lock o MCB.
The lamp supplied with this tting is a consumable part
and therefore may be outside of any warranty oered.
This unit is suitable for indoor use only.
This product is suitable for use in living areas, and
Bathroom dry (Outside) Zones only (see diagram below
and current IEE Wiring Regulations for details). It is not
suitable for Bathroom Zones 0, 1, 2, or other areas where
contact with moisture is likely.
If being tted in a bathroom a 30mA RCD must be
used.
Bathroom Zones Diagram
ZONE 2
ZONE 2
ZONE 1
This product is designed for permanent connection to
xed wiring: this must be a suitable circuit (protected with
the appropriate MCB or fuse).
This product is suitable for installation on surfaces with
normal ammability e.g. wood, plasterboard and masonry.
It is not suitable for use on highly ammable surfaces (e.g.
polystyrene, textiles).
Before making xing hole(s), check that there are no
obstructions hidden beneath the mounting surface such
as pipes or cables.
The chosen location of your new tting should allow for
the product to be securely mounted and safely connected
to the mains supply (lighting circuit).
Do not cover the tting.
When making connections ensure that the terminals are
tightened securely and that no strands of wire protrude.
Check that the terminals are tightened onto the bared
conductors and not onto any insulation.
This product must be connected to earth termination.
WARNING: This product becomes hot!
This product is not intended to be used by children and
persons with sensory, physical and/or mental impairments
that would prevent them from using it safely.
IMPORTANT— Always switch o and isolate mains to
the tting before changing the lamp.
You are advised at every stage of your installation to
double-check any electrical connections you have made.
After you have completed your installation there are
electrical tests that should be carried out, these tests
are specied in the current IEE wiring and building
regulations.
If in doubt, consult a qualied electrician.
225cm
INSTALLATION:
01. Remove the diuser by pressing points shown in
gure 1.
02. Remove the tube by pushing away from the pull cord
end and lifting as shown in gure 2.
03. Place the tting in the desired location and use as a
template to mark the xing points.
04. If xing directly to the wall, drill holes and use wall
plugs provided. See gure 3.
05. Lift o the back cover of the tting and thread the
supply cable through the hole in the middle.
06. Make connections to the tting. See gure 4.
07. Replace the back cover.
08. Secure the tting in place using the xings supplied,
if the xings are not suitable to your installation use
appropriate alternatives.
09. Insert the lamp and replace the diuser as shown in
gure 5. Please note the tting will not work unless the
diuser is tted.
10. Restore power and switch on.
60cm
radius
from tap
60cm240cm
ZONE 0
