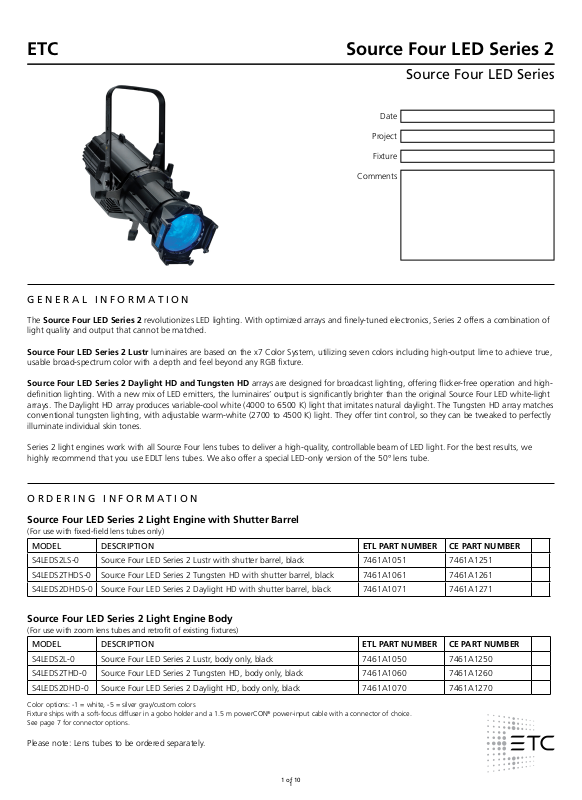

Source Four LED Series 2
Source Four LED Series
Date
Project
Fixture
Comments
GENERAL INFORMATION
The Source Four LED Series 2 revolutionizes LED lighting. With optimized arrays and finely-tuned electronics, Series 2 offers a combination of light quality and output that cannot be matched.
Source Four LED Series 2 Daylight HD and Tungsten HD arrays are designed for broadcast lighting, offering flicker-free operation and high­definition lighting. With a new mix of LED emitters, the luminaires’ output is significantly brighter than the original Source Four LED white-light arrays. The Daylight HD array produces variable-cool white (4000 to 6500 K) light that imitates natural daylight. The Tungsten HD array matches conventional tungsten lighting, with adjustable warm-white (2700 to 4500 K) light. They offer tint control, so they can be tweaked to perfectly illuminate individual skin tones.
Series 2 light engines work with all Source Four lens tubes to deliver a high-quality, controllable beam of LED light. For the best results, we highly recommend that you use EDLT lens tubes. We also offer a special LED-only version of the 50° lens tube.
ORDERING INFORMATION
Source Four LED Series 2 Light Engine with Shutter Barrel
(For use with fixed-field lens tubes only)
MODEL DESCRIPTION ETL PART NUMBER CE PART NUMBER
S4LEDS2LS-0 Source Four LED Series 2 Lustr with shutter barrel, black 7461A1051 7461A1251
S4LEDS2THDS-0 Source Four LED Series 2 Tungsten HD with shutter barrel, black 7461A1061 7461A1261
S4LEDS2DHDS-0 Source Four LED Series 2 Daylight HD with shutter barrel, black 7461A1071 7461A1271
Source Four LED Series 2 Light Engine Body
(For use with zoom lens tubes and retrofit of existing fixtures)
MODEL DESCRIPTION ETL PART NUMBER CE PART NUMBER
S4LEDS2L-0 Source Four LED Series 2 Lustr, body only, black 7461A1050 7461A1250
S4LEDS2THD-0 Source Four LED Series 2 Tungsten HD, body only, black 7461A1060 7461A1260
S4LEDS2DHD-0 Source Four LED Series 2 Daylight HD, body only, black 7461A1070 7461A1270
Color options: -1 = white, -5 = silver gray/custom colors Fixture ships with a soft-focus diffuser in a gobo holder and a 1.5 m powerCON See page 7 for connector options.
®
power-input cable with a connector of choice.
Please note: Lens tubes to be ordered separately.
1 of 10
1
ETC
PRODUCT SPECIFICATIONS
Source Four LED Series 2
Source Four LED Series
Source
LED details 60 Lumileds LUXEON® Rebel LED
Max lumens Series 2 Lustr: 8,667
Lumens per watt Series 2 Lustr: 51.9
L70 rating (hours to 70% output)
Series 2 Daylight HD: 13,060 Series 2 Tungsten HD: 11,512
Series 2 Daylight HD: 52.7 Series 2 Tungsten HD: 55.3
Lustr: 54,000 hours Daylight/Tungsten HD: >60,000 hours
Color
Colors used Series 2 Lustr: Red, Amber, Lime, green,
Color temperature range Series 2 Lustr: 2,200–6,500 K*
Calibrated array Yes
Red shift Yes (can be disabled)
*Daylight HD is best suited for CT between 4000 and 6500 K. Tungsten HD is best suited for CT between 2700 and 4500 K.
Cyan, Blue, Indigo Series 2 Daylight HD: Red, Mint, Blue, Indigo Series 2 Tungsten HD: Red, Red-Orange, Mint, Blue, Indigo
Optical
Beam angle range Swappable lens tubes between 5°–90°
Gate size 80 mm
Aperture size 6.25–14 in (depending on lens tube)
Pattern projection Ye s
Pattern size A or B
Camera flicker control/Hz range
Notes Can be used with LED CYC and Fresnel
Yes: 900–25,000 Hz
adapters
Control
Input method DMX512 via 5-pin XLR
Protocols DMX512/RDM
Modes (footprint) See page 8
RDM configuration Yes
UI type LCD
Local control Ye s
Onboard presets Yes
Onboard sequences Yes
Onboard effects No
Fixture-to-fixture control Yes
Notes 15-bit virtual dimming engine
ETC utilizes a nationally recognized 3rd party lab for luminaire testing according to IES LM-84. See etcconnect.com/About/News/ETC-Fixture­Ratings-and-Warranties-Extended.aspx.
All LED sources experience some lessening of light output and some color shift over time. LED output will vary with thermal conditions. In individual situations, LEDs will be used for different durations and levels. This can eventually lead to minor alterations in color performance, necessitating slight adjustments to presets, cues or programs.
Electrical
Voltage range 100–240 VAC 50/60 Hz
Input method Neutrik powerCON in and thru,
Inrush 50 A at 120 V (First half-cycle)
Fixtures per circuit 9 (15 A via power thru connector)
Wattage typical Series 2 Lustr: 167
Current draw Series 2 Lustr:
requires power from a non-dimmable source
107 A at 240 V (First half-cycle)
10 (R20 via module or similar relay)
Series 2 Daylight HD: 248 Series 2 Tungsten HD: 208
1.44 A at 120 V
0.78 A at 240 V
Series 2 Daylight HD:
1.75 A at 120 V
0.93 A at 240 V Series 2 Tungsten HD:
2.08 A at 120 V
0.93 A at 240 V
Thermal
Ambient operating temp 0°–40° C (32°–104° F)
Fan (controllable) Yes (yes)
Droop compensation Yes
dB range 22.5 dBA average at 1 m
BTUs/hour Series 2 Lustr: 569
Series 2 Daylight HD: 846 Series 2 Tungsten HD: 709
Physical
Materials Die-cast, all metal housing
Color options Black, white, silver, or custom color
Mounting options Yoke, cyc floor stand (sold separately)
IP rating IP20
Weight With barrel: 8.3 kg (18.3 lb)
Included accessories Hanging yoke, 1.5 m power cable, soft-
Notes - Positive locking double-clutch fixture
*(not included with CE fixtures)
Without barrel: 6.5 kg (14.3 lb)
focus diffuser in an A-size gobo holder, gel frame, c-clamp*
body
- Slot for glass or stainless steel patterns and soft focus diffuser
- Wide accessory slot with sliding cover for motorized pattern device or iris
Warranty
Fixture 5 years
LED array 10 years
Regulatory and Compliance
Approved regulatory standards
cETLus Listed Conforms to UL1573 Certified to C22.2 C22.#166 CE Compliant
2
ETC
PRODUCT FEATURES
Source Four LED Series 2
Source Four LED Series
BROAD SPECTRUM COLOR
Interacts seamlessly with conventional sources. Beautifully illuminates skin tones
MULTIPLE LED ARRAY OPTIONS
Available array options include Lustr,
Daylight HD, and Tungsten HD. and other objects for natural appearance and high color rendering.
COLOR METRIC INFORMATION
SOURCE FOUR LED SERIES 2 LUSTR 3200 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
3
98
R
g
2
1
16
15
14
D
uv
0.0000
93
R
f
7
8
9
10
CCT
3201 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
40%
)
30%
cs,hj
20%
10%
0%
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-1%
-2%
-4%
0.01
0.01
0.01
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-1%
-2%
-4%
0.01
0.00
-0.02
Hue-Angle Bin (j)
-4%
0.02
2%
1%
0%
0.04
0.03
0.03
USER-FRIENDLY CONTROL INTERFACE
With multiple modes and fixture settings including color mixing as ‘hue, saturation, brightness’ or ‘RGB.’
5%
3%
0%
0%
-3%
-5%
0.01
-0.08
-0.06
-0.09
-0.12
-0.12
3
ETC
COLOR METRIC INFORMATION
SOURCE FOUR LED SERIES 2 LUSTR 4500 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
3
99
R
g
2
1
16
15
14
D
uv
0.0001
93
R
f
7
8
9
10
CCT
4503 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
Source Four LED Series 2
40%
)
30%
cs,hj
20%
10%
0%
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-1%
-1%
-4%
0.01
0.01
0.01
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-1%
-2%
-0.02
-2%
-3%
0.02
0.01
-0.01
Hue-Angle Bin (j)
1%
1%
-1%
0.05
0.03
0.03
Source Four LED Series
4%
3%
3%
1%
-1%
-4%
0.01
-0.03
-0.04
-0.11
-0.04
-0.11
SOURCE FOUR LED SERIES 2 LUSTR 5600 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
100
3
R
g
2
1
16
15
14
D
uv
0.0000
94
R
f
7
8
9
10
CCT
5591 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
40%
)
30%
cs,hj
20%
10%
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
0%
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
0%
-1%
-3%
0.01
0.01
0.00
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-1%
-1%
-0.02
-1%
-3%
0.02
0.01
-0.01
2%
2%
0%
0.05
0.03
0.03
Hue-Angle Bin (j)
4%
3%
3%
2%
0%
-2%
0.02
0.00
-0.04
-0.05
-0.09
-0.12
4
ETC
COLOR METRIC INFORMATION
SOURCE FOUR LED SERIES 2 DAYLIGHT 3200 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
105
3
R
g
2
1
16
15
14
D
uv
0.0000
93
R
f
7
8
9
10
CCT
3201 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
Source Four LED Series 2
40%
)
30%
cs,hj
20%
10%
4%
4%
1%
-1%
-2%
0.02
0.00
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-0.01
-0.03
-0.04
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
0%
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
4%
3%
0.05
3%
3%
0.04
2%
0.01
0.00
-0.01
Hue-Angle Bin (j)
Source Four LED Series
4%
2%
2%
0.02
-0.05
-0.07
6%
3%
3%
0.02
0.01
-0.05
SOURCE FOUR LED SERIES 2 DAYLIGHT 4500 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
100
3
R
g
2
1
16
15
14
D
uv
0.0001
92
R
f
7
8
9
10
CCT
4503 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
40%
)
30%
cs,hj
20%
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
10%
0%
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
1%
0%
0%
0.01
0.00
-0.01
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-1%
-2%
-0.01
-3%
-4%
0.02
0.02
0.00
0%
-1%
-1%
0.08
0.08
0.04
Hue-Angle Bin (j)
4%
3%
0.05
-0.01
5%
3%
0%
0%
0.01
-0.05
-0.02
-0.06
5
ETC
COLOR METRIC INFORMATION
SOURCE FOUR LED SERIES 2 DAYLIGHT 5600 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
3
98
R
g
2
1
16
15
14
D
uv
0.0000
91
R
f
7
8
9
10
CCT
5591 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
Source Four LED Series 2
40%
)
30%
cs,hj
20%
10%
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
0%
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
0%
-1%
-2%
0.01
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-2%
-3%
-4%
-5%
0.01
0.00
0.00
0.02
0.00
0.00
Hue-Angle Bin (j)
0%
-2%
-4%
0.11
0.10
0.06
Source Four LED Series
4%
3%
0.06
-0.03
5%
3%
0%
-2%
0.00
-0.03
-0.06
-0.09
SOURCE FOUR LED SERIES 2 TUNGSTEN 3200 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
105
3
R
g
2
1
16
15
14
D
uv
0.0000
93
R
f
7
8
9
10
CCT
3201 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
40%
)
30%
cs,hj
20%
10%
4%
4%
1%
-1%
-1%
0.02
0.00
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-0.01
-0.03
-0.04
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
0%
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
4%
3%
0.05
3%
3%
0.04
2%
0.01
0.00
-0.01
Hue-Angle Bin (j)
4%
2%
2%
0.02
-0.04
-0.06
6%
3%
3%
0.02
0.01
-0.04
6
ETC
COLOR METRIC INFORMATION
SOURCE FOUR LED SERIES 2 TUNGSTEN 4500 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
100
3
R
g
2
1
16
15
14
D
uv
0.0001
93
R
f
7
8
9
10
CCT
4503 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
Source Four LED Series 2
40%
)
30%
cs,hj
20%
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
10%
0%
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
1%
0%
-1%
0.01
0.00
-0.01
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-2%
-2%
-0.01
-3%
-4%
0.02
0.01
0.00
0%
-1%
-2%
0.08
0.08
0.04
Hue-Angle Bin (j)
Source Four LED Series
4%
3%
0.05
-0.01
5%
3%
0%
0%
0.01
-0.05
-0.02
-0.06
SOURCE FOUR LED SERIES 2 TUNGSTEN 5600 K TM-30-18
ANSI/IES TM-30-18 Color Rendition Report
-20%
+20%
45
3
98
R
g
2
1
16
15
14
D
uv
0.0000
91
R
f
7
8
9
10
CCT
5591 K
6
11
12 13
Colors are for visual orientati on purposes only. Created with the ANSI/IES TM -30-18 Calculator Versio n 2.00.
40%
)
30%
cs,hj
20%
10%
-10%
-20%
-30%
Local Chroma Shift (R
-40%
)
hs,hj
Local Hue Shift (R
0%
0.5
0.4
0.3
0.2
0.1
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
0%
-1%
-2%
0.01
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
-2%
-3%
-4%
-5%
0.01
0.00
0.00
0.01
0.00
0.00
0%
-2%
-4%
0.11
0.10
0.06
Hue-Angle Bin (j)
4%
3%
0.06
-0.02
5%
3%
0%
-2%
0.00
-0.03
-0.06
-0.09
7
ETC
84
86
88
90
92
94
96
98
2700 3200 3700 4200 4700 5200 5700 6200
Tungsten HD Daylight HD
Source Four LED Series 2
Source Four LED Series
FIXTURE COMPARISON - DAYLIGHT HD AND TUNGSTEN HD
The data below was measured on a Source Four LED Series 2 Daylight HD and Tungsten HD against a Source Four LED Series 1 Studio HD, Studio Daylight and Studio Tungsten. All in Regulated mode.
10000
9000
8000
7000
LUMENS
6000
5000
4000
Series 2 Daylight HD
Series 2Tungsten HD
Studio Daylight
Studio Tungsten
Series 1 Studio HD
Series 1 Studio HD
2700 3200 37004200 4700 5200 5700 6200
COLOR TEMPERATURE
CRI
COLOR TEMPERATURE
8
ETC
PREFERRED LENSING OPTIONS
(Lenses sold separately)
Fixed Beam Lenses
MODEL DESCRIPTION PART NUMBER
LED50LT LED-specific 50° EDLT with lenses installed 7460A2008
LED50LT-1 LED-specific 50° EDLT (white) with lenses installed 7460A2008-1
436EDLT 36° EDLT w/lens installed 7060A2048
436EDLT-1 36° EDLT (white) w/lens installed 7060A2048-1
426EDLT 26° EDLT w/lens installed 7060A2047
426EDLT-1 26° EDLT (white) w/lens installed 7060A2047-1
419EDLT 19° EDLT w/lens installed 7060A2046
419EDLT-1 19° EDLT (white) w/lens installed 7060A2046-1
490LT 90° w/lens installed 7060A2052-K
490LT-1 90° (white) w/lens installed 7060A2052-1K
470LT 70° w/lens installed 7060A2051-K
470LT-1 70° (white) w/lens installed 7060A2051-1K
414LT 14° w/lens installed 7060A2050-K
414LT-1 14° (white) w/lens installed 7060A2050-1K
410LT 10° w/lens installed 7060A2001-K
410LT-1 10° (white) w/lens installed 7060A2001-1K
405LT 5° w/lens installed 7060A2000-K
405LT-1 5° (white) w/lens installed 7060A2000-1K
Zoom Lens Assemblies
Use with light-engine body models.
MODEL DESCRIPTION PART NUMBER
41530LT Source Four 15–30° Zoom lens assembly 7060A2030-K
42550LT Source Four 25–50° Zoom lens assembly 7060A2032-K
Source Four LED Series 2
Source Four LED Series
LED Adapters
MODEL DESCRIPTION PART NUMBER
S4LEDCYC LED Cyc adapter 7460A2011
S4LEDFRES LED Fresnel adapter 7460A2016
CRI AND CQS RATINGS
Source Four LED fixtures were evaluated for CRI and CQS performance using measured output spectrum and optimized mix solutions for a best spectral match to black body sources at 3200 K and 5600 K.
FIXTURE CRI CQS COLOR FIDELITY DUV
Source Four LED Series 2 Lustr Reg at 3200 K 86 88 88 0
Source Four LED Series 2 Lustr Reg at 5600 K 90 91 91 0
Source Four LED Series 2 Tungsten HD Reg at 3200 K 94 91 91 0.002
Source Four LED Series 2 Daylight HD Reg at 5600 K 91 89 88 0.002
All Source Four LED luminaire versions provide excellent color rendering to the eye, particularly at higher color temperature settings, such as 5600 K. In most cases, the Duv is 0.000. A Duv rating of 0.000 indicates that the color mix used is exactly on the black body line, with no green or magenta tint.
9
ETC
Source Four LED Series 2
Source Four LED Series
ADDITIONAL ORDERING INFORMATION
Fixture Accessories
MODEL DESCRIPTION PART NUMBERS
400CC C-Clamp (included) 7060A2009 (not CE)
400SC Safety cable 7060A1022
400PH-A Pattern holder (A size) 7060A1013
400PH-B Pattern holder (B size) 7060A1014
400PH-G Glass pattern holder 7060A1019
400RS Drop-In Iris 7060A1012
400CF Color frame (6.25 in) 7060A3043
407CF 7.5 in square color frame 7061A3007
400DN Donut 7060A1015
400TH Top hat PSF1021
400HH Half hat PSF10216
DPSJ-X 25 ft PowerCON to Edison
input power cable with inline switch 7400B7030 (not CE)
Power Input Cables
Use information below to order 5 ft power input leads with factory-fitted connectors. CE fixtures ship with powerCON to bare end cable in the box.
MODEL DESCRIPTION PART NUMBERS
DPA-A 5 ft PowerCON to parallel blade U-ground (Edison) connector 7410B7037-A
DPA-B 5 ft PowerCON to 20 A two-pin and ground (stage pin) connector 7410B7037-B
DPA-C 5 ft PowerCON to grounded 20 A twistlock connector 7410B7037-C
DPA-X 5 ft PowerCON to bare-end power input lead 7410B7037-X
Power Thru Jumpers (not available for CE fixtures)
Note: Power thru jumpers connect to fixture’s output (thru) connector to provide link to successive fixtures
MODEL DESCRIPTION PART NUMBERS
DPJ-5 5 ft PowerCON-to-PowerCON
DPJ-10 10 ft PowerCON-to-PowerCON
fixture-to-fixture jumper 7410B7020
fixture-to-fixture jumper 7410B7010
Diffusers
MODEL DESCRIPTION PART NUMBERS
S4LED-SFD Source Four LED - Soft focus diffuser (included) 7460A4019
S4LED-SWD6 Source Four LED - Smooth wash diffuser for 6.25 in gel frame slots 7460K1001
S4LED-SWD7 Source Four LED - Smooth wash diffuser for 7.5 in gel frame slots 7460K1002
S4LED-SWD12 Source Four LED - Smooth wash diffuser for 10° lens tubes 7460K1003
S4LED-SWD14
The Soft Focus Diffuser fits into a standard A-Size pattern holder and delivers beautiful homogenized light when not in sharp focus. Also, use with patterns for dappled and soft-edge projections.
The Smooth Wash Diffuser is used when extra-smooth blending of multiple Source Four LED fixtures is required. The smooth wash diffuser is placed into the gel-frame slot of the lens tube.
Source Four LED - Smooth wash diffuser for 5° lens tubes 7460K1004
10
ETC
Source Four LED Series 2
Source Four LED Series
CONTROL OPTIONS
User settings on Source Four LED Series 2 fixtures allow multiple operational modes and settings for either console operation via DMX protocol or stand-alone operation. The expanded LCD display provides easy navigation to all possible settings and options. Some of the setting options are:
• Multiple DMX choices ranging from a simple RGB profile – which effectively controls all seven LED colors via three channels – to nine-channel ‘direct’ color and intensity control
• Multiple dimming curve options
• Preset colors and sequences for stand-alone (no console required) operation
• White point selection: white light and color behavior based on a specific color-temperature white light, i.e. 3200 K, 5600 K, etc.
• Loss of data behavior options – instant off, hold last look for two minutes, etc.
• Output modes – three output options that offer you a choice between maximum output and maximum consistency
See the user manual for a complete explanation of all of the control settings and options for the Source Four LED Series 2.
To assist in managing the numerous control and fixture behavior choices, five combinations of operational settings are available to quickly get started. These settings are specifically created for different applications and are easily accessible at the fixture display. Each setting can then be modified as required to take advantage of all of the possible control features.
Setting
Title
General Direct Factory Default:
Stage HSI
XT Arch HSI Exterior architectural lighting:
High Impact
Studio Studio Studio factory default:
*See user manual for complete list of features for each Quick Setup
Profile Description Typical Features*
For general-purpose use, including interior architectural applications
Plus 7 Enabled
RGB Event lighting:
Theatrical lighting: Duplicates the color and dimming behavior of tungsten stage lighting fixtures
Provides a high degree of color consistency in high ambient temperature environments
Enables quickest response, simple RGB control and strobe channel for maximum effect usage
Enables three-parameter control of white light (intensity, white point, and tint) via DMX from console or console-free from fixture display
• Standard dimming curve
• Regulated output for color consistency
• Incandescent dimming curve
• Regulated output for color consistency
• 3200 K white-point setting
• Standard dimming curve
• Protected output
• 3200 K white-point setting
• Quick dimming curve
• Boost mode for maximum intensity
• 5600 K white-point setting
• Linear dimming curve
• Regulated output mode for color consistency
LUSTR CONTROL OPTIONS
DMX Input Channel Profiles
DMX
Profile
Direct 10 1 – Red
HSI 6 1 – Hue (coarse)
HSIC 7 1 – Hue (coarse)
RGB 6
Studio 6
ADDITIONAL PROFILE OPTIONS
Plus 7 Seven additional color-control channels are available in
Strobe Variable strobe control: 0% is no strobe. The fixture
DMX
Channels
(Ch. 4
not used)
(Ch. 4
not used)
Channel
Assignments
Direct control of each individual 2 – Lime 3 – Amber 4 – Green 5 – Cyan 6 – Blue 7 – Indigo 8 – Intensity 9 – Strobe 10 – Fan Control
2 – Hue (fine) 3 – Saturation 4 – Intensity 5 – Strobe 6 – Fan Control
2 – Hue (fine) 3 – Saturation 4 – Intensity 5 – Strobe 6 – Fan Control 7 – Color Point (CCT)
1 – Red 2 – Green 3 – Blue 4 – n/a 5 – Strobe 6 – Fan Control
1 – Intensity 2 – Color Point (CCT) 3 – Tint 4 – n/a 5 – Strobe 6 – Fan Control
RGB, HSI and HSIC input-profile settings. For example, HSI with ‘Plus 7’ enabled becomes a 15-channel profile:
1 – Hue (coarse) 2 – Hue (fine) 3 – Saturation 4 – Intensity 5 – Strobe 6 – Fan Control 7 – n/a 8 – Plus 7 Control on/off 9 – Red 10 – Lime 11 – Amber 12 – Green 13 – Cyan 14 – Blue 15 – Indigo
output will strobe more rapidly as the strobe channel value approaches 100%.
color with a separate master-
intensity channel. Color calibration
of LEDs is not active in this mode.
This profile will produce additive
color crossfades.
High-resolution hue (two channels),
saturation, and intensity control.
HSI mode will produce color
crossfades around the color space.
High-resolution hue, saturation and
intensity control as above, with the
addition of a color- point channel to
adjust the color temperature of the
fixture in both white light and color.
Color crossfade performance is the
same as HSI.
Effectively addresses all seven colors
via three channels of control. RGB
profile will produce additive color
crossfades.
Controls fixture as a white light
unit. If no DMX, (console input,
for example), is present, the fixture
can be adjusted for these three
parameters on the user interface at
the back of the unit.
The desired color and intensity
is achieved by using the HSI or RGB
channels
Placing channel eight at a value
over 51% gives the fixture a
15-channel profile
Channels 9–15 represent the
native colors of the fixture and
allow the operator to adjust
individual color channels to fine
tune the color output
Notes
11
ETC
Source Four LED Series 2
Source Four LED Series
DAYLIGHT HD CONTROL OPTIONS
DMX Input Channel Profiles
DMX
Profile
Studio 6
Direct 10 1 – Red
HSI 6 1 – Hue (coarse)
HSIC 7 1 – Hue (coarse)
RGB 6
ADDITIONAL PROFILE OPTIONS
Plus 7 Seven additional color-control channels are available in
Strobe Variable strobe control: 0% is no strobe. The fixture
DMX
Channels
(Ch. 4
not used)
(Ch. 4
not used)
Channel
Assignments
1 – Intensity 2 – Color Point (CCT) 3 – Tint 4 – n/a 5 – Strobe 6 – Fan Control
2 – Mint 3 – Blue 4 – Indigo 5 – Intensity 6 – Strobe 7 – Fan Control
2 – Hue (fine) 3 – Saturation 4 – Intensity 5 – Strobe 6 – Fan Control
2 – Hue (fine) 3 – Saturation 4 – Intensity 5 – Strobe 6 – Fan Control 7 – Color Point (CCT)
1 – Red 2 – Green 3 – Blue 4 – n/a 5 – Strobe 6 – Fan Control
RGB, HSI and HSIC input-profile settings. For example, HSI with ‘Plus 7’ enabled becomes a 15-channel profile:
1 – Intensity 2 – Color Temp 3 – Tint 4 – NA 5 – Strobe 6 – Fan 7 – NA 8 – Plus 7 Control on/off 9 – Red 10 – NA 11 – Mint 12 – Blue 13 – Indigo 14 – NA 15 – NA
output will strobe more rapidly as the strobe channel value approaches 100%.
Controls fixture as a white light unit. If no DMX, (console input, for example), is present, the fixture can be adjusted for these three parameters on the user interface at the back of the unit.
Direct control of each individual color with a separate master­intensity channel. Color calibration of LEDs is not active in this mode. This profile will produce additive color crossfades.
High-resolution hue (two channels), saturation, and intensity control. HSI mode will produce color crossfades around the color space.
High-resolution hue, saturation and intensity control as above, with the addition of a color- point channel to adjust the color temperature of the fixture in both white light and color. Color crossfade performance is the same as HSI.
Effectively addresses all seven colors via three channels of control. RGB profile will produce additive color crossfades.
The desired color and intensity is achieved by using the HSI or RGB channels
Placing channel seven at a value over 51% gives the fixture a 15-channel profile
Channels 9-15 represent the native colors of the fixture and allow the operator to adjust individual color channels to fine tune the color output
Notes
TUNGSTEN HD CONTROL OPTIONS
DMX Input Channel Profiles
DMX
Profile
Studio 6
Direct 10 1 – Red
HSI 6 1 – Hue (coarse)
HSIC 7 1 – Hue (coarse)
RGB 6
ADDITIONAL PROFILE OPTIONS
Plus 7 Seven additional color-control channels are available in
Strobe Variable strobe control: 0% is no strobe. The fixture
DMX
Channels
(Ch. 4
not used)
(Ch. 4
not used)
Channel
Assignments
1 – Intensity 2 – Color Point (CCT) 3 – Tint 4 – n/a 5 – Strobe 6 – Fan Control
2 – Red Orange 3 – Mint 4 – Blue 5 – Indigo 6 – Intensity 7 – Strobe 8 – Fan Control
2 – Hue (fine) 3 – Saturation 4 – Intensity 5 – Strobe 6 – Fan Control
2 – Hue (fine) 3 – Saturation 4 – Intensity 5 – Strobe 6 – Fan Control 7 – Color Point (CCT)
1 – Red 2 – Green 3 – Blue 4 – n/a 5 – Strobe 6 – Fan Control
RGB, HSI and HSIC input-profile settings. For example, HSI with ‘Plus 7’ enabled becomes a 15-channel profile:
1 – Intensity 2 – Color Temp 3 – Tint 4 – NA 5 – Strobe 6 – Fan 7 – NA 8 – Plus 7 Control on/off 9 – Red 10 – Orange 11 – Mint 12 – Blue 13 – Indigo 14 – NA 15 – NA
output will strobe more rapidly as the strobe channel value approaches 100%.
Controls fixture as a white light unit. If no DMX, (console input, for example), is present, the fixture can be adjusted for these three parameters on the user interface at the back of the unit.
Direct control of each individual color with a separate master­intensity channel. Color calibration of LEDs is not active in this mode. This profile will produce additive color crossfades.
High-resolution hue (two channels), saturation, and intensity control. HSI mode will produce color crossfades around the color space.
High-resolution hue, saturation and intensity control as above, with the addition of a color- point channel to adjust the color temperature of the fixture in both white light and color. Color crossfade performance is the same as HSI.
Effectively addresses all seven colors via three channels of control. RGB profile will produce additive color crossfades.
The desired color and intensity is achieved by using the HSI or RGB channels
Placing channel seven at a value over 51% gives the fixture a 15-channel profile
Channels 9-15 represent the native colors of the fixture and allow the operator to adjust individual color channels to fine tune the color output
Notes
12
ETC
Source Four LED Series 2
Source Four LED Series
PHOTOMETRY
The Source Four LED Photometry Guide and complete IES photometry data files may be downloaded from the ETC website. Go to http://www.etcconnect.com
PHYSICAL
WEIGHT SHIPPING WEIGHT
lb kg lb kg
With Barrel 18.3 8.3 28 12.7
Without Barrel 14.3 6.5 23 10.4
*Does not include mounting hardware or lens tube
10.6in
268mm
7.9in
200mm
17.1in
434mm
12.1in
308mm
10.8in
274mm
24.8in
631mm
24.2in
615mm
6.9in
174mm
13.3in
338mm
Corporate Headquarters l Middleton, WI USA Global Offices
Copyright©2020 ETC. All Rights Reserved. All product information and specifications subject to change. Rev K 1/20
Trademark and patent info: etcconnect.com/IP
etcconnect.com
l
London, UK
l
Rome, IT
l
Holzkirchen, DE
l
Paris, FR
l
Hong Kong
l
Dubai, UAE
13
l
Singapore
l
New York, NY
l
Orlando, FL
l
Los Angeles, CA
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
