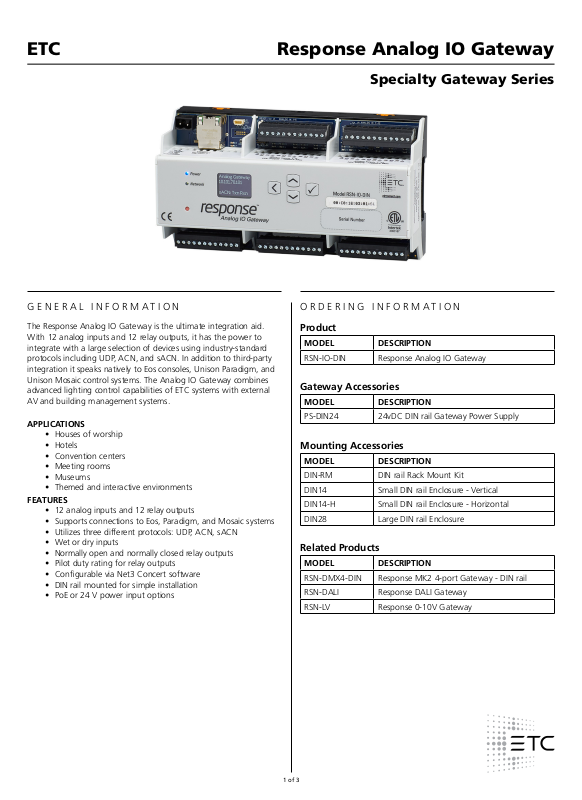

Response Analog IO GatewayETC
Specialty Gateway Series
GENERAL INFORMATION
The Response Analog IO Gateway is the ultimate integration aid.
With 12 analog inputs and 12 relay outputs, it has the power to
integrate with a large selection of devices using industry-standard
protocols including UDP, ACN, and sACN. In addition to third-party
integration it speaks natively to Eos consoles, Unison Paradigm, and
Unison Mosaic control systems. The Analog IO Gateway combines
advanced lighting control capabilities of ETC systems with external
AV and building management systems.
APPLICATIONS
• Houses of worship
• Hotels
• Convention centers
• Meeting rooms
• Museums
• Themed and interactive environments
FEATURES
• 12 analog inputs and 12 relay outputs
• Supports connections to Eos, Paradigm, and Mosaic systems
• Utilizes three different protocols: UDP, ACN, sACN
• Wet or dry inputs
• Normally open and normally closed relay outputs
• Pilot duty rating for relay outputs
• Configurable via Net3 Concert software
• DIN rail mounted for simple installation
• PoE or 24 V power input options
ORDERING INFORMATION
Product
MODEL DESCRIPTION
RSN-IO-DIN Response Analog IO Gateway
Gateway Accessories
MODEL DESCRIPTION
PS-DIN24 24vDC DIN rail Gateway Power Supply
Mounting Accessories
MODEL DESCRIPTION
DIN-RM DIN rail Rack Mount Kit
DIN14 Small DIN rail Enclosure - Vertical
DIN14-H Small DIN rail Enclosure - Horizontal
DIN28 Large DIN rail Enclosure
Related Products
MODEL DESCRIPTION
RSN-DMX4-DIN Response MK2 4-port Gateway - DIN rail
RSN-DALI Response DALI Gateway
RSN-LV Response 0-10V Gateway
1 of 3
Response Analog IO GatewayETC
Specialty Gateway Series
SPECIFICATIONS
FUNCTIONAL
• Integrates with Eos, Paradigm, Mosaic and third party systems
• 12 analog inputs (contact closure or 0-10V) capable of triggering:
- ACN messages including contact state or analog control
- User defined UDP messages on change from high to low, or low to high, of a 0-10V input
- sACN level controlled mapped from a 0-10V input
• 12 low voltage relay outputs controlled by:
- ACN messages
- UDP messages
- sACN levels
• Parameter configuration of each input and output via Net3 Concert software
• On board screen displays status of all inputs and outputs
• Supports connection of multiple gateways for integration network tunnelling without the need for an additional controller
MECHANICAL
• Intuitive four-button interface
• Onboard display for identification, status and configuration
• Molded plastic enclosure
• Network and power activity indicators
- Blue power indicator
- Green network activity indicator
• Female RJ45 for connection to lighting network
• Pluggable terminals provided for all wiring connections
• 9 unit DIN enclosure
• Mounting complies with DIN43880 (35/7.5 rail)
ELECTRICAL
• Compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX
• Powered using 802.3af for Power over Ethernet
- Optional 12-24 VDC power input for use with non-PoE systems
ANALOG INPUTS
• Two pluggable rising clamp screw terminal connectors with 6 analog inputs per terminal
- Terminal connectors support in and common per input
- Analog inputs can sense between 0–10 V (10 V, 100 mA per gateway utility supply provided)
- Wet or dry contact closure per input
CONTACT OUTPUTS
• Three pluggable rising clamp screw terminal connectors with 4 relay outputs per terminal
- Normally open “N.O.”, normally closed “N.C.”, and common “COM” connectors
- Each output is rated for 0.5 A @ 30 VDC/VAC
• Pilot duty rated
• Single-pole double-throw relays
THERMAL
• Ambient temperature: 0–40° C / 32–104° F
• Ambient humidity: 5–95% non-condensing
REGULATORY AND COMPLIANCE
• cETLus Listed
• CE Compliant
• RoHS Compliant
• WEEE
2 of 3
Response Analog IO GatewayETC
DESCRIPTION
QTY.
Network
Power
Analog IO Gateway
TM
Model RSN-IO-DIN
etcconnect.com
3060167
Intertek
C
US
Ethernet
10/100BaseT
PoE Class 2
DC In
12-24VDC
1A-Max
Polarity
Independant
Analog Inputs 1-6
10V Supply - 100mA Max
+10V
IN6
COM
IN5
+10V
IN4
COM
IN3
+10V
IN2
COM
IN1
Analog Inputs 7-12
10V Supply - 100mA Max
+10V
IN12
COM
IN11
+10V
IN10
COM
IN9
+10V
IN8
COM
IN7
Ethernet
10/100BaseT
PoE Class 2
DC In
12-24VDC
1A-Max
Polarity
Independant
Analog Inputs 1-6
10V Supply - 100mA Max
0V
IN6
COM
IN5
+10V
IN4
COM
IN3
+10V
IN2
COM
IN1
Analog Inputs 7-12
10V Supply - 100mA Max
IN12
COM
IN11
+10V
IN10
COM
IN9
+10V
IN8
COM
IN7
V
PHYSICAL
Product Dimensions
MODEL HEIGHT WIDTH DEPTH WEIGHT
in mm in mm in mm lb kg
RSN-IO-DIN 2.39 61 6.36 162 3.53 90 0.22 0.10
RSN-IO-DIN
Power
Network
Model RSN-IO-DIN
TM
Analog IO Gateway
etcconnect.com
C US
Intertek
3060167
Specialty Gateway Series
Corporate Headquarters l Middleton, WI USA
Global Offices l London, UK l Rome, IT l Holzkirchen, DE l Paris, FR l Hong Kong l Singapore l New York, NY l Orlando, FL l Burbank, CA
Copyright©2019 ETC. All Rights Reserved. All product information and specifications subject to change. Rev B 08/19
Trademark and patent info: etcconnect.com/IP
etcconnect.com
3 of 3
